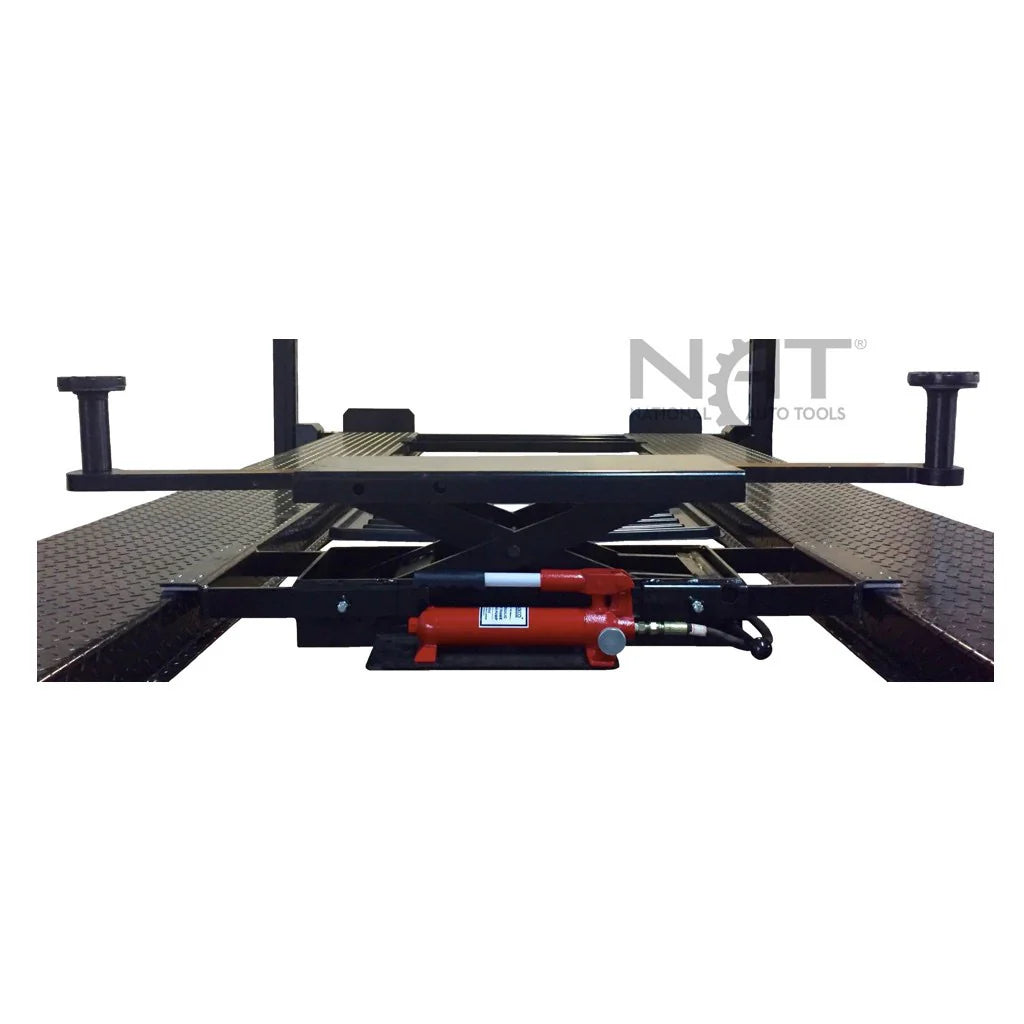

Triumph SJ-35 sliding bridge jack mounted across four-post lift runways with red hydraulic hand pump

Triumph SJ-35 3,500 lb Sliding Bridge Jack

Name: Triumph SJ-35 3,500 lb Sliding Bridge Jack
Brand: Triumph
SKU: SJ-35 SLIDING BRIDGE JACK
Price: 975.0 USD
Availability: InStock

SKU SJ-35 SLIDING BRIDGE JACK

In Stock

$975.00 - $1,195.00

$975.00

$975.00 - $1,195.00

$975.00

Warehouse Pickup Location

1659 Watkins Rd, Columbus, OH 43207 Directions ↗ 5217 Azle Ave, Fort Worth, TX 76114 Directions ↗ 2711 E Craig Rd, Suite E, North Las Vegas, NV 89030 Directions ↗

*Subject to Availability - Call/Text Email to confirm (1-307-381-1810; sales@mygaragesupplies.com)

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

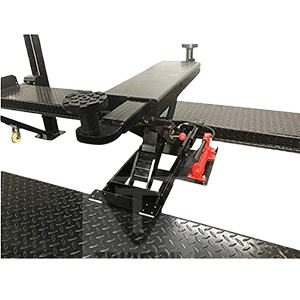

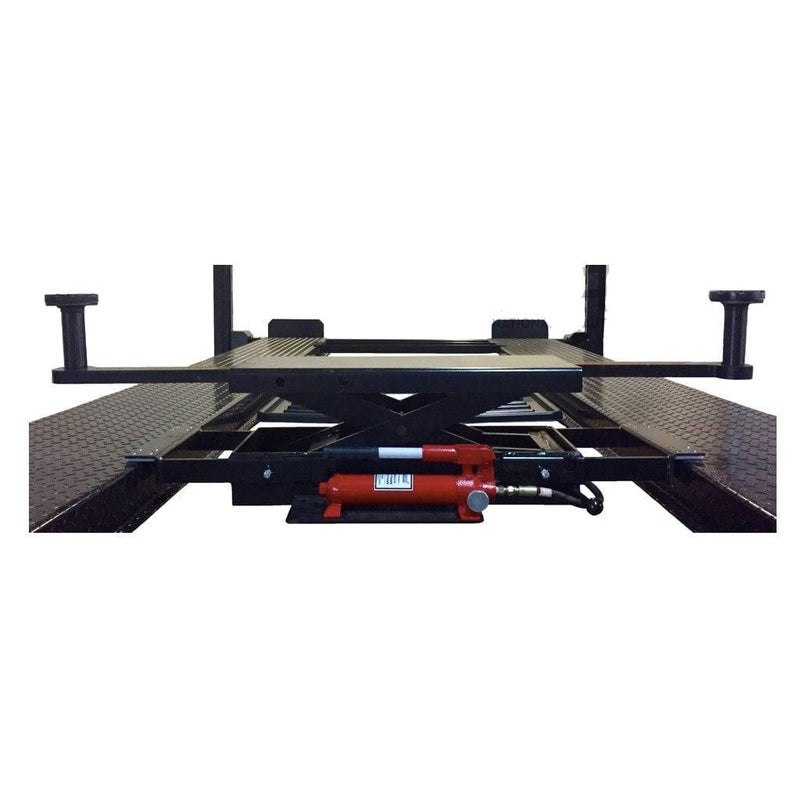

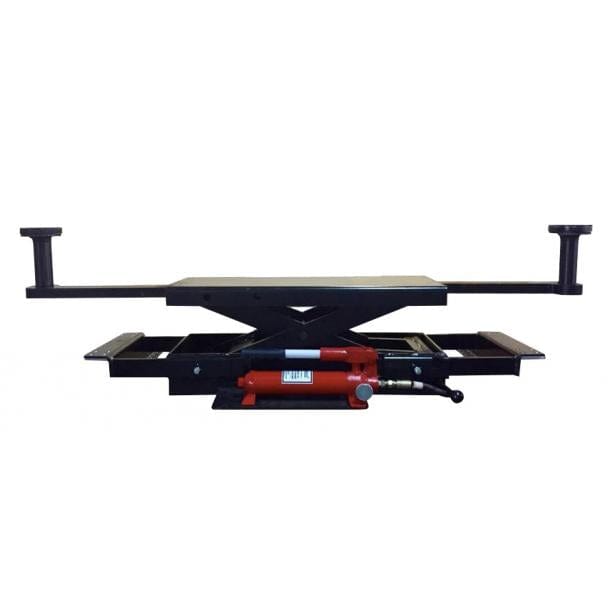

The Triumph SJ-35 sliding bridge jack is a 3,500-lb-capacity jack that turns the open center of a Triumph service-and-storage four-post lift into a wheels-free work station. It rides on the lift's runways and slides fore and aft, so you can position it under an axle or cross-member, raise the vehicle off the drive-on ramps, and pull wheels, service brakes, or work suspension without moving the car to a second lift.

An adjustable frame spans a gap width of 31 to 46 inches to fit between the runways, and the lifting pads extend from a 39-inch collapsed width to 63 inches to reach factory lift points across a range of vehicles. A hand-operated hydraulic pump does the lifting, with no shop air or electrical hookup. Collapsed, the pads sit just 4.75 inches tall for clearance under low vehicles and easy storage; the jack raises to an 11-inch pad height on its own and reaches up to 16.5 inches with extensions.

Features

Rated 3,500 lb lifting capacity
Adjustable gap width from 31 to 46 inches to fit between the lift runways and match different wheelbases
Lifting pads extend from 39 to 63 inches to reach a vehicle's factory lift points
Manual hydraulic hand pump, operated by hand with no shop air or power connection
Low 4.75-inch collapsed pad height for clearance under low vehicles and compact storage
Reaches up to 16.5 inches of lift height with extensions

Compatibility

The SJ-35 is built for Triumph service-and-storage four-post lifts and fits these models only:

It is not compatible with other lifts, so confirm your lift model before ordering.

Specifications

Triumph SJ-35 Sliding Bridge Jack Specifications
Lifting Capacity	3,500 lbs
Minimum Gap Width	31"
Maximum Gap Width	46"
Collapsed Pad Width	39"
Extended Pad Width	63"
Collapsed Pad Height	4.75"
Extended Pad Height	11"
Max Height with Extensions	16.5"
Power Type	Manual pump
Fits Triumph NSS-8 series service-and-storage four-post lifts only.

Warranty

Triumph covers the SJ-35 with a 1-year parts warranty — parts only, no labor. If a part fails, a phone call and remote troubleshooting get a free replacement shipped to you by ground service; the labor to install it is not covered. The rubber lifting pads are excluded, and the hydraulic cylinder carries a 30-day full warranty, after which Triumph supplies a seal kit.

Documents

A downloadable manual isn't available for the SJ-35. For fitment or setup questions, contact sales@mygaragesupplies.com or call 307-381-1810.
