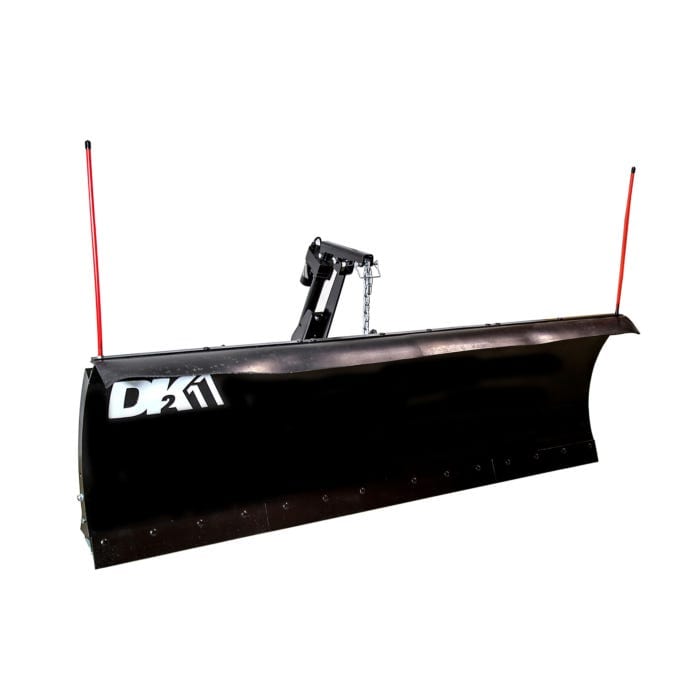

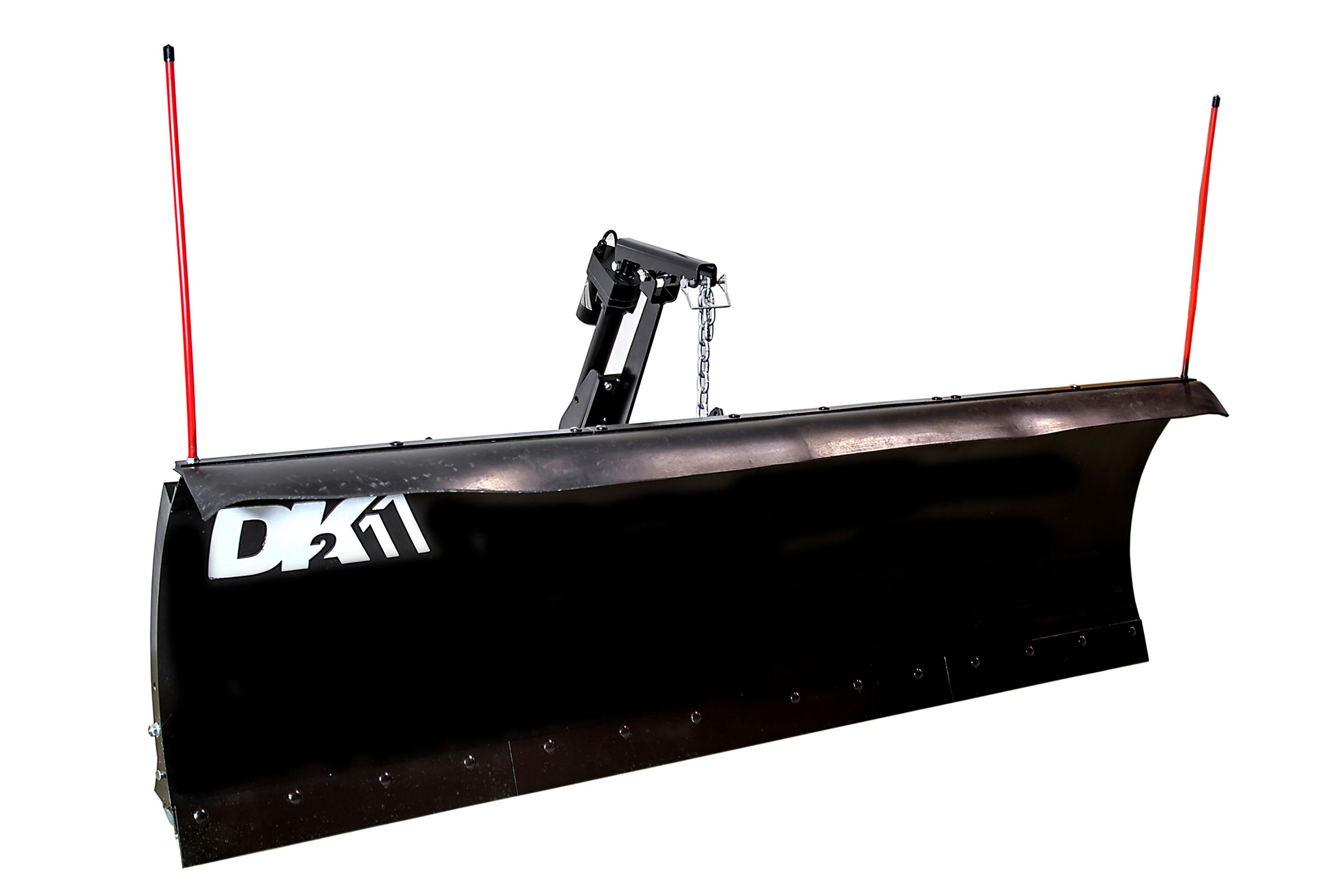

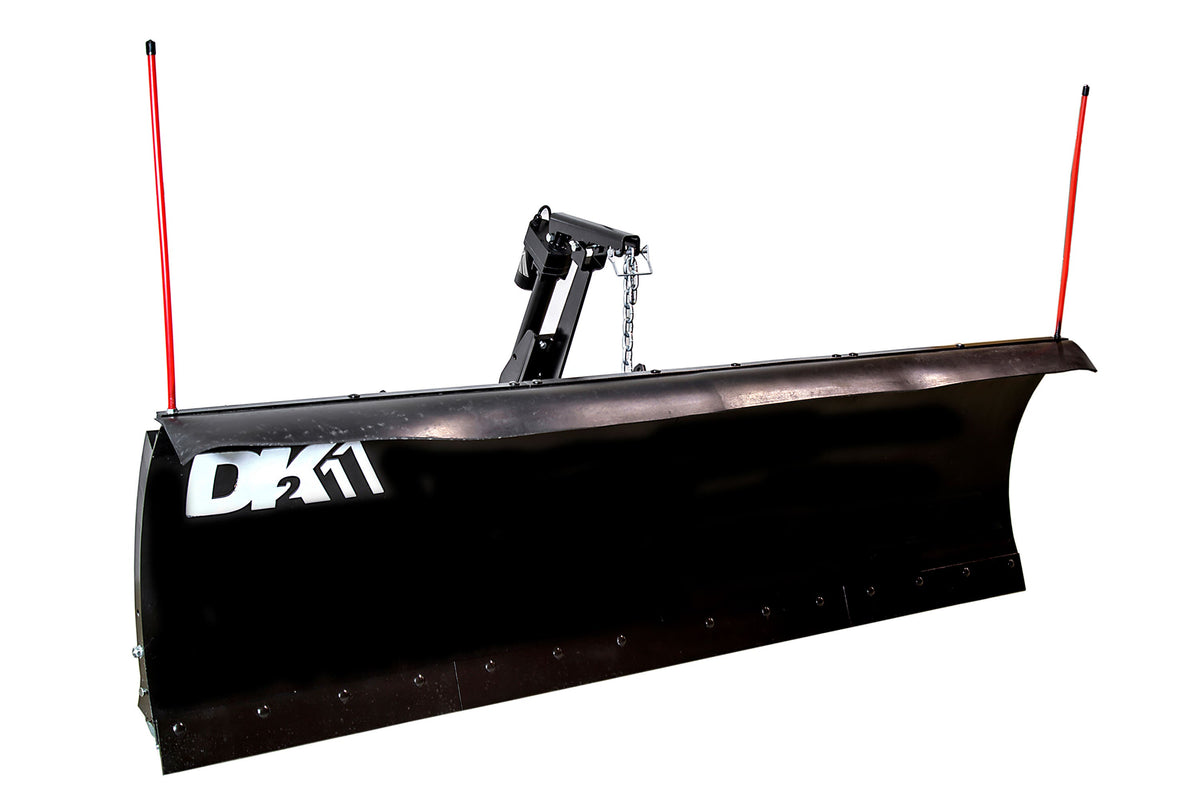

DK2 Rampage II ELITE RAMP8219ELT Custom-Mount Snow Plow

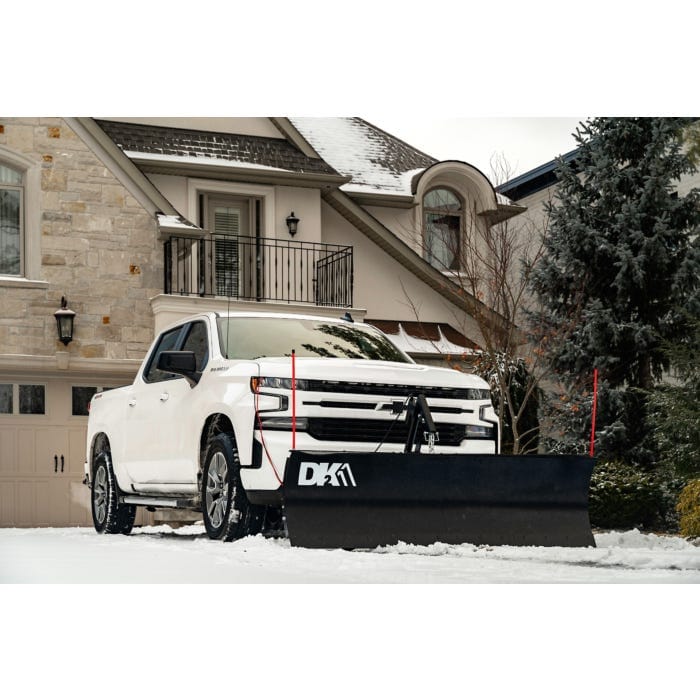

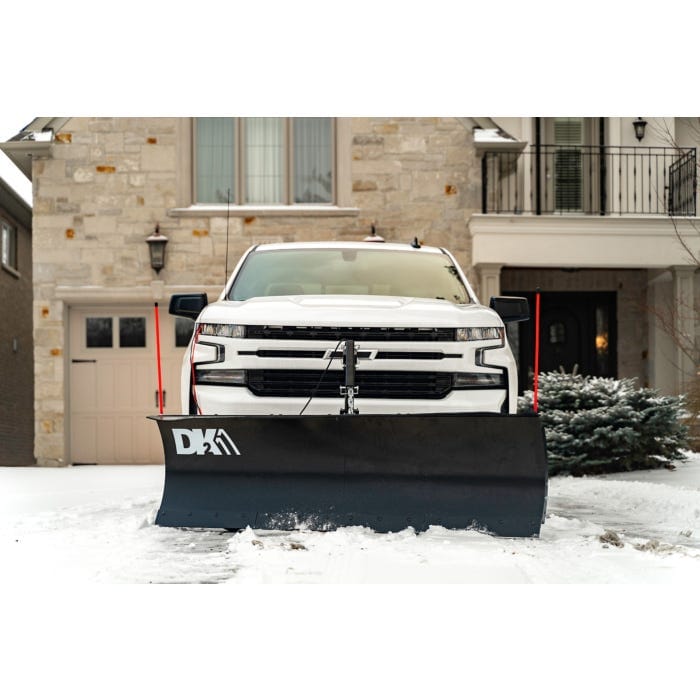

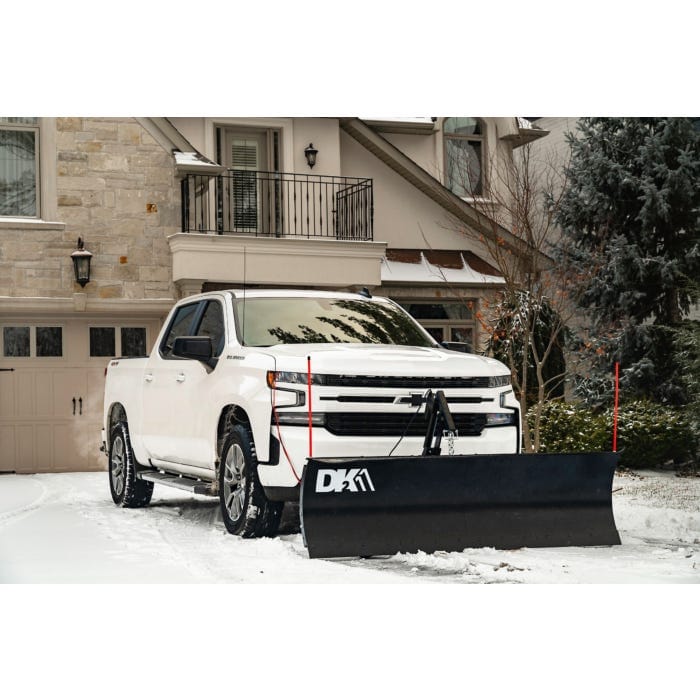

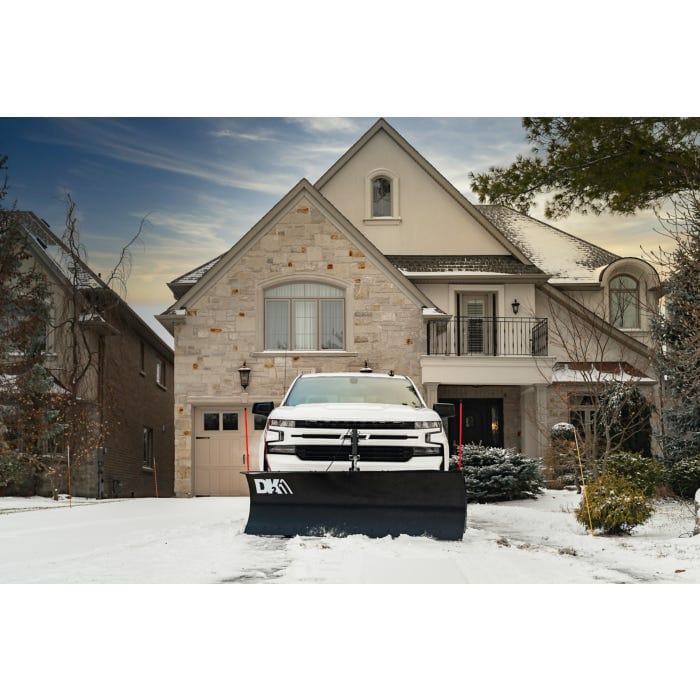

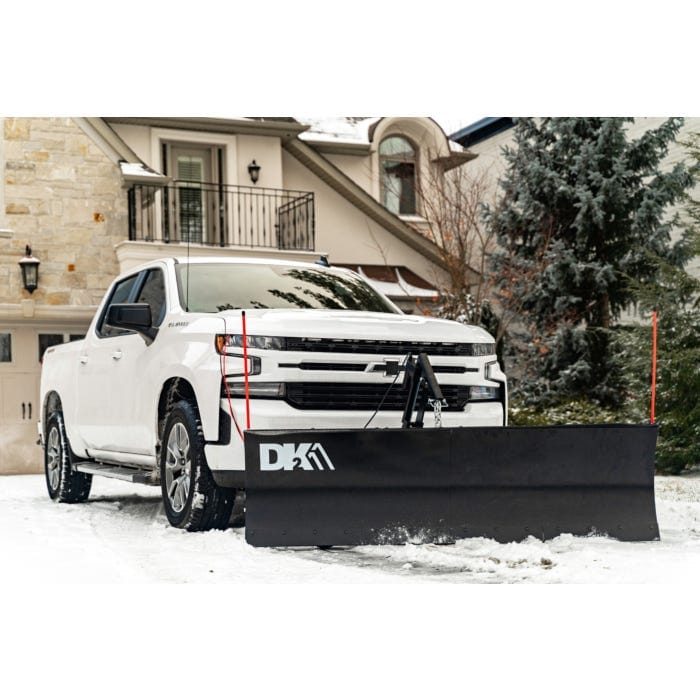

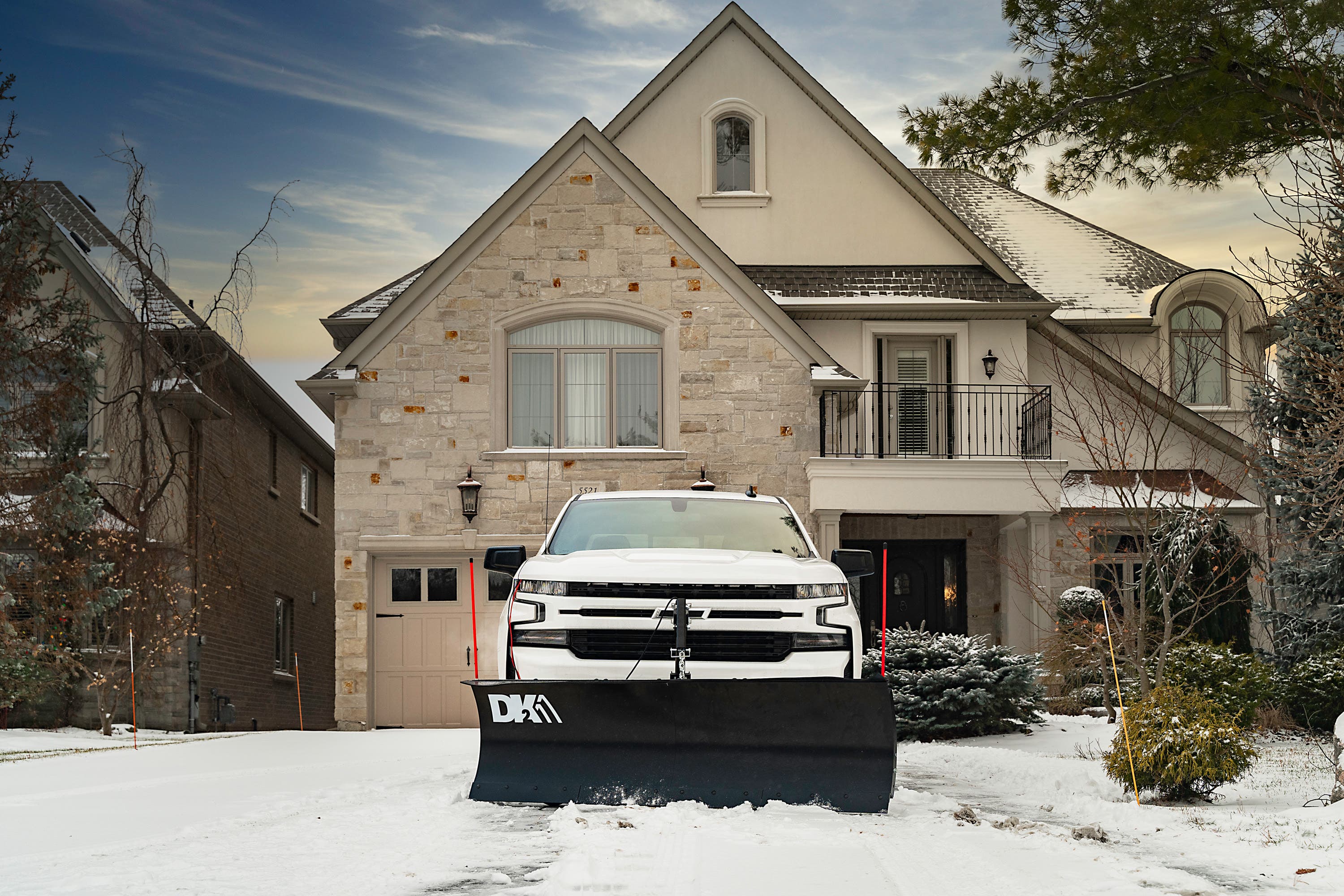

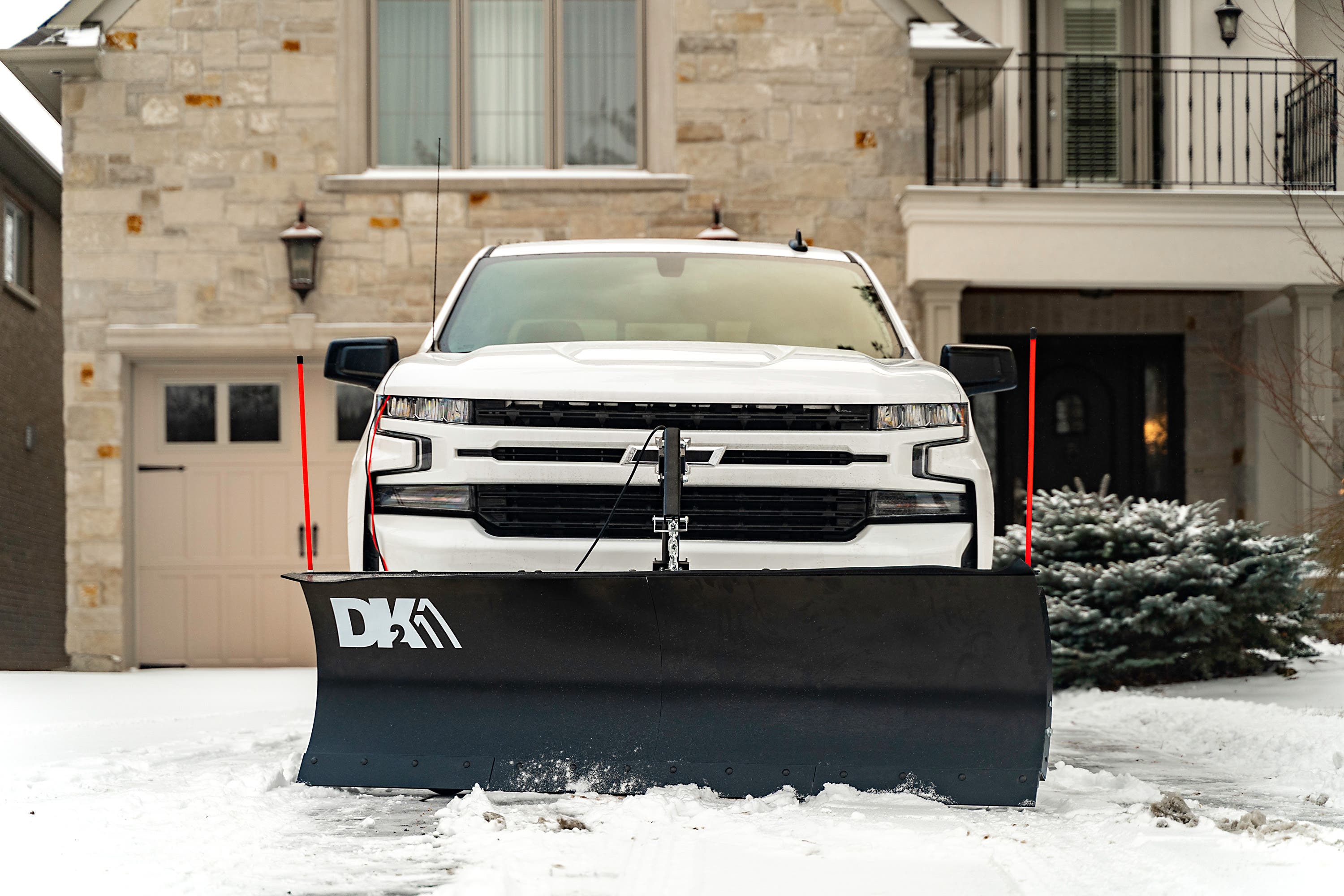

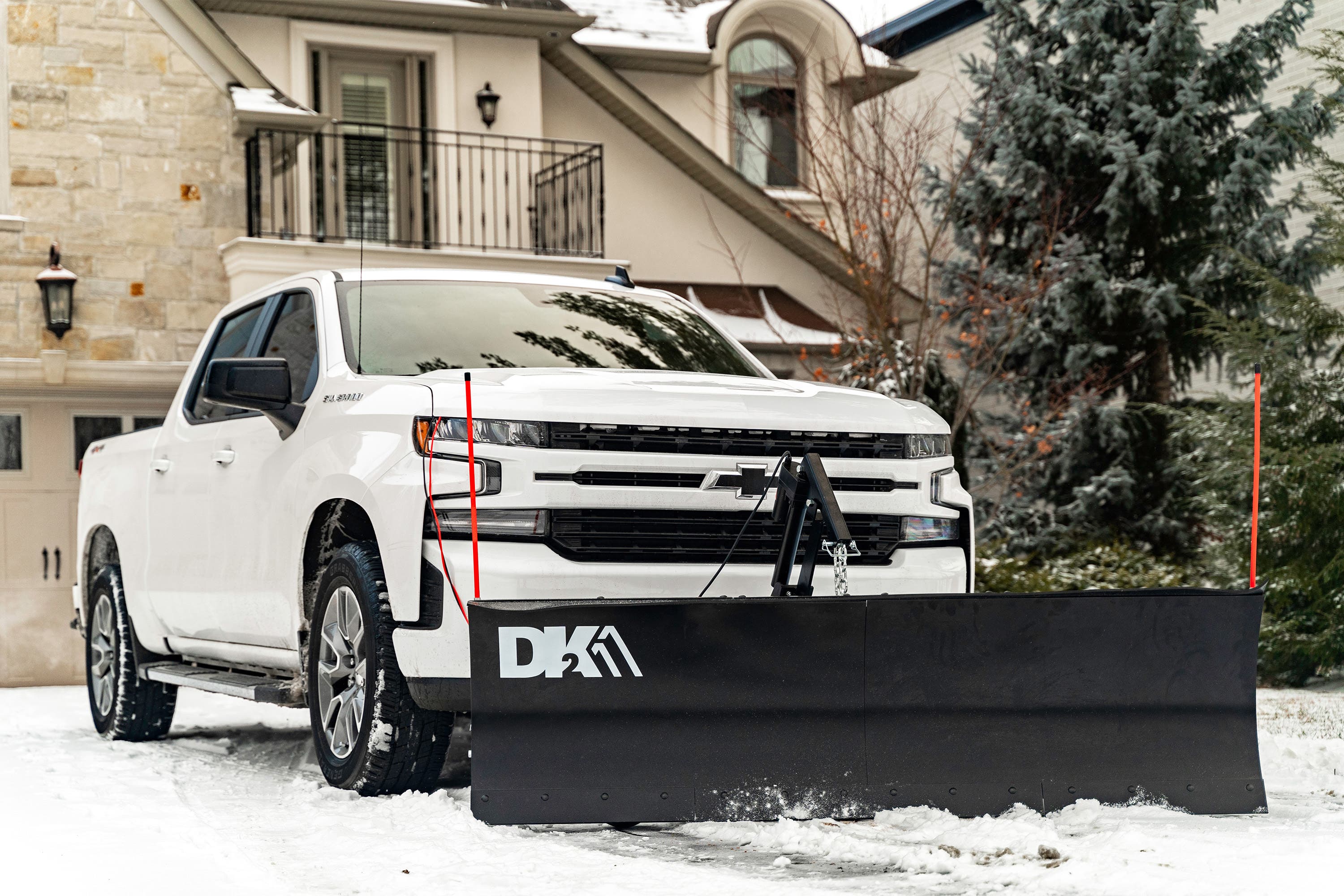

The DK2 Rampage II ELITE (RAMP8219ELT) is an 82 x 19 in. custom-mount personal snow plow for light trucks and SUVs that lifts with a 3,000 lb IP67-rated, fully sealed electric actuator instead of a winch, and the blade is raised and lowered from inside the vehicle with the included wireless remote.

The plow slides onto a vehicle-specific custom mount, sold separately. One lever locks the blade straight, left or right, trip springs let it tip forward over buried obstacles, and flip-down castor wheels roll it off the mount and into storage.

Each ELITE kit includes a set of blade stiffeners. Construction is all steel with a UV powder coating, built by an ISO 9001 certified manufacturer and covered by a 1-year limited warranty. Marlon rates the plow for light personal use; it is not intended for commercial plowing.

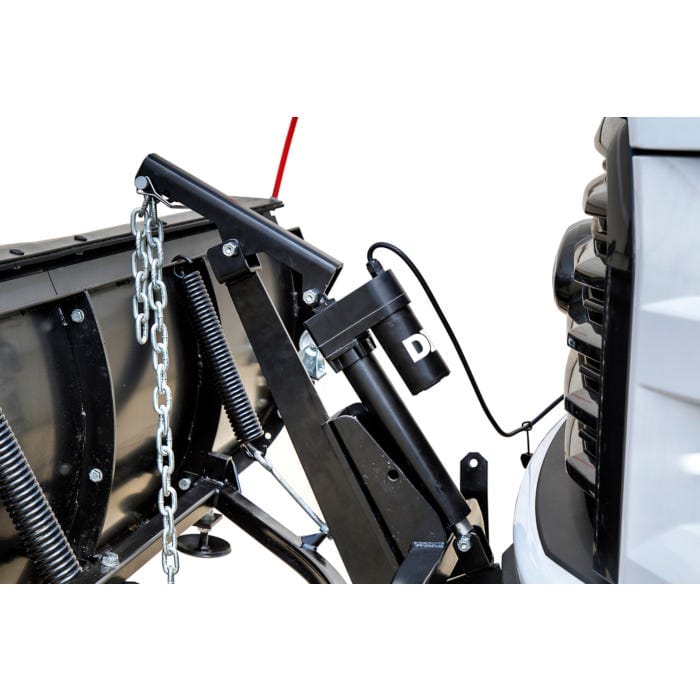

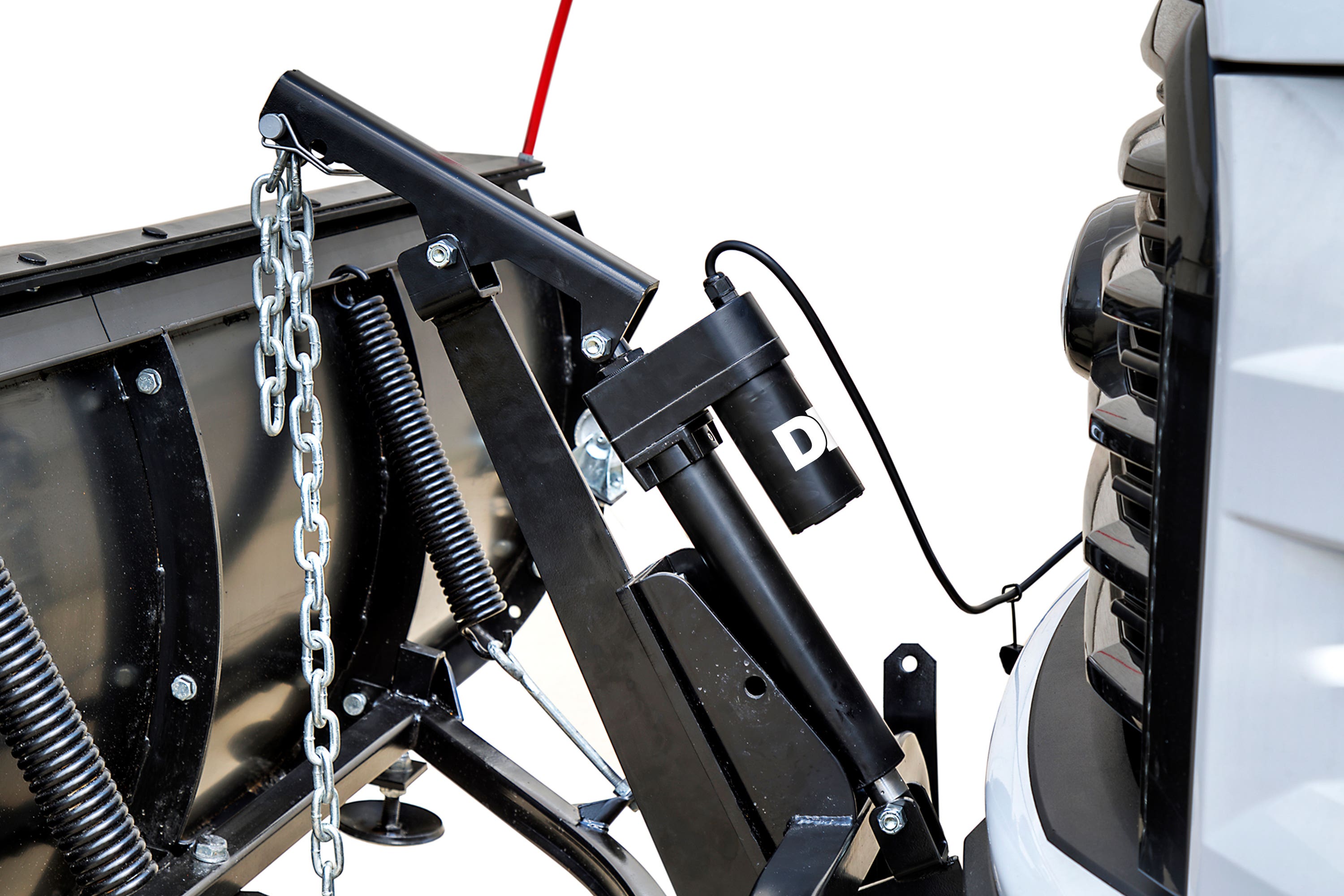

• 3,000 lb electric actuator: IP67 dust and water rated, with a sealed gearbox and housing, a built-in clutch and a strong lifting chain. It uses less amperage than an electric winch.
• Wireless remote: raise and lower the blade from inside the vehicle.
• Custom vehicle mount: the plow slides onto vehicle-specific brackets and locks in with two quick-mount locking plates. Fits most light trucks and SUVs.
• Three locking blade angles: a single lever sets the blade straight, left or right.
• Trip springs: absorb shock on uneven surfaces and let the blade trip over hidden obstacles.
• Blade stiffeners: a set is included with every ELITE kit.
• Flip-down castor wheels for mounting, removal and roll-away storage.
• Rubber snow deflector, hardened steel scraper, skid shoes and polymer-wrapped wire rope plow markers.

The Rampage II ELITE needs a vehicle-specific custom mount kit, sold separately. The mount is a pair of brackets made for your vehicle, joined by a cross member. The cross member ships with the plow, and the bracket kit includes its own installation instructions.

Find your kit number in the Custom Mount Kit Guide under Documents. It lists kits by make, model, year and 2WD or 4WD. Kits marked with an asterisk also require the extended cross bar, and some vehicles need a bumper skirt, air dam or tow bar removed before the mount goes on. Marlon states that its SnowBear by Marlon mount kits fit DK2 by Marlon plows.

With the plow on, the vehicle must stay within its gross vehicle and front axle weight ratings (GVWR and GAWR) on the driver's door pillar. Rear ballast, such as sand bags behind the rear axle, may be needed.

• Hardened steel scraper
• Rubber snow deflector
• Polymer-wrapped wire rope plow markers
• Skid shoes
• Castor kit
• 3,000 lb IP67-rated electric actuator with lifting chain
• Wireless remote control
• Set of blade stiffeners
• Safety chain
• Cross member (vehicle brackets sold separately)

Ships in a single carton on a standard-size pallet.

Marlon covers this plow with a 1-year limited warranty to the original purchaser against manufacturing defects in workmanship and materials under normal use. Within that year, Marlon replaces or supplies any defective part at its option. The warranty does not cover disposable parts such as scraper blades, plow springs, plow markers, snow deflectors and hardware, or labor, installation and shipping charges. The owner's manual adds that the plow is intended for personal use only and that commercial use voids warranty claims.

Is the cross member included?

Yes. The parts list in the owner's manual includes one cross member, which joins the two vehicle brackets. The vehicle-specific bracket kit is sold separately, and kits marked with an asterisk in the mount guide require the extended cross bar.

How do the mount brackets go on?

DK2 says to fit both brackets loosely, loosely fit the cross member between them, then tighten the brackets and finally the cross member. If they do not line up, check the kit number in the mount guide.

How high should the skid shoes be set?

DK2 recommends about 1/4 in. below the scraper blade. The skid shoes protect the surface you are plowing and reduce wear on the scraper.

How fast can I plow?

The owner's manual says not to plow above 10 mph (15 km/h). Faster speeds can overload the plow and cut cooling air to the engine.

Do I need plow lights?

The owner's manual recommends plow lights for plowing at night, because the blade will likely block the vehicle's headlights. DK2 sells plow light kits separately, including the LK4200LB2 LED kit and the 81488LB2 halogen kit.

What is the difference between the Rampage II ELITE and the standard Rampage II?

The standard Rampage II (RAMP8219) lifts the blade with a 3,000 lb wireless electric winch. The ELITE uses a sealed electric actuator with a built-in clutch that draws less amperage than a winch, and the ELITE kit includes a set of blade stiffeners.

• Custom Mount Kit Guide (PDF)
• Rampage II, Storm II and Summit II Owner's Manual (PDF)
