Autel MaxiSYS ADAS MA60020 LDW 2.0 Mobile Calibration Package with MA600 Frame (Tablet Not Included)

The Autel MaxiSYS ADAS MA60020 LDW 2.0 Mobile Calibration Package is the portable Lane Departure Warning calibration kit for shops that work across multiple bays, mobile glass technicians, and collision repairers who need to bring ADAS calibration to the vehicle instead of routing every job to a dedicated cell. It pairs the foldable MA600 mobile calibration frame with the full LDW 2.0 pattern and target library and the ADAS software upgrade that runs on a compatible Autel MaxiSYS diagnostic tablet.

Out of the box the package calibrates Lane Departure Warning systems on Alfa Romeo, Honda, Volkswagen, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, and Toyota/Lexus vehicles. The dedicated Toyota LDA target is included so Toyota's Lane Departure Alert procedure can be run without a separate target purchase. When the shop is ready to expand into Adaptive Cruise Control (ACC), Around View Monitoring (AVM), Blind Spot Monitoring (BSM), or Night Vision (NV) calibration, the same MA600 frame accepts Autel's optional expansion packs — the hardware investment carries forward instead of being replaced.

The MA600 frame folds and disassembles for trunk or service-truck transport, so the same calibration setup can move between a body shop, a tire-and-alignment bay, and a mobile windshield-replacement job. Five-line laser positioning, a bubble level, adjustable height, adjustable base stabilizers, and sliding magnetic target holders make the leveling and setup a one-person procedure on a flat shop floor.

Every MA600 system purchase includes virtual setup and onboarding training with an Autel ADAS expert. In-shop training is not included.

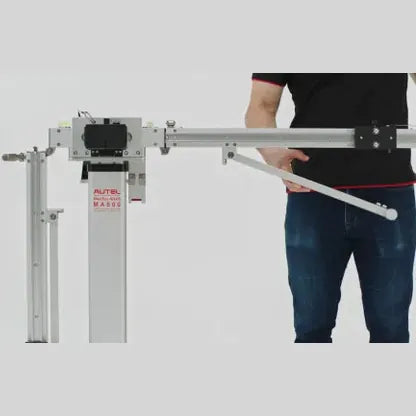

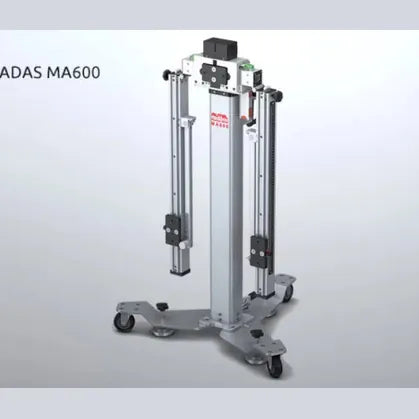

• Portable — The MA600 frame folds and disassembles to fit into the trunk of a car or a service truck for multi-location calibration work.
• Five-line laser positioning — A built-in distance laser plus the L-shaped wheel-positioning bracket speed up the leveling-to-vehicle step so one technician can set the frame relative to the vehicle.

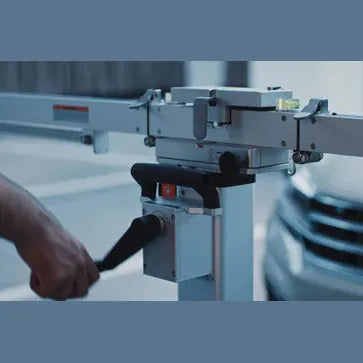

• Adjustable height with bubble level — A large screw mechanism raises the crossbar to a taller-than-average extended height for compatibility with vehicle leveling lifts; the bubble level confirms the crossbar is true before calibration starts.
• Sliding magnetic target holders — Pattern boards mount to magnetic holders that slide along the crossbar so target spacing can be set per OE procedure.
• Adjustable base stabilizers — Caster-wheel base with adjustable stabilizer feet for setup on shop floors that aren't perfectly level.
• Arm lock — Locks the crossbar arms in their calibrated position once leveling is complete so the frame doesn't drift during the procedure.
• Expansion-ready — One frame, one tablet, one software platform. Add BSM, ACC, AVM, or NV calibration coverage by adding the matching Autel expansion pack later.

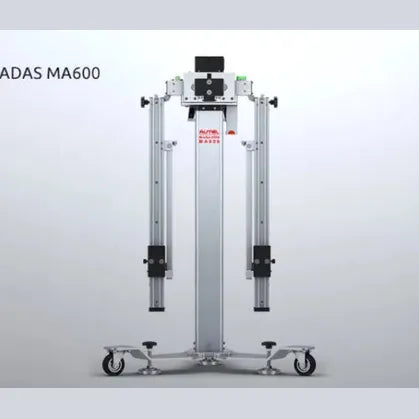

MA600 mobile frame — introduction

The MA60020 LDW 2.0 package calibrates Lane Departure Warning systems on the following vehicle brands out of the box:

• Alfa Romeo
• Honda
• Volkswagen
• Mercedes
• Hyundai / Kia
• Nissan
• Infiniti
• Mazda
• Mitsubishi
• Subaru
• Toyota / Lexus (Toyota LDA target included)

The ADAS software upgrade in this package runs on a compatible Autel MaxiSYS diagnostic tablet — the tablet is not included with this SKU. Shops that need the tablet bundled together with the LDW 2.0 package should consider the MA60020T variant, which adds the MS909 S2 tablet to the same hardware kit.

MA600 unpacking and assembly

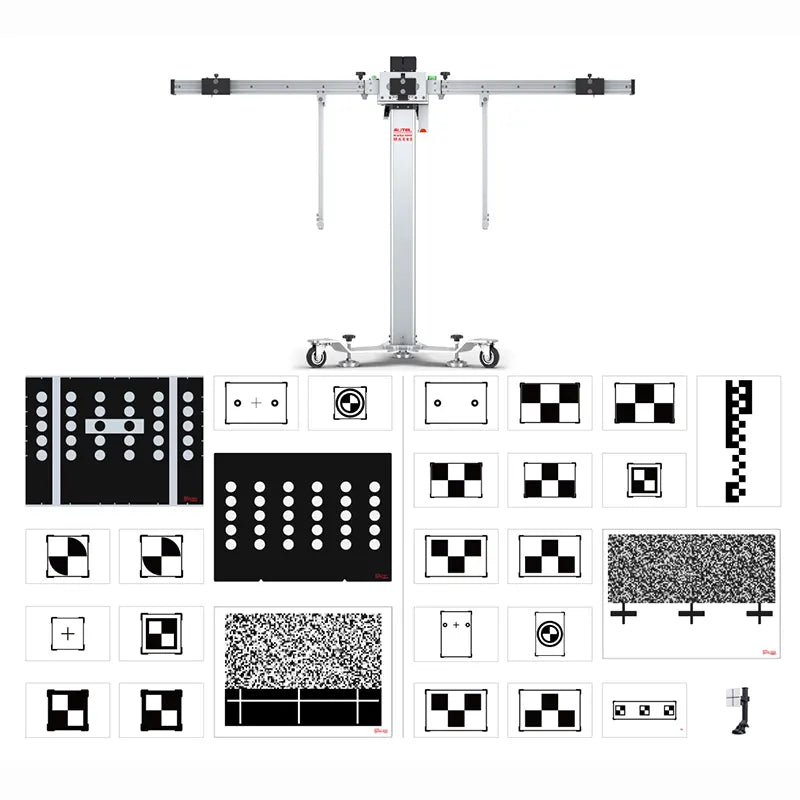

• Autel MA600 Mobile Calibration Frame
• LDW patterns and targets for Alfa Romeo, Honda, Volkswagen, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus
• Toyota LDA target
• Patterns case
• ADAS software upgrade (runs on a compatible Autel MaxiSYS tablet — tablet not included)
• Virtual setup and onboarding training with an Autel ADAS expert
• One-year limited warranty

Includes one-year limited warranty from Autel. Warranty terms and claim procedures are documented in the included Autel MaxiSYS ADAS MA600 user manual.

Is a MaxiSYS tablet included with this package?

No. The MA60020 ships with the MA600 frame, the LDW 2.0 patterns and targets, and the ADAS software upgrade. A compatible Autel MaxiSYS diagnostic tablet is required separately. If you want the tablet bundled together with the LDW 2.0 hardware, the MA60020T variant adds the MS909 S2 tablet to the same kit.

What does "LDW 2.0" cover compared to other MA600 packages?

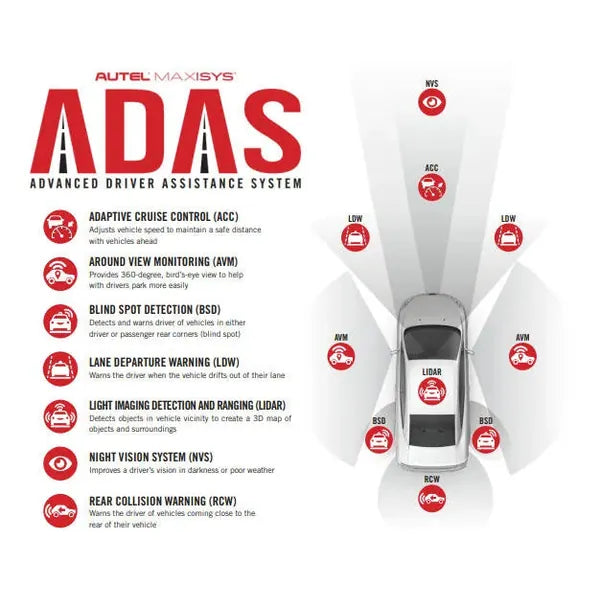

This package covers Lane Departure Warning calibration only — across 11 vehicle brands plus the Toyota LDA target. The MA600 frame is also the base hardware for Autel's other calibration packages, including All Systems 2.0 (MAS20), which adds BSM, ACC, AVM, RCW, BSD, LIDAR, and NVS coverage. If you anticipate calibrating ADAS systems beyond Lane Departure, the All Systems package or the matching expansion packs may be the better starting point.

Can the LDW 2.0 package be expanded later?

Yes. The MA600 frame is the platform; capability is added through Autel's optional expansion packs for BSM, ACC, AVM, and NV calibration. The hardware purchased here carries forward when calibration coverage expands.

Is training included?

Virtual setup and onboarding training with an Autel ADAS expert is included with every MA600 system purchase. In-shop training is not included with this SKU.

Does this calibrate commercial vehicles or Class 3–8 trucks?

No. The MA60020 LDW 2.0 package is for passenger vehicles in the brands listed under Compatibility. Autel's CVMALDW and CVMALDWT packages are the equivalent commercial-vehicle LDW packages built around the same MA600 frame.

• Autel MaxiSYS ADAS MA600 User Manual
• ADAS MA600 Calibration Toolset User Manual
• MaxiSYS MA600 Two-Page Brochure
• MaxiSYS MA600 All Systems Brochure
• MA600 Core2 Flyer
• Autel ADAS Comparison Chart
• MA600LDW3 Expansion Package
• ADASUPGRADE Expansion Package

Additional expansion-package documentation (ADASAVM1, ADASCAL2, MA600CAL1, MA600CAL3, MA600CAL4, MA600CASE, MA600NV1, MA600RAD1, MS906PROADAS, MS909ADAS) is available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
