Autel MaxiSYS IA900WAT ADAS Calibration & Wheel Alignment System with 24-Inch Touchscreen and ULTRAADAS Tablet

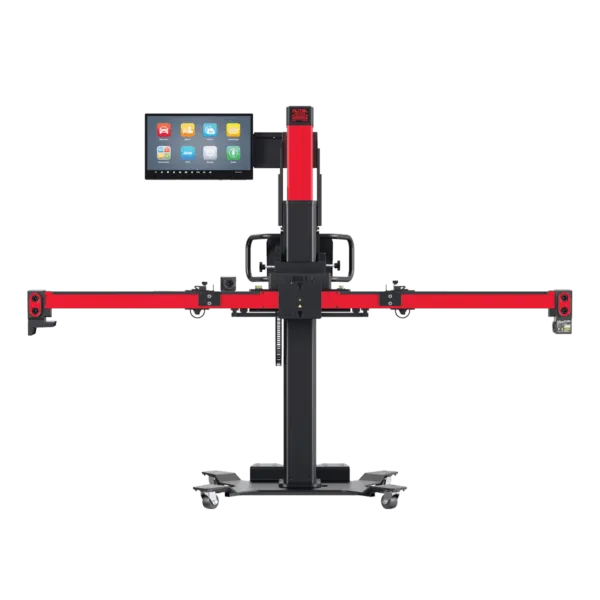

The Autel MaxiSYS IA900WAT is a dual-purpose calibration system that performs four-wheel alignment and ADAS component calibration on the same frame. The package pairs the IA900WA mobile frame — with its built-in 24-inch touchscreen, robotic crossbar, and six high-resolution positioning cameras — with the MaxiSYS ULTRAADAS wireless tablet, pre-loaded with alignment and ADAS calibration software. Buy once; cover both jobs at the same bay.

Software coverage spans U.S., Asian, and European vehicles from 1996 forward, with illustrated alignment instructions, live readings, required tools, and adjustment locations rendered on the 24-inch touchscreen mounted to the frame. The screen and the ULTRAADAS tablet cast to one another, so a tech can drive the workflow from either display without walking back and forth across the bay.

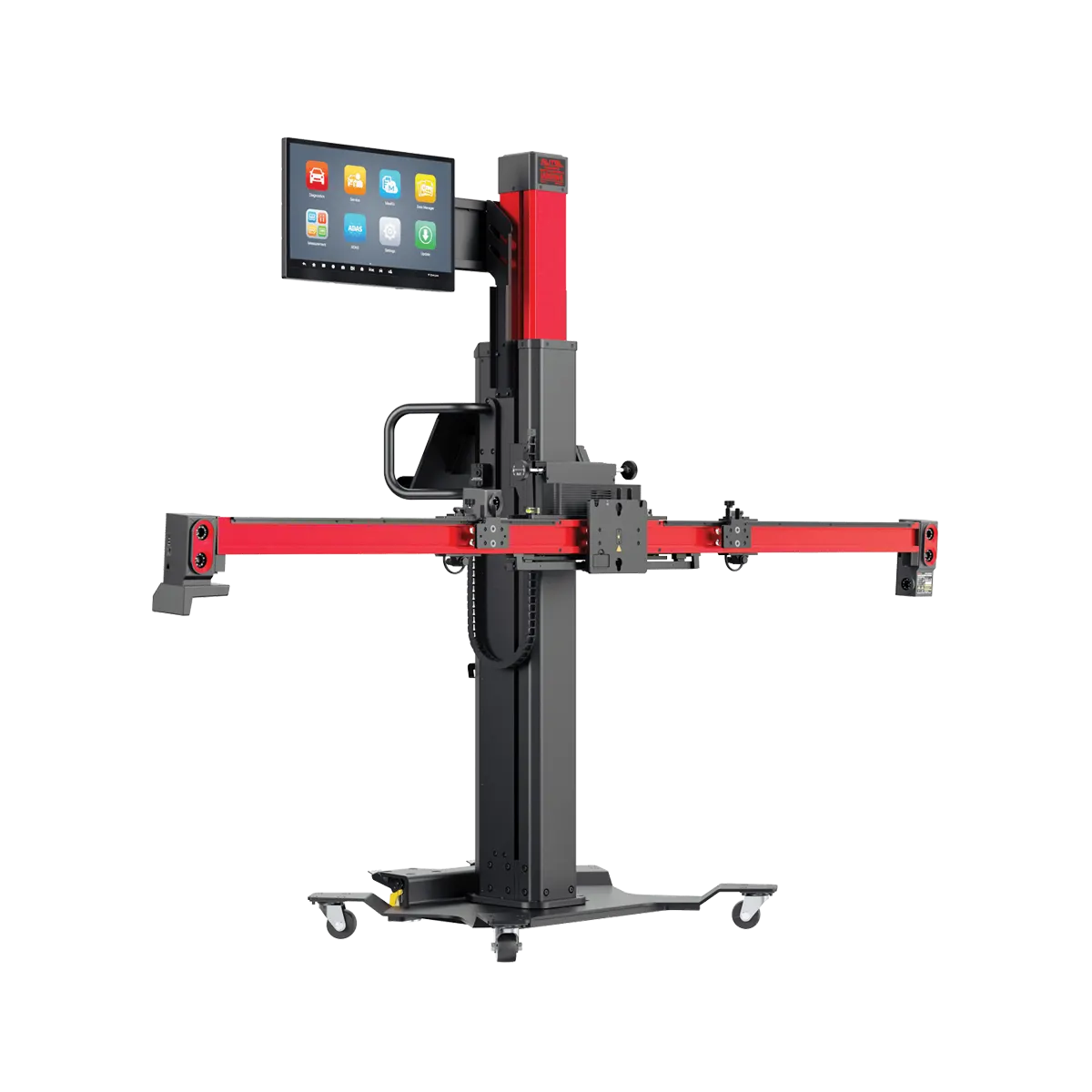

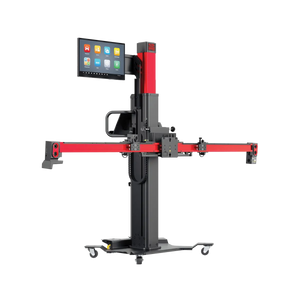

Frame-mounted optical measurement uses six cameras to read alignment to 0.02 degrees. The cameras automatically track vehicle height as the lift moves, so the operator does not have to re-establish reference each time the rack changes position. Robotic crossbar movement positions ADAS targets, and the crossbar folds for transport between bays.

The IA900WAT ships freight on a single pallet. For freight delivery scheduling, lift compatibility questions, or software/coverage details before purchase, contact sales@mygaragesupplies.com or call 307-381-1810.

• Performs four-wheel alignment and ADAS calibration on a single frame
• Six high-resolution positioning and tracking cameras with 0.02-degree alignment accuracy
• Self-calibrating cameras
• Robotic crossbar movement with pitch, roll, yaw, and center control for repeatable target placement
• Cameras automatically track vehicle height as the shop lift raises or lowers

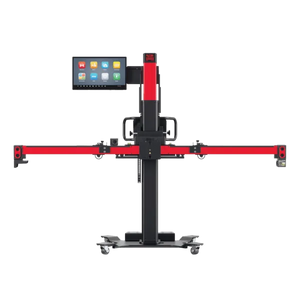

• Frame-mounted 24-inch touchscreen with MaxiSYS interface for alignment readings and ADAS workflow
• MaxiSYS ULTRAADAS tablet pre-loaded with alignment and ADAS calibration software; tablet and frame display cast to each other
• Illustrated alignment guide with live readings, required tools, and adjustment locations on one screen
• Folding crossbar with locking mechanism for transport between bays
• Built-in cable management and consolidated power supply
• Crossbar operating range: 6-inch minimum to 7-foot maximum height

Alignment coverage spans U.S., Asian, and European vehicles, 1996 and newer. The included ADAS calibration software covers the targets and procedures shipped in the IA900WAT base package; Autel publishes separate expansion packages (MSULTRAADAS, ADASWAUPGRADE) that extend coverage to additional ADAS systems and target sets — see the Documents section below.

The frame is designed to work in front of a shop lift; the cameras automatically track vehicle height as the lift moves. Confirm bay floor flatness and ceiling clearance against the 7-foot maximum crossbar height before installation, and confirm lift compatibility with MGS sales before purchase if your bay configuration is unusual.

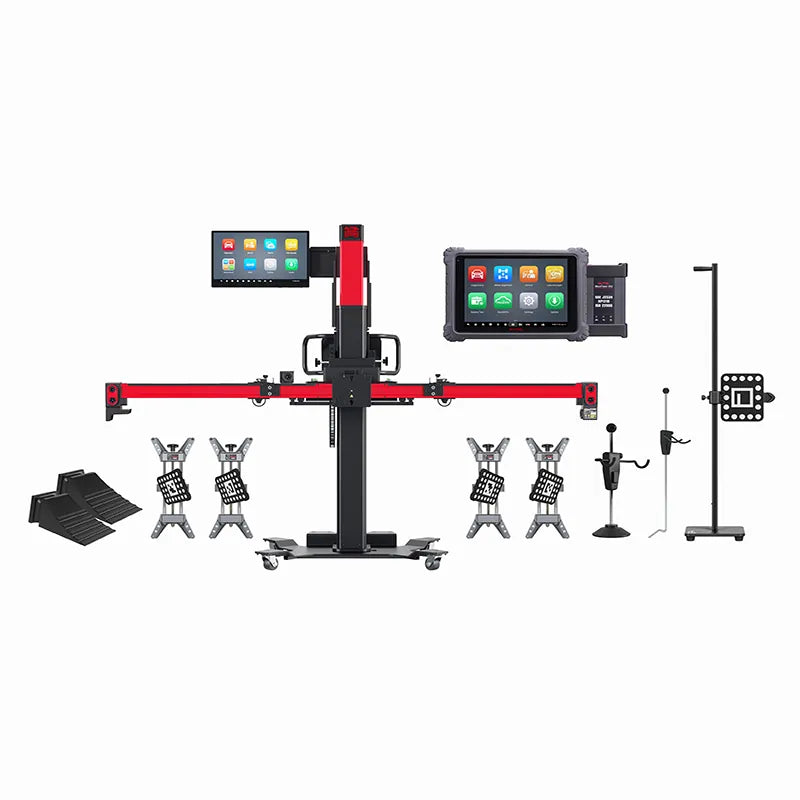

The IA900WAT package ships with the frame, the tablet, and the four-wheel-alignment / ADAS accessory kit:

• IA900WA mobile calibration frame with frame-mounted 24-inch touchscreen
• MaxiSYS ULTRAADAS wireless touchscreen tablet, pre-loaded with alignment and ADAS calibration software
• Four wheel clamps with camera targets
• Four wheel targets
• One distance target
• One steering wheel lock
• Two wheel chocks
• One brake lock

Where the IA900WAT fits in the IA900 family: the Autel IA900LDWT MaxiSYS ADAS Calibration & Wheel Alignment System with LDW Targets and ULTRAADAS Tablet adds the LDW (Lane Departure Warning) target set on top of the same frame and tablet, and the Autel IA900AST MaxiSYS All-Systems ADAS Calibration & Wheel Alignment System with MSUltra ADAS Tablet adds the broader All-Systems target equipment. The Autel IA900AS MaxiSYS All-Systems ADAS Calibration & Wheel Alignment System (Tablet Not Included) is the All-Systems frame without the tablet, for shops that already own a MaxiSYS tablet.

Autel covers the IA900WAT with a one-year limited warranty against defects in materials and workmanship from the date of original purchase. Coverage includes repair or replacement of the tool at Autel's option, with proof of purchase. The sales receipt or, in lieu of a receipt, the tool/tablet registration date serves as proof of purchase.

The warranty does not apply to damage from improper use, accident, flood, lightning, alteration, or service by anyone other than an authorized Autel Manufacturer Service Center. Out-of-warranty repair is available at customer expense after Autel contacts the owner with the repair quote. Cracked screens, broken cases, chemical exposure, liquid damage, abnormal mechanical or environmental conditions, and unauthorized disassembly are excluded.

Can the IA900WAT really perform both wheel alignment and ADAS calibration?

Yes. The IA900WA frame is engineered as a dual-purpose unit. The six positioning cameras read alignment to 0.02-degree accuracy, and the robotic crossbar positions ADAS calibration targets. The ULTRAADAS tablet ships pre-loaded with both software workflows.

What vehicles does the alignment software cover?

U.S., Asian, and European vehicles from model year 1996 forward.

Do I have to choose between using the frame screen and the tablet?

No. The 24-inch frame-mounted touchscreen and the ULTRAADAS tablet cast to one another, so the tech can drive the workflow from whichever screen is closer at any given step.

What ADAS targets are included with the IA900WAT?

The base IA900WAT package includes four wheel clamps with camera targets, four wheel targets, one distance target, one steering wheel lock, two wheel chocks, and one brake lock. Additional ADAS target coverage is sold via Autel's MSULTRAADAS and ADASWAUPGRADE expansion packages, or by stepping up to the IA900LDWT (LDW targets) or IA900AST (All-Systems) variants.

How much room and clearance does the frame need?

The crossbar operates between a 6-inch minimum height and a 7-foot maximum height. Confirm ceiling clearance above the lift and bay floor flatness before installation.

How is it shipped?

Single pallet, freight delivery. Contact MGS for current pallet shipping weight and dimensions when scheduling delivery to your shop.

What software updates are included?

Autel's published documentation does not list a software-update subscription term for the IA900WAT package. Contact MGS or Autel to confirm current update terms before purchase.
