Autel IA900AS MaxiSYS All-Systems ADAS Calibration & Wheel Alignment System (Tablet Not Included)

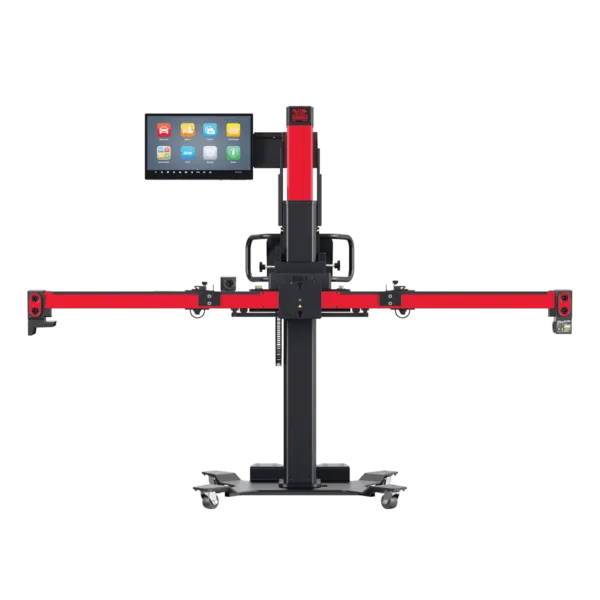

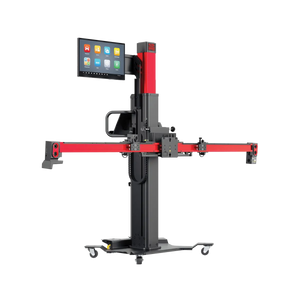

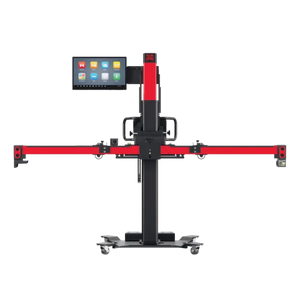

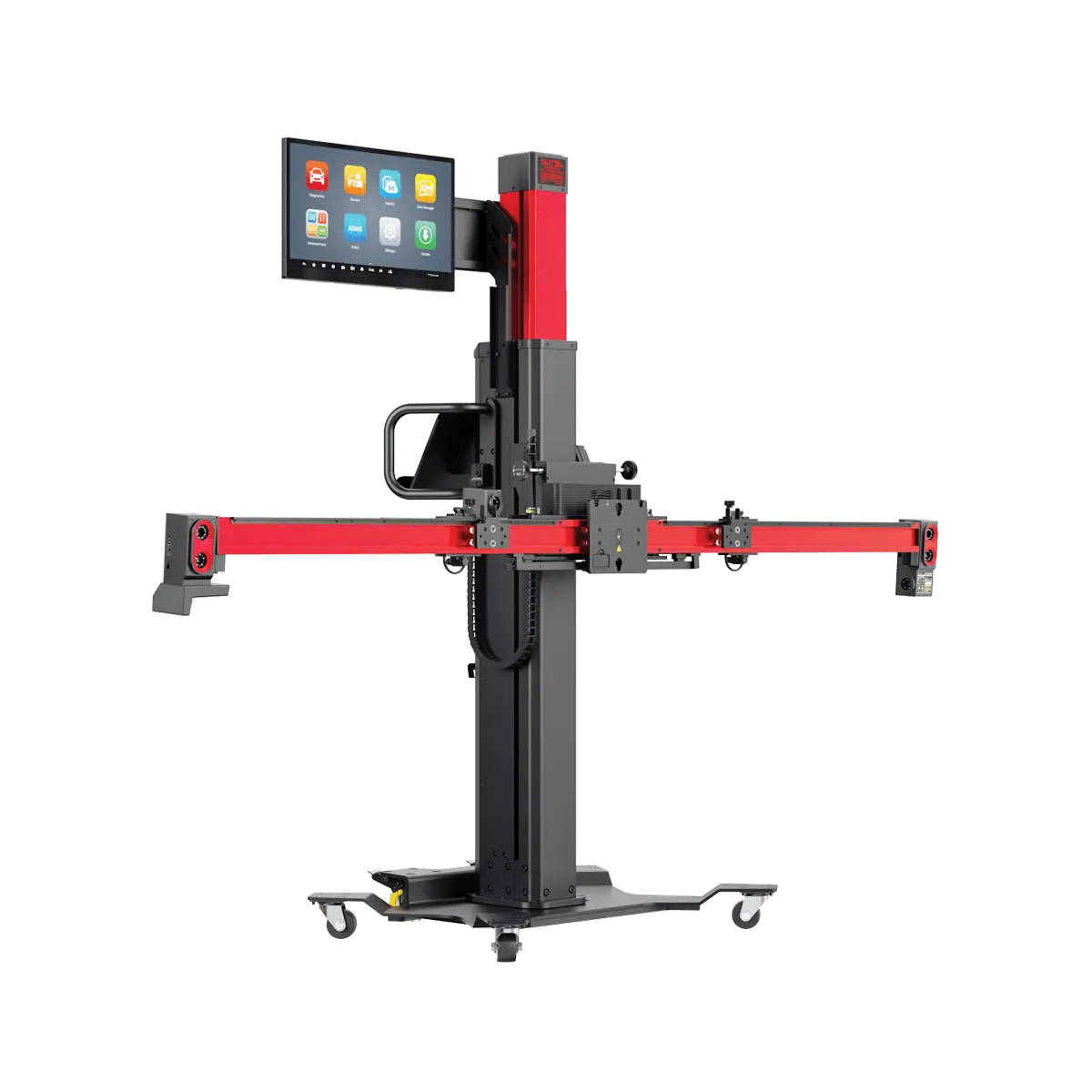

The Autel IA900AS is a dual-purpose frame that performs both four-wheel alignment and Advanced Driver Assistance System (ADAS) calibration from a single workstation. Built around the IA900WA frame, the All Systems package adds the targets, patterns, and components needed to calibrate cameras, radar, LIDAR, and Night Vision units across the full set of ADAS functions found on modern vehicles.

Six high-resolution positioning and tracking cameras mounted in the crossbar automatically monitor vehicle height on the shop lift, and robotic frame movement holds alignment-reading accuracy to 0.02 degrees. Alignment coverage spans U.S., Asian, and European vehicles 1996 and newer. The included 24-inch touchscreen attaches to the frame and runs the IA900 Wheel Alignment and ADAS Calibration software — illustrated instructions, live readings, required tools, and adjustment locations on a single screen.

The IA900AS package includes the frame, the All Systems calibration equipment, LDW targets, and the standard wheel-alignment accessories. It does not include the MaxiSYS Ultra ADAS tablet — buyers who want the tablet bundled should look at the IA900AST variant instead. The frame's onboard 24-inch touchscreen handles both alignment and ADAS calibration workflows without an external tablet; a MaxiSYS Ultra is added later as a separate purchase if needed.

• One frame performs both 4-wheel alignment and ADAS calibration
• Six high-resolution positioning and tracking cameras built into the crossbar
• 0.02-degree alignment-reading accuracy from robotic frame movement
• 24-inch touchscreen attaches to the frame and controls both alignment and ADAS workflows
• Optional control from a MaxiSYS UltraWA tablet (sold separately)
• Crossbar control of pitch, roll, yaw, and center
• Folding crossbar with locking mechanism for storage and transport
• Self-calibrating cameras hold accuracy without manual recalibration
• Cameras automatically track vehicle height on the lift
• Built-in cable management
• Consolidated power supply
• MaxiSYS Ultra tablet cradle with controls
• Alignment coverage for U.S., Asian, and European vehicles, 1996 and newer
• Compensates for uneven shop floors in all directions

Alignment coverage includes U.S., Asian, and European vehicles, 1996 and newer.

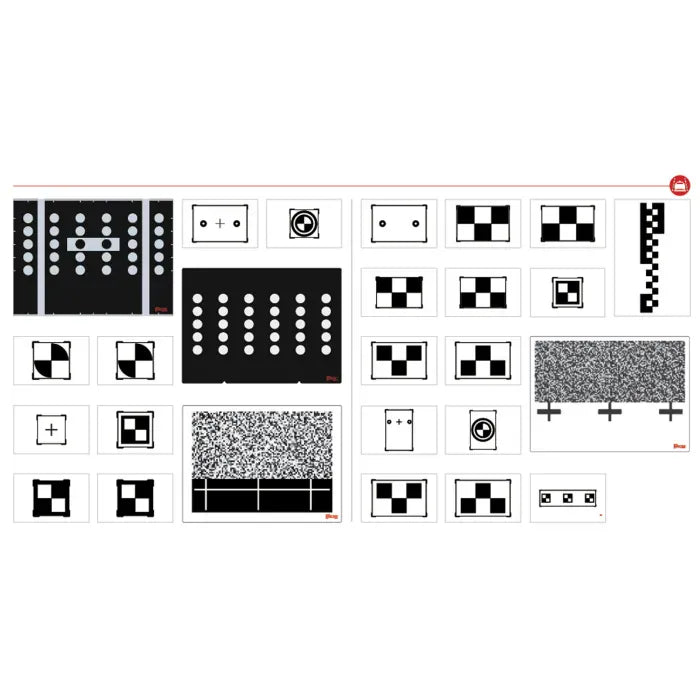

The All Systems calibration package covers standard frame, targets, patterns, and components for:

• LDW — Lane Departure Warning
• ACC — Adaptive Cruise Control
• LIDAR — Light Detection and Ranging
• Radar
• NVS — Night Vision
• RCW — Rear Collision Warning
• Lane Watch
• AVM — Around View Monitoring
• BSD — Blind Spot Detection

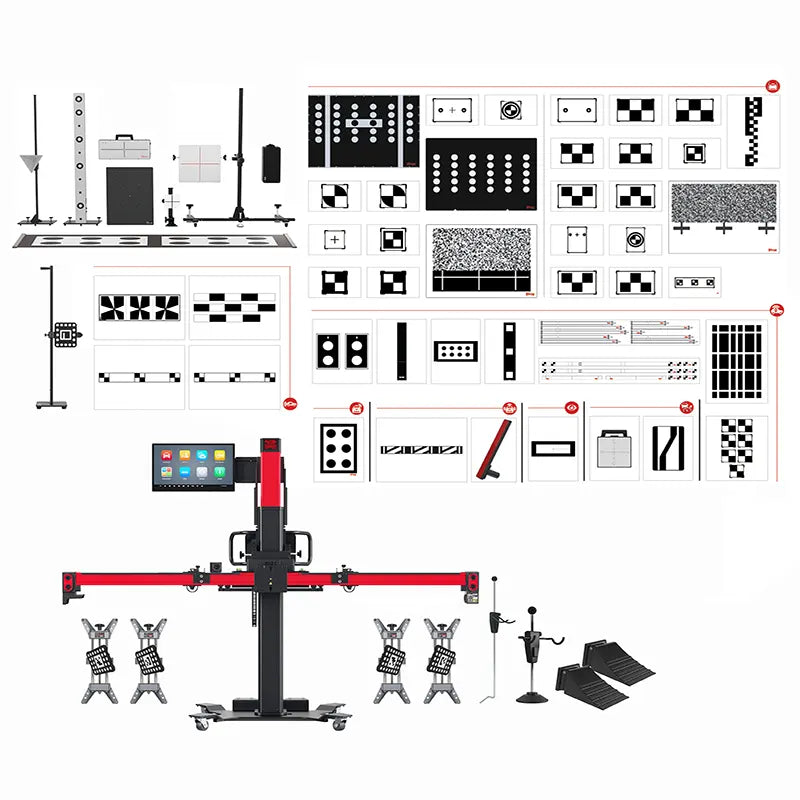

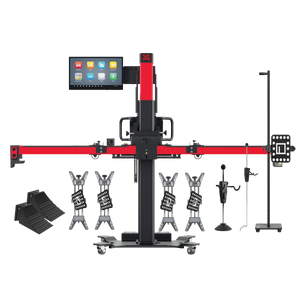

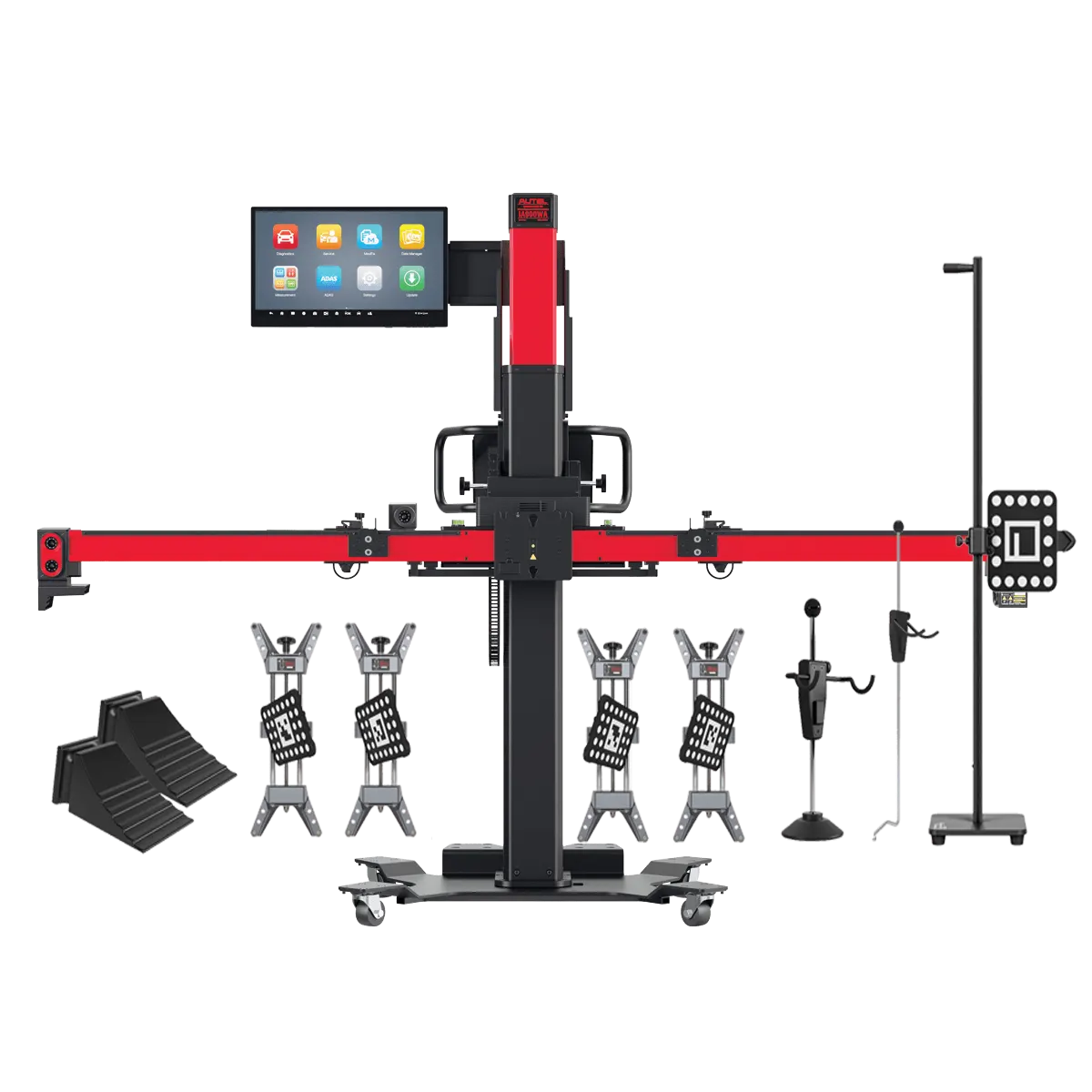

The IA900AS package includes:

• IA900WA wheel alignment + ADAS calibration frame with rolling base
• 24-inch touchscreen display that attaches to the frame
• All Systems ADAS calibration targets, patterns, and components
• LDW (Lane Departure Warning) targets

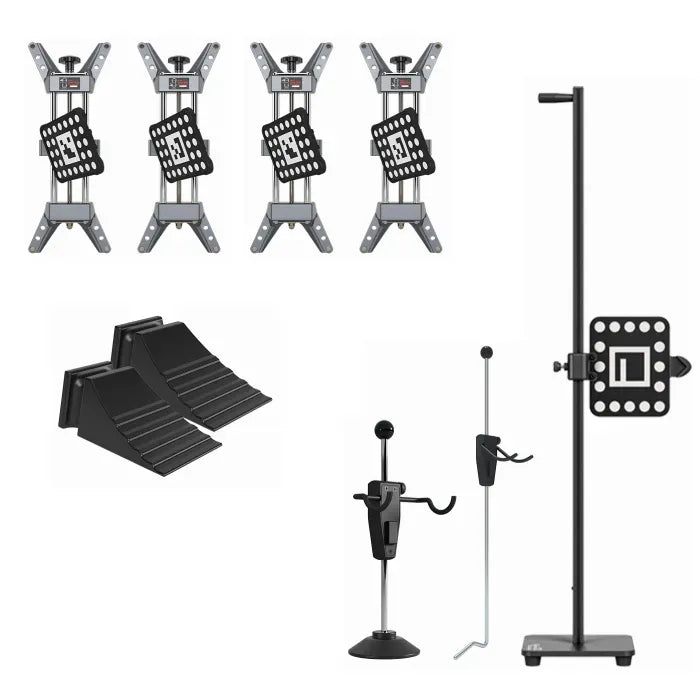

• 4 × wheel clamps with camera targets
• 4 × wheel targets
• 1 × distance target
• 1 × steering wheel lock
• 1 × brake pedal lock
• 2 × wheel chocks

The included 24-inch touchscreen runs both the IA900 Wheel Alignment Software and the IA900 ADAS Calibration Software. The same workstation handles vehicle inspection, alignment measurement, ADAS target placement, and calibration confirmation.

IA900 Wheel Alignment Software

• Vehicle inspection of tires, brakes, suspension, steering, and more
• Mark service recommendations and attach photos, videos, and notes
• Live alignment-reading display
• View all alignment results, rear only, front only, chassis symmetry, and tire diameter
• Illustrated alignment guide with live readings, required tools, and adjustment locations on a single screen

IA900 ADAS Calibration Software

• Frame placement with target position validation
• Step-by-step illustrated full-color instructions walk through the ADAS calibration process
• Set ADAS calibration target height with the push of a button

Autel warrants this product free from defects in materials and workmanship for one (1) year from the date of original purchase. The store or dealer receipt acts as proof of purchase; in lieu of proof of purchase, the warranty is honored for one year from tool/tablet registration. Coverage is limited to repair or replacement at Autel’s option.

The warranty does not apply to damages caused by improper use, accident, flood, lightning, or alteration/repair by anyone other than the Manufacturer Service Center. Autel is not liable for incidental or consequential damages arising from use, misuse, or mounting. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply.

What is the difference between the IA900AS and the IA900AST?

Both packages include the IA900WA frame with the 24-inch touchscreen, the All Systems calibration equipment, the LDW targets, and the standard accessories. The IA900AST adds a MaxiSYS Ultra ADAS tablet bundled into the package; the IA900AS does not include the tablet. The frame’s onboard touchscreen runs the alignment and ADAS software either way.

Do I need a separate diagnostic tablet to run the frame?

No. The included 24-inch touchscreen attaches to the frame and runs both the wheel alignment software and the ADAS calibration software. A MaxiSYS UltraWA tablet can also control the IA900 if a shop already owns one, but it is not required to operate the frame.

Which ADAS systems does the All Systems package calibrate?

The package covers LDW (Lane Departure Warning), ACC (Adaptive Cruise Control), LIDAR, Radar, NVS (Night Vision), RCW (Rear Collision Warning), Lane Watch, AVM (Around View Monitoring), and BSD (Blind Spot Detection).

Which vehicles does the alignment software cover?

U.S., Asian, and European vehicles, 1996 and newer.

What is the working height range?

The frame folds to a 6-inch minimum height and extends to a 7-foot maximum operating height. Six tracking cameras automatically monitor vehicle height on the shop lift while the frame holds 0.02-degree alignment-reading accuracy.

How does the equipment ship?

The package ships multi-pallet via freight. Contact sales@mygaragesupplies.com or call 307-381-1810 for current pallet count, weights, and receiving requirements before delivery is scheduled.

How do I prepare for the IA900WA arrival and unboxing?

Autel published a short video walking through receiving, unboxing, and initial setup of the IA900WA frame:
