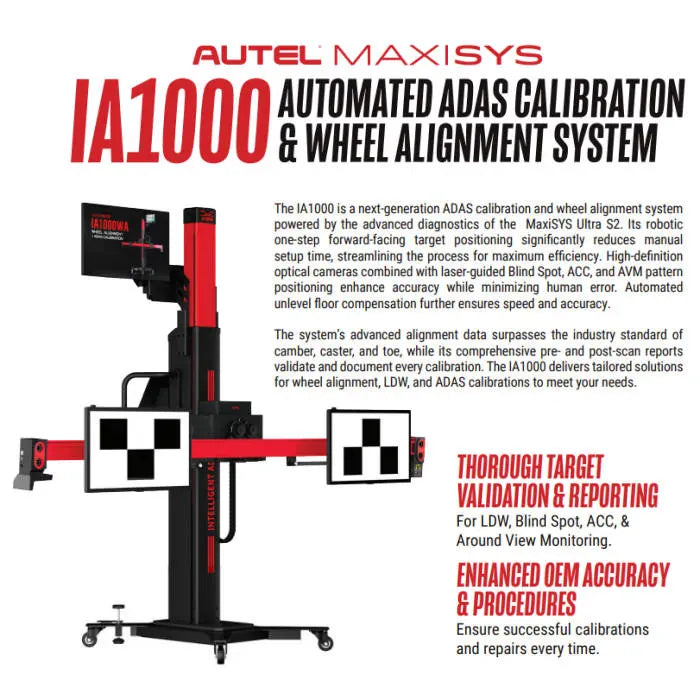

Autel IA1000DT Automated ADAS Calibration & Wheel Alignment System with Digital LDW Targets

The Autel IA1000DT is the Digital Target package of Autel's MaxiSYS IA1000WA platform — a fully automated, robotic ADAS calibration and wheel alignment frame built for collision centers, ADAS calibration shops, dealerships, and high-volume general repair. The DT configuration adds Autel's digital LDW target monitors to the base IA1000 frame, replacing a stack of physical Lane Departure Warning targets with screen-projected, OEM-sourced patterns that the tablet selects automatically.

One thing to confirm before you order: the IA1000DT package ships with the calibration frame, accessories, three digital LDW target monitors, and a Digital Target Activation Card. It does not include the MaxiSYS Ultra S2 tablet or the IA1000 Activation Card — both are required to operate the system and are sold separately. If you want a turnkey package that includes the tablet, look at the IA1000TDT (frame + digital targets + Ultra S2 tablet) or the IA1000ASTDT (all-systems package with tablet and physical LDW targets).

The IA1000 frame uses six high-definition optical cameras (3072 × 2048 pixels each) combined with laser-guided pattern positioning to set ADAS targets — Blind Spot, ACC, AVM, NVS, and BSD — without the manual measure-and-shim ritual older calibration frames demand. Five-way robotic adjustment handles vertical, horizontal, and front-to-back crossbar placement plus pitch, roll, and yaw. Position the frame inside the green tolerance zone the tablet displays, press Next, and the system finishes the setup itself.

Fully robotic 5-way targeting and fine-tune adjustment

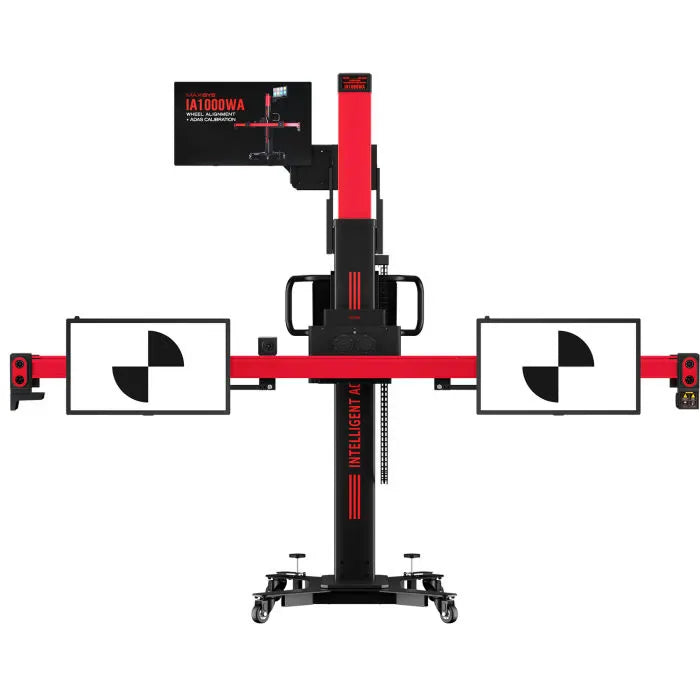

The IA1000's robotics control front-to-back column travel, vertical and horizontal crossbar positioning, and pitch, roll, and yaw of the crossbar itself. Position the frame anywhere inside the green Distance and Offset tolerance zone, hit Next on the tablet, and the system places the targets to spec automatically. Setup time drops, first-time calibration success rates rise, and the technician's part of the workflow stops being "measure, adjust, re-measure."

Six high-definition cameras and laser-guided floor pattern positioning

The frame carries six HD positioning and tracking cameras (3072 × 2048 each) that map the vehicle and the frame's own position in real time. Laser-guided AVM, ACC, NVS, and BSD floor-pattern positioning ensures repeatable, accurate placement of physical patterns — every time. Combined with the wheel-clamp targets, the system documents 0.02° wheel-alignment accuracy.

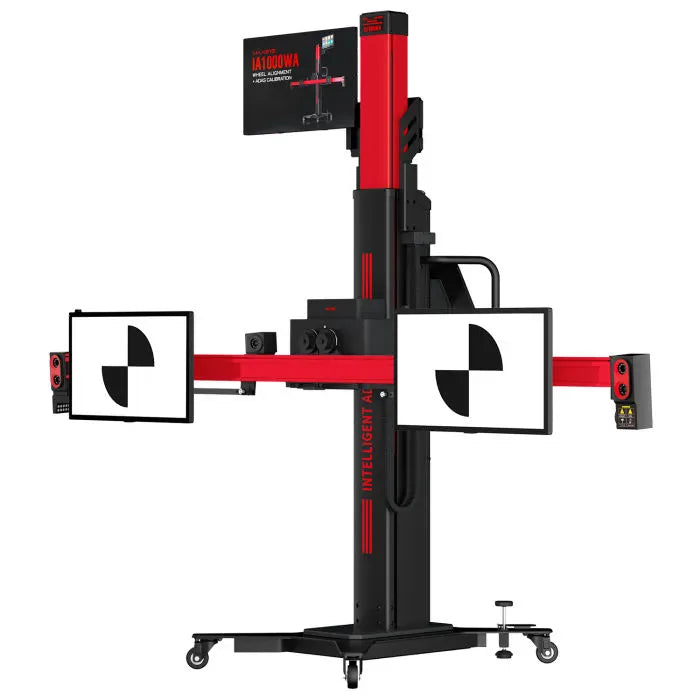

Digital LDW target monitors with automatic pattern projection

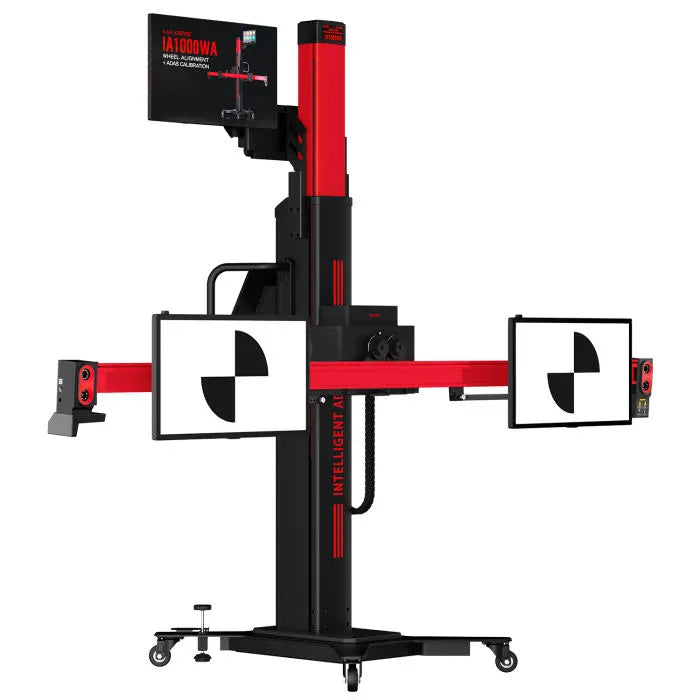

The IA1000DT ships with three 27-inch digital target monitors that mount to the frame's crossbar arms and tablet column. Instead of pulling a specific physical Lane Departure Warning target out of storage for each vehicle, the tablet auto-projects the correct OEM pattern onto the digital screen. Self-adjusting screen brightness keeps the pattern readable under uneven shop lighting, and OTA updates keep the OEM target library current as new vehicles ship.

Unlevel floor compensation

Level shop flooring is one of the environmental factors most likely to fail an ADAS calibration — and shop drainage, expansion joints, and rack pads make a perfectly level pad rare. The IA1000 lets the technician select level floor, unlevel floor, or "on a rack" before running the calibration; the system compensates and validates a successful calibration regardless.

Advanced alignment data beyond camber, caster, and toe

The wheel-alignment side of the IA1000 reports detailed thrust angle, SAI, included angle, toe-out on turns, maximum steering angle, ride height, setback angle, and symmetrical values in addition to the basic camber-caster-toe set. Useful for diagnosing frame and engine cradle alignment, bent or loose components, and the more nuanced alignment faults that surface on modern vehicles.

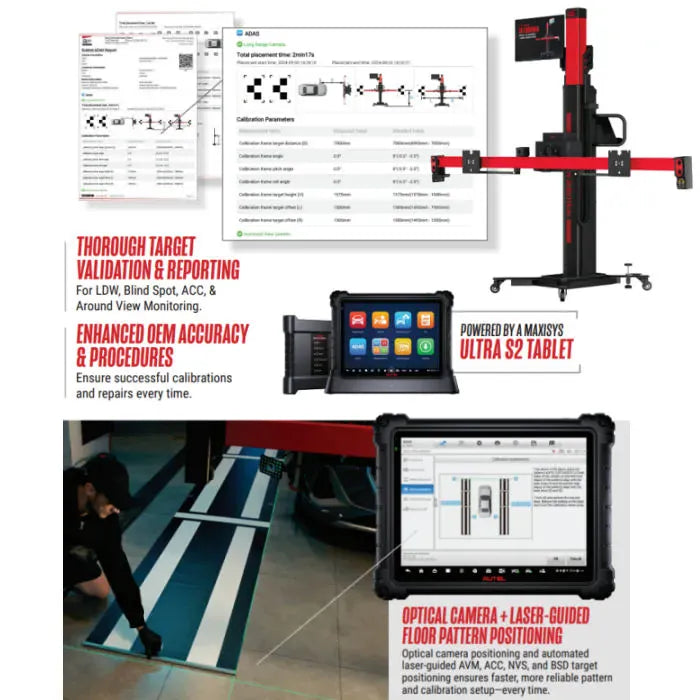

OEM-compliant Pre- and Post-scan reports

Every calibration is documented in a Pre/Post Scan report that names existing faults, the calibrations performed, and validated target positions — formatted for insurance documentation and OEM-procedure compliance. Calibration Frame angle, pitch, roll, target distance, target offset (L and R), and target height are all recorded against the OE standard value, with a Go / No-Go gate that blocks advancement when an element is out of spec.

Static and dynamic ADAS coverage

The IA1000 platform supports static and dynamic calibration of LDW, Blind Spot, Adaptive Cruise Control, Around View Monitoring, Night Vision, and Head-Up Display systems. Coverage spans U.S., Asian, and European vehicles — the specific OEM coverage available to your shop depends on the Autel software subscription and the calibration targets you have on hand.

The IA1000DT is the frame + digital-target package only. To operate it you also need:

• MaxiSYS Ultra S2 tablet — Autel's 13.7-inch Android diagnostics tablet with Topology 3.0, 512 GB storage, and the 6-in-1 VCMI 2 (MaxiFlash) vehicle communication device. Sold separately.
• IA1000 Activation Card — unlocks ADAS calibration and wheel alignment software on the Ultra S2 tablet. Sold separately.
• Digital Target Activation Card — unlocks 19 CSC digital LDW targets on the tablet. Included in the IA1000DT package.

Vehicle coverage spans U.S., Asian, and European cars and light trucks. The Digital Target Activation Card included with the IA1000DT unlocks 19 CSC digital LDW target patterns on the Ultra S2 tablet, with additional OEM patterns arriving via OTA software updates. Static calibration with physical Autel targets and patterns — Lane Departure Warning, Around View Monitoring mats, Rear Collision Warning, radar, lidar, and night-vision calibrators — covers the broader U.S., Asian, and European OEM library Autel publishes; the specific OEM coverage available to your shop depends on the targets and software subscription you have on hand. Confirm the current OEM list for your vehicle mix in the User Manual or with Autel directly before purchase.

The IA1000DT package ships with:

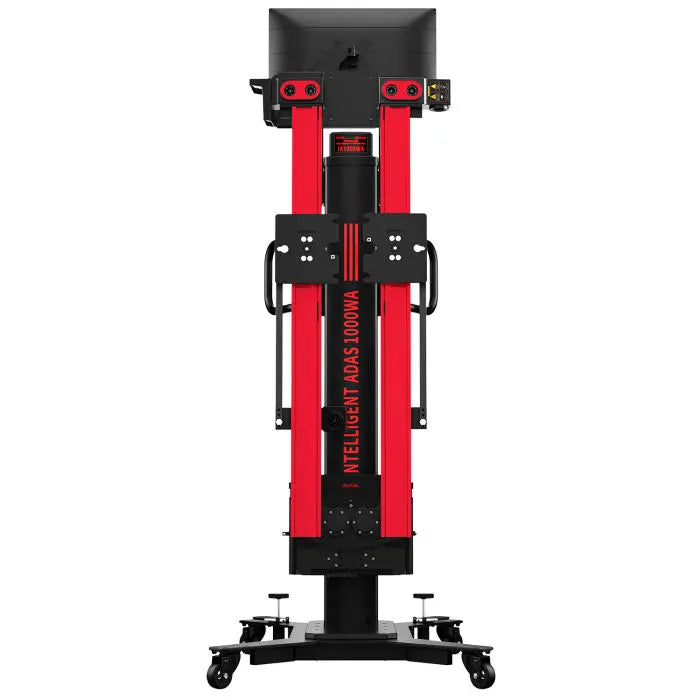

• IA1000 Calibration Frame (Autel P/N CSC1000) with six HD optical cameras, robotic 5-way crossbar positioning, central tablet mount, and rolling base with footbrakes

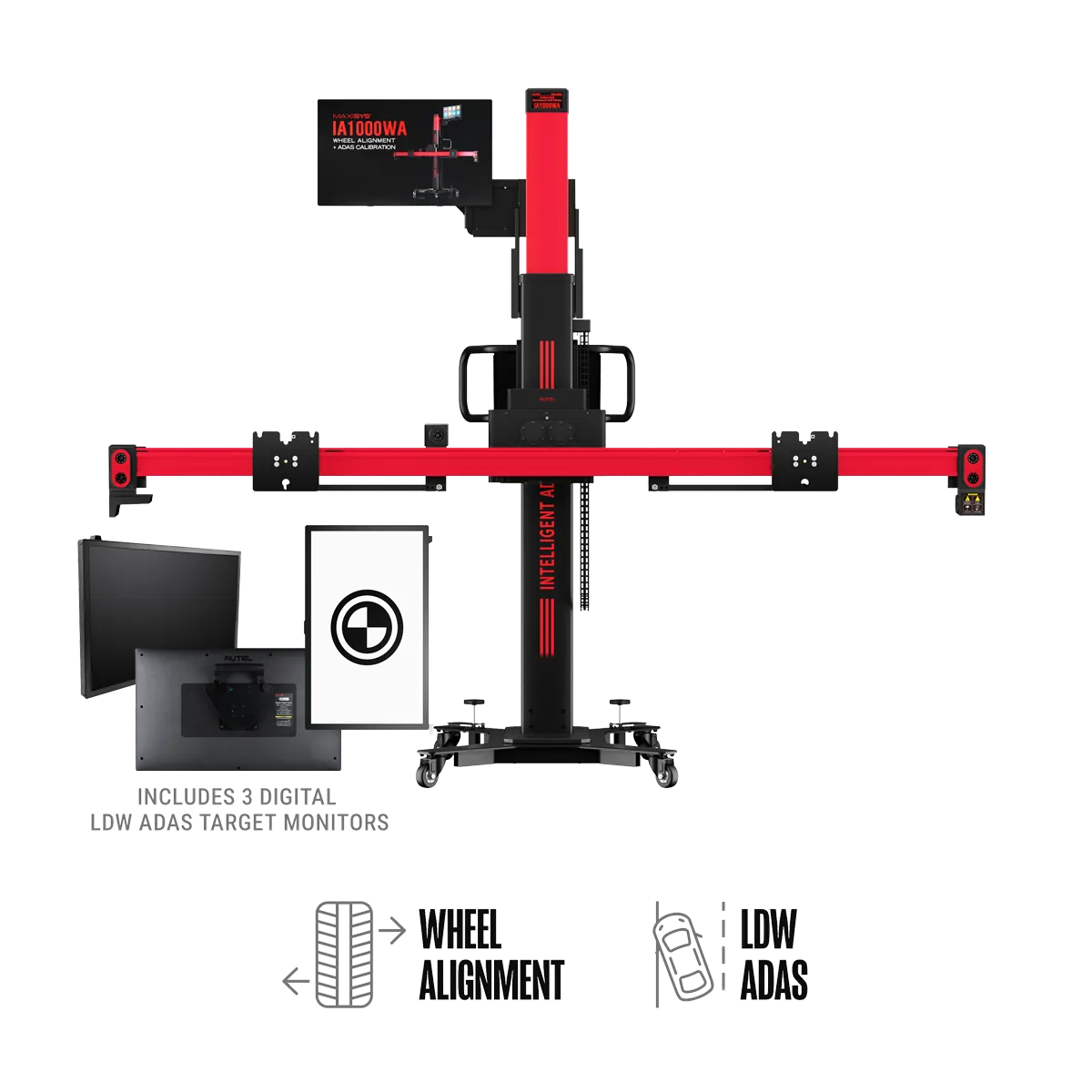

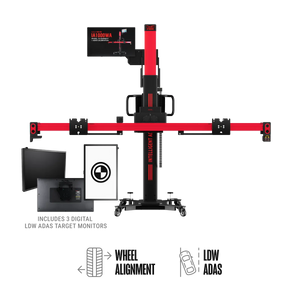

• Three 27-inch digital LDW target monitors
• Digital Target Activation Card (unlocks 19 CSC digital LDW targets on the Ultra S2 tablet)
• Steering wheel lock
• Brake pedal depressor
• Distance target / alignment aid
• Two AVM modules (two-line lasers, Autel P/N CSC050A/15)
• Two wheel chocks
• Four tire clamps (Autel P/N CSC0500/17) with wheel-mount alignment targets (Autel P/N CSC0500/16)
• 5 mm hex L-wrench for installing the alignment aid
• Packing list and printed Quick Reference Guides

Sold separately: MaxiSYS Ultra S2 tablet, IA1000 Activation Card, physical LDW targets and patterns for OEMs not in the digital-target library, replacement digital monitors (Autel P/N MONITORDT), and additional ADAS calibration packages (radar, lidar, night vision, Head-Up Display).

The IA1000DT carries Autel's 1-year limited warranty. Autel will repair or replace, at the company's option, parts that fail under normal consumer use within one year of purchase, with proof of purchase. Warranty service does not cover damage from abnormal use, unauthorized alteration, exposure to extreme temperatures, connection to unapproved accessories, cosmetic or structural items such as framing and non-operative parts, or damage from external causes (fire, dirt, sand, battery leakage, blown fuse, theft, electrical surge).

What's the difference between the IA1000DT and the other IA1000 packages?

The IA1000DT is the frame + digital targets only configuration — no tablet, no physical LDW targets. The IA1000TDT adds the MaxiSYS Ultra S2 tablet and IA1000 activation card. The IA1000LDWTDT adds the tablet plus a physical LDW target set. The IA1000ASTDT is the all-systems package: tablet, physical LDW targets, digital LDW targets, and the full calibration-equipment set. If you already own a MaxiSYS Ultra S2 tablet or you're sourcing it separately, the IA1000DT is the lower-cost entry point.

Do I need anything else to make it work?

Yes — the MaxiSYS Ultra S2 tablet and the IA1000 Activation Card are both required and sold separately. The Digital Target Activation Card that unlocks the 19 digital LDW targets is included in the DT package.

How much floor space does the IA1000DT need?

The calibration frame itself wants a clear, level area of 4 m × 5.33 m (13.2 ft × 17.5 ft). A complete wheel-alignment-plus-ADAS-calibration workflow needs 10 m × 5 m (32.8 ft × 16.4 ft). Unlevel-floor compensation will recover modest deviations, but the working area itself needs to fit those footprints.

Does it run on standard shop power?

Yes. The IA1000 draws 360 W rated and accepts 100–264 V AC at 50/60 Hz, must be grounded, and pulls less than 5 amps. A standard grounded outlet on a shop circuit is enough — no three-phase or special service required.

What's covered by the digital LDW targets versus what still needs physical targets?

The Digital Target Activation Card unlocks 19 CSC digital LDW target patterns on the Ultra S2 tablet, with additional OEM patterns arriving via OTA software updates. For OEMs not yet in the digital library — and for Around View Monitoring, Rear Collision Warning, radar, lidar, and night-vision calibrations — you'll still need the appropriate physical Autel targets and patterns (sold separately). Confirm the current digital OEM list against your shop's vehicle mix in the User Manual or with Autel directly.
