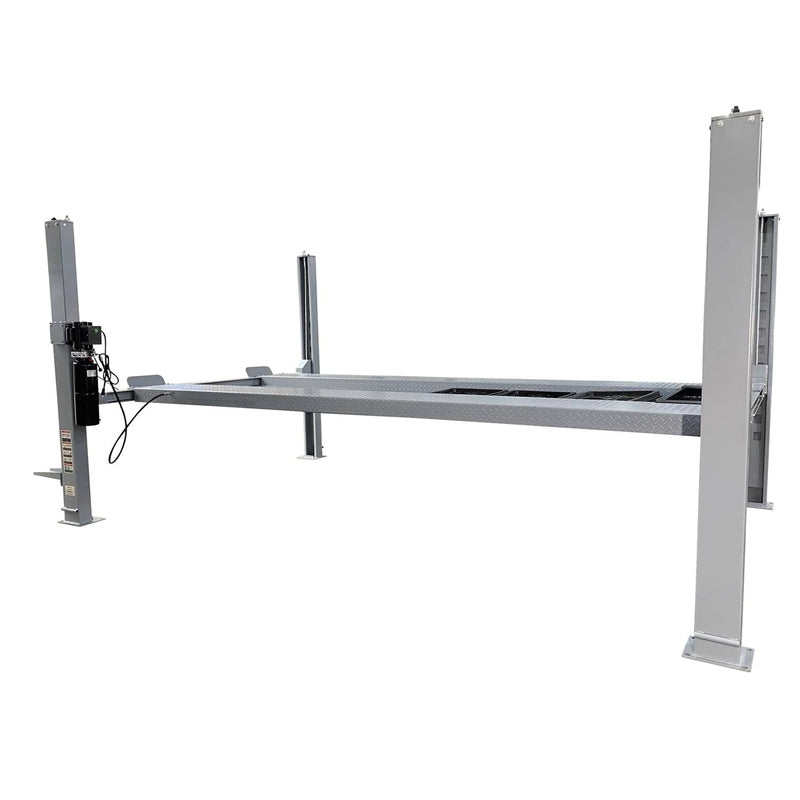

Triumph NSS-11 11,000 lb Extra Wide 4 Post Lift

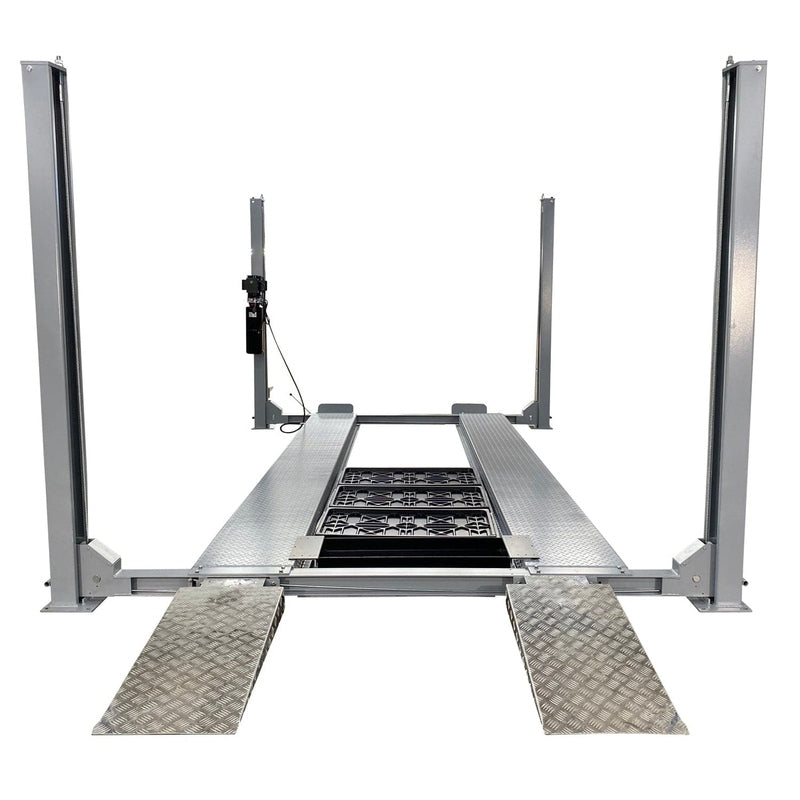

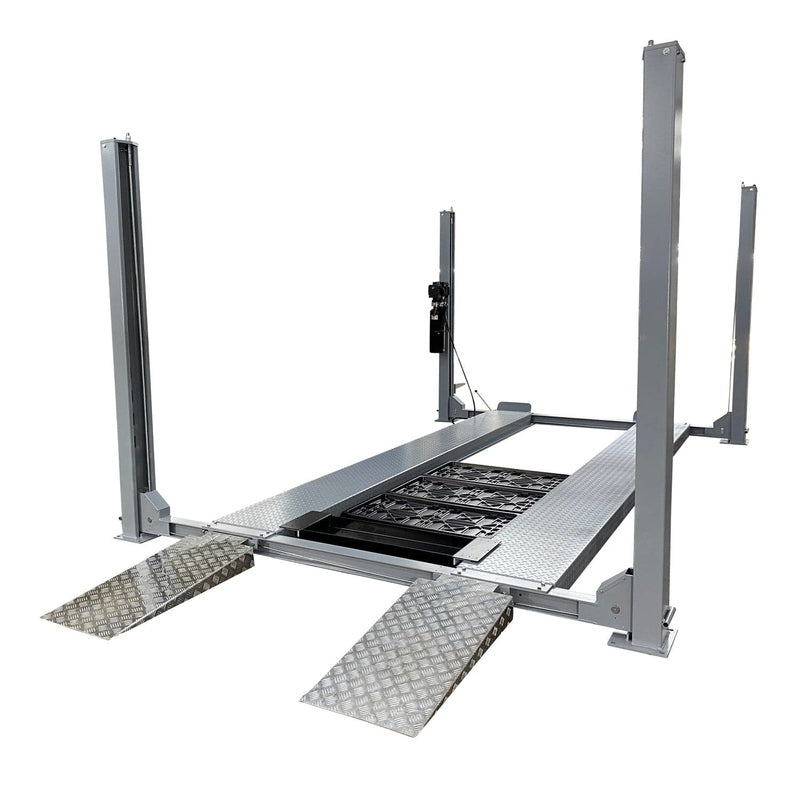

The Triumph NSS-11 (NSS11000) is an 11,000-lb four-post automotive lift built for both vehicle service and stacked storage. It pairs an 86.5-inch maximum lift height with a 196-inch runway and 118 inches of drive-thru clearance, and runs on standard 110-volt, 60 Hz, single-phase service rather than three-phase power.

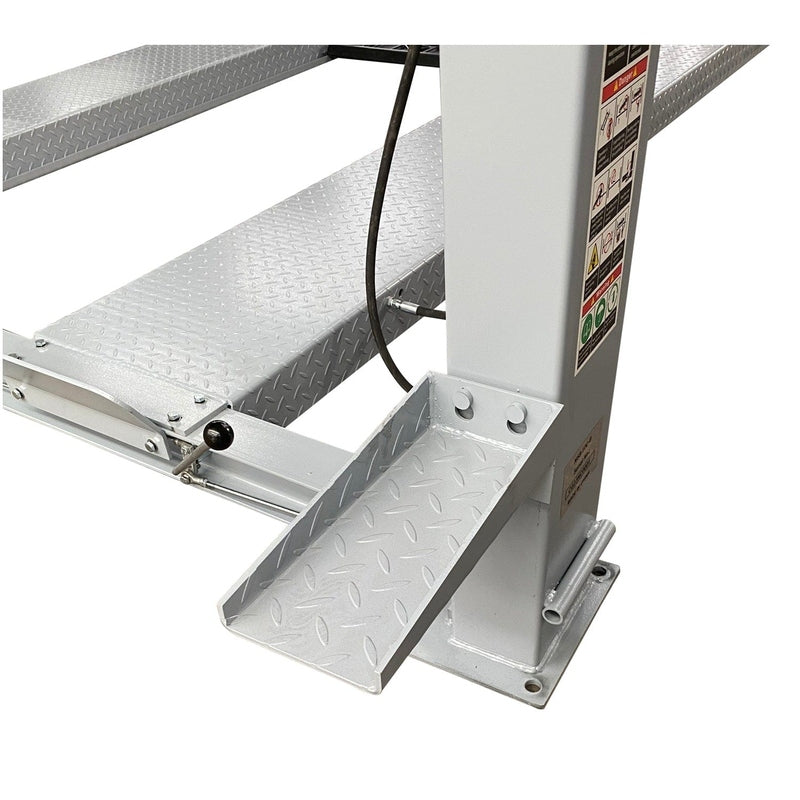

A caster kit ships with the lift so one technician can roll the assembled NSS-11 across the shop or garage floor between jobs. An included jack tray accepts a bottle jack or floor jack for raising one end of a vehicle, and six drip trays sit between the runways during stacked storage so fluid from the upper vehicle doesn't reach the lower one.

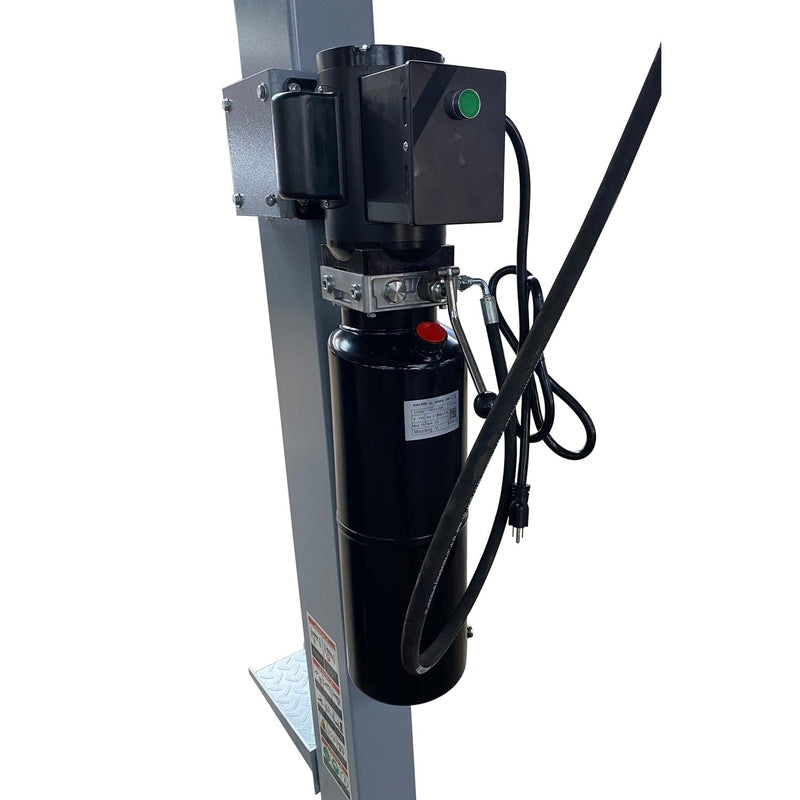

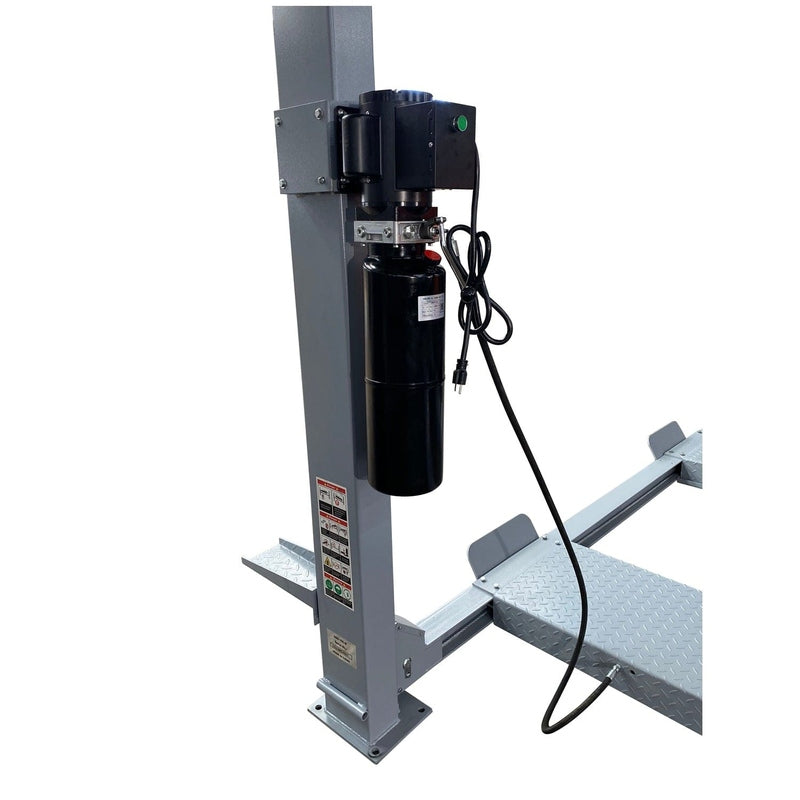

The lift uses a hydraulic cylinder driving a four-cable system, with eleven automatic mechanical locking positions that engage as the lift rises and a single-point release that drops all four columns together in roughly 40 seconds. The NSS-11 is built around a proven design that has been in continuous production for over twenty years and ships in default grey.

• 11,000-lb lifting capacity rated for service or stacked storage

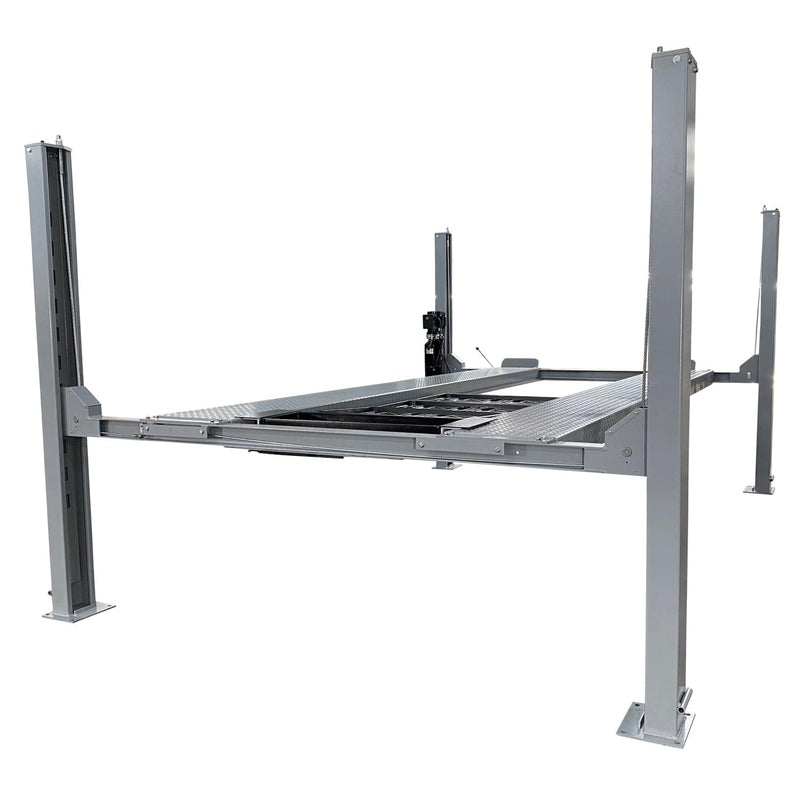

• 86.5-inch maximum lift height with 81 inches of working height under the runways
• Automatic 11-position locking engages as the vehicle rises; single-point lock release drops all four columns together
• 40-second lift cycle on 110-volt, 60 Hz, single-phase service — no three-phase required
• Minimum 3,000 PSI concrete required under the column base plates per the owner's manual
• Single-cylinder hydraulic drive with a four-cable equalizer system for synchronized column travel
• Caster kit included for repositioning the lift across the shop floor
• Jack tray included for bottle or floor jack use
• Six drip trays included to prevent fluid transfer between stacked vehicles

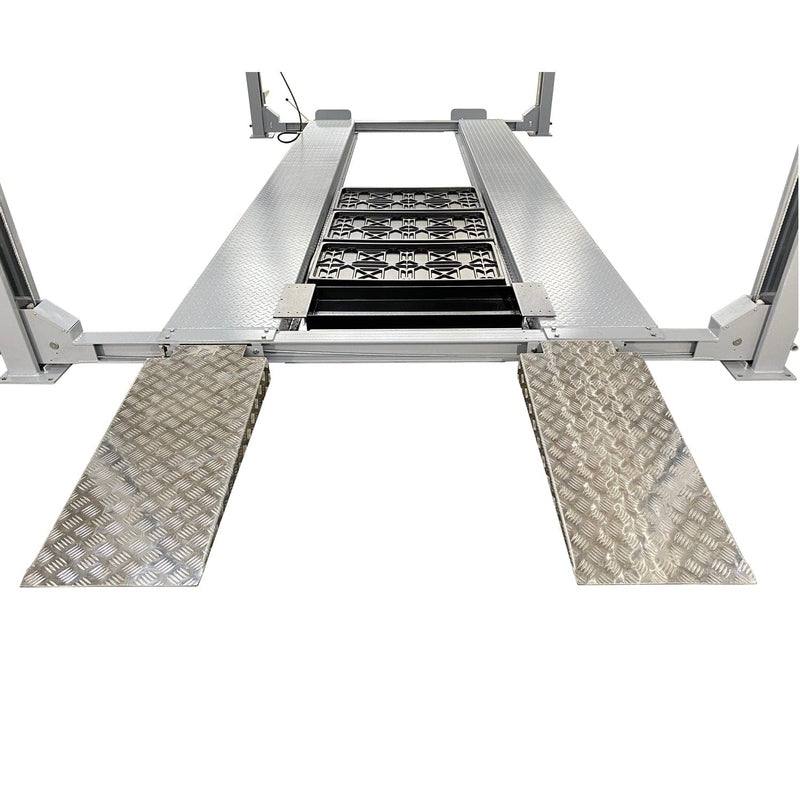

• Adjustable runway spacing at 39 inches or 44.5 inches between runways
• 5-inch lowered height with the standard drive-on ramps
• 118-inch drive-thru width with a 130-inch overall width

• One Triumph NSS-11 four-post automotive lift, default grey finish
• Caster kit for shop-floor portability
• Jack tray for bottle or floor jack use
• Six drip trays for stacked storage
• Drive-on ramps
• Wheel chocks
• Installation hardware and owner's manual

Will my vehicle fit on the NSS-11?

The NSS-11 offers 118 inches of drive-thru clearance, a 196-inch runway, and runway spacing adjustable to 39 inches or 44.5 inches. Compare your vehicle's wheelbase, track width, and curb weight against the spec table to confirm fit within the 11,000-lb rated capacity.

Does it really run on 110 volts?

Yes. The NSS-11 lifts a full 11,000-lb load on standard 110-volt, 60 Hz, single-phase service, so no three-phase wiring or special high-amperage electrical work is required at the shop. Per the owner's manual, the electrical hookup should be made by a qualified electrician to the motor nameplate rating.

What does the floor need to be?

The Triumph NSS-11 owner's manual specifies a minimum concrete strength of 3,000 PSI under the column base plates. Confirm your slab's strength, depth, and levelness before installing; a defect-free pour is required to keep the four columns vertical to the ground plane in normal use.

How many drip trays are included, and what do they do?

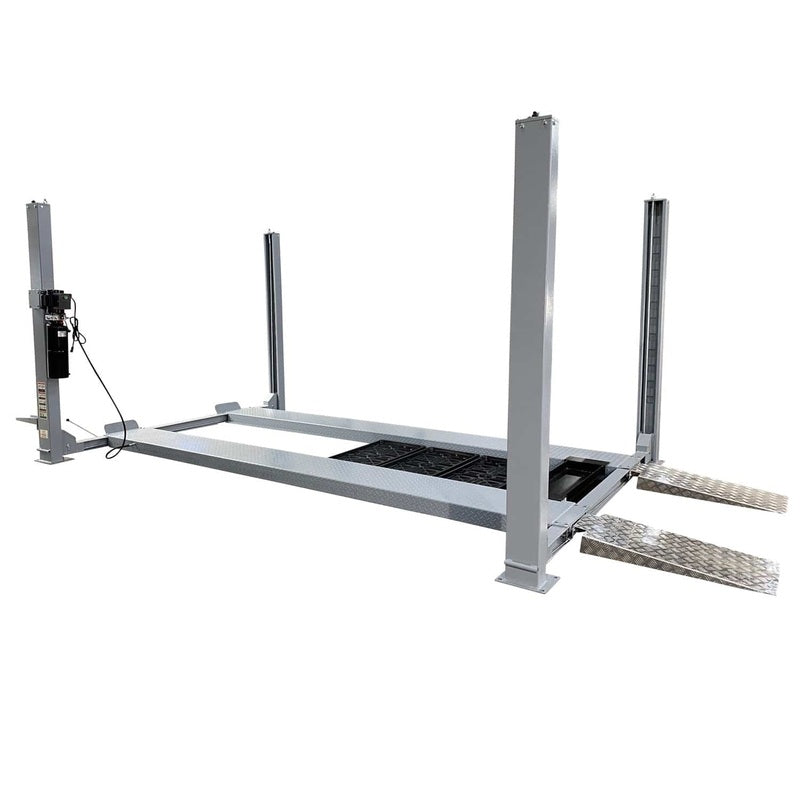

Six drip trays ship with the lift. They sit between the runways during stacked storage so oil, coolant, or other fluid leaking from the upper vehicle is contained instead of dripping onto the lower one.

Can the lift be moved around the shop?

The included caster kit lets one technician roll the assembled lift across the shop or garage floor between jobs. The NSS-11 is anchored or chocked in place when in use and rolled when repositioning.

What is the lowered height, and is it drive-on?

Lowered runway height is 5 inches with the standard drive-on ramps in place. Rolling a vehicle onto the lift is straightforward and does not require sleds, dollies, or external ramps.

The Triumph NSS-11 ships via LTL common-carrier freight on a 48-foot semi truck and weighs approximately 2,400 lbs. Before purchase, please note:

• The customer unloads the lift from the truck. The driver does not unload it for you.
• Lift gate delivery is not available for auto lifts.
• Unloading requires a forklift, Bobcat, tractor, tow truck, or back hoe. The lift cannot be unloaded by hand.
• If unloading at your address is not possible, the lift can be shipped to the carrier's nearest freight terminal for pickup with a trailer or moving van.
• Freight-company delivery appointments are coordinated by the customer directly with the carrier.

• Triumph NSS-11 Owner's Manual (PDF) — covers installation, maintenance, parts list, and troubleshooting.

For technical questions or installation help, contact sales@mygaragesupplies.com or call 307-381-1810.
