Triumph RJ-5 5,000 lb Rolling Bridge Jack

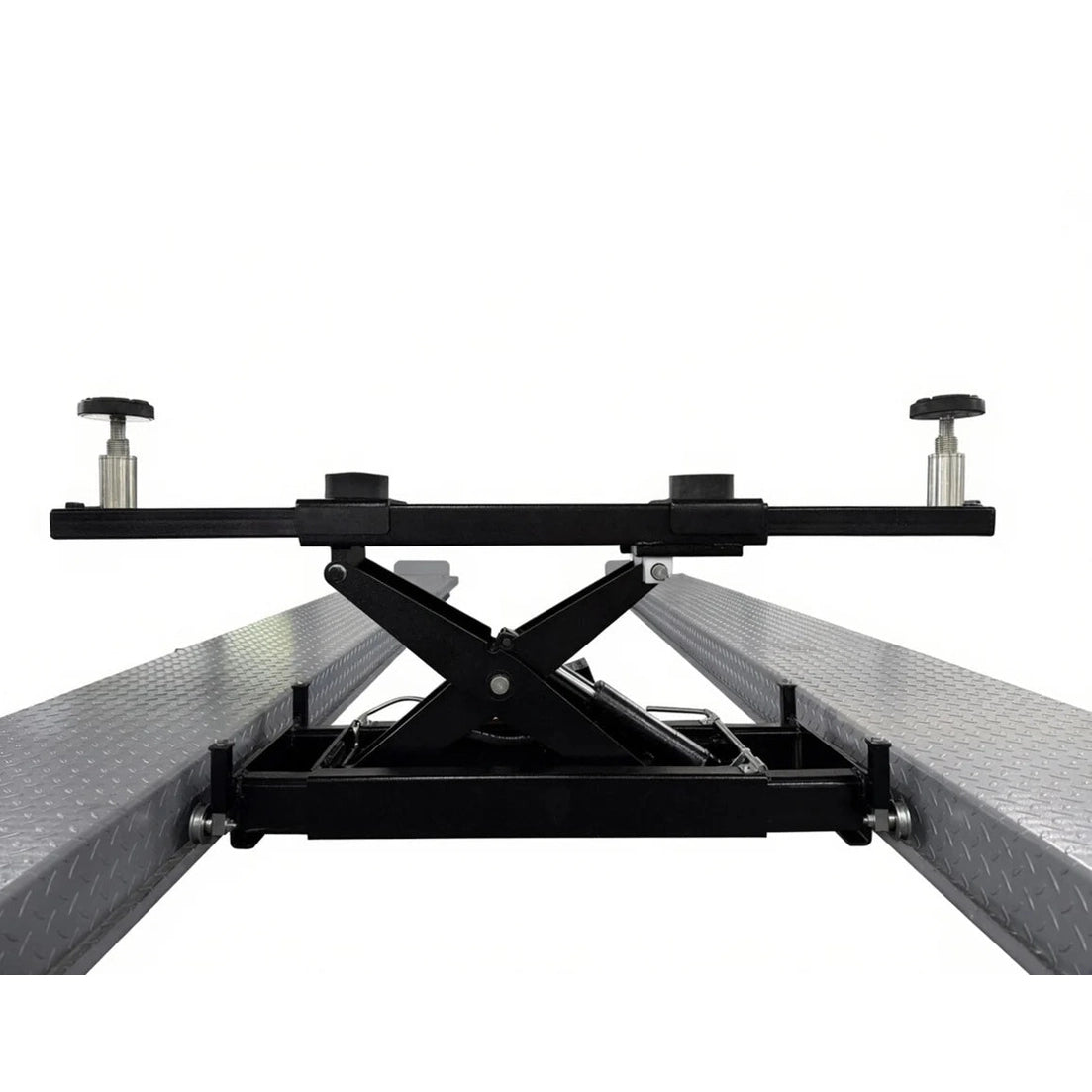

The Triumph RJ-5 5,000 lb rolling bridge jack (Triumph factory designation RJ-5000) turns a four-post lift into a full service bay. It rides along the lift runways on end rollers, then raises the vehicle off the runways so you can pull wheels, service brakes, or rotate tires while the platform still supports the rest of the vehicle. A single unit lifts up to 5,000 lb, and it ships with one set of 4-inch height adapters for extra reach.

Fit is set by your runway spacing. The RJ-5 spans runways from 31.4 to 47.2 inches apart, and its contact points adjust across a 32.2 to 59.8 inch width to reach the lift points on cars, trucks, and SUVs. Two rubber pads and two threaded saddle posts on the cross-beam thread up to meet the frame. The jack collapses to an 8.6-inch lowered height to roll under low vehicles and raises to a 22.5-inch maximum height for standing access to the undercarriage.

• 5,000 lb capacity to lift a wheels-off load clear of the runways
• Rolls along the runways on end rollers, so you can position it anywhere along the lift
• Two rubber pads plus two threaded saddle posts adjust across a 32.2 to 59.8 inch contact width
• Fits four-post runway spacing from 31.4 to 47.2 inches
• 8.6-inch lowered height and 22.5-inch maximum lift height

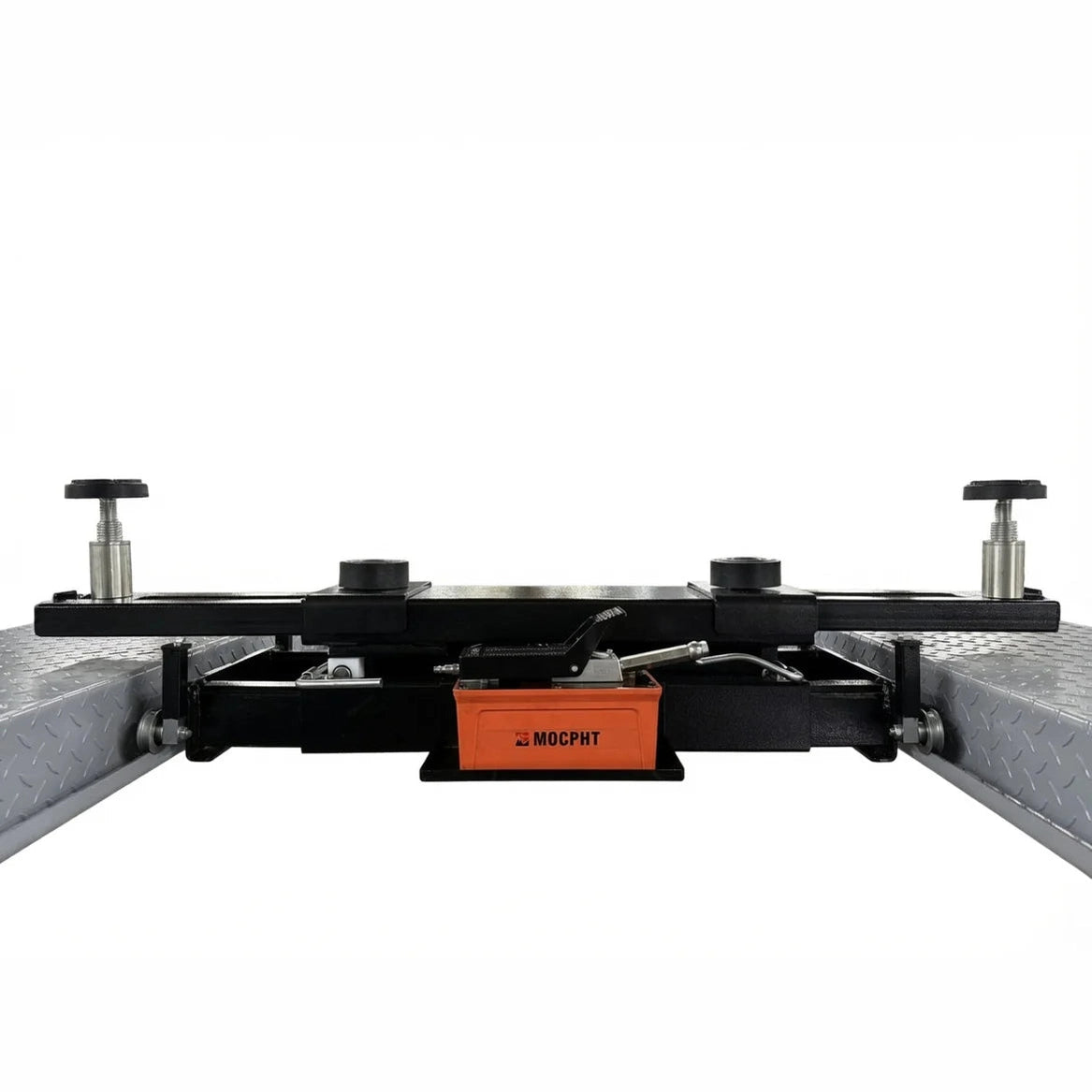

• Hydraulic operation with a foot-pump power unit
• Includes one set of 4-inch height adapters

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
