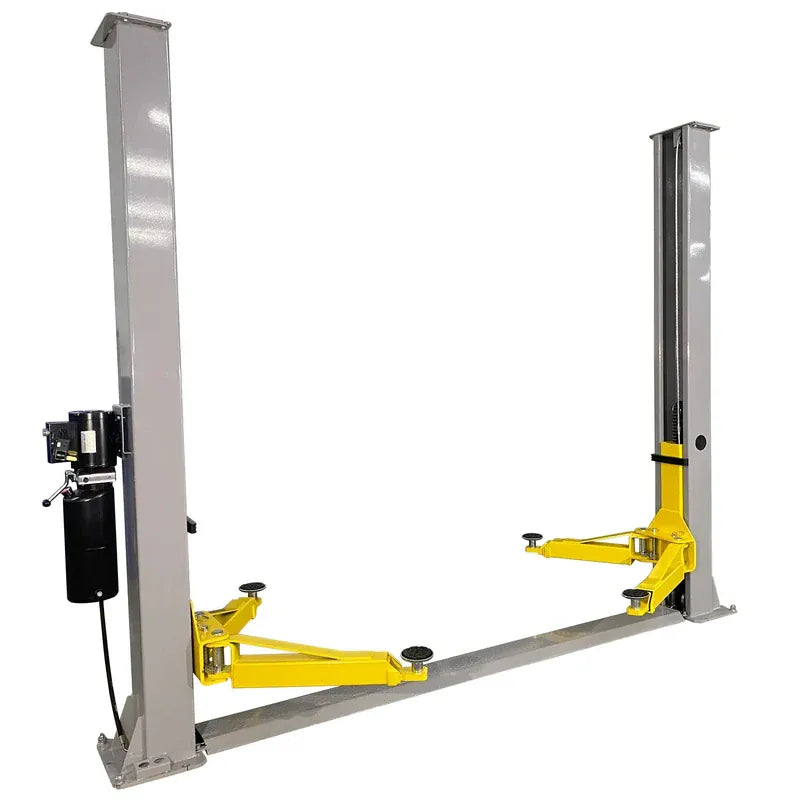

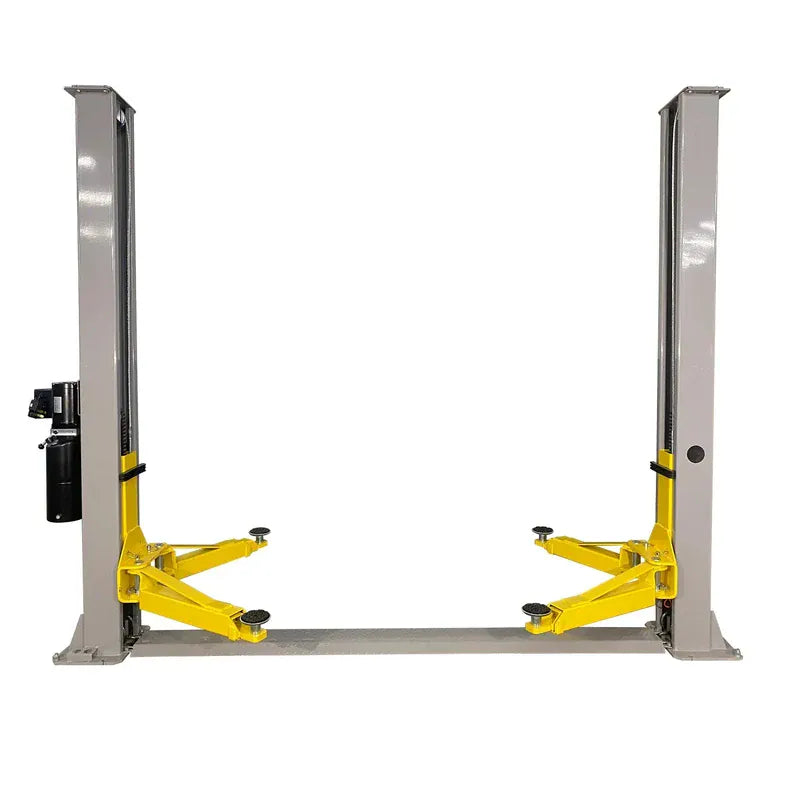

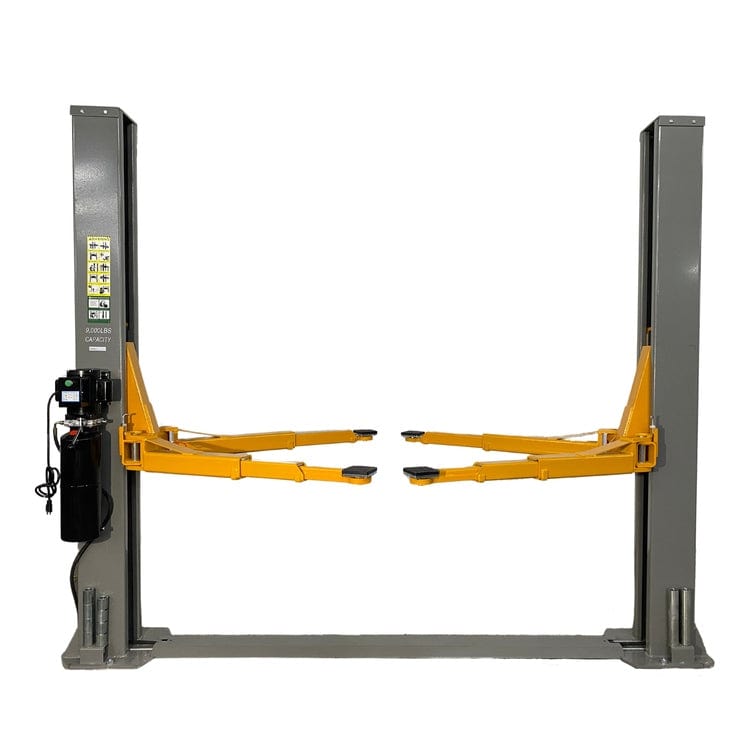

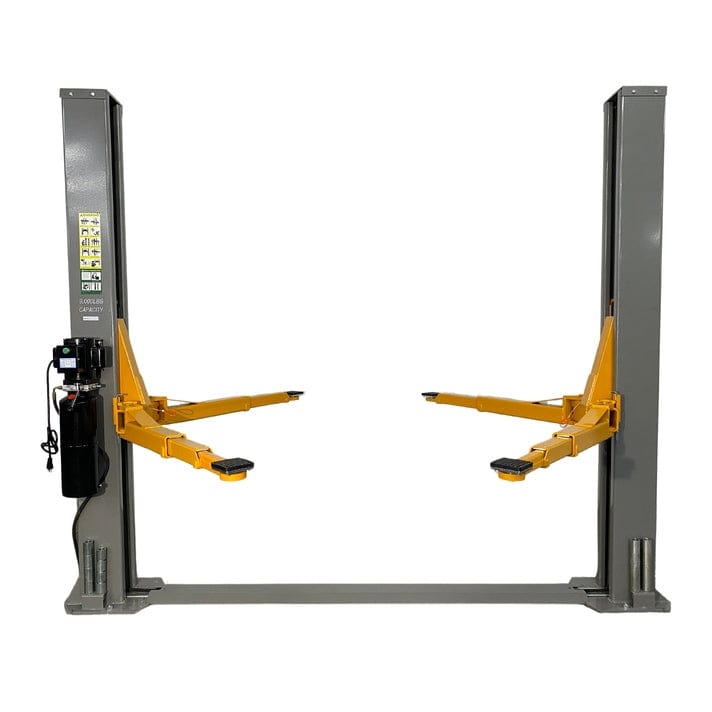

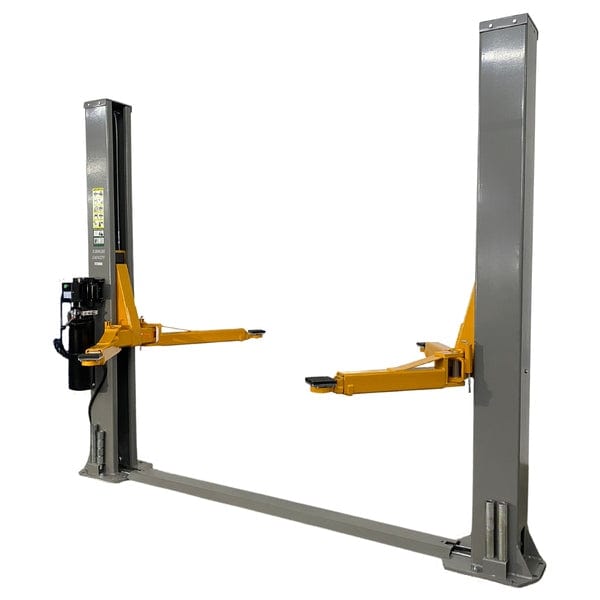

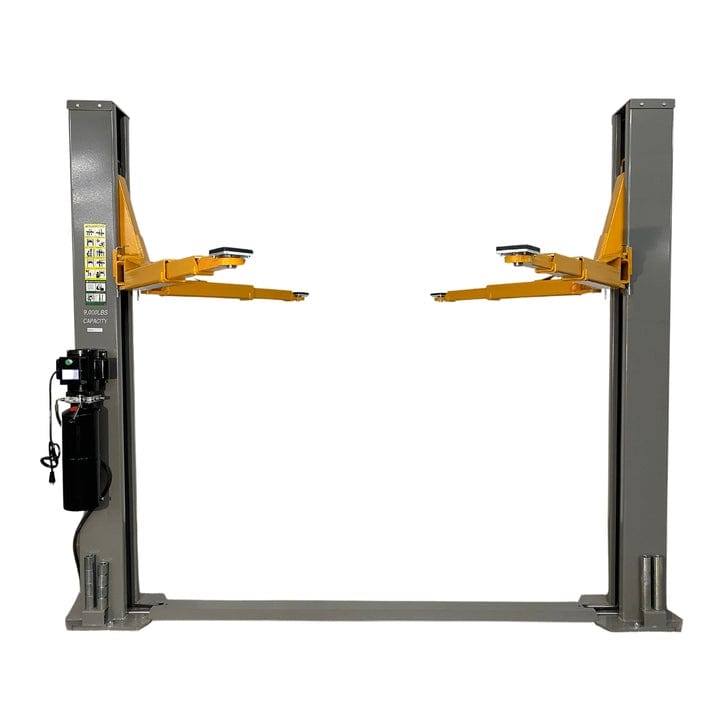

Triumph NT-9 9,000lb Two Post Lift

The Triumph NT-9 packs 9,000 lbs of lifting capacity into a compact floor plate design built specifically for home garages and smaller shops. Two features make this lift stand out: it runs on 110V standard household power (no electrician needed to wire a 220V circuit), and it comes with three-stage front arms that give you more reach on a wider variety of vehicles than typical two-stage designs.

The floor plate covers all cables and hoses for a clean, professional look — and it's engineered to fit under low ceilings that many overhead-style lifts can't handle. With only a 3" concrete slab requirement at 3,000 PSI, installation is accessible for more garages than higher-capacity lifts that demand 5-6" slabs.

Truck adapters included | 40-second lift time

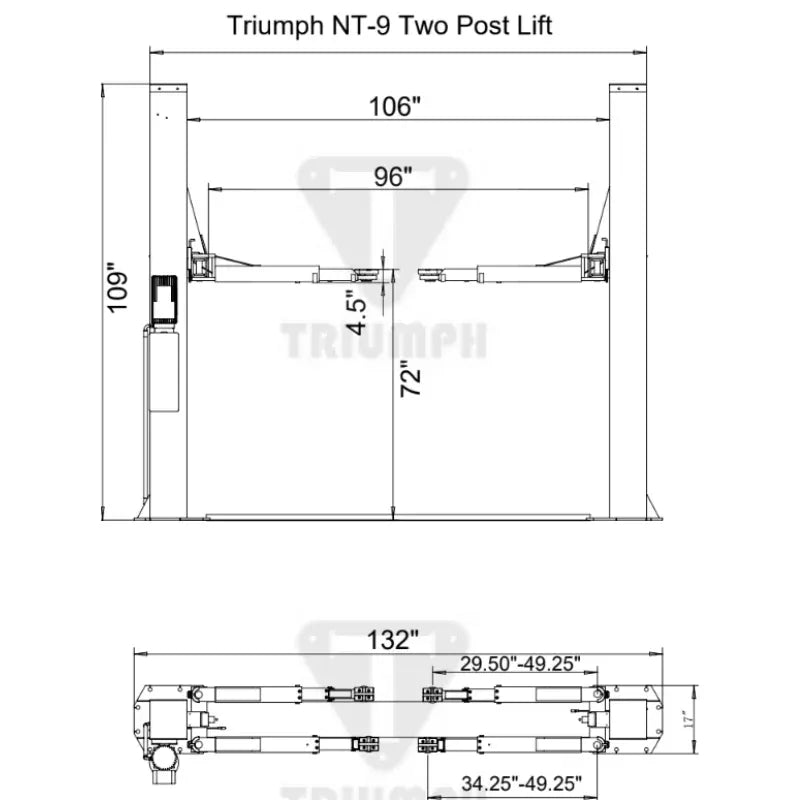

The NT-9 is one of the most garage-friendly two-post lifts on the market. Here are the space requirements:

• Ceiling Height: 9 ft 3 in minimum (111" overall height)
• Floor Width: 11 ft minimum (132" overall width)
• Drive-Through Width: 96" (8 ft — measured at tire level)
• Width Between Posts: 106" (at mirror height of vehicle)
• Concrete Slab: 3" minimum, 3,000 PSI
• Power: Standard 110V household outlet (no special wiring required)

The compact 132" overall width is 8 inches narrower than most 10,000+ lb lifts, making it a better fit for standard two-car garages. And the 3" concrete requirement means most residential garage slabs qualify — no need to pour extra concrete.

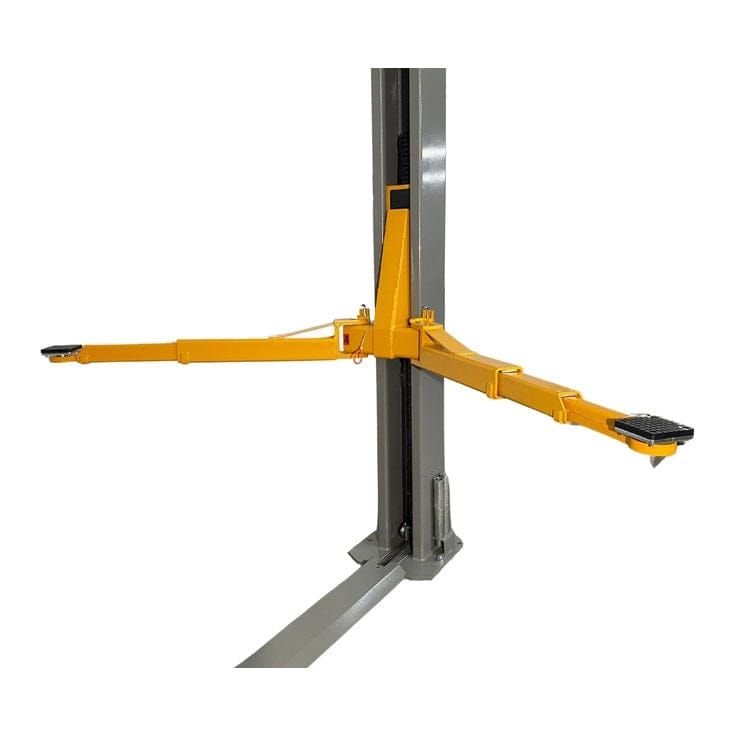

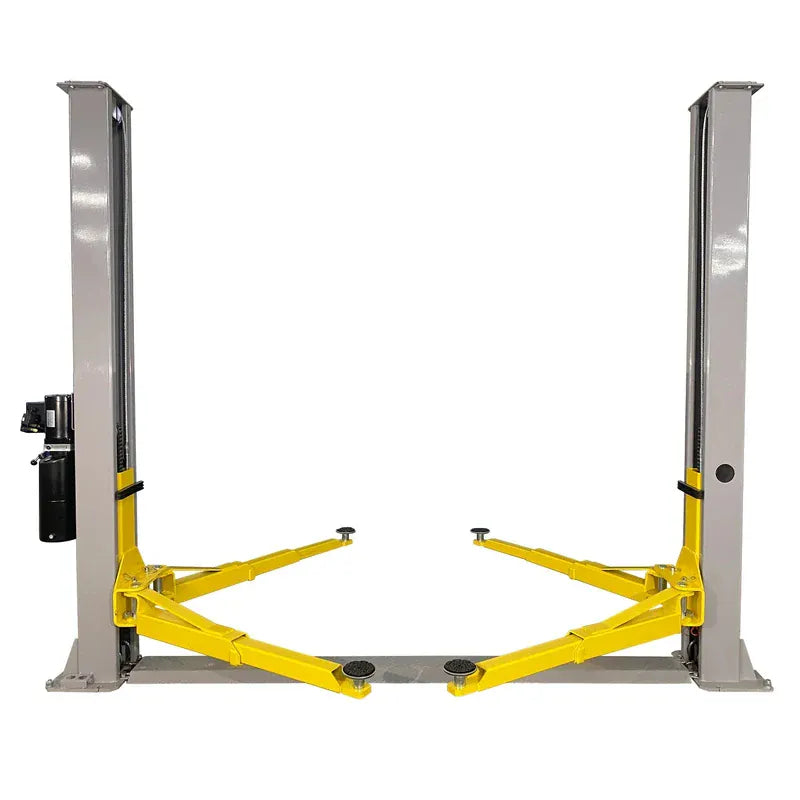

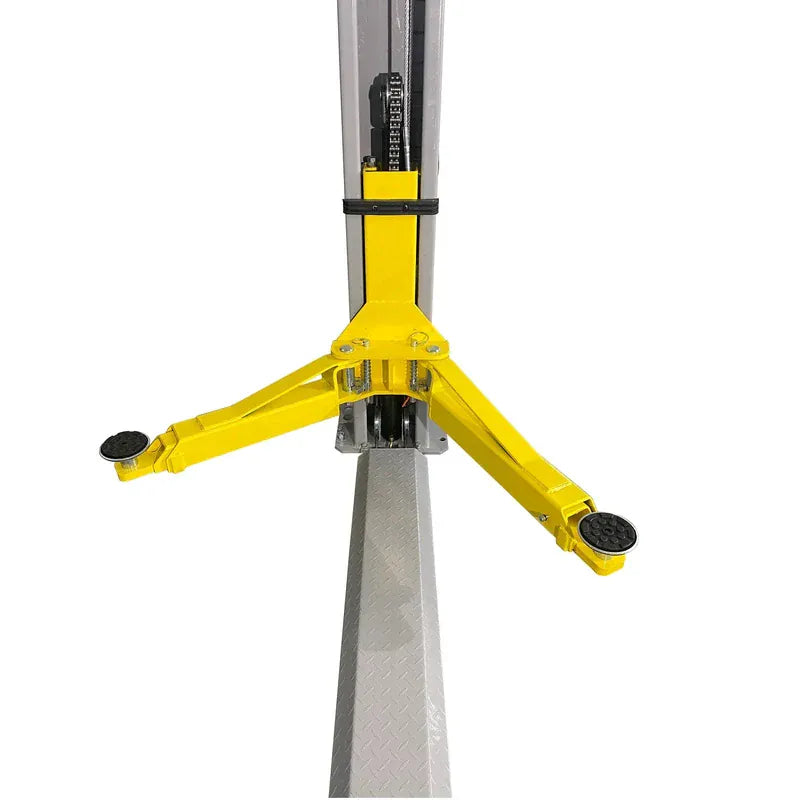

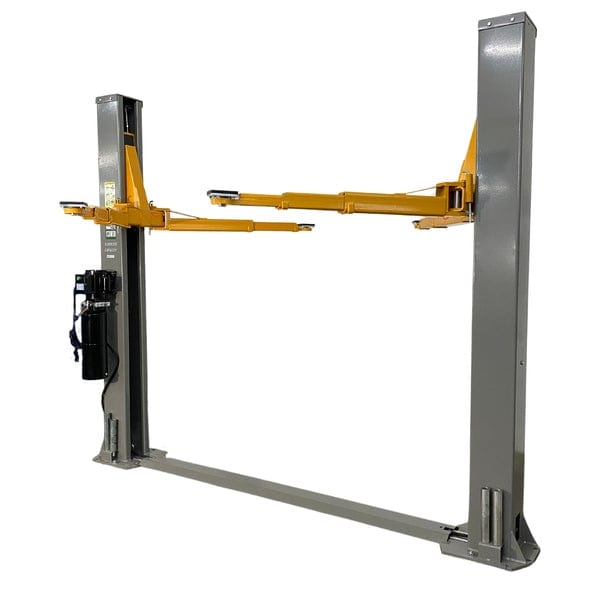

Three-Stage Front Arms — Most two-post lifts come with two-stage arms. The NT-9's three-stage front arms provide a reach range of 29.5" to 49.25", giving you more flexibility to reach lift points on everything from compact cars to full-size trucks without awkward arm positioning.

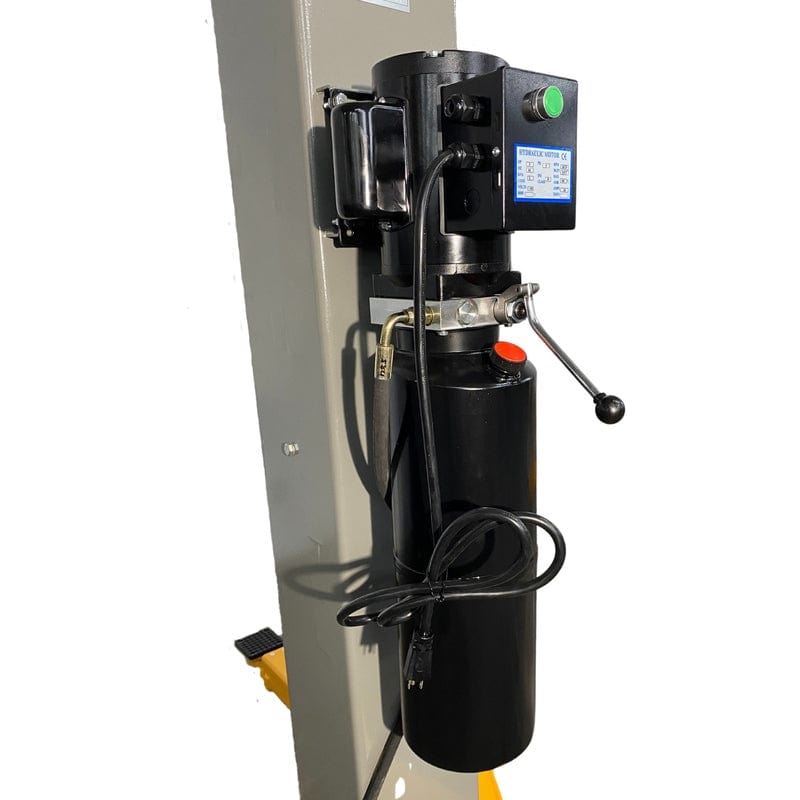

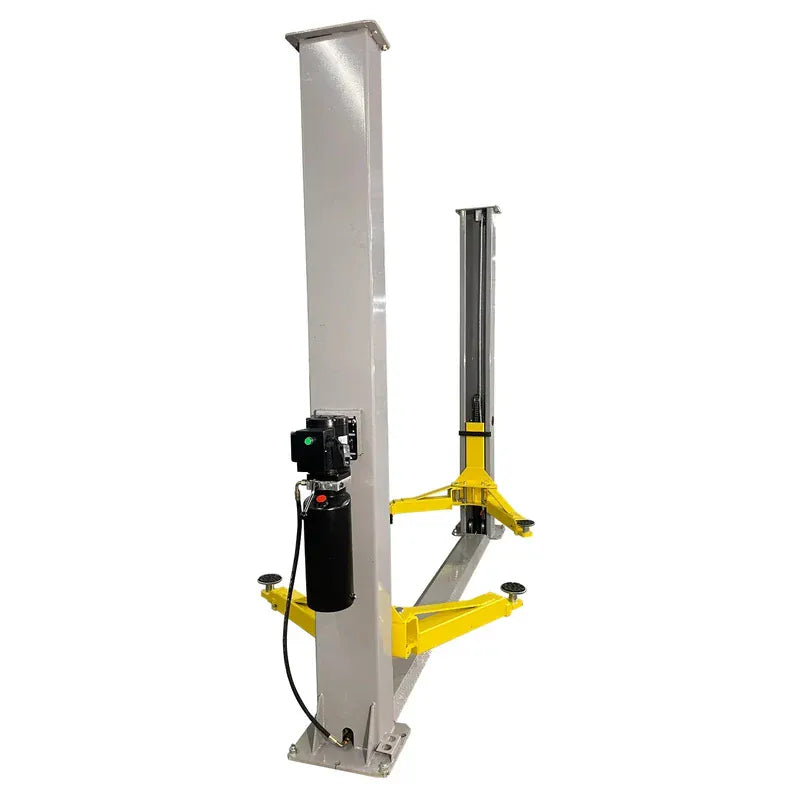

110V Standard Power — This is a big deal for home garages. Most competing lifts require 220V service, which means hiring an electrician and running a dedicated circuit before you can even use the lift. The NT-9 plugs into a standard 110V outlet with its powerful 3 HP motor. Just bolt it down and start lifting.

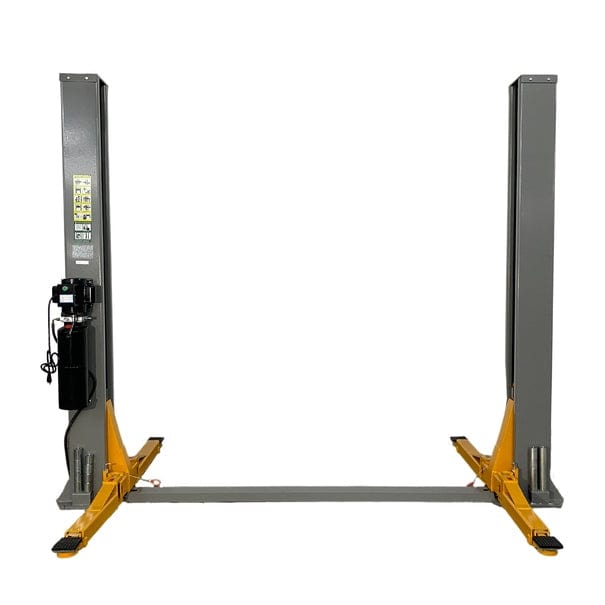

Floor Plate Design — The floor plate covers all cables and hydraulic hoses, giving your shop a cleaner look while protecting the components from damage. It also helps with installation under low ceilings where overhead beam designs won't fit.

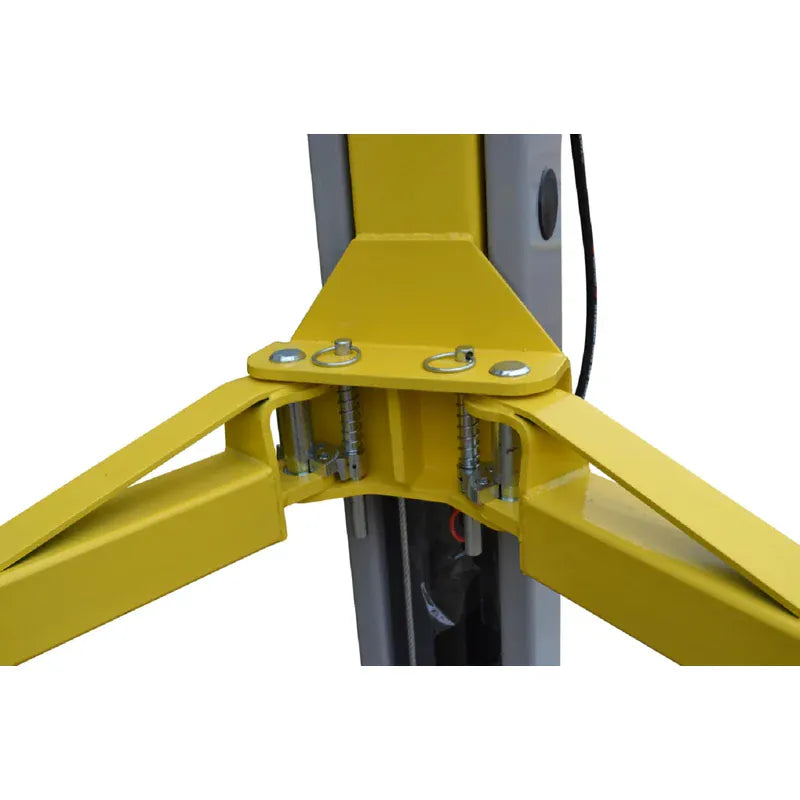

Dual-Point Lock Release — Automatic locking at multiple positions as the lift rises. The dual-point release system lets you lower the lift smoothly from either side.

The NT-9 ships complete and ready to install:

• 2x lift columns with floor plate
• 4x adjustable lift arms (three-stage front, rear arms)
• Rubber lift pads
• Truck adapters (included — extends reach for lifted or oversized vehicles)

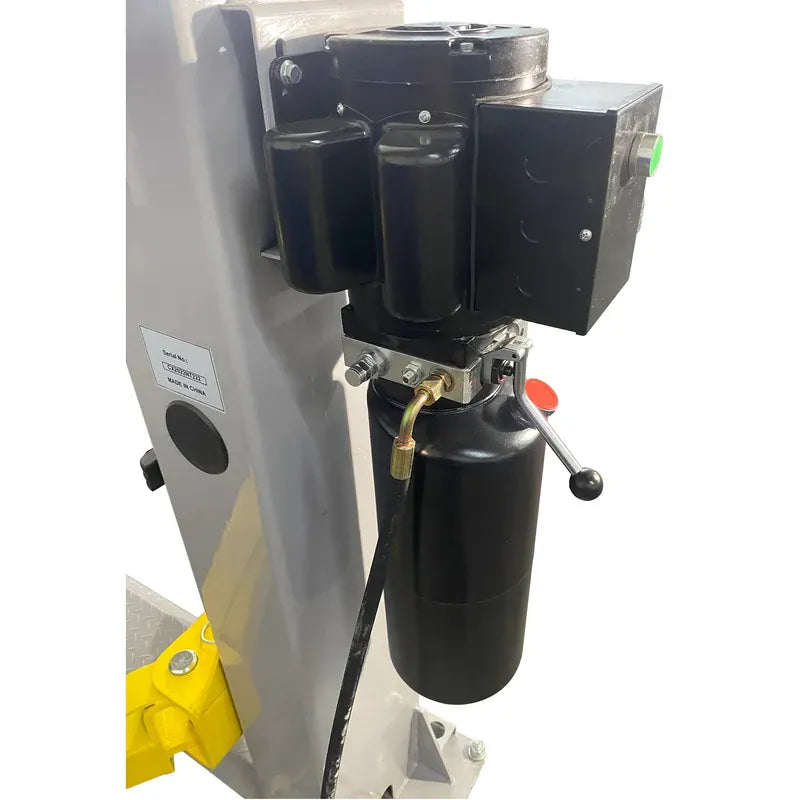

• 1x hydraulic power unit with 3 HP motor (110V)
• All floor mounting hardware

• Home garages with low ceilings — floor plate design and compact dimensions fit where other lifts won't
• DIY mechanics & enthusiasts — 110V power means no electrician, 3" concrete means most garage slabs work
• Small auto repair shops — 9,000 lbs handles sedans, crossovers, SUVs, and light trucks
• Side-hustle mechanics — affordable entry point to start doing undercar work professionally

Triumph provides a 1-year parts warranty at no charge. Here's how it works:

• Call us and we troubleshoot the problem over the phone with you
• We ship you the replacement part free of charge — part is free, shipping is free (ground service)
• Labor is not included — you install the part yourself or pay someone to do it (most repairs are straightforward for anyone with basic mechanical skills)

What's covered:

• All parts and components for 12 months
• Cylinders: full warranty for 30 days, seal kit provided after 30 days

What's not covered:

• Rubber lifting pads (wear item)
• Labor costs for installation of replacement parts

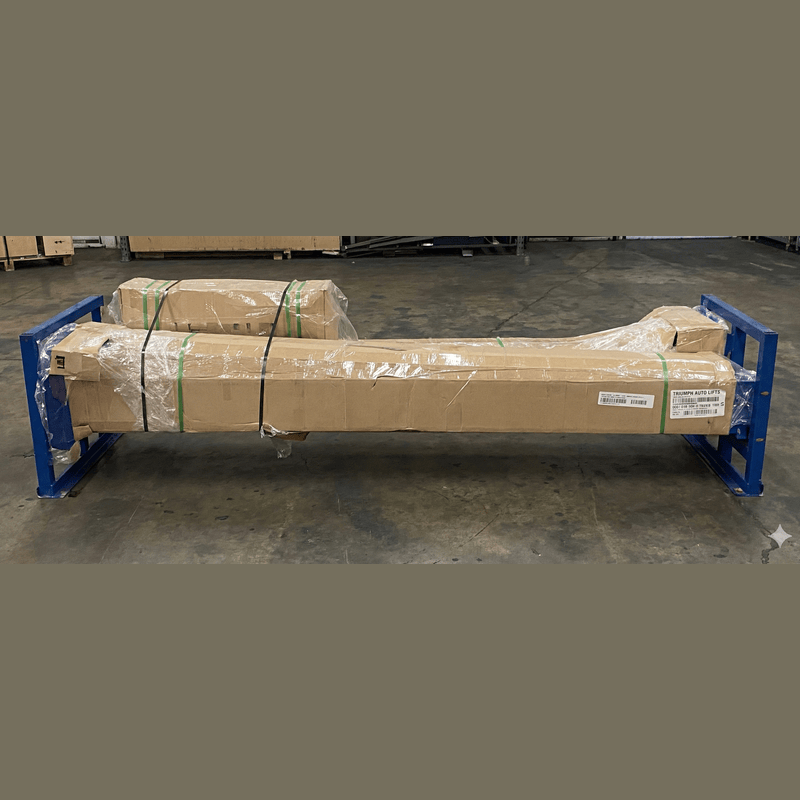

The NT-9 ships on a 48-foot semi truck. Please read the following carefully before purchasing:

• You are responsible for unloading — the truck driver does not unload the lift for you
• Lift gate service is not available
• You cannot unload by hand — you need machinery that can handle the full 1,303 lb shipping weight (forklift, bobcat, tractor, tow truck, or backhoe)
• Terminal pickup option: If you can't unload from a semi, we can ship to the carrier's nearest freight terminal for you to pick up with a trailer or moving van
• You schedule the delivery: Once your lift ships, we email you the carrier info and tracking number. You call the freight company to set a delivery appointment
• Inspect before signing: Check the product carefully before signing the Bill of Lading. If you sign with no damages noted, satisfaction is assumed

For more detailed information and guidance, you can download the following:

• Download Manual (PDF)
