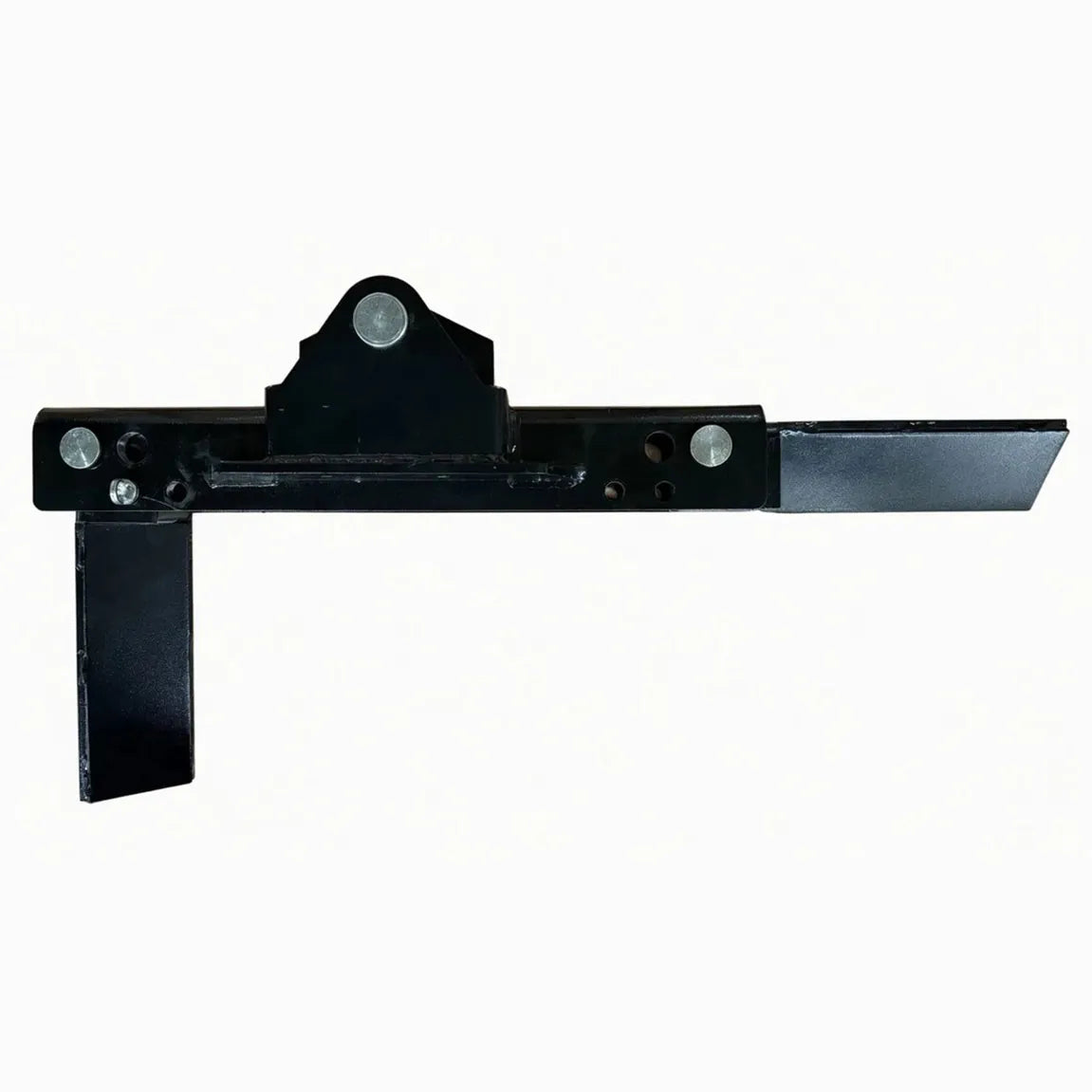

Triumph NT-WA66C wheel support adapter mounted on a two-post lift arm with locking pins

Triumph NT-WA66C Wheel Support Adapters (Set of 4)

SKU NT-WA66C

In Stock
$825.00 - $825.00
$825.00
$825.00 - $825.00
$825.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

The Triumph NT-WA66C wheel support adapters let a two-post lift hold a vehicle by its wheels rather than by the frame contact pads — useful for most vehicle types, including recreational vehicles and turf equipment, where a standard frame pad will not reach or seat cleanly. The set of four adapters carries 6,600 lb of total capacity and ships from a US warehouse in Texas.

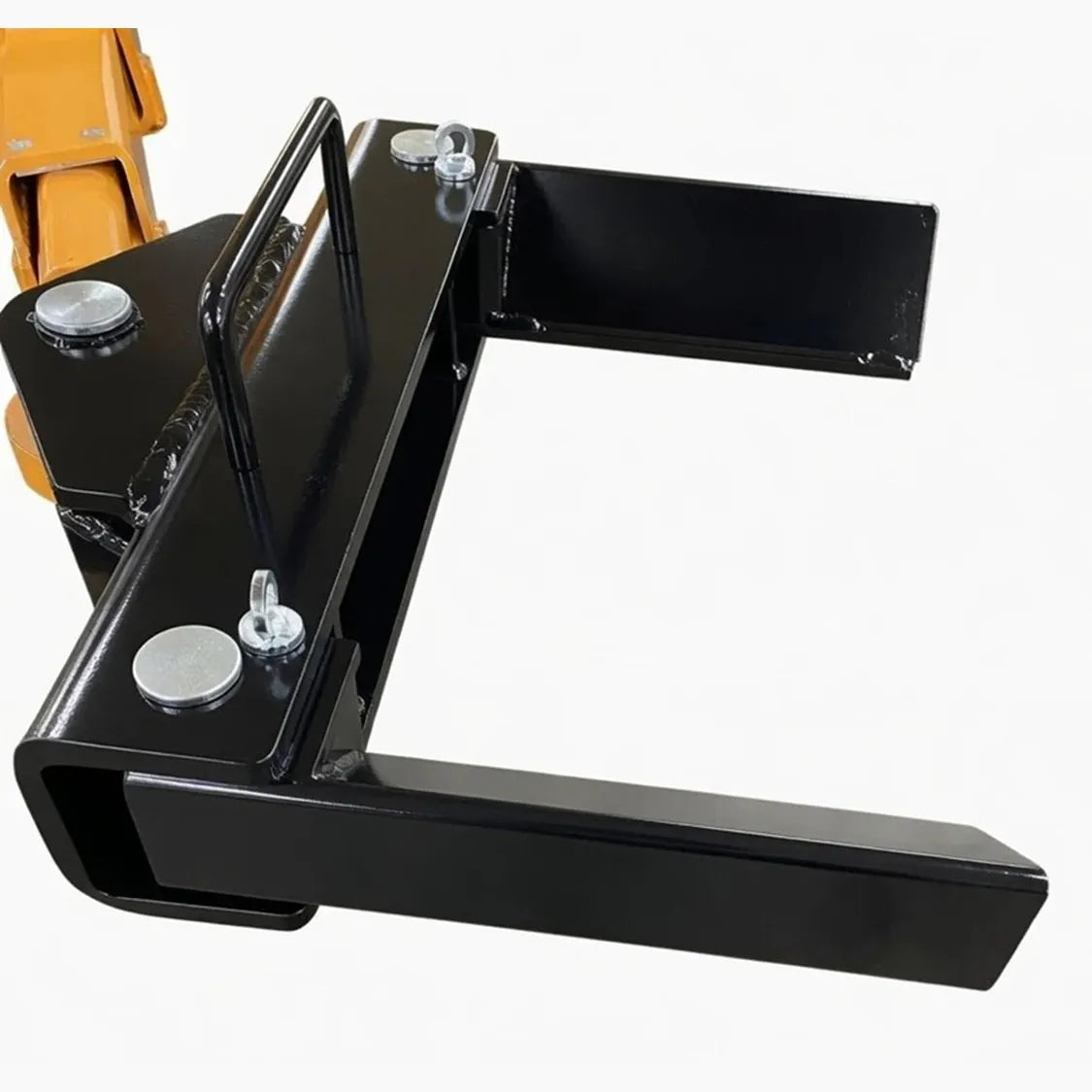

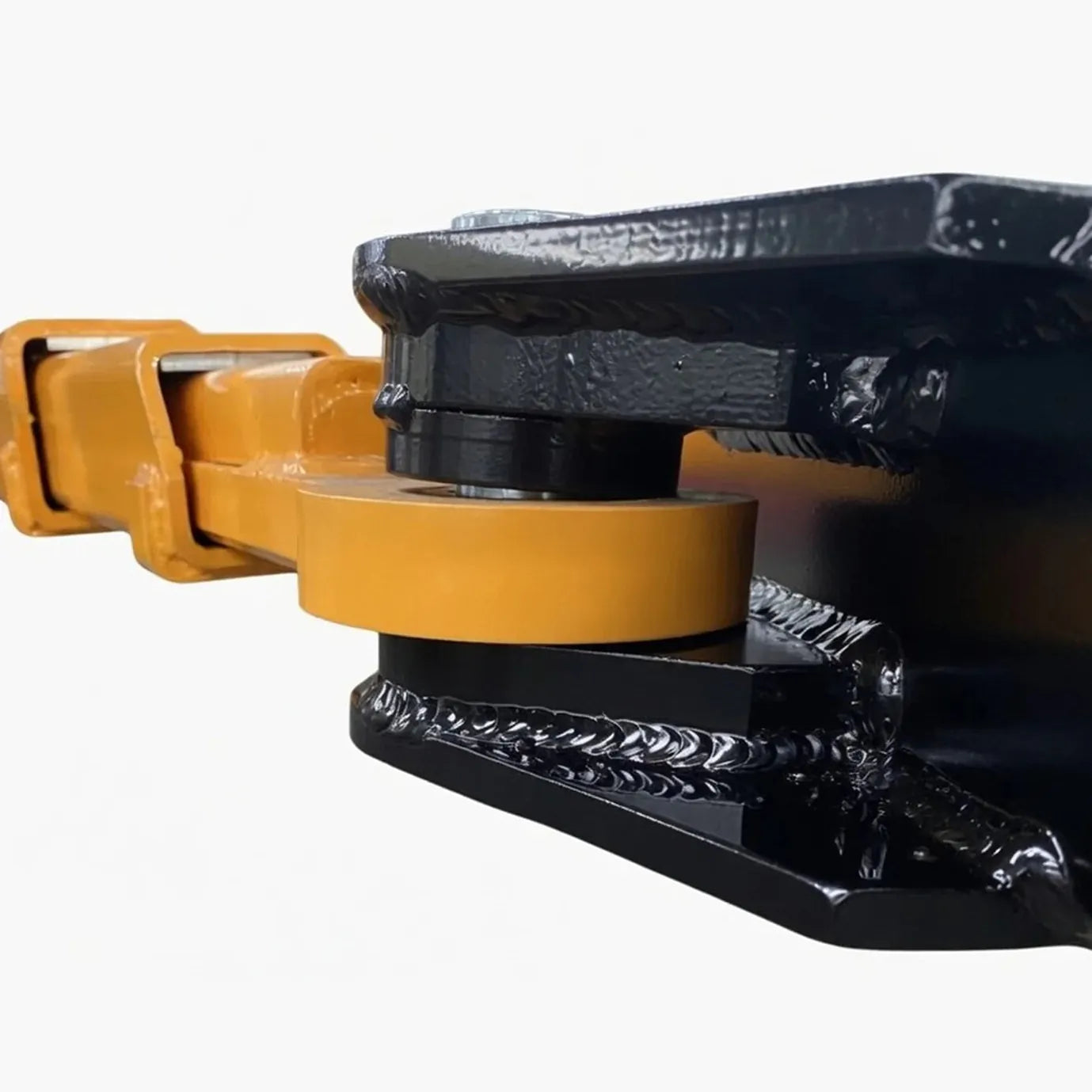

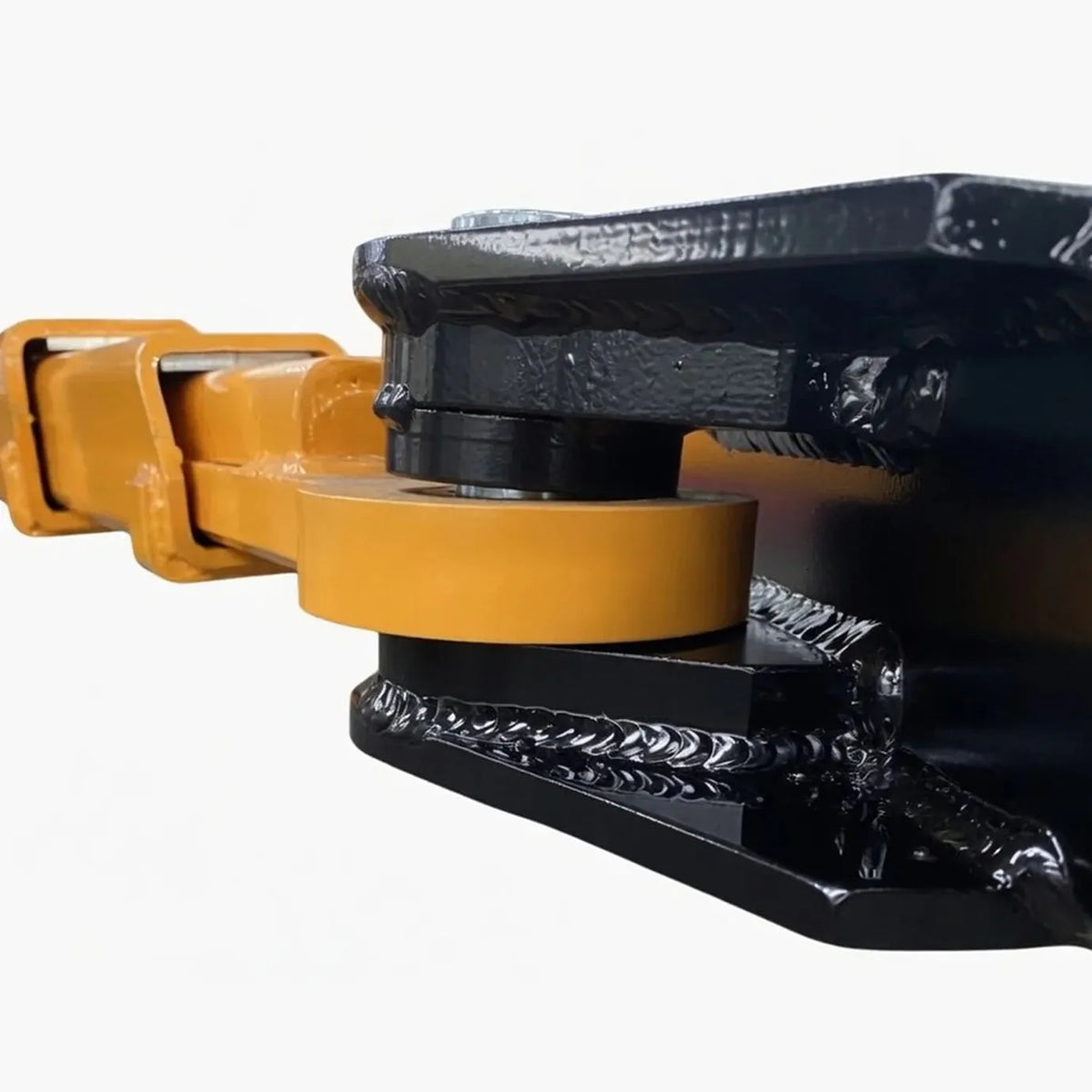

Each adapter seats over the lift arm and is held by a 34.2 mm (1.35 in.) mounting pin that indexes into the arm's existing pin hole. The two arms on each adapter swing outward 90 degrees to open a clear floor path, so the vehicle can drive straight through once it is back on the ground.

The support arms adjust to three width positions, letting you set the cradle to match the wheel and track you are lifting. Two of the three positions are shown below.

Wheel support adapter front view with 13.5-inch and 19-inch cradle width callouts
A narrower width position — 13.5 in. between the supports, 19 in. across the base.
Wheel support adapter front view with 17-inch and 22.5-inch cradle width callouts
A wider width position — 17 in. between the supports, 22.5 in. across the base.

Features

-
  • Swing-out drive-through — both arms on each adapter swing out 90 degrees to clear a floor path for the vehicle.
  • Three-position width adjustment — set the cradle width to match the wheel and track being lifted.
  • Broad lift fitment — fits all Triumph two-post lifts up to 13,000 lb, and other brands depending on arm thickness and pin-hole diameter.

Specifications

-
Triumph NT-WA66C Specifications
Model NT-WA66C
Total capacity 6,600 lb (set of four adapters)
Triumph lift compatibility All Triumph two-post lifts up to 13,000 lb
Other-brand fit Depends on arm thickness and arm pin-hole diameter
Adapter mounting pin diameter 34.2 mm (1.35 in.)
Maximum arm thickness 1 in.
Width adjustment 3 positions
Both arms on each adapter swing out 90 degrees for a clear drive-through; see the diagrams above for two of the three width positions.

Documents

-

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
