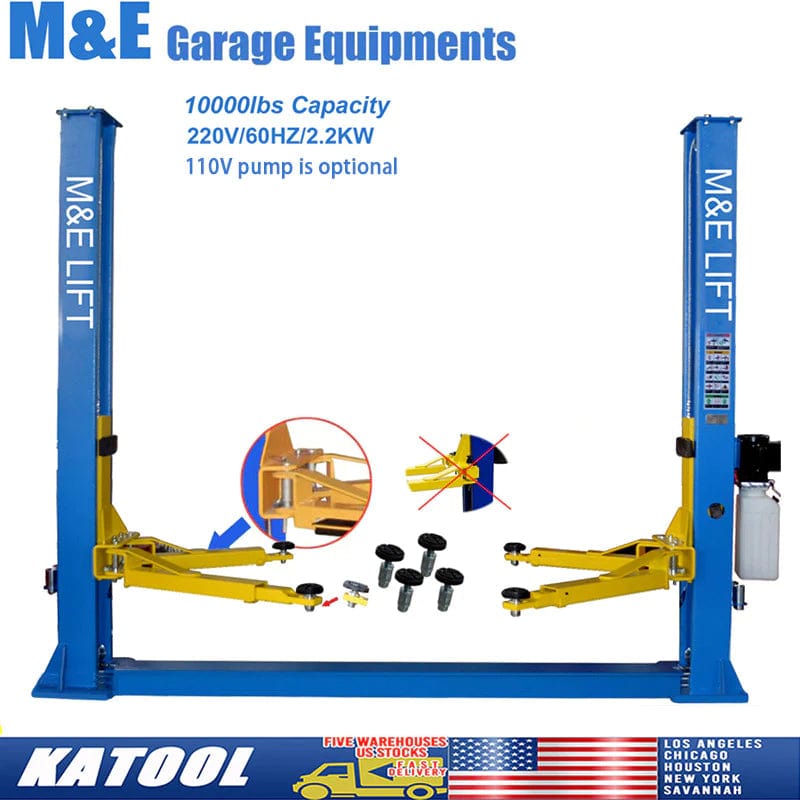

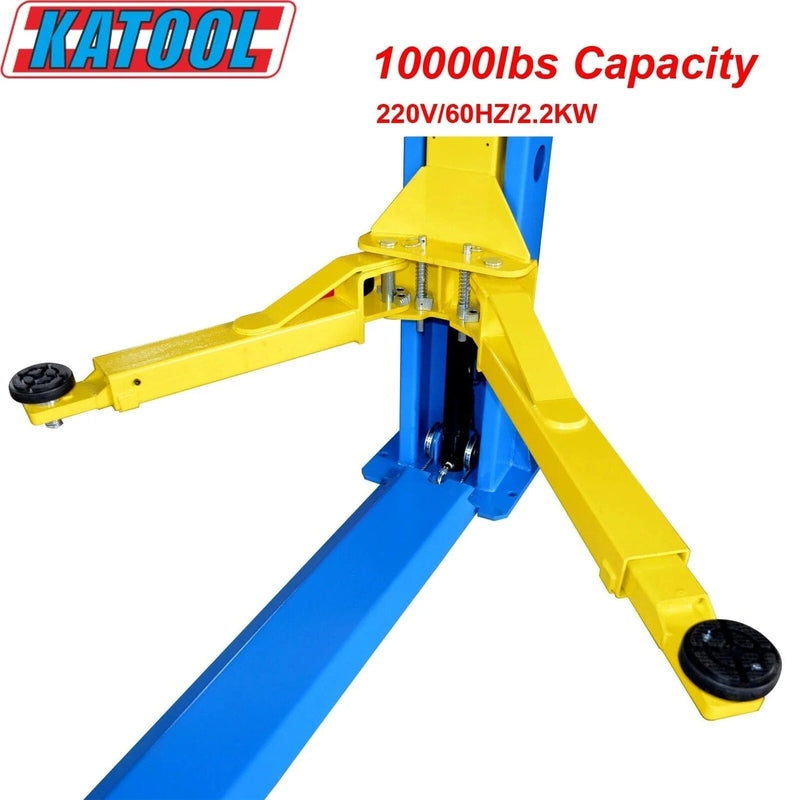

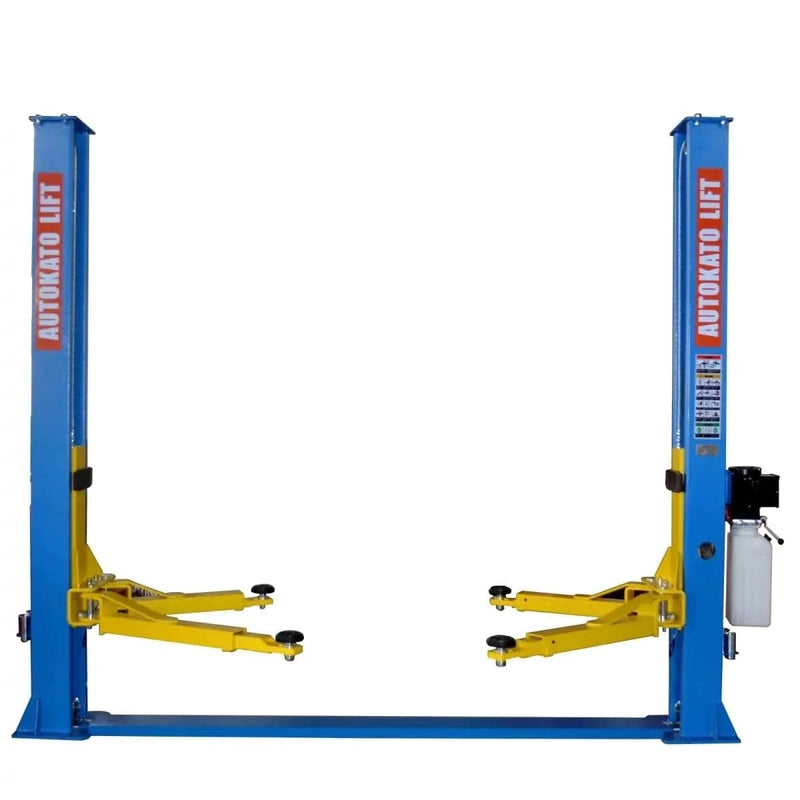

Katool KT-H105 Two Post Vehicle Lift 10,000lbs

Katool KT-H105 Two Post Vehicle Lift 10,000lbs

SKU KT-H105
You save: 29% ($700.00) You save: 29%
$2,399.00
$2,399.00 - $2,399.00
$2,399.00
$1,699.00
$1,699.00 - $1,699.00
$1,699.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

Description

-

The Katool KT-H105 Two Post Vehicle Lift is a powerful solution with a lifting capacity of 10,000lbs. CE Approved and Certified, it surpasses safety standards, undergoing rigorous 115% dynamic loading and 150% static loading capacity tests. Featuring a manual safety release from two sides, base plate design, and dual hydraulic chain-drive cylinders, it ensures secure and efficient lifting. The rubber pad door opening protection enhances safety, and the lift comes equipped with screw-on pads and extension support adaptor sets of +100mm for added versatility. Powered by a top-level hydraulic system, it operates seamlessly with a 220V/60HZ/1PH configuration.

*Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.

Features

-
  • 10000lbs lifting capacity
  • CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested
  • Manual safety release from two sides
  • Base plate design
  • Dual Hydraulic Chain-Drive Cylinders
  • Robber pad door opening protection

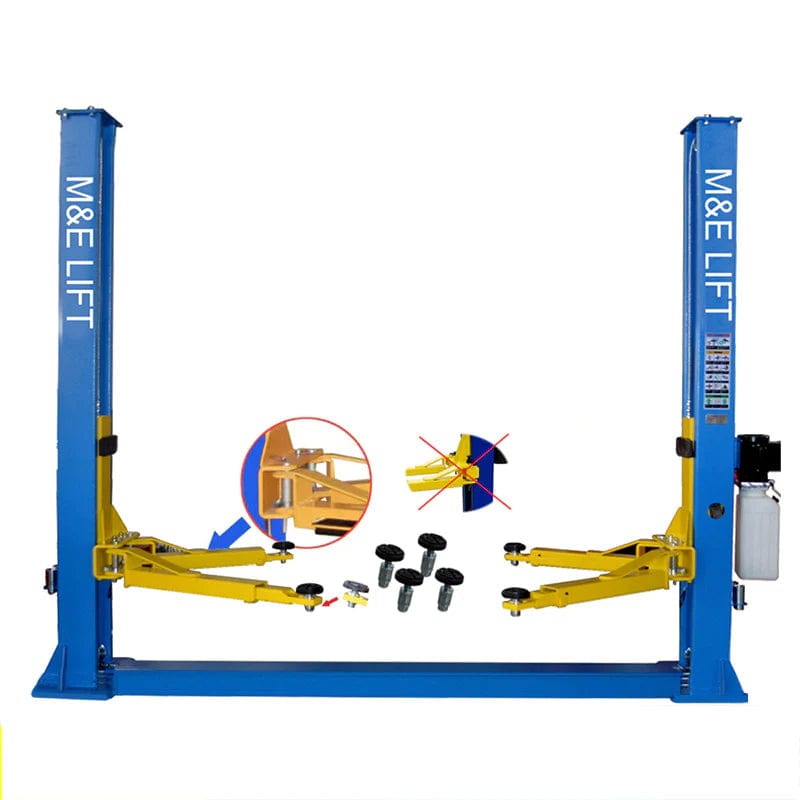

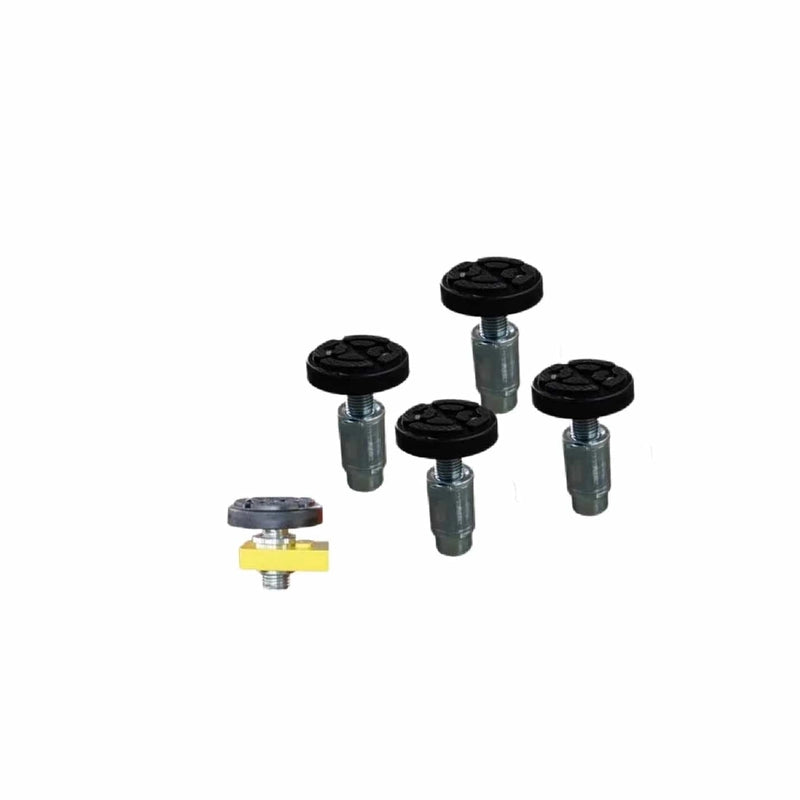

  • Screw-on pad and extension support adaptor sets +100mm
  • Top-level hydraulic system with 220V/60HZ/1PH

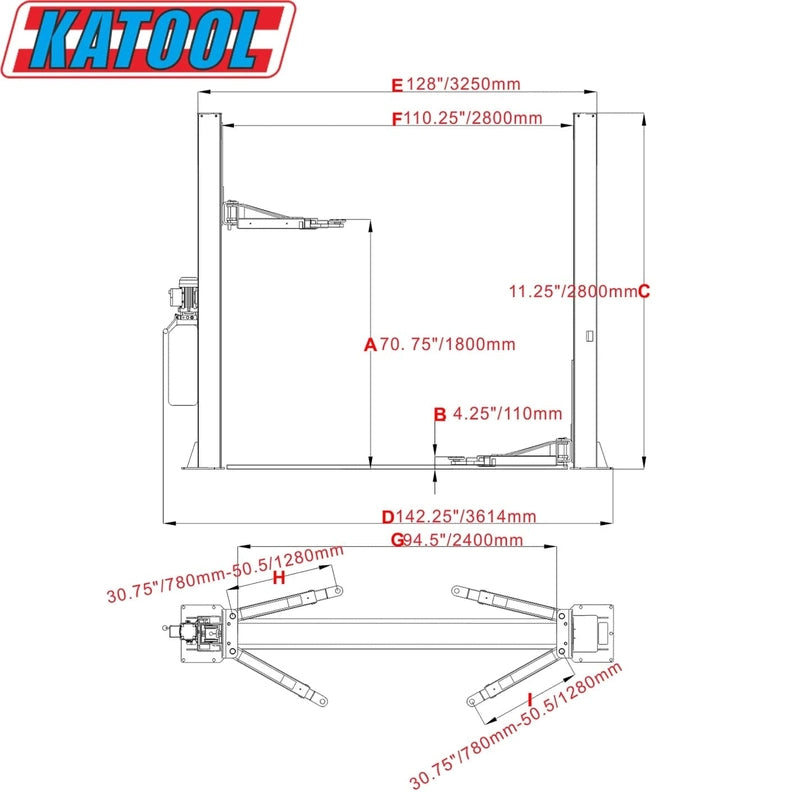

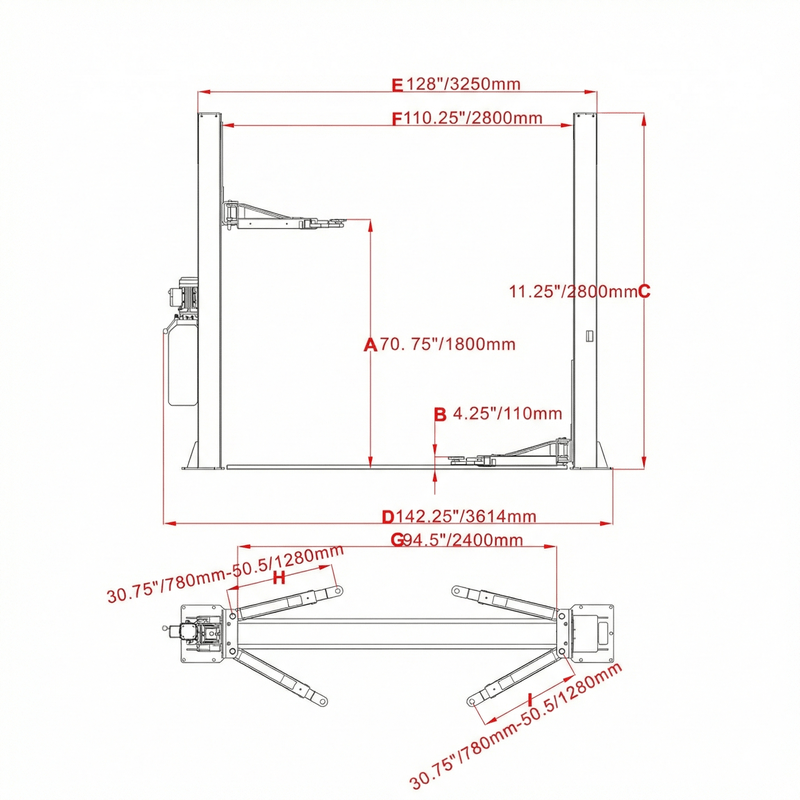

                                  Specifications

                                  -
                                  Lifting Capacity
                                  10000lbs.(4500KG)
                                  Max. Lifting Height
                                  70.8"/1800mm
                                  Min. Height
                                  3.9"/100mm
                                  Height Overall
                                  110.9"/2818mm
                                  Width Overall
                                  140.4"/3565mm
                                  Outside Column
                                  124.8"/3170mm
                                  Inside Column
                                  110.2"/2800mm
                                  Dirve-Thru Clearance
                                  98.4"/2500mm
                                  Front Arm Reach(Min)
                                  29.5"/750mm(2 stages)
                                  Front Arm Reach (Max)
                                  46"/1170mm(2 stages)
                                  Rear Arm Reach(Min)
                                  35.4"/900mm(2 stages)
                                  Rear Arm Reach(Max)
                                  58.2"/1480mm(2 stages)
                                  Motor
                                  220VAC/60HZ/1PH/2.2KW
                                  Net Weight
                                  570KG

                                  Warranty

                                  -

                                  Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

                                  A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

                                  Warranty Includes:
                                  - Cylinders, power units, motors, displays, electronics, etc.
                                  - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

                                  Warranty Conditions:
                                  - Claims must fall within the warranty period.
                                  - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
                                  - Replacement parts will be provided at no cost, including free shipping.

                                  Note:
                                  - All warranty claims are subject to approval by the warranty/service department.
                                  - Photos and/or videos of defects may be requested.
                                  - Do not disassemble any equipment before the issue is determined.
                                  - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
                                  - Labor is not included in the warranty.
