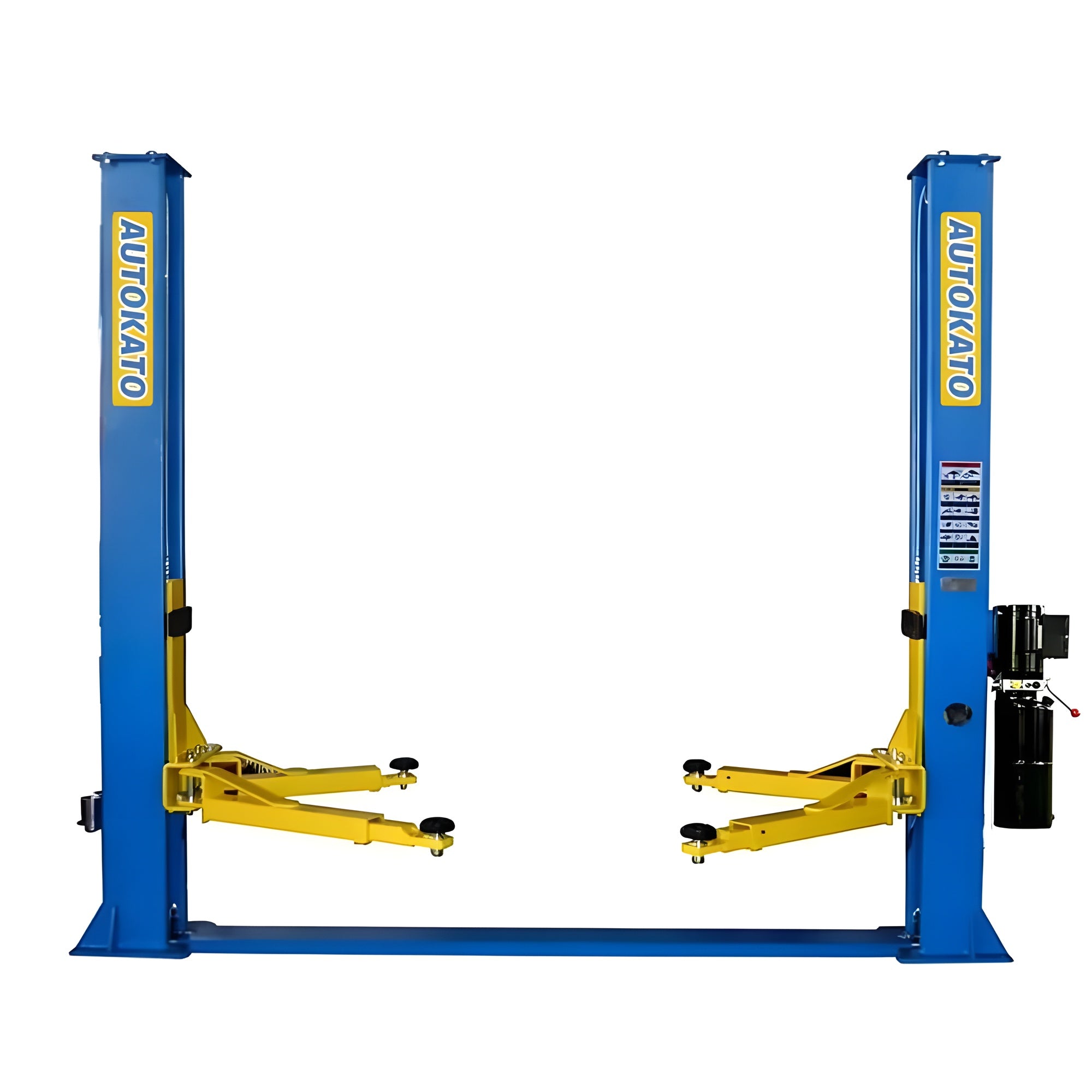

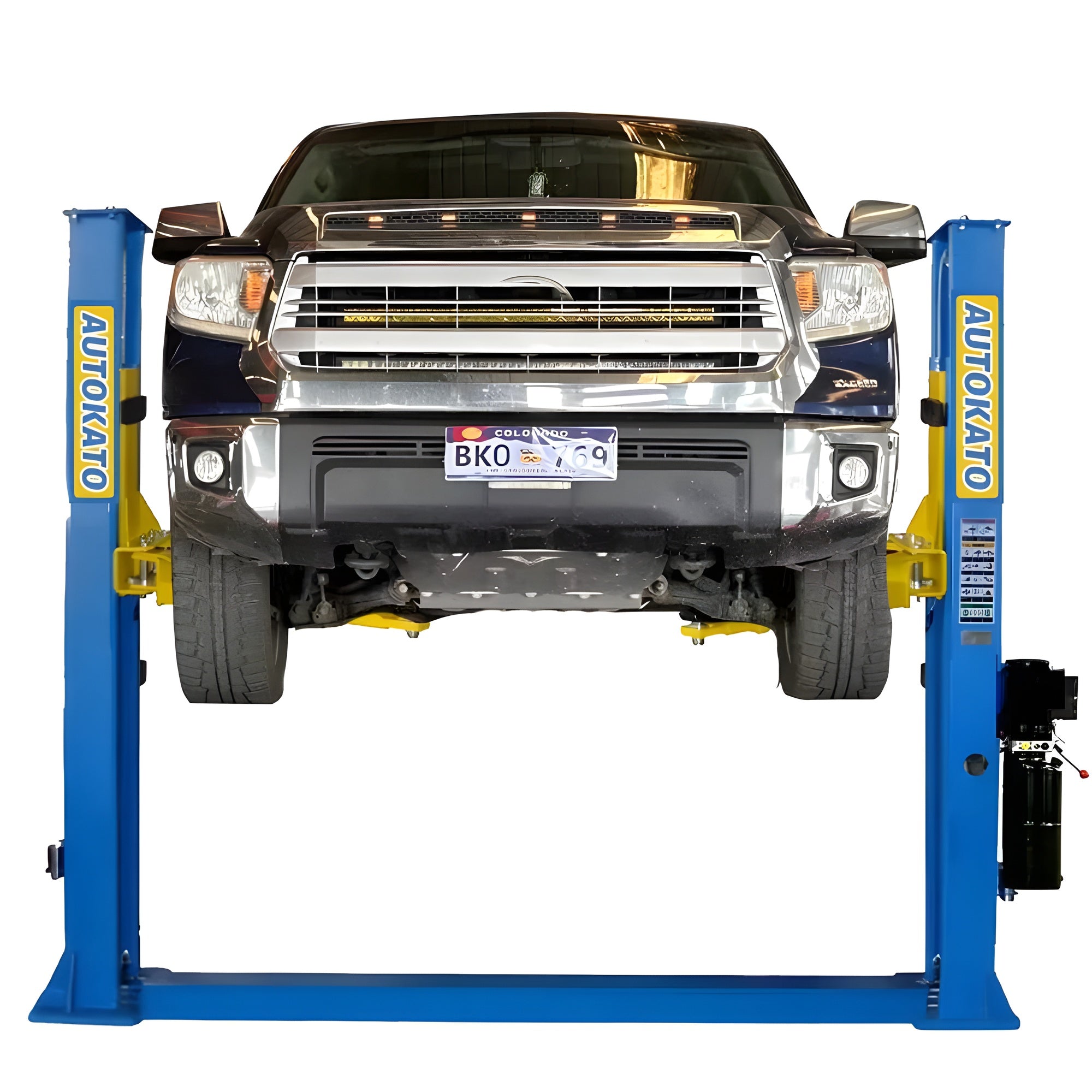

Katool H115Z 11,000lbs Two Post Lift

Lift trucks, SUVs, and full-size vehicles with confidence. The Katool H115Z delivers 11,000 lbs of lifting capacity through dual hydraulic chain-drive cylinders, the same system used in professional shop lifts costing twice as much. Base plate design means faster installation, no overhead beam, and easy unloading on delivery day.

1-year parts + 3-year structural warranty | CE certified (150% static load tested)

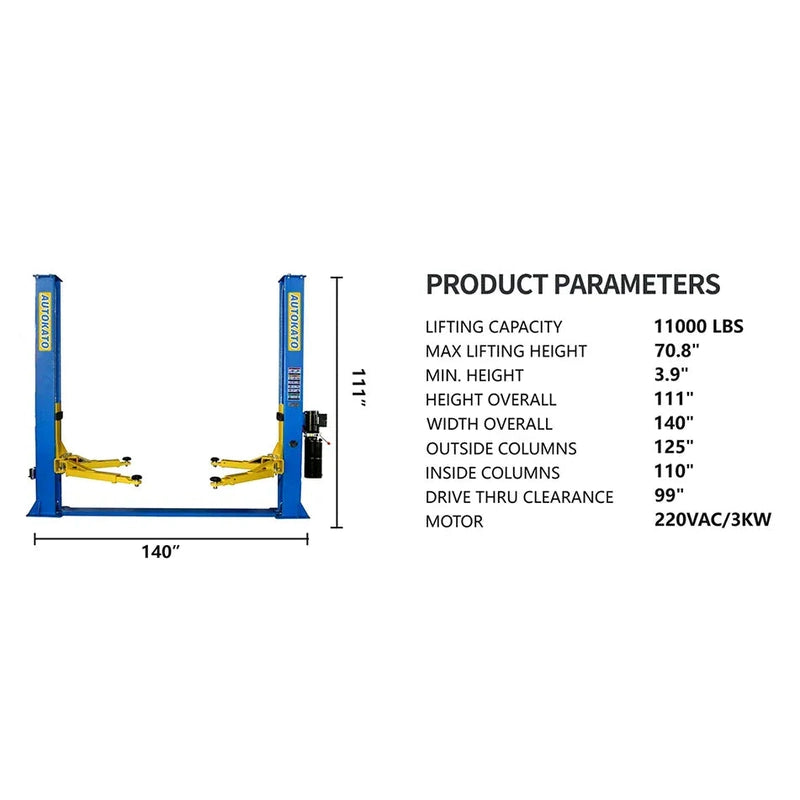

Before you buy any two-post lift, check your ceiling. The H115Z requires a minimum ceiling height of 11 feet (110.9" overall height). Here's what you need:

• Ceiling Height: 11 ft minimum (110.9" overall)
• Floor Width: 12 ft minimum (140.4" overall width)
• Drive-Through Clearance: 98.4" (fits full-size trucks)
• Concrete Depth: 4" minimum (for base plate anchor bolts)

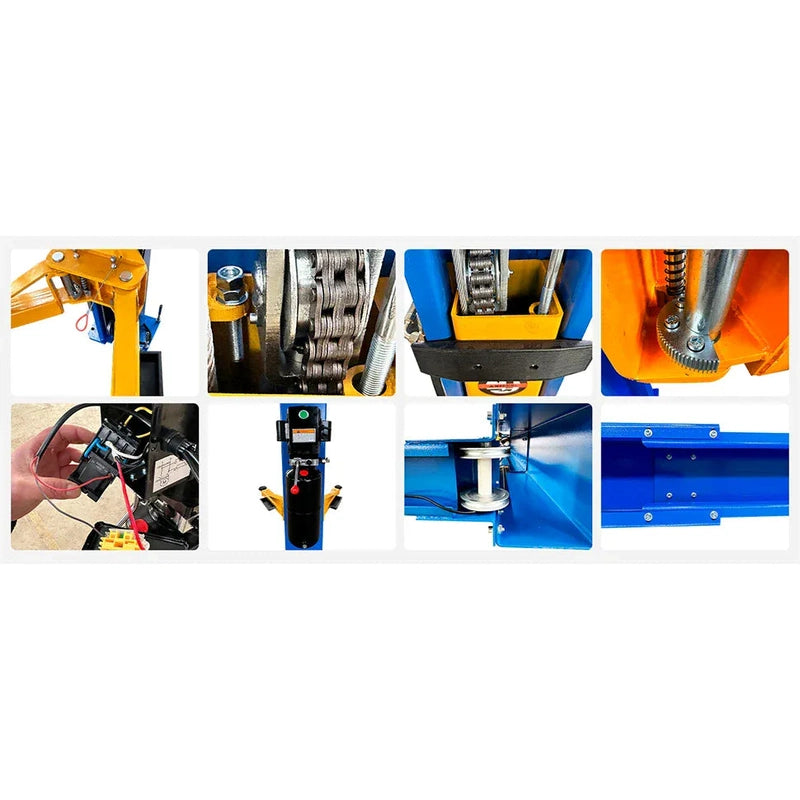

Most two-post lifts in this price range use single-cylinder designs that wear unevenly over time. The H115Z uses dual hydraulic chain-drive cylinders — one inside each column — which means both arms rise at exactly the same rate. The result: smoother lifting, less stress on the frame, and a longer lifespan for the hydraulic system.

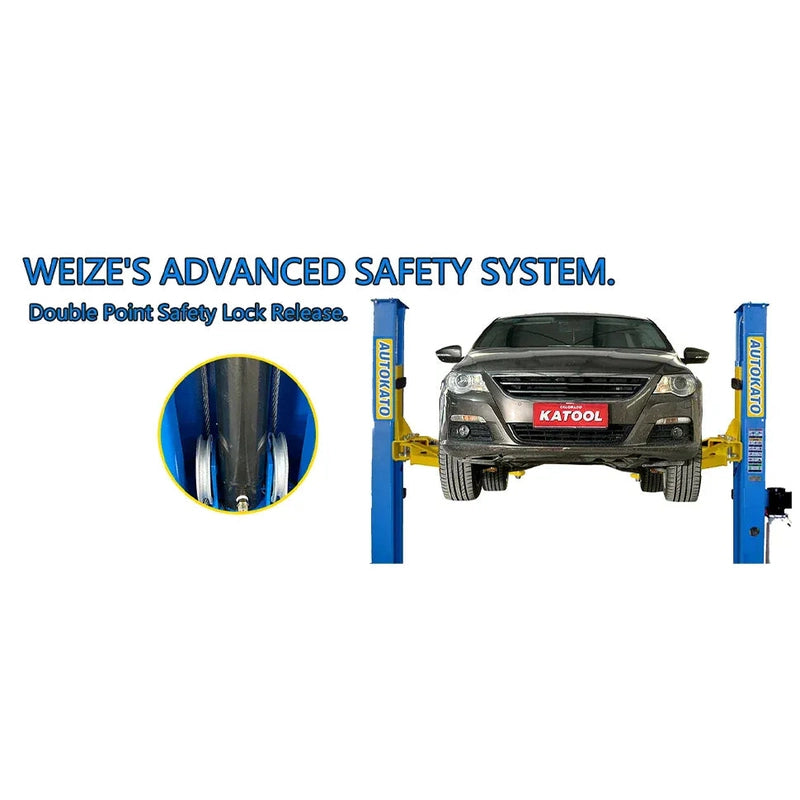

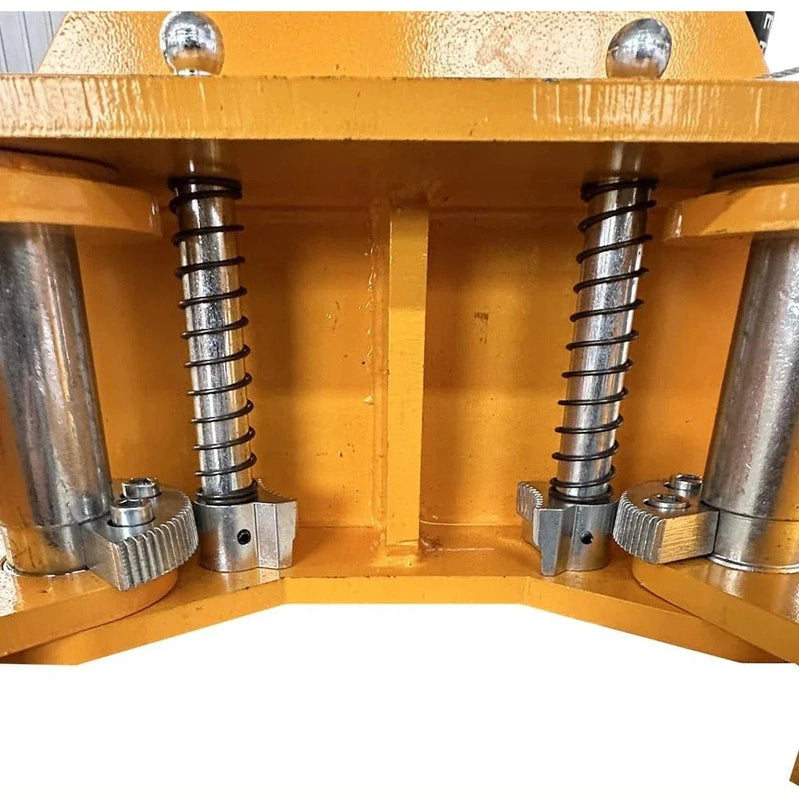

The dual-side manual safety lock release gives you multi-position locking at various heights so you can work under a vehicle without worrying. Combined with the automatic safety limit switch and heavy-gauge steel columns, this lift is CE approved and tested at 115% dynamic load and 150% static load.

Every H115Z ships complete and ready to install:

• 2x lift columns with integrated base plates
• 4x adjustable lift arms (2-stage front and rear)

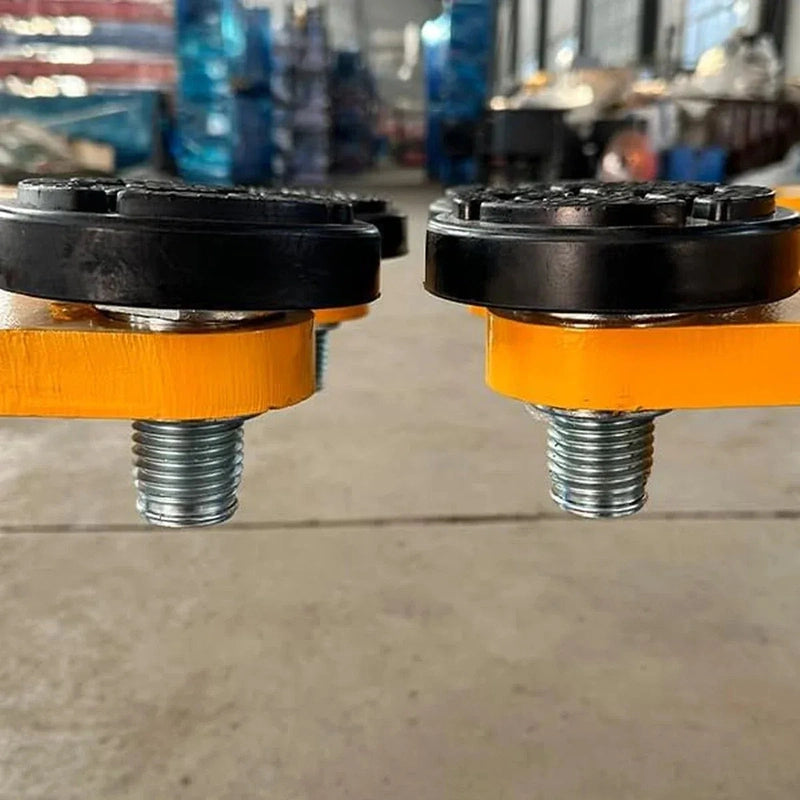

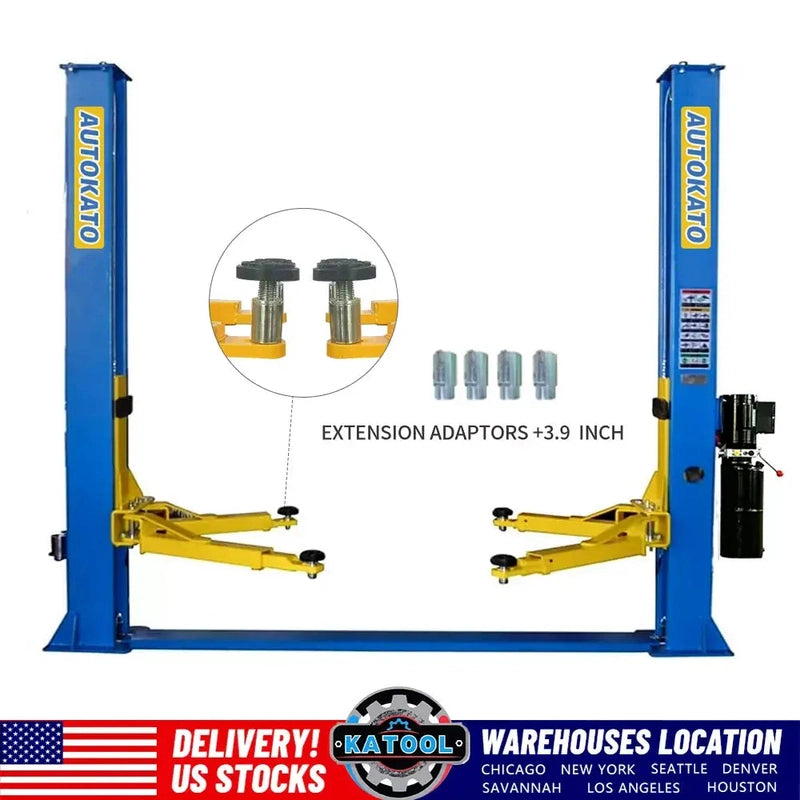

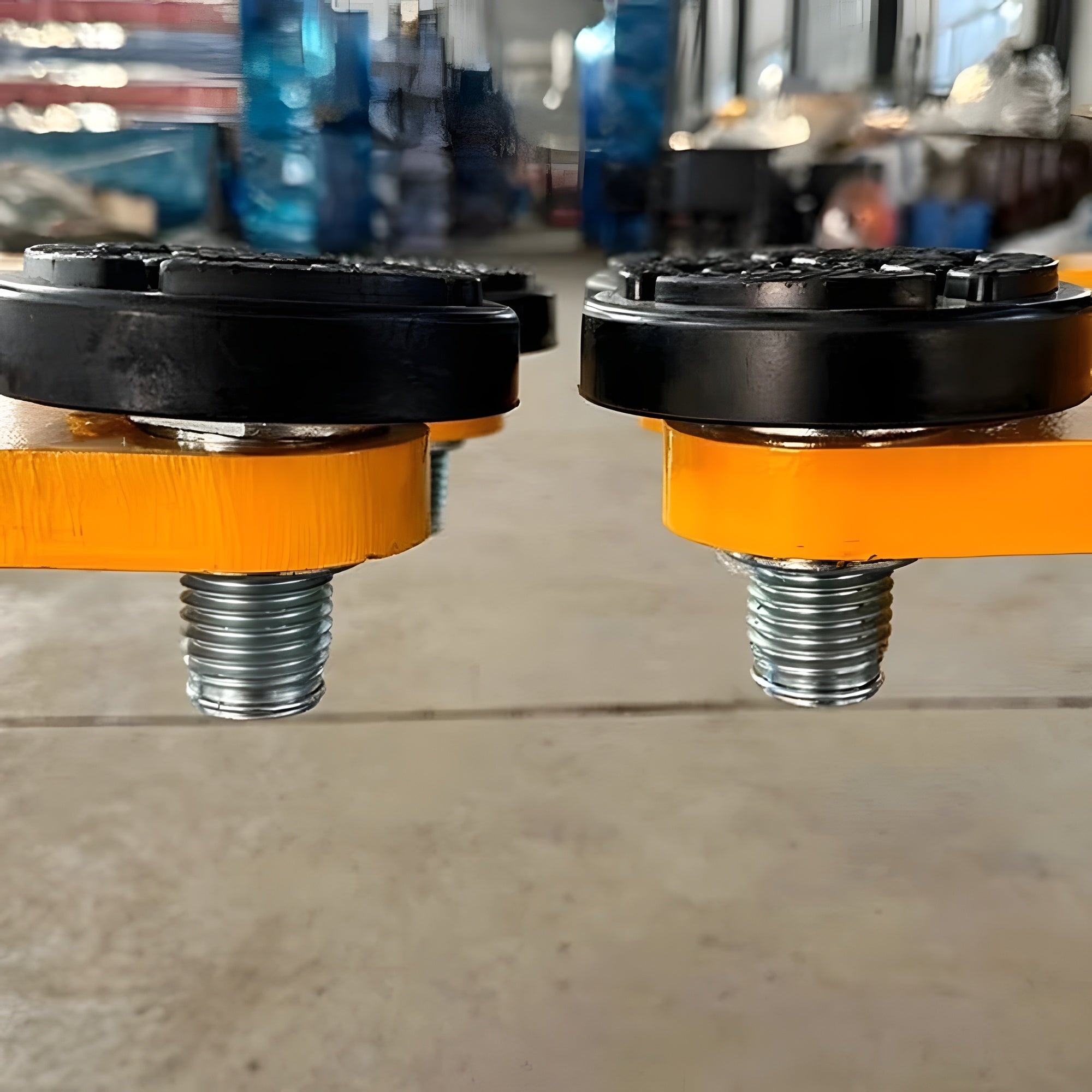

• 4x screw-on rubber lift pads with +100mm (3.9") extension adaptors
• 1x hydraulic power unit (220V / 60Hz / 1-Phase / 2.2KW motor)
• Rubber door guards included (many competitors charge extra)
• All mounting hardware and anchor bolts


The H115Z is built for anyone who needs reliable, professional-grade lifting power:

• Auto repair shops — handle cars, trucks, and SUVs up to 11,000 lbs all day
• Home garages — base plate design makes DIY installation manageable
• Dealerships & body shops — fast cycle times with smooth hydraulic operation
• Fleet maintenance facilities — built to handle high-volume daily use

Katool stands behind the H115Z with coverage that goes beyond the industry standard:

• 1-Year Full Parts Warranty — Covers cylinders, power unit, motor, and all electronics. Replacement parts shipped free.
• 3-Year Structural Warranty — Covers columns, arms, and base plates against structural defects.
• Optional 2-Year Extended Warranty — Available for purchase for additional peace of mind.

All warranty claims include free replacement parts and free shipping on those parts. Labor is the responsibility of the installer/owner. Claims are reviewed by Katool's service department and may require supporting photos or video of the defect.

Base plate design means simpler delivery and unloading — no overhead beam to wrestle with. The lift arrives securely wrapped and palletized for safe freight delivery.

For more detailed information and guidance, you can download the following:

• Download Manual (PDF)
