Atlas Platinum PVL14 4 ALI Certified 14,000 lb 4 Post Lift

SKU ATEAP-PVL14-FPD
Original price $8,699.00 - Original price $8,699.00
Original price
$8,699.00
$8,699.00 - $8,699.00
Current price $8,699.00
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

Description

-

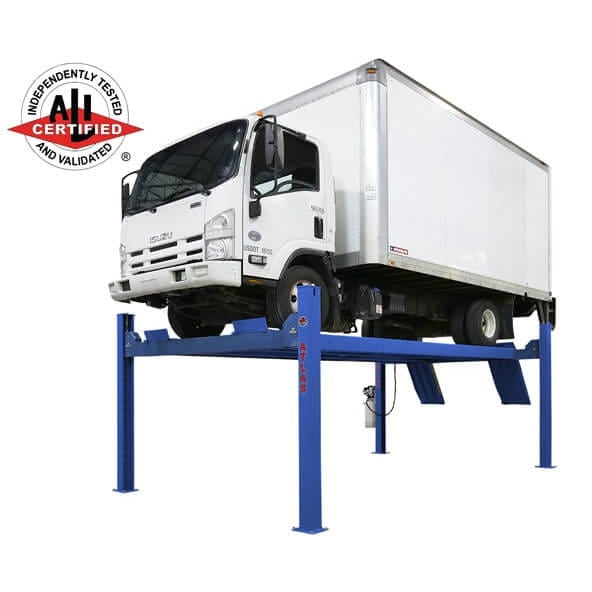

The Atlas® Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.

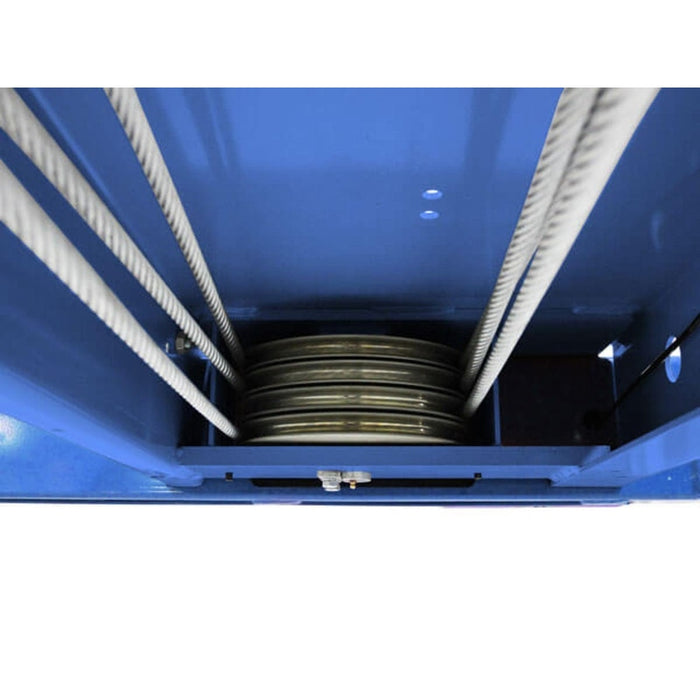

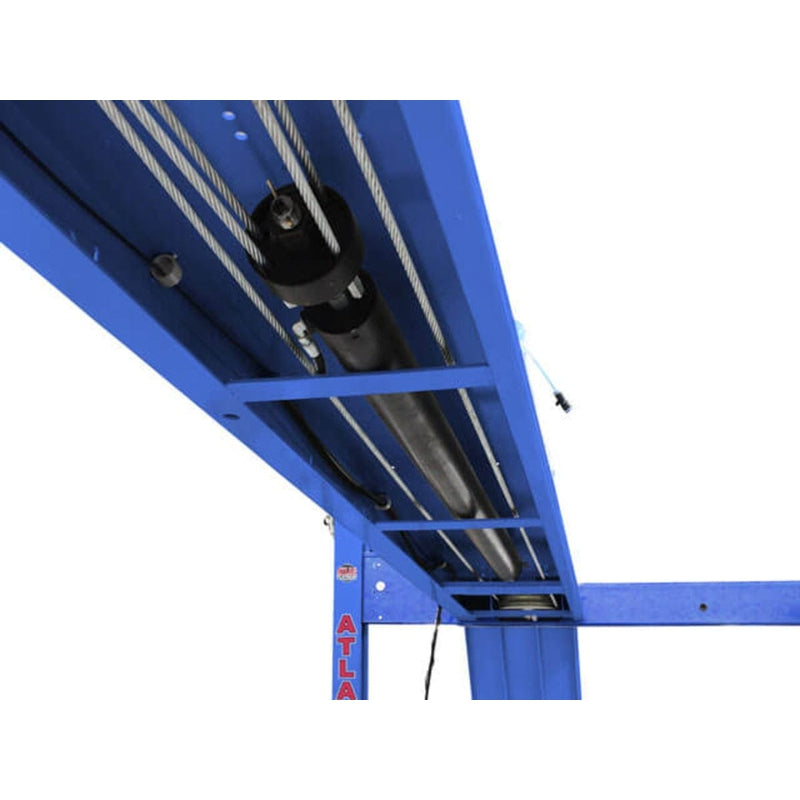

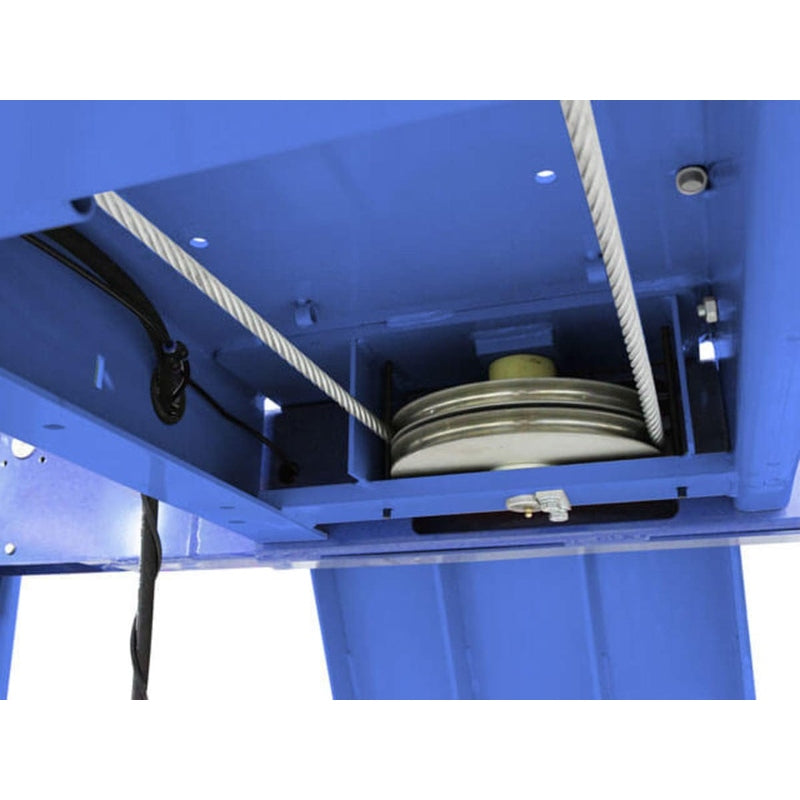

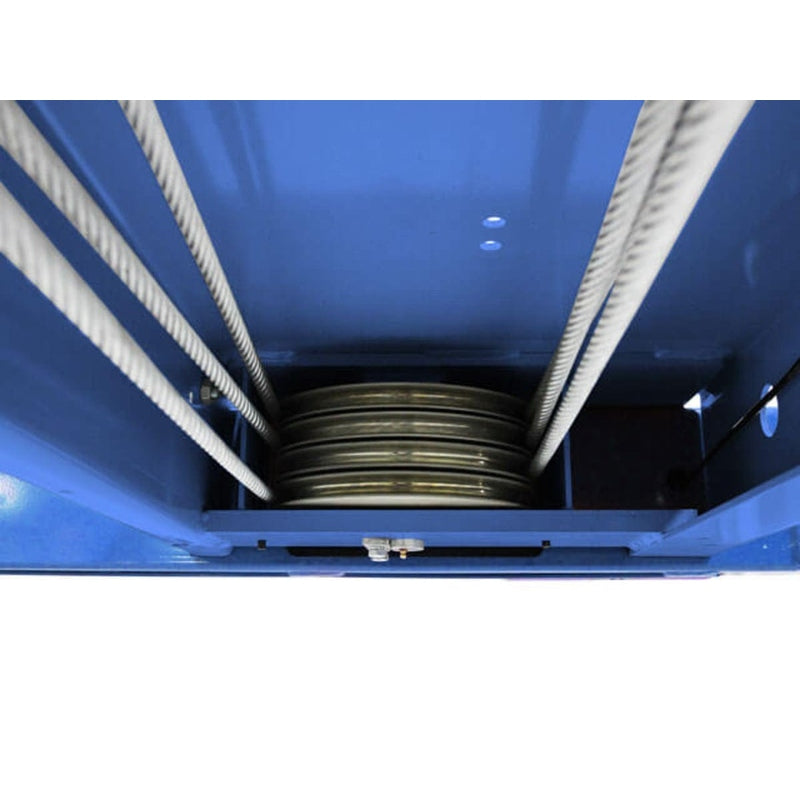

The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas® Platinum PVL14 features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas® Platinum RJ7000) on the lift. Rolling jacks sold separately.

The Atlas® Platinum PVL14 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

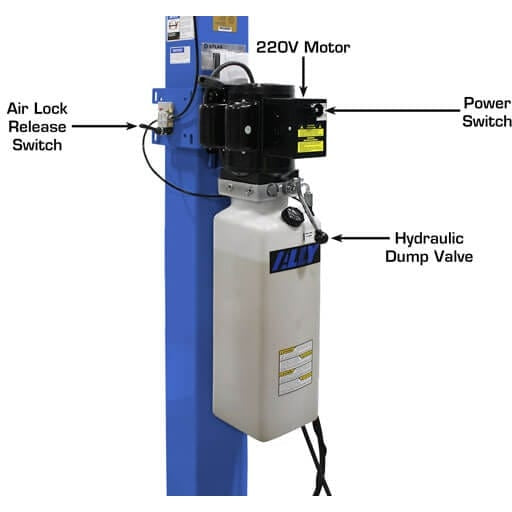

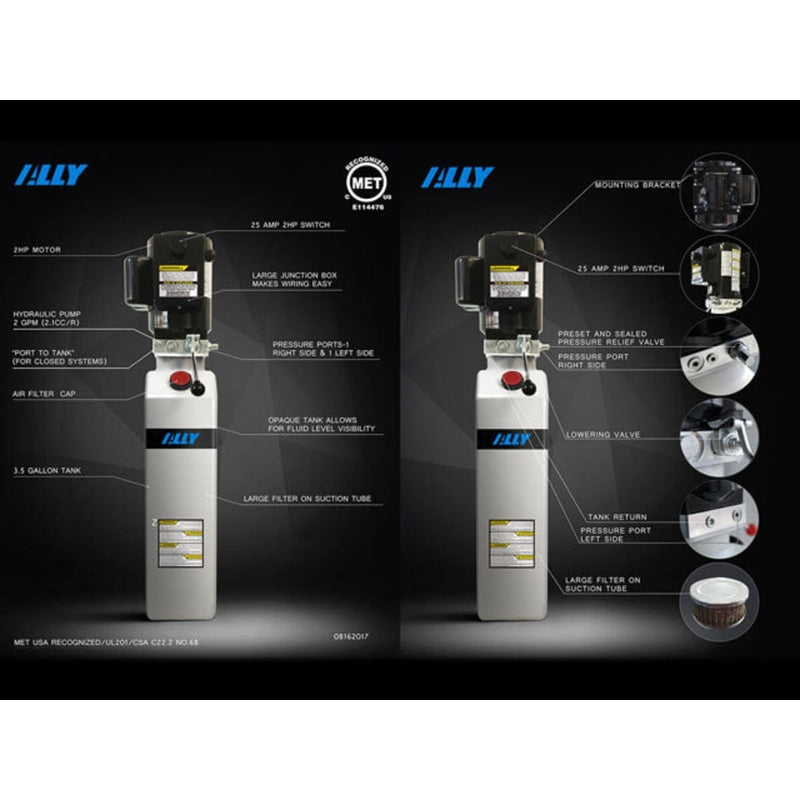

This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

Features

-
  • ALI Certified Lift
  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long

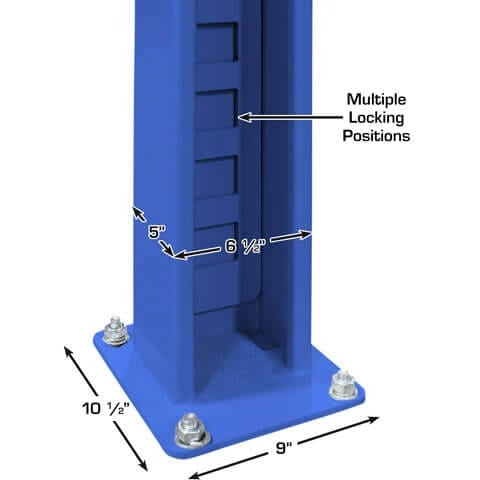

  • Adjustable Lock Ladder Design
  • Higher Quality Powder Coat Finish
  • Air Operated Single Point Lock Release (External Air Supply Required)
  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish
  • Steel Approach Ramps Included

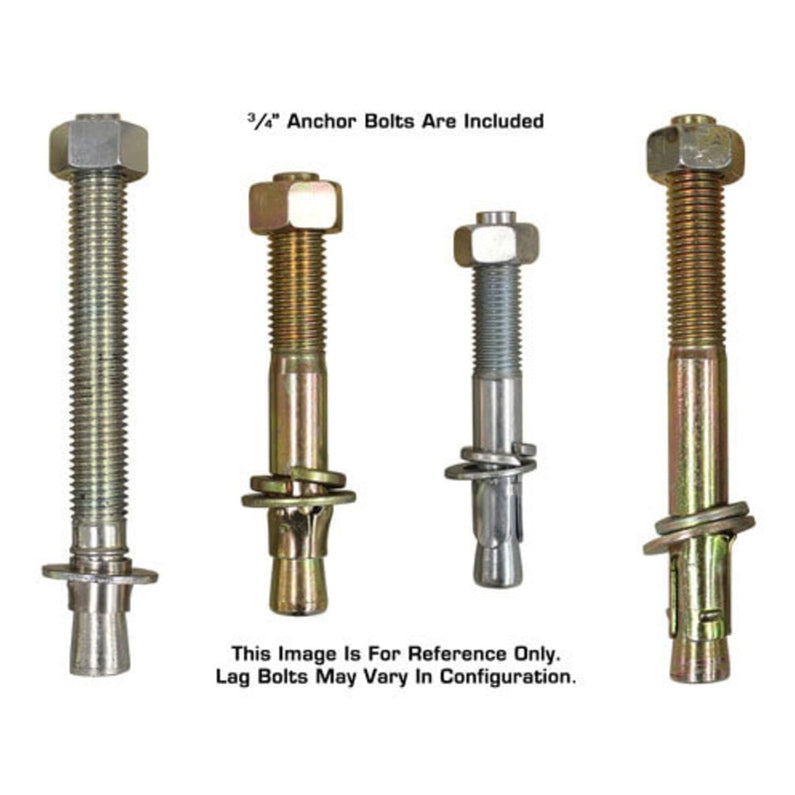

  • Mounting Hardware Included
  • Standard with Premium ALLY Powerunit
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)

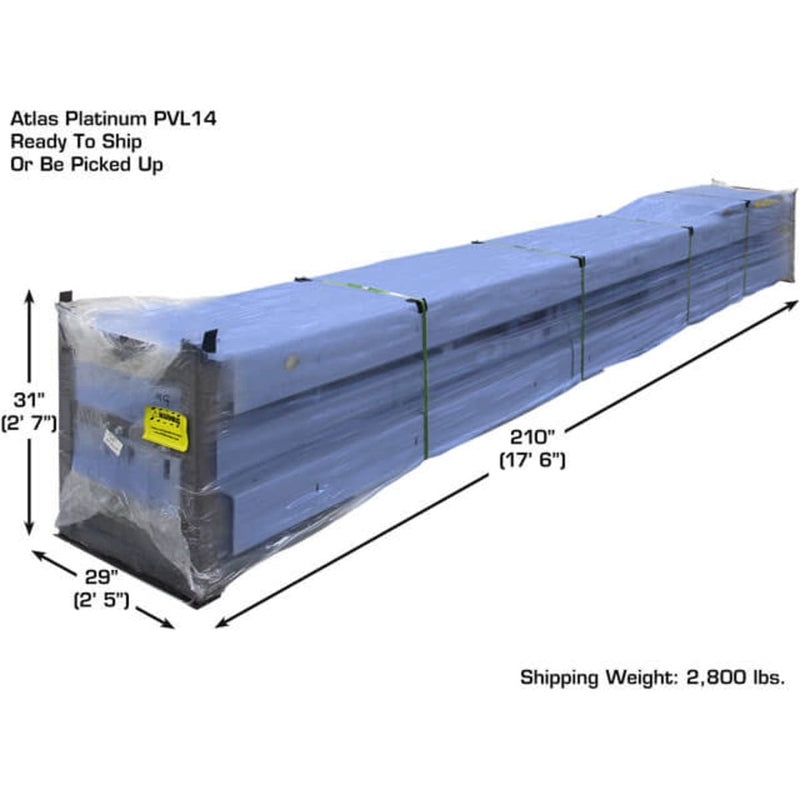

  • Shipping Weight: 2,800 lbs.
  • 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

Specifications

-
Atlas® Platinum PVL14 Specifications
Capacity 14,000 lb.

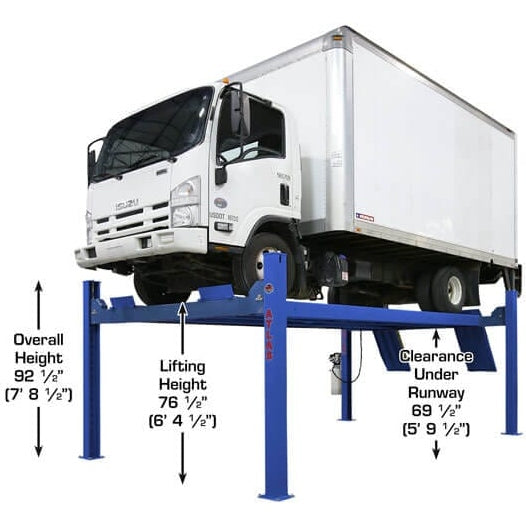

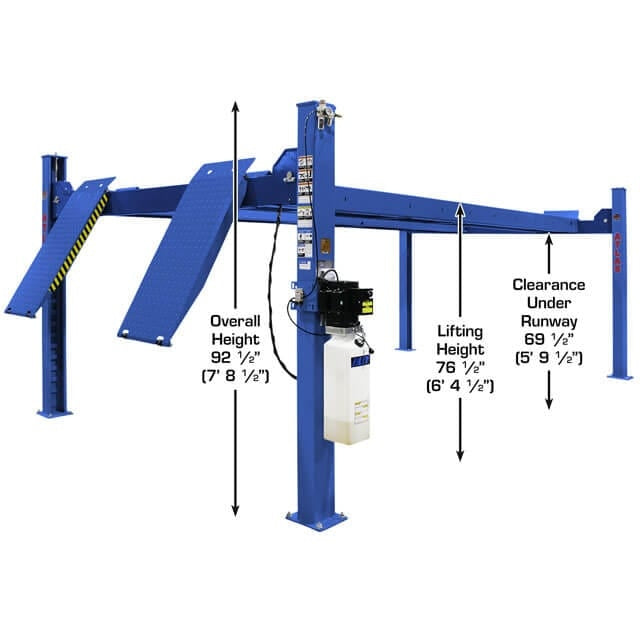

Lifting Height 76 1/2" (6' 4 1/2")

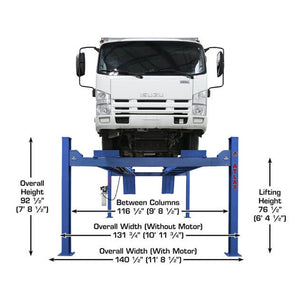

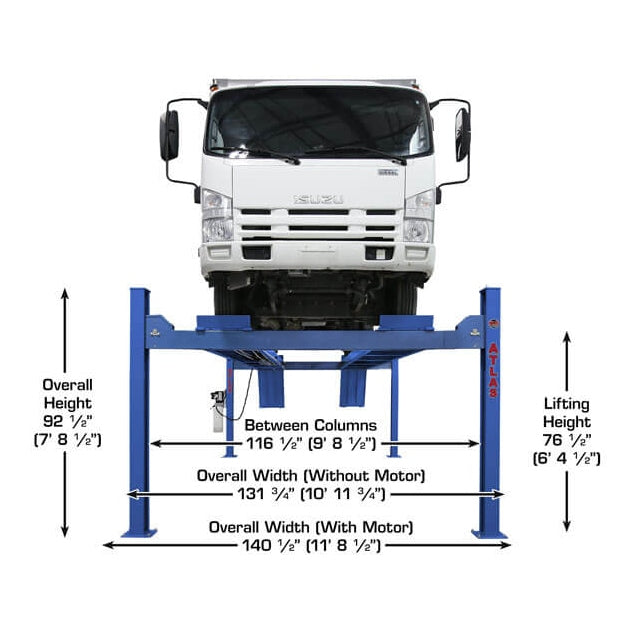

Overall Width Of Columns (Without Motor) 131 3/4" (10' 11 3/4")
Overall Width Of Columns (With Motor) 140 1/2" (11' 8 1/2")

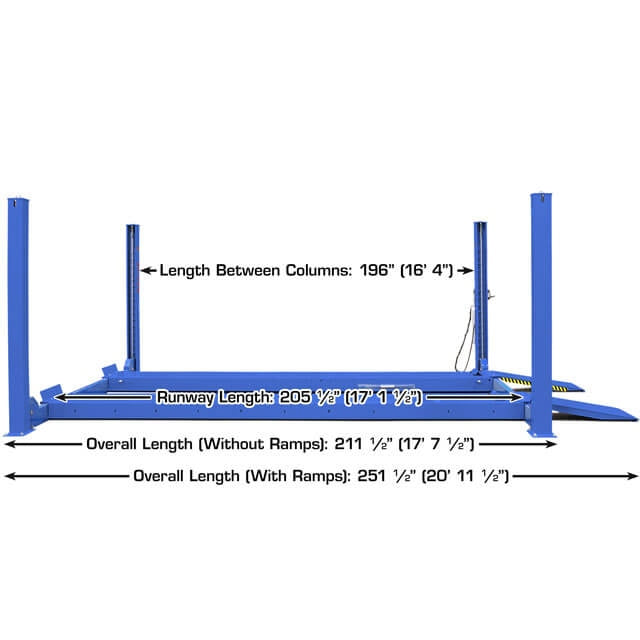

Overall Length With Approach Ramp 251 1/2" (20' 11 1/2")

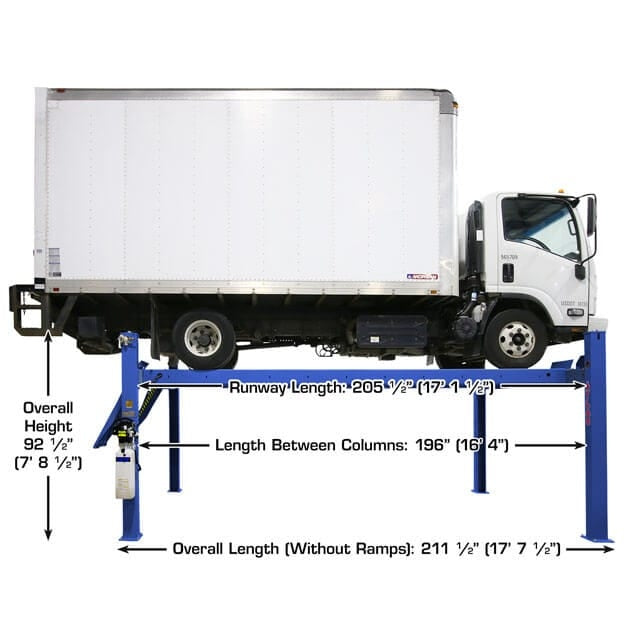

Length Between Columns 196" (16' 4")
Runway Length 205 1/2" (17' 1 1/2")

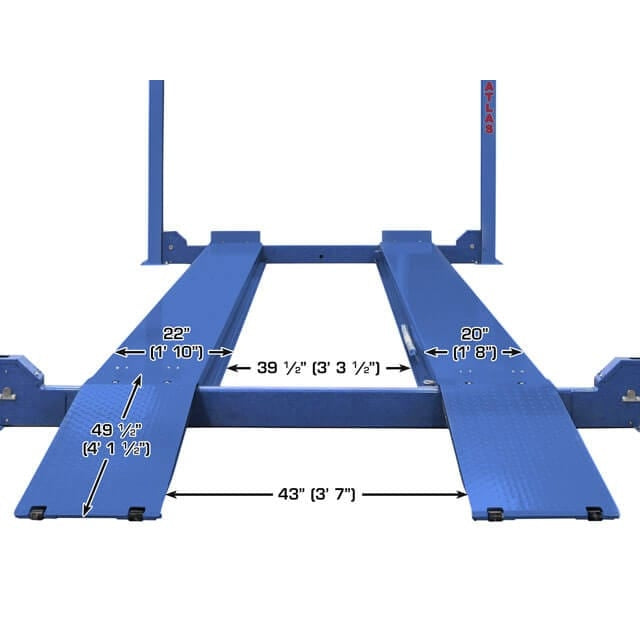

Runway Width 20"
Thickness Of Runway 7"

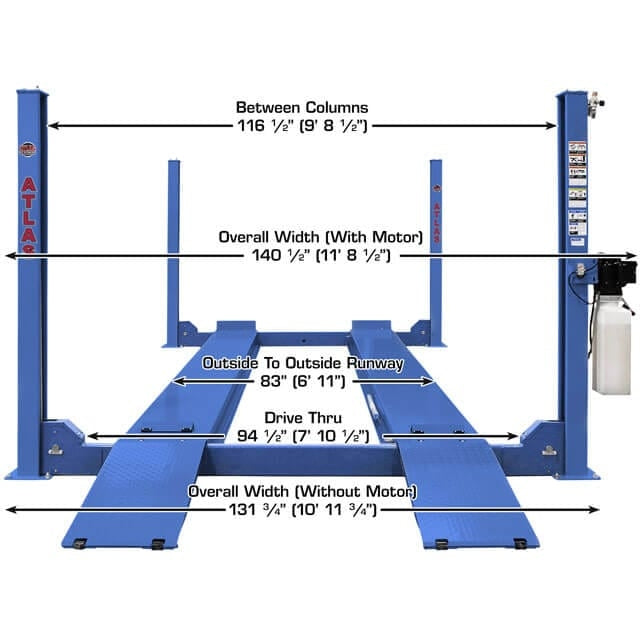

Width Between Runways 42 3/4" (w/ Rail 39 1/4")
Outside Runway To Outside Runway 83 1/8" (6' 11 1/8")
Clearance Under Runways 69 1/2" (5' 9 1/2")
Clearance Between Columns 116 3/8" (9' 8 3/8")
Height Of Columns 92 1/2" (7' 8 1/2")
Maximum Wheel Base 195" (16' 3")
Drive Thru 94 1/2" (7' 10 1/2")
Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 2,800 LBS.
Requires a minimum of 6" of concrete with a 3000 psi. rating
