Atlas ALI Certified Complete Alignment Kit

SKU ATEAP-PVL-ALIKIT-FPD
Original price $1,999.00 - Original price $1,999.00
Original price
$1,999.00
$1,999.00 - $1,999.00
Current price $1,999.00
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

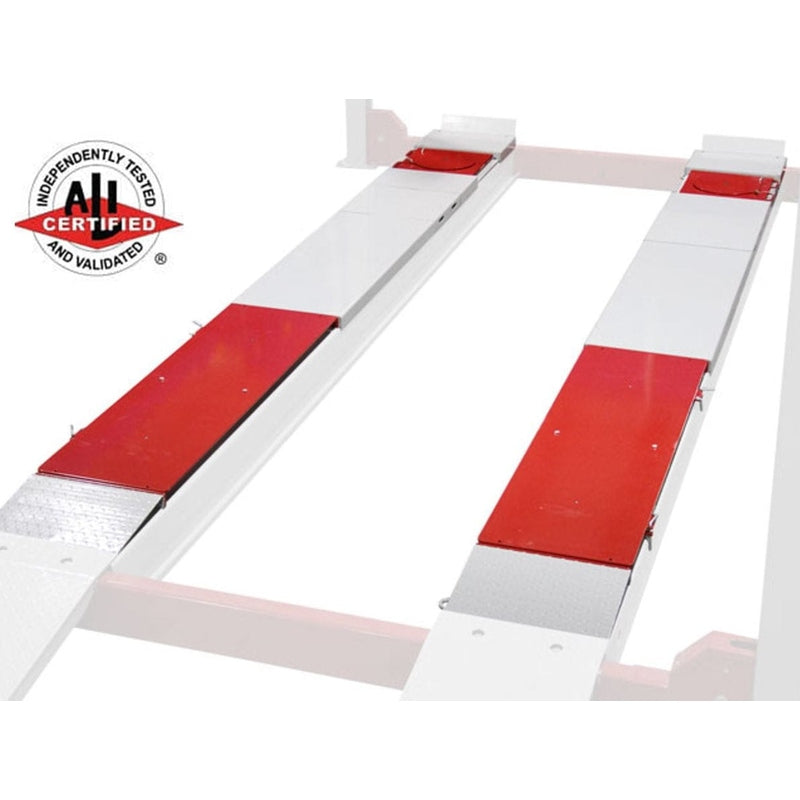

Atlas ALI Certified Complete Alignment Kit

-

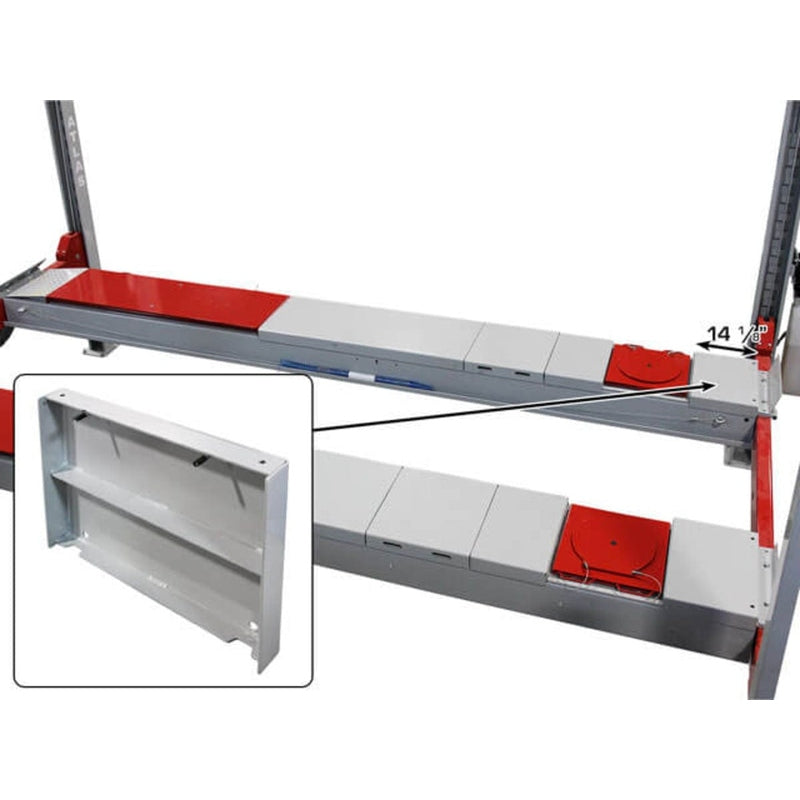

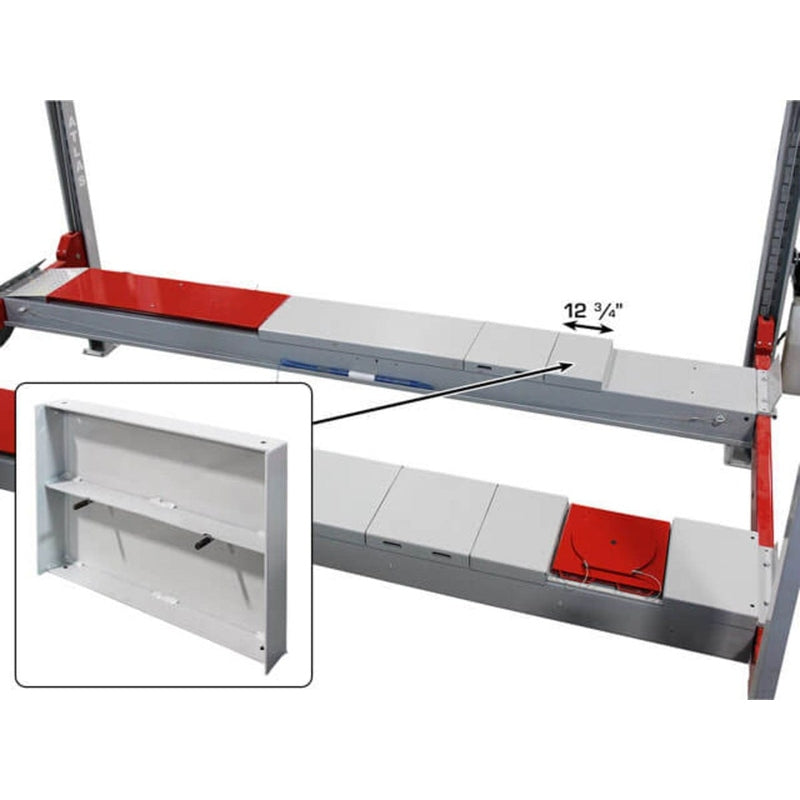

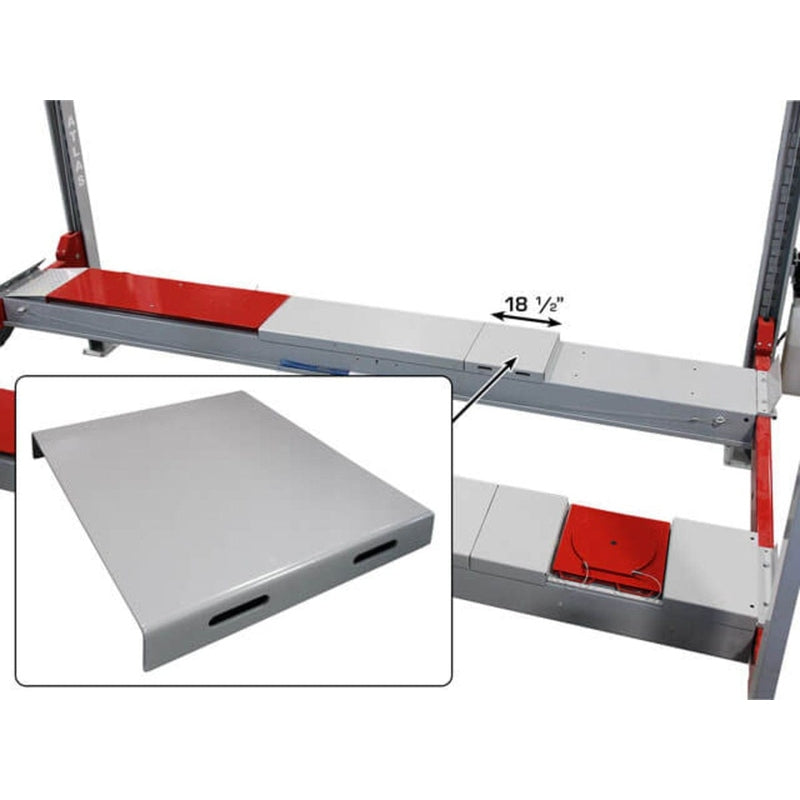

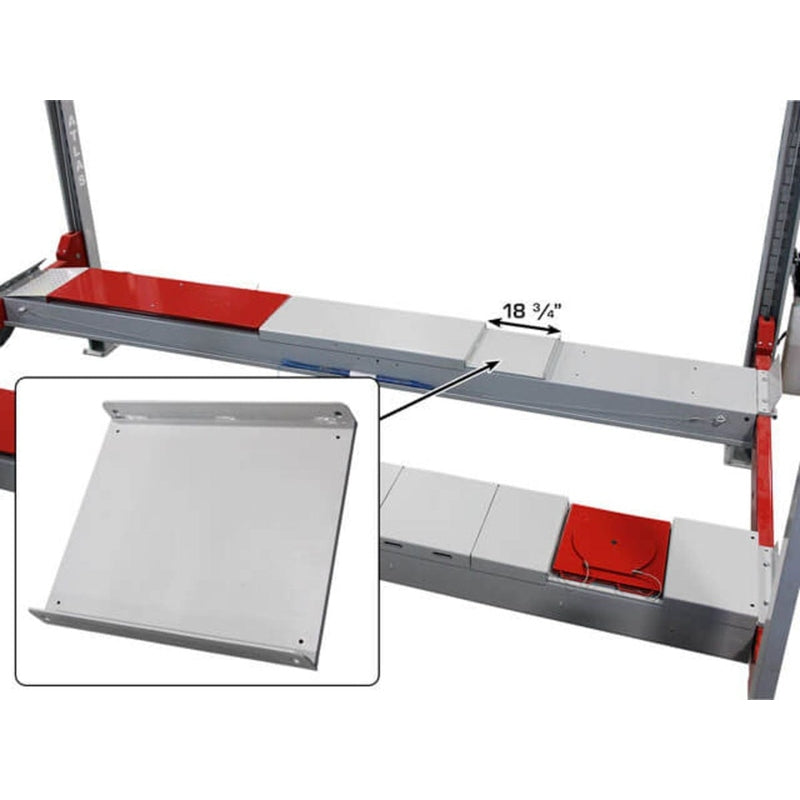

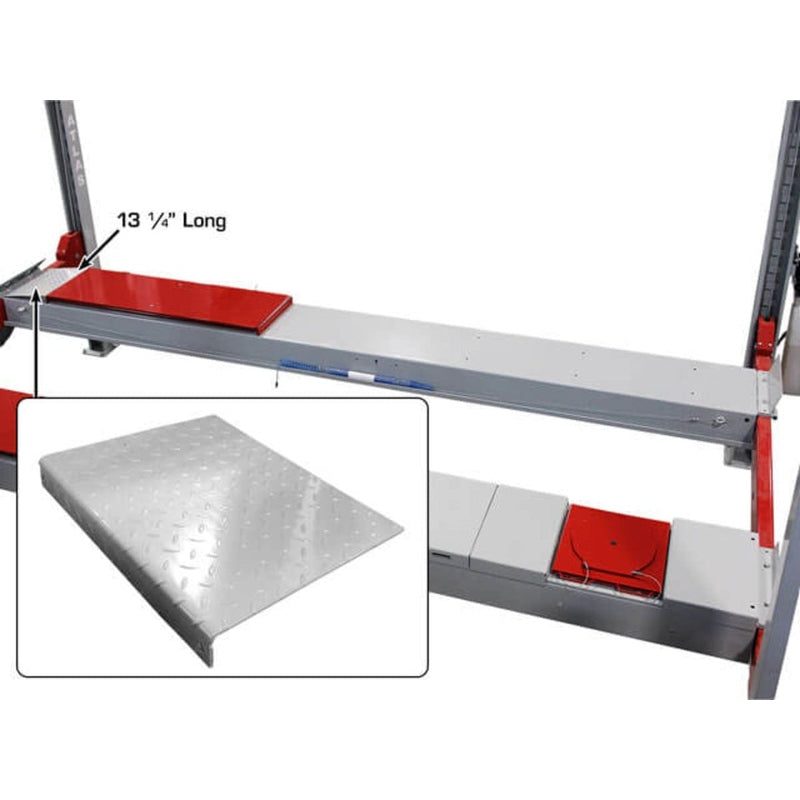

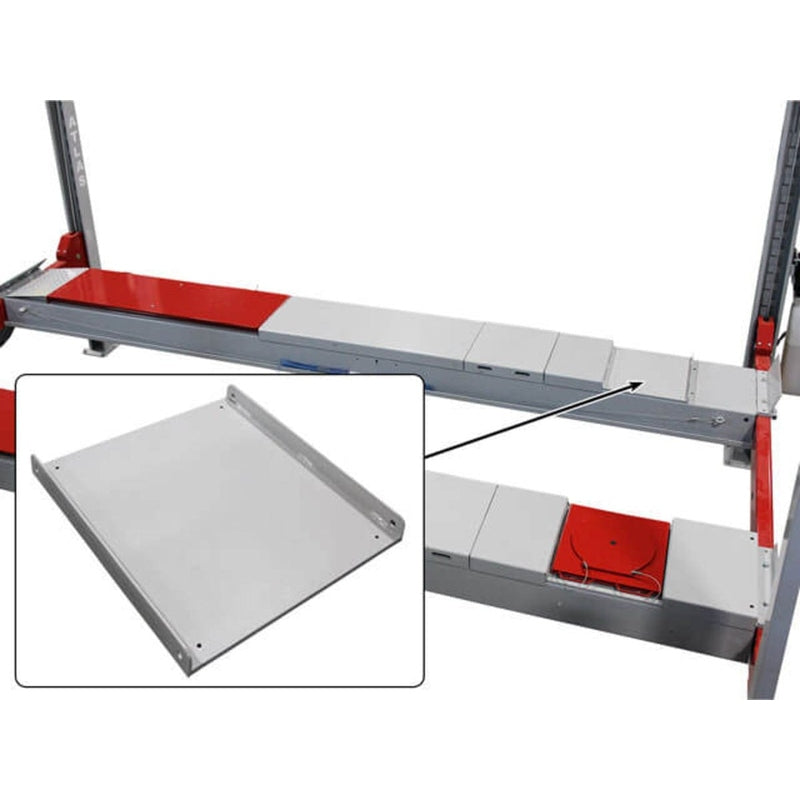

The Atlas Platinum Alignment Kit includes a set of heavy duty ball bearing slip plates along with two heavy duty turntables and all other necessary ramps and spacers. The alignment kit bolts on to your Atlas Platinum PVL14 four post lift or other commercial grade 4-Post lift, turning it into a alignment lift.

Many permanent alignment kits found on four post alignment lifts are recessed into the runways of the lift. It is very difficult to prevent dirt, chemicals, salt, and other foreign material from becoming embedded in the rolling or sliding mechanisms of the turn tables or the slip plates. The Atlas Platinum Alignment Kit is positioned above the runways to allow easy access for service and cleaning. Even if you permanently mount the Atlas Platinum Alignment Kit, it can still be removed periodically (simply remove the bolts) to allow a thorough cleaning and servicing of all moving parts.

Features

-
  • ALI Certified Accessory

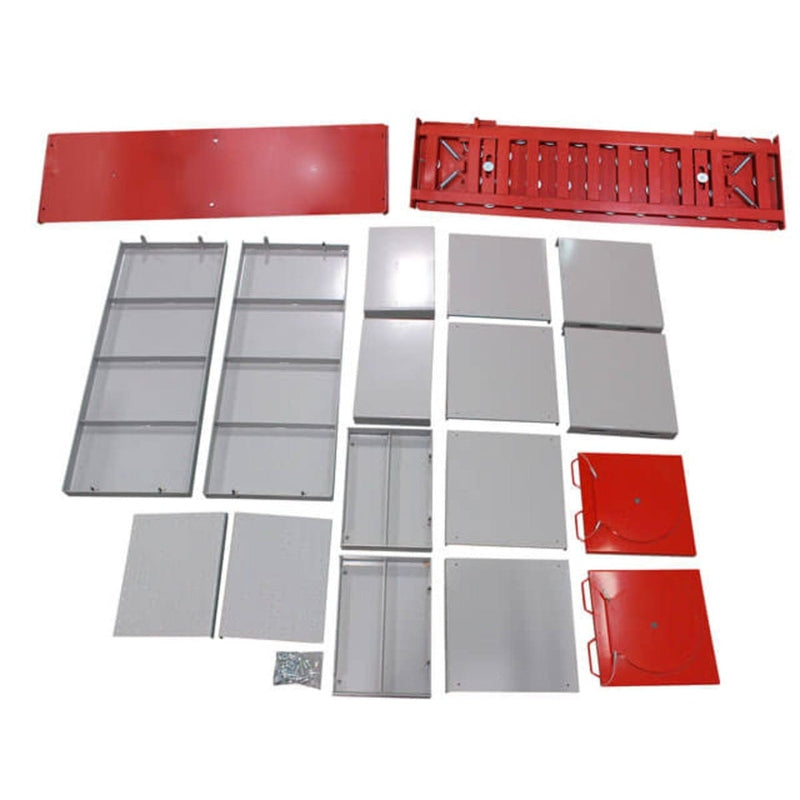

  • Includes Slip Plates and Turntables

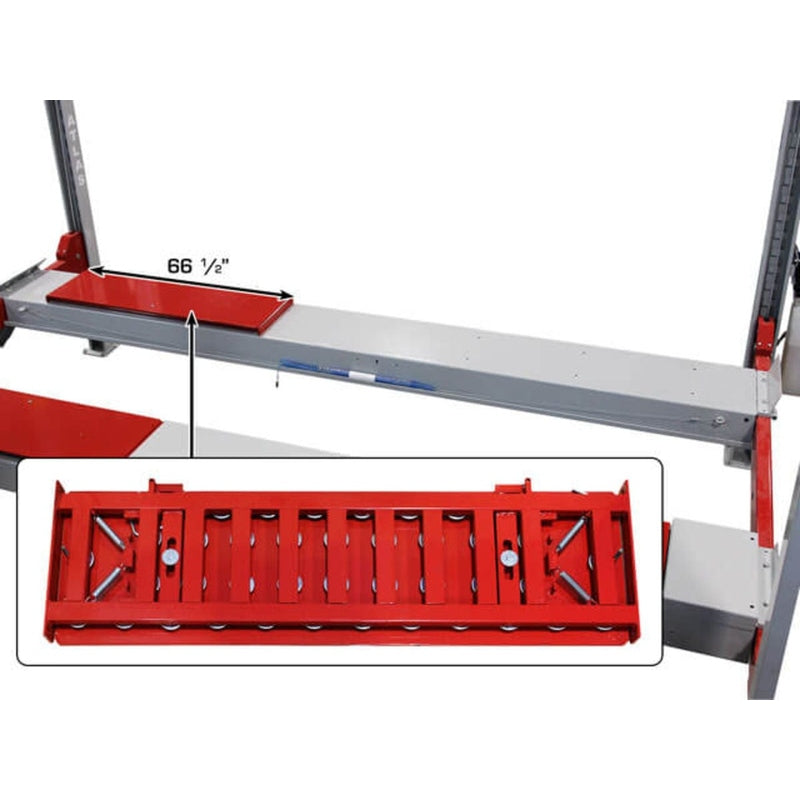

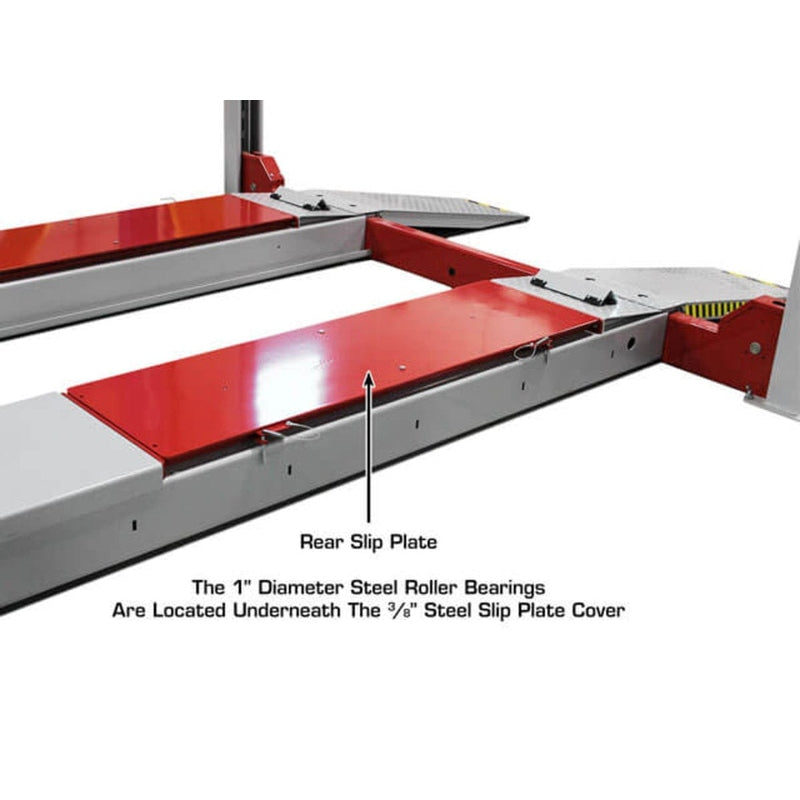

  • 1" Diameter Steel Roller Bearings on rear Slip Plate
  • Can be removed and added when needed
  • Shipping Weight: 1,000 lbs.
  • 1 Year Parts Only Warranty

Atlas Platinum Alignment Kit Specifications

-
Maximum Capacity 14,000 lb.
Overall Length 199 1/3" (16' 7 1/3")
Overall Width (Each Side) 20 5/8"
Minimum Wheel Base 75 2/5" (6' 3 2/5")
Maximum Wheel Base 148 2/3" (12' 4 2/3")
Minimum Turntable Recess 1 1/2"
Maximum Turntable Recess 2"

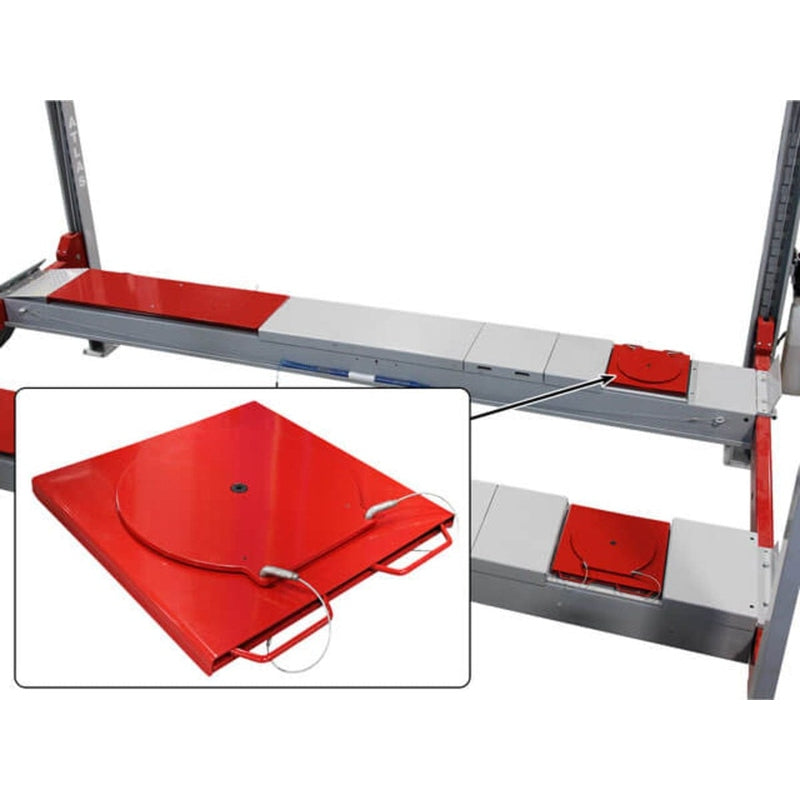

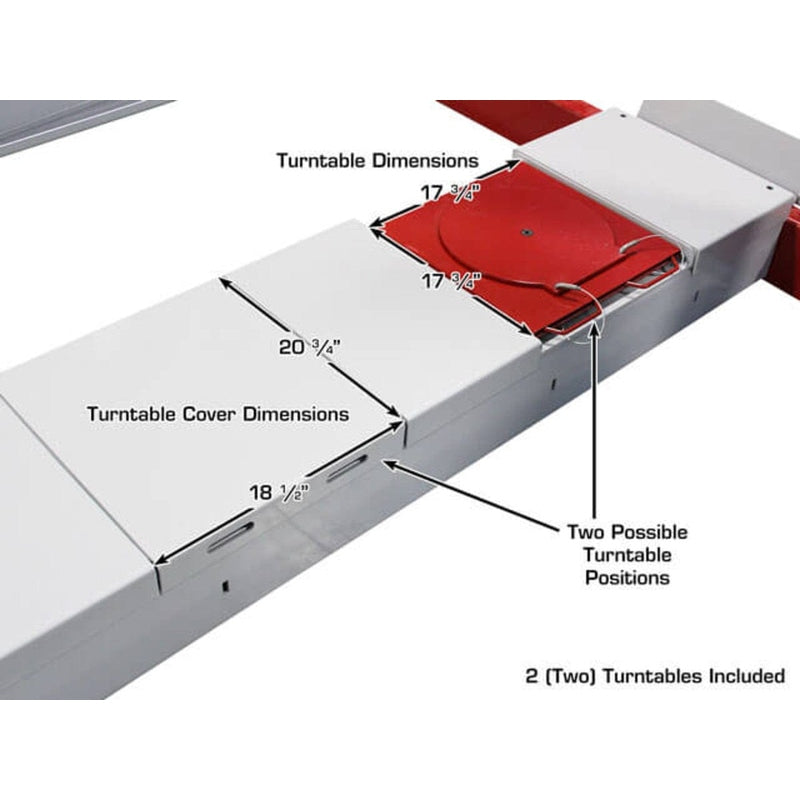

Turntable Dimensions 17 1/2" x 17 1/2" x 1 1/2"

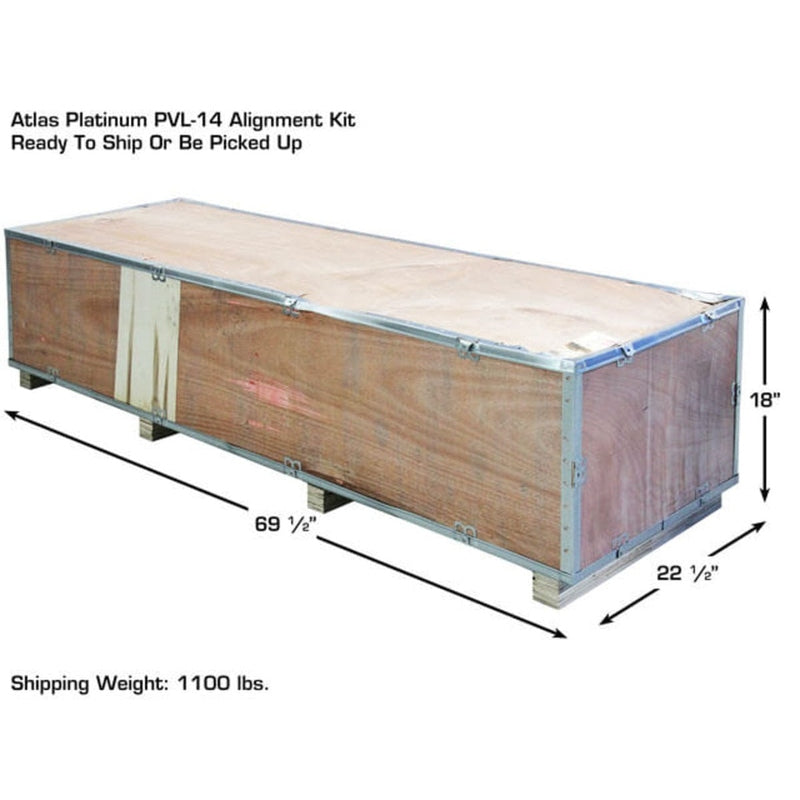

Shipping Weight 1,100 lbs.
