Atlas Garage PRO8000EXT 8,000 lb Extra Tall 4-Post Lift

Name: Atlas Garage PRO8000EXT 8,000 lb Extra Tall 4-Post Lift
Brand: Atlas Automotive Equipment
SKU: ATEXH-PRO8000EXT
Price: 3649.0 USD
Availability: InStock

SKU ATEXH-PRO8000EXT

SALE

In Stock

You save: 17% ($750.00)

~~$4,399.00~~

$4,399.00 - $4,399.00

$4,399.00

$3,649.00

$3,649.00 - $3,649.00

$3,649.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Atlas 8,000lb. Extra Tall Portable Hobbyist Lift

The Atlas® Garage PRO8000EXT is a true 8,000 LB. four post lift and is one of our most popular hobbyist lifts. This lift incorporates many of the great features of both the Atlas® Garage PRO8000 and the Atlas® Garage PRO9000.

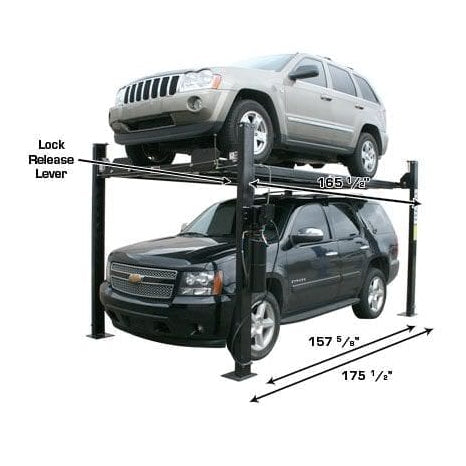

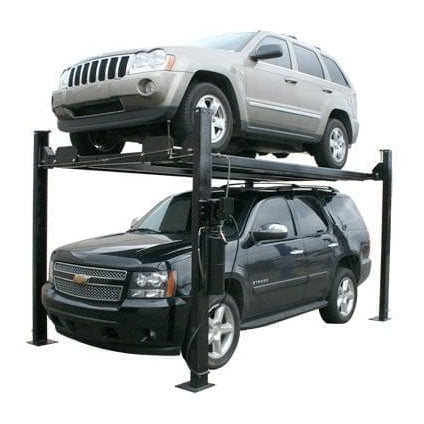

Many of our customers drive an SUV or pick up truck and wanted a storage lift that would “go higher” to allow them to park their taller vehicles under the elevated platform. Many of our competitors sell “taller” lifts. However, their “taller” lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but without the extra length (longer runways take up valuable garage space). Most customers want to store a car on top and park a SUV or pick up truck below. The Atlas® Garage Pro 8000 EXT has been engineered to provide 79″ of clearance UNDER the bottom of the raised runway. If you need the extra lifting height of the Atlas® Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the Atlas® Garage PRO8000EXT is the perfect choice.

The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson..

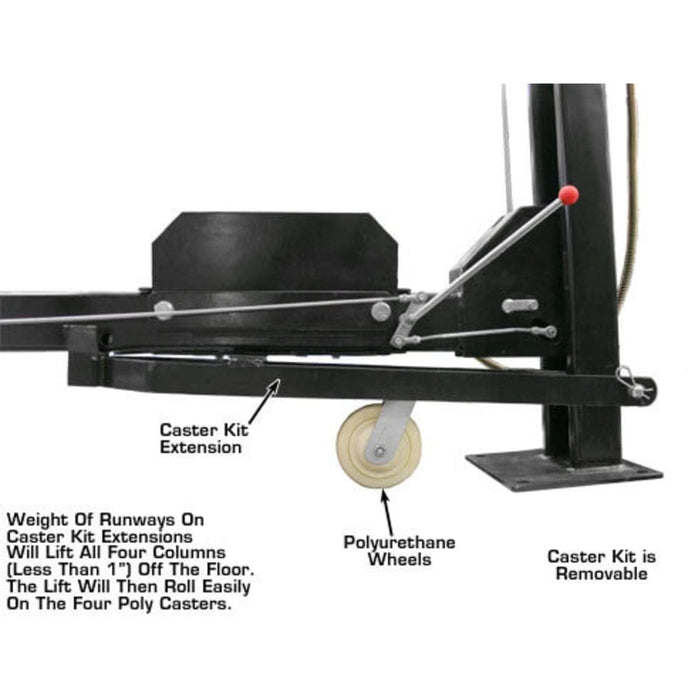

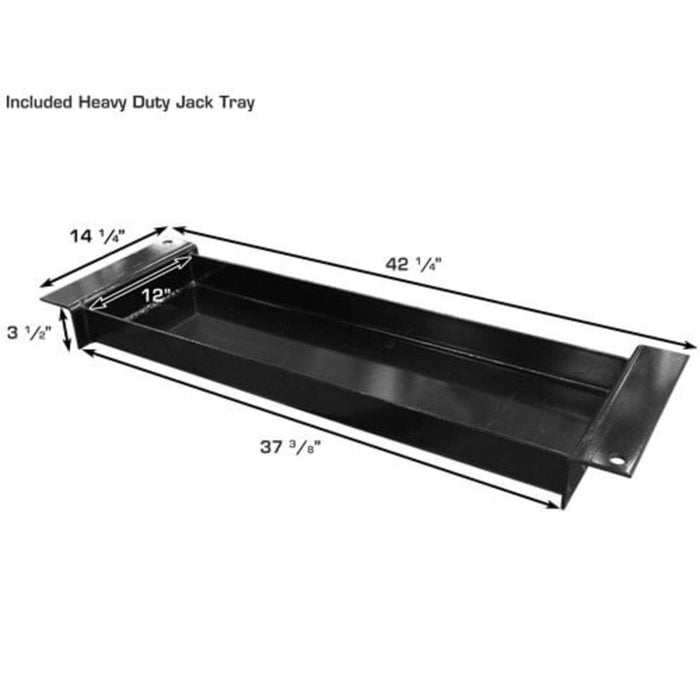

The Atlas® Garage PRO8000EXT includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.

Many customers who purchased this lift also purchased the Atlas® RJ35.

Features

8,000 lb. Capacity
Free Standing/Portable Design
Extra Tall
Diamond Plated Runways

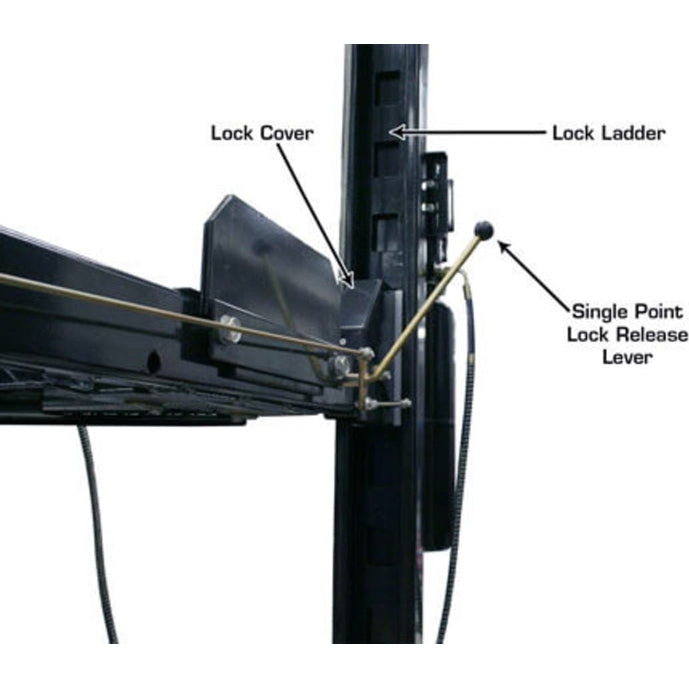

Single-Point Lock Release

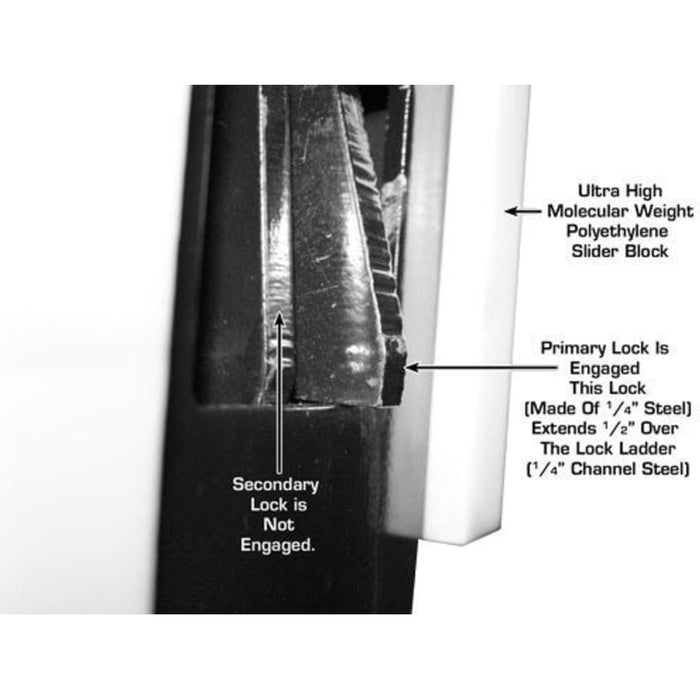

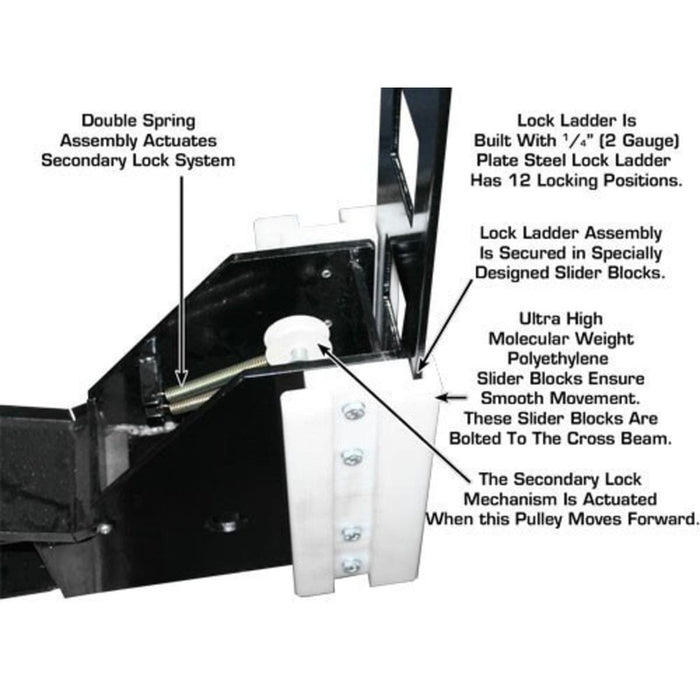

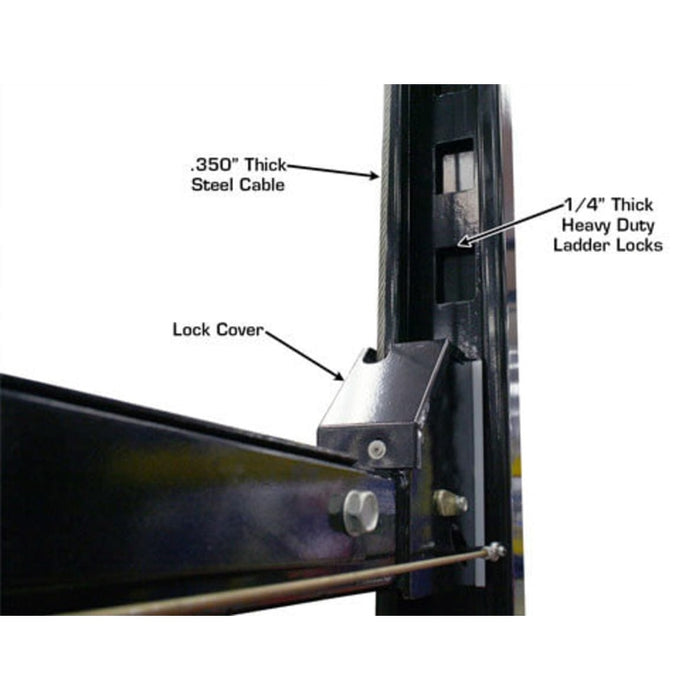

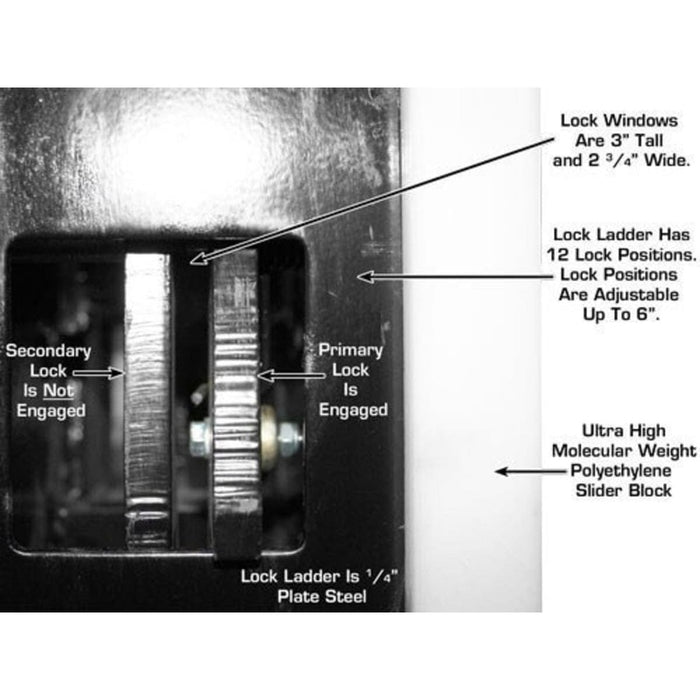

Lock Ladder Design

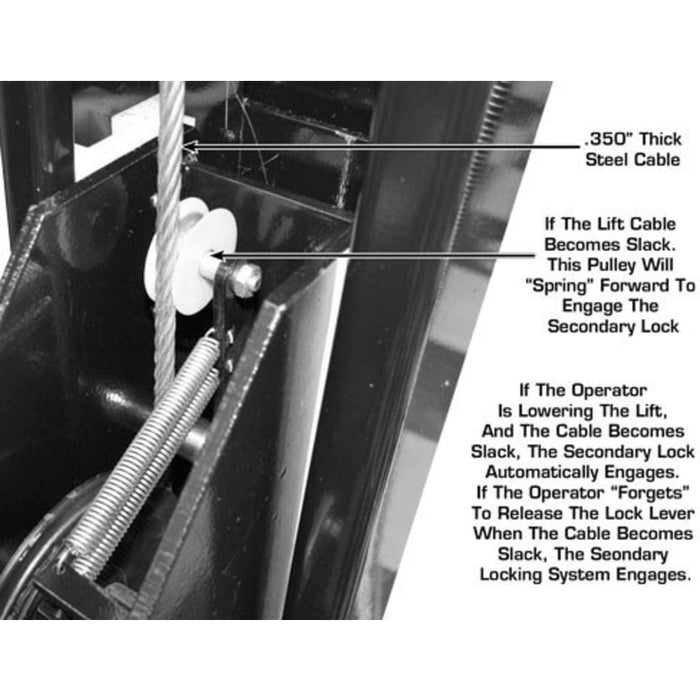

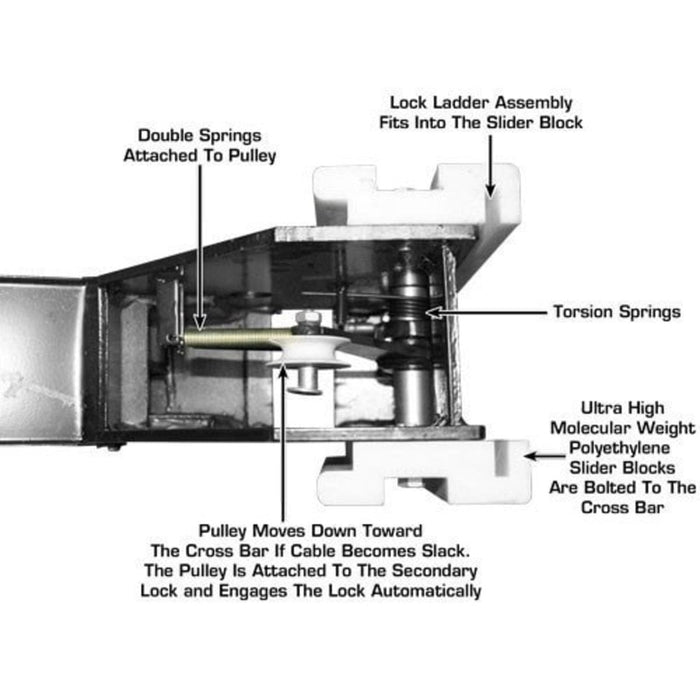

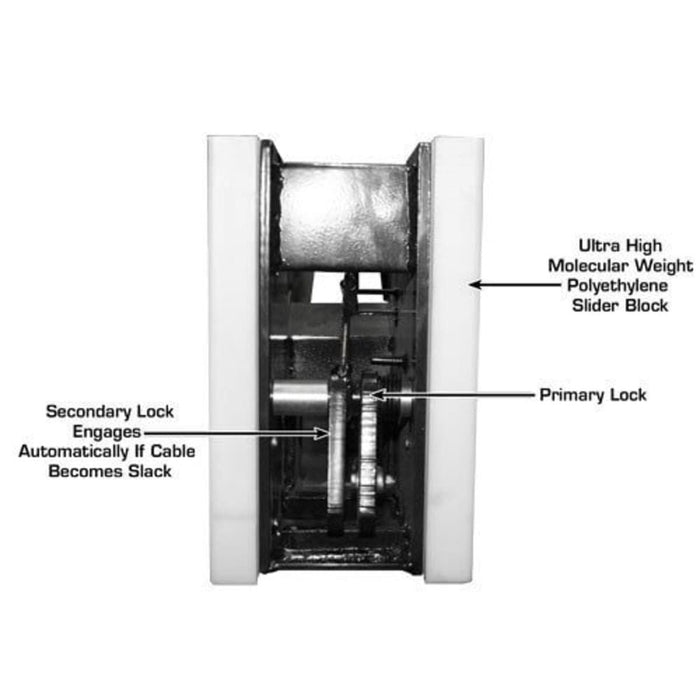

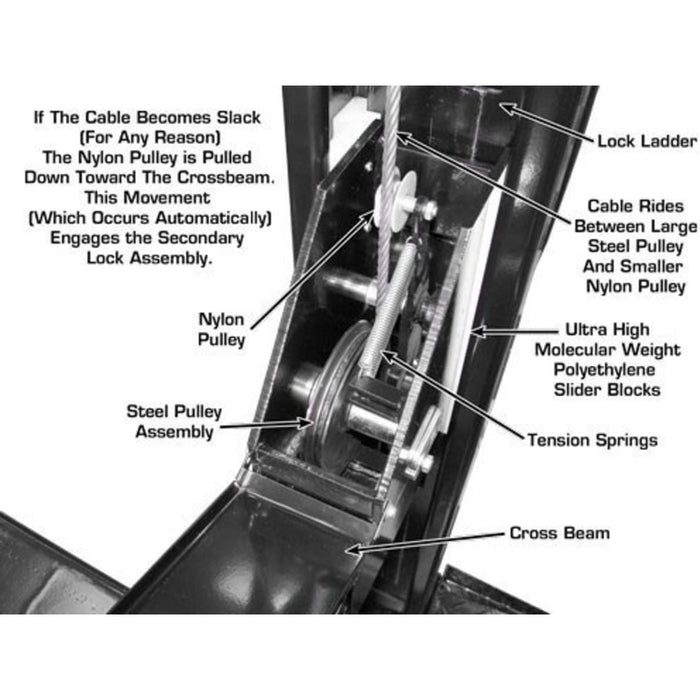

Double Lock Safety System

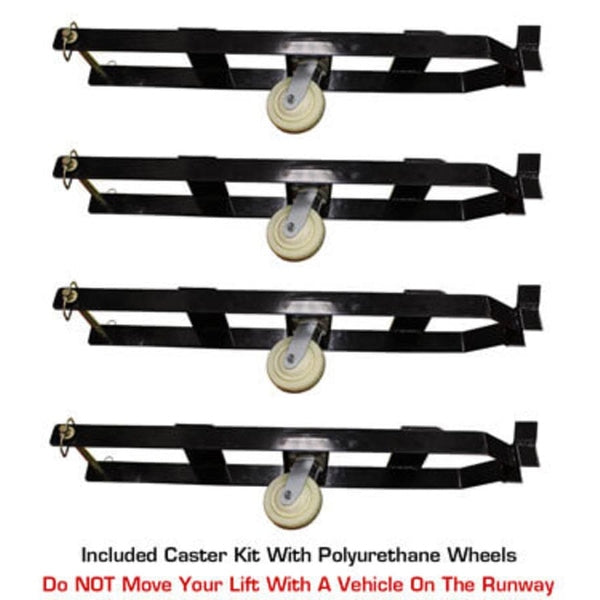

Caster Kit With Polyurethane Wheels Included

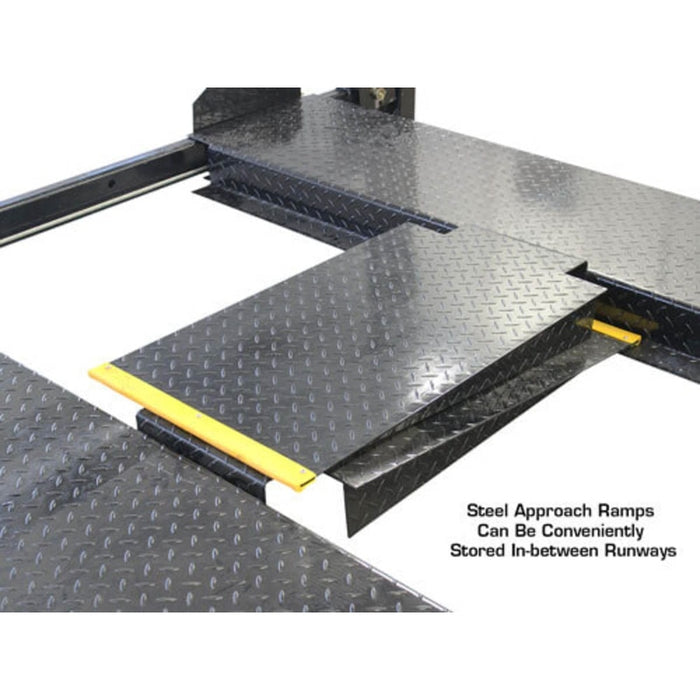

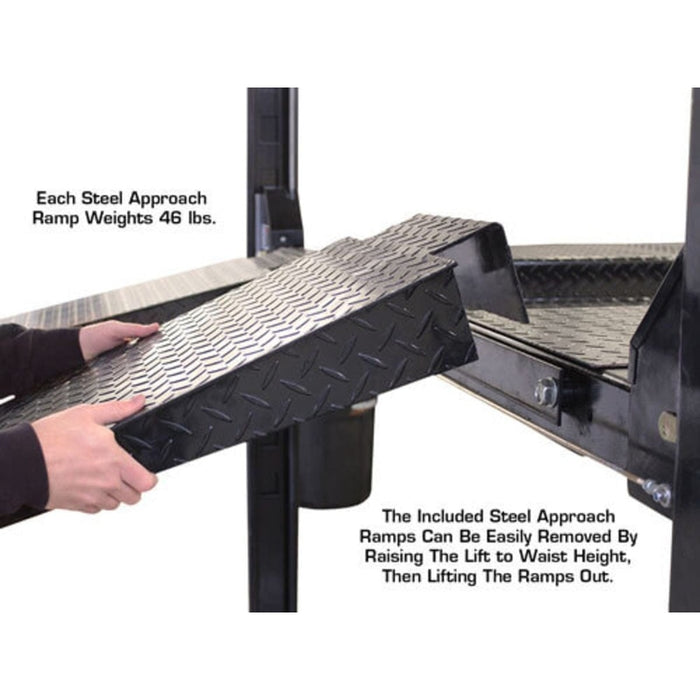

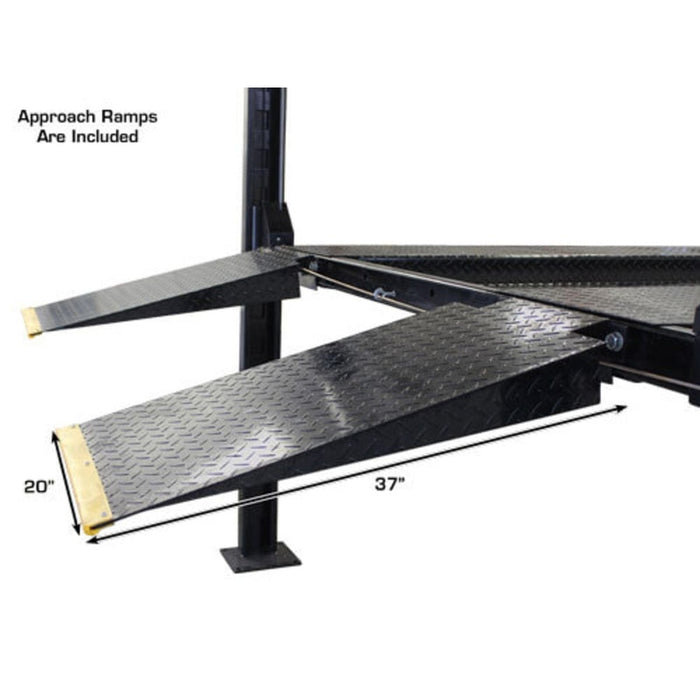

Steel Approach Ramps Included
Steel Jack Tray Included

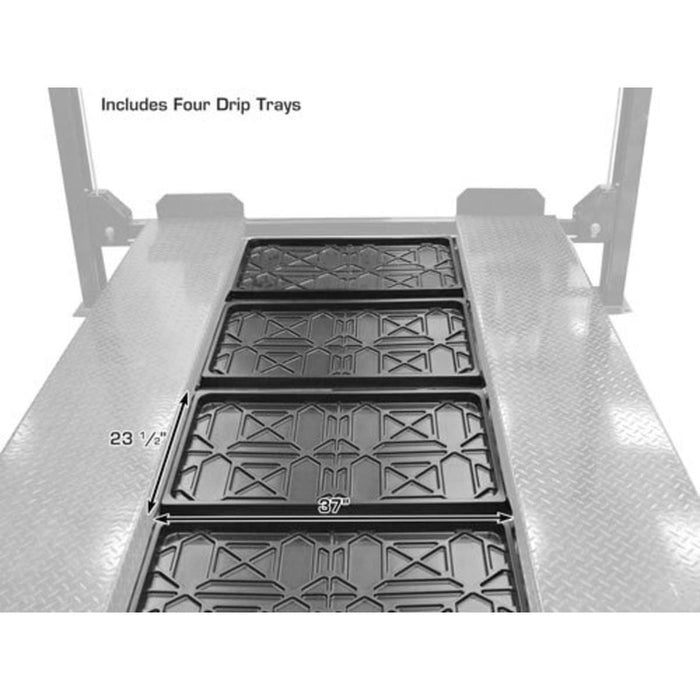

4 Plastic Drip Trays Included
4 Wheel Stops Included

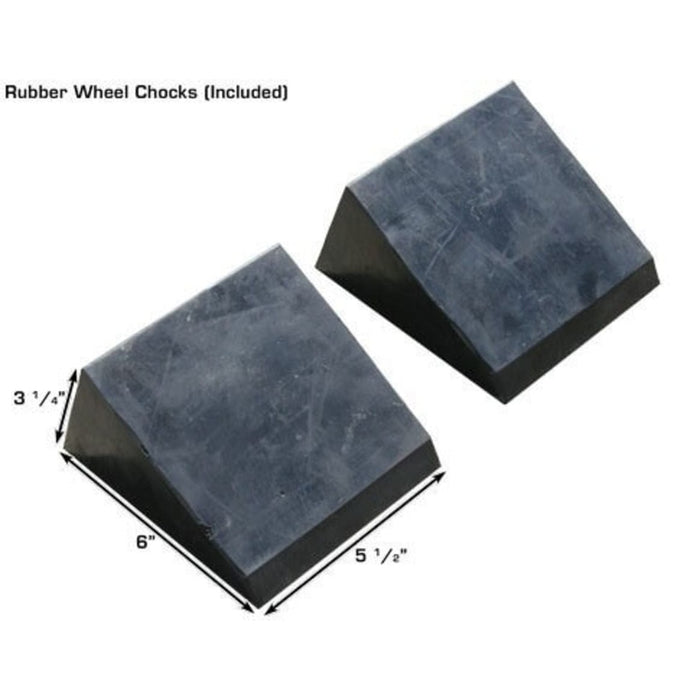

2 Rubber Wheel Chocks Included
Perfect For Storing Or Working On Vehicles

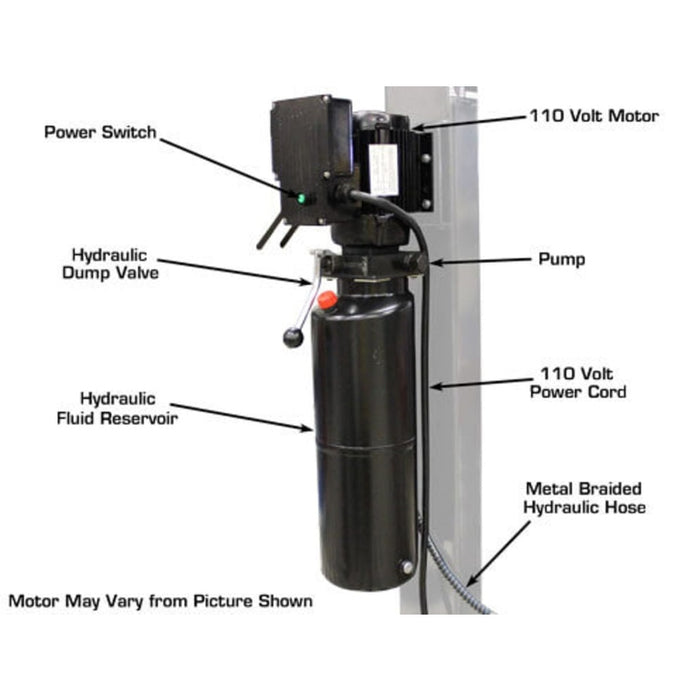

110volt Electric Operation (30 AMP BREAKER REQUIRED)

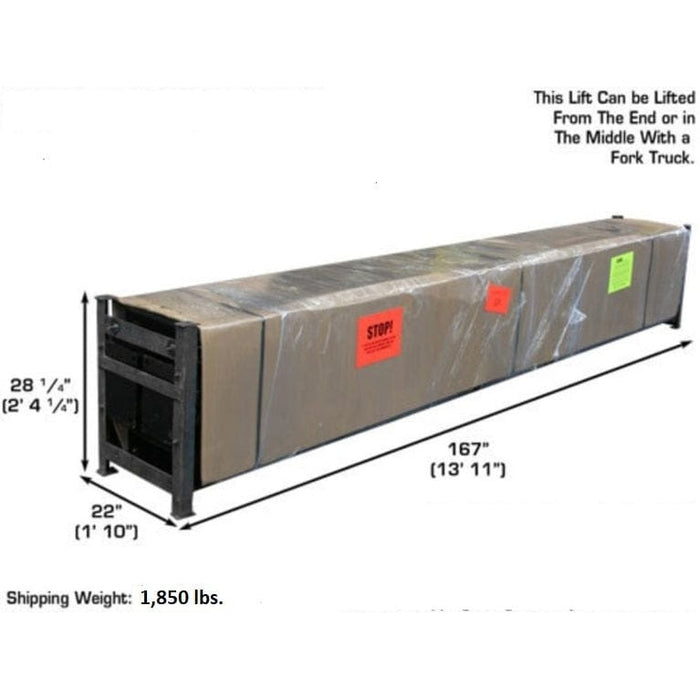

Shipping Weight 1,850 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

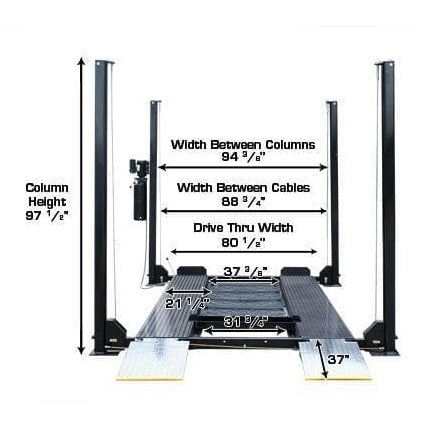

Specifications

Atlas® Garage PRO8000EXT Specifications
Capacity	8,000 Lb.

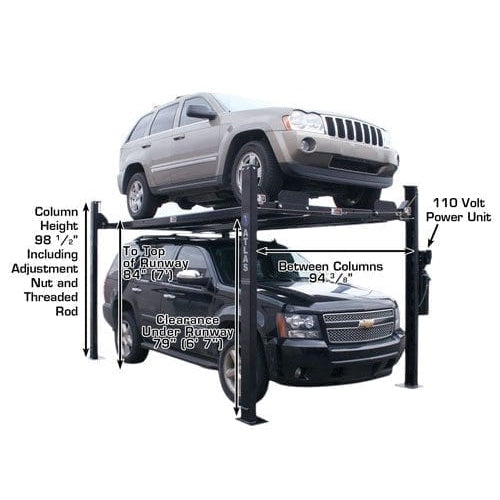

Lifting Height To Top Of Runway	84 1/4" (7' 1/4")
Clearance Under Runways	79" (6' 7")

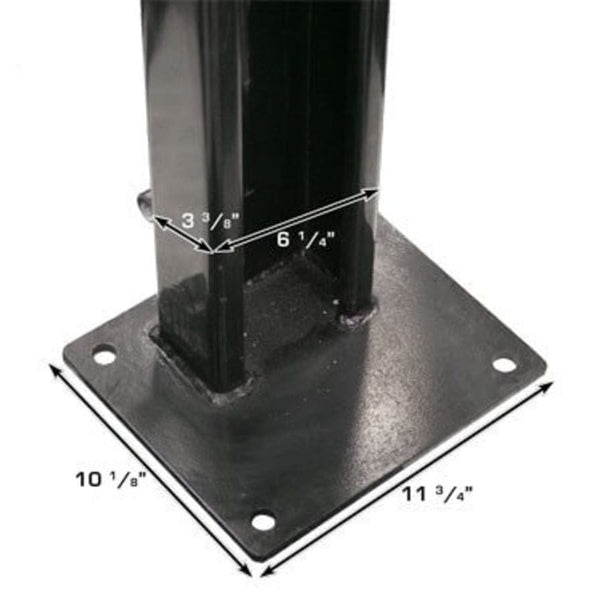

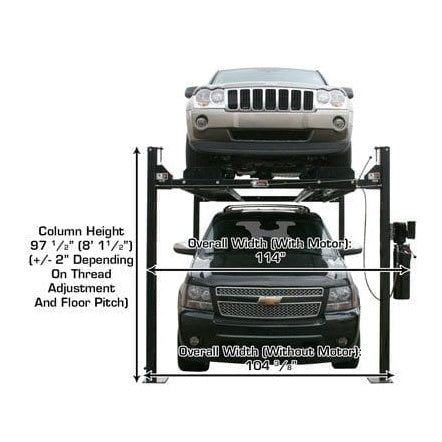

Height Of Columns	98 1/2" (8' 2 1/2")
Overall Width (Without Motor)	104 1/2" (8' 8 1/2")
Overall Width (With Motor)	115" (9' 7")
Overall Length With Approach Ramp	206 3/4" (17' 2 3/4")
Approach Ramp	37" (3' 1")

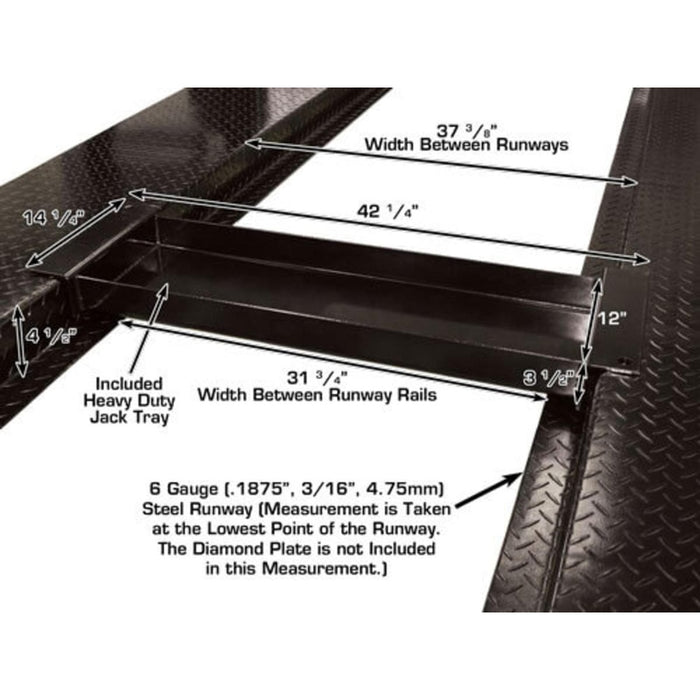

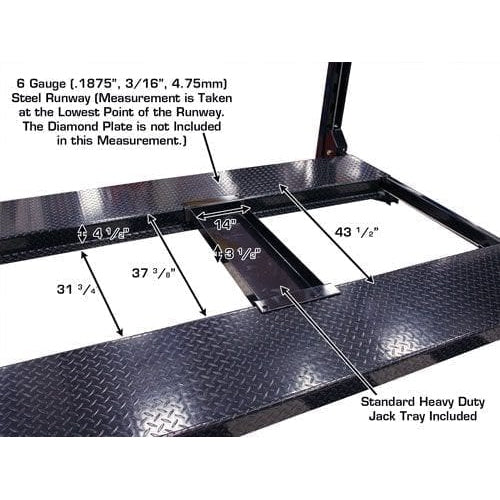

Runway Width	21 1/4" (w/ Rails) or 18 3/4" (Driving Surface)

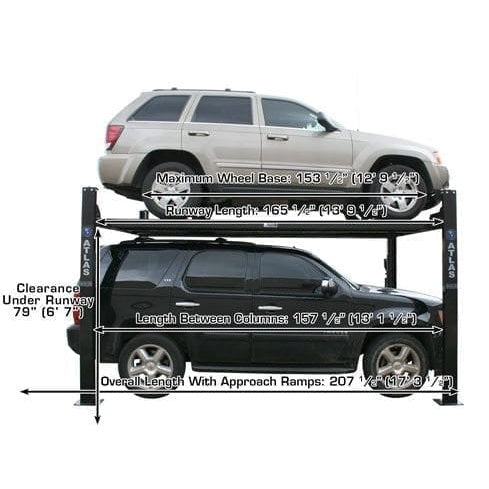

Runway Length	165 3/4" (13' 9 3/4")
Runway Thickness	4 1/2"
Width Between Runways	37" (3' 1")
Width Between Runway Rails	31 1/2" (2' 7 1/2")
Outside Runway To Outside Runway	74 5/8" (6' 2 5/8")
Clearance Between Columns	94 1/2" (7' 10 1/2")
Length Between Columns	157 1/2" (13' 1 1/2")
Maximum Wheel Base	153 1/2" (12' 9 1/2")
Drive Thru (Outside Of Tire To Outside Of Tire)	80 1/2" (6' 8 1/2")
Motor/Electrical Requirement	110 Volt, 30 AMP BREAKER REQUIRED
Shipping Weight	1,850 lb.

Documents

Atlas® Garage PRO8000EXT Manual

Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
