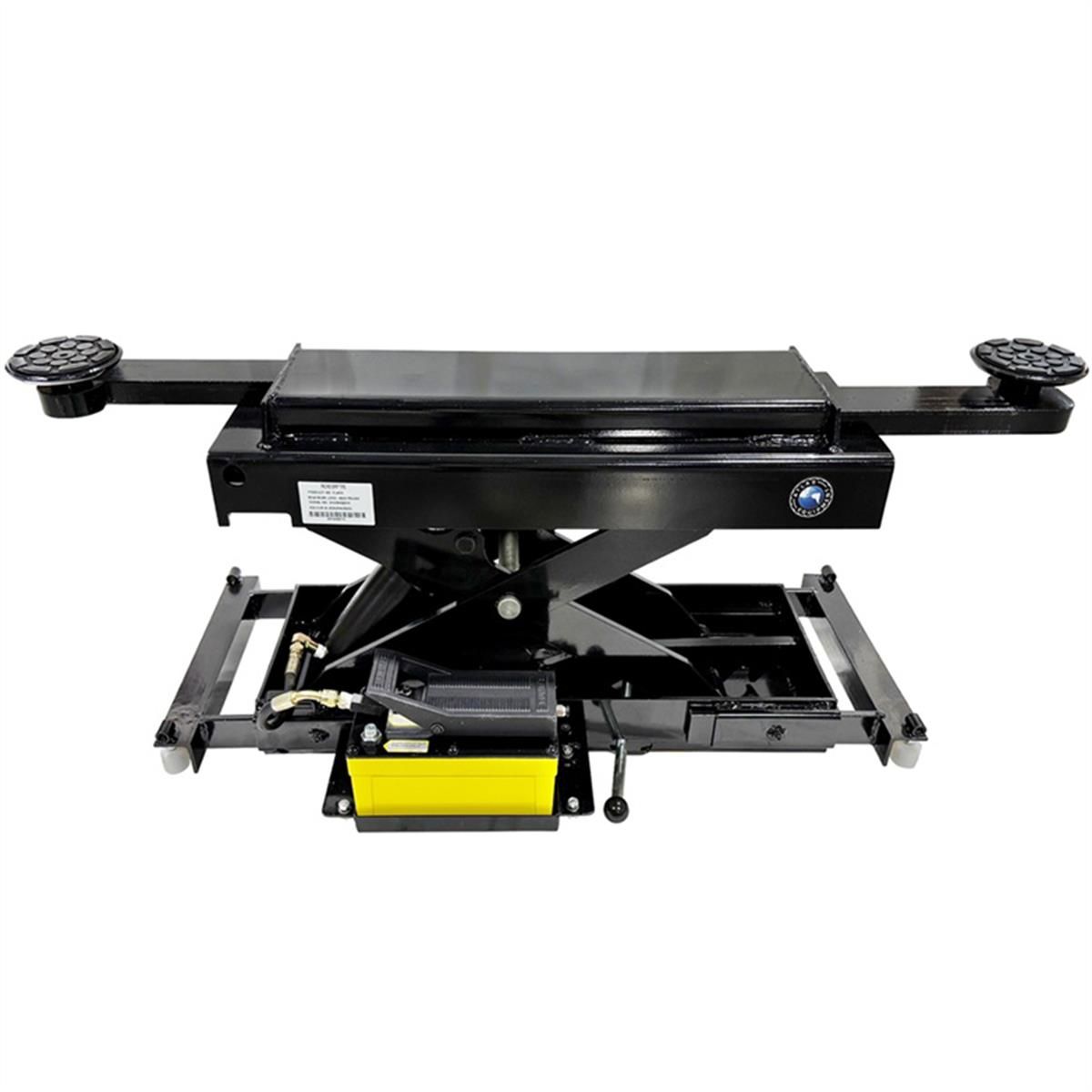

Atlas RJ45A 4,500 lb Air/Hydraulic Rolling Bridge Jack

The Atlas RJ45A is a 4,500-lb air/hydraulic rolling bridge jack that turns a four-post lift into a wheels-free service bay. It rolls the full length of the lift on nylon rollers and a steel wheel, so you can position it under either axle, raise the vehicle off the runways, and get to tires, brakes, and suspension work without repositioning the car.

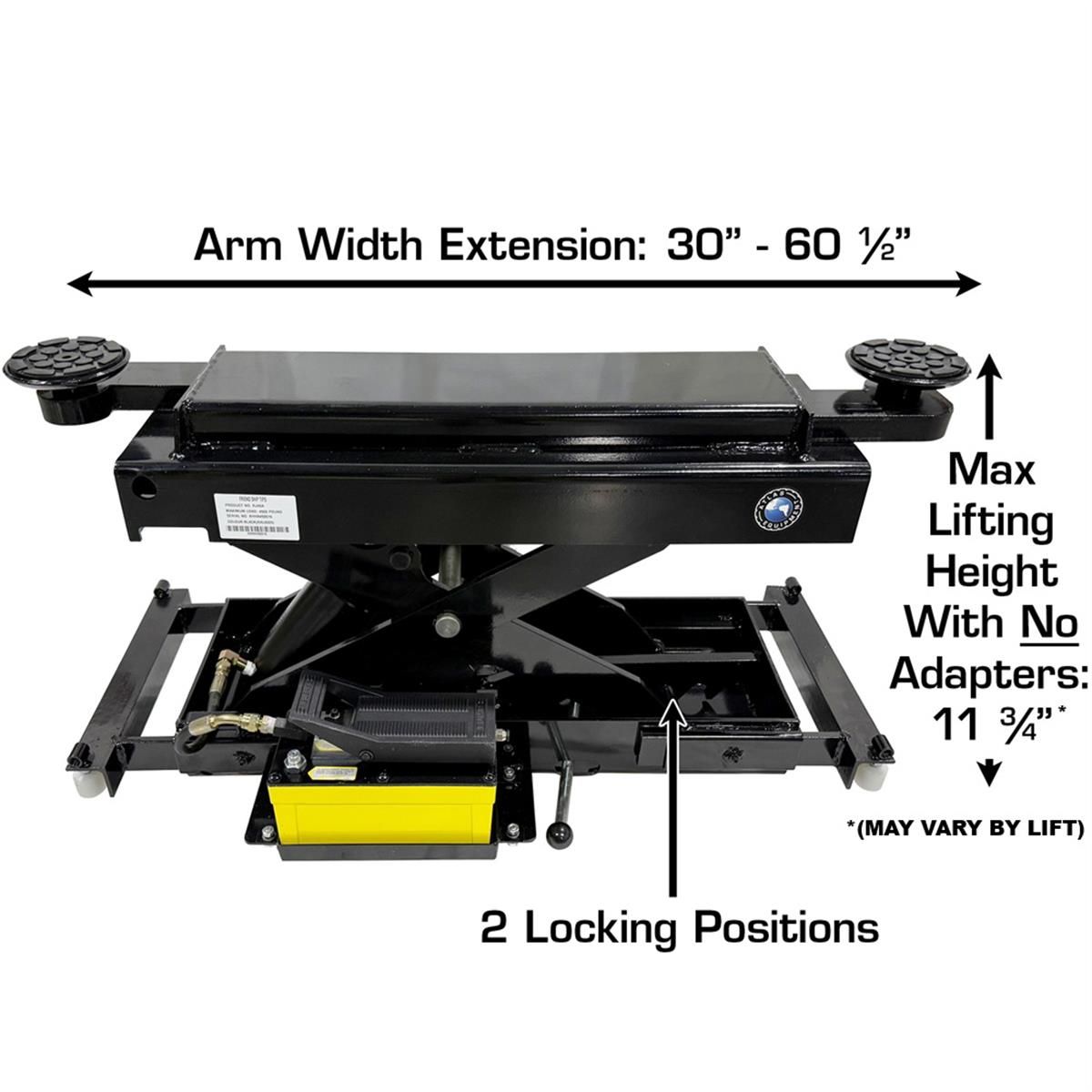

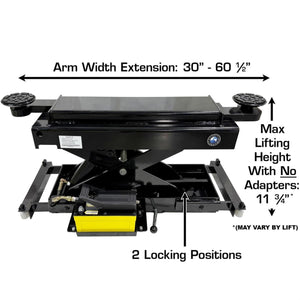

The RJ45A is sized for 9,000-lb-capacity four-post lifts, including the Atlas Garage Pro9000. Its adjustable support arms fit runway openings from 36 to 54 inches, and the lift arms extend from 30 to 60-1/2 inches at the center of the pad to reach factory lifting points across a range of wheelbases. A scissor mechanism keeps the lift level as it rises.

Operation is air over hydraulic on 70–115 PSI of shop air (an external air supply is required and not included). Two safety locking positions hold the load mechanically once the vehicle is raised — much like a pair of jack stands — so hydraulic pressure is not carrying the vehicle during service.

• 4,500-lb capacity for cars, trucks, and SUVs within rating
• Air/hydraulic operation on 70–115 PSI shop air (external air supply not included)

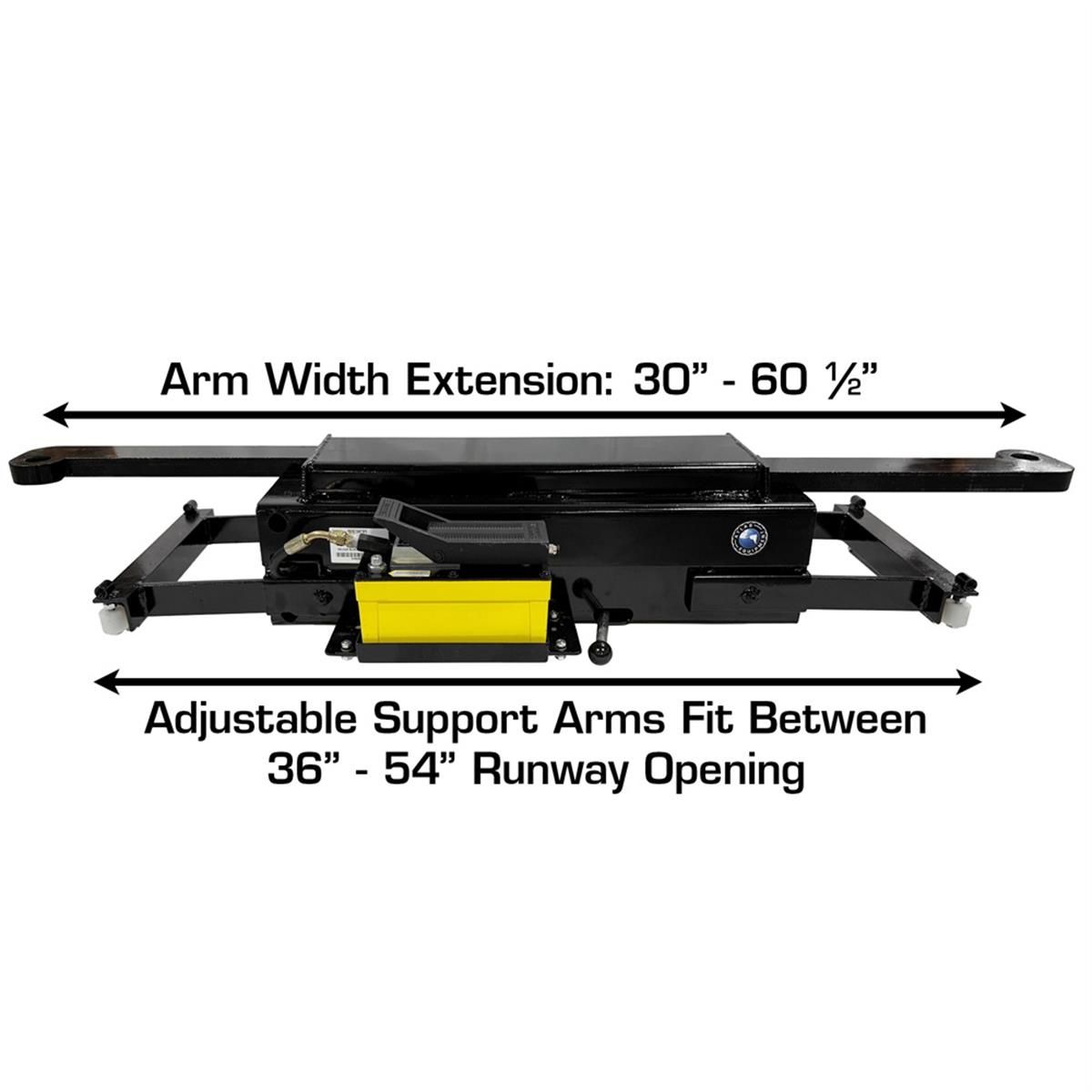

• Adjustable support arms fit 36" – 54" runway openings
• Lift arms extend 30" – 60-1/2" at the center of the pad for varied lifting points
• Scissor mechanism for level lifting
• Two safety locking positions that relieve hydraulic pressure under load

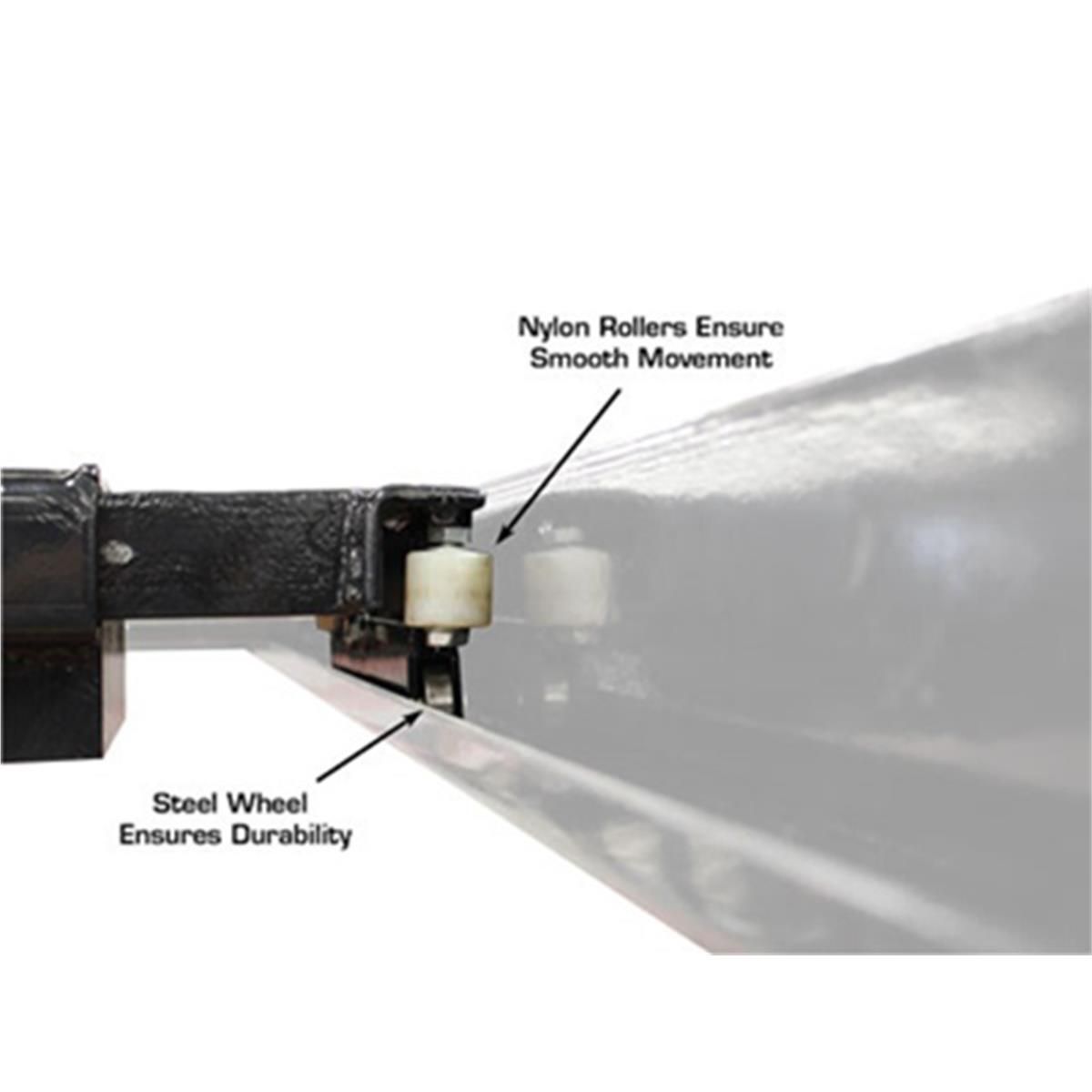

• Nylon rollers for smooth movement and a steel wheel for durability
• Compact, low-profile frame that rolls the length of the lift

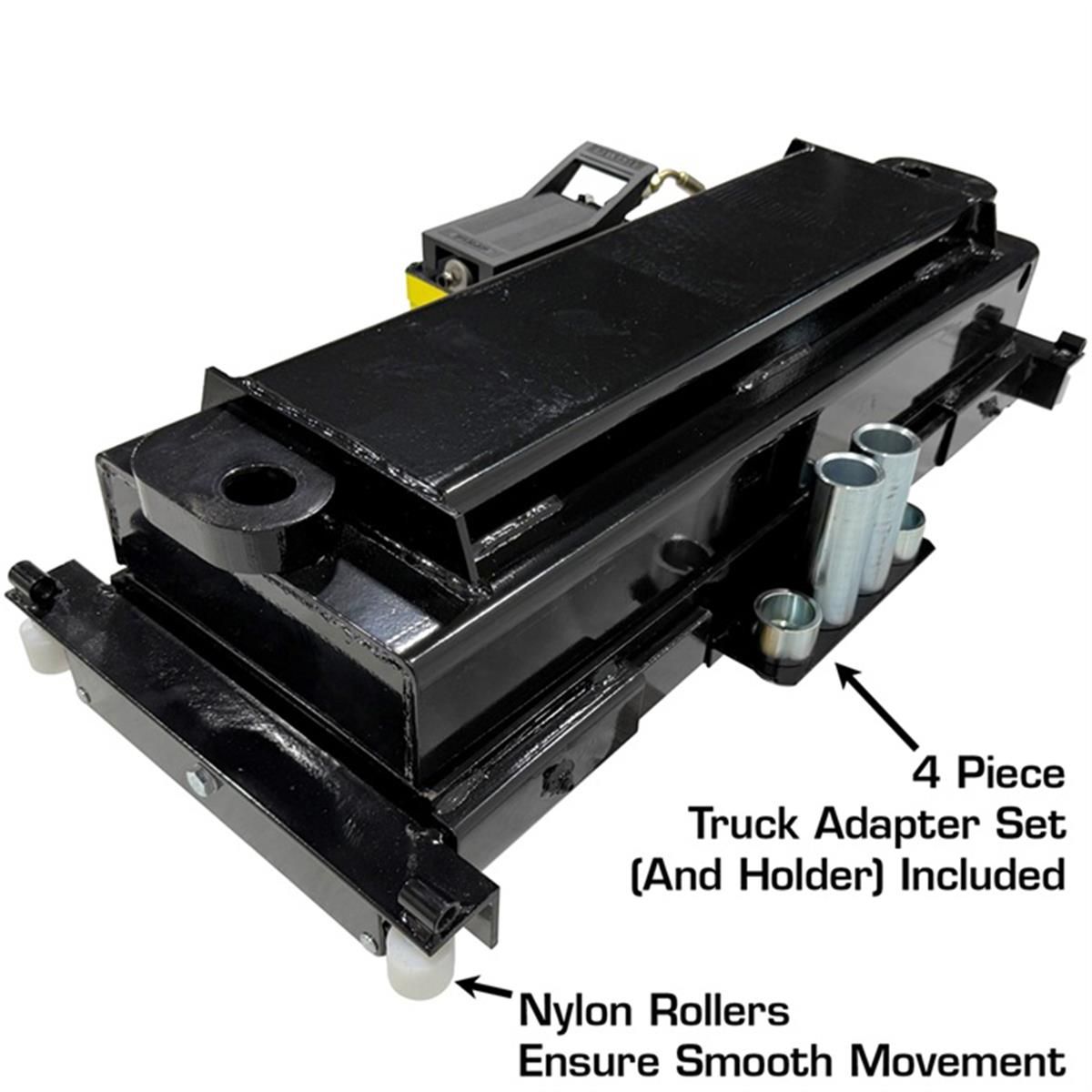

• Four-piece truck adapter set with on-board holder included

• Atlas RJ45A rolling bridge jack

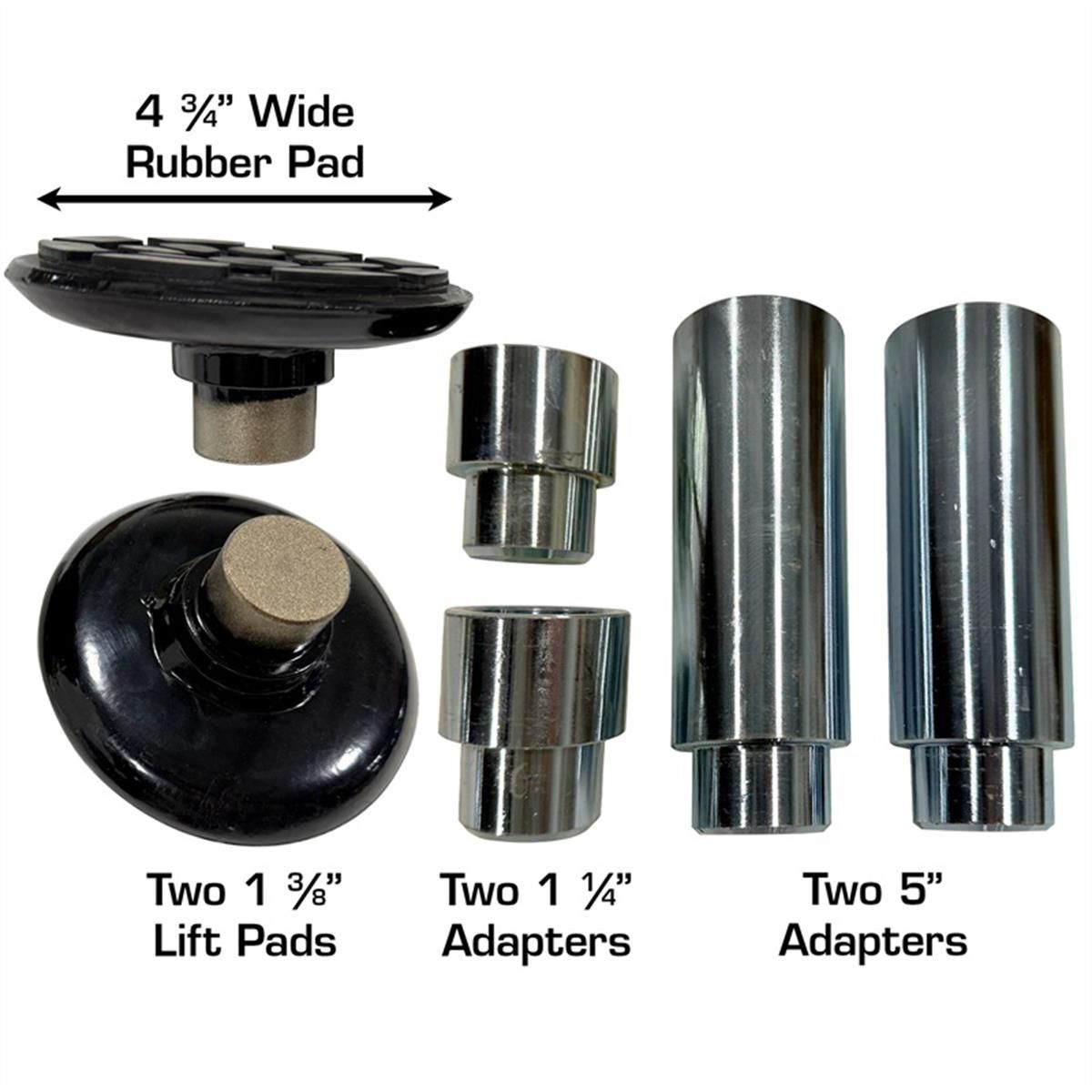

• Rubber lift pads (4-3/4" wide pad and two 1-3/8" lift pads)
• Four-piece truck adapter set — two 1-1/4" adapters and two 5" adapters — with holder

The Atlas RJ45A is covered by a 1-year parts warranty.

Will it fit my four-post lift?

The adjustable support arms fit runway openings from 36 to 54 inches, and the lift arms extend from 30 to 60-1/2 inches at the center of the pad. It is designed for 9,000-lb-capacity four-post lifts such as the Atlas Garage Pro9000.

Do I need an air compressor?

Yes. The RJ45A runs on 70–115 PSI of shop air, and an external air supply is required and not included.

How high will it raise a vehicle off the runways?

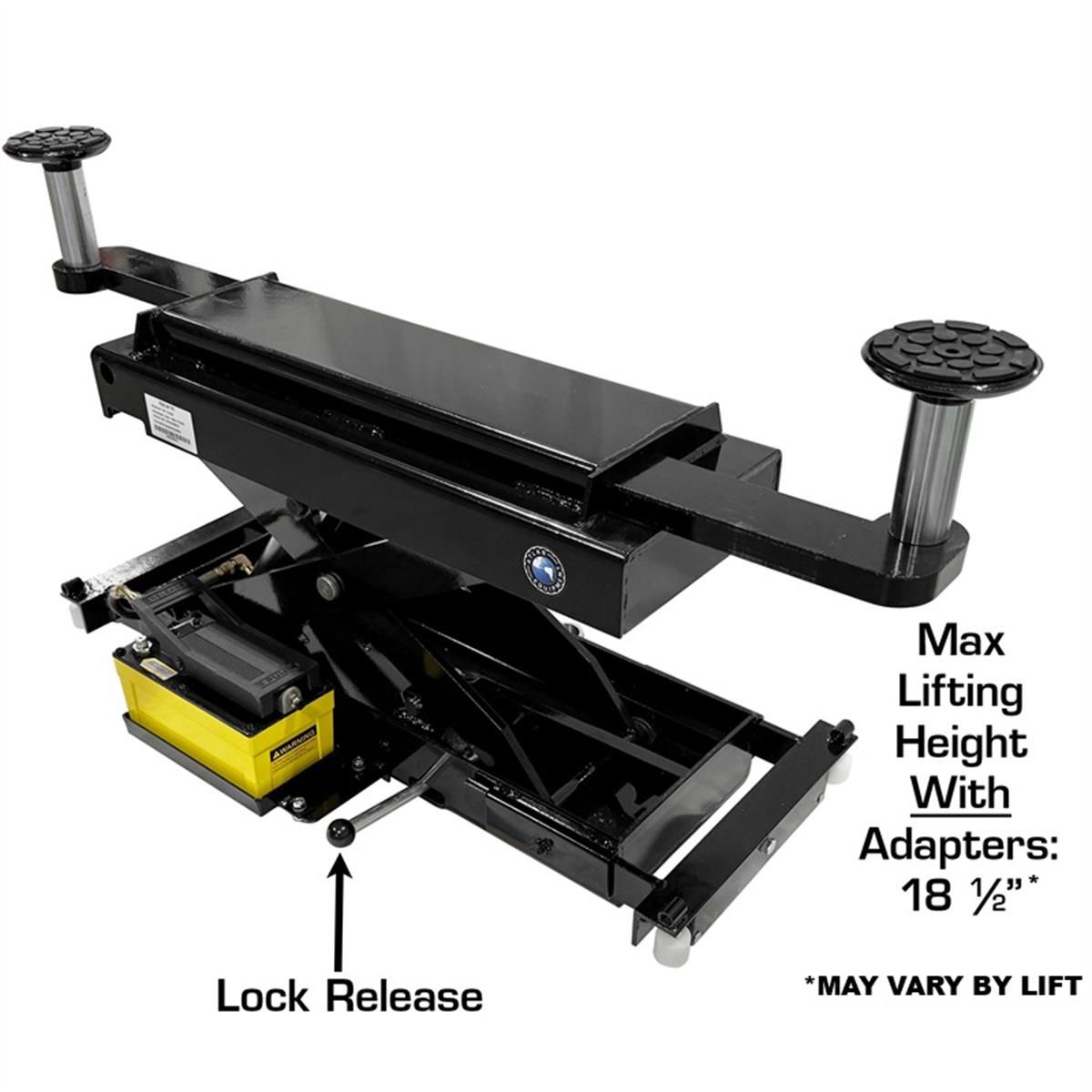

Maximum lifting height is about 11-3/4 inches with no adapters and 18-1/2 inches with the tallest adapters installed. Actual height varies by lift.

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
