Atlas 414 14,000 lb Commercial 4-Post Lift

Atlas 414 14,000 lb Commercial 4-Post Lift

SKU ATEATTD-414-FPD
$6,999.00 - $6,999.00
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

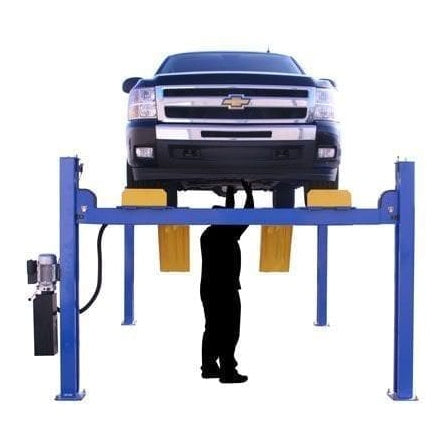

Atlas 14,000 Lb. Capacity Commercial Lift

-

The Atlas 414 14,000 pound capacity heavy duty four post lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitors lifts.

The Atlas 414 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 414 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 414 has been manufactured to the same exacting specifications for many years.

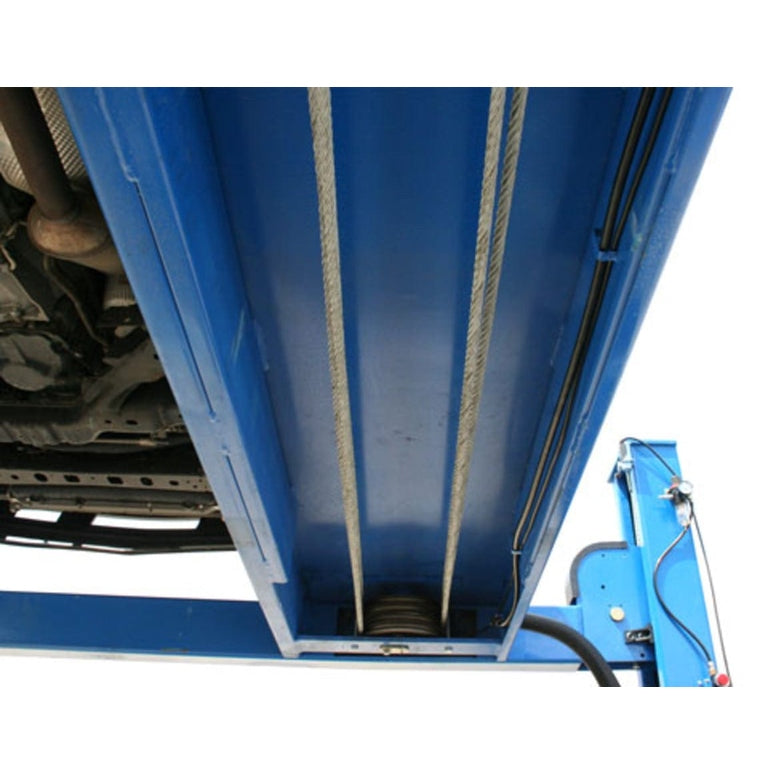

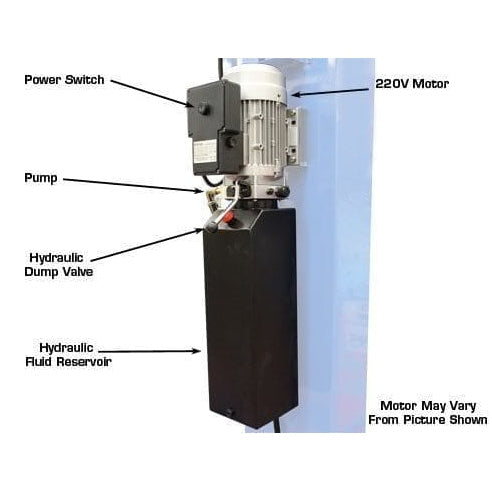

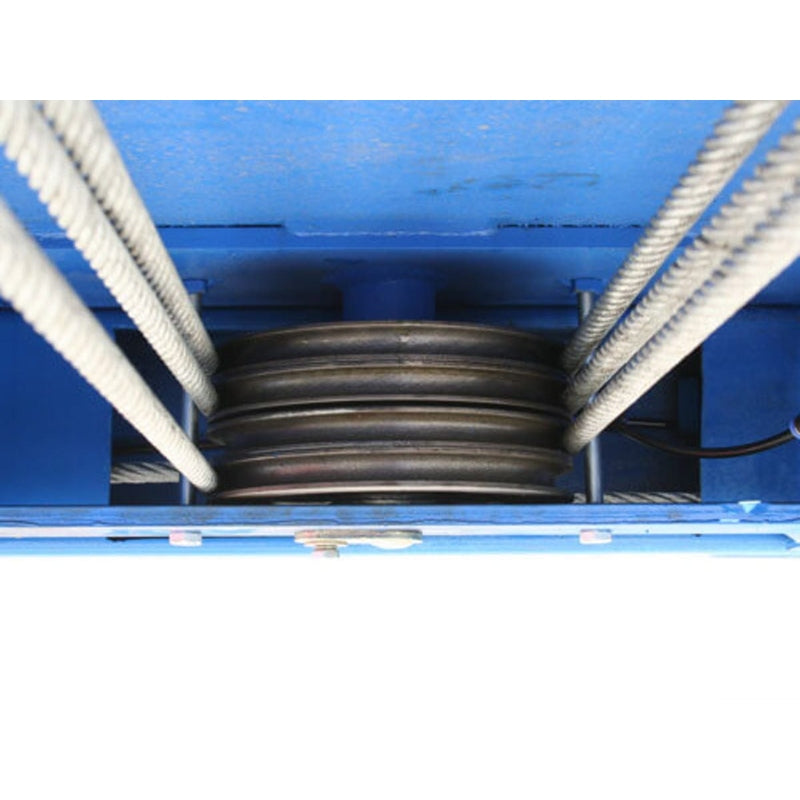

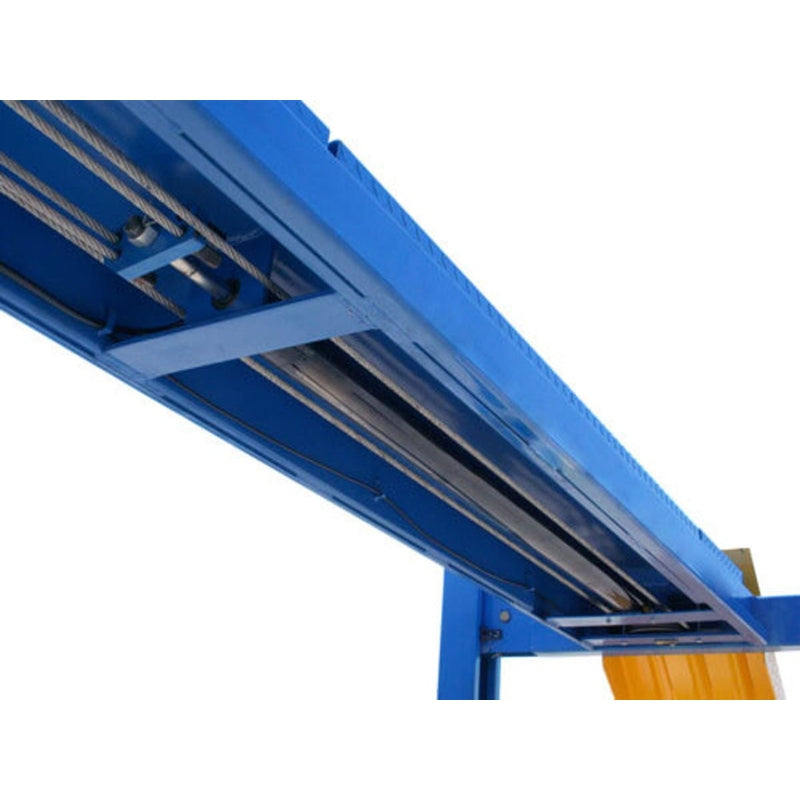

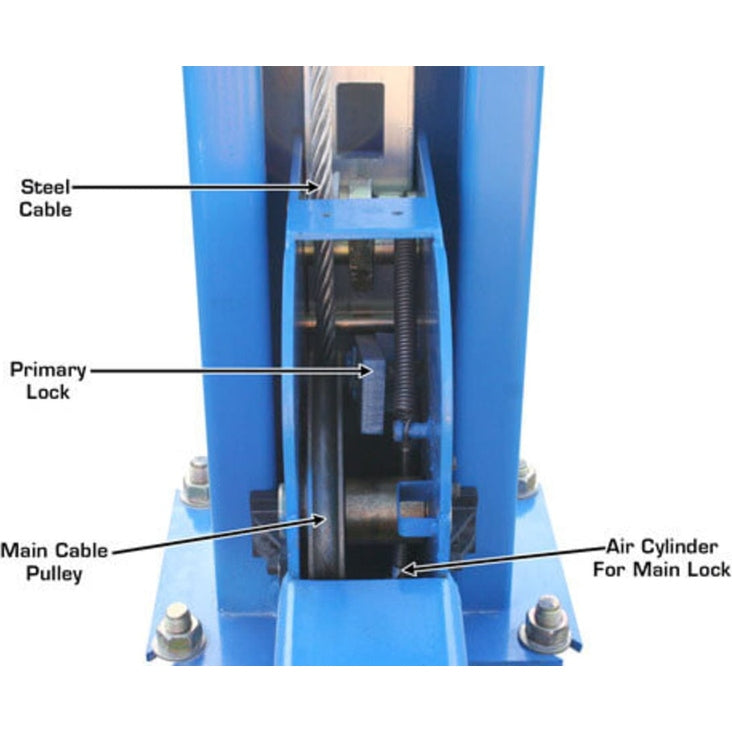

The Atlas 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an old style chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to level properly and the exposed hydraulic cylinder is responsible for numerous door dings.

Finally, the Atlas 414 features tracks between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ8000BK) on the lift. Rolling jacks sold separately.

Features

-
  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long
  • Diamond Plated Runways

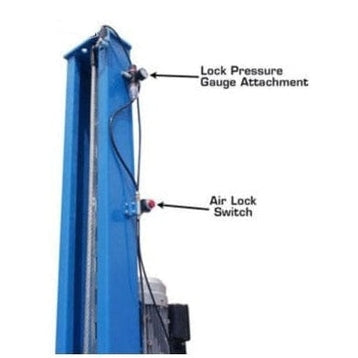

  • Air Operated Single Point Lock Release (External Air Supply Required)

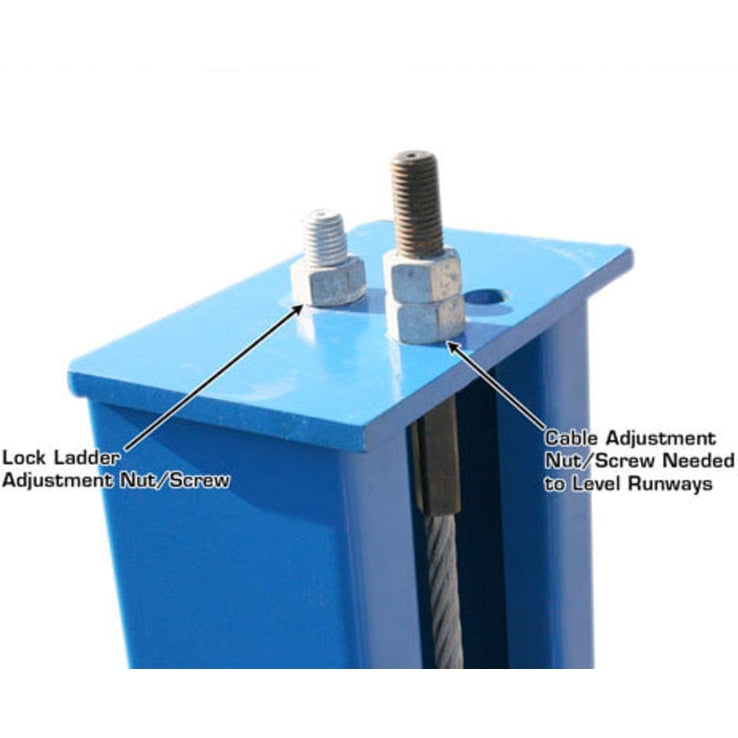

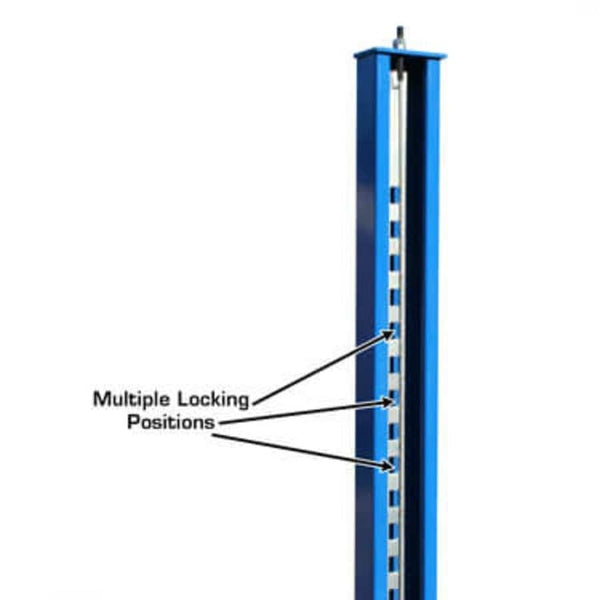

  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish

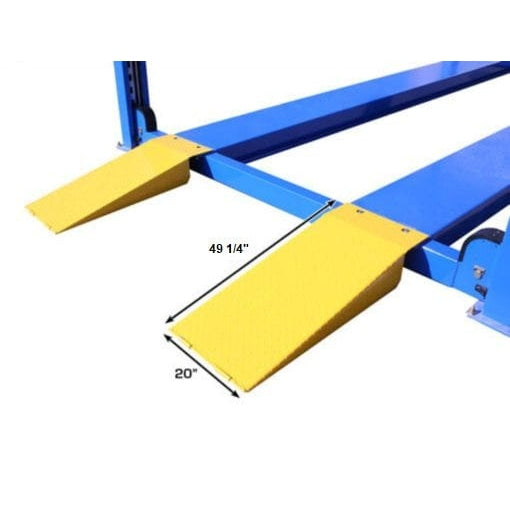

  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)

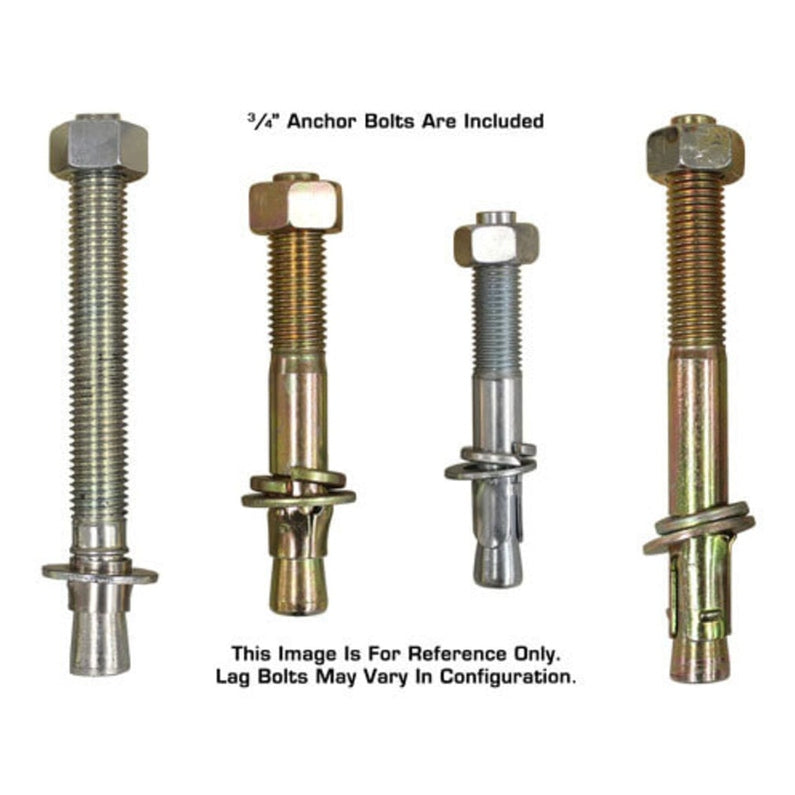

  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • Shipping Weight: 3,100 lbs.
  • 5 yr Structural 2 yr Hydraulic Warranty Parts Only

Atlas ATTD-414 Specifications

-
Capacity 14,000 lb.
Lifting Height 80" (6' 8")

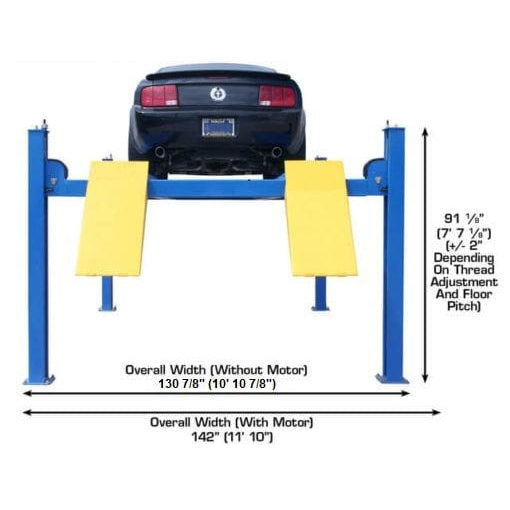

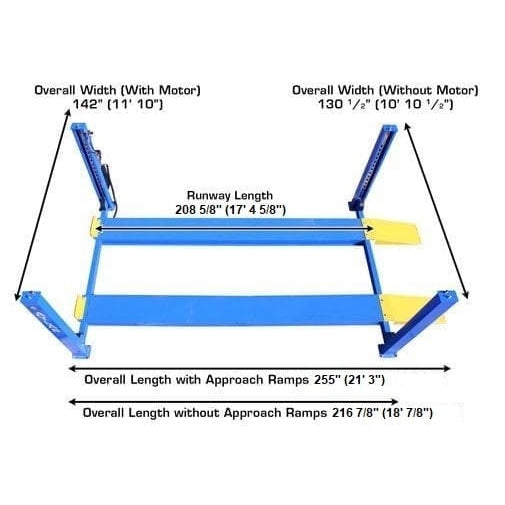

Overall Width Of Columns (Without Motor) 130 7/8" (10' 10 7/8")
Overall Width Of Columns (With Motor) 138 7/8" (11' 6 7/8")
Overall Length With Approach Ramp 255" (21' 3")
Length Between Columns 197 1/4" (16' 5 1/4")
Runway Length 208 5/8" (17' 4 5/8")
Runway Width 20"
Thickness Of Runway 8 3/4"

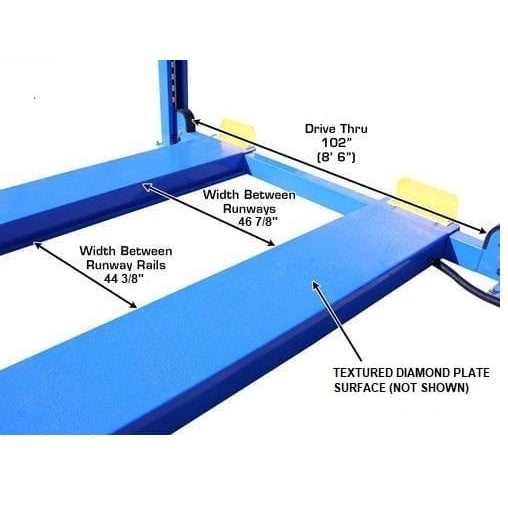

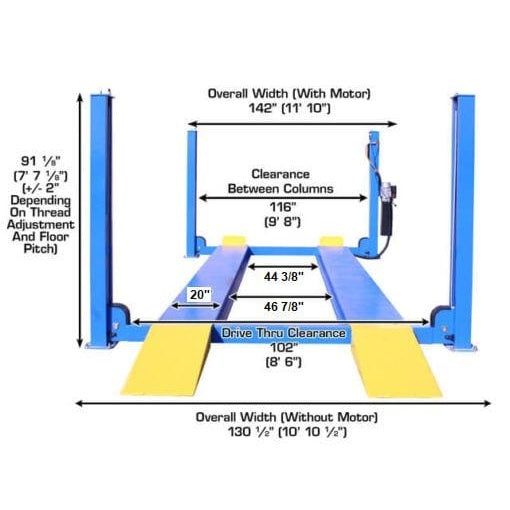

Width Between Runways 46 7/8" (w/ Rail 44 3/8")
Outside Runway To Outside Runway 86 7/8" (7' 2 7/8")

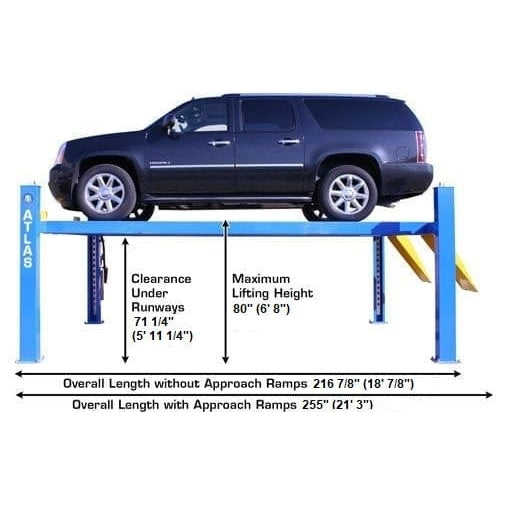

Clearance Under Runways 71 1/4" (5' 11 1/4")

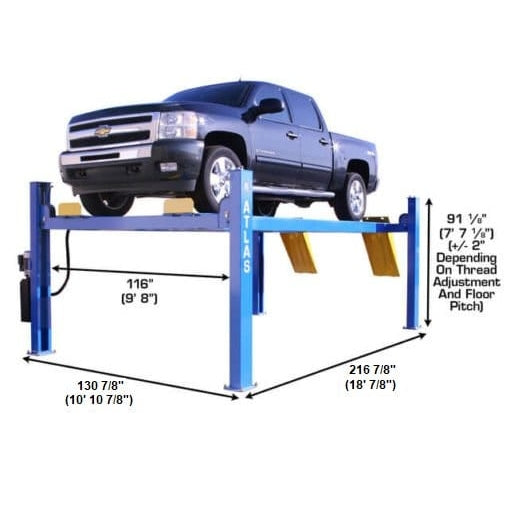

Clearance Between Columns 116" (9' 8")
Height Of Columns 91 1/8" (7' 7 1/8")
Maximum Wheel Base 197" (16' 5")
Drive Thru 102 1/8" (8' 6 1/8")
Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

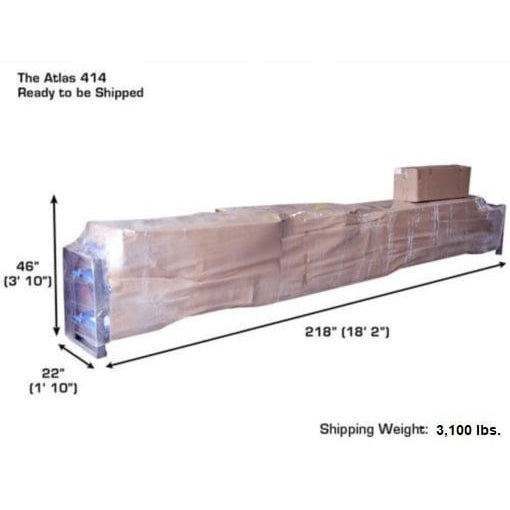

Shipping Weight 3,100 LBS.
Requires a minimum of 6" of concrete with a 3000 psi. rating

Documents

-

Atlas ATTD-414 Manual

Atlas 414 Cylinder Bleeding Procedure (Do this immediately after installation)
