Get More Power for Your Power Station: The Zendure 400W solar panel provides a whopping 400W of power input, giving your power station the juice it needs to keep your devices charged up and ready to go.
High-Efficiency Solar Technology: With an impressive 22% conversion rate, the Zendure 400W solar panel is designed to extract the most power possible from sunlight. That means you'll get more usable electricity for your devices, even in low-light conditions.
Lightweight and Portable: Weighing in at just 29.98lb (13.6kg), the Zendure 400W solar panel is incredibly lightweight and easy to carry. Whether you're heading out for a weekend camping trip or an extended off-grid adventure, you can take this solar panel with you wherever you go.
Specifications

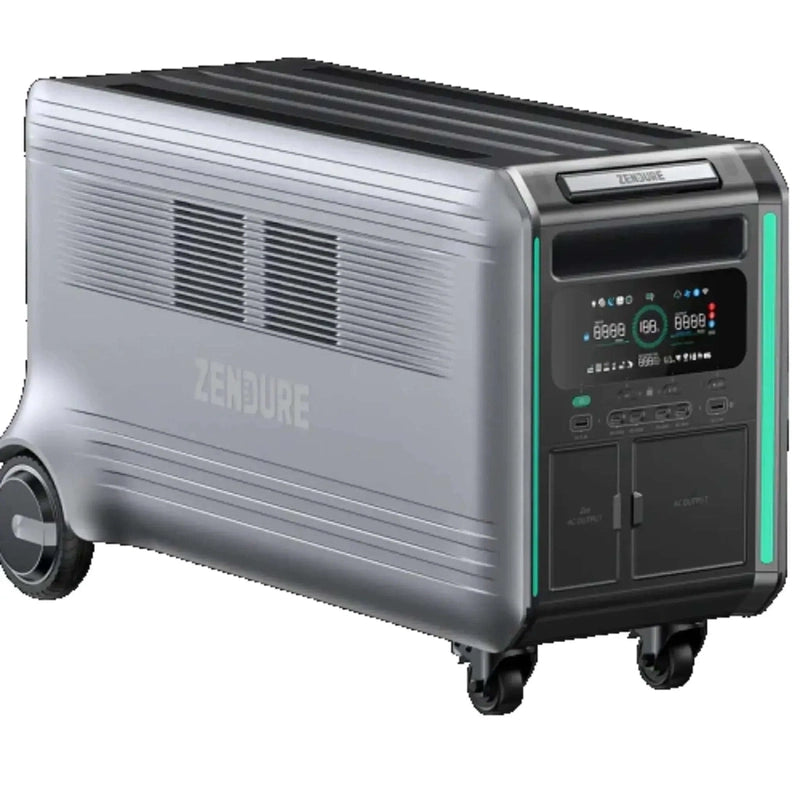

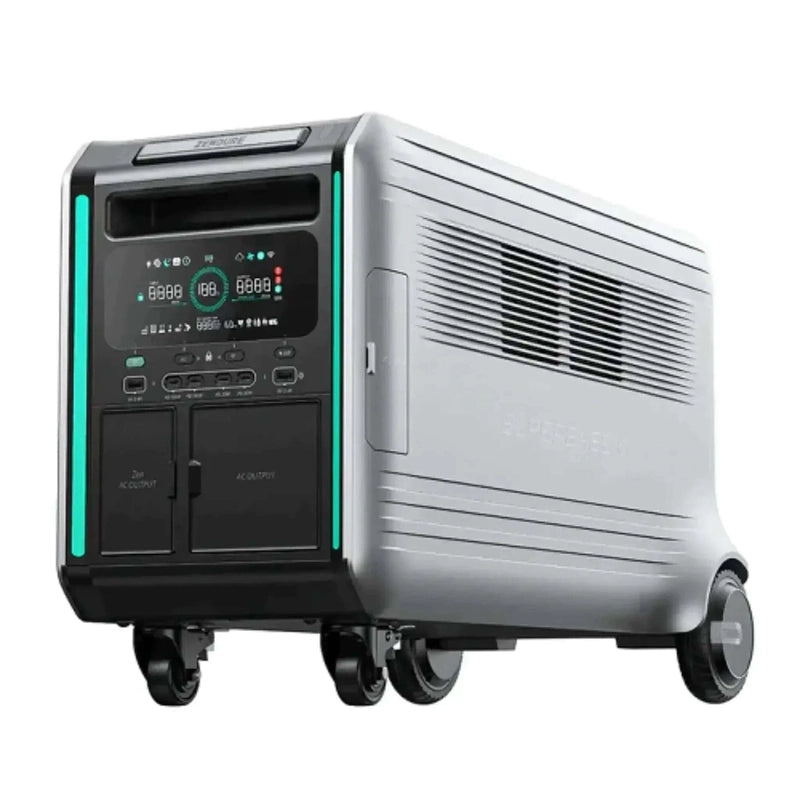

SuperBase V4600
-
Type: SuperBase V6400 Solar Generator
-
Capacity: 6,438Wh (Semi-Solid State)
-
Dimensions: 28.7" x 13.6" x 17.4" (L x W x H in inches)
-
AC Input: 1,800W 120V; 3,600W 240V
-
Solar Input: XT90 x 1: 3,000W 10-150Voc
-
Car Input: XT90 x 1: 12/24V, 10A
-
Extra Battery: Up to 4 (4,608Wh*5=23,040Wh); Up to 46,080Wh(2xV6400+8xB4600)
-
Output:
- 4 x 5-20: 15A 1,800W Max (120V AC)
- 1 x 6-20: 16A 3,800W Max (240V AC)
- 1 x TT-30: 30A 3,600W Max (120V AC)
- 1 x Car Outlet: 12.6V/10A Max
- 2 x DC5521: 12.6C/3A Max
- 1 x Andersen: 12.6V/30A
- USB-C(1)/(2): 5V-20V, 100W Max each
- USB-C(3)/(4): 5V-12V, 20W Max each
- USB-A(1)/(2): 5V/2.4A total
-
Charge Temperature: -20C to 45C
-
Discharge Temperature: -20C to 45C
-
Connection Type: WIFI/Bluetooth
-
APP: Smart App Compatible
-
Part Number: ZDSBV6400-gy-us

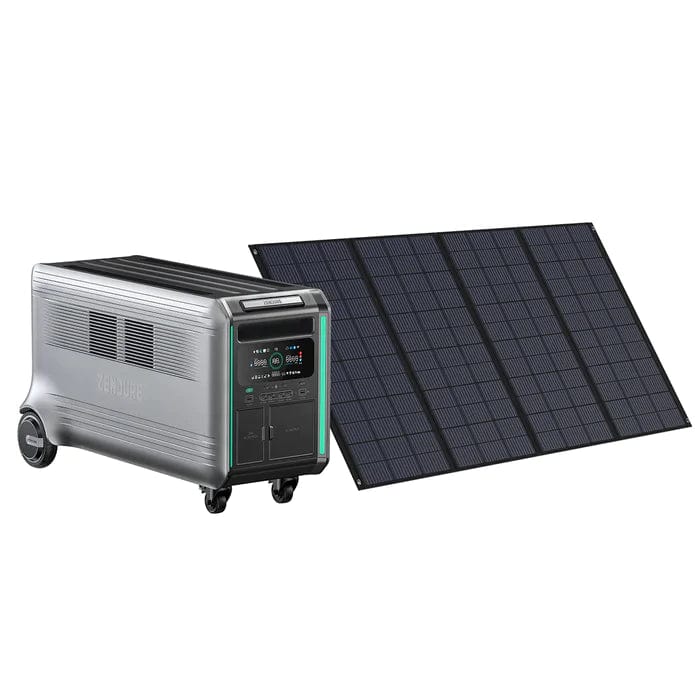

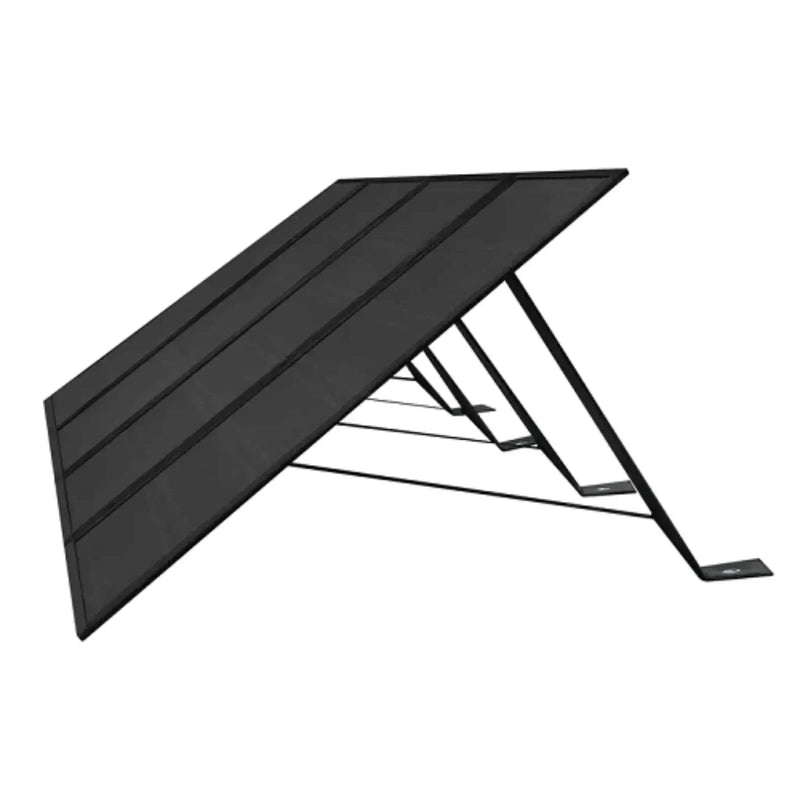

400W Solar Panel
- Open circuit Voltage: 49.4V
- Unfolded Dimension: 100*224*2.5CM
- Folded Dimension: 100*54.7*5.7CM
- Waterproof Level: IP54 (solar cells IP65)
- Operating Temperature: -10? ~ 65?
Manuals
Zendure | ZDSBV6400 SuperBase V6400 User Manual
Zendure | ZD400SP-MD 400W Solar Panel User Manual
FAQS
What's the cycle life for SuperBase V?
3,000+ cycles for SuperBase V6400 with semi-solid state batteries and 6,000+ cycles for SuperBase V4600 with LiFePO4 batteries.
What is the load-starting capability of the SuperBase V?
The SuperBase V has a load starting capability of up to 25 - 32 A LRA. (The starting capability may vary for different loads)
What kind of batteries does SuperBase V use?
SuperBase V6400 uses semi-solid state batteries with a total charge capacity of 6,438Wh, while SuperBase V4600 uses LFP (LiFePO4) batteries and has a charge capacity of 4,608Wh.
What is the AC output power of SuperBase V?
The LFP and SSS versions of SuperBase V both have 3,800W rated power and 5,000W peak power. Two SuperBase V's with the same type of battery can be connected to each other with our ZenY cable or the Home Panel to achieve up to 7,600W of total output power.
Can 2 SuperBase V be connected for higher output power?
Yes, two SuperBase V's can be connected together using either our Home Panel or the ZenY cable, doubling the rated output power to 7,600W.
Can I mix semi-solid-state and LFP products?
No, a SuperBase V system should be configured with only semi-solid-state components or only LFP components.
What's the capacity of the semi-solid-state SuperBase V?
The semi-solid-state version has a capacity of 6,438Wh, and the LFP version has a capacity of 4,608Wh.
What is max solar panel charging input?
SuperBase V can collect up to 3,000W through the XT-90 port.

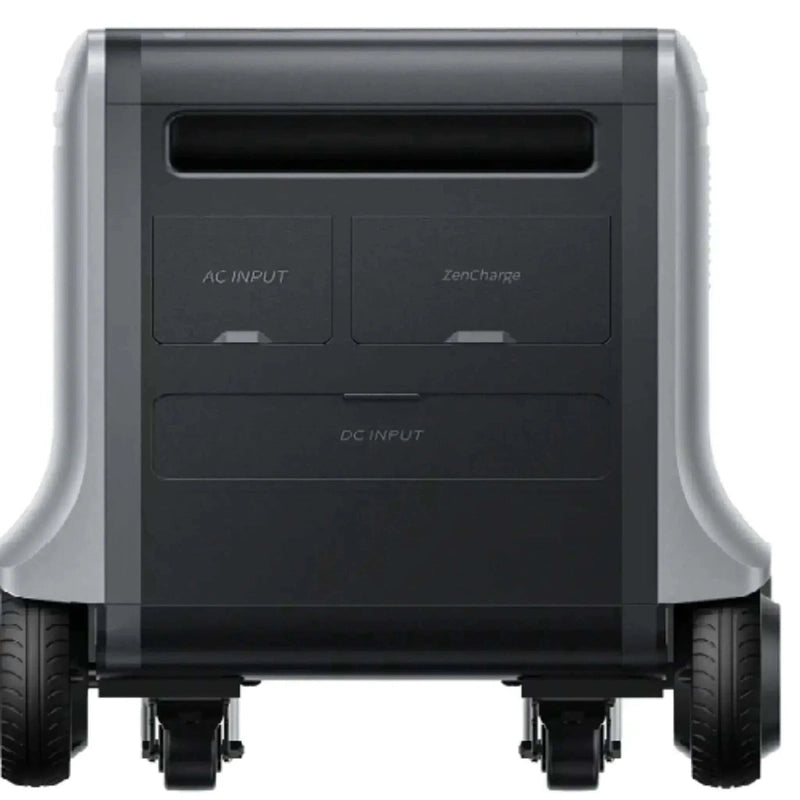

Where is solar panel input?
SuperBase V can accept solar power through the XT90 port or the AC input.
How many MPPT ports are used in order to achieve 3,000W solar input?
SuperBase V has one MPPT to accept solar power through the XT90 port. We are currently evaluating new products that will include 2 MPPT inputs and 2 MPPT outputs.
What's the switching time for UPS?
The US model of SuperBase V can switch to battery power with 0ms of downtime to its AC output port. Other models and other connections will see less than 13ms of interruption.

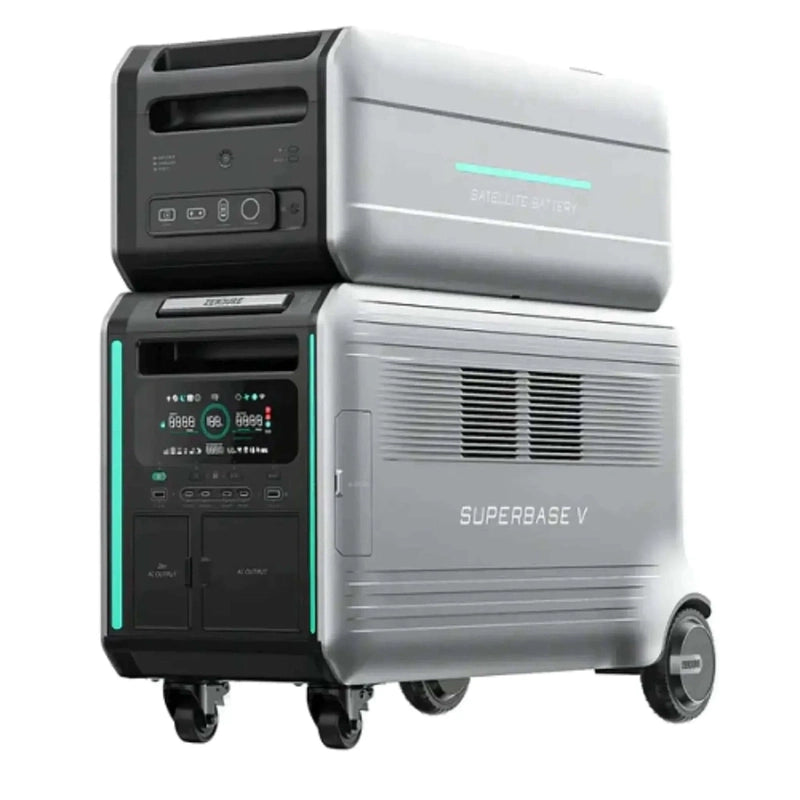

How many Satellite batteries can be connected to a single SuperBase V?
For each SuperBase V, you can link up to 4 Satellite Batteries. A system can include up to two SuperBase V's working in tandem, with a maximum of 8 Satellite Batteries total.
How do I connect the Satellite Batteries to each other? And how do I connect them to SuperBase V?
Satellite Batteries can directly stack on each other without cable. To connect a Satellite battery to SuperBase V, the included battery cable is the only connection required.
Why are the expansion batteries called "Satellites"?
Our Satellite batteries are an excellent companion to SuperBase V to increase your system's capacity, but they also have their own independent DC input and output capabilities that allow them to function as standalone units as well. Similarly, while the Moon is Earth's companion as a natural satellite, it can shine independently and has its own charm.
Is Zendure's Home Panel with EV Outlets just a transfer switch?
Our Home Panel is a transfer switch and more. It's also a fast-charging dock for SuperBase V and features two EV charging outlets.
How do I install the Home Panel?
Zendure's Home Panel should be installed by a licensed electrician with the proper qualifications. Instructions will be provided soon.
Does the system have voice control features?
Yes, the system can respond to commands given through a paired Amazon Alexa or Google Home device.
What is the ZenY Cable?
You can use a ZenY Cable to connect 2 two SuperBase V's together for higher output (up to 7,200W) and then connect them to a regular transfer switch. It's currently available for the US version.
Can SuperBase V be charged with solar panels from a different brand?
Yes, SuperBase V can be charged by third-party solar panels with voltage ranging from 12V to 150V; Zendure's 400W Solar Panel and 320W Rigid Solar Panel have been thoroughly tested with SuperBase V and remain our recommendation.
What's the plug type for the Mobile EV Charger?
14-50 plug for Type 1 (J1772) connector with 5-15 plug and 6-20 plug adaptor cables; CEE 32 plug for Type 2 (Mennekes) with EU plug, UK pl
