Home batteries can be quite heavy. SuperBase Vs rear wheels are motorized to help lighten the load. Simply pull the handle and enjoy true portability, even on inclined surfaces.
3000W Solar Input
SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.
Features

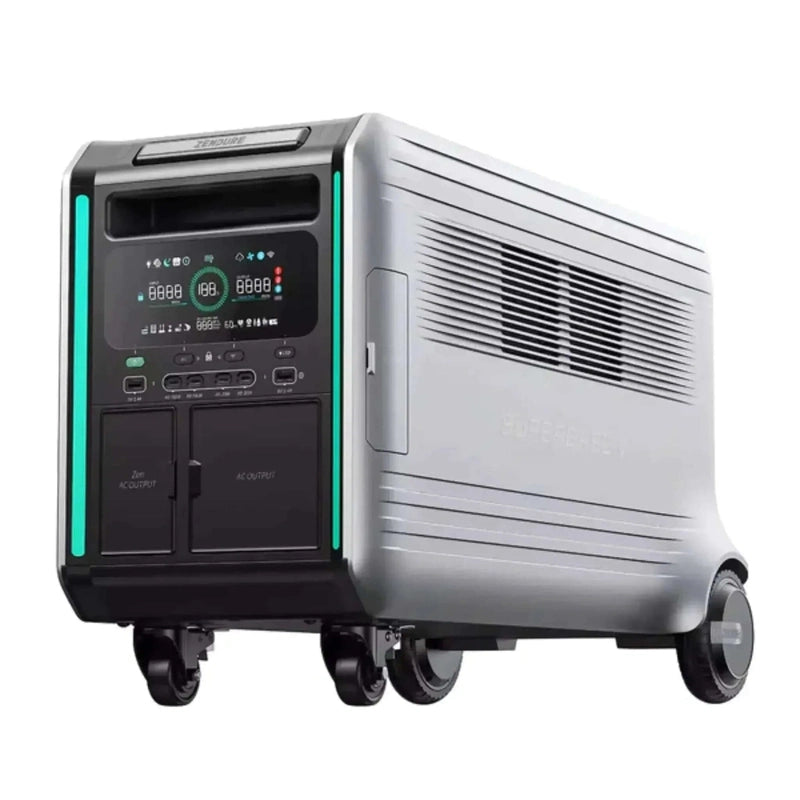

SuperBase V4600
-
Battery Type: Advanced LiFePO4 technology ensures lasting and dependable performance.
-
Compact Design: The SuperBase V4600's dimensions (W x H x D) of 730 x 320 x 447mm make it a space-efficient addition to your home.
-
User-Friendly Display: A 6.1-inch screen keeps you informed and in control.
-
Versatile Charging: Choose from solar cell, car connection, or AC adapter charging options.
-
Additional Accessories: In the box, you'll find a convenient handle cover and an MC4 to XT90 cable.
-
Multiple USB Ports: Four USB-C ports (1/2) offer 5V-20V Max each, while two USB-C ports (3/4) provide 4V-12V, 20W Max each. There are also two USB-A ports (1/2) with a total output of 5V/2.4A.
-

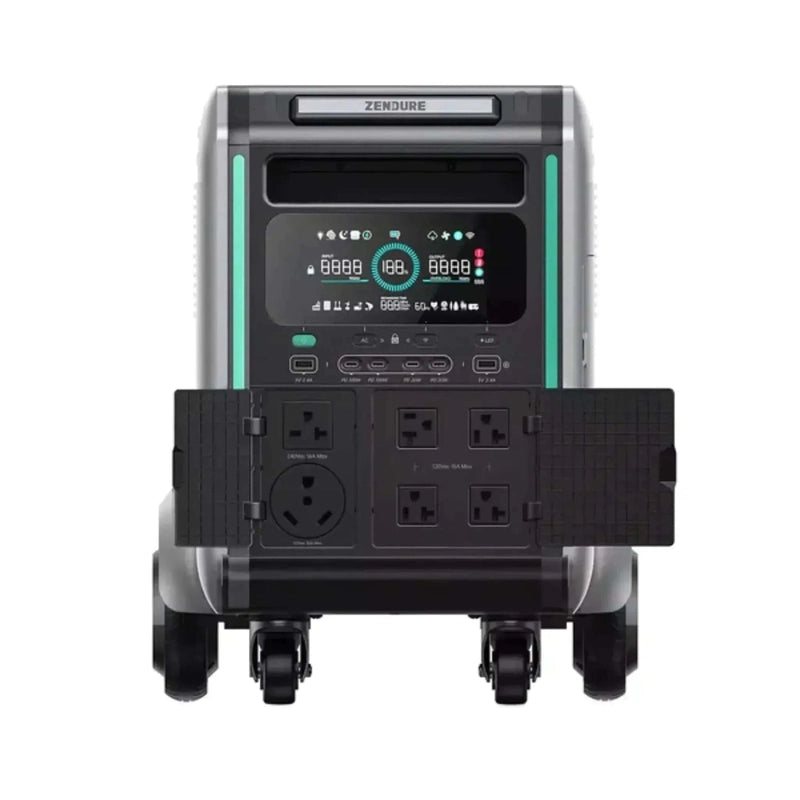

AC Power: Four AC outlets (5-20; 15A, 1800W Max at 120V AC) and one (6-20; 16A, 3800W Max at 240V AC) ensure you have power wherever you need it.
-
TT-30 Outlet: A TT-30 outlet (30A, 3600W Max at 120V AC) adds versatility to your power options.
-
Wide Temperature Range: SuperBase V4600 operates reliably between -20C and 45C.
-
App Control: Stay in charge with user-friendly app controls that put you in command of your energy usage.
-
Lightweight: Weighing in at just 55kg, SuperBase V4600 is remarkably portable for easy installation.
Satellite Battery B4600

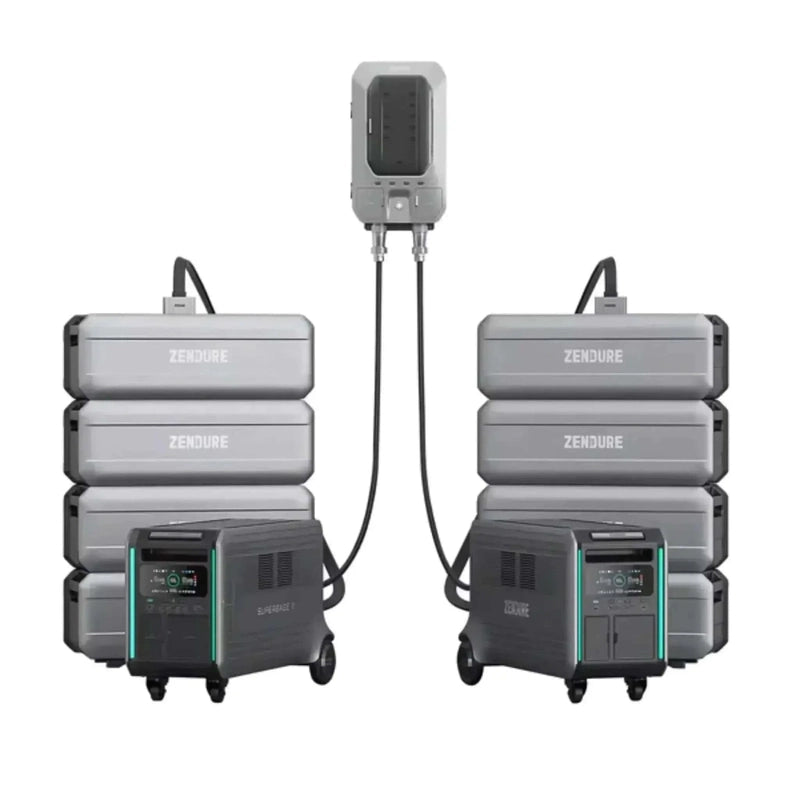

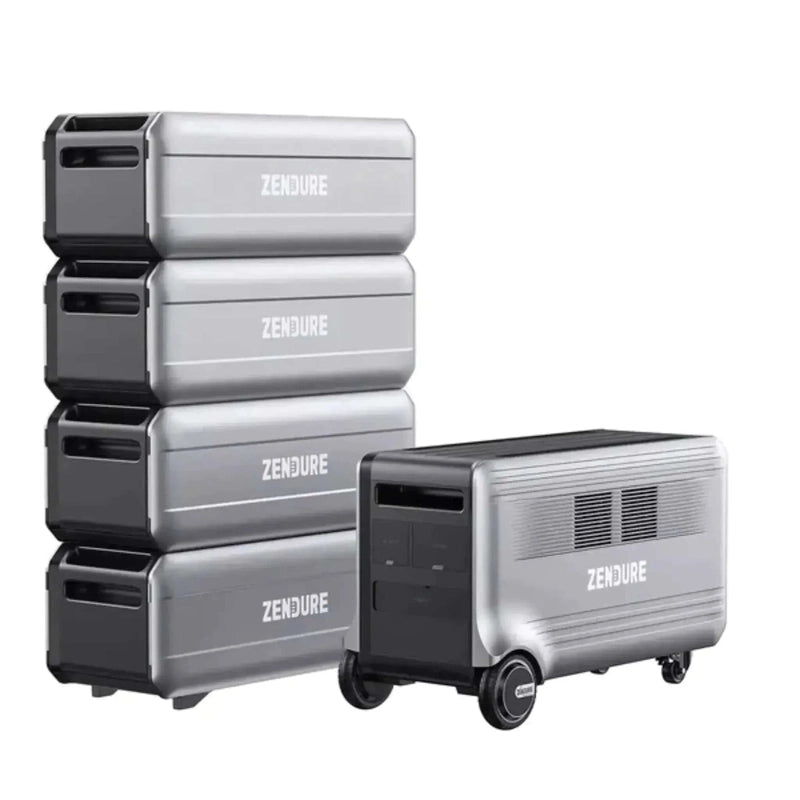

Expandable Capacity: Double Your Power Easily increase your off-grid power with our expandable satellite battery. Simply connect it to a Superbase V to double your total capacity to 12.8 kWh/9.2 kWh. Need even more power? Add up to 4 batteries to get a whopping 32 kWh/23 kWh!

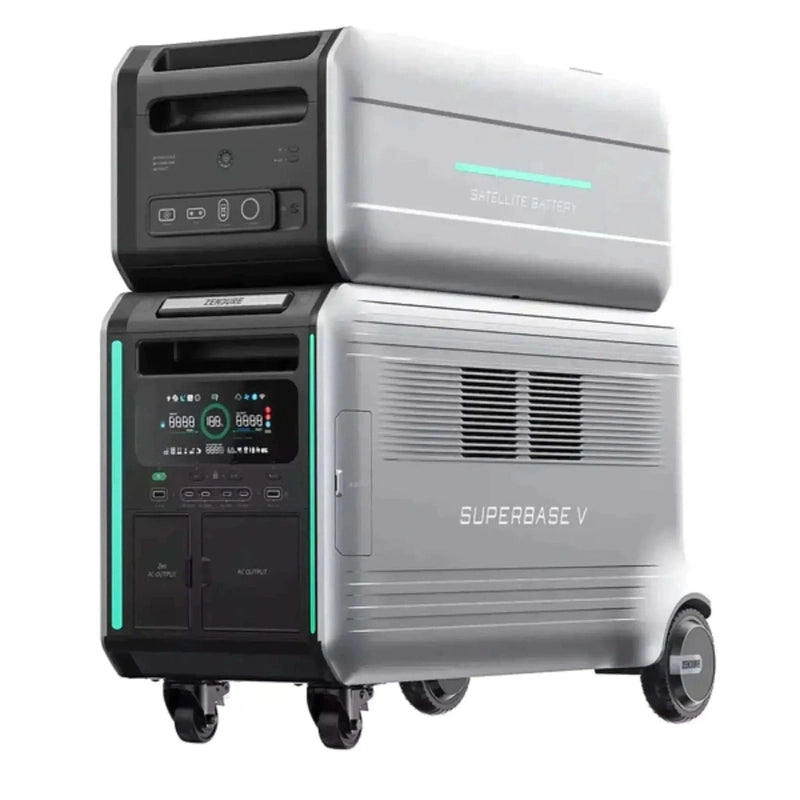

Effortless Plug-and-Play Installation: Our satellite battery is designed to be plug-and-play. Simply stack it on top of a Superbase V and it's ready to go. You can even add more batteries to the system with the included cable, giving you the flexibility to expand your power as needed.
Versatile Charging Options: Charge your on-road essentials with ease thanks to our satellite battery's 3 different outlets. Featuring an Anderson, 12V/10A cigarette lighter, and XT90, you'll have plenty of options to keep your devices powered and ready to go.
Compatible with Solar Panels: Harness the power of the sun and connect your solar panel directly to our satellite battery for a maximum input of 600W. With solar panel compatibility, you'll have a reliable and sustainable source of power for all your off-grid adventures.

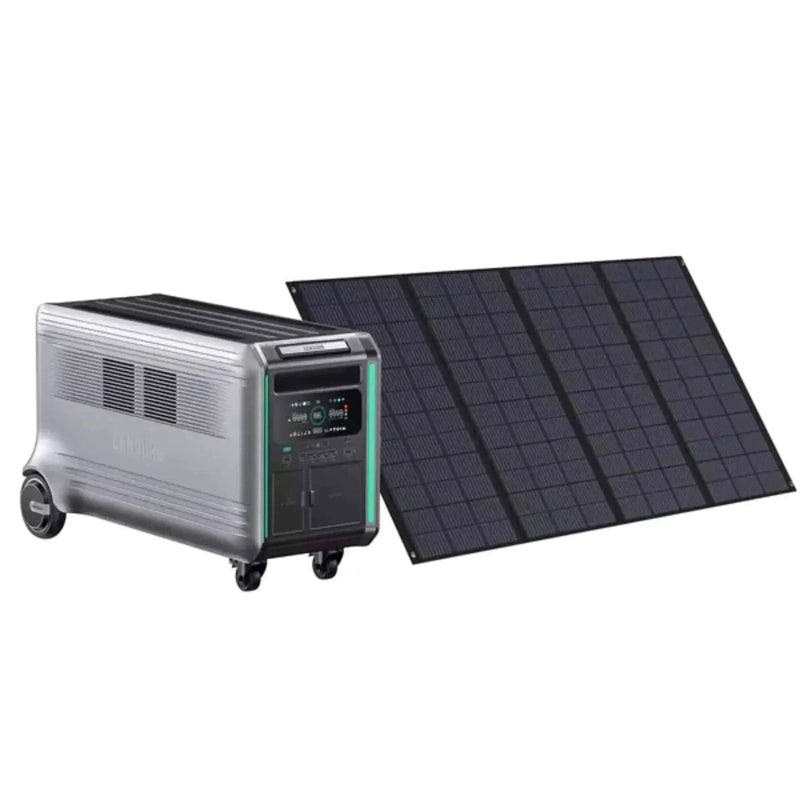

400W Solar Panel
Get More Power for Your Power Station: The Zendure 400W solar panel provides a whopping 400W of power input, giving your power station the juice it needs to keep your devices charged up and ready to go.
High-Efficiency Solar Technology: With an impressive 22% conversion rate, the Zendure 400W solar panel is designed to extract the most power possible from sunlight. That means you'll get more usable electricity for your devices, even in low-light conditions.
Lightweight and Portable: Weighing in at just 29.98lb (13.6kg), the Zendure 400W solar panel is incredibly lightweight and easy to carry. Whether you're heading out for a weekend camping trip or an extended off-grid adventure, you can take this solar panel with you wherever you go.
Specifications
SuperBase V4600
-
Dimensions (W x H x D) (mm): 730 x 320 x 447
-
Display Screen Size: 6.1 inches
-
Type of Charger: Solar cell, car connection, AC adapter
-
Additional Features: In the box Handle cover, MC4 to XT90 cable. USB-C (1)/(2): 5V-20V Max each, USB-C (3)/(4): 4V-12V, 20W Max each, USB USB-A (1)/(2): 5V/2.4A Total
-
Battery Capacity (Wh): 4608
-
Input - AC Charging: AC: 1,800W 120V; 3,600W 240V
-
Input - Solar Charging: Solar: XT90 x 1:3,000W 10-150Voc
-
Input - AC Input: AC Input, 1,800W 120V; 3600W 240V
-
Input - Car Charging: Car: XT90 x 1:12/24V, 10A
-
Rated Output Power (Watts): 4600
-
Output Voltages: 4 x 5-20; 15A, 1,800W Max (120V AC) 1x 6-20: 16A 3,800W Max (240V AC)1 x TT-30: 30A 3.600W Max (120V AC)
-
Solar Input: Solar: XT90 x 1:3,000W 10-150Voc
-
Operating Temperature (C) (Minimum): -20
-
Operating Temperature (C) (Maximum): 45
Satellite Battery B4600
- Size:69 x 28.5 x 27.4cm
- Battery type: LiFePO4
- DC Input:XT90 Input: 12-150V?10A, 600W Max
- Output:
1x Car Outlet: 12.6V?10A
1x Andersen: 12.6V?30A, 378W
MaxXT90: 12-60V?10A, 600W Max (App enabled)
- In The Box: Handle Cover, MC4 to XT90 cable
- More: Smart APP compatible
400W Solar Panel
- Open circuit Voltage: 49.4V
- Unfolded Dimension: 100*224*2.5CM
- Folded Dimension: 100*54.7*5.7CM
- Waterproof Level: IP54 (solar cells IP65)
- Operating Temperature: -10? ~ 65?
Manuals
Zendure | ZDSBV4600 SuperBase V4600 User Manual
Zendure | ZDSATB4600 Satellite Battery B4600 User Manual
Zendure | ZD400SP-MD 400W Solar Panel User Manual
FAQS
What's the cycle life for SuperBase V?
3,000+ cycles for SuperBase V6400 with semi-solid state batteries and 6,000+ cycles for SuperBase V4600 with LiFePO4 batteries.
What is the load-starting capability of the SuperBase V?
The SuperBase V has a load starting capability of up to 25 - 32 A LRA. (The starting capability may vary for different loads)
What kind of batteries does SuperBase V use?
SuperBase V6400 uses semi-solid state batteries with a total charge capacity of 6,438Wh, while SuperBase V4600 uses LFP (LiFePO4) batteries and has a charge capacity of 4,608Wh.
