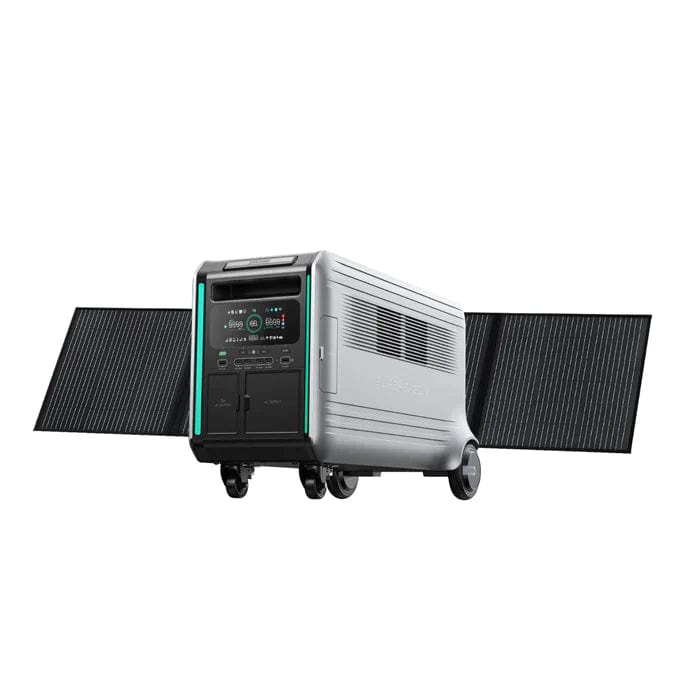

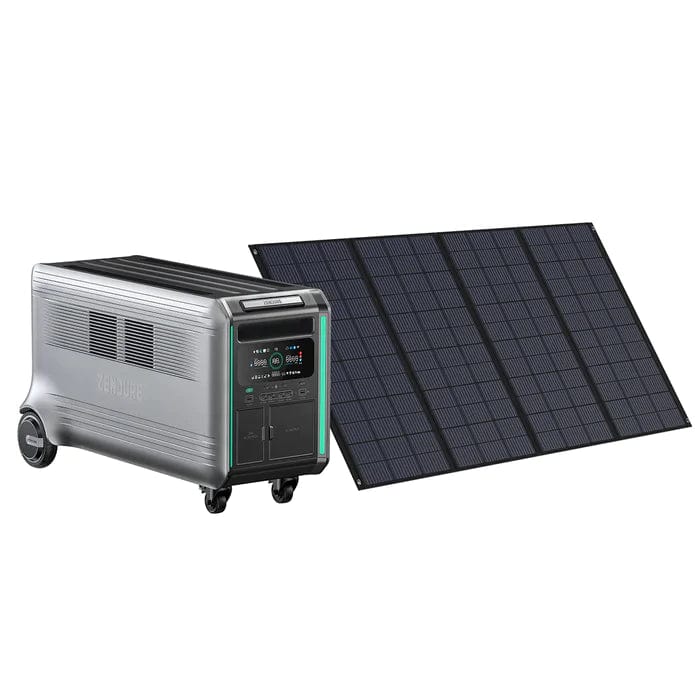

Zendure | SuperBase V4600+400W Solar Panel

Get More Power for Your Power Station: The Zendure 400W solar panel provides a whopping 400W of power input, giving your power station the juice it needs to keep your devices charged up and ready to go.

High-Efficiency Solar Technology: With an impressive 22% conversion rate, the Zendure 400W solar panel is designed to extract the most power possible from sunlight. That means you'll get more usable electricity for your devices, even in low-light conditions.

Lightweight and Portable: Weighing in at just 29.98lb (13.6kg), the Zendure 400W solar panel is incredibly lightweight and easy to carry. Whether you're heading out for a weekend camping trip or an extended off-grid adventure, you can take this solar panel with you wherever you go.

Specifications

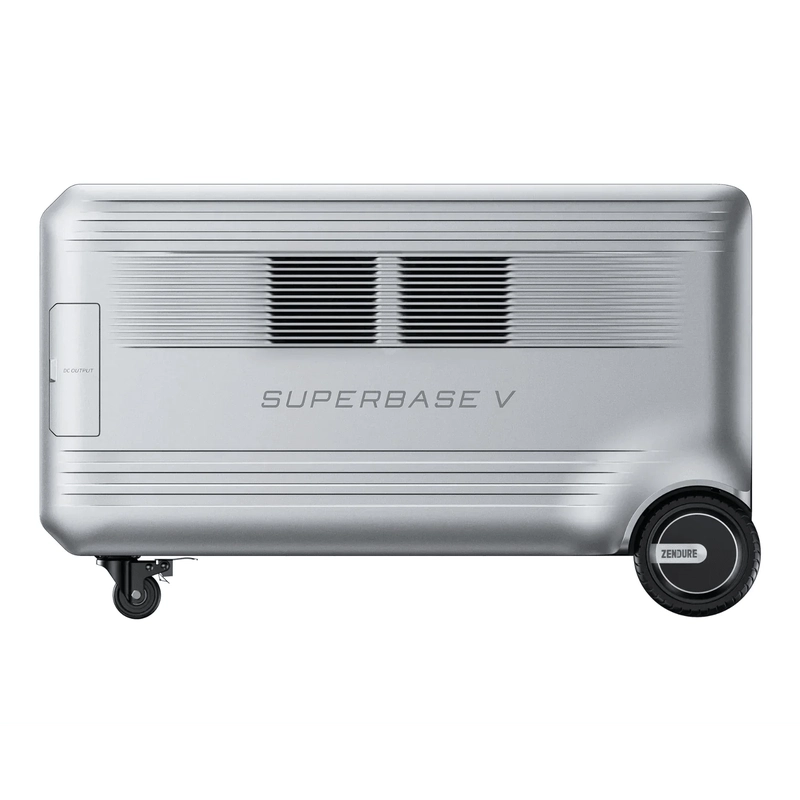

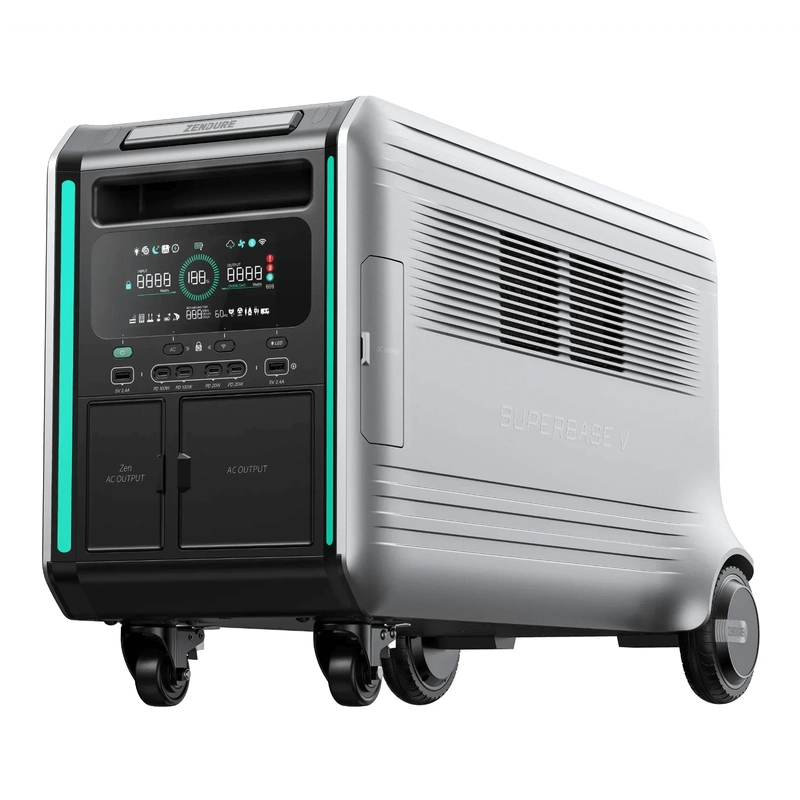

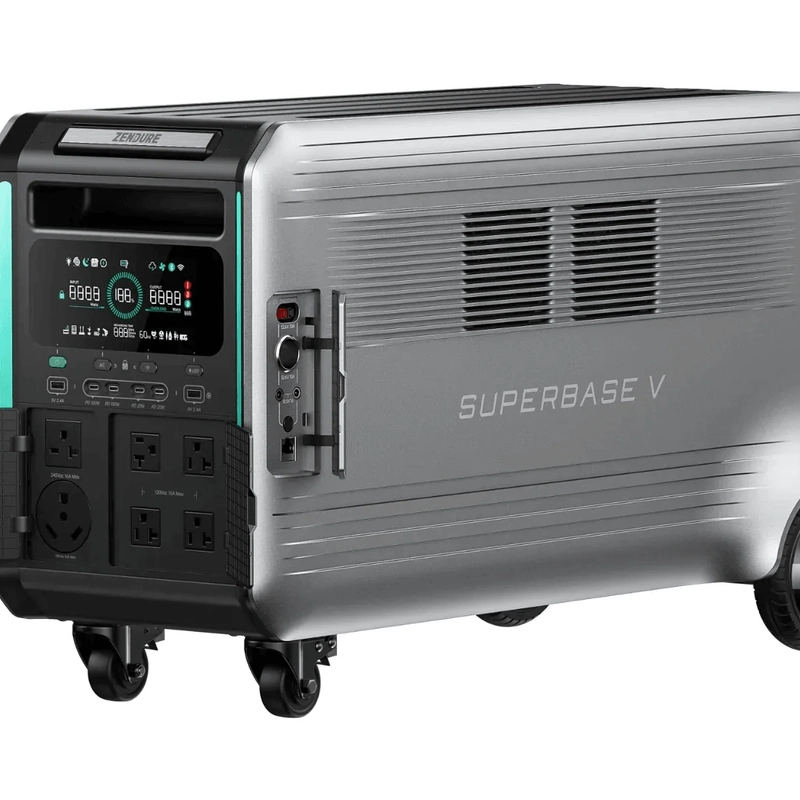

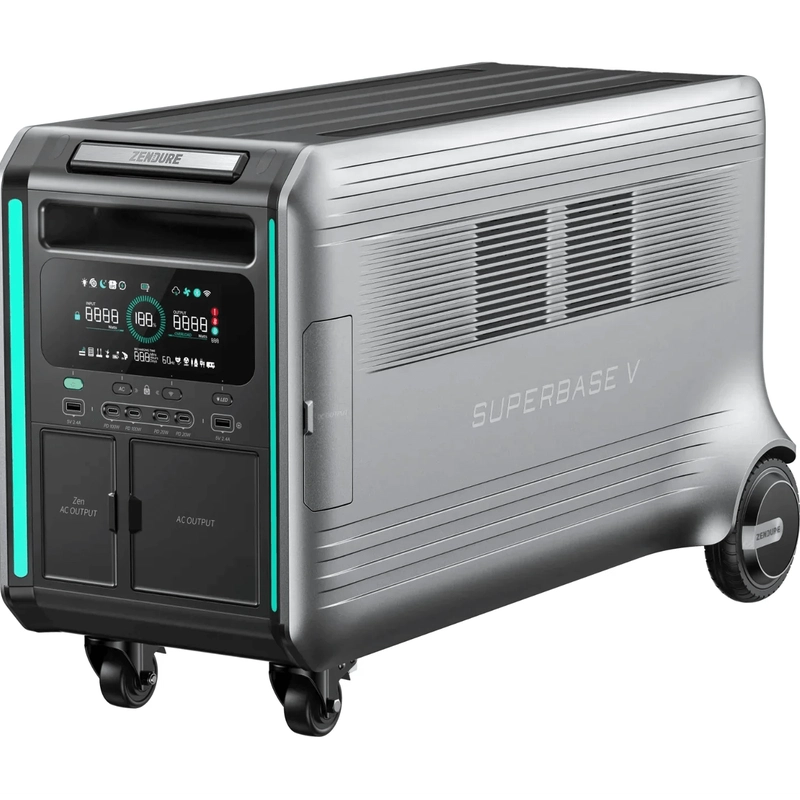

SuperBase V4600

• Battery Type: LiFePO4

• Dimensions (W x H x D) (mm): 730 x 320 x 447

• Display Screen Size: 6.1 inches

• Type of Charger: Solar cell, car connection, AC adapter

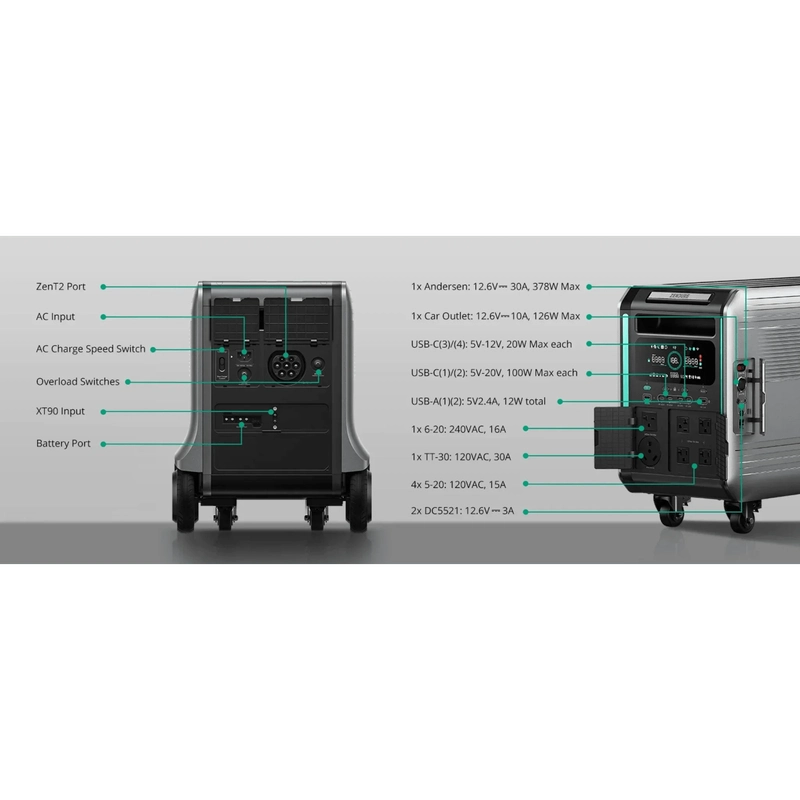

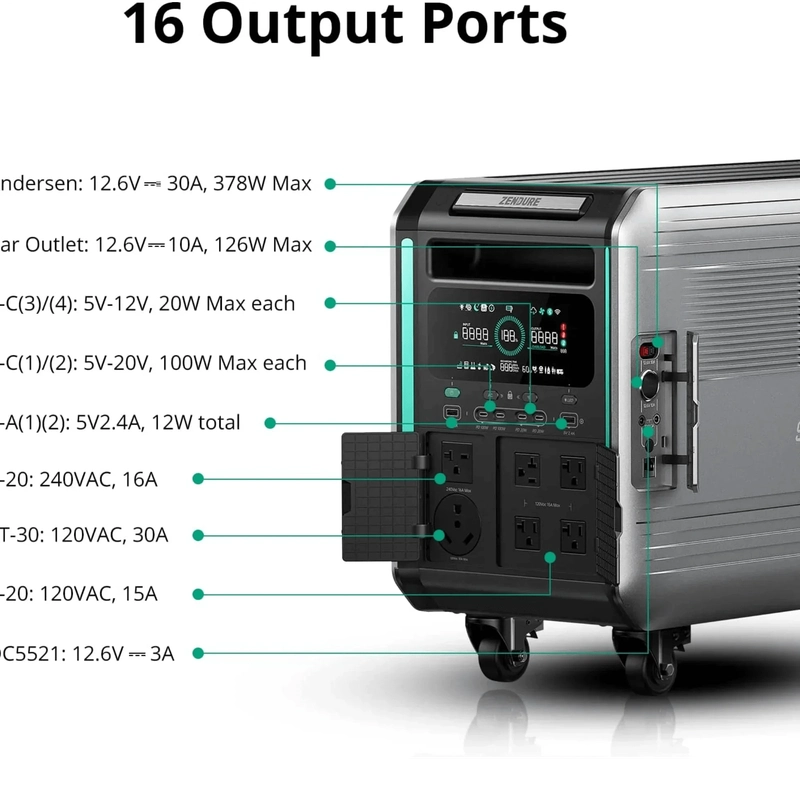

• Additional Features: In the box Handle cover, MC4 to XT90 cable. USB-C (1)/(2): 5V-20V Max each, USB-C (3)/(4): 4V-12V, 20W Max each, USB USB-A (1)/(2): 5V/2.4A Total

• Battery Capacity (Wh): 4608

• AC Output (W): 4600

• AC Outlets: 4

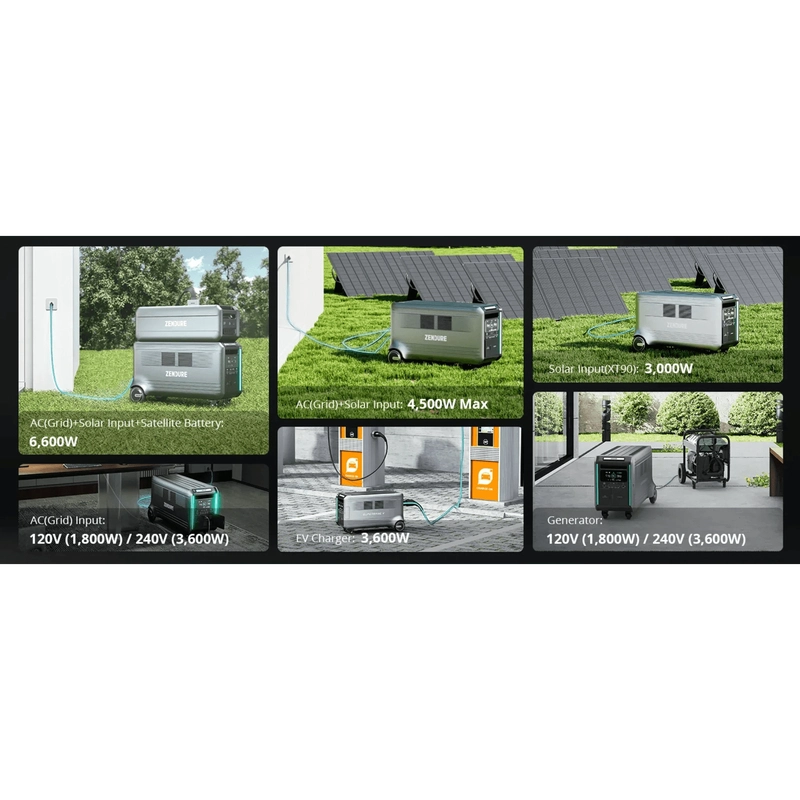

• Input - AC Charging: AC: 1,800W 120V; 3,600W 240V

• Input - Solar Charging: Solar: XT90 x 1:3,000W 10-150Voc

• Input - AC Input: AC Input, 1,800W 120V; 3600W 240V

• Input - Car Charging: Car: XT90 x 1:12/24V, 10A

• Rated Output Power (Watts): 4600

• Output Voltages: 4 x 5-20; 15A, 1,800W Max (120V AC) 1x 6-20: 16A 3,800W Max (240V AC)1 x TT-30: 30A 3.600W Max (120V AC)

• Solar Input: Solar: XT90 x 1:3,000W 10-150Voc

• Operating Temperature (C) (Minimum): -20

• Operating Temperature (C) (Maximum): 45

• App Control: Yes

• Weight (kg): 55

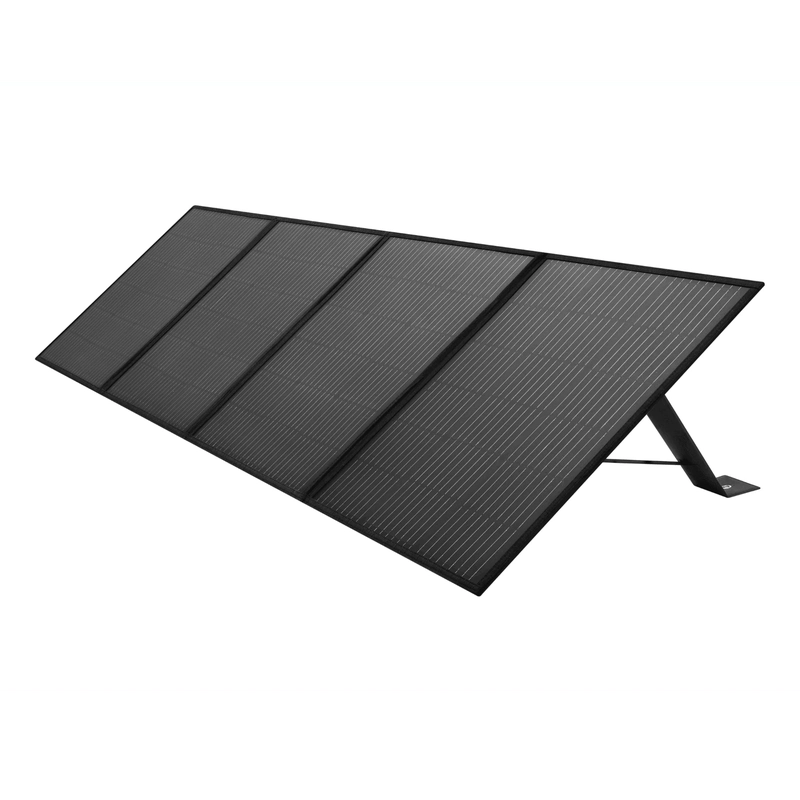

400W Solar Panel

• Color: Black

• Rated Power:400W

• Voltage(Vmp): 40V

• Current(Imp):10A

• Open circuit Voltage: 49.4V

• Connector: MC4 1M

• Kickstand: 4, adjustable

• Weight: 13.6KG

• Unfolded Dimension: 100*224*2.5CM

• Folded Dimension: 100*54.7*5.7CM

• Waterproof Level: IP54 (solar cells IP65)

• Operating Temperature: -10? ~ 65?

• Conversion Rate: ?22%

Manuals

Zendure | ZDSBV4600 SuperBase V4600 User Manual

Zendure | ZD400SP-MD 400W Solar Panel User Manual

FAQS

What's the cycle life for SuperBase V?

3,000+ cycles for SuperBase V6400 with semi-solid state batteries and 6,000+ cycles for SuperBase V4600 with LiFePO4 batteries.

What is the load-starting capability of the SuperBase V?

The SuperBase V has a load starting capability of up to 25 - 32 A LRA. (The starting capability may vary for different loads)

What kind of batteries does SuperBase V use?

SuperBase V6400 uses semi-solid state batteries with a total charge capacity of 6,438Wh, while SuperBase V4600 uses LFP (LiFePO4) batteries and has a charge capacity of 4,608Wh.

What is the AC output power of SuperBase V?

The LFP and SSS versions of SuperBase V both have 3,800W rated power and 5,000W peak power. Two SuperBase V's with the same type of battery can be connected to each other with our ZenY cable or the Home Panel to achieve up to 7,600W of total output power.

Can 2 SuperBase V be connected for higher output power?

Yes, two SuperBase V's can be connected together using either our Home Panel or the ZenY cable, doubling the rated output power to 7,600W.

Can I mix semi-solid-state and LFP products?

No, a SuperBase V system should be configured with only semi-solid-state components or only LFP components.

What's the capacity of the semi-solid-state SuperBase V?

The semi-solid-state version has a capacity of 6,438Wh, and the LFP version has a capacity of 4,608Wh.

What is max solar panel charging input?

SuperBase V can collect up to 3,000W through the XT-90 port.

Where is solar panel input?

SuperBase V can accept solar power through the XT90 port or the AC input.

How many MPPT ports are used in order to achieve 3,000W solar input?

SuperBase V has one MPPT to accept solar power through the XT90 port. We are currently evaluating new products that will include 2 MPPT inputs and 2 MPPT outputs.

What's the switching time for UPS?

The US model of SuperBase V can switch to battery power with 0ms of downtime to its AC output port. Other models and other connections will see less than 13ms of interruption.

How many Satellite batteries can be connected to a single SuperBase V?

For each SuperBase V, you can link up to 4 Satellite Batteries. A system can include up to two SuperBase V's working in tandem, with a maximum of 8 Satellite Batteries total.

How do I connect the Satellite Batteries to each other? And how do I connect them to SuperBase V?

Satellite Batteries can directly stack on each other without cable. To connect a Satellite battery to SuperBase V, the included battery cable is the only connection required.

Why are the expansion batteries called "Satellites"?

Our Satellite batteries are an excellent companion to SuperBase V to increase your system's capacity, but they also have their own independent DC input and output capabilities that allow them to function as standalone units as well. Similarly, while the Moon is Earth's companion as a natural satellite, it can shine independently and has its own charm.

Is Zendure's Home Panel with EV Outlets just a transfer switch?

Our Home Panel is a transfer switch and more. It's also a fast-charging dock for SuperBase V and features two EV charging outlets.

How do I install the Home Panel?

Zendure's Home Panel should be installed by a licensed electrician with the proper qualifications. Instructions will be provided soon.

Does the system have voice control features?
