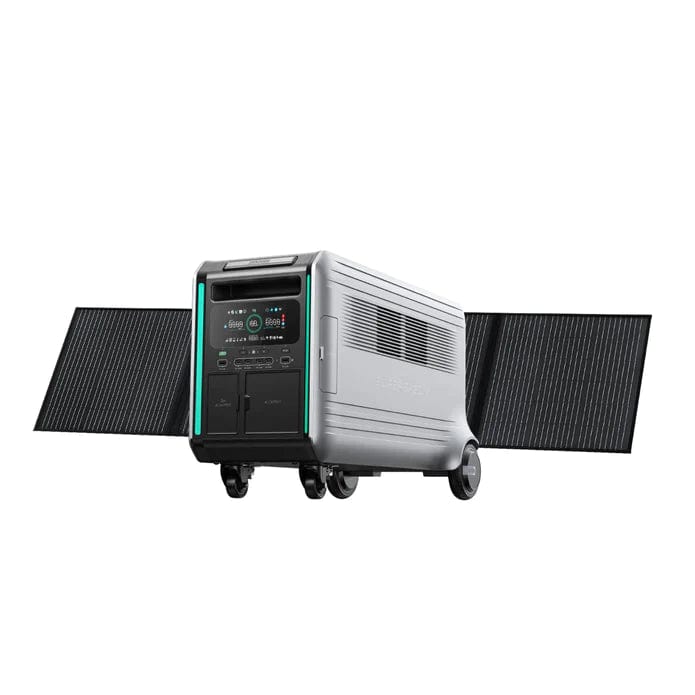

200W Rated Power: It is a 200-watt monocrystalline silicon solar panel, designed to produce maximum power at any time of the day when paired with a SuperBase Pro power station.
Portable & Foldable: It is easy to carry around, but also built to withstand the elements, as well as the hazards of travel. The Zendure 200W Solar Panel is portable, foldable, and compact, weighing just 20.1lbs / 9.1kg. our solar panel is a rugged and capable companion for any outdoor excursion.
Durable, Dust & Water Resistant: The Zendure 200W Solar Panel has IP67-rated dust and water resistance, which is thanks to a seamless, one-piece design, making it ideal for outdoor activities like camping and hiking.
Kickstand: It also has an adjustable kickstand, which enables you to position the solar power in any direction or orientation, which puts the panel at the ideal angle for maximum
Specifications

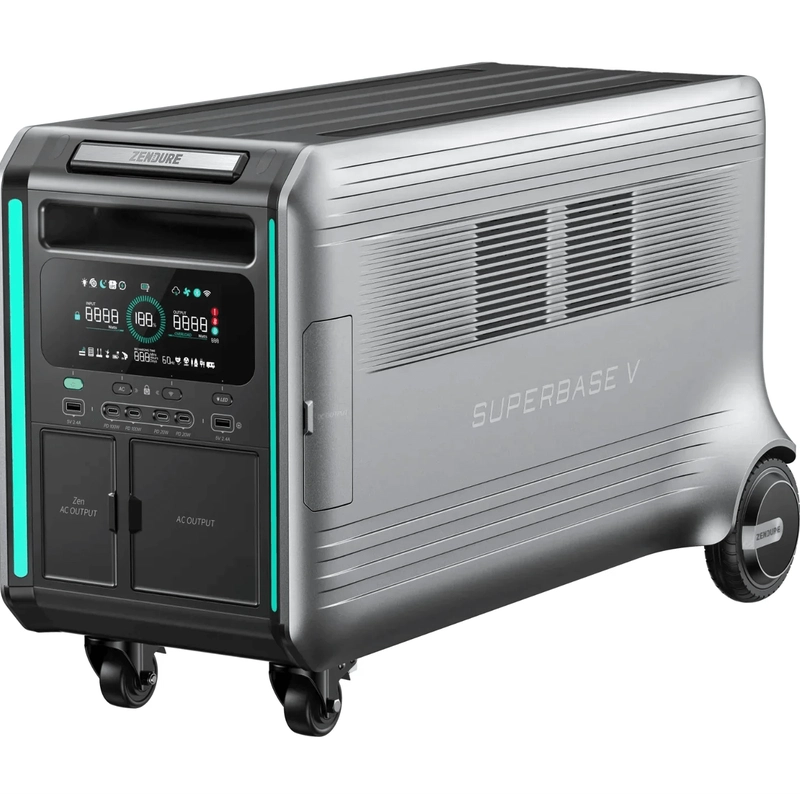

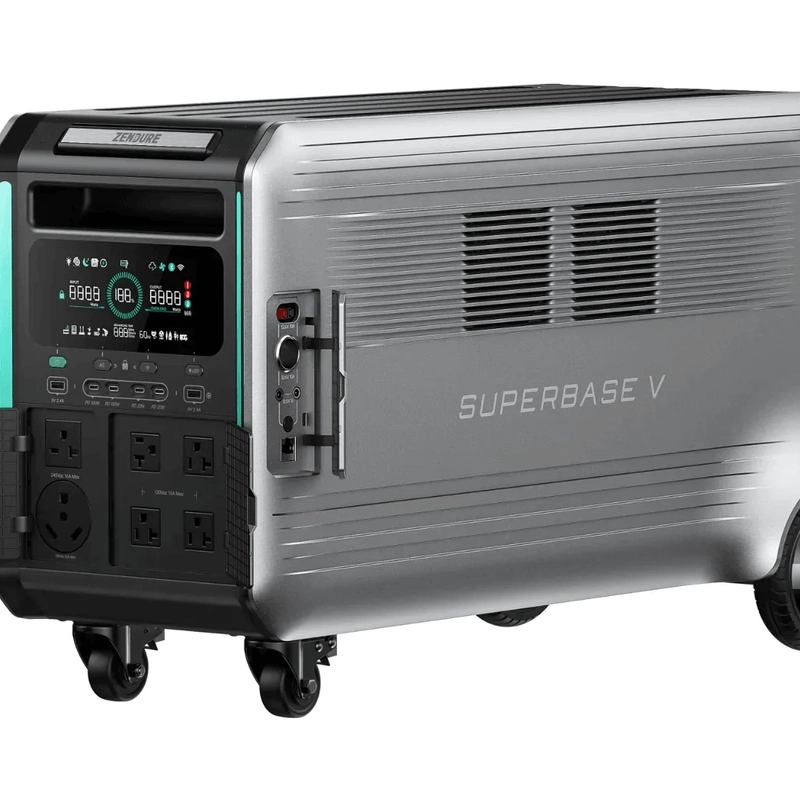

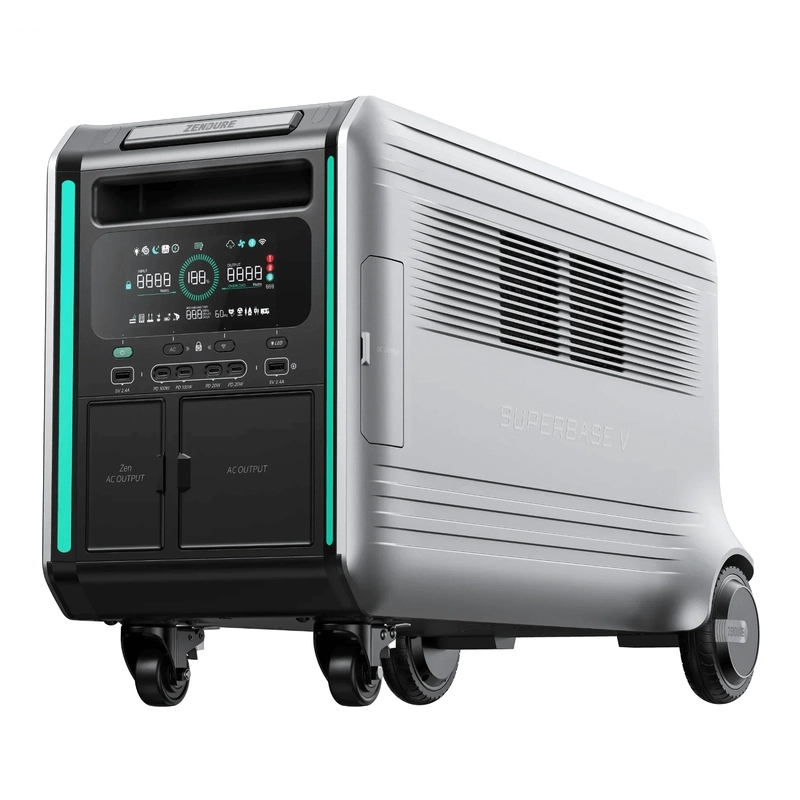

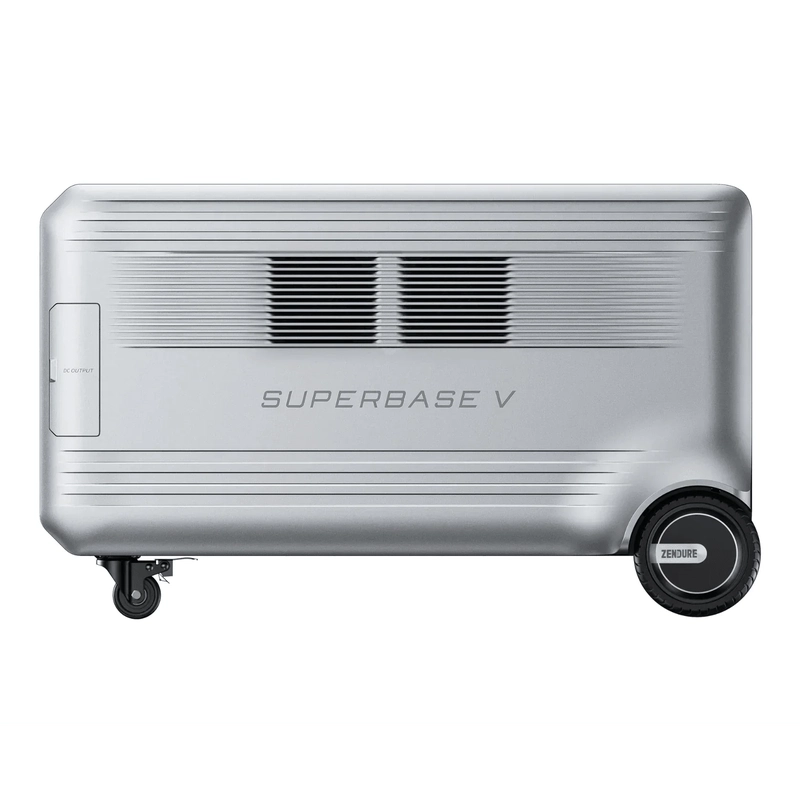

SuperBase V4600
-
Dimensions (W x H x D) (mm): 730 x 320 x 447
-
Display Screen Size: 6.1 inches
-
Type of Charger: Solar cell, car connection, AC adapter
-
Additional Features: In the box Handle cover, MC4 to XT90 cable. USB-C (1)/(2): 5V-20V Max each, USB-C (3)/(4): 4V-12V, 20W Max each, USB USB-A (1)/(2): 5V/2.4A Total
-
Battery Capacity (Wh): 4608
-
Input - AC Charging: AC: 1,800W 120V; 3,600W 240V
-
Input - Solar Charging: Solar: XT90 x 1:3,000W 10-150Voc
-
Input - AC Input: AC Input, 1,800W 120V; 3600W 240V
-
Input - Car Charging: Car: XT90 x 1:12/24V, 10A
-
Rated Output Power (Watts): 4600
-

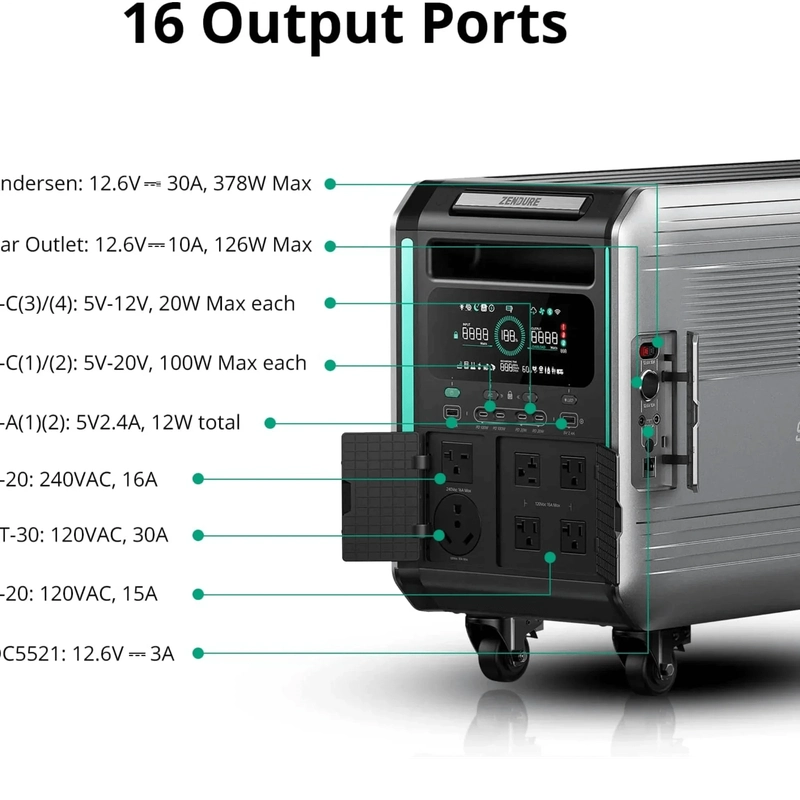

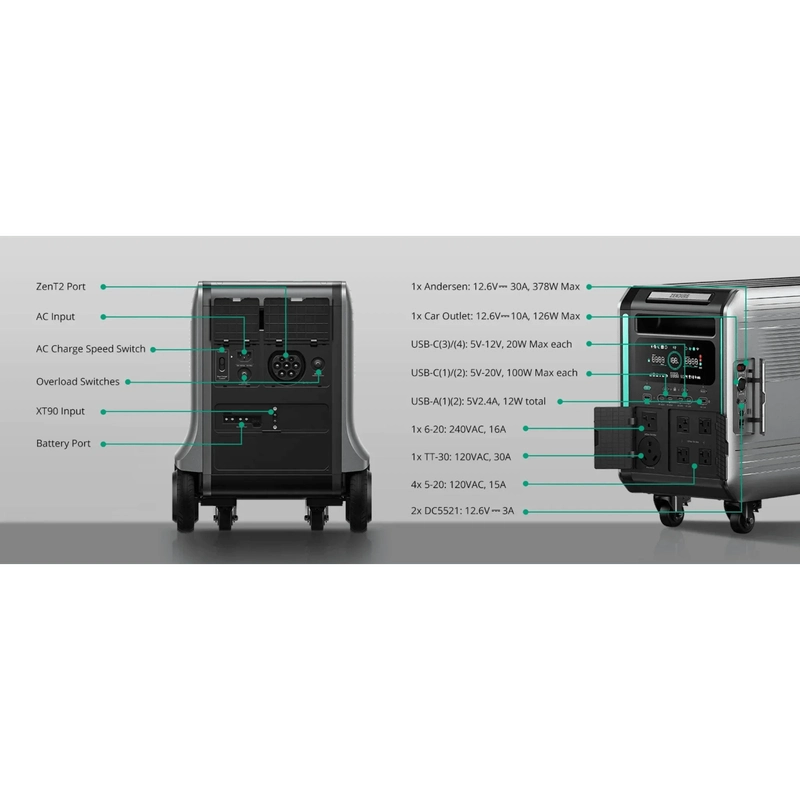

Output Voltages: 4 x 5-20; 15A, 1,800W Max (120V AC) 1x 6-20: 16A 3,800W Max (240V AC)1 x TT-30: 30A 3.600W Max (120V AC)
-
Solar Input: Solar: XT90 x 1:3,000W 10-150Voc
-
Operating Temperature (C) (Minimum): -20
-
Operating Temperature (C) (Maximum): 45

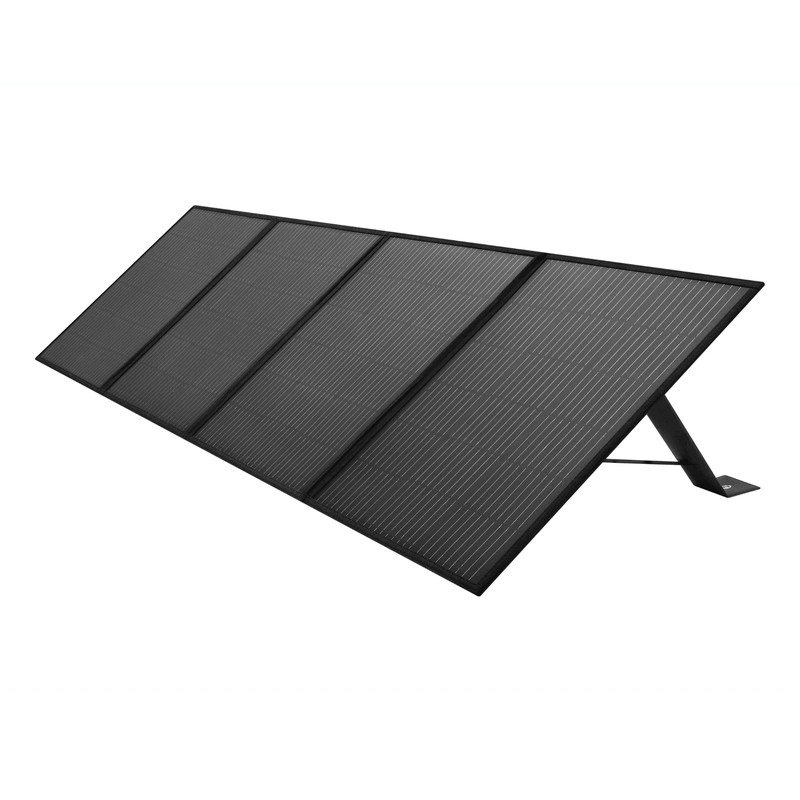

200W Solar Panel
| Attribute |
Value |
| Rated Power |
200W |
| Voltage (Vmp) |
18V |
| Weight |
8.5KG |
| Current (Imp) |
11A |
| Open-Circuit Voltage (Voc) |
23V |
| Connector |
MC4 1.5M |
| Kickstand |
x4, adjustable |
| Unfolded Dimension |
54.5*240*3.5CM
|
| Operating Temperature |
-10? ~ 65? |
Manuals
Zendure | ZDSBV4600 SuperBase V4600 User Manual
Zendure | ZD200SP 200W Solar Panel Owner Manual
FAQS
What's the cycle life for SuperBase V?
3,000+ cycles for SuperBase V6400 with semi-solid state batteries and 6,000+ cycles for SuperBase V4600 with LiFePO4 batteries.
What is the load-starting capability of the SuperBase V?
The SuperBase V has a load starting capability of up to 25 - 32 A LRA. (The starting capability may vary for different loads)
What kind of batteries does SuperBase V use?
SuperBase V6400 uses semi-solid state batteries with a total charge capacity of 6,438Wh, while SuperBase V4600 uses LFP (LiFePO4) batteries and has a charge capacity of 4,608Wh.
What is the AC output power of SuperBase V?
The LFP and SSS versions of SuperBase V both have 3,800W rated power and 5,000W peak power. Two SuperBase V's with the same type of battery can be connected to each other with our ZenY cable or the Home Panel to achieve up to 7,600W of total output power.
Can 2 SuperBase V be connected for higher output power?
Yes, two SuperBase V's can be connected together using either our Home Panel or the ZenY cable, doubling the rated output power to 7,600W.
Can I mix semi-solid-state and LFP products?
No, a SuperBase V system should be configured with only semi-solid-state components or only LFP components.
What's the capacity of the semi-solid-state SuperBase V?
The semi-solid-state version has a capacity of 6,438Wh, and the LFP version has a capacity of 4,608Wh.

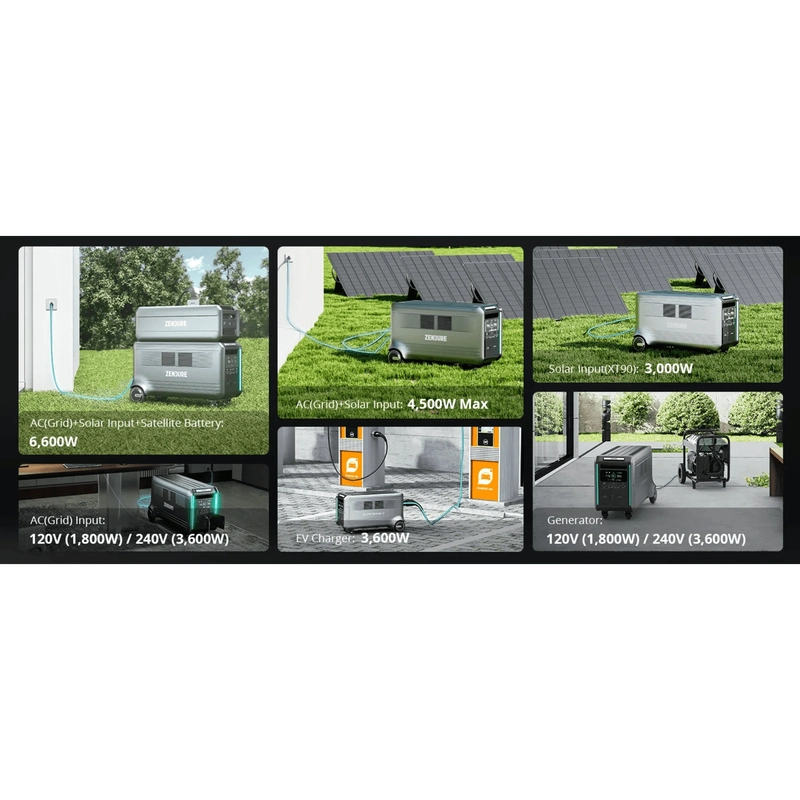

What is max solar panel charging input?
SuperBase V can collect up to 3,000W through the XT-90 port.
Where is solar panel input?

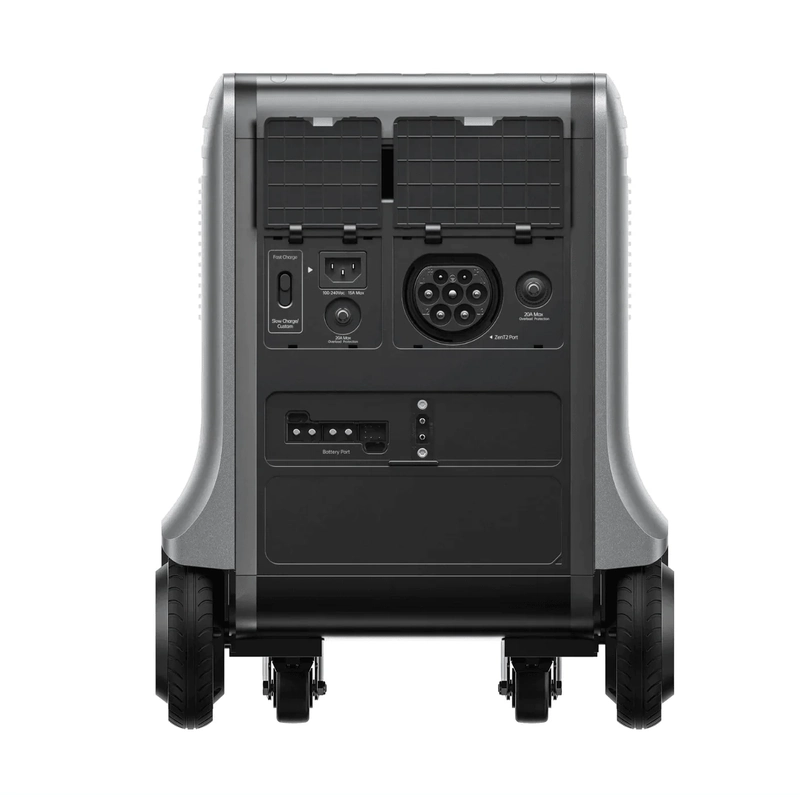

SuperBase V can accept solar power through the XT90 port or the AC input.
How many MPPT ports are used in order to achieve 3,000W solar input?
SuperBase V has one MPPT to accept solar power through the XT90 port. We are currently evaluating new products that will include 2 MPPT inputs and 2 MPPT outputs.
What's the switching time for UPS?
The US model of SuperBase V can switch to battery power with 0ms of downtime to its AC output port. Other models and other connections will see less than 13ms of interruption.
How many Satellite batteries can be connected to a single SuperBase V?
For each SuperBase V, you can link up to 4 Satellite Batteries. A system can include up to two SuperBase V's working in tandem, with a maximum of 8 Satellite Batteries total.
How do I connect the Satellite Batteries to each other? And how do I connect them to SuperBase V?
Satellite Batteries can directly stack on each other without cable. To connect a Satellite battery to SuperBase V, the included battery cable is the only connection required.
Why are the expansion batteries called "Satellites"?
Our Satellite batteries are an excellent companion to SuperBase V to increase your system's capacity, but they also have their own independent DC input and output capabilities that allow them to function as standalone units as well. Similarly, while the Moon is Earth's companion as a natural satellite, it can shine independently and has its own charm.
Is Zendure's Home Panel with EV Outlets just a transfer switch?
Our Home Panel is a transfer switch and more. It's also a fast-charging dock for SuperBase V and features two EV charging outlets.
How do I install the Home Panel?
Zendure's Home Panel should be installed by a licensed electrician with the proper qualifications. Instructions will be provided soon.
Does the system have voice control features?
Yes, the system can respond to commands given through a paired Amazon Alexa or Google Home device.
What is the ZenY Cable?
You can use a ZenY Cable to connect 2 two SuperBase V's together for higher output (up to 7,200W) and then connect them to a regular transfer switch. It's currently available for the US version.
Can SuperBase V be charged with solar panels from a different brand?
Yes, SuperBase V can be charged by third-party solar panels with voltage ranging from 12V to 150V; Zendure's 400W Solar Panel and 320W Rigid Solar Panel have been thoroughly tested with SuperBase V and remain our recommendation.
What's the plug type for the Mobile EV Charger?
14-50 plug for Type 1 (J1772) connector with 5-15 plug and 6-20 plug adaptor cables; CEE 32 plug for Type 2 (Mennekes) with EU plug, UK plug and AU plug adatpor cables.
What can the EV T1 Adapter be used for?
Using the EV T1 Adapter, you can charge SuperBase V via a Type 1 EV charger. It's also a convenient way for European Standard vehicles to charge from devices that have an American Standard charging connector.
Is the Satellite Plug just a smart plug?
