Description

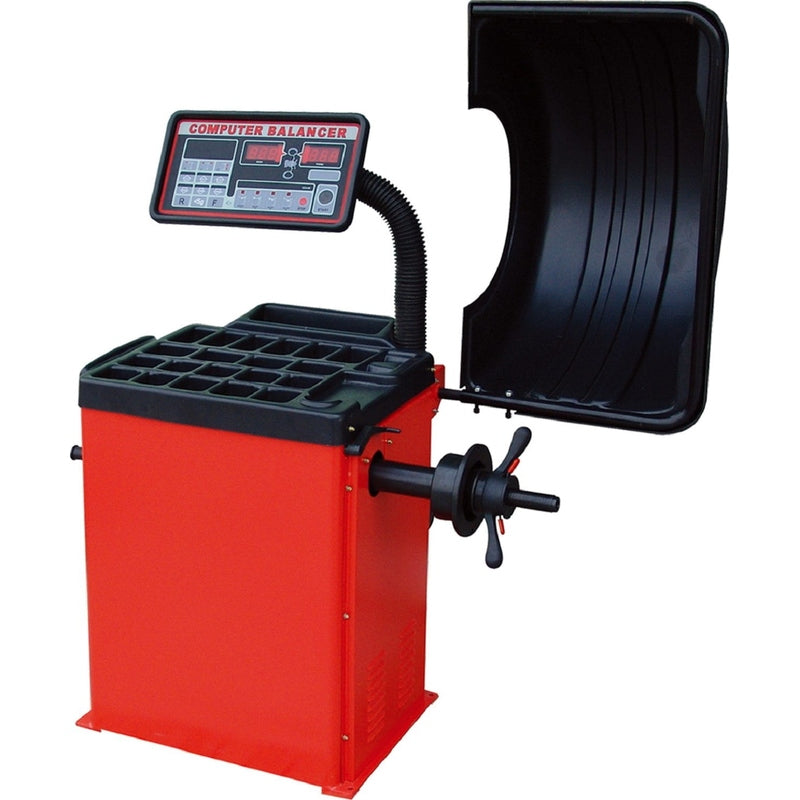

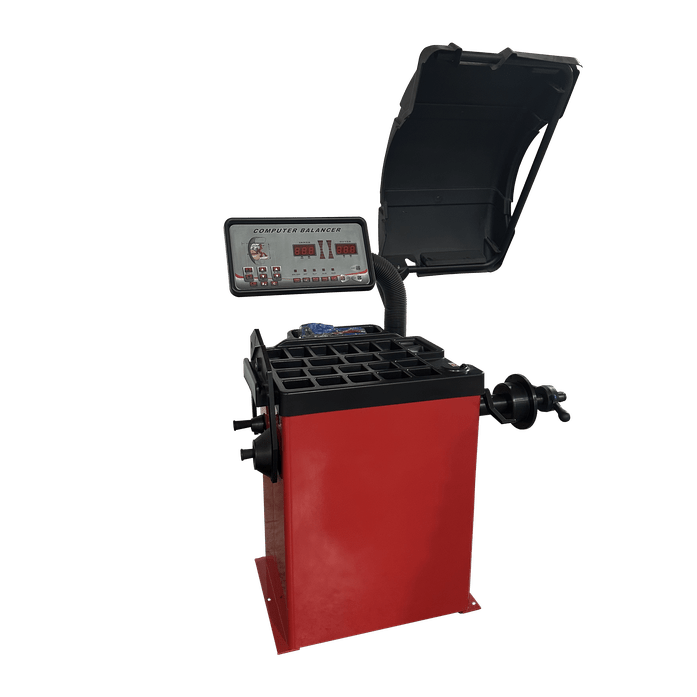

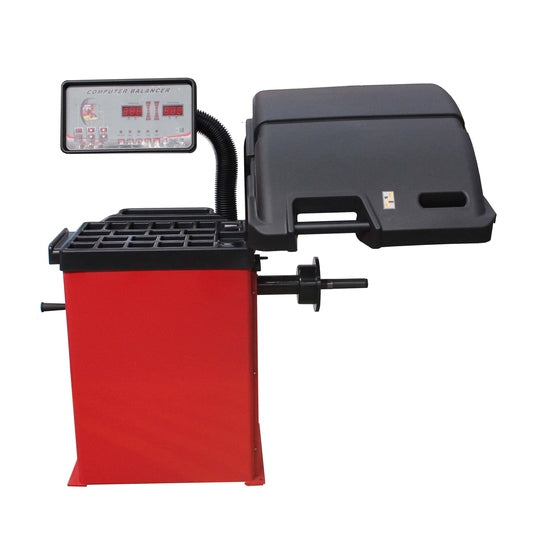

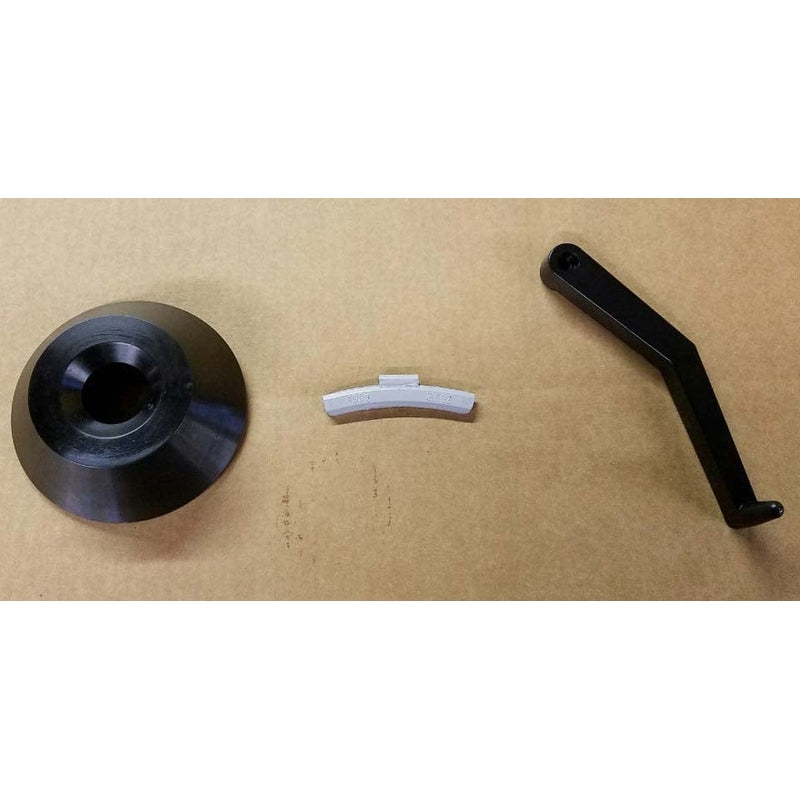

-The WB-953 Wheel Balancer is a highly accurate & durable wheel balancing system that incorporates unbeatable standard features including, Multi-Mode Vehicle Balancing for Cars & Motorcycles, Static / Dynamic & 3 ALU balance configurations, Storage Pegs and four sizes of centering Cones! The WB-953 also incorporates an LED touch panel Keypad & Speed Nut to provide fast & efficient wheel balancing, along with having the ability for Multi-User operation. The WB-953 is now offered without the Hood assembly, as the 'Basic' WB-953-B provides an additional economic wheel balancer offering. The WB-953 Wheel Balancers simply provide the best value at the best price!
Features

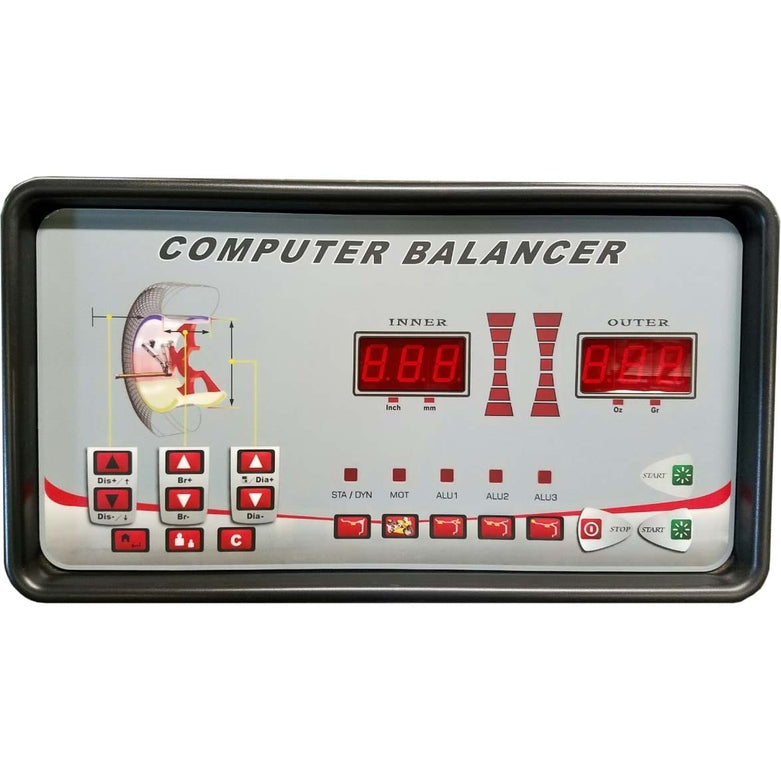

-- User Friendly Operation LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
- Large Rim Diameter Balancing able to balance up to 24 Rim diameter & 39 overall Wheel Diameter.
- Multi-Mode Vehicle Balancing standard with Car & Motorcycle balancing modes.
- Ease-Of-Use with manual measurement input for distance & diameter with Static / Dynamic & 3 ALU modes.
- Self-Calibrating & Self Diagnosis for improved efficiency & serviceability.
- Integrated Measurement Indicator allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
- Multi-User Operation allows two operators to work simultaneously with different settings.
- Integrated Centering Spring to assist with quick and proper wheel mounting on balancing shaft.
- Electronic Braking System conveniently slows wheel down after balancing cycle.
- Heavy Duty Balancing Shaft 36mm diameter balancing shaft accommodates wide range of wheels of different sizes and shapes.
- Speed-Nut Mounting the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.

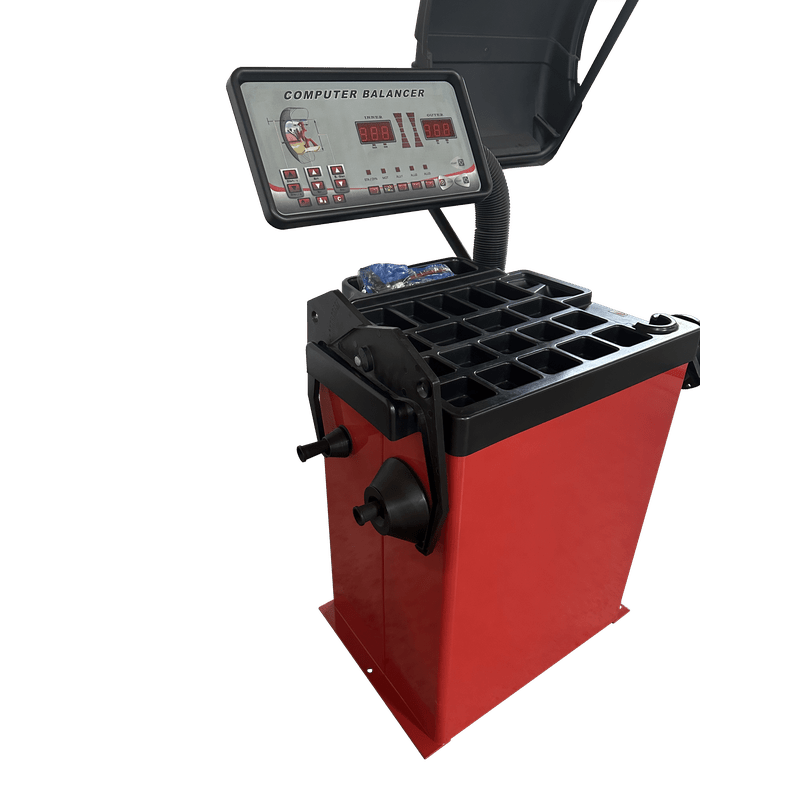

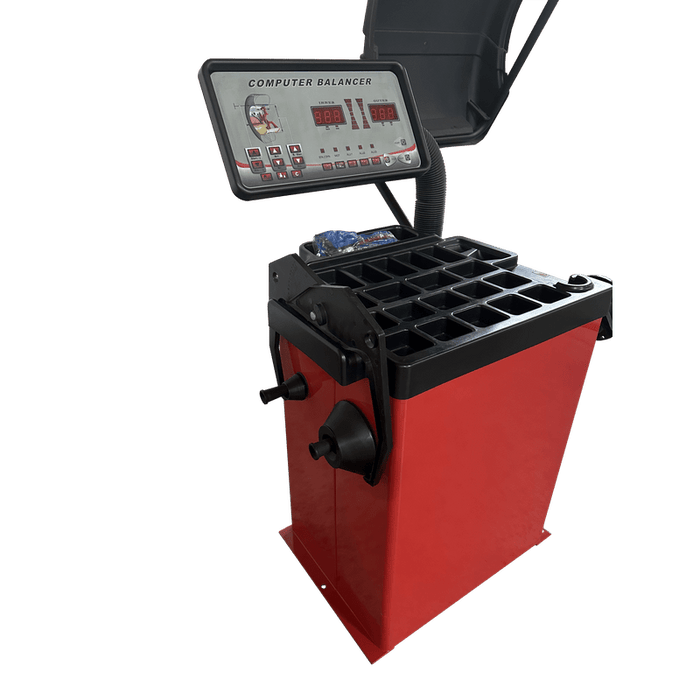

- Multi Pocket Wheel Weight Shelf 23 articulated pockets, over 1.5 deep, allowing plenty of storage weights, tooling & cones.

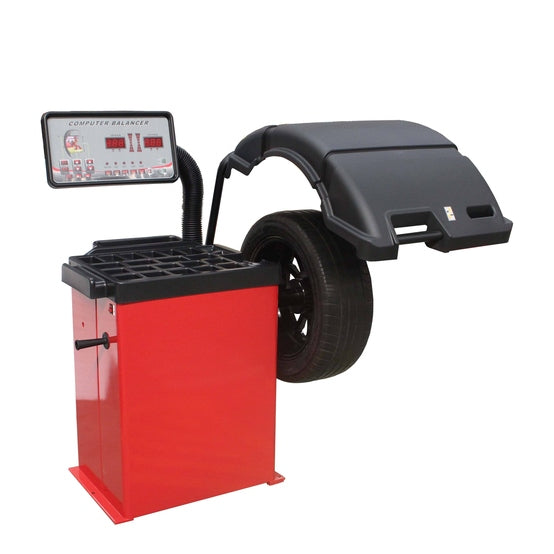

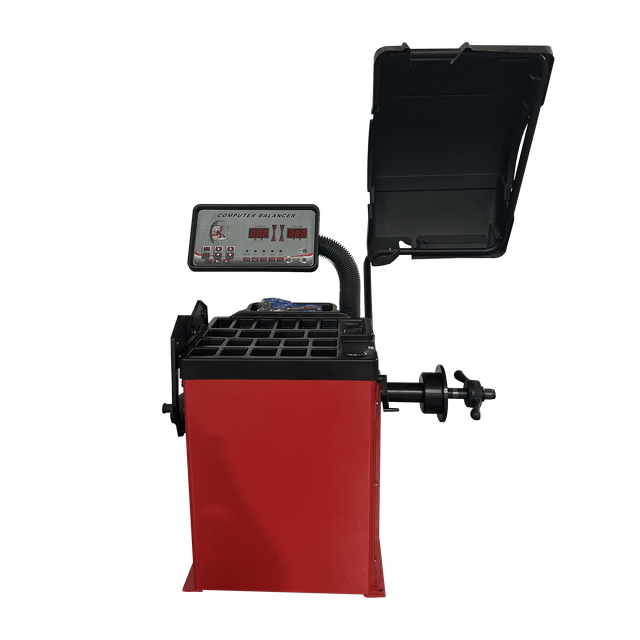

- Large Wheel Hood the large 38 hood / shroud prevents debris from flying off the tire while in use.

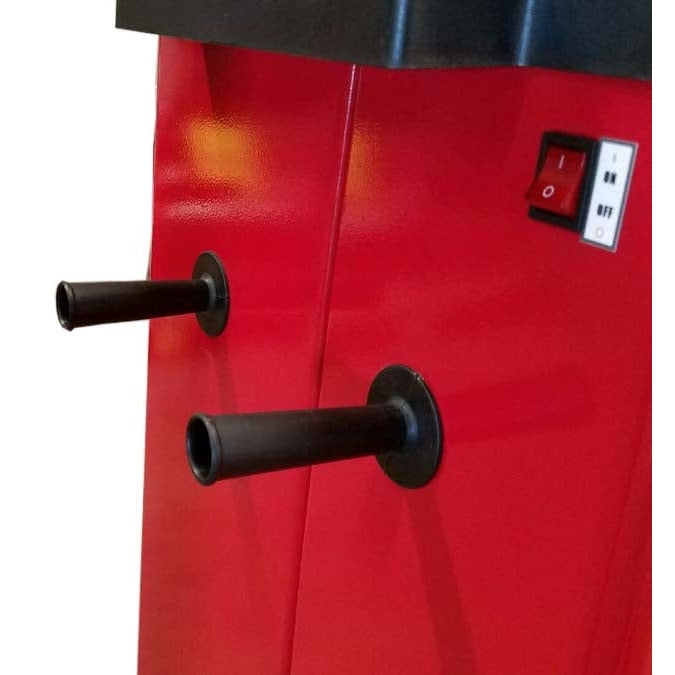

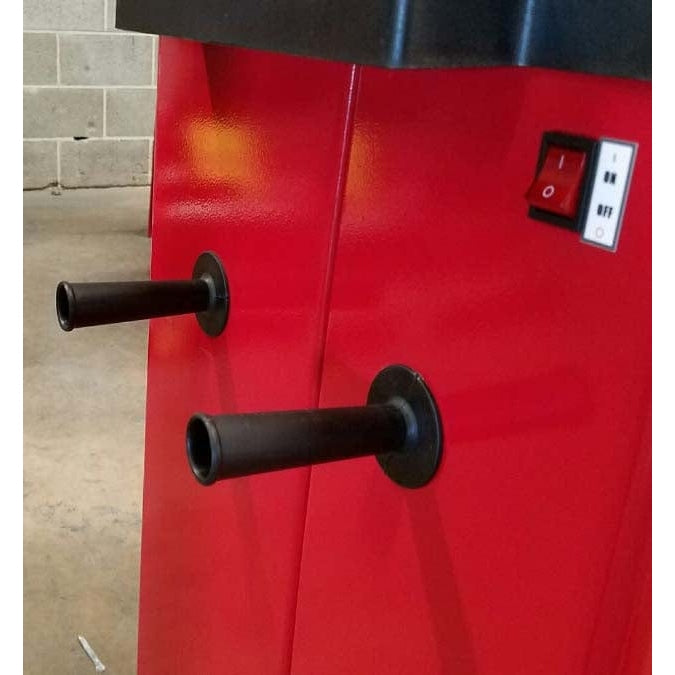

- Storage Pegs for convenient storing of balancer cones & caliper on side of housing.

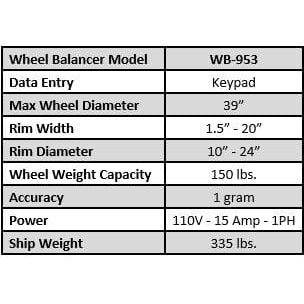

Specifications
-Wheel Balancer Model | WB-953 |
Data Entry | Keypad |

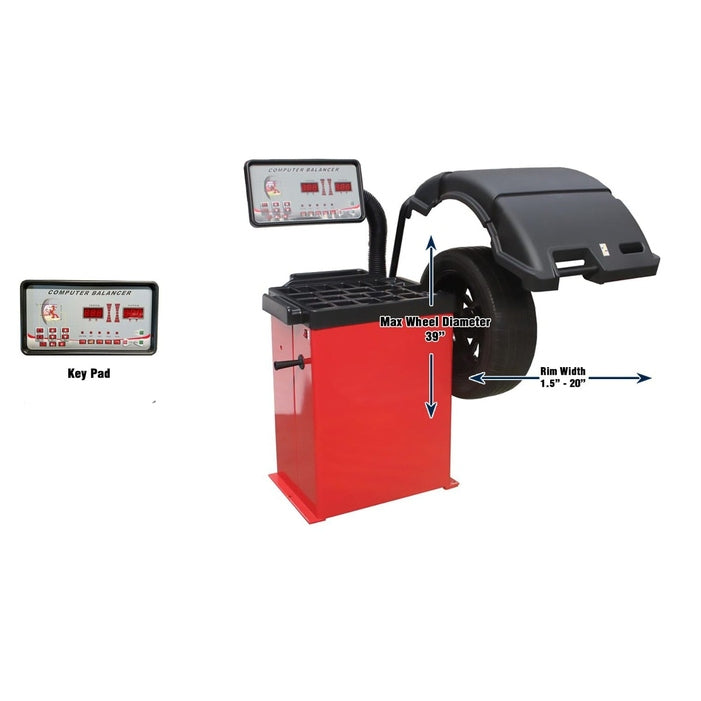

Max Wheel Diameter | 39 |
Rim Width | 1.5 20 |
Rim Diameter | 10 24 |
Wheel Weight Capacity | 150 lbs |
Accuracy | 1 gram |
Power | 110V 15 Amp 1PH |
Ship Weight | 335 lbs |
Manual
-Tuxedo WB-953 Wheel Balancer Manual
