Description

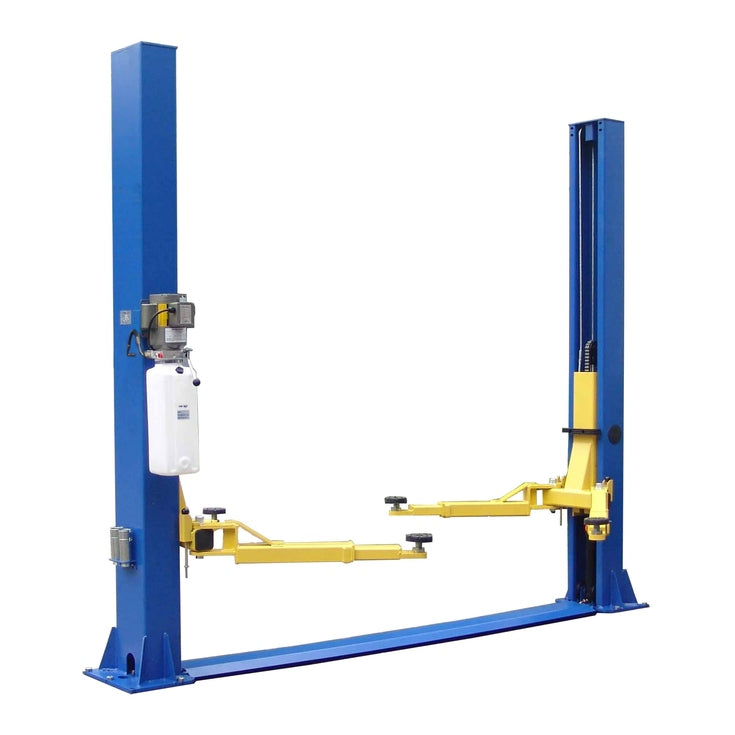

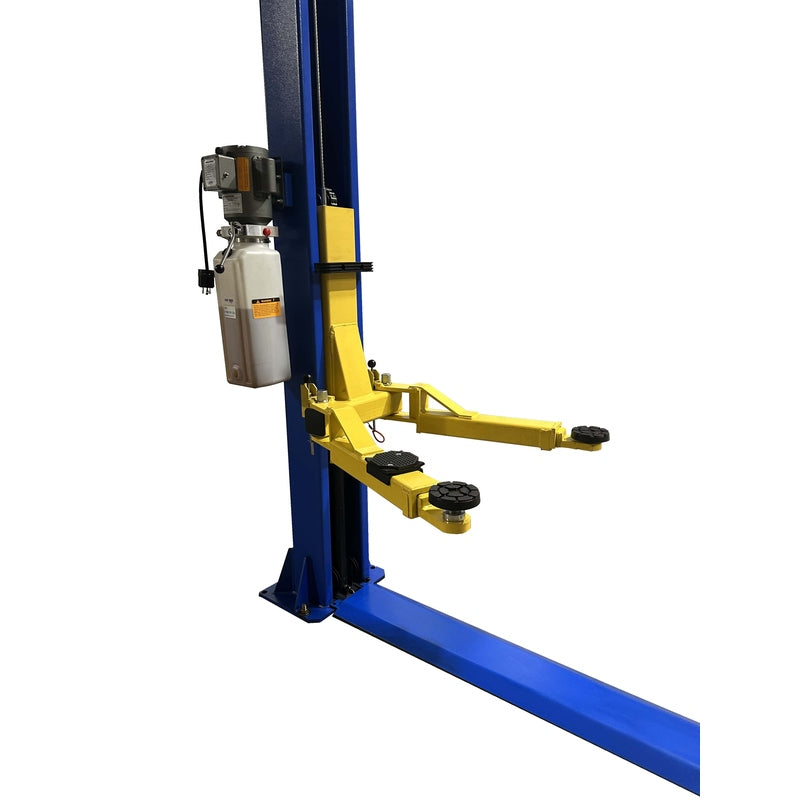

-The new TP9KFX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the best Two Post Lift values in the industry!
Features
-- 9,000 lbs capacity

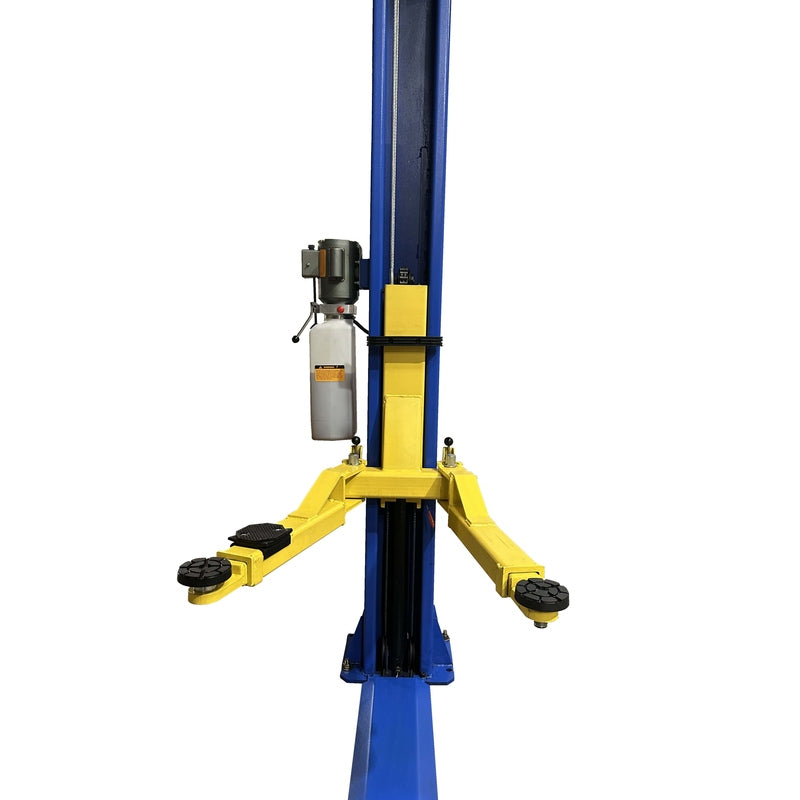

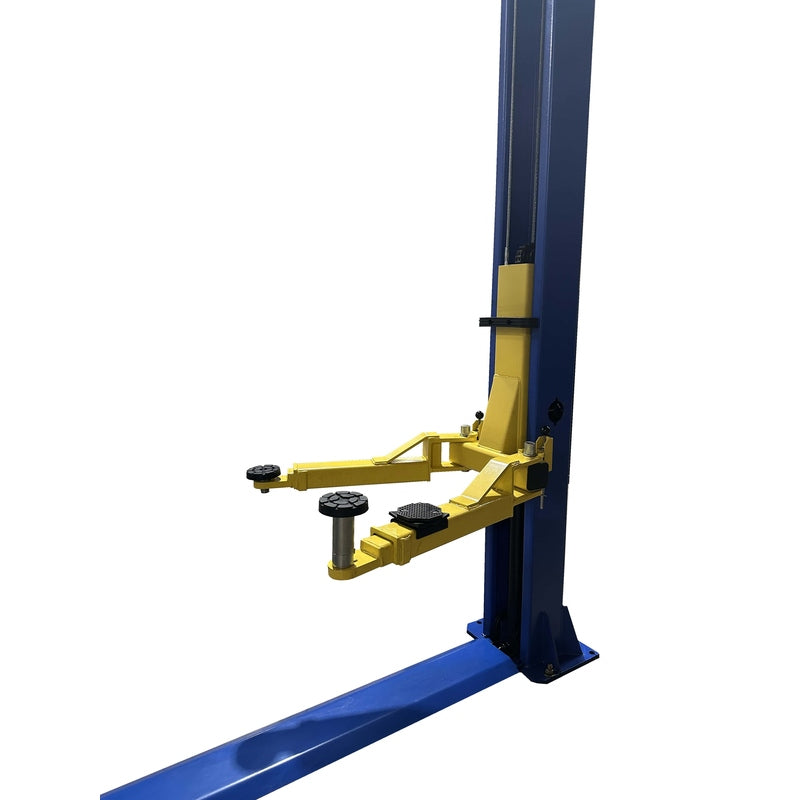

- Symmetric Arms

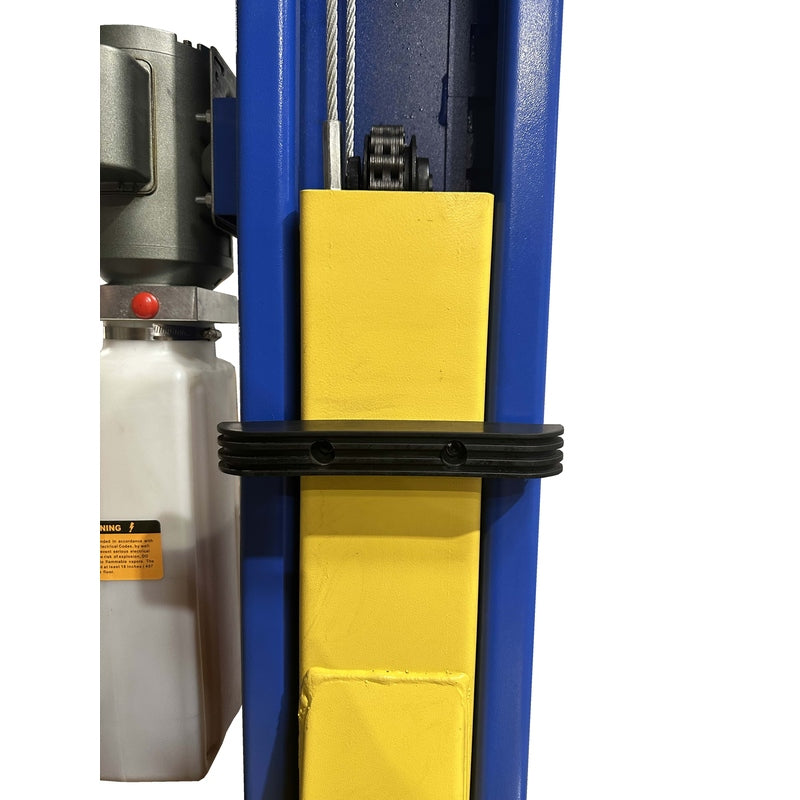

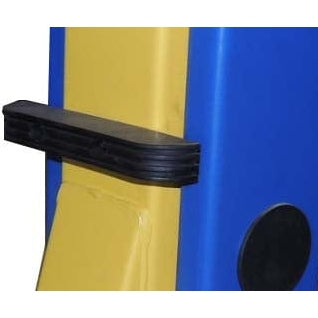

- Rubber Door Guards

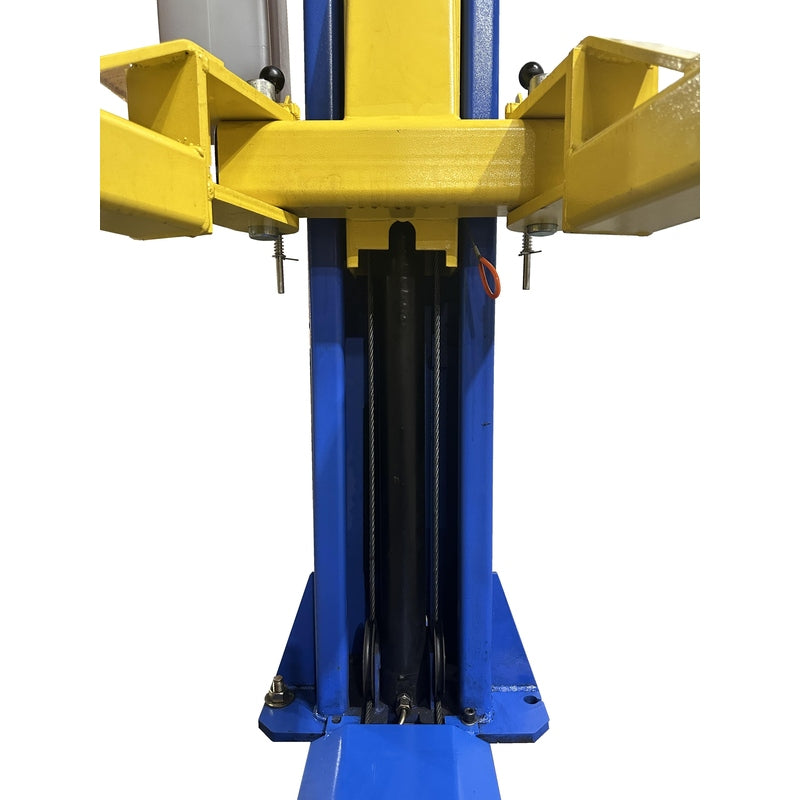

- Chain Drive Cylinders
- Dual Point Lock Release

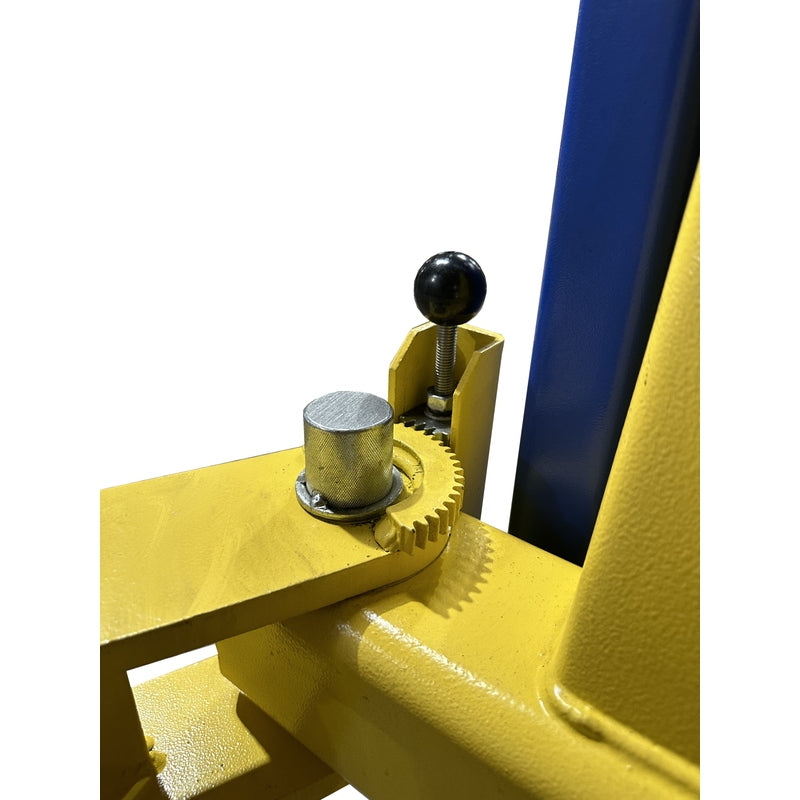

- Auto Arm Restraint System

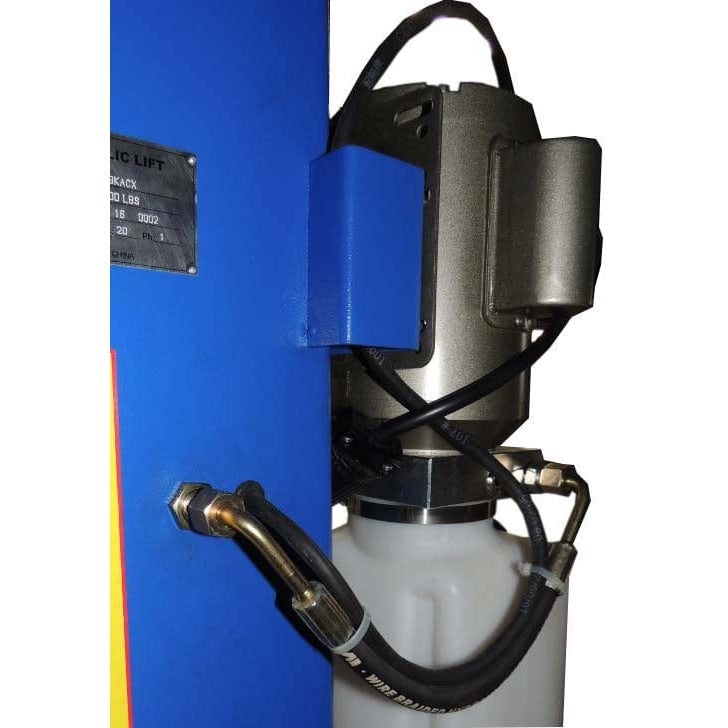

- Internal Hose routing

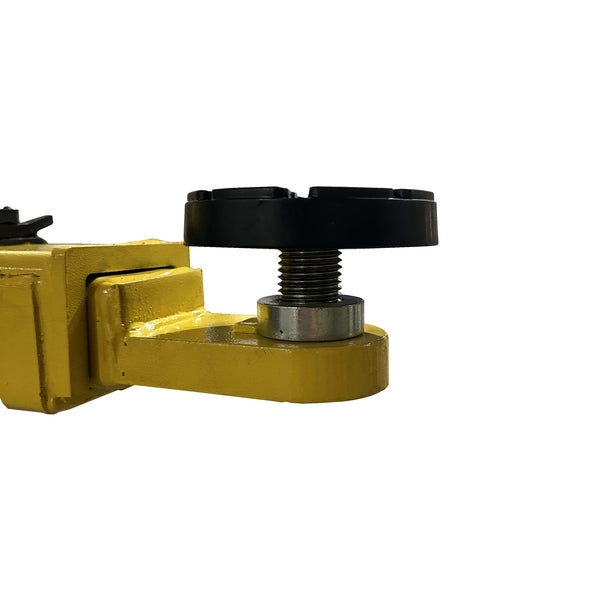

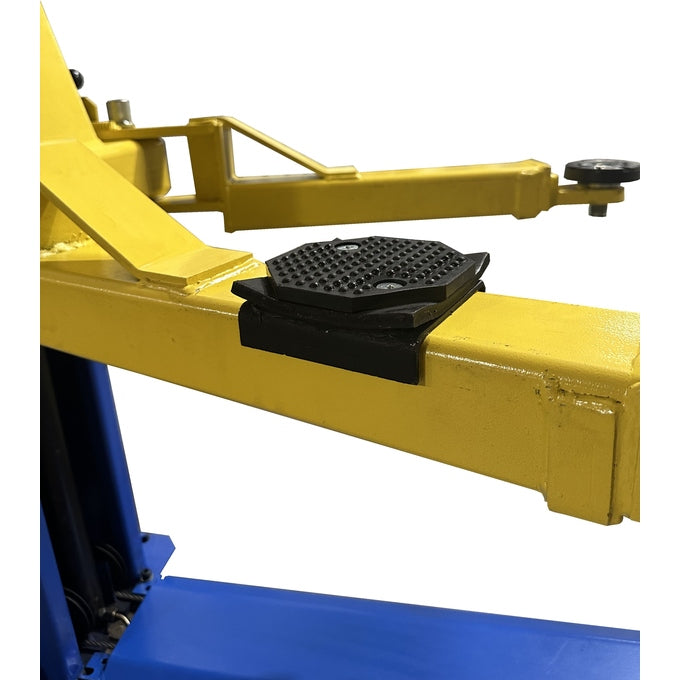

- Low profile Spin Up Lift Pads

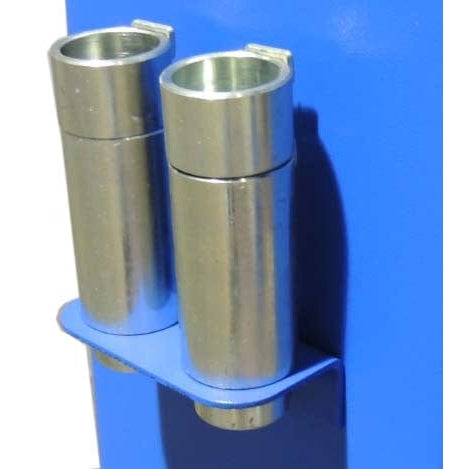

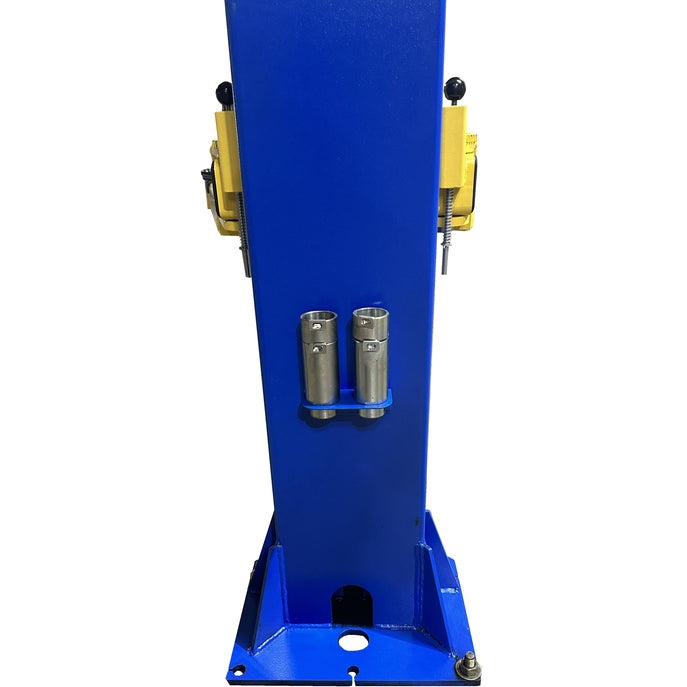

- Stackable Adapters Included

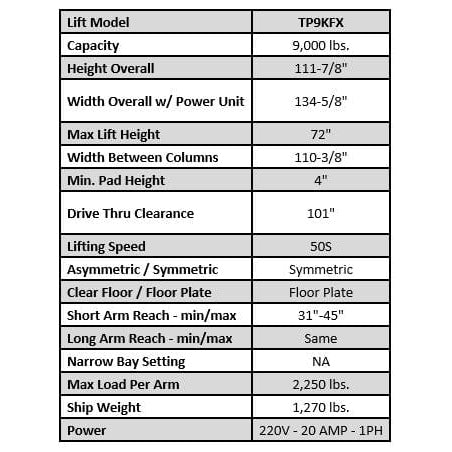

Specifications
-Lift Model | TP9KFX |
Capacity | 9,000 lbs. |

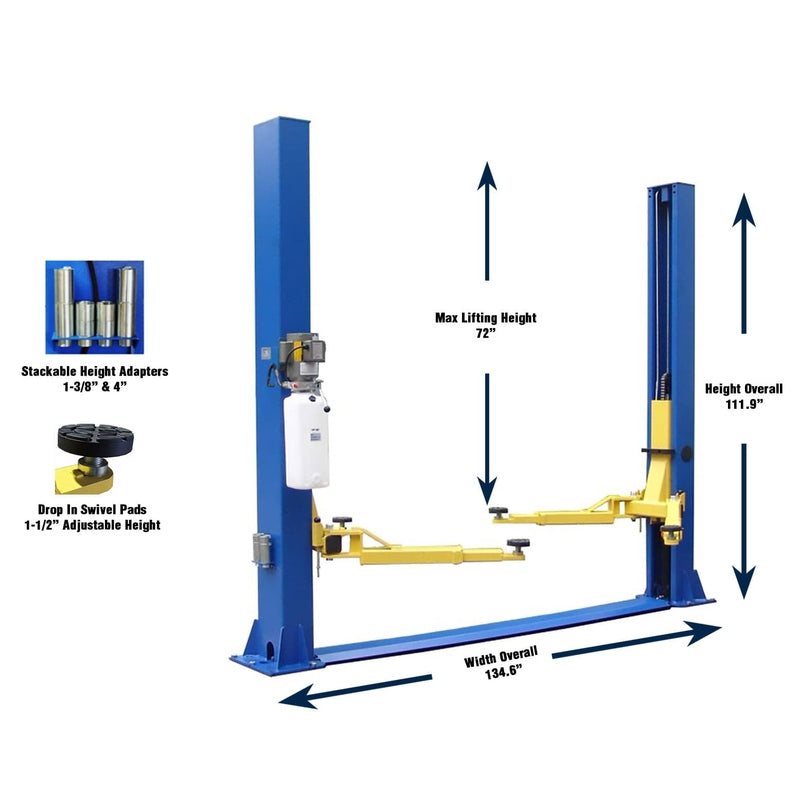

Height Overall | 111-7/8" |
Width Overall w/ Power Unit | 134-58" |
Max Lift Height | 72" |
Width Between Columns | 110-3/8" |
Min. Pad Height | 4" |
Drive Thru Clearance | 101" |
Lifting Speed | 50S |
Asymmetric / Symmetric | Symmetric |
Clear Floor / Floor Plate | Floor Plate |
Short Arm Reach min/max | 31"-45" |
Long Arm Reach min/max | Same |
Narrow Bay Setting | NA |
Max Load Per Arm | 2,250 lbs. |
Ship Weight | 1,270 lbs |

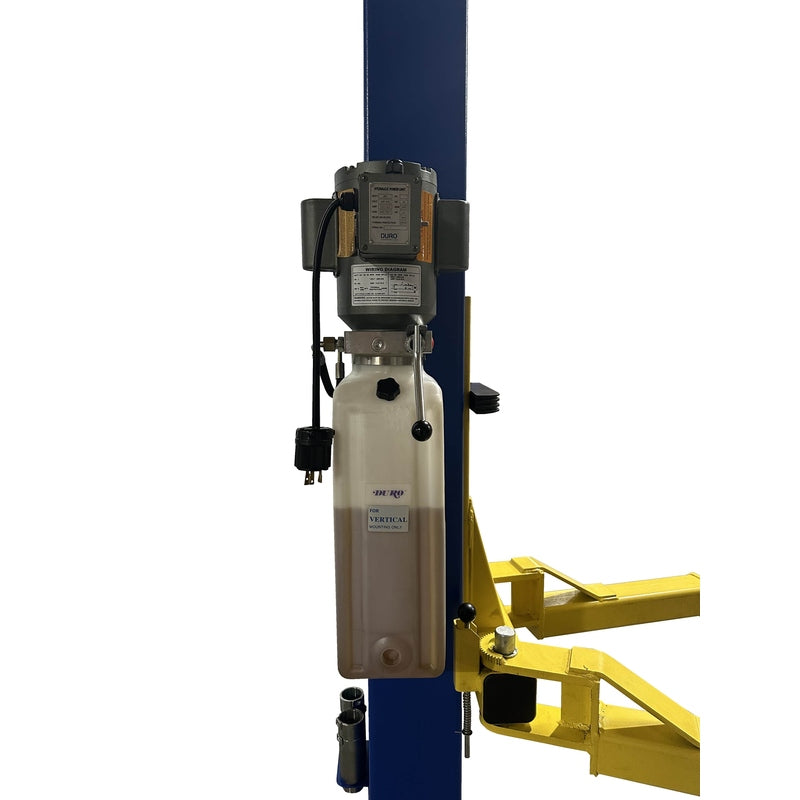

Power | 220V 20 AMP 1 PH |
Manual
-Tuxedo TP9KFX 9,000 lb 2 Post Lift Manual
