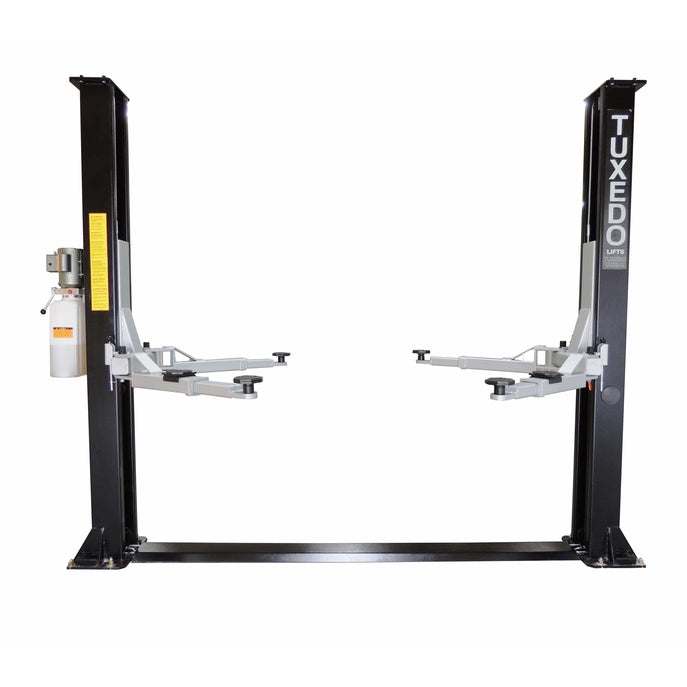

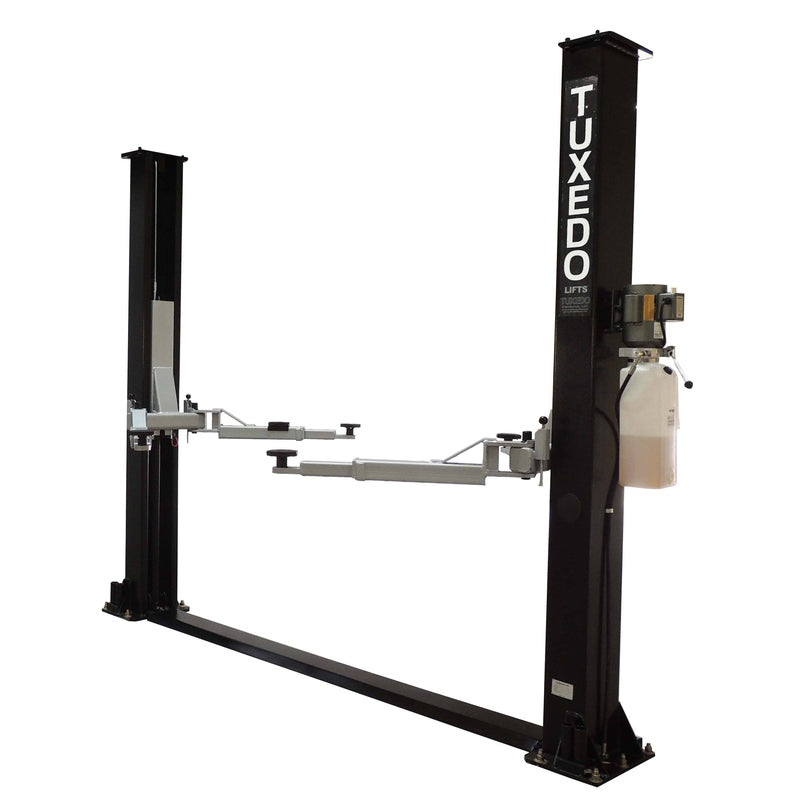

Tuxedo Light Duty 2 Post Lift 9,000 lb. Capacity

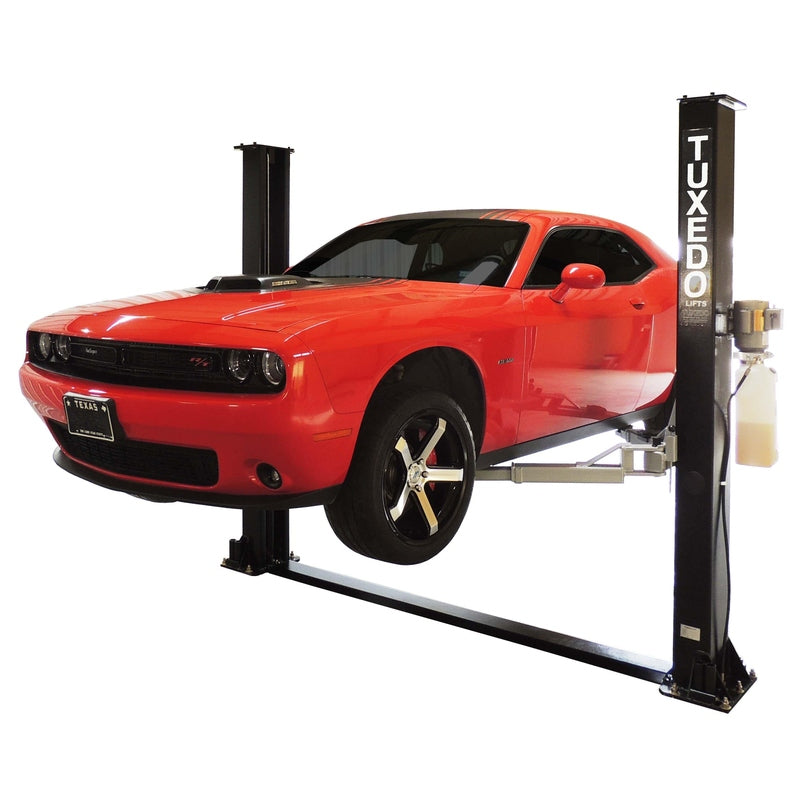

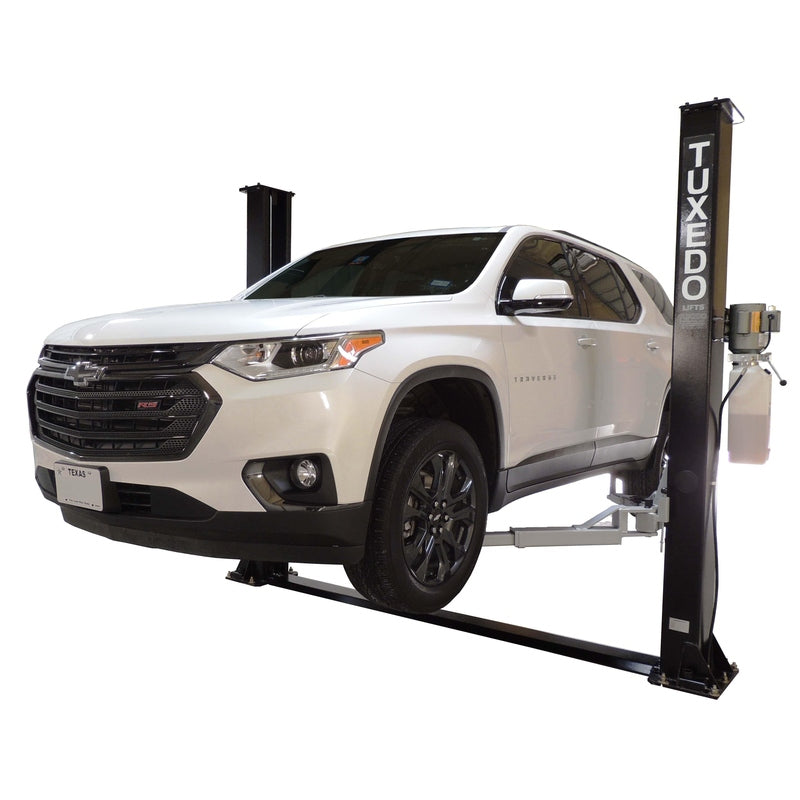

-The TUXEDO TP9KF-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed open top / floor plate vehicle lift with standard lift features including: symmetrical swing arms, low profile 4 lifting pads, stackable height adaptors, saddle pad adaptors and dual point carriage lock releases. The one piece column combined with reliable chain drive cylinders makes it the perfect service lift for passenger cars, light duty trucks & most SUVs. The automatic arm restraints and durable powder-coat finish provide an economically priced lift with all the features, all for a great value!
Features
-- 9,000 lbs capacity

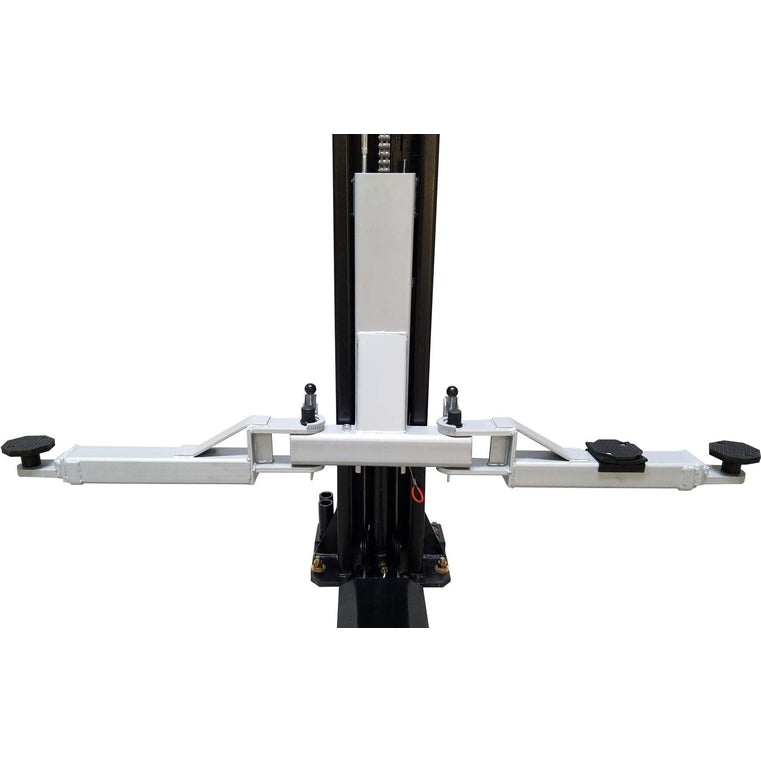

- Symmetric Arms
- Chain Drive Cylinders

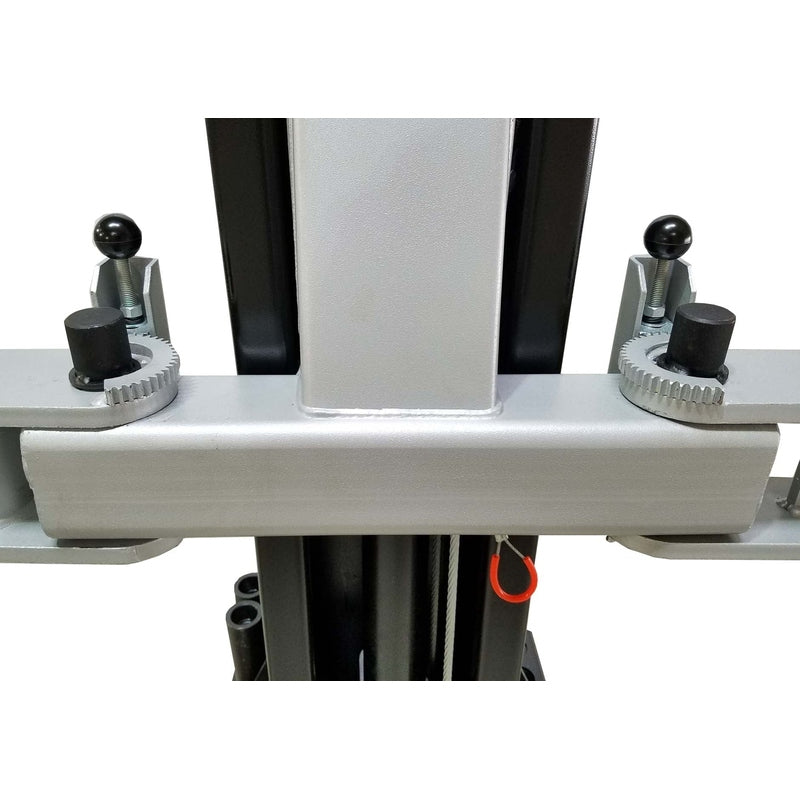

- Dual Point Lock Release
- Auto Arm Restraint System

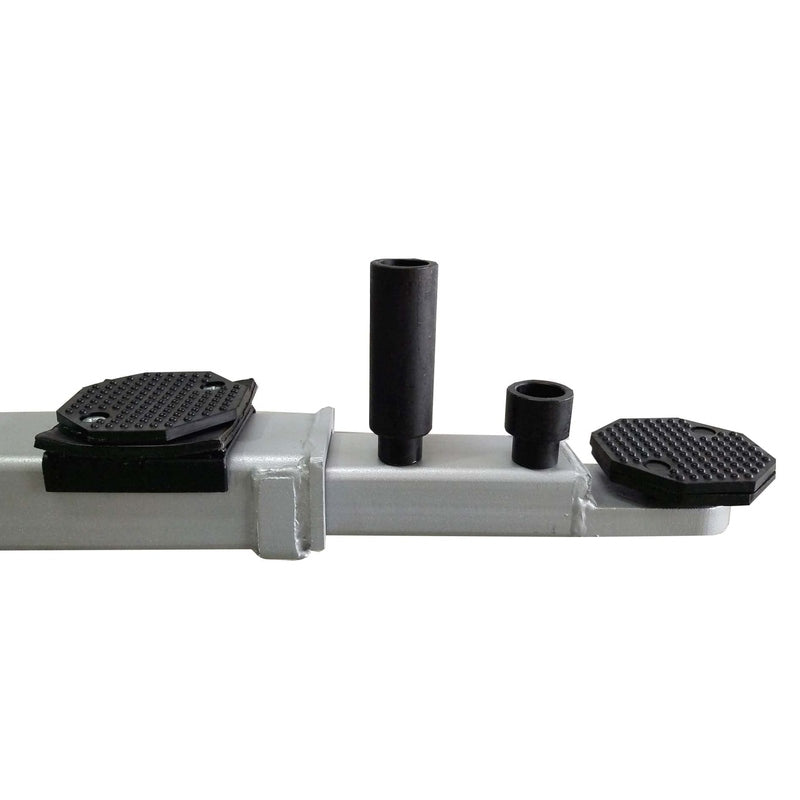

- Low profile drop-in Lift Pads
- SADDLE PAD ADAPTORS (1 Pair)
- Stackable Adapters Included
- Black color standard

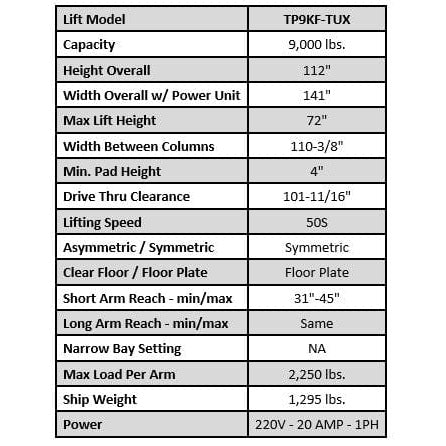

Specifications
-Lift Model | TP9KF-TUX |
Capacity | 9,000 lbs. |

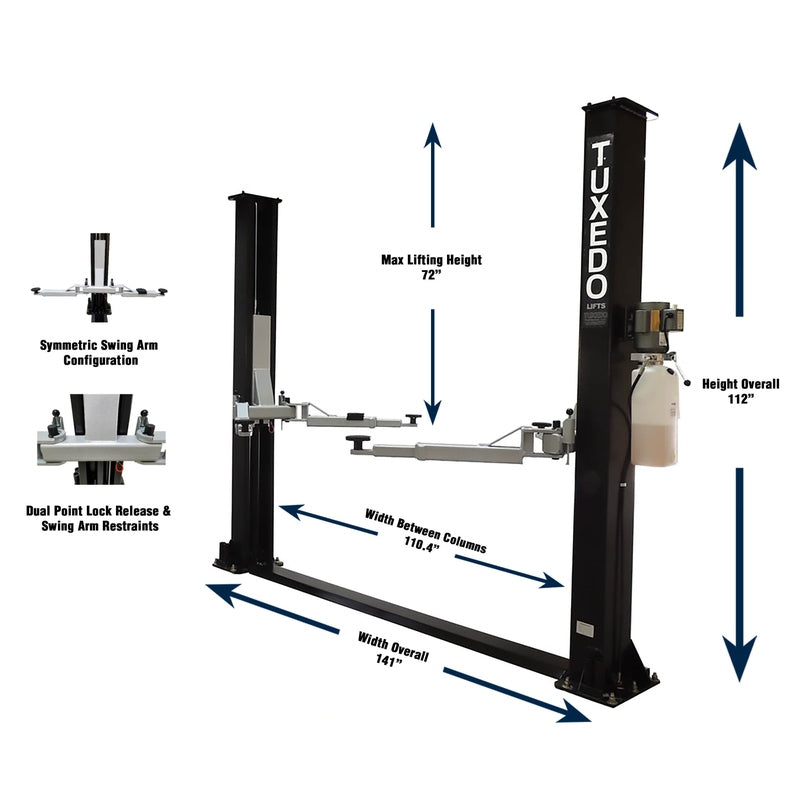

Height Overall | 112" |
Width Overall w/ Power Unit | 141" |
Max Lift Height | 72" |
Width Between Columns | 110-3/8" |
Min. Pad Height | 4" |
Drive Thru Clearance | 101-11/16" |
Lifting Speed | 50S |
Asymmetric / Symmetric | Symmetric |
Clear Floor / Floor Plate | Floor Plate |
Short Arm Reach min/max | 31"-45" |
Long Arm Reach min/max | Same |
Narrow Bay Setting | NA |
Max Load Per Arm | 2,250 lbs. |
Ship Weight | 1,295 lbs |
Power | 220V 20 AMP 1PH |
Manual
-Tuxedo TP9KF-TUX 9,000 lb Two Post Lift Manual
