Description

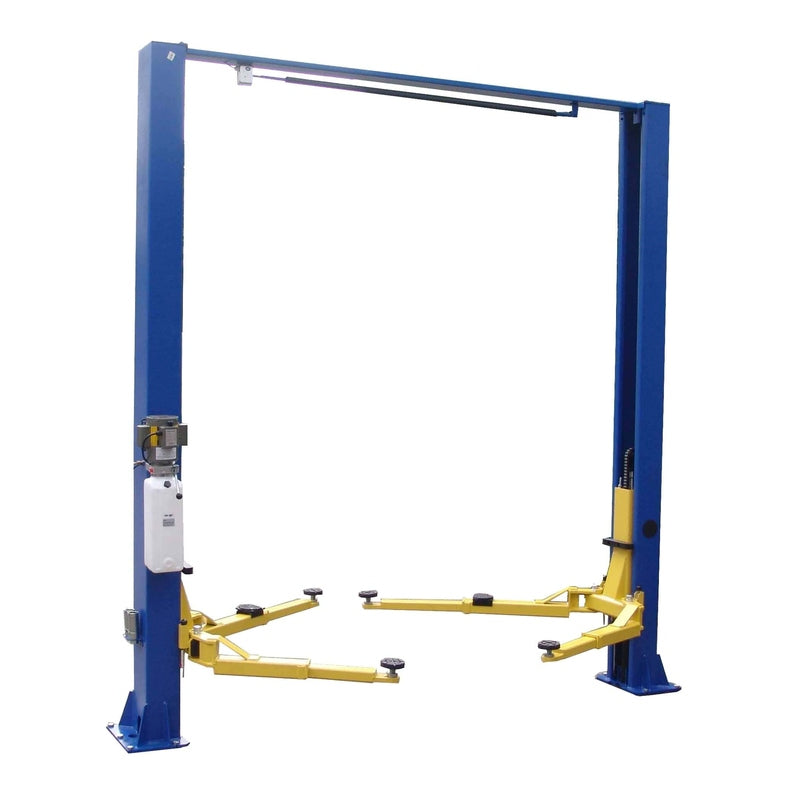

-The new TP9KACX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the bestTwo Post Lift values in the industry!
Features
-- 9,000 lbs capacity

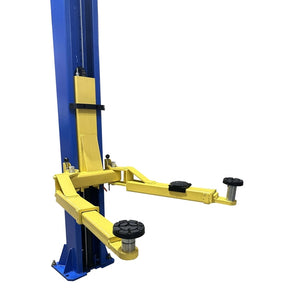

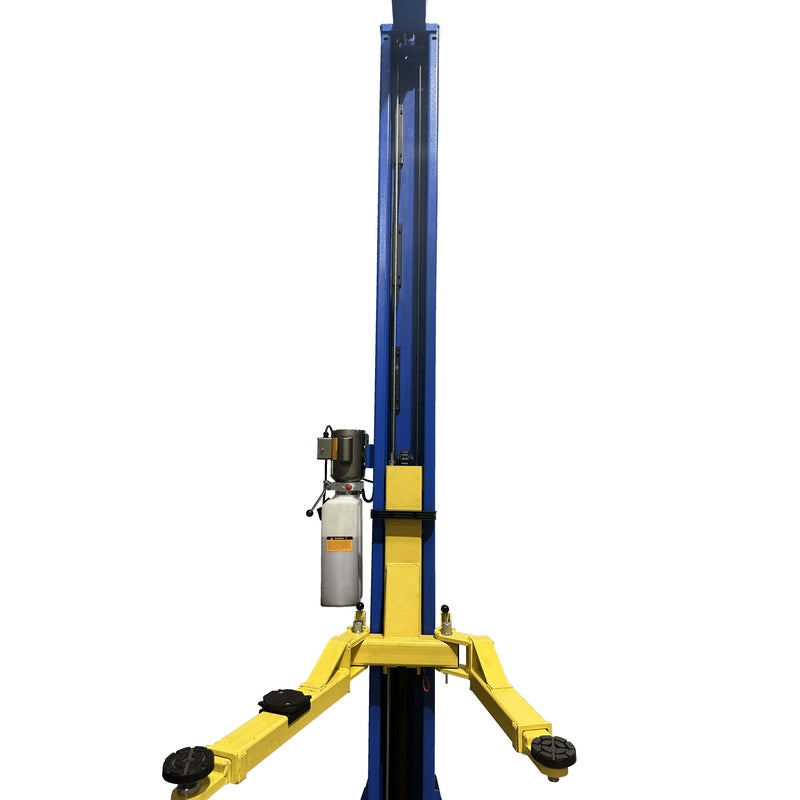

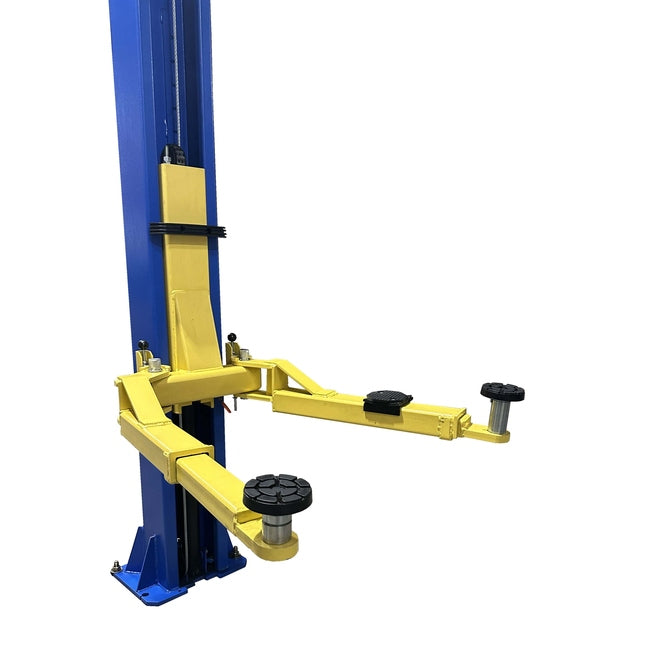

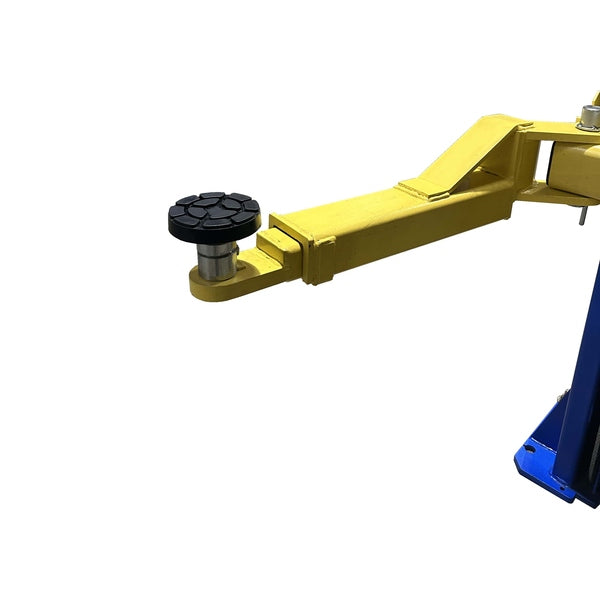

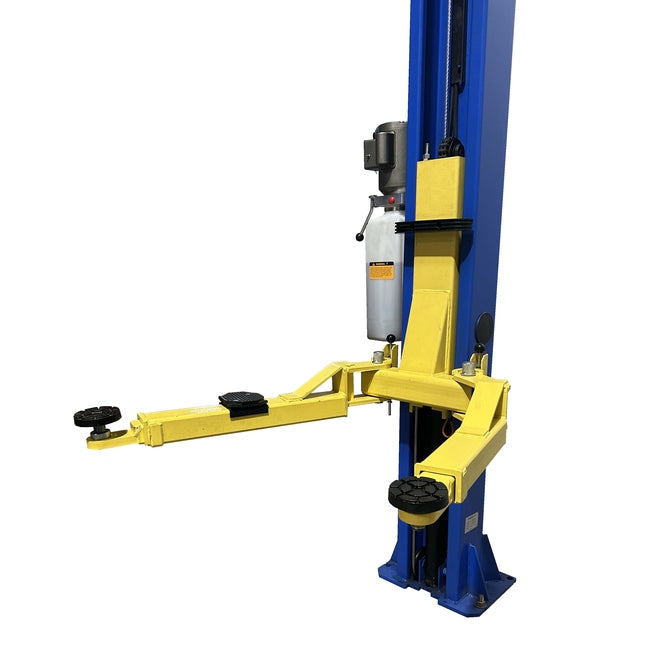

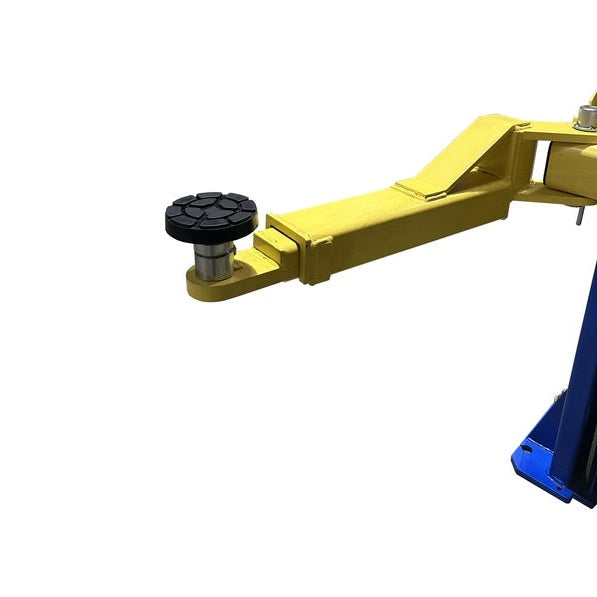

- ASymmetric Arms

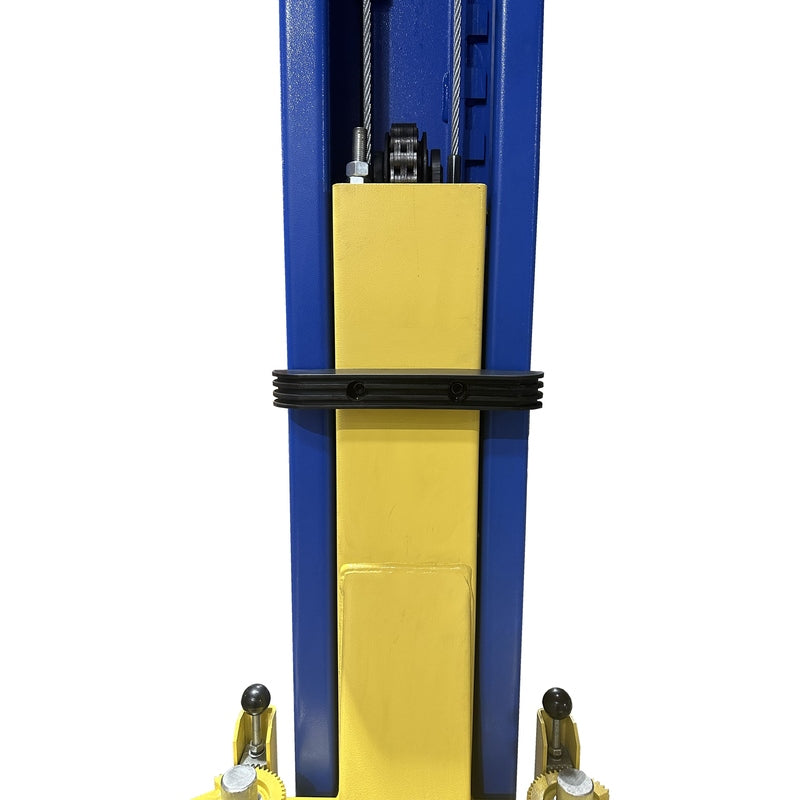

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release

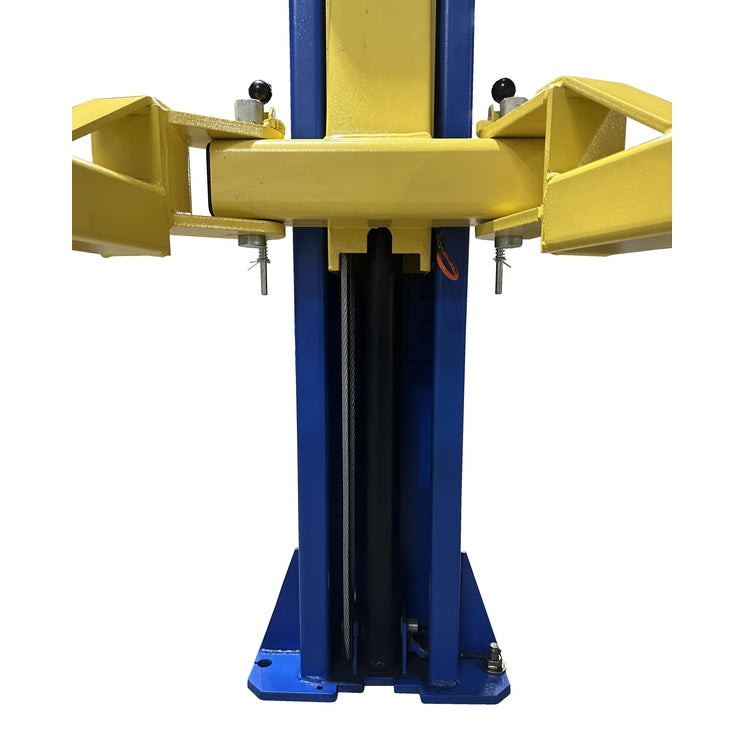

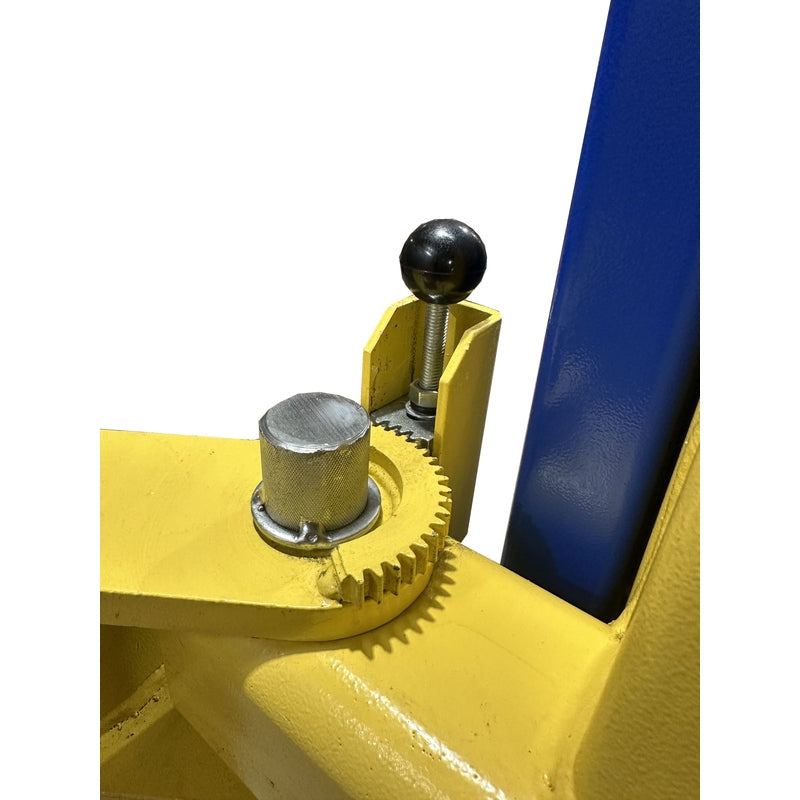

- Auto Arm Restraint System

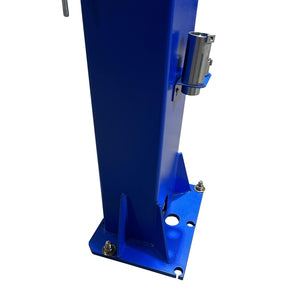

- Single Piece Column
- Internal Hose routing

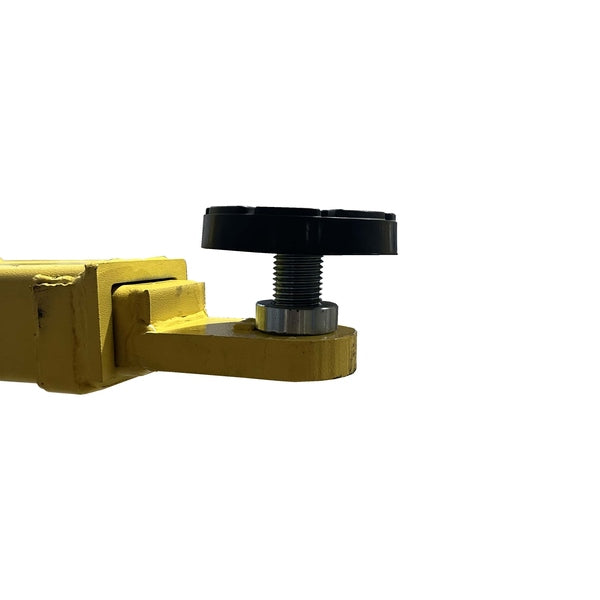

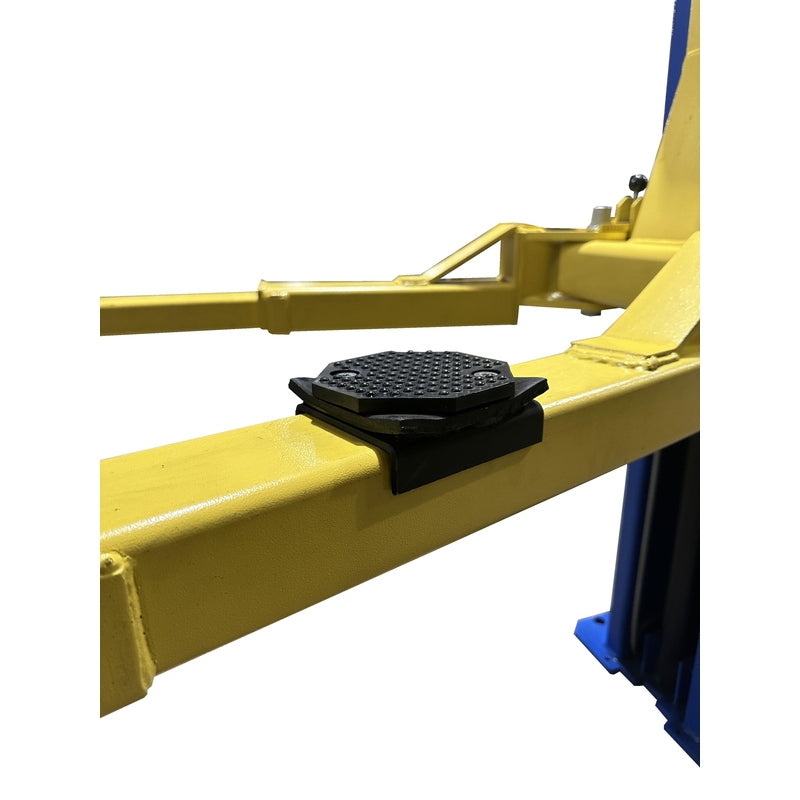

- Low profile Spin Up Lift Pads

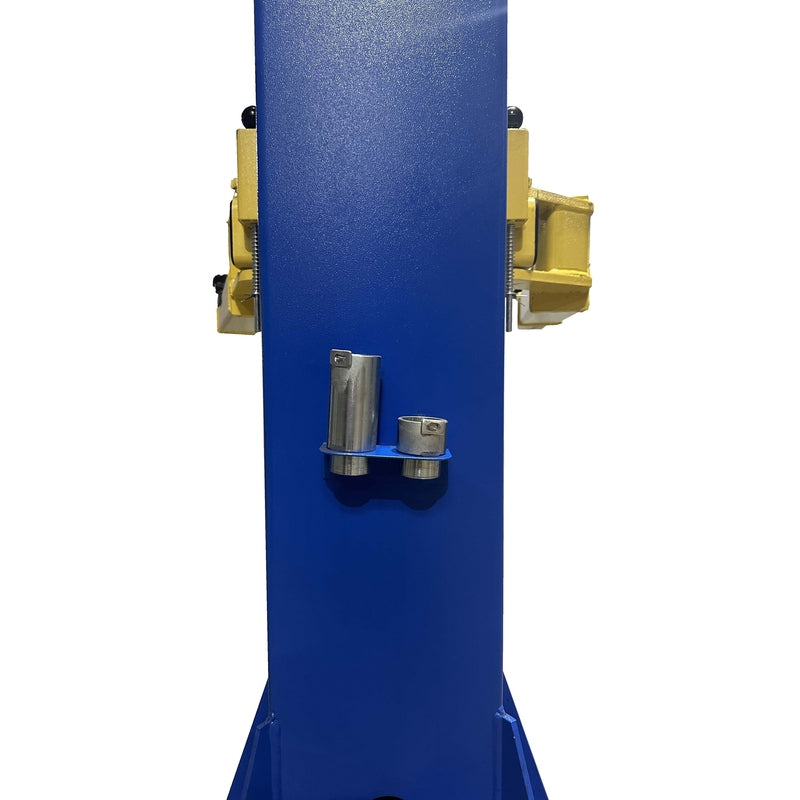

- Stackable Adapters Included

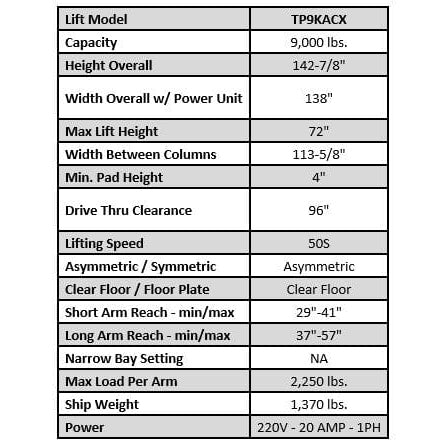

Specifications
-Lift Model | TP9KACX |
Capacity | 9,000 lbs. |

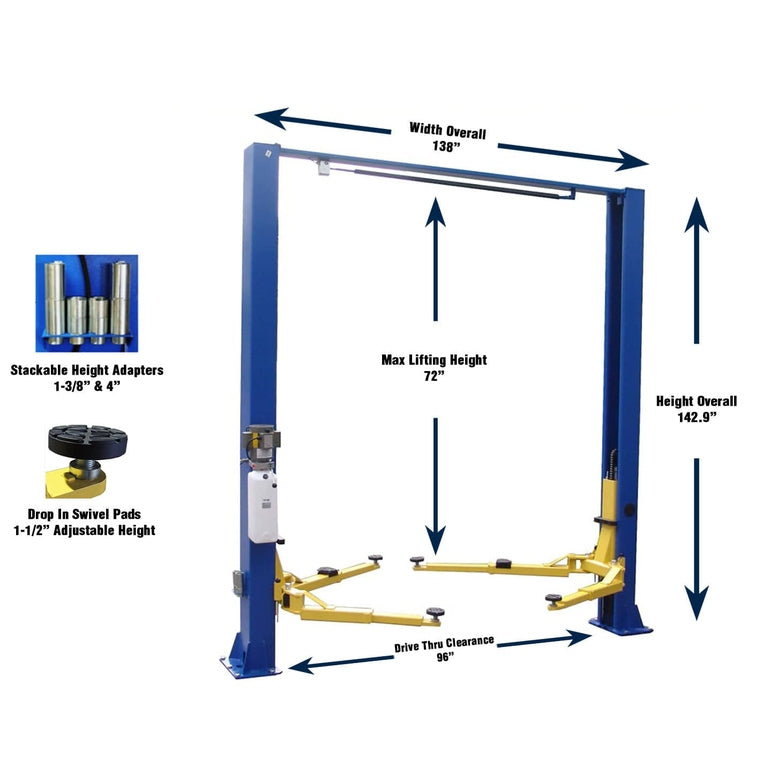

Height Overall | 142-7/8" |
Width Overall w/ Power Unit | 138" |
Max Lift Height | 72" |
Width Between Columns | 113-5/8" |
Min. Pad Height | 4" |
Drive Thru Clearance | 96" |
Lifting Speed | 50S |
Asymmetric / Symmetric | Asymmetric |
Clear Floor / Floor Plate | Clear Floor |
Short Arm Reach min/max | 29"-41" |
Long Arm Reach min/max | 37"-57" |
Narrow Bay Setting | NA |
Max Load Per Arm | 2,250 lbs. |
Ship Weight | 1,370 lbs |
Power | 220V 20 AMP 1 PH |
Manual
-Tuxedo TP9KACX 9,000 lb 2 Post Lift Manual
