Tuxedo 9,000 lb Two Post Clear Floor

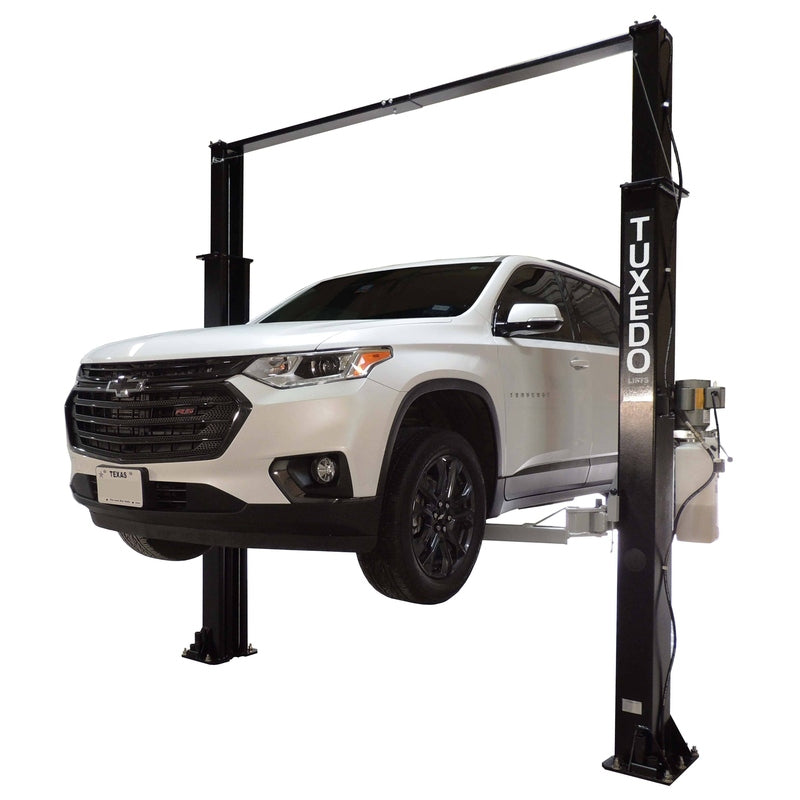

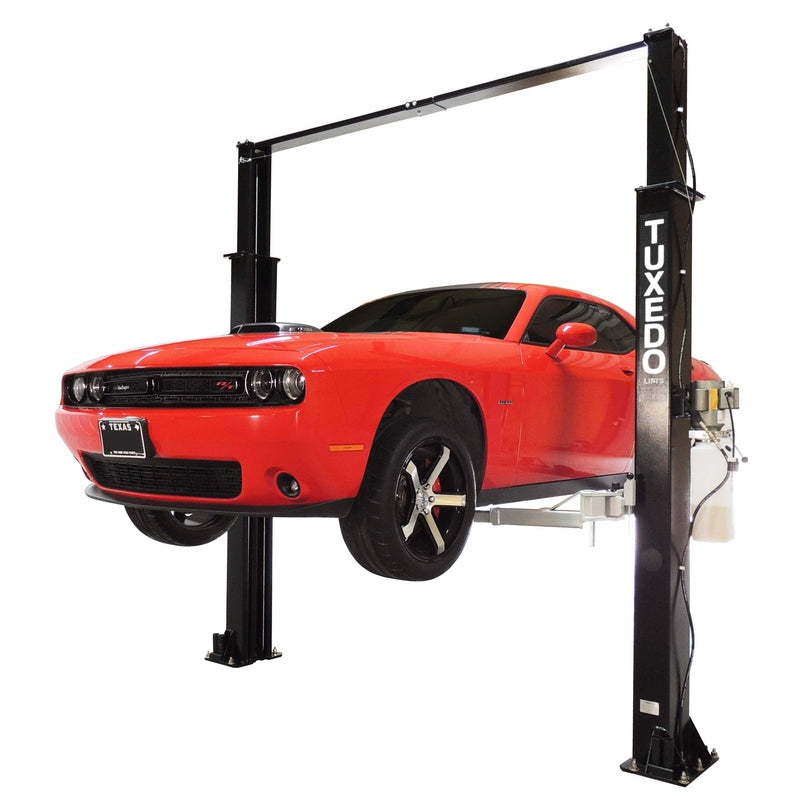

-The TUXEDO TP9KAC-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed clear floor vehicle lift with standard lift features including: asymmetrical swing arms, low profile 4 lifting pads, stackable height adaptors, saddle pad adaptors and dual point carriage lock releases. The one piece column with uprights combined with reliable chain drive cylinders make it the perfect service lift for passenger cars, light duty trucks & most SUVs. The automatic arm restraints and durable powder-coat finish provide an economically priced lift with all the features, all for a great value!
Features
-- 9,000 lbs capacity

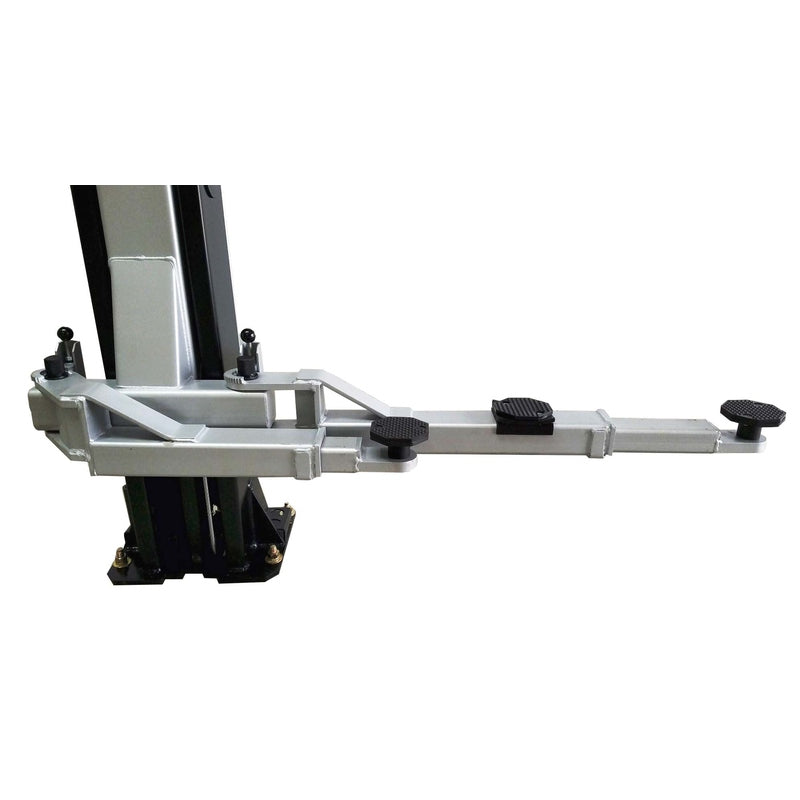

- ASymmetric Arms
- Chain Drive Cylinders

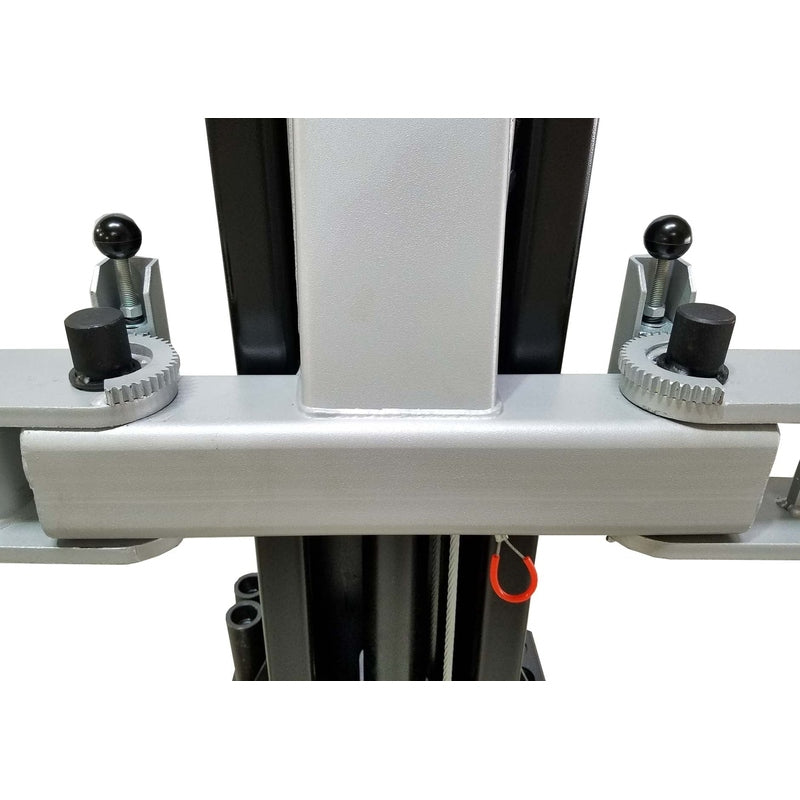

- Dual Point Lock Release
- Auto Arm Restraint System
- Low profile drop-in Lift Pads
- SADDLE PAD ADAPTORS (1 Pair)
- Stackable Adapters Included
- Black color standard
Specifications

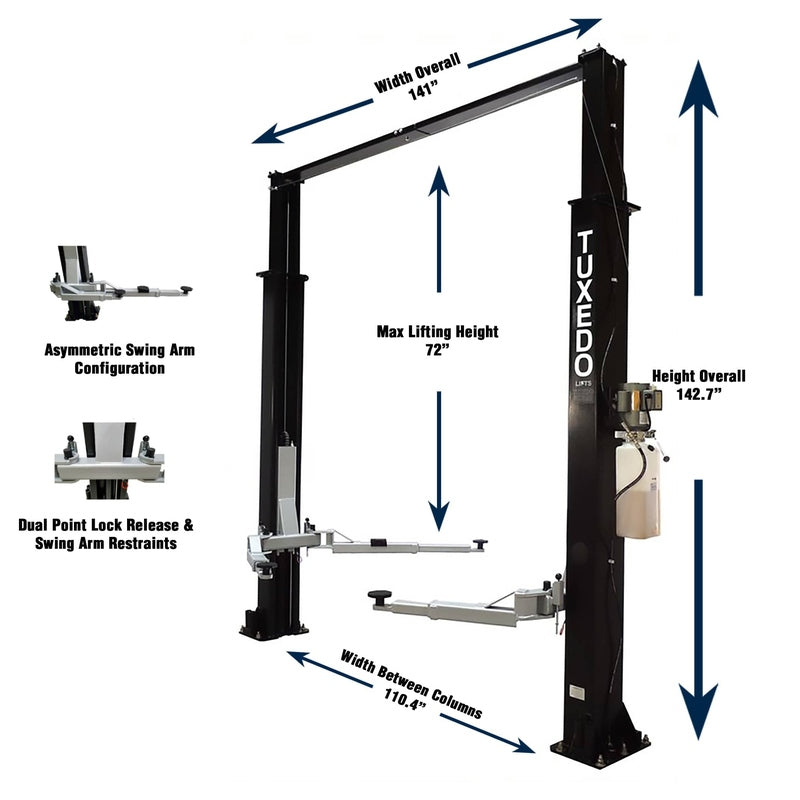

-Lift Model | TP9KAC-TUX | |
Capacity | 9,000 lbs. | |
Height Overall | 142-11/16" | |
Width Overall w/ Power Unit | 141" | |
Max Lift Height | 72" | |
Width Between Columns | 110-3/8" | |
Min. Pad Height | 4" | |
Drive Thru Clearance | 93-11/16" | |
Lifting Speed | 50S | |
Asymmetric / Symmetric | Asymmetric | |
Clear Floor / Floor Plate | Clear Floor | |
Short Arm Reach min/max | 29"-41" | |
Long Arm Reach min/max | 37"-57" | |
Narrow Bay Setting | NA | |
Max Load Per Arm | 2,250 lbs. | |
Ship Weight | 1,390 lbs | |
Power | 220V 20 AMP 1PH |
