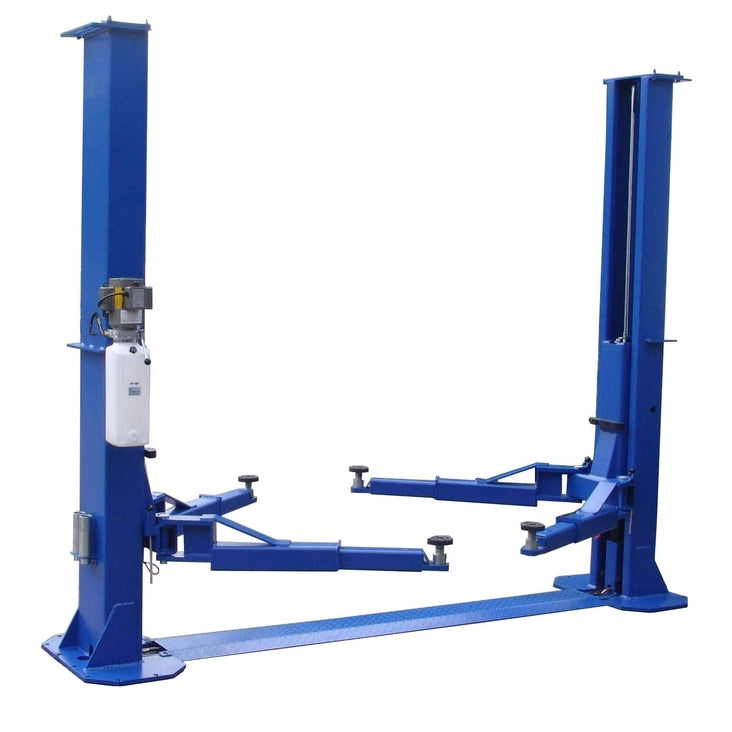

Tuxedo 12,000 lb Two Post Floor Plate Lift

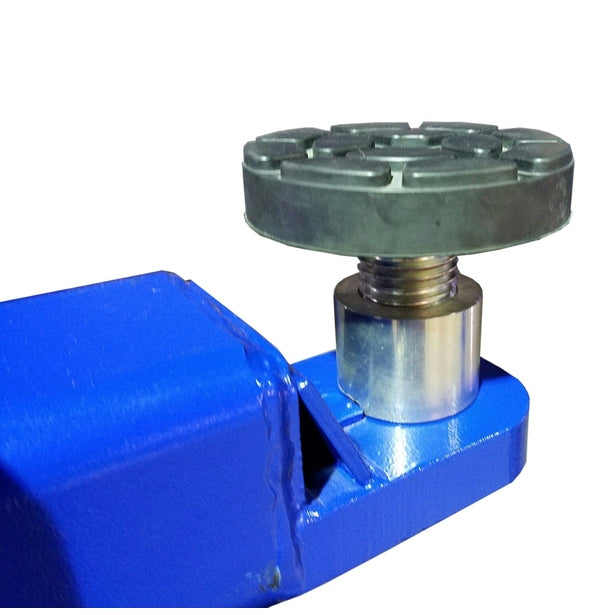

-Introducing the New TP12K & TP15K 'X HD Series Two Post Lifts!! The new TP12KFX & TP15KCX Two Post Floor Plate & Clear Floor Lifts have been redesigned and now come standard with Low profile Drop-In Adjustable Swivel Pads with Height Adapters, Internal Hose Routing, Padded Overhead Shut-Off Bar with Kill Switch, reduced overall Width, & Rubber Door Guards, making these models some of the best heavy duty Two Post Lift values in the industry!
Features
-- 12,000 lbs Capacity
- Symmetric Arms

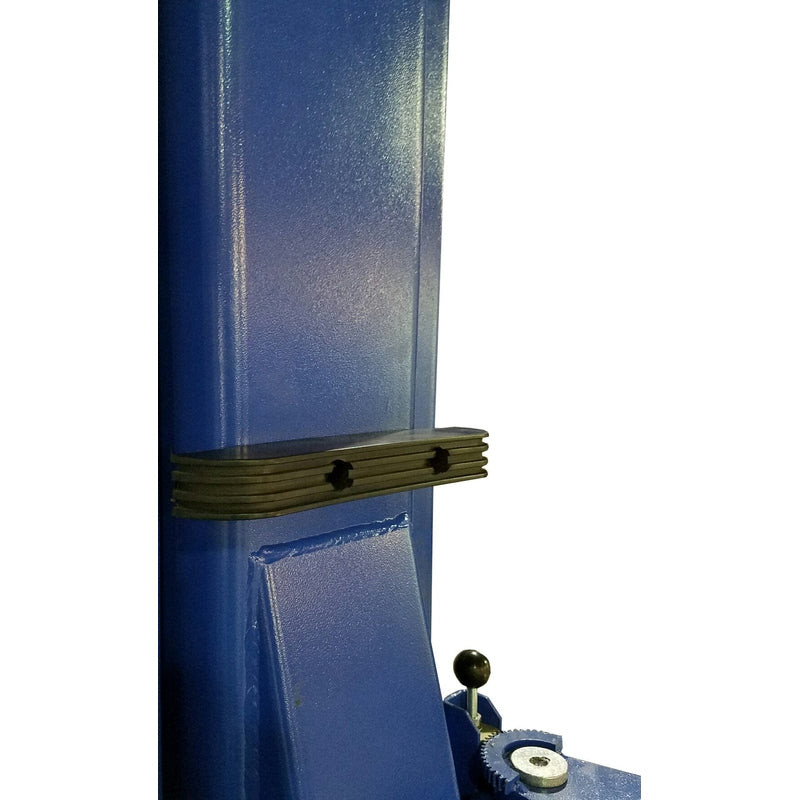

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- auto Arm Restraint System
- Spin Up Lift Pads

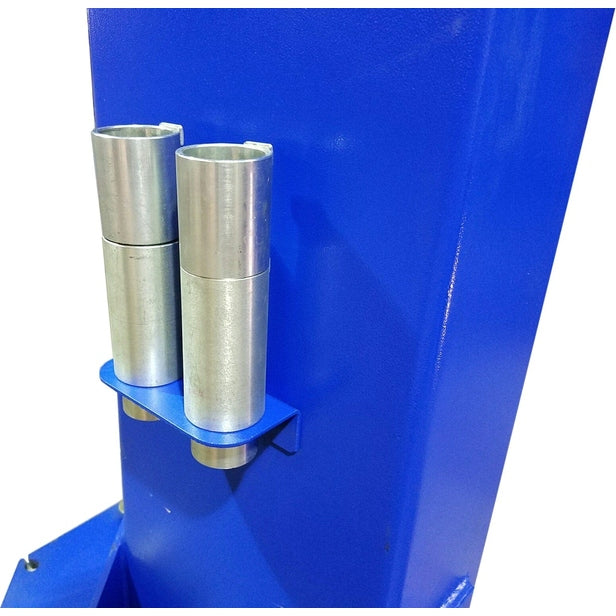

- Stackable Adapters Included
- Internal Hose routing
Specifications

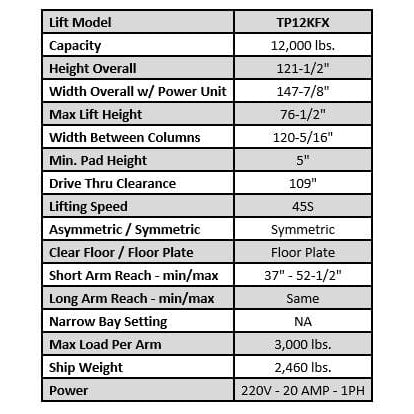

-Lift Model | TP12KFX |
Capacity | 12,000 lbs. |

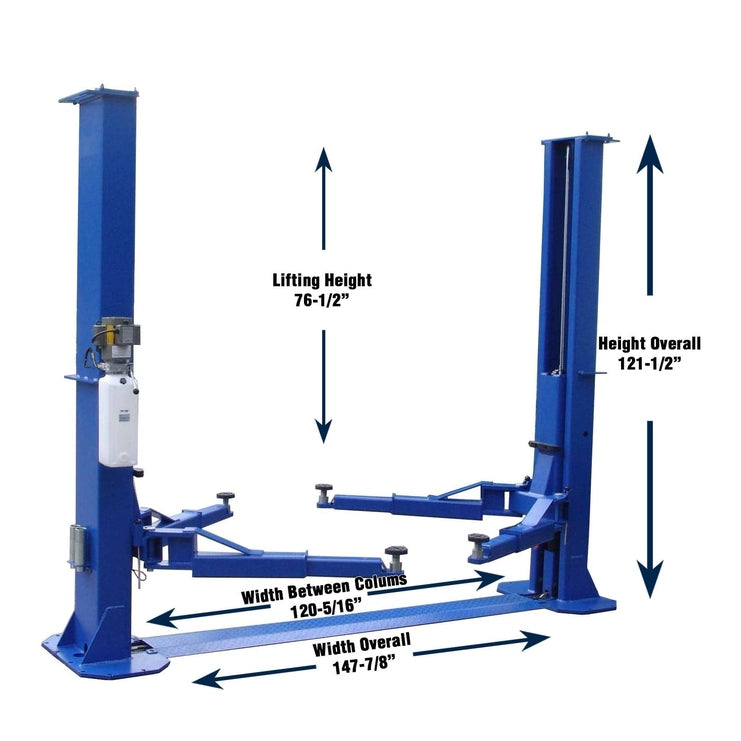

Height Overall | 121-1/2" |
Width Overall w/ Power Unit | 147-7/8" |
Max Lift Height | 76-1/2" |
Width Between Columns | 120-5/16" |
Min. Pad Height | 5" |
Drive Thru Clearance | 109" |
Lifting Speed | 45S |
Asymmetric / Symmetric | Symmetric |
Clear Floor / Floor Plate | Floor Plate |
Short Arm Reach min/max | 37" 52-1/2" |
Long Arm Reach min/max | Same |
Narrow Bay Setting | NA |
Max Load Per Arm | 3,000 lbs. |
Ship Weight | 2,460 lbs |

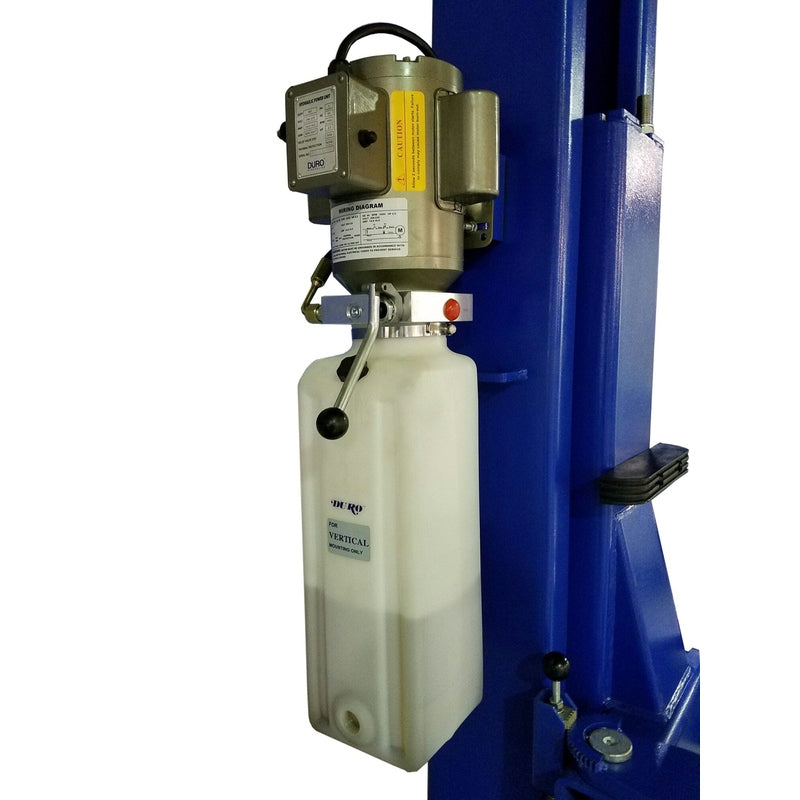

Power | 220V 20 AMP 1 PH |
