Tuxedo TP12KC-D 12,000 lb Two Post Lift -- Direct Drive

SKU TP12KC-D
Original price $5,189.00 - Original price $5,189.00
Original price
$5,189.00
$5,189.00 - $5,189.00
Current price $5,189.00

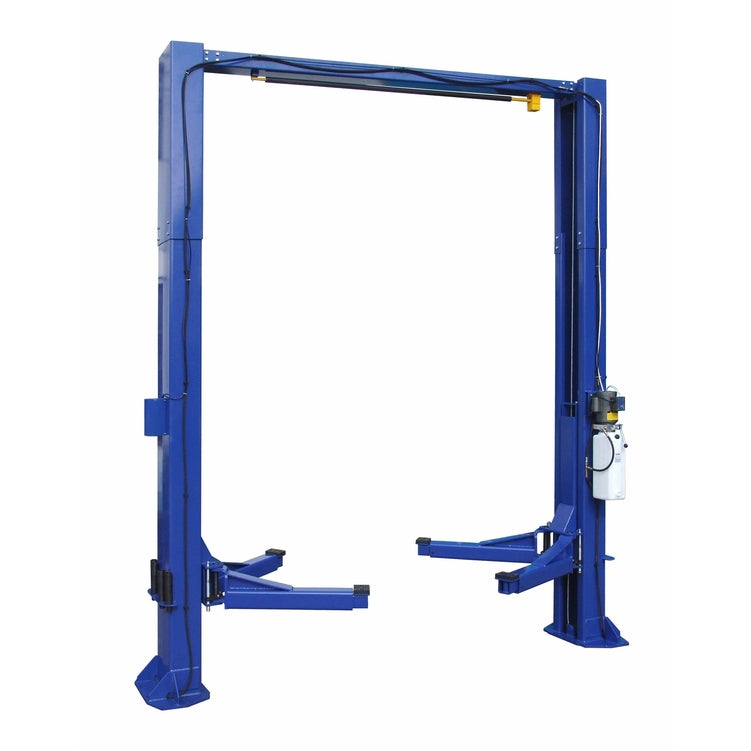

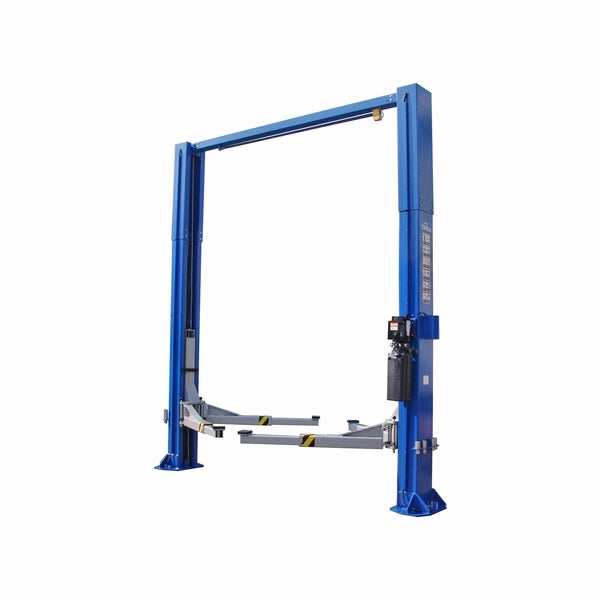

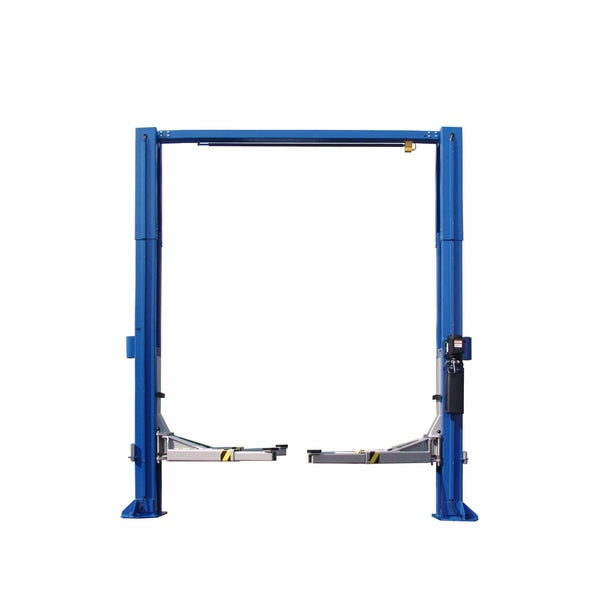

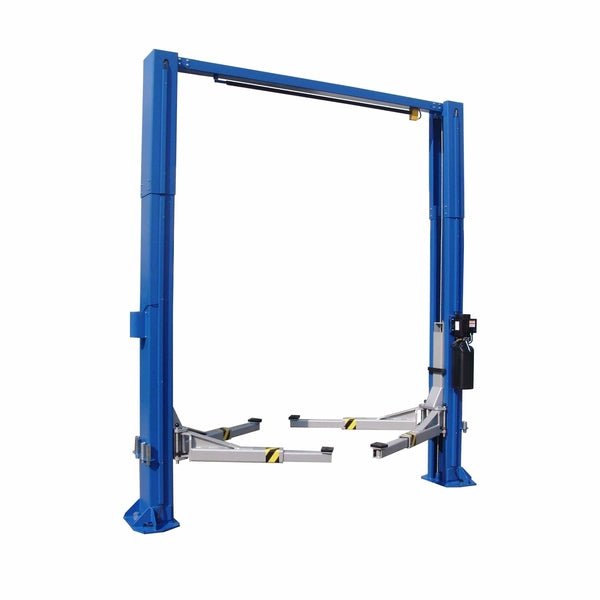

Tuxedo Heavy-Duty 12,000 lb 2 Post Lift

-

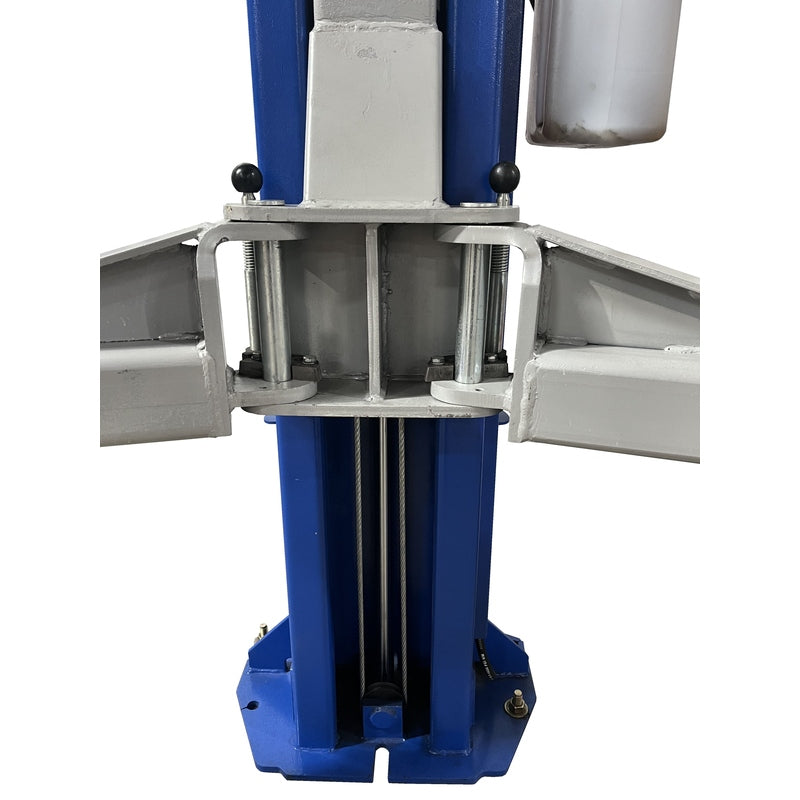

Big. Strong. Dependable. The fully gusseted oversized base plateson the TP12KC-D and the big lifting arms with reinforcedswivel pin holes, promise years of reliable service.

Features

-
  • 12,000 lbs Capacity

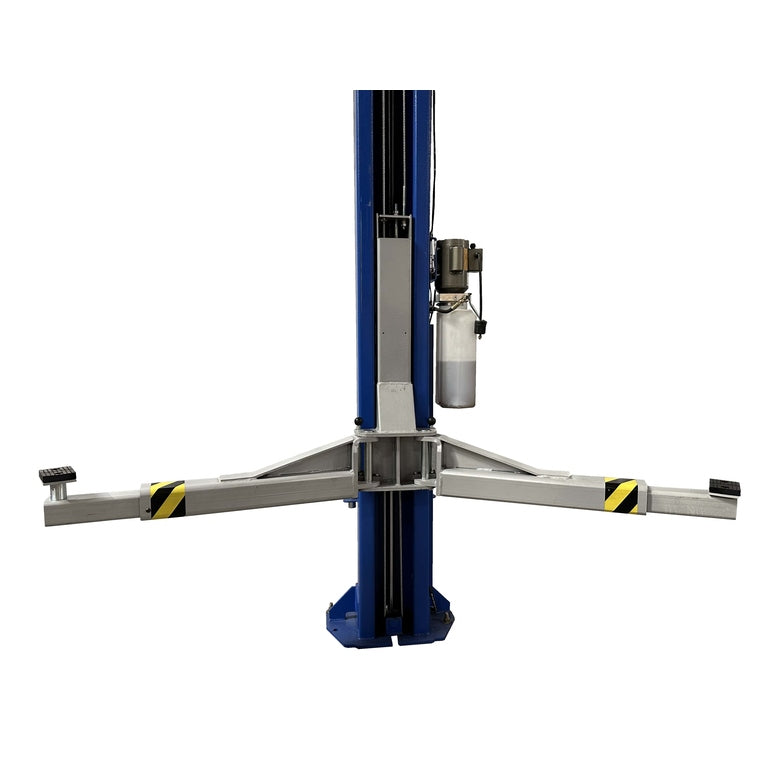

  • Symmetric Arms
  • Rubber Door Guards
  • Direct Drive push Cylinders
  • Single Point pneumatic Lock Release
  • Heavy Duty Arm Restraint System

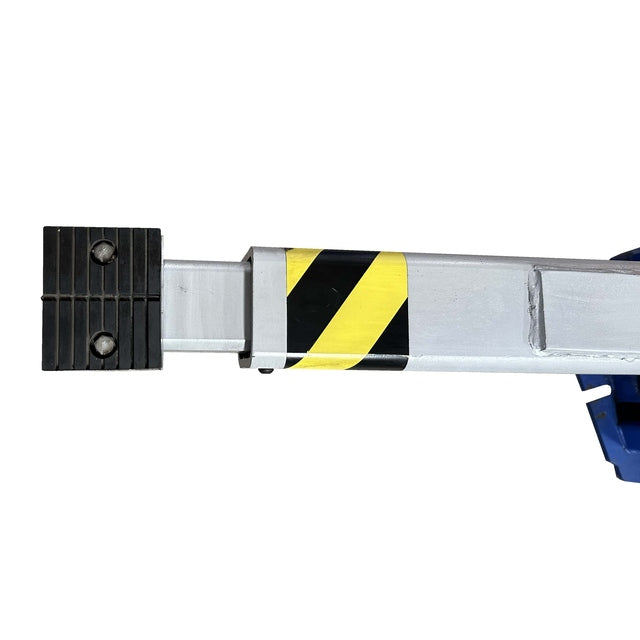

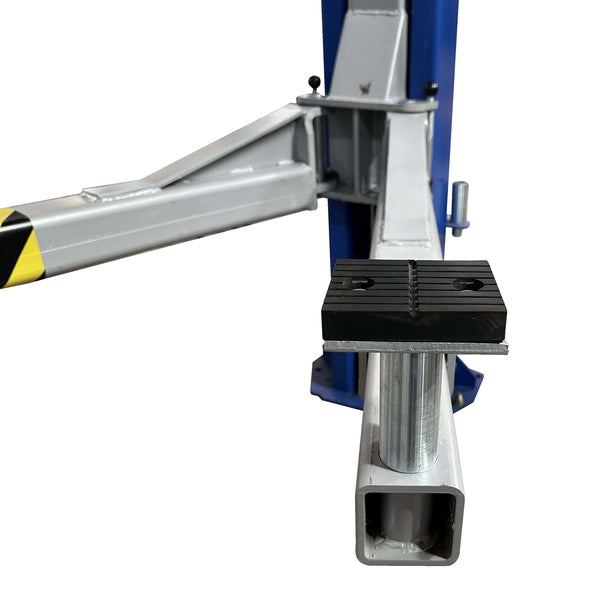

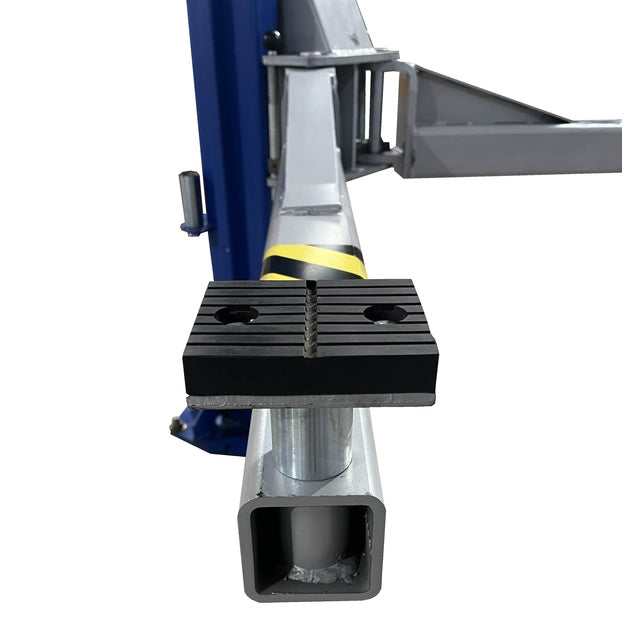

  • Drop-in Lift Pads

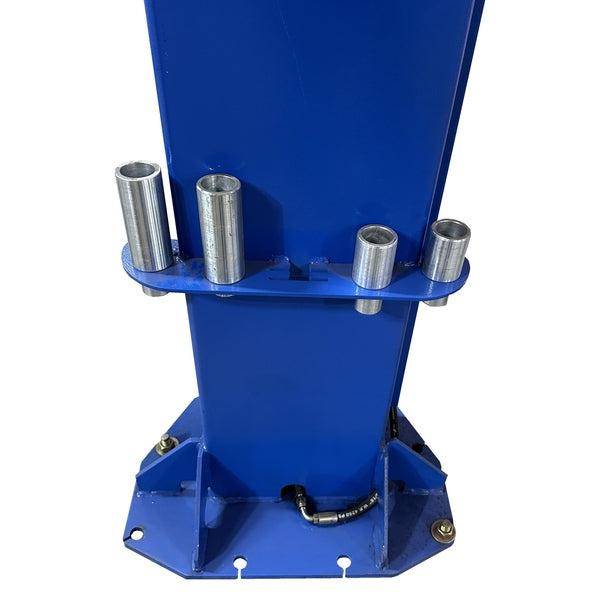

  • Stackable Adapters Included
  • External hose guards

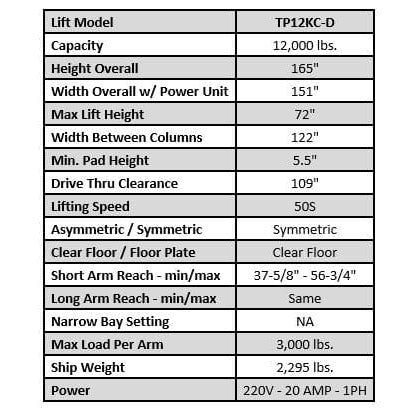

Specifications

-
Lift Model TP12KC-D
Capacity 12,000 lbs.
Height Overall 165"
Width Overall w/ Power Unit 151"
Max Lift Height 72"
Width Between Columns 122"
Min. Pad Height 5.5"
Drive Thru Clearance 109"
Lifting Speed 50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach min/max 37-5/8" 56-3/4"
Long Arm Reach min/max Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs.
Ship Weight 2,295 lbs
Power 220V 20 AMP 1 PH
