Name: iDEAL TP10KAC-DX 10,000 lb Two Post Clear Floor --Direct Drive - Bi-Symmetric - 3 Stage - Single Point ALI Certified W/PU
Brand: iDEAL
SKU: TP10KAC-DX
Price: 5000.0 USD
Availability: InStock

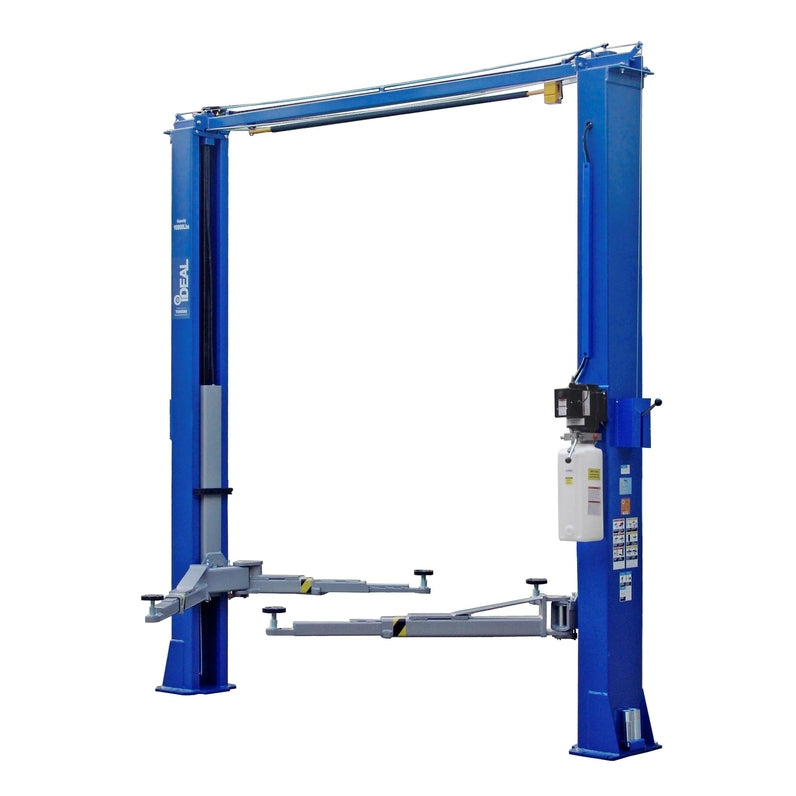

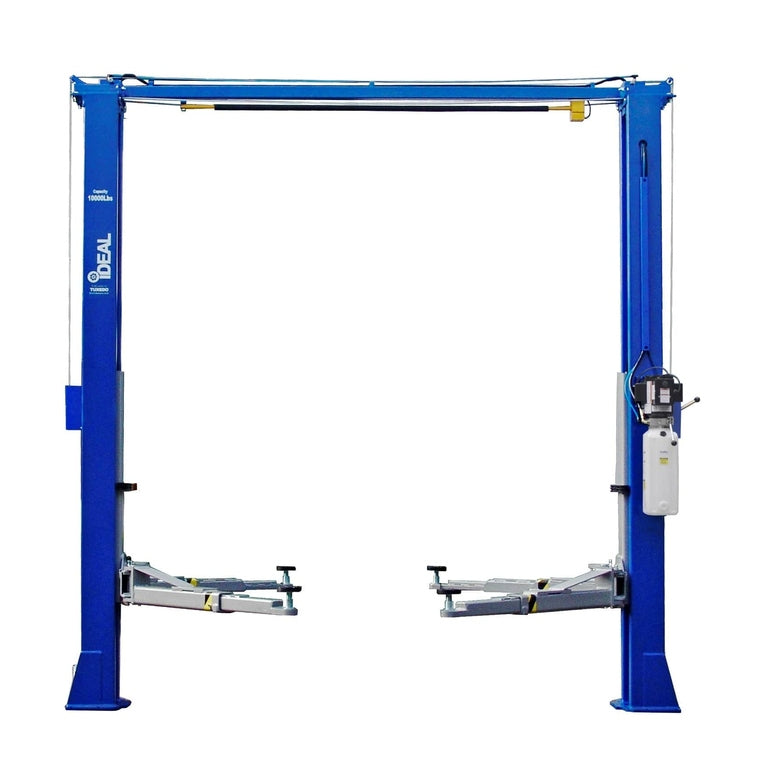

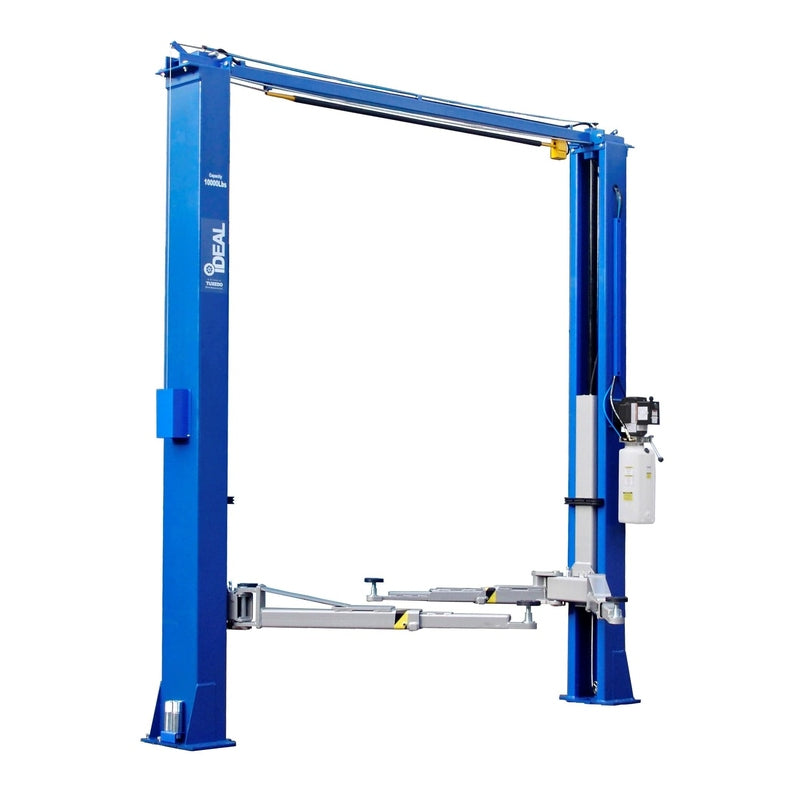

iDEAL TP10KAC-DX ALI Certified 2 Post Lift

The iDEAL TP10KAC-DX 10,000 lbs. ALI Certified two post car lift is a premium Bi-Symmetric design clear floor vehicle lift. Offset three stage short arms and a low pad height of 4 make this lift perfect for a wide range of vehicles. Our rigid single piece column and direct pull cylinder combined with single point lock release and clean design make this lift one of our most popular models.

Features

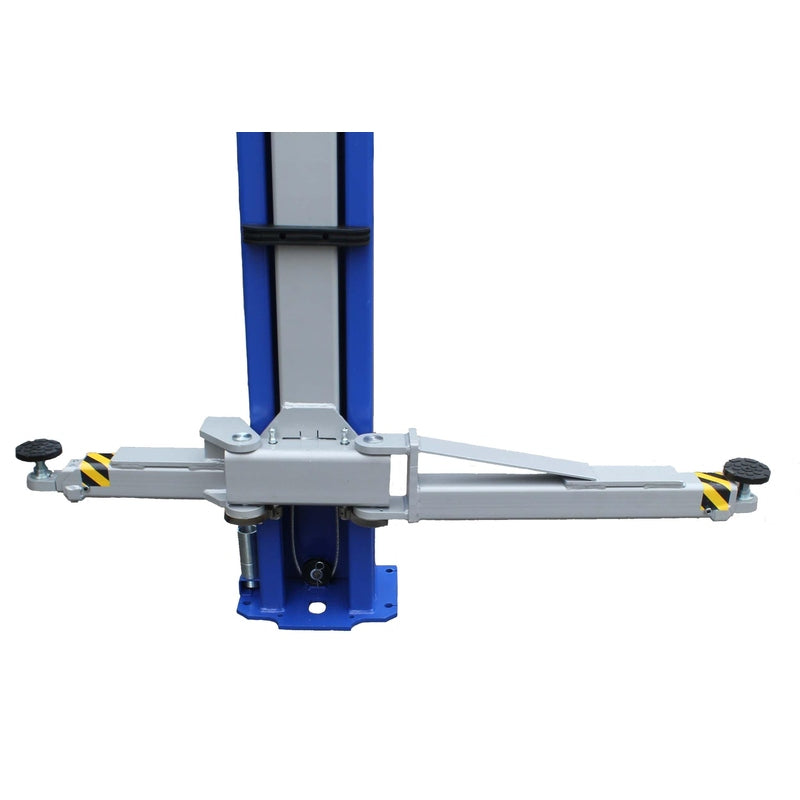

Bi-Symmetric Arm Design

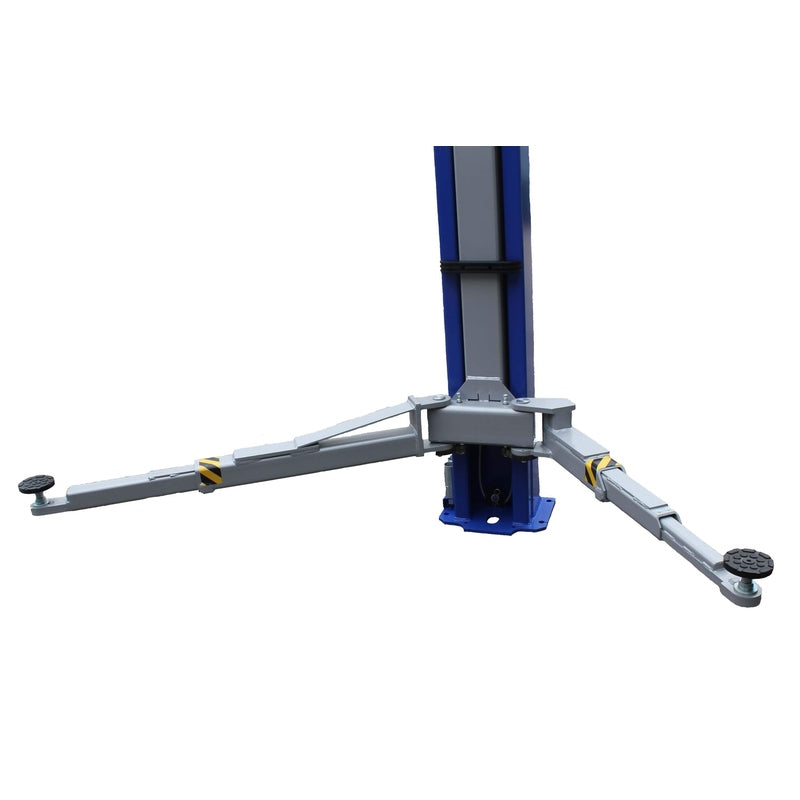

Offset Three Stage Short Arm
Low Profile Lifting Arms
Adjustable Spin Up Pads
Single Point Lock Release
Rigid Single Piece Column
Direct Pull Hydraulic Cylinder

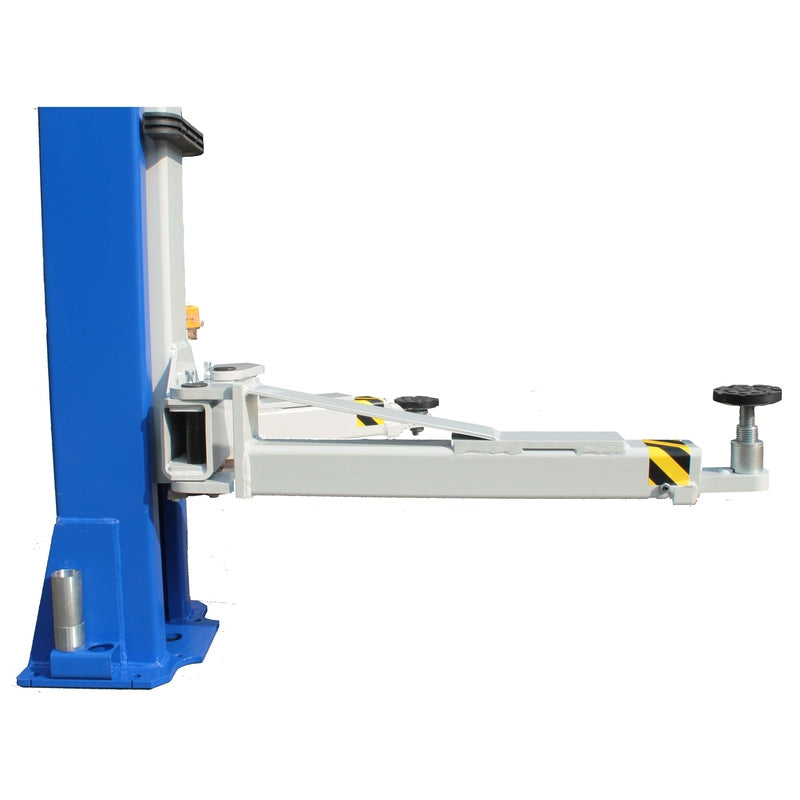

Rubber Door Guards
Padded Overhead Shutoff
Truck Adapters Included

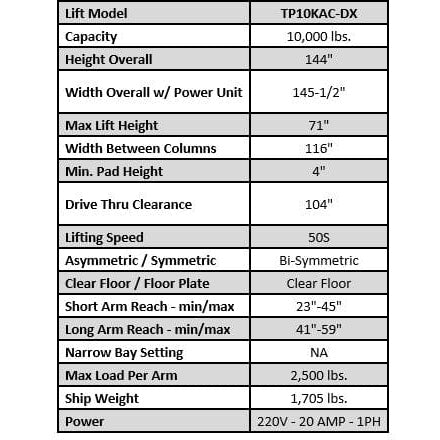

Specifications

Capacity	10,000 lbs.

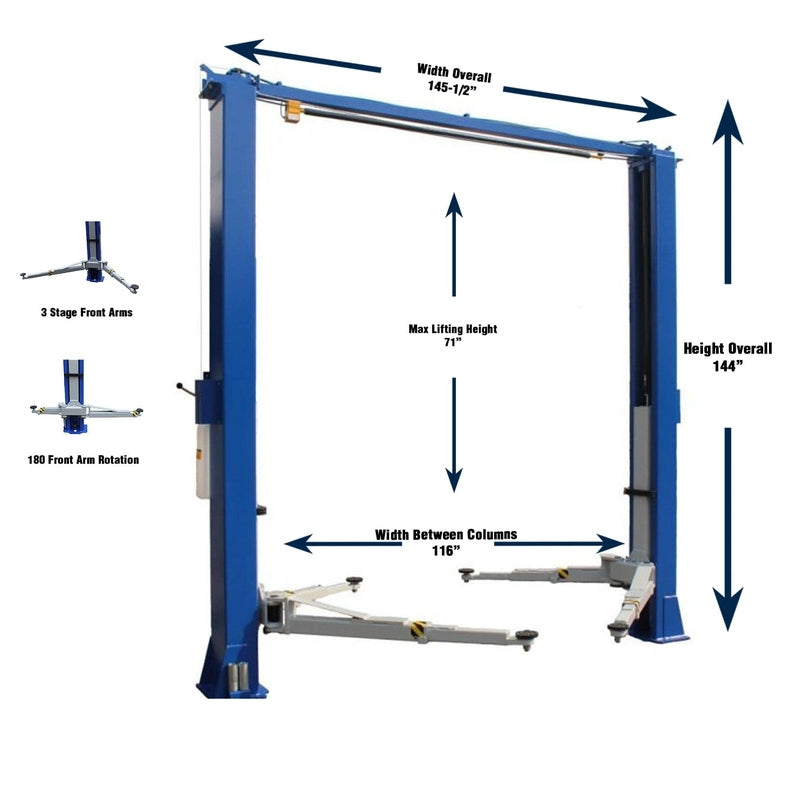

Overall Width	137 3/16"
Overall Width w/Power Unit	145 1/2"
Overall Height	144"
Minimum Ceiling Height	12'
Low Pad Height	4"
Max. Lift Height	71"
Max. Lift Height w/Tallest Adapter	76 1/2"
Width Between Columns	116"
Drive Thru Width	104"
Floor to Overhead Shutoff	136"

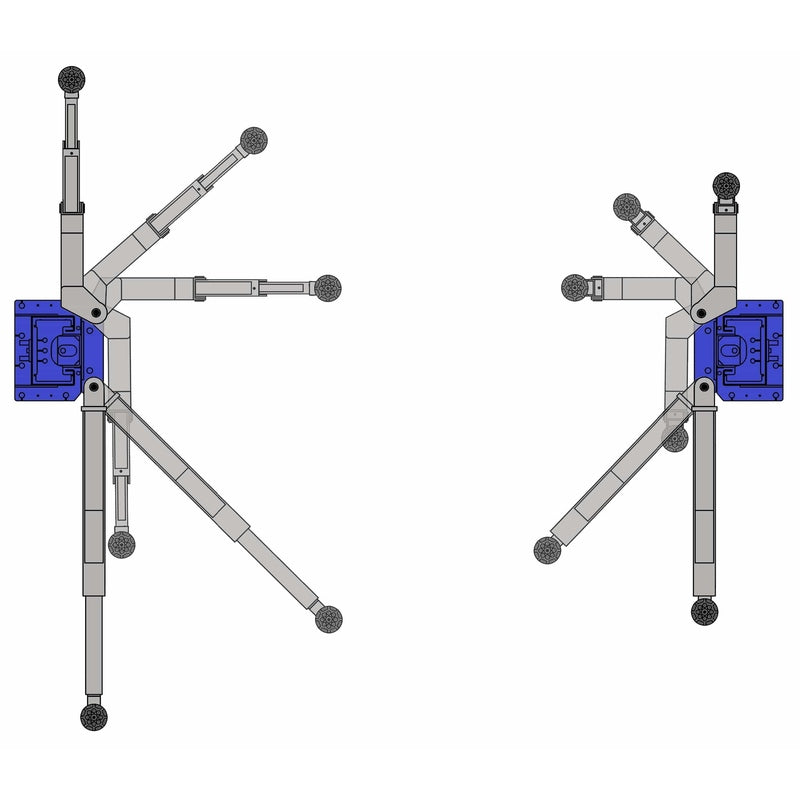

Arm Reach Front	23" 45"
Arm Reach Rear	41" 57"
Maximum Load Per Arm	2,500 lbs
Electric Power Unit	220VAC, 20 Amp, 1 Phase
Rise Speed	50 Seconds
Minimum Concrete	4 1/4" / 3000PSI
Operating Pressure	3,050 PSI
Shipping Weight	1,705 lbs.
Shipping Dimensions	140" L X 19" W X 40" T

Manual

iDEAL TP10KAC-DX ALI Certified Two Post Overhead Automotive Lift Manual

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
