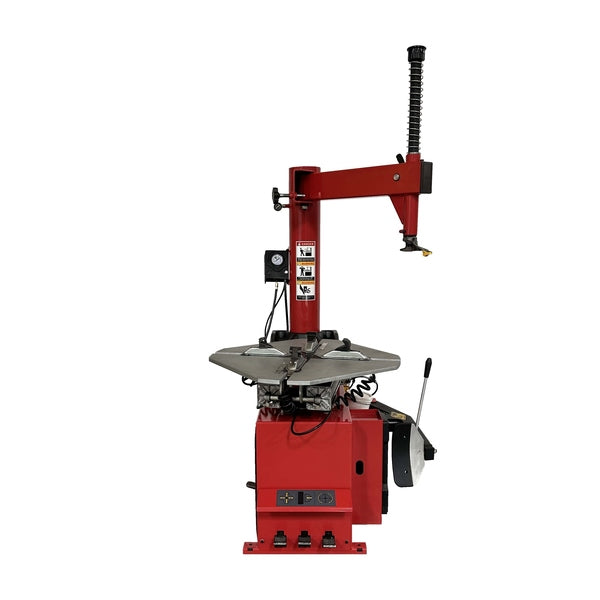

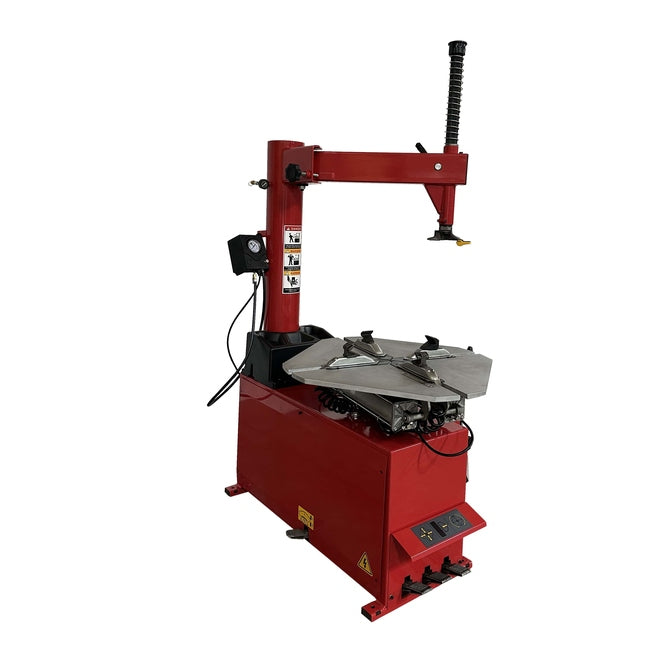

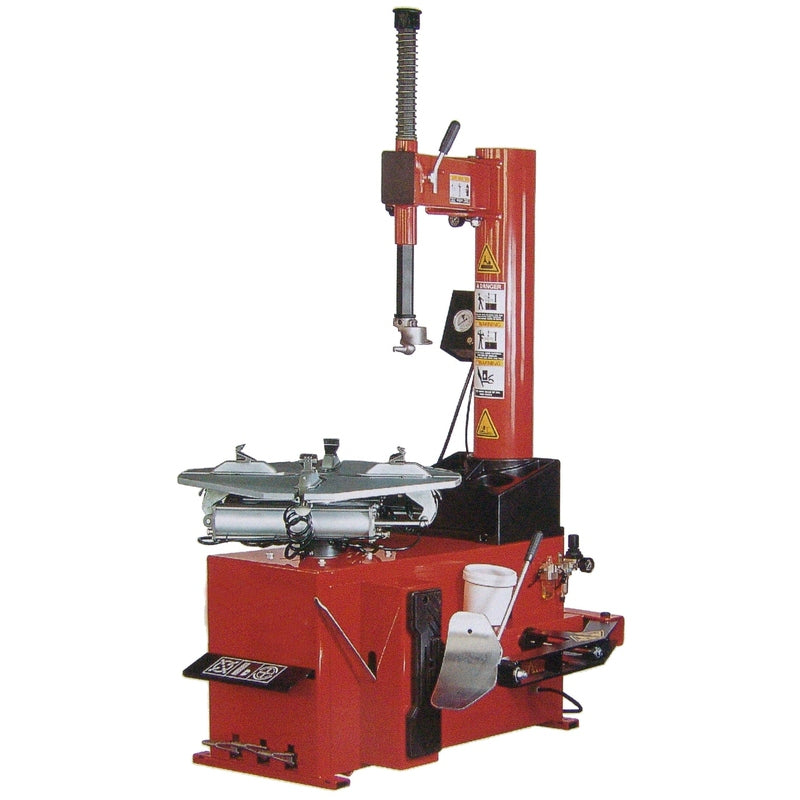

Tuxedo TC-950 Tire Changer

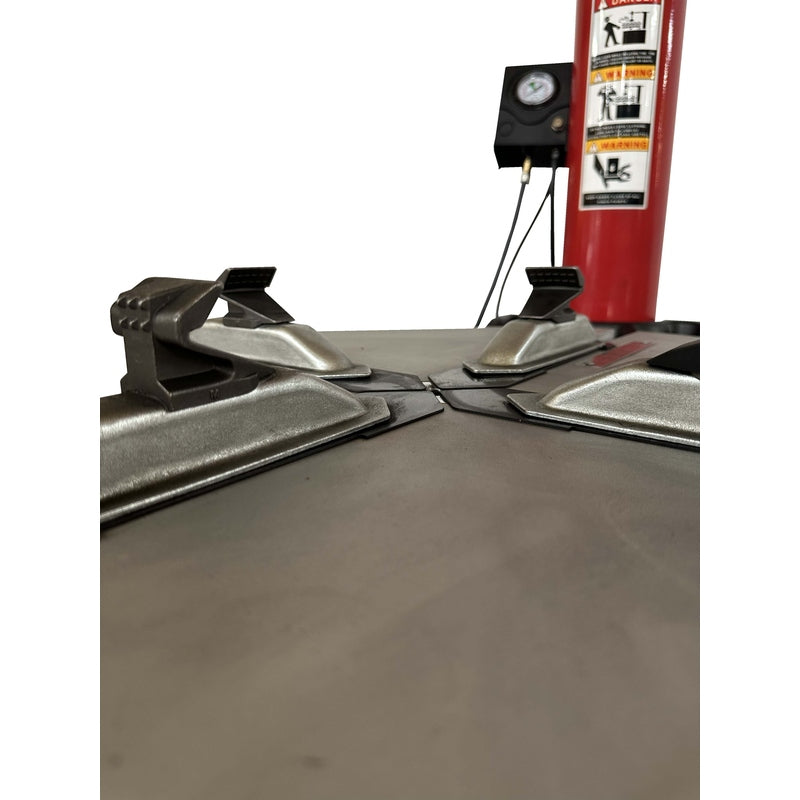

-This model has powerto spare and a 26 x 26square turntable that canhandle wheel diametersup to 47 with ease.
Features

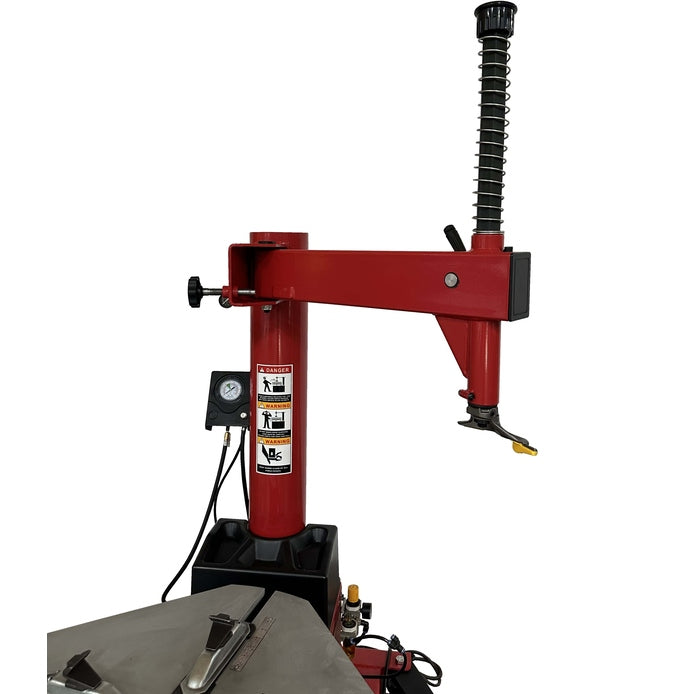

-- Swing arm design
- Handles tires to 47 diameter and rim widths to 15

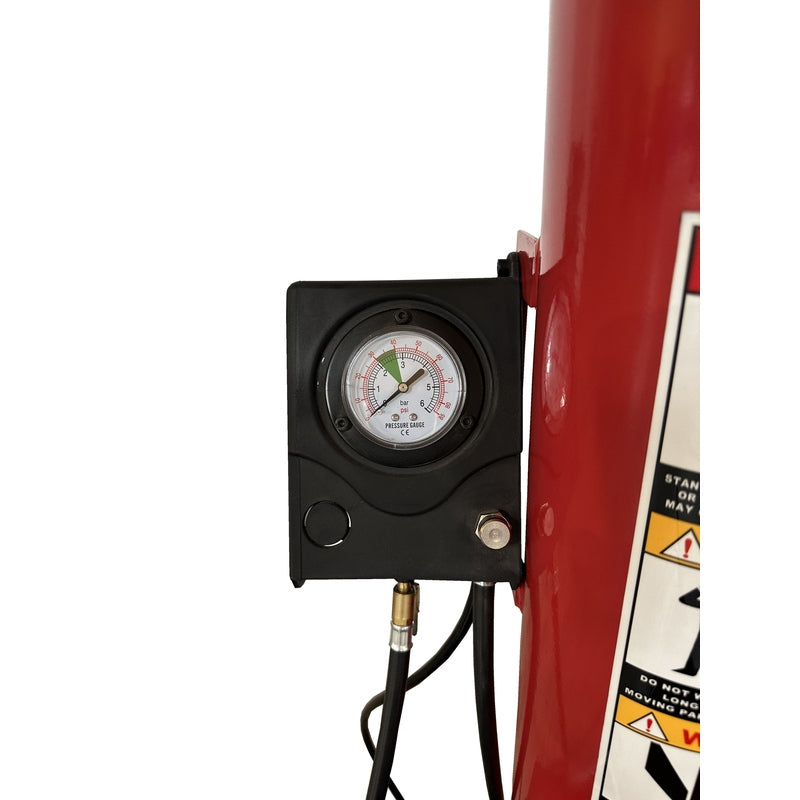

- Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation

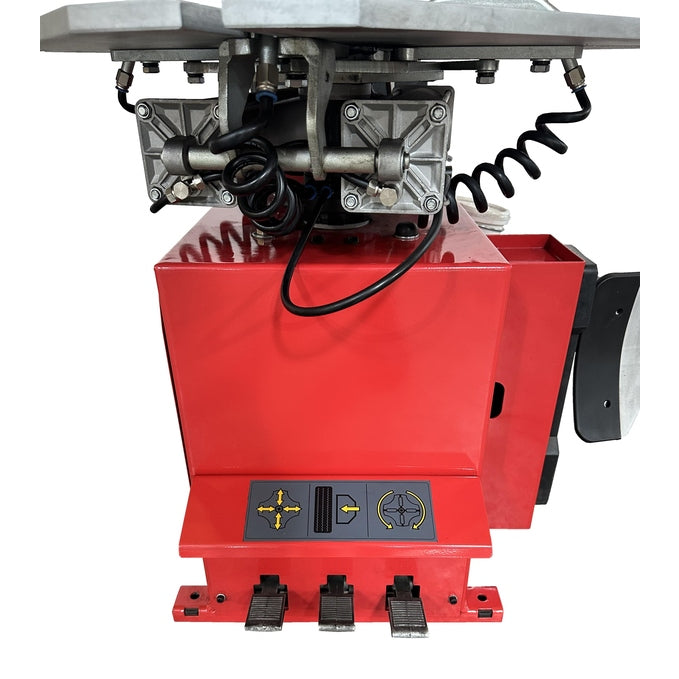

- Twin clamping cylinders provide more power to hold the most difficult rims

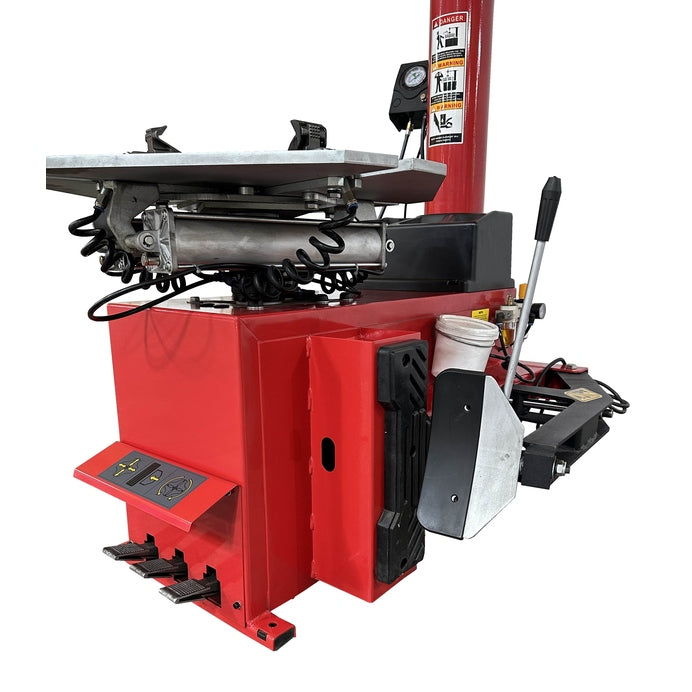

- Conveniently located and powerful bead breaker
- No scratching. The machine never contacts the rim eliminating accidental damage

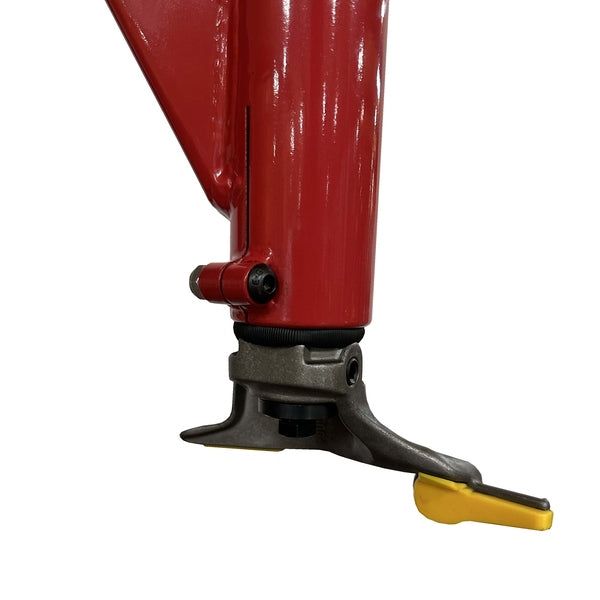

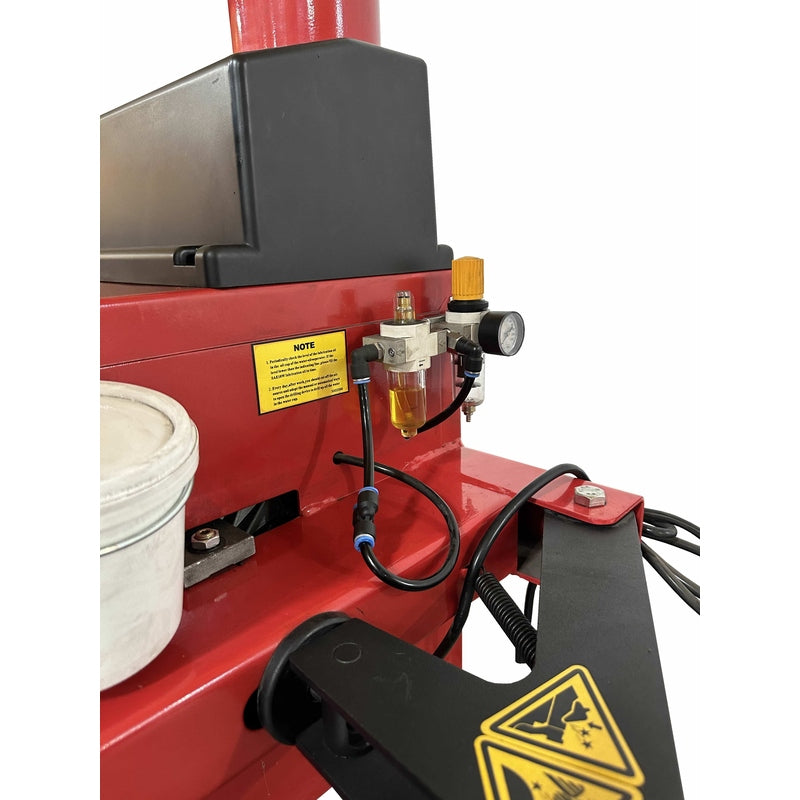

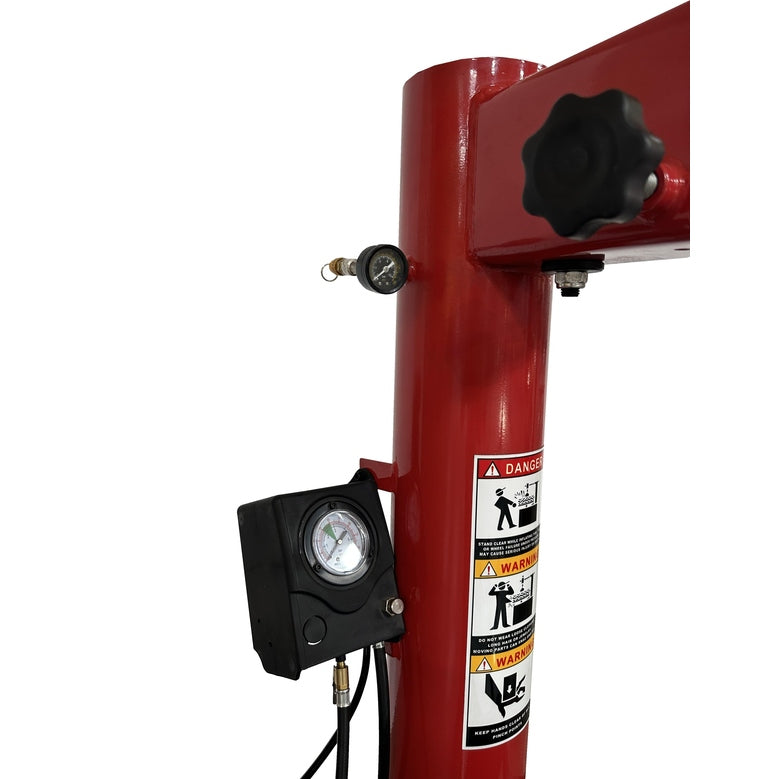

- Large diameter hex mount / demount shaft for extra rigidityPressure limiter, water separator, and oiler are standard
Specifications
-Tire Changer Model | TC-950 |
Max Wheel Diameter | 47 |
Wheel Width | 3 15 |
Inside Rim Clamp Range | 15 28 |
Outside Rim Clamp Range | 13 24 |
Power | 110V 15 Amp 1PH |
Working Pressure | 125 psi |
Ship Weight | 640 lbs |
Manual
-Tuxedo TC-950 Tire Changer Manual
