Tuxedo WB-CB66-VE Wheel Balancer

Tuxedo WB-CB66-VE Wheel Balancer

by Tuxedo
SKU WB-CB66-VE
$1,465.00 - $1,465.00
$1,465.00
$1,465.00 - $1,465.00
$1,465.00
Availability:
in stock, leaves warehouse in 24hrs
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat
BLACK FRIDAY: 5% Applied At Checkout
Black Friday is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings while they last.

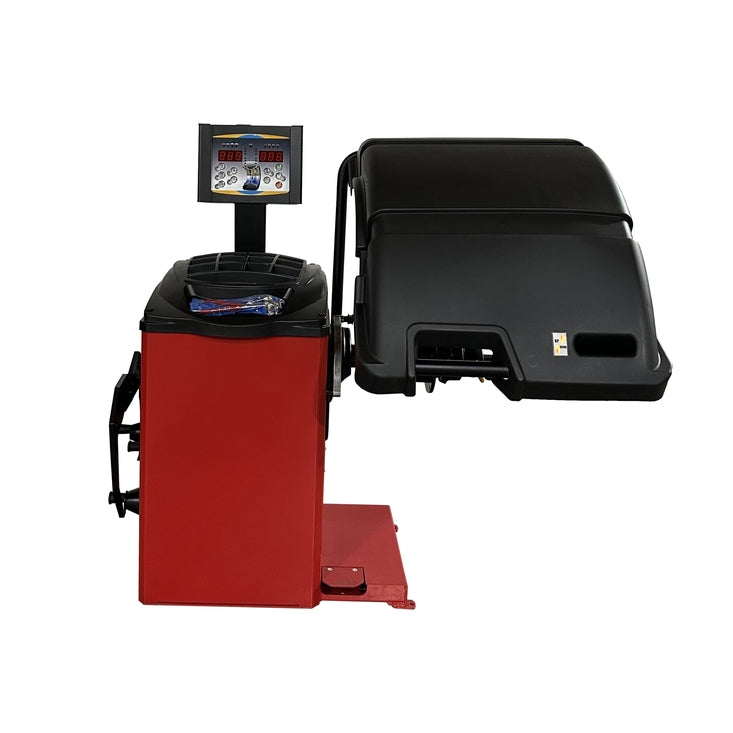

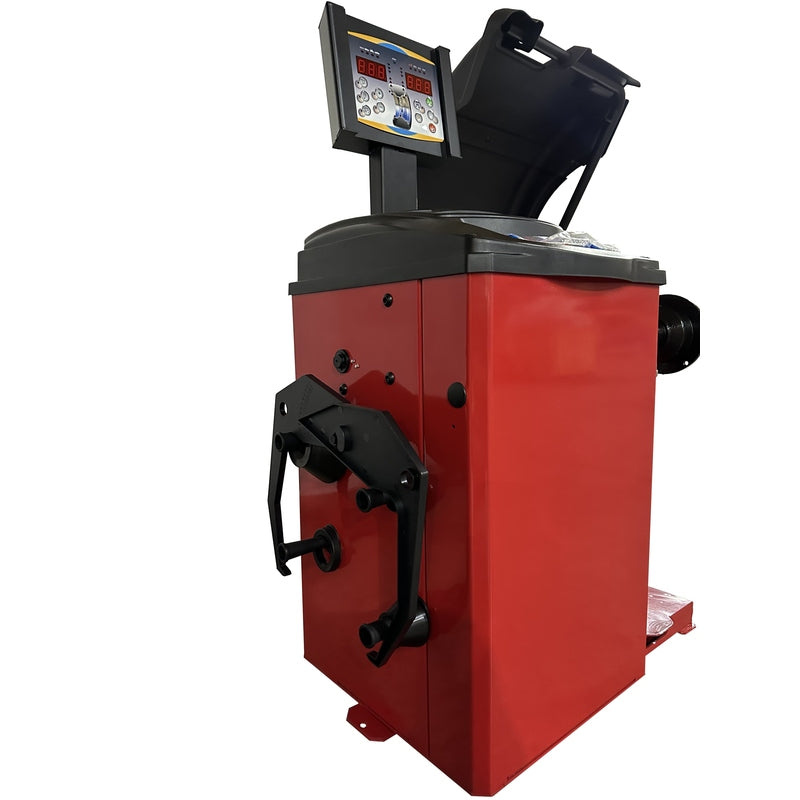

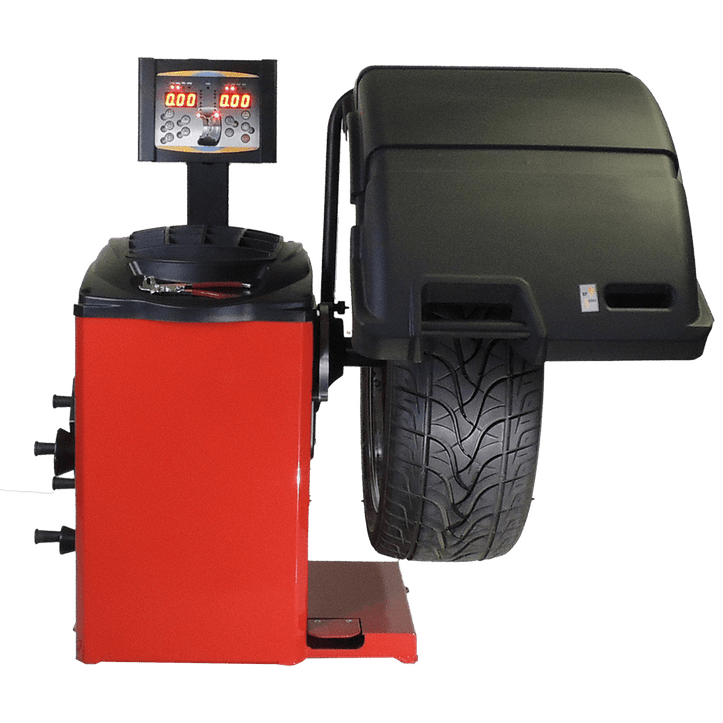

Tuxedo WB-CB66-VE Wheel Balancer

-

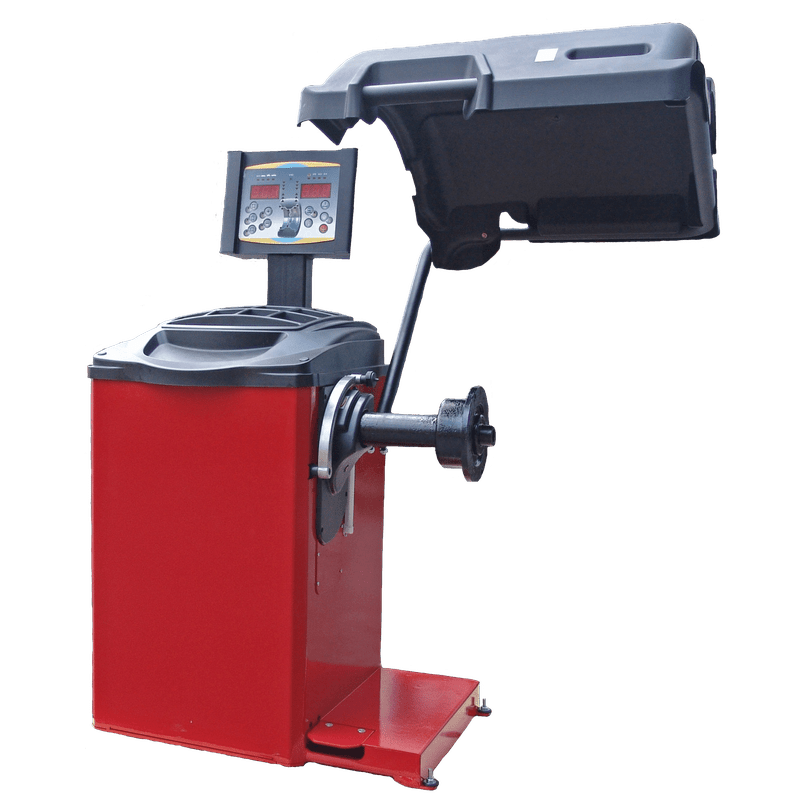

The CB66-VE Wheel Balancer is a highly accurate & reliable wheel balancing system designed to accommodate large rims up to 28" in diameter and overall wheel diameters up to 44". A 40mm Balancing Shaft provides incredible durability. At the same time, the exclusive Laser & Light feature illuminates the inside of the wheel at the unbalanced weight position, for convenient & precise wheel weight applications. The CB66-VE also comes standard with Multi-Mode Balancing options, along with Power Saving Mode, while allowing the user to choose between 5 Standard & 2 ALU Smart balancing configurations. A high-performance balancer at an unbeatable value!

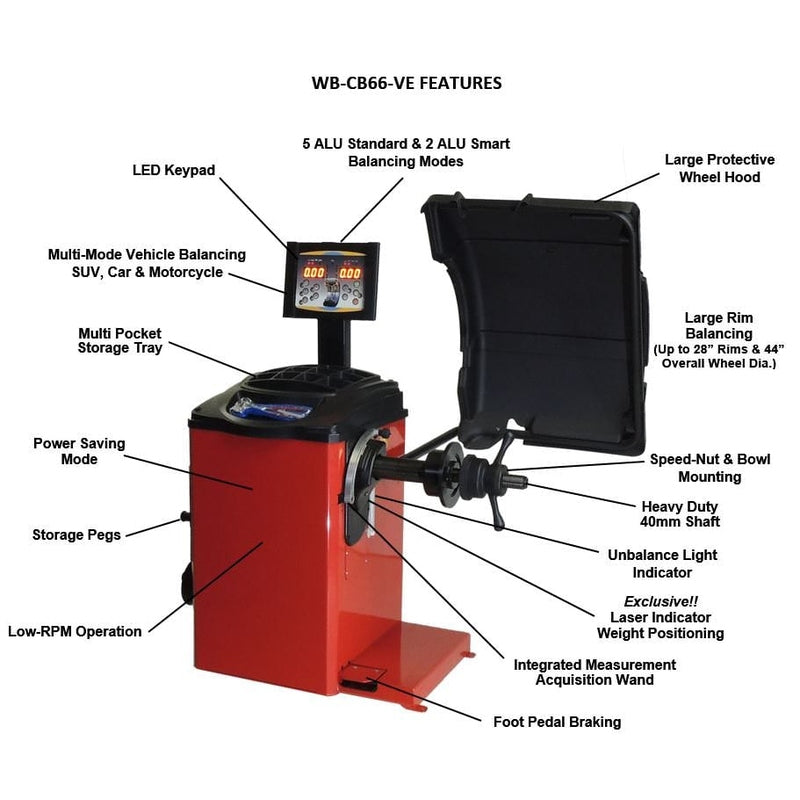

Features

-

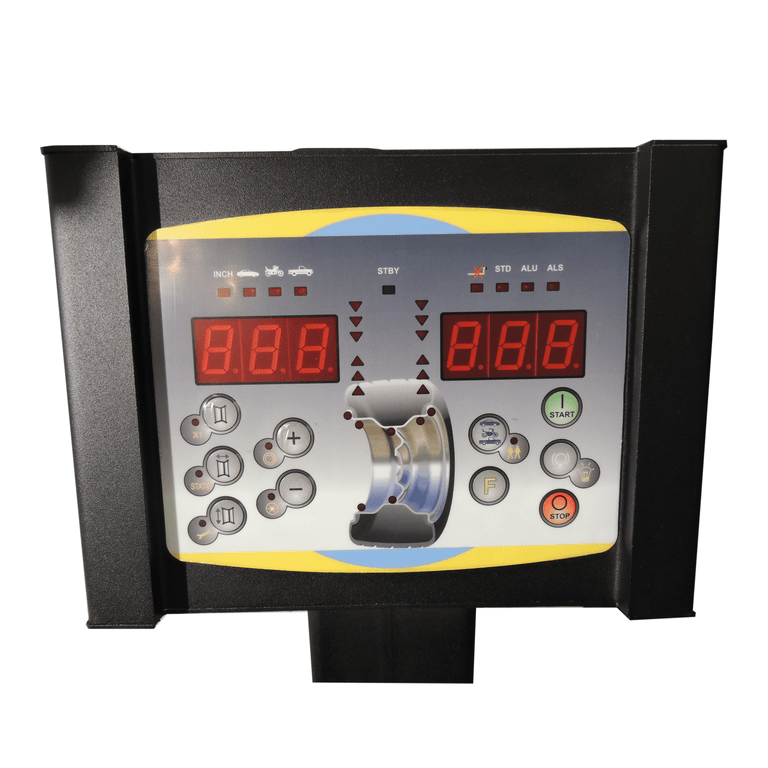

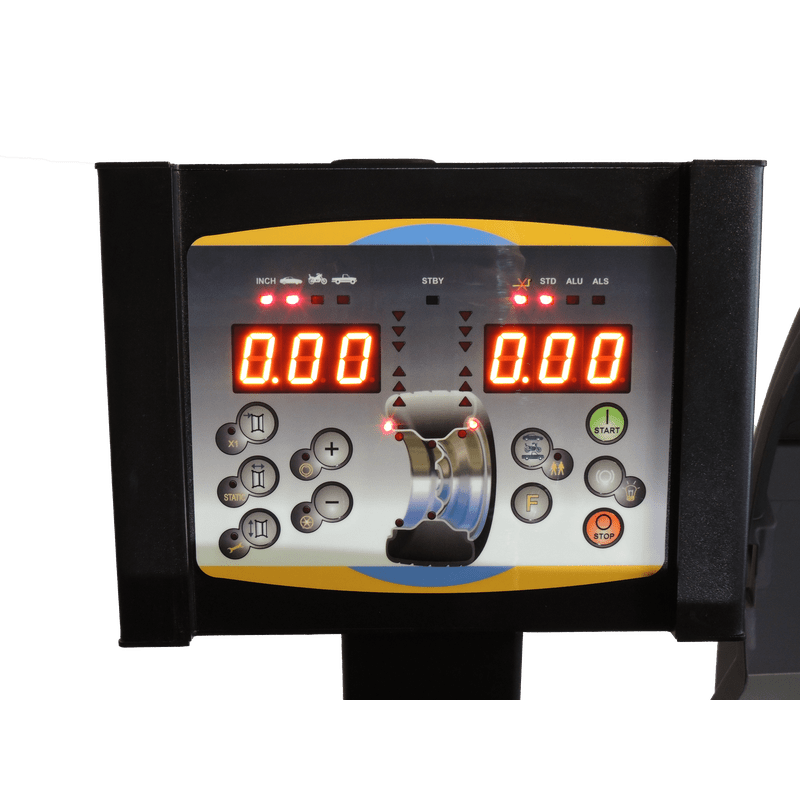

  • 1. User Friendly Operation LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.

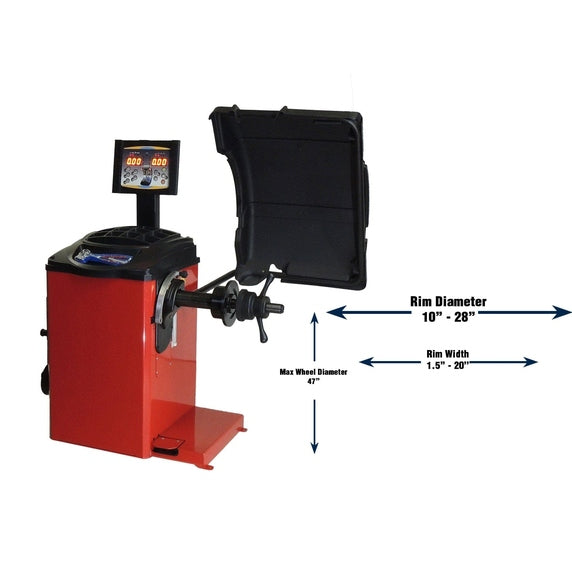

  • Large Rim Diameter Balancing able to balance up to 28 Rim diameter & 44 overall Wheel Diameter.
  • Multi-Mode Vehicle Balancing standard with SUV, Car & Motorcycle balancing modes.
  • Low-RPM Operation at 140 RPM, the balancers life is further extended for sensitive electronics & moving components, all while providing highly accurate wheel balancing.
  • Ease-Of-Use with manual measurement input for distance & diameter with 5 ALU Standard modes and 2 ALU Smart modes.
  • Exclusive Laser Indicator lights up automatically at the unbalance weight position under ALUS mode in the 6 oclock wheel position.
  • Integrated Measurement Acquisition Wand allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
  • Light Indicator illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.

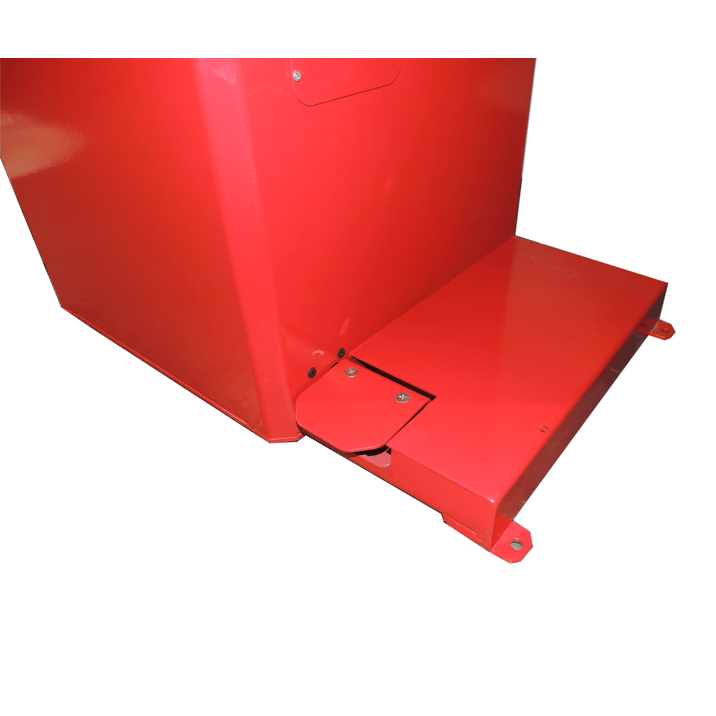

  • Foot Pedal Braking System conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.

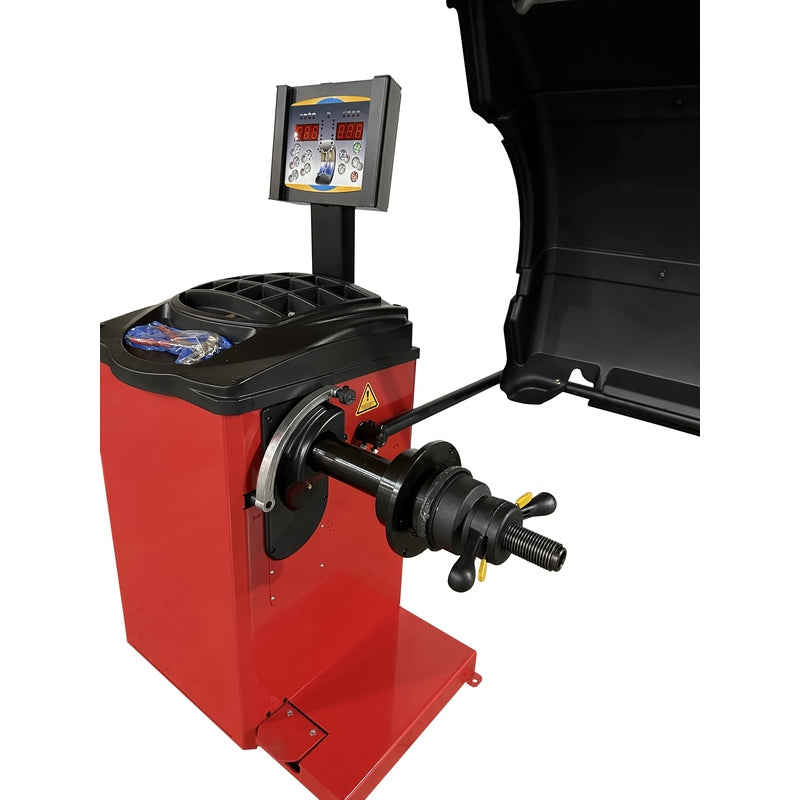

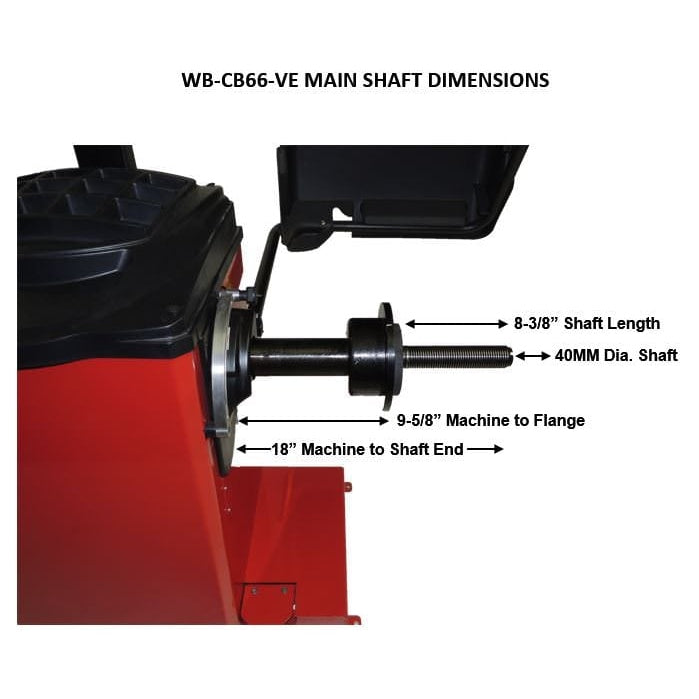

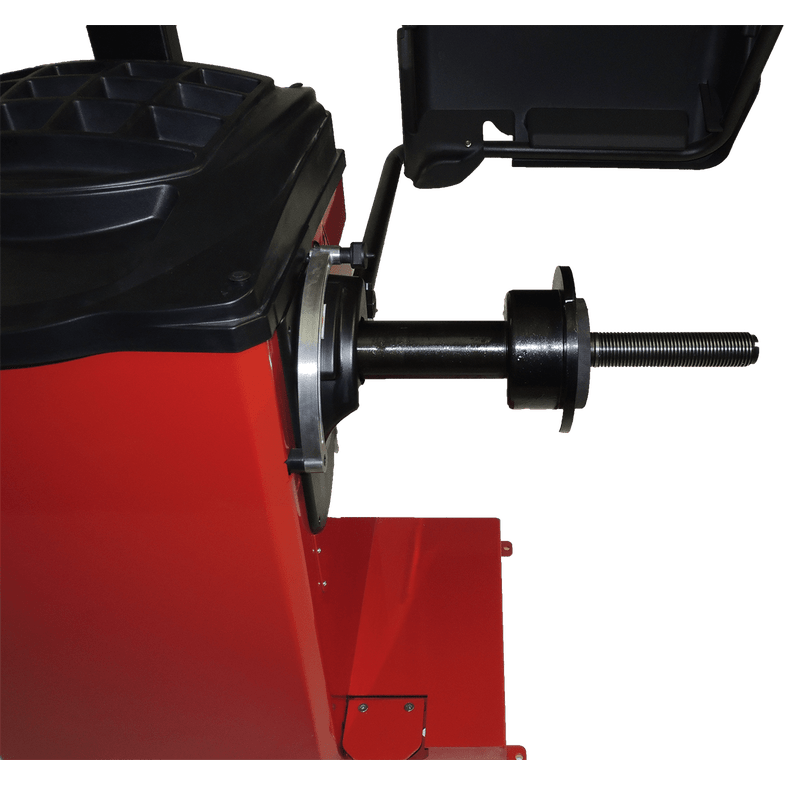

  • Extra Long, Heavy Duty Balancing Shaft the 12" long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes & shapes.

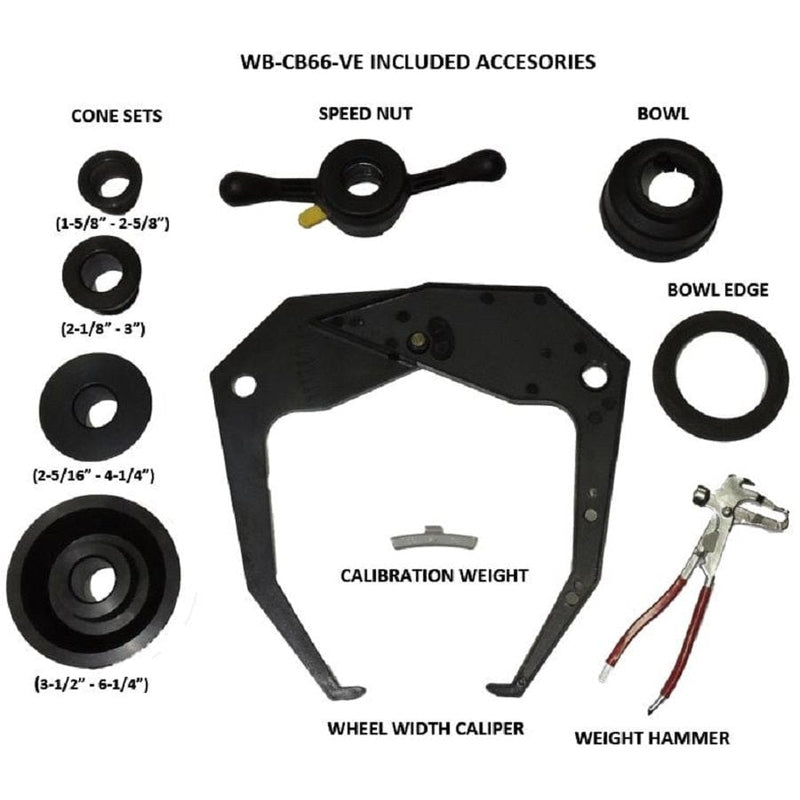

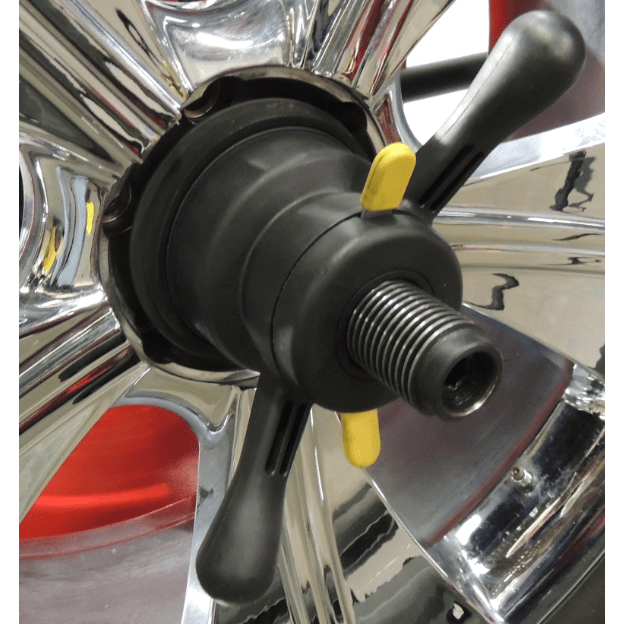

  • Speed-Nut Mounting the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
  • Multi Pocket Wheel Weight Shelf 14 articulated pockets, over 1.5" deep, allowing plenty of storage for weights & tooling.

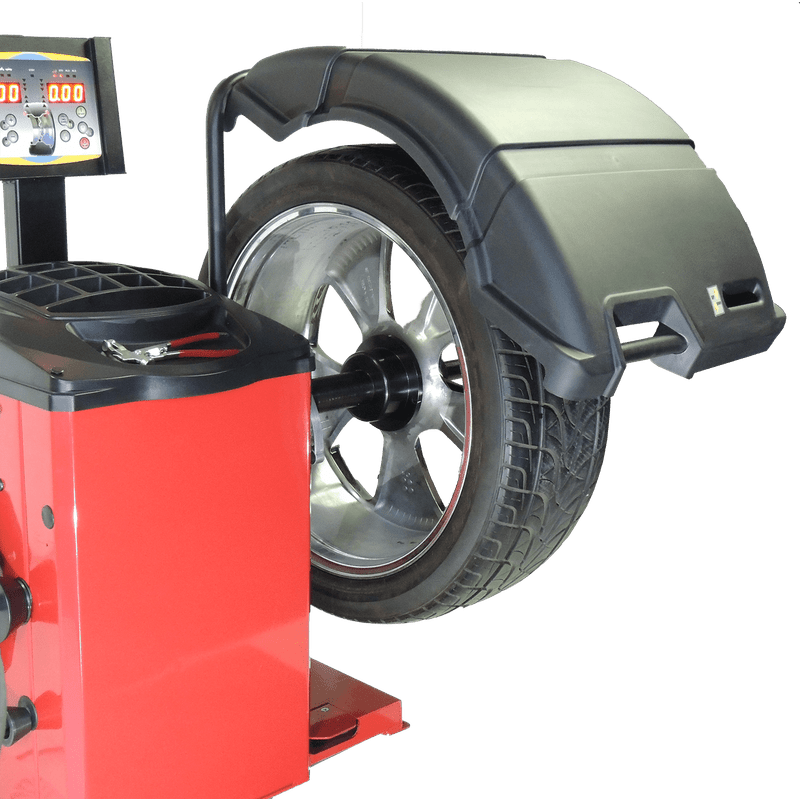

  • Large Wheel Shroud the large 38 wheel hood prevents debris from flying off the tire while in use.
  • Power Saving Mode automatically puts machine in stand-by mode after 5 minutes of non-usage.

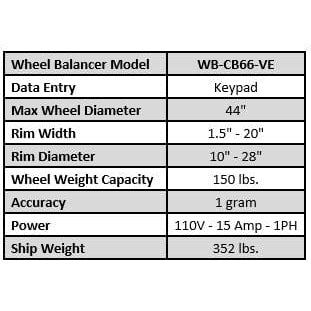

Specifications

-
Wheel Balancer Model WB-CB66-VE
Data Entry Keypad
Max Wheel Diameter 44"
Rim Width 1.5" 20"
Rim Diameter 10" 28"
Wheel Weight Capacity 150 lbs
Accuracy 1 gram
Power 110V 15 Amp 1PH
Ship Weight 352 lbs

Manual

-

Tuxedo WB-CB66-VE Wheel Balancer Manual
