Description

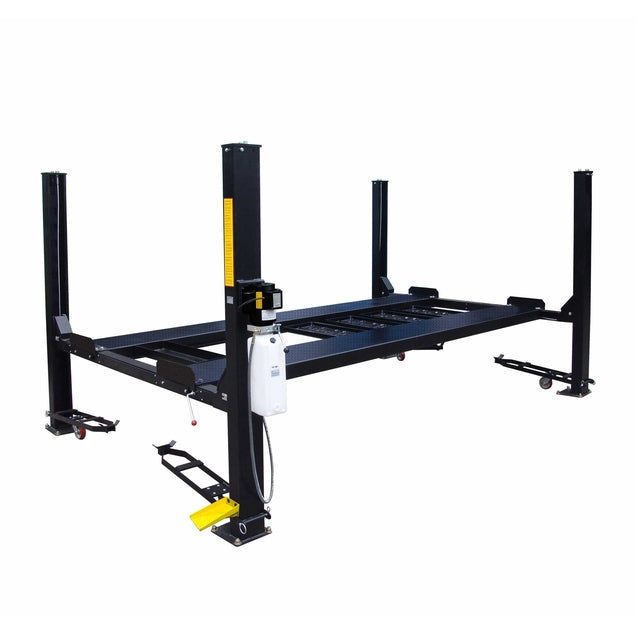

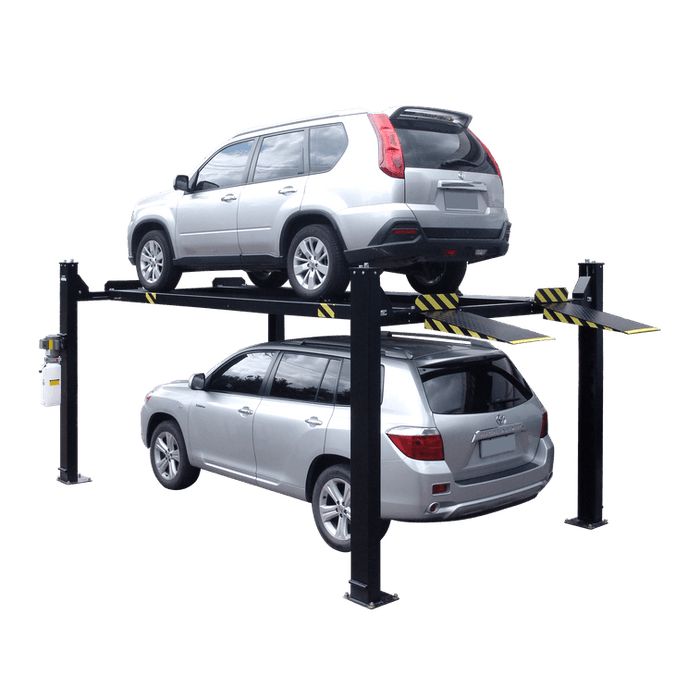

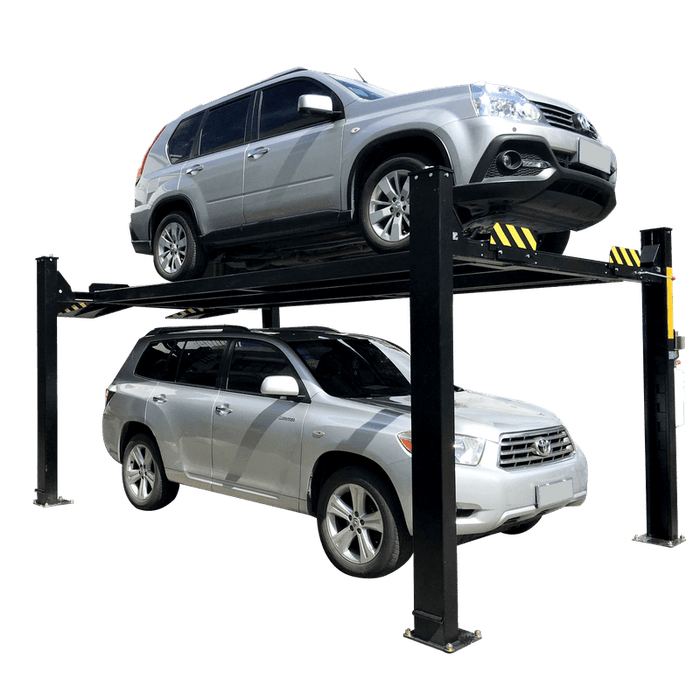

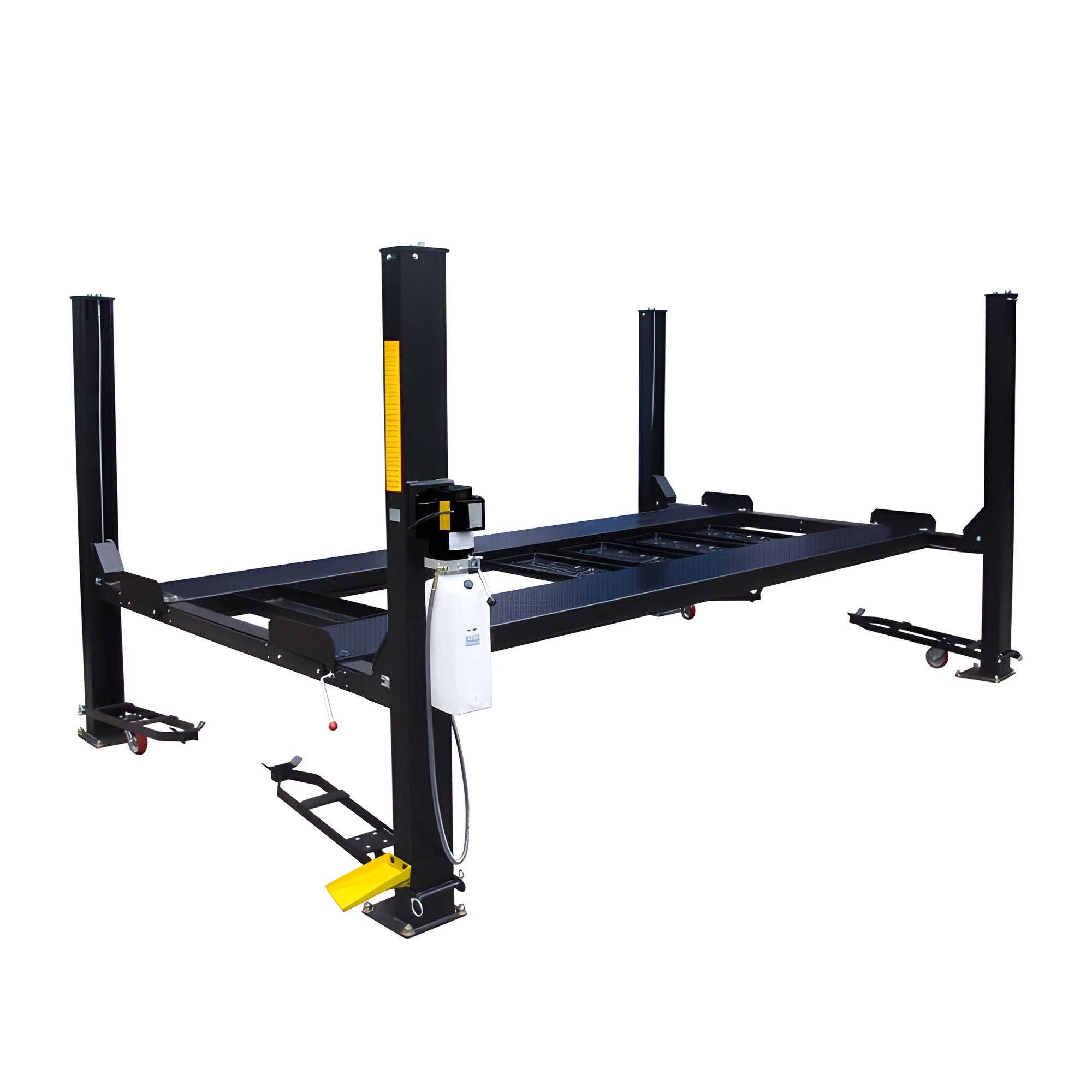

-The FP9K-DX-XLT Four Post Lift is designed and constructed to be a commercial grade lift, with industry leading Runway length & Drive-Thru width, allowing the ability to either Store or Service largevehicles. In addition, the FP9K-DX-XLT comes standard with Poly Casters, Drip Trays & Jack / ToolTray, making it one of the best lift values in the industry!

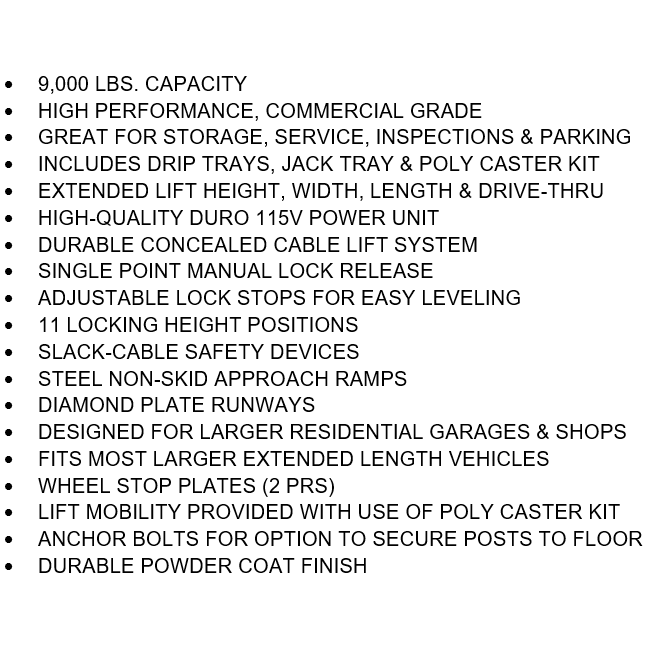

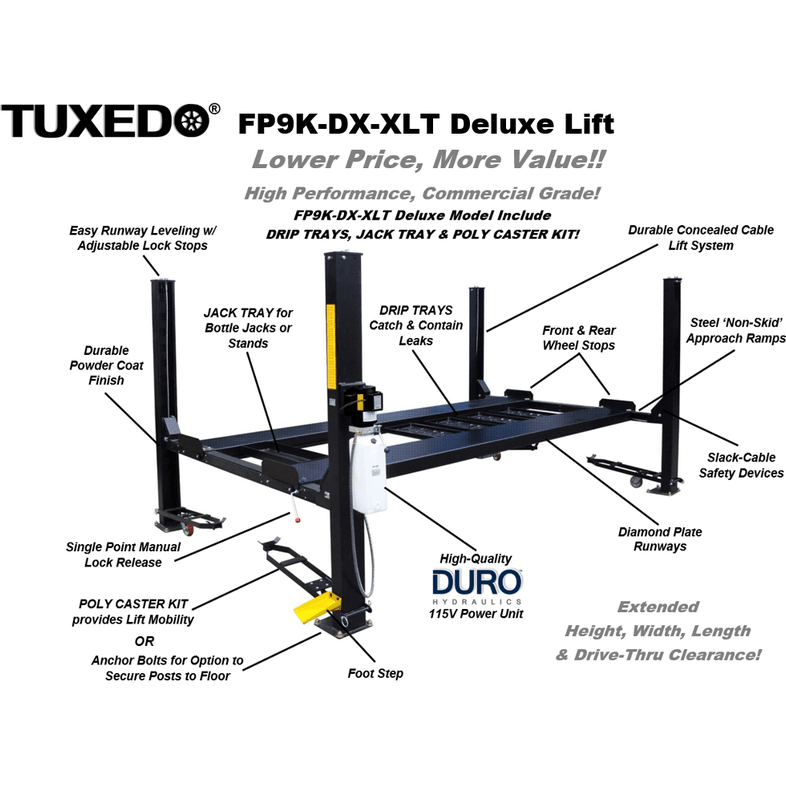

Features
-- Deluxe Storage / Service Lift
- 9,000 Lbs. Capacity
- Extended Runway Length & Drive-Thru Width
- Cable Driven Lift System
- Single Point Manual Lock Release
- Adjustable Locking Positions
- Slack Cable Safety

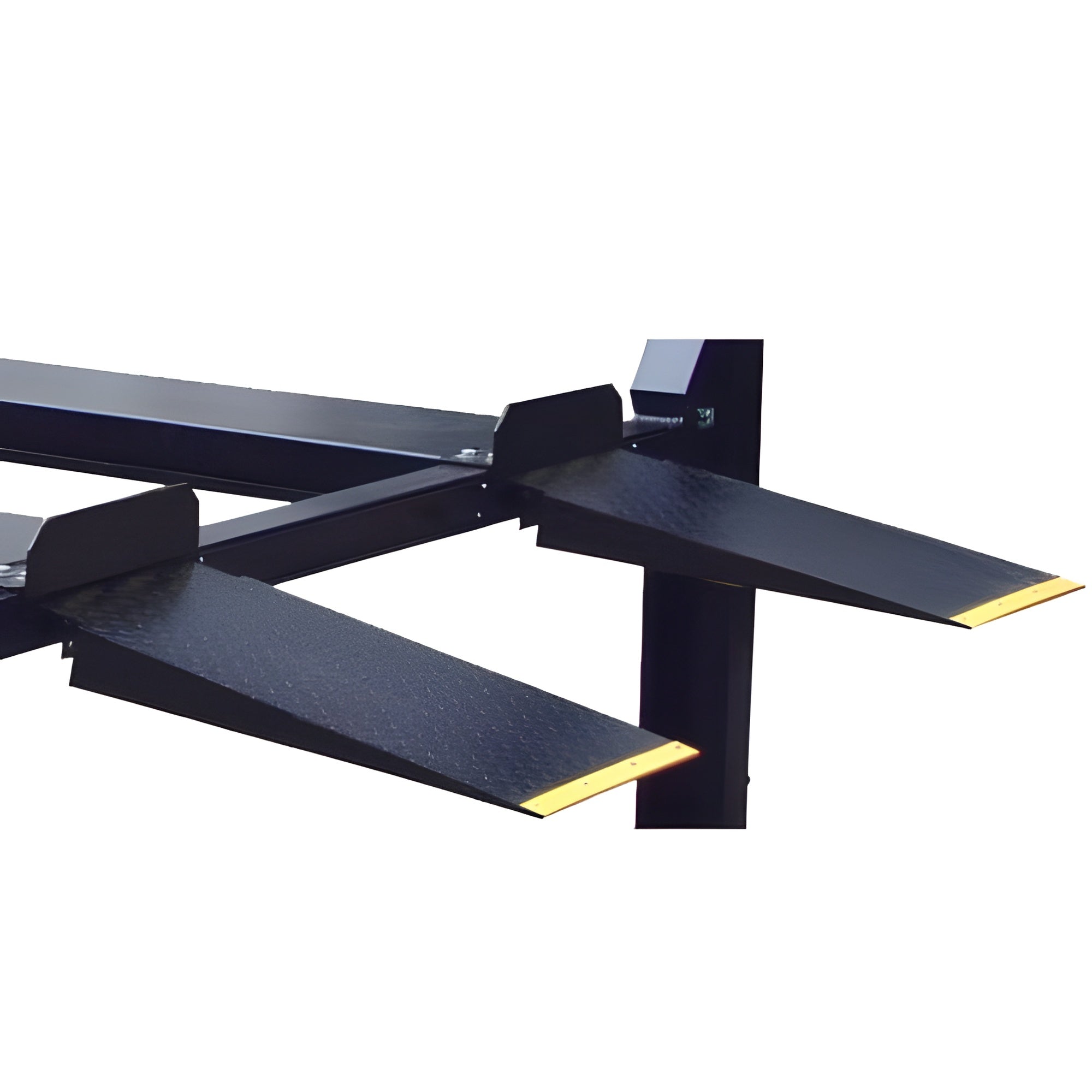

- Steel Approach Ramps
- Great For Storage And/Or General Commercial Service

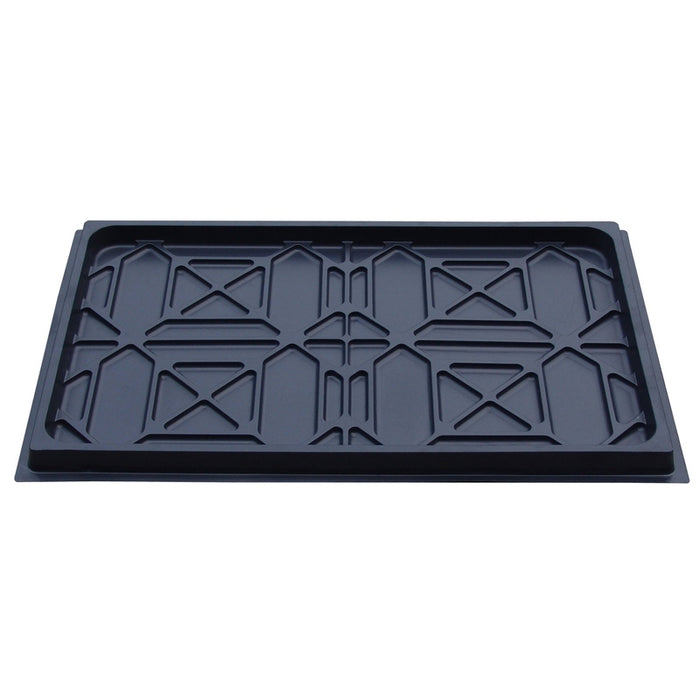

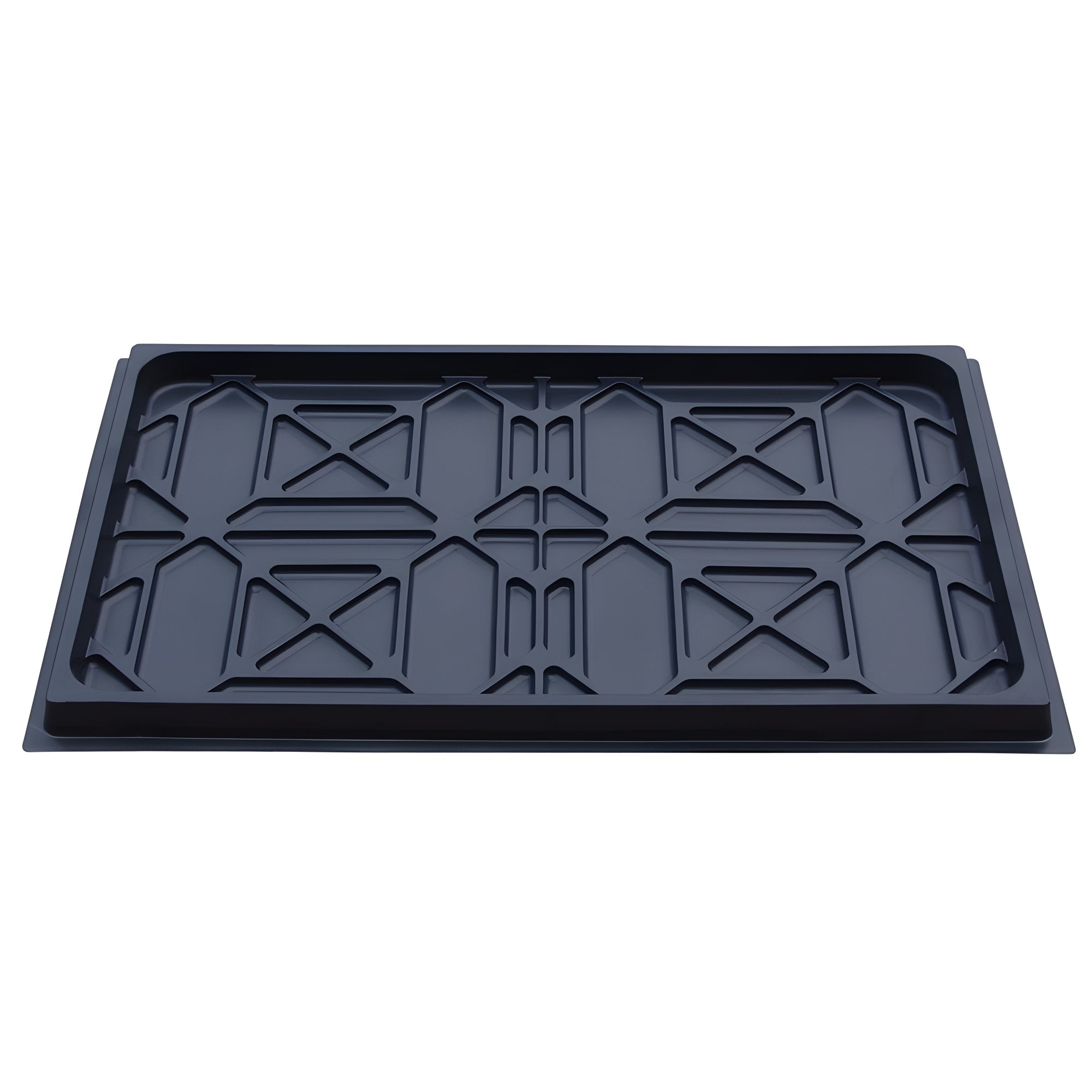

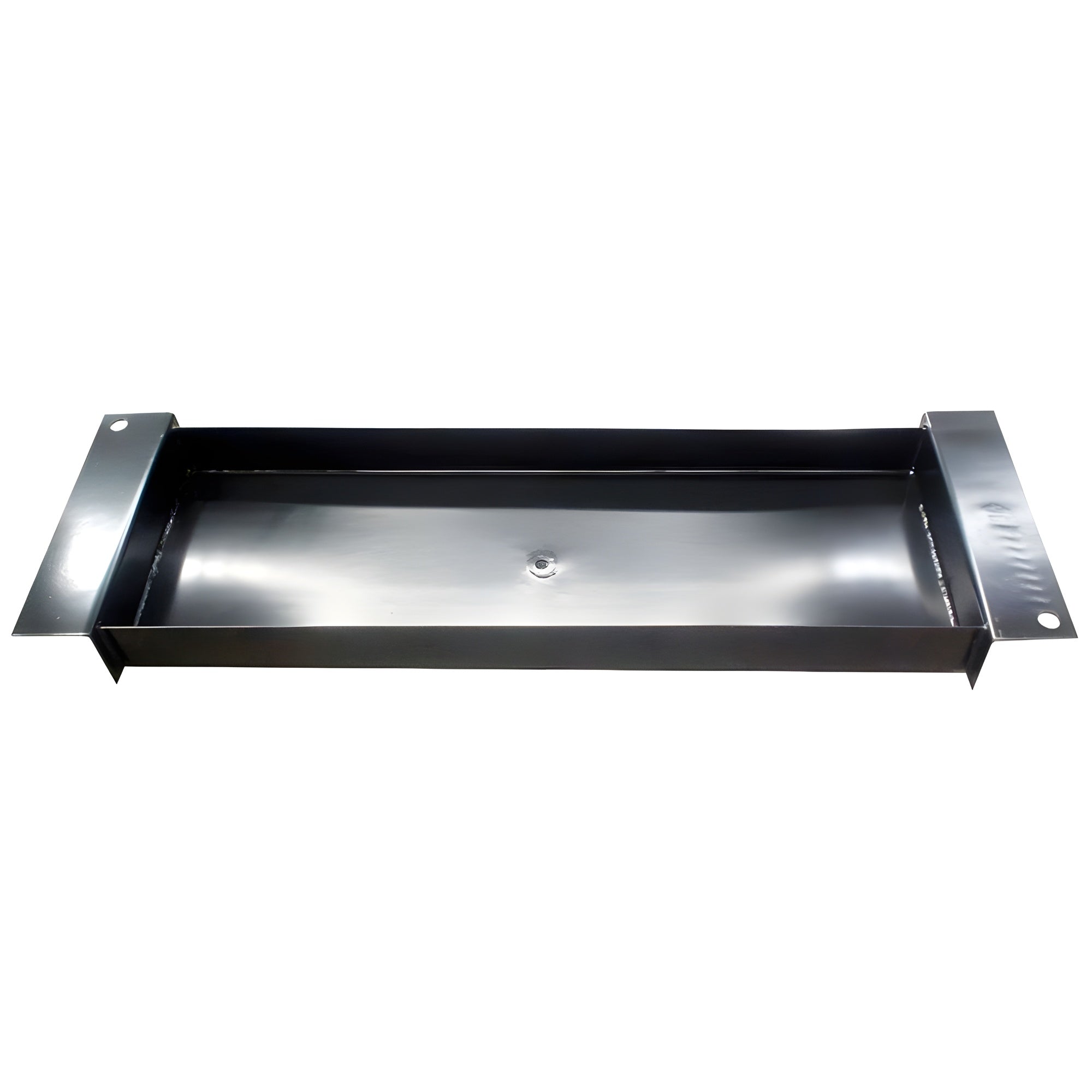

- Includes Drip Trays, Jack Tray & Poly Caster Kit

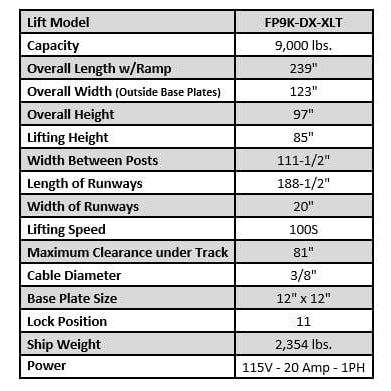

Specifications
-Lift Model | FP9K-DX-XLT |
Capacity | 9,000 lbs |

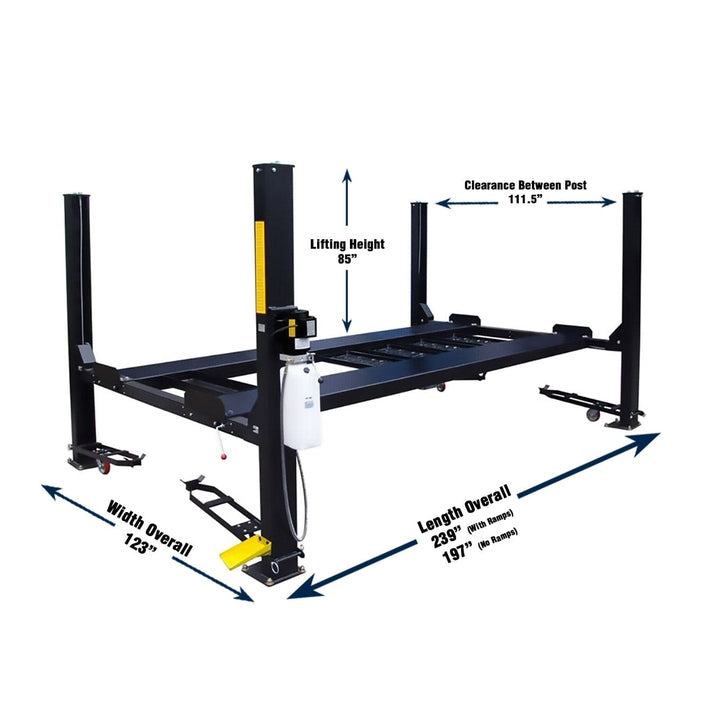

Overall Length w/Ramp | 239" |
Overall Width(Outside Base Plates) | 123" |
Overall Height | 97" |
Lifting Height | 85" |
Width Between Posts | 111-1/2" |
Length of Runways | 188-1/2" |
Width of Runways | 20" |
Lifting Speed | 100S |
Maximum Clearance under Track | 81" |
Cable Diameter | 3/8" |
Base Plate Size | 12" x 12" |
Lock Position | 11 |
Ship Weight | 2,354 lbs |
Power | 115V 20 Amp 1PH |
