Tuxedo 6,500 lb Mid-Rise Portable Scissor Lift
-Updated Design & Increased Capacity!

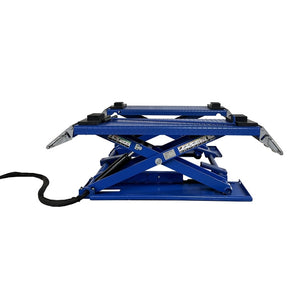

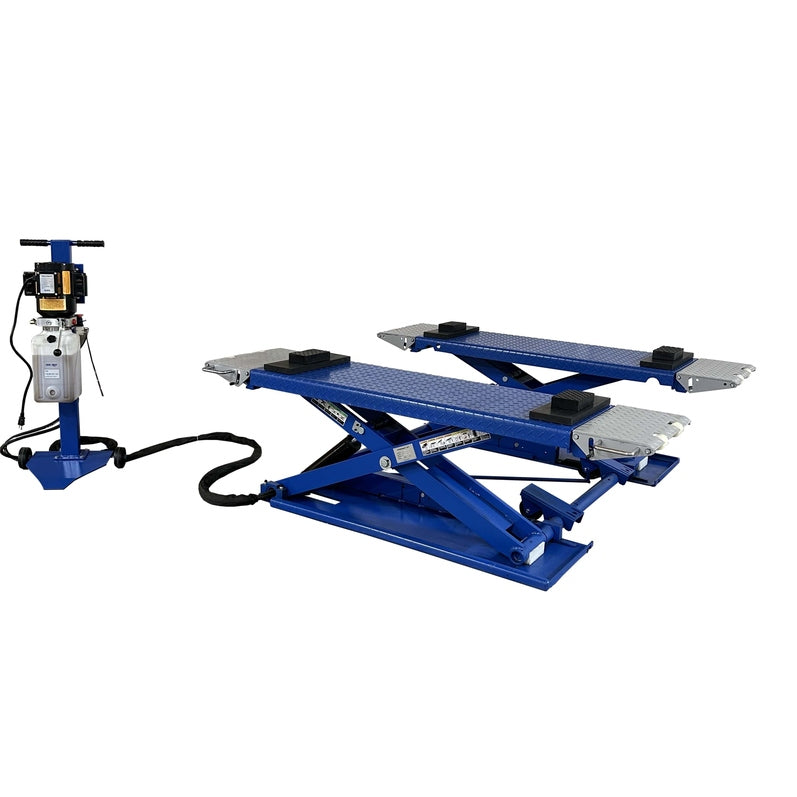

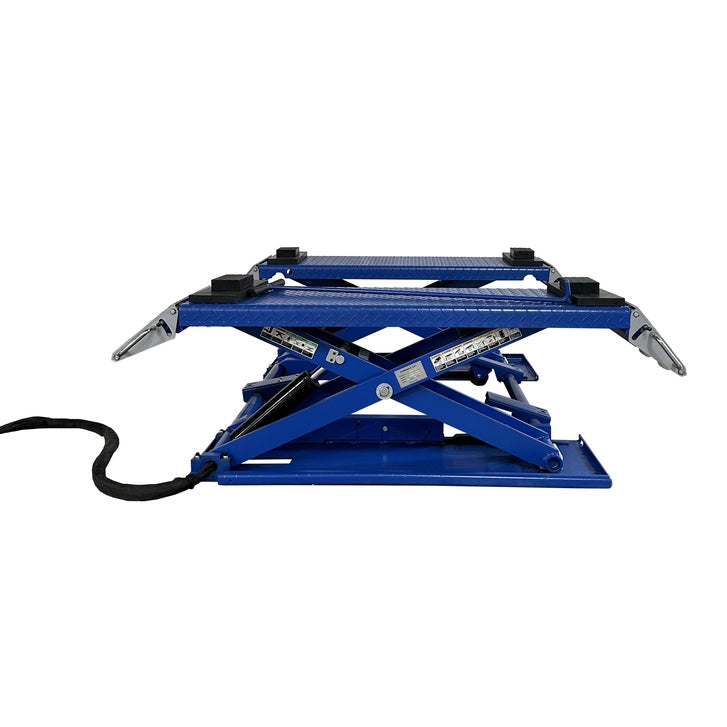

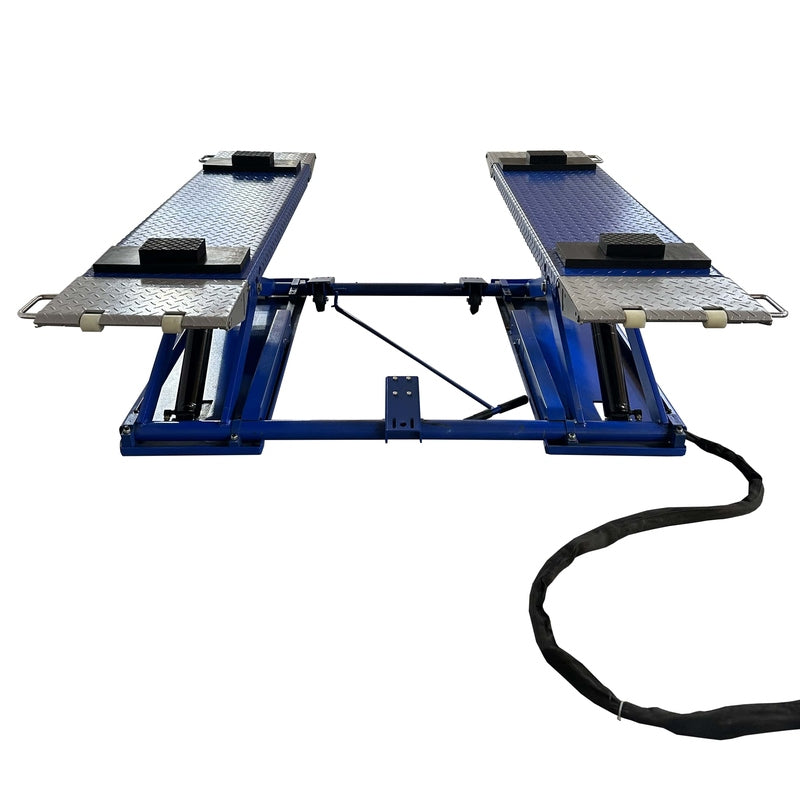

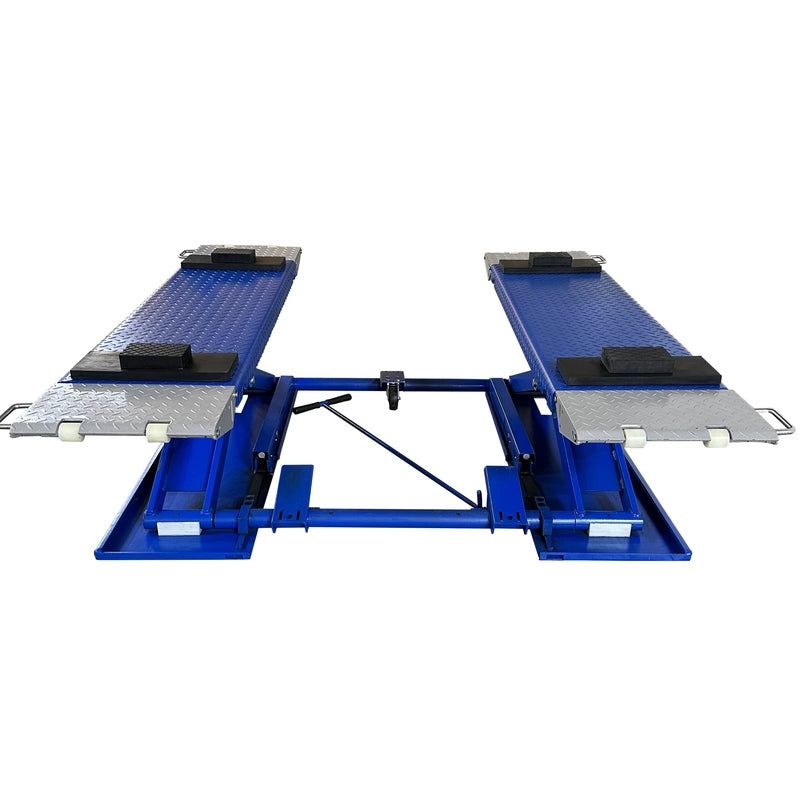

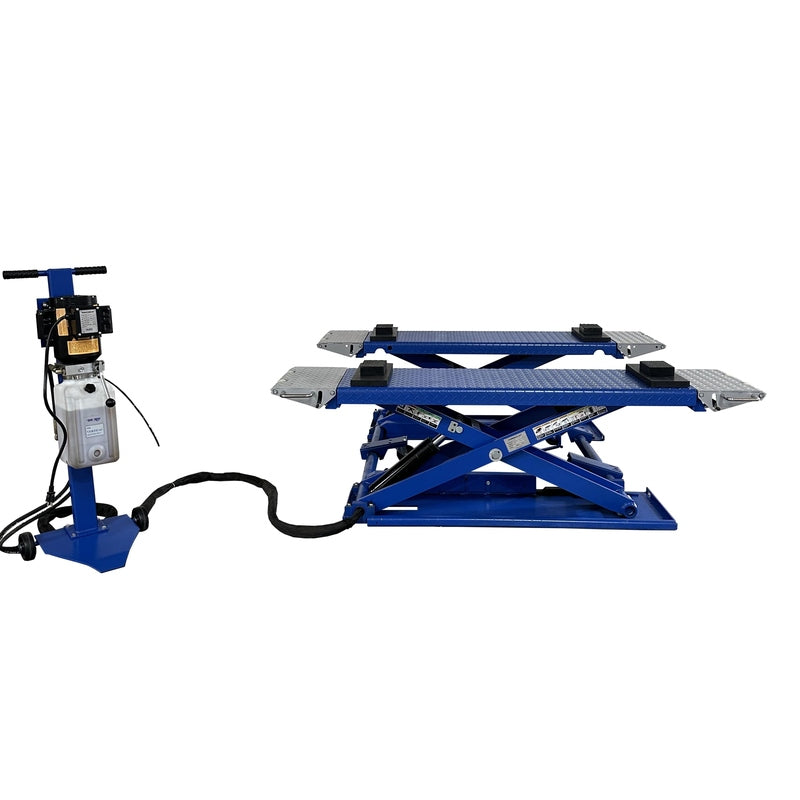

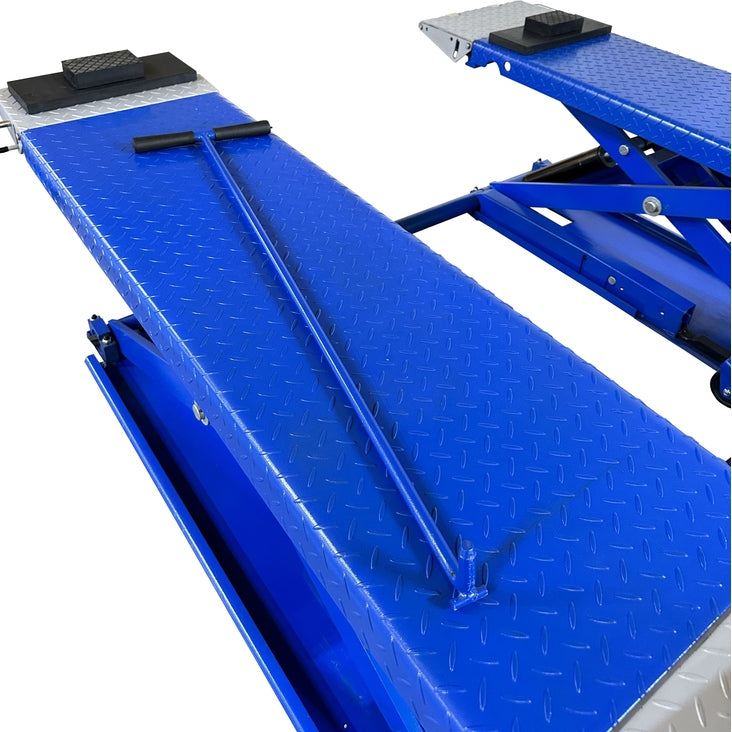

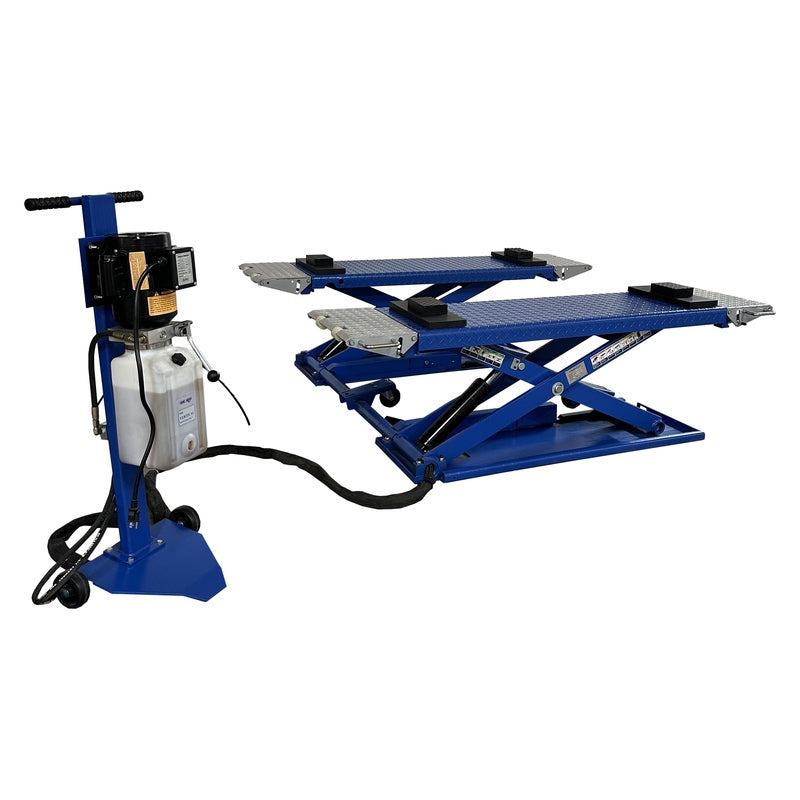

The MR6.5K-38 is a portable 6,500 lb. hydraulic mid-rise scissor frame lift, equipped with twin hydraulic cylinders, pneumatic single point / double lock release system designed to lift cars & light trucks to a comfortable working height of 38. The lift comes standard with load bearing flip-up runway extensions, rubber spacer blocks, along with a power unit dolly, lift wheel kit & tow bar for convenient portability feature.
The improved MR6.5K-38 lift now includes an additional weight capacity of 500 lbs. along with flat top platforms as part of the improved design. The improved MR6.5K-38 is built for years of trouble-free service for brake work, wheel service, inspections & detailing applications.
Features
-- 6,500 Lbs Capacity

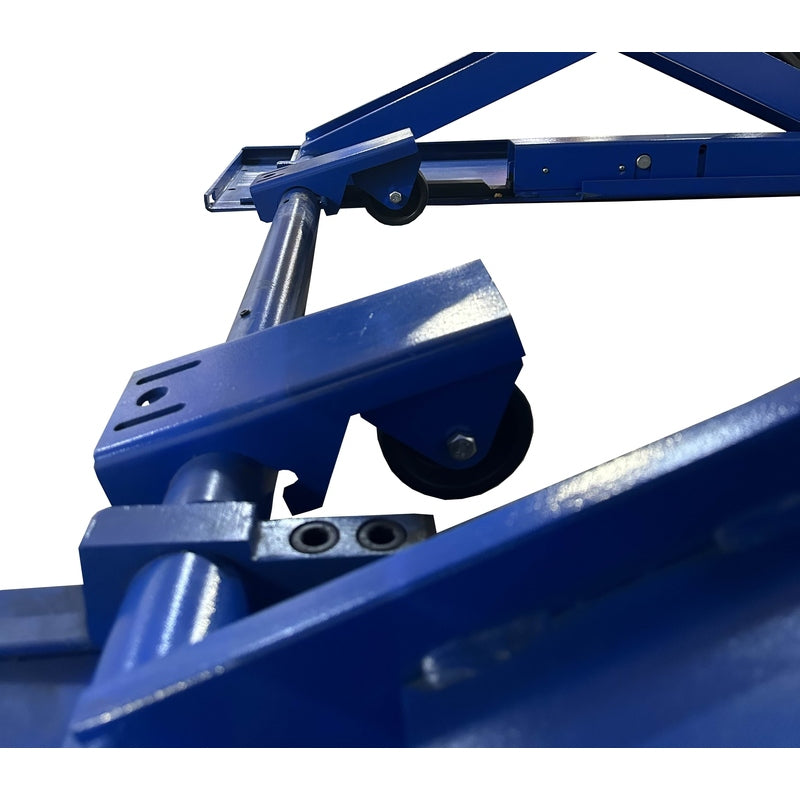

- Portable Lift Design With Wheel Kit & Tow Bar

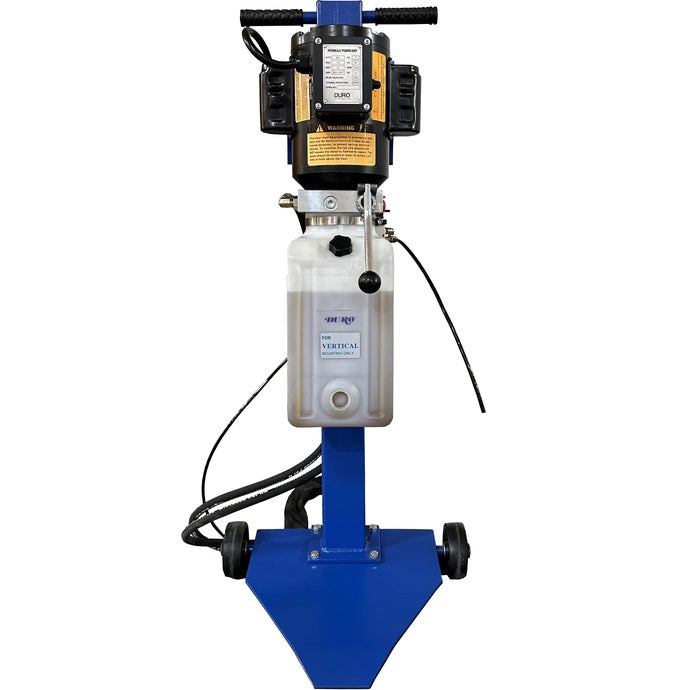

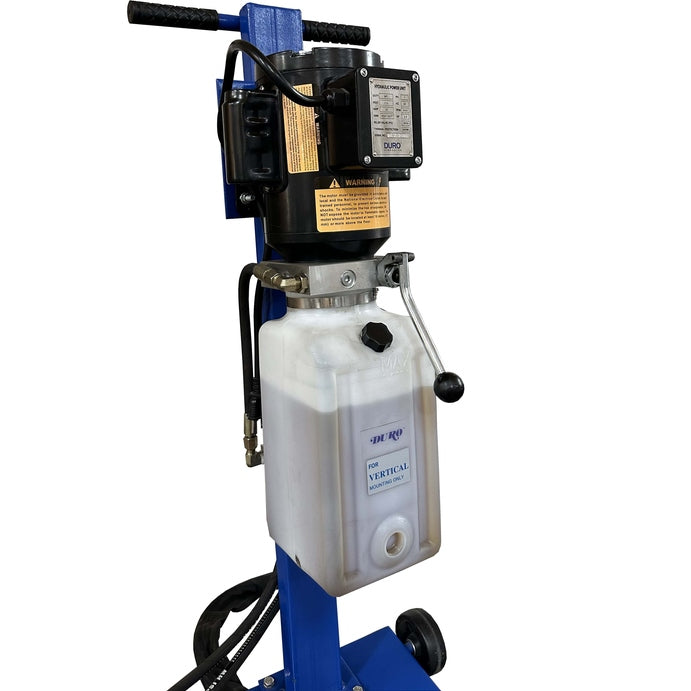

- Portable Dolly Mounted Power Unit
- Low Drive Over Height Of 4"

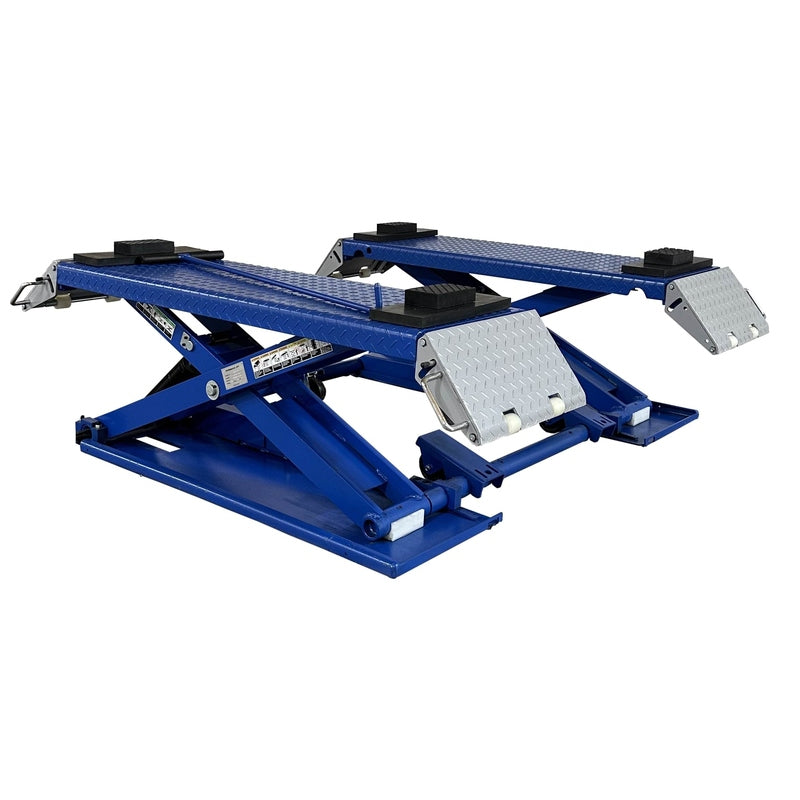

- Pneumatic Single Point Double Lock
- Release System
- Load Bearing Flip-Up Runway Extensions
- Rubber Spacer Blocks Included Optional Mr6K-38-Suv Adapter For
- Suv Frame Lifting
Specifications
-Lift Model: | MR6.5K-38 |
Capacity: | 6,500 lb. |
Overall Length: | 77" |
Overall Width: | 75-1/4" |
Lifting Height: | 38" |
Min. Pad Height: | 4" |
Lifting Height with Adapters: | 39-1/2" |
Width Between Runways: | 33-1/4" |
Width of Runways: | 18-3/16" |
Lifting Speed: | 40S |
Pad Length: | 56" |
Ship Weight: | 1,355 lbs |
Power: | 115V - 20 Amp - 1PH |
Air Supply: | 90 - 125 PSI |
Manual
-Tuxedo MR6.5K-38 6,500 lb Mid-Rise Portable Scissor Lift Manual
