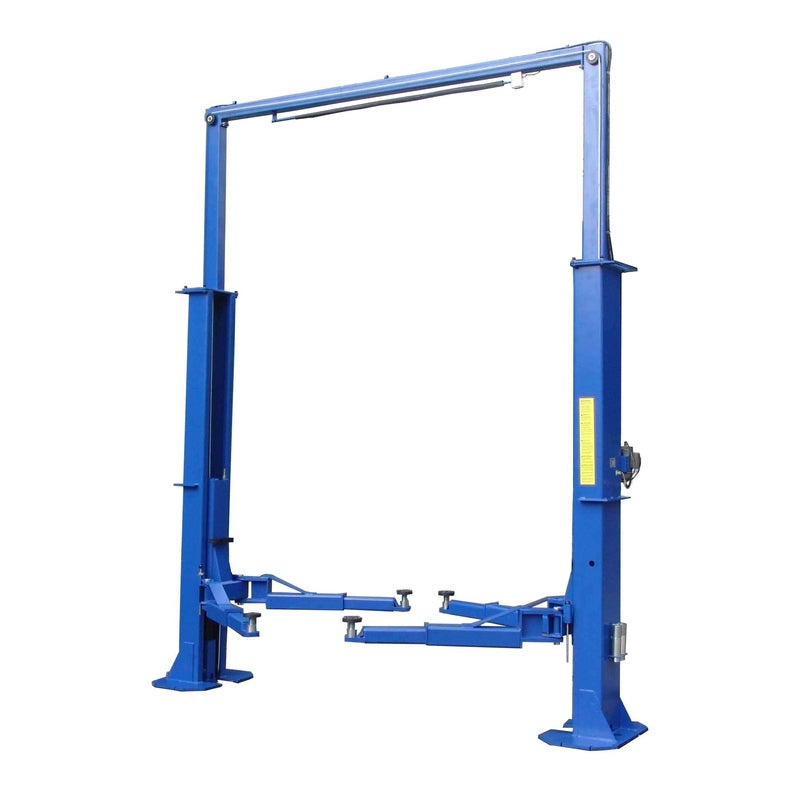

Tuxedo 15,000 Lb Heavy Duty Two Post Lift
-A Texas-style two-post floor plate lift with 12,000 lbs. lifting capacity, large twin 3" cylinders with low friction chain rollers, and a "big foot" base plate for extra stability. Built rugged for trucks, but now with low profile arms to reach under smaller passenger cars. This thing is a beast. It can handle the big jobs with ease.
A fresh new design and upgraded features for the TP15KCX Two Post Clear Floor truck and vehicle Lift now come standard with low profile 'drop-in' adjustable swivel pads with height adapters, internal hose routing, padded overhead shut-off bar with a kill switch, and reduced overall width with rubber door guards to protect the vehicle from dings and scratches. The newly designed heavy-duty lift model with added features makes it one of the best values in the lift industry market. Professional quality at an economical price.
Features
-- 15,000 lbs Capacity

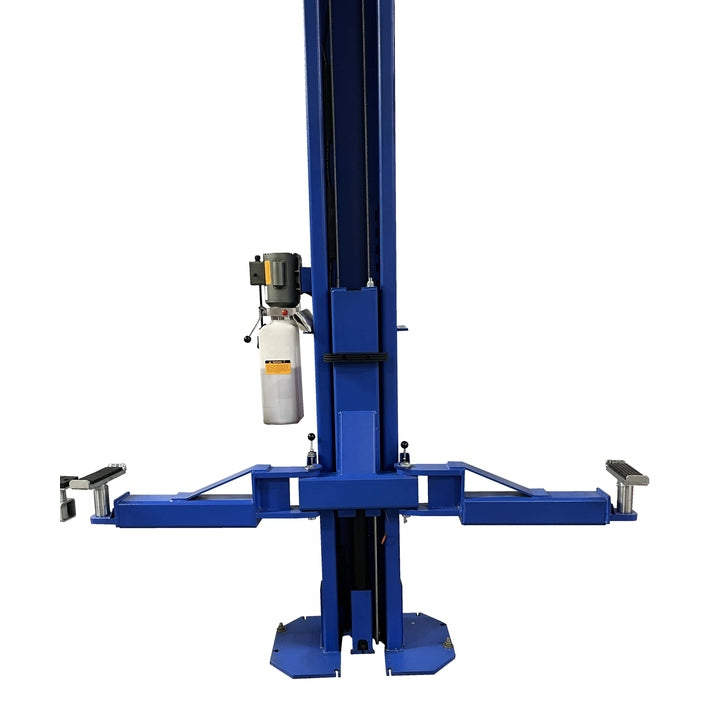

- Symmetric Arms

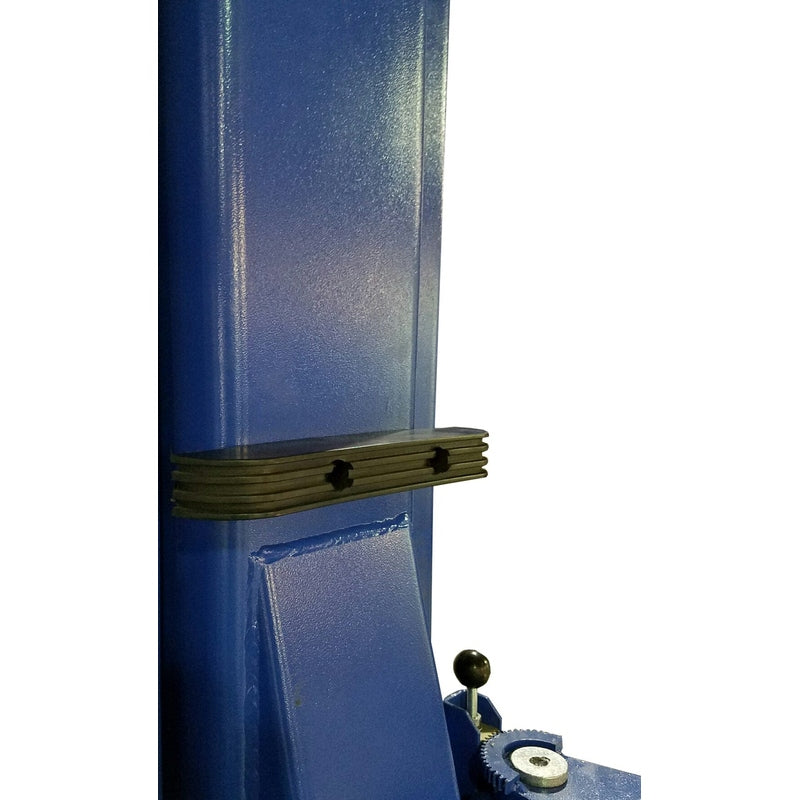

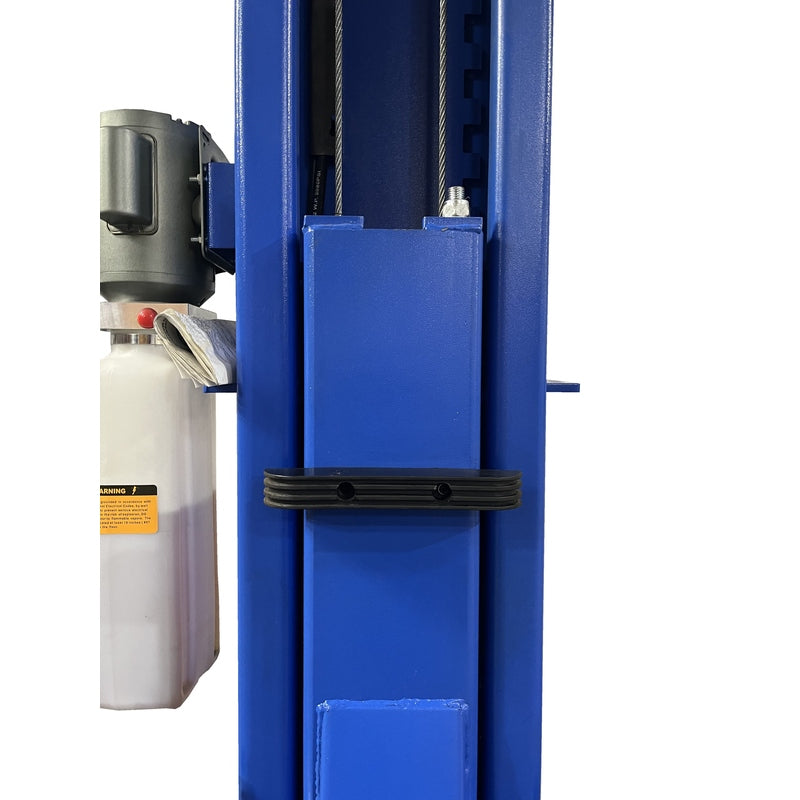

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- auto Arm Restraint System

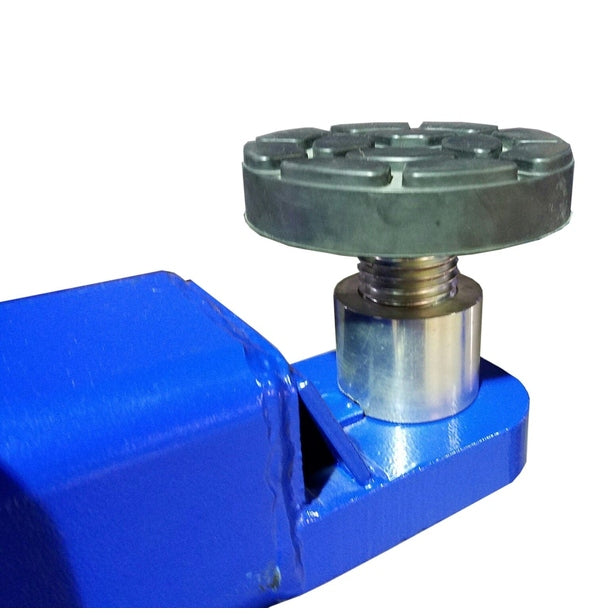

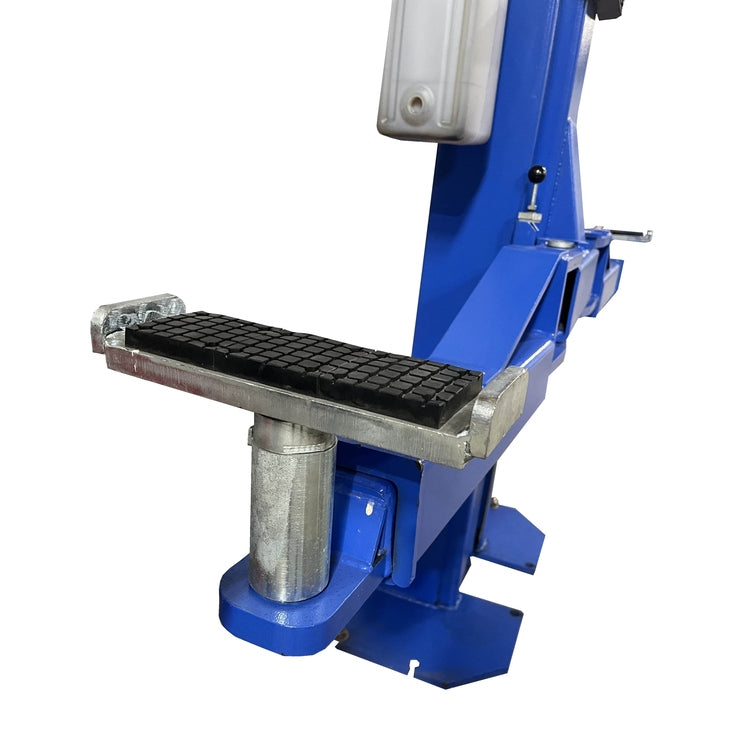

- Spin Up Lift Pads

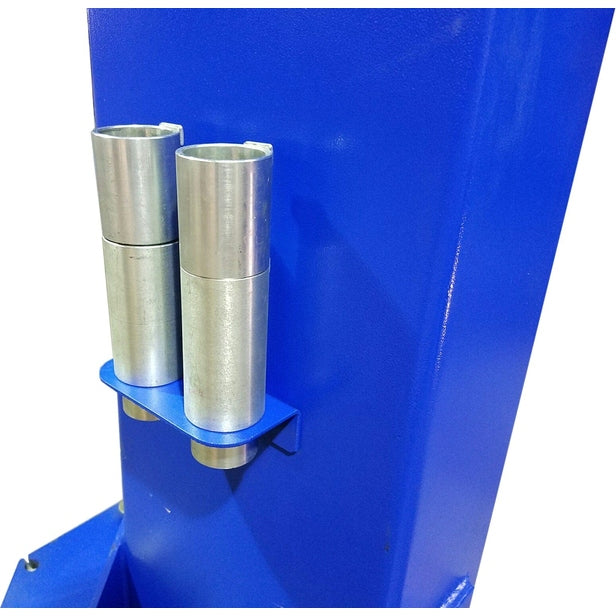

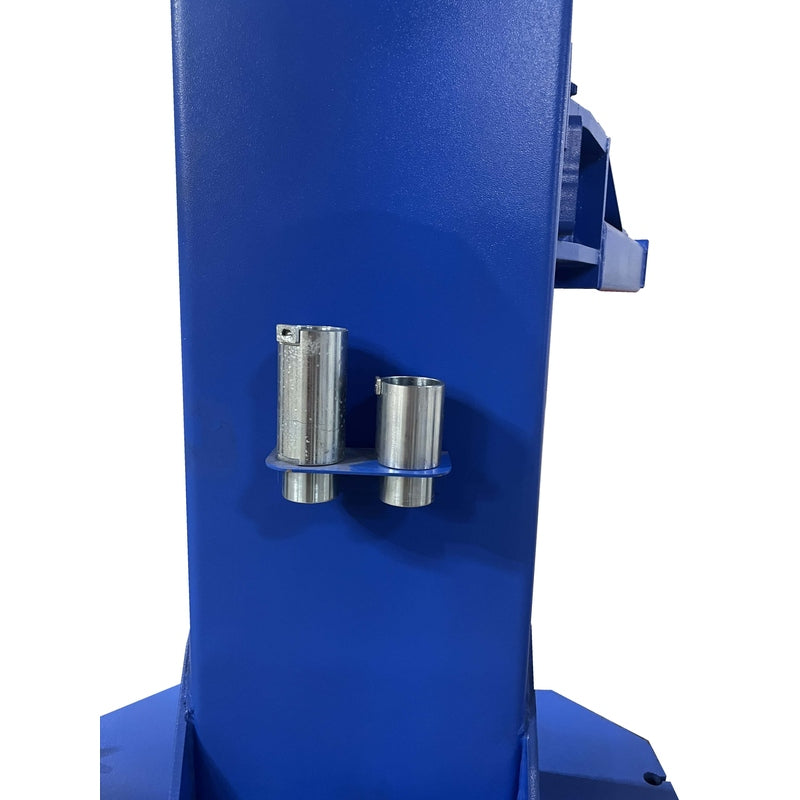

- Stackable Adapter Included

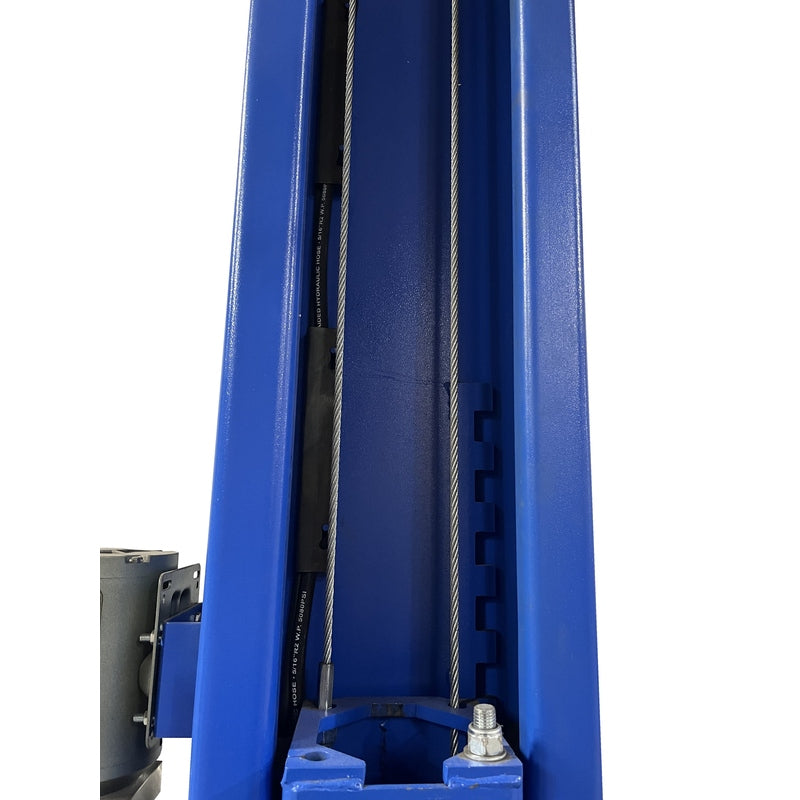

- Internal Hose routing
- Heavy Duty Lock Release
- Low Pad Height

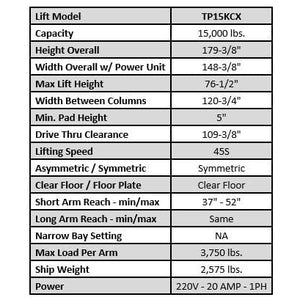

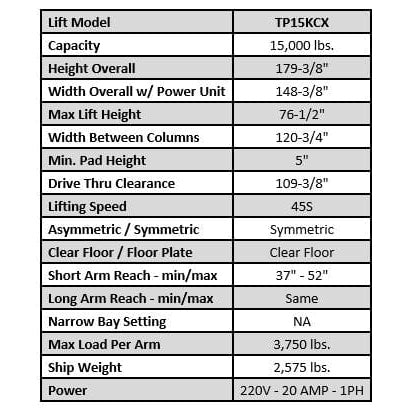

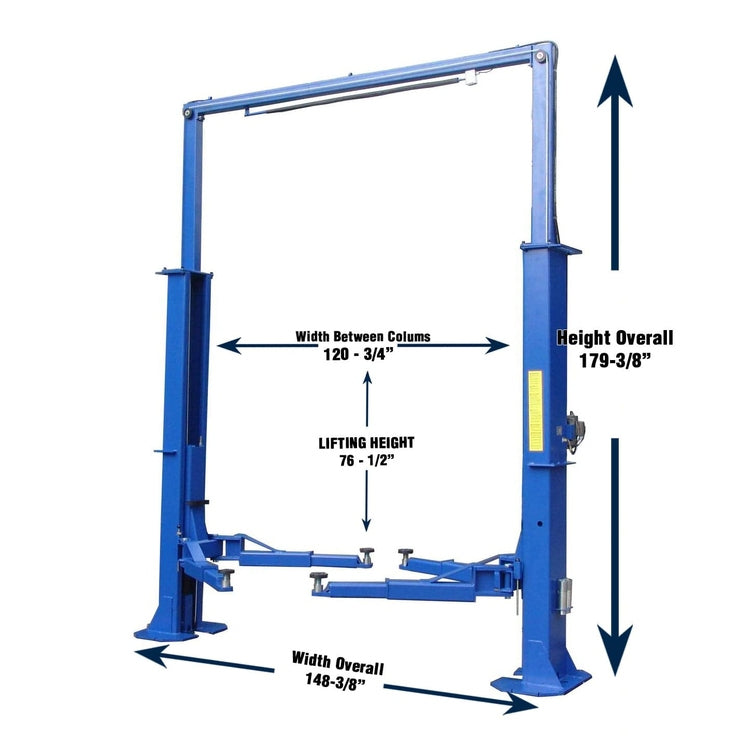

Specifications
-Lift Model | TP15KCX |
Capacity | 15,000 lbs. |
Height Overall | 179-3/8" |
Width Overall w/ Power Unit | 148-3/8" |
Max Lift Height | 76-1/2" |
Width Between Columns | 120-3/4" |
Min. Pad Height | 5" |
Drive Thru Clearance | 109-3/8" |
Lifting Speed | 45S |
Asymmetric / Symmetric | Symmetric |
Clear Floor / Floor Plate | Clear Floor |
Short Arm Reach min/max | 37" 52" |
Long Arm Reach min/max | Same |
Narrow Bay Setting | NA |
Max Load Per Arm | 3,750 lbs. |
Ship Weight | 2,575 lbs |

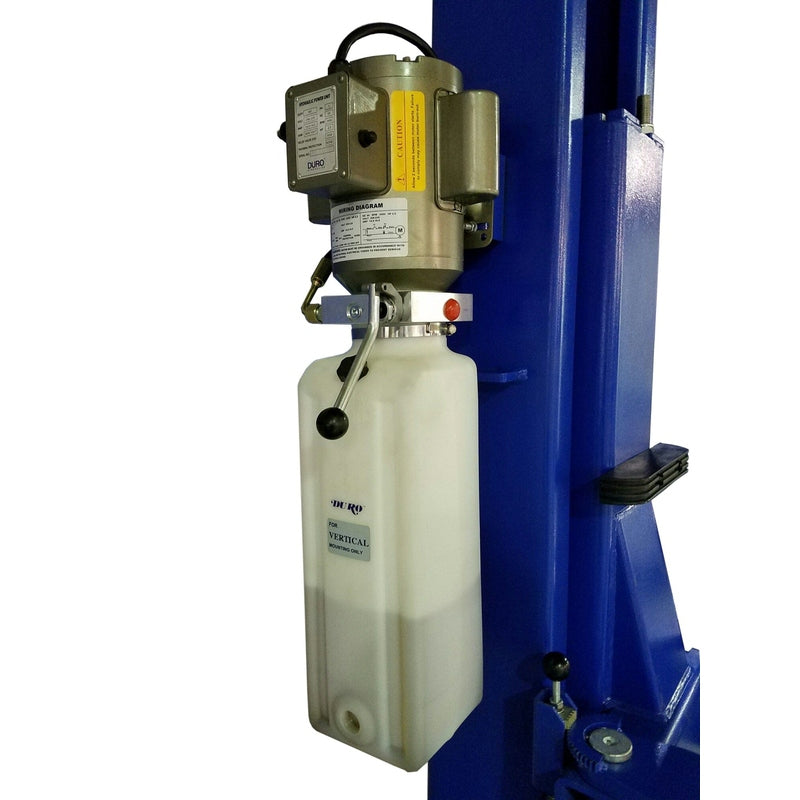

Power | 220V 20 AMP 1 PH |
