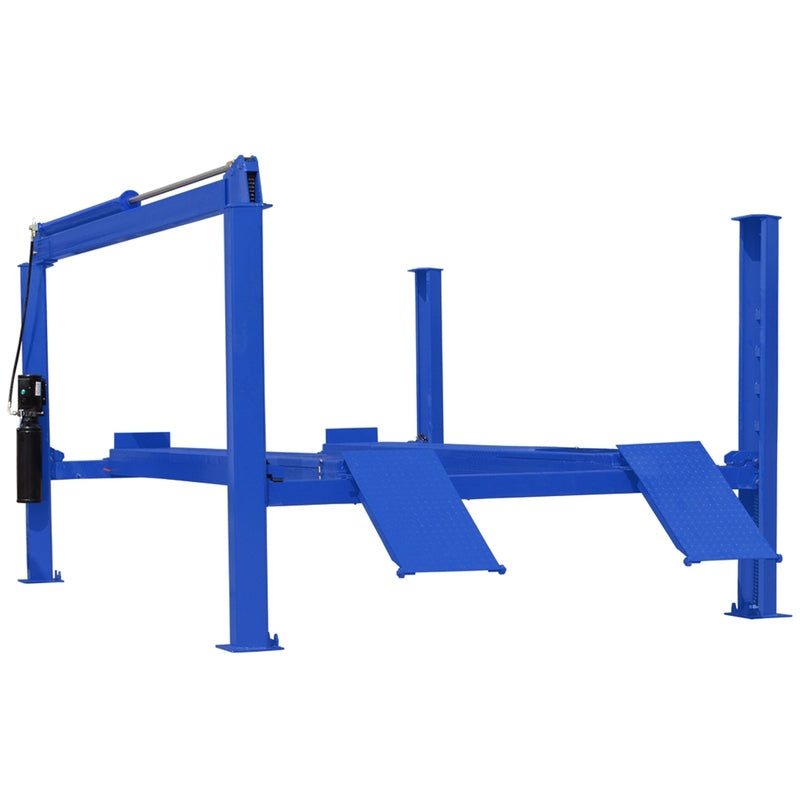

Tuxedo 14,000 lb Four Post Lift - Chain Driven
-These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel.
Features
-- 14,000 lbs Capacity

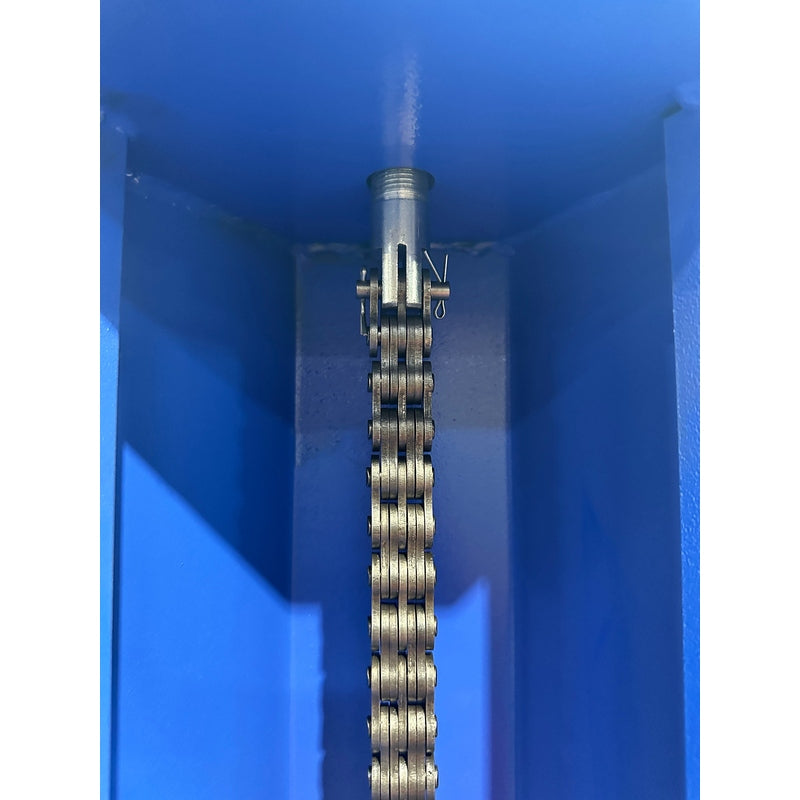

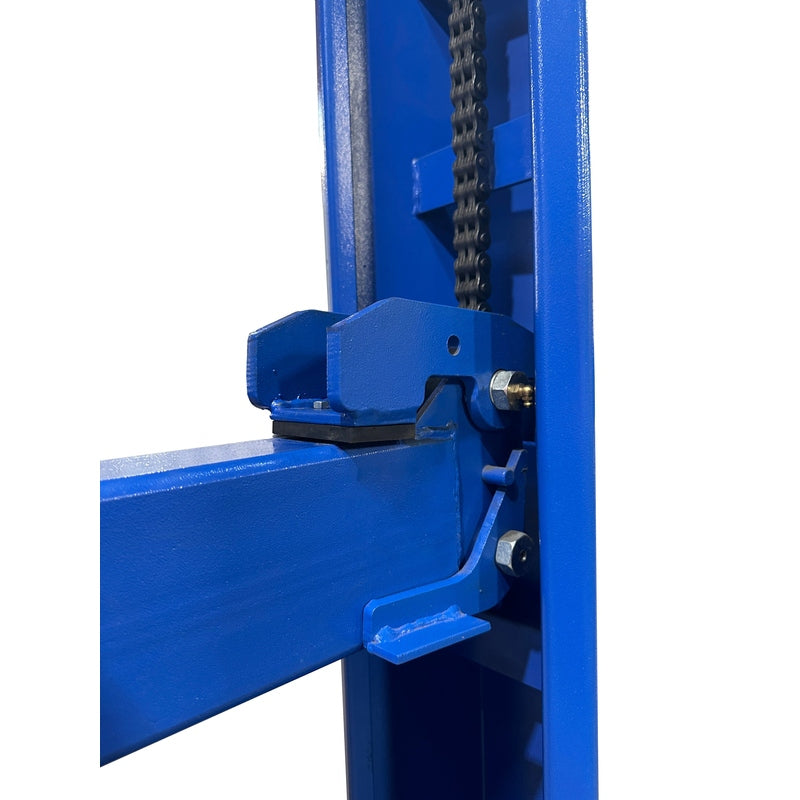

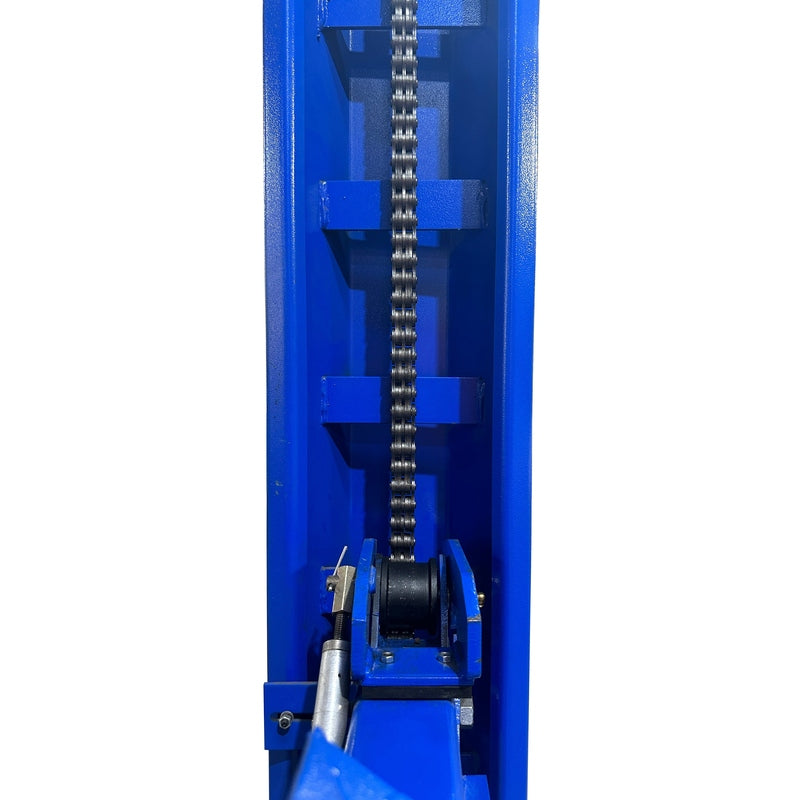

- Chain Driven
- 182 max wheelbase

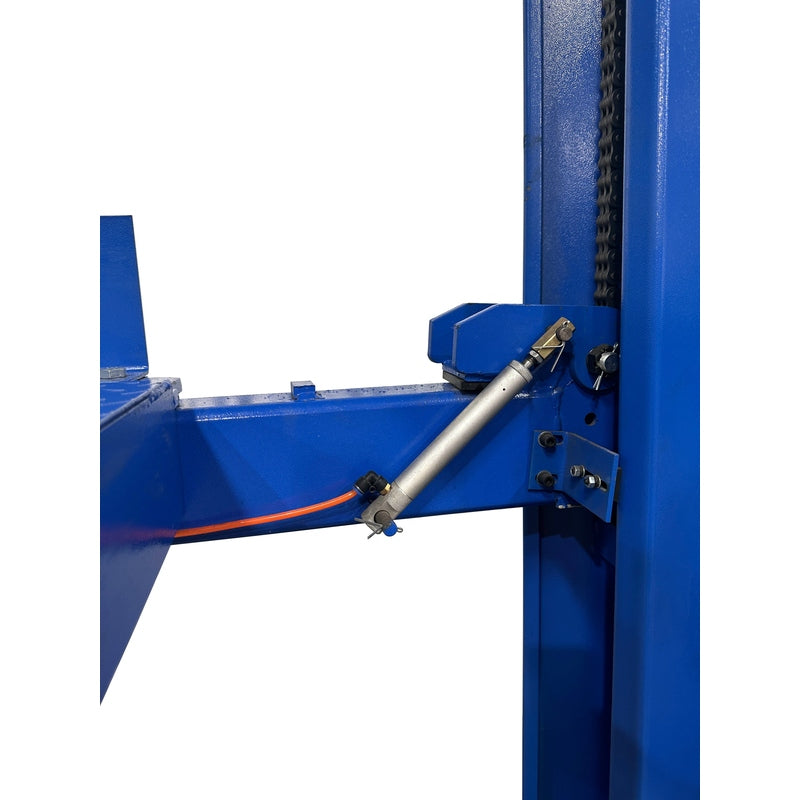

- Single Point Pneumatic Lock Release
- Powder Coat Finish

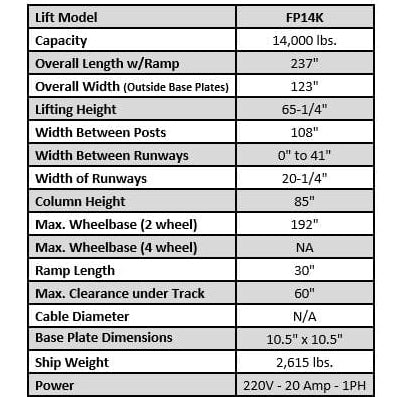

Specifications
-Capacity | 14,000 lbs. |
Overall Length w/Ramp | 237" |
Overall Width (Without Power Unit) | 123" |
Overall Width (WithPower Unit) | 129" |
Overall Height | 99" |
Max Rise Height | 65 - 1/4" |
MinHeight | 7 - 1/2" |
Width Between Posts | 108" |
LengthBetween Posts | 187" |
Width Between Runways | 41" |
Width of Runways | 20" |
Max. Wheel Base | 182" |

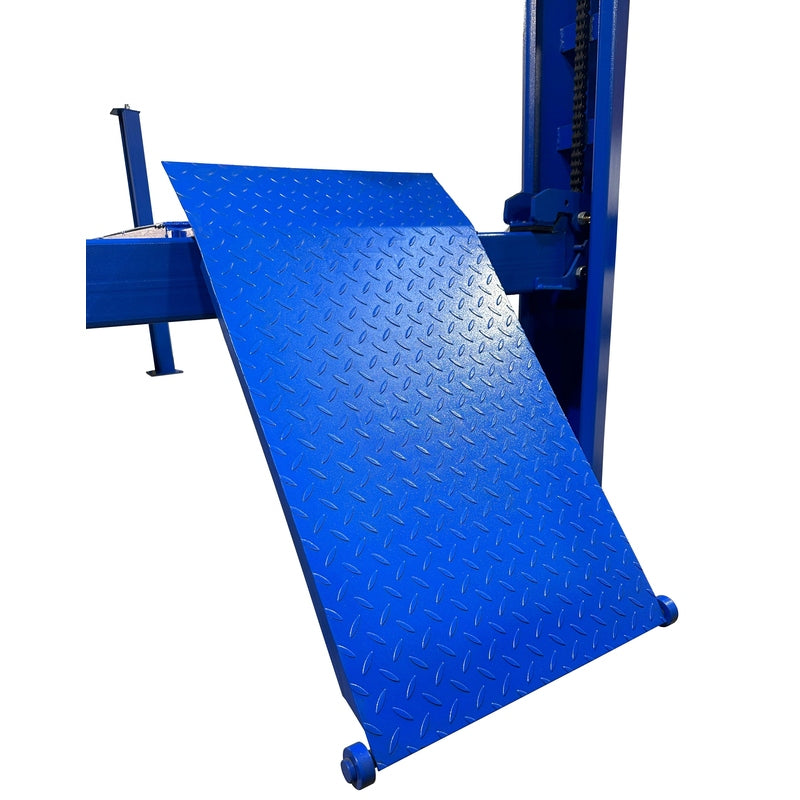

Ramp Length | 30" |
Max. Clearance Under Runway | 60" |
Drive-Thru Clearance | 99" |

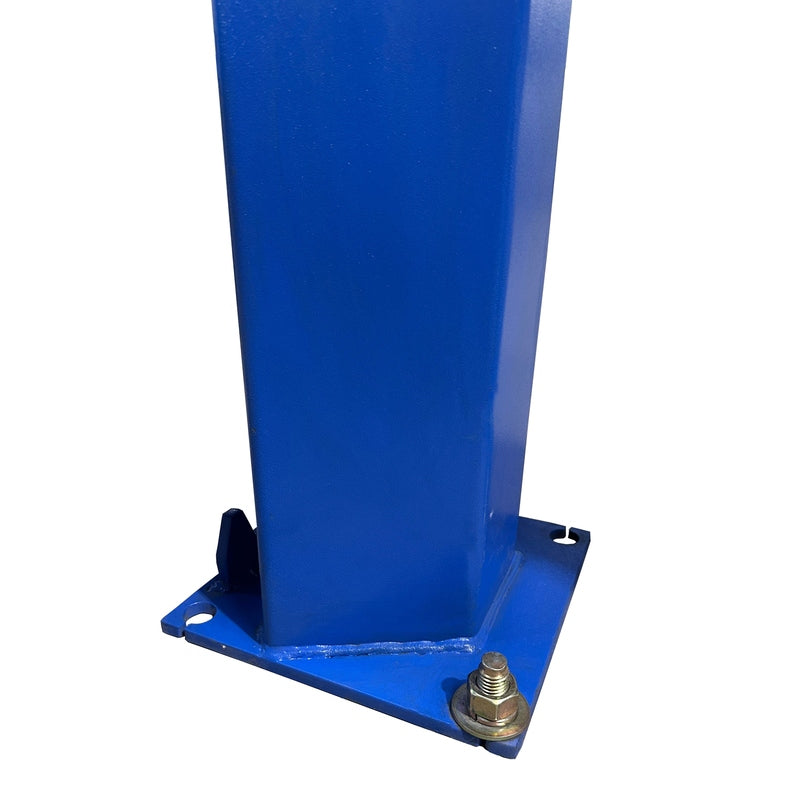

Base Plate | 10-1/2" x 10-1/2" |
Power Requirement | 220V-20 Amp |
Ship Weight | 2,615 lbs. |
Min Bay Size | 15x 24 |
