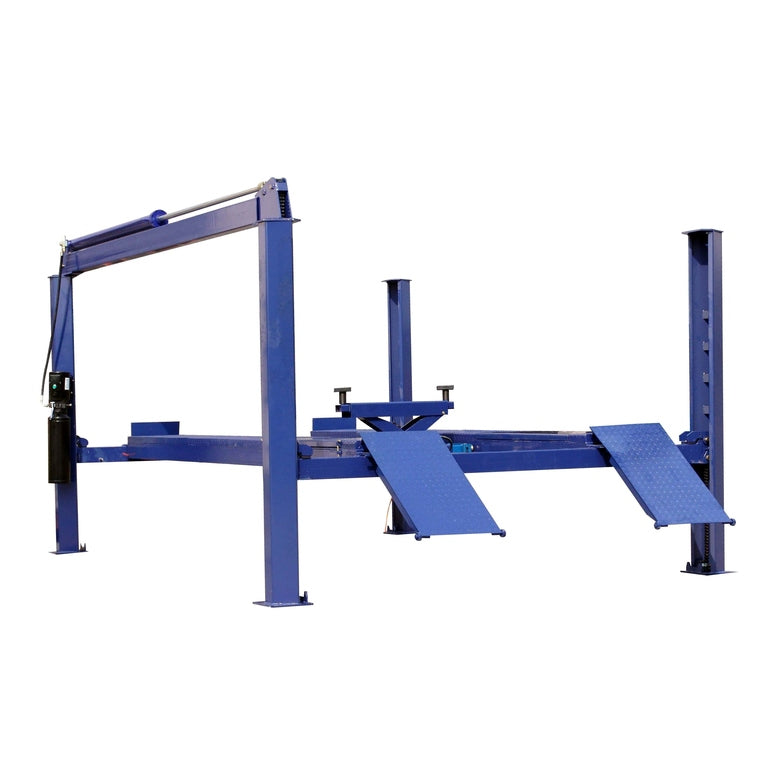

Tuxedo FP14KA 14,000 lb Four Post Alignment Lift - Chain Driven

SKU FP14KA
Original price $6,351.00 - Original price $6,351.00
Original price
$6,351.00
$6,351.00 - $6,351.00
Current price $6,351.00

iDEAL 14,000 lb Post Alignment Lift 182.5" WB

-

*Bridge Jacks Not included

These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel.

Features

-
  • 14000 LBS Capacity
  • High performance commercial alignment lift
  • Durable, high quality cable lift system
  • Extended rise height
  • 'BOLT-ON' Runway alignment kit
  • 166.7" Max alignment wheelbase (2 wheel)
  • 157" Max alignment wheelbase (4 wheel)
  • 182.5" Max service wheelbase
  • 18 locking height positions
  • Full width rear wheel slip plates
  • Two turntable positions w/spacer covers
  • 20" Wide runways
  • Narrow & wide runway mounting positions
  • Single point pneumatic lock release
  • Fully adjustable lock stops for easy leveling
  • Slack cable safety devices
  • Self-chocking approach ramps w/ nylon rollers
  • Wheel chocks (1PR)
  • Durable powder coat finish

Specifications

-
Lift model FP14KAC-X
Capacity 14000 lbs
Overall length w/ Ramp 252-1/2"
Overall width (without power unit) 131-7/8"
Overall width (with power unit) 142"
Overall height 92-1/2"
Max rise height 79-1/2"
Min height 9-7/8"
Width between posts 116-1/4"
Length between posts 196"
Width between runways 43" or 46"
Width of runways 20"
Max wheelbase 182-1/2"
Max. align wheelbase (2 wheel) 166-3/4"
Min / Max. Align wheelbase (4 wheel) 103" / 157"
Ramp length 44"
Max. Clearance under runway 69-5/8"
Drive-thru clearance 100"
Base plate 10-1/2" x 9"
Power requirement 220V - 20 Amp 1 PH
Ship weight 3810 lbs
Min bay size 16 x 25

Accessories (Included)

-
  • Internal airline kit w/ FLR
  • HD Carbon steel turntables - 4.5K cap. EA
  • Rollback spacers for HD turntables
