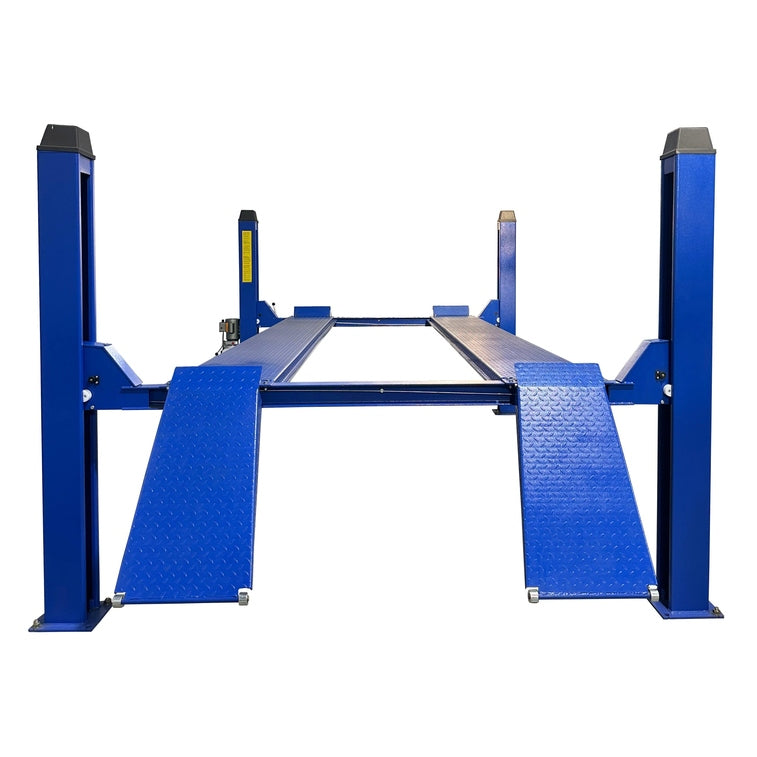

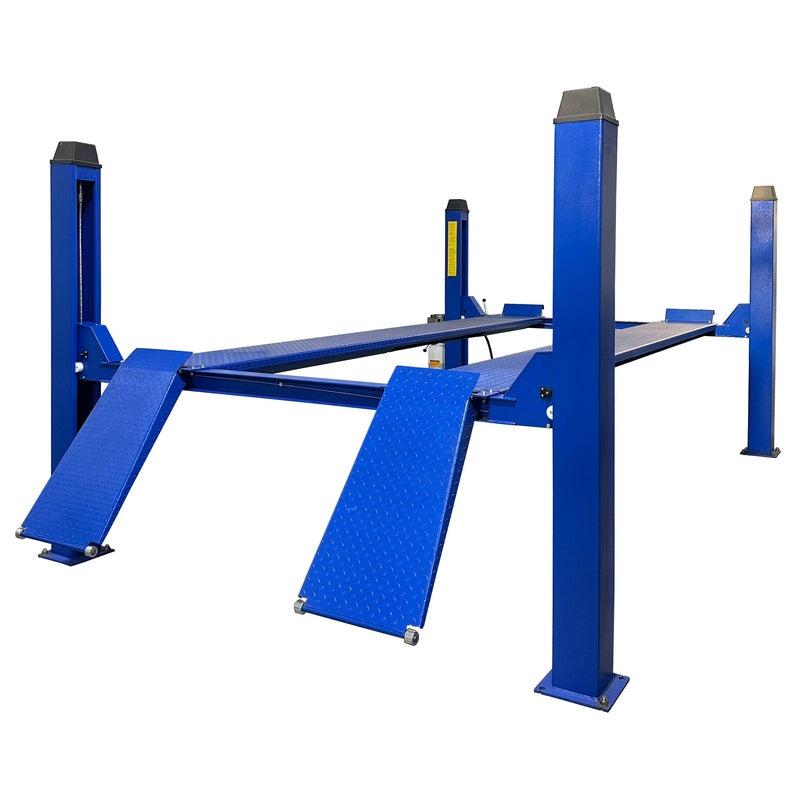

Tuxedo 12,000 lb Four Post Lift - Cable Driven
-*Jack sold separately

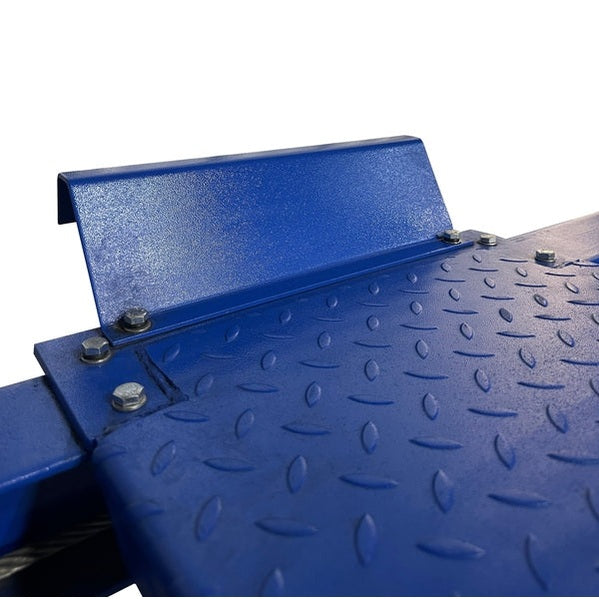

Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.
Features
-- 12,000 lbs Capacity

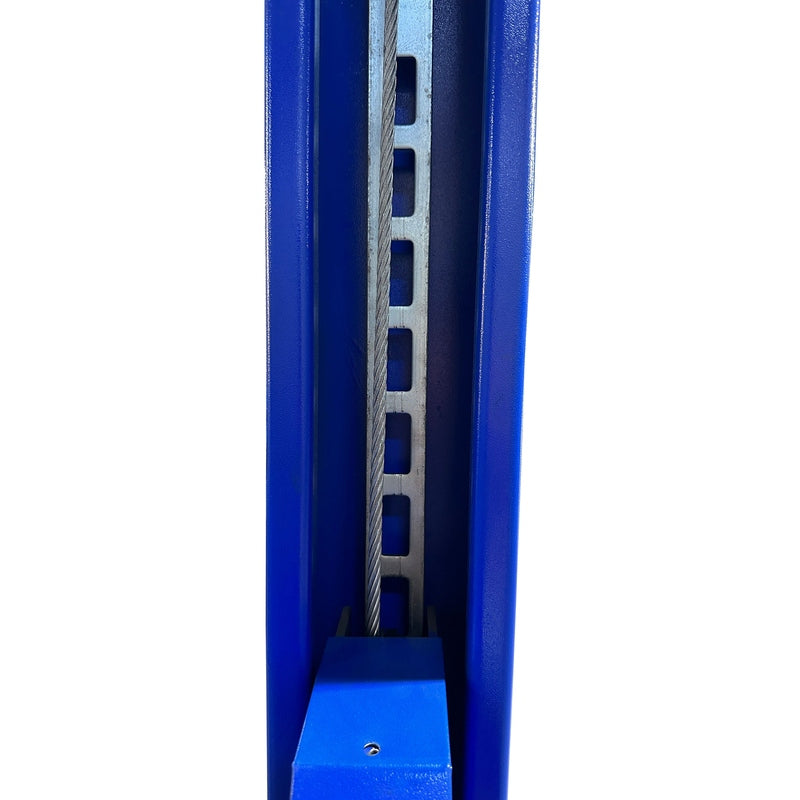

- Cable Driven
- 176 max wheelbase

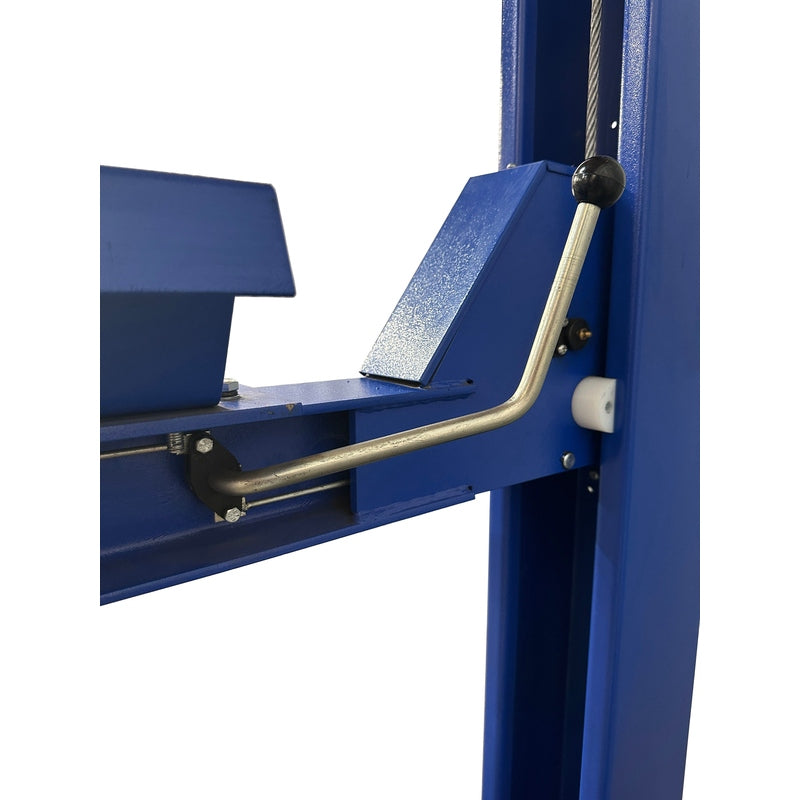

- Single Point Manual Lock Release
- Adjustable Locking Positions

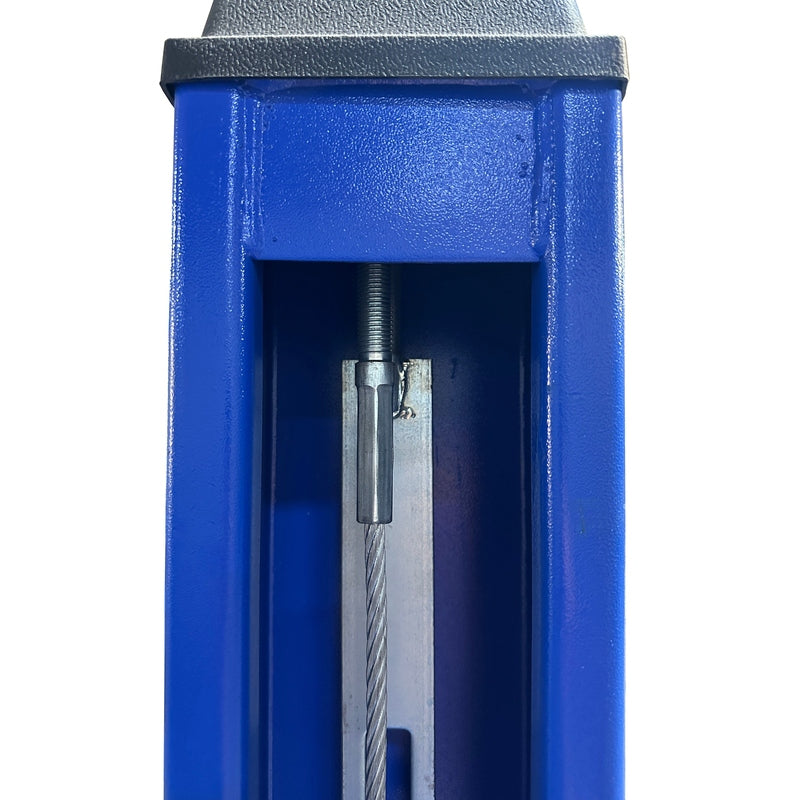

- Slack Cable Safety
- No Overhead Obstructions

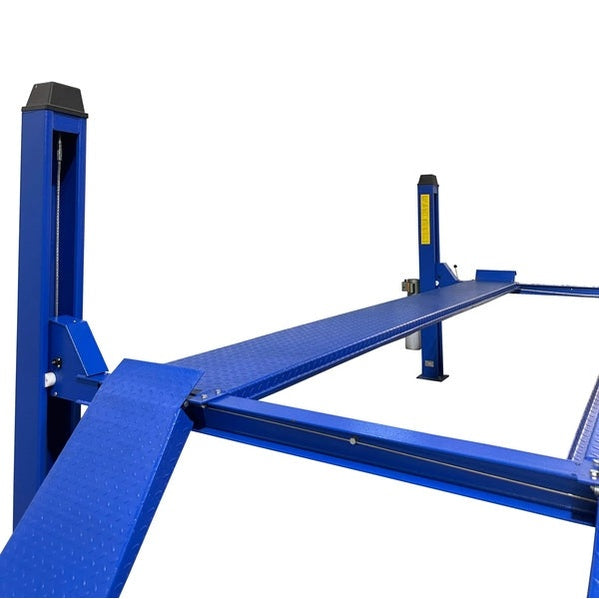

- Powder Coat Finish
Specifications
-Lift Model | FP12K-K |
Capacity | 12,000 lbs. |
Overall Length w/Ramp | 232-1/2" |
Overall Width(Without Power Unit) | 123" |
Overall Width (With Power Unit) | 134" |
Overall Height | 84" |
Max Rise Height | 67-1/2" |
Min Height | 7" |
Width Between Posts | 105" |
Length Between Posts | 177" |
Width Between Runways | 36-1/2" |
Width Of Runways | 19" |
Max Wheelbase | 167" |

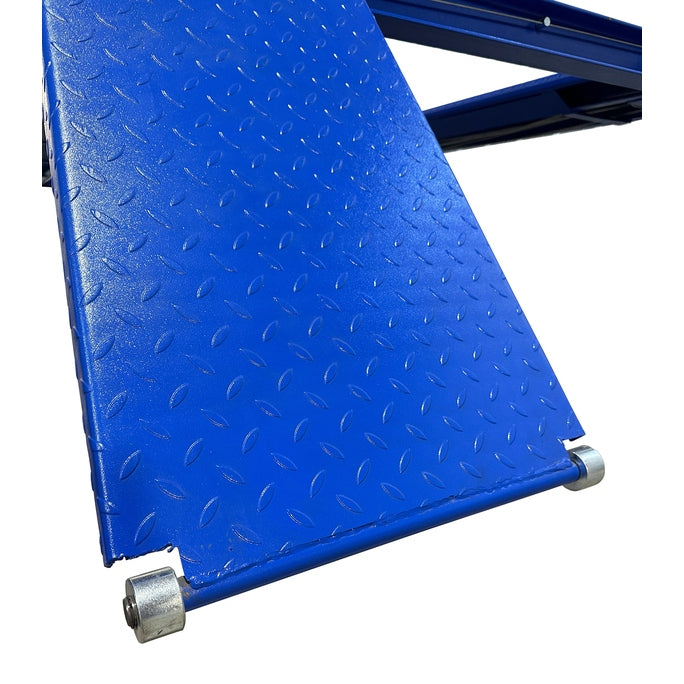

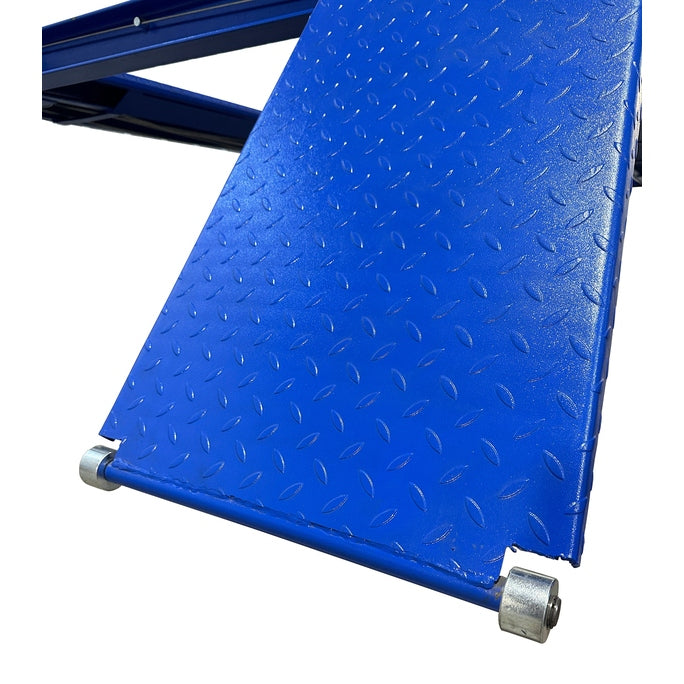

Ramp Length | 35" |
Max. Clearance Under Runway | 63-1/4" |
Drive-Thru Clearance |
87-1/2" |
Base Plate | 11" X 11" |
Power Requirement | 220V - 20 Amp - 1PH |
Ship Weight |
2,255 lbs. |
Min Bay Size |
15" x 23" |
