Triumph RJ-15 15,000 lb Rolling Bridge Jack

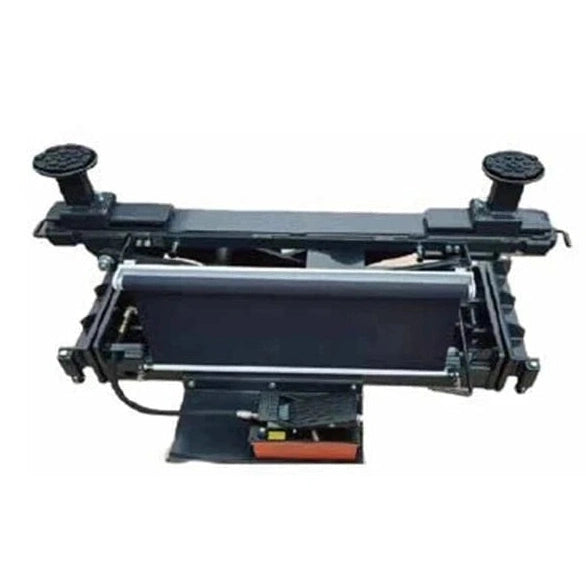

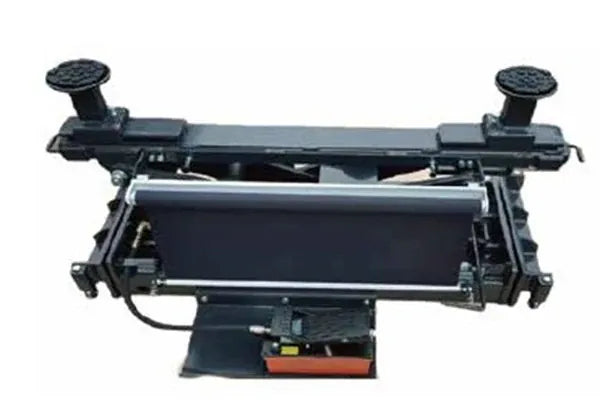

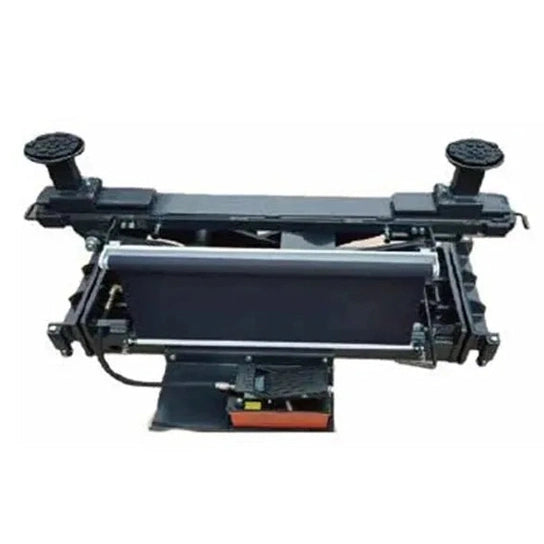

The Triumph RJ-15 is a 15,000-lb rolling bridge jack built to drop into the runways of a heavy-duty four-post lift, scissor up under the differential or frame, and put one end of the vehicle clear of the runway for wheel, brake, and suspension work without rolling the vehicle off the lift.

Rated for the kind of vehicles that justify a four-post in the first place — full-size trucks, work vans, body-on-frame SUVs, and commercial fleet vehicles. Lift range runs from a 15.3" lowered profile to a 28.3" maximum lifting height, with two height-adapter sets (5" and 6.75") included so the lifting pads land where the chassis wants them, not where the jack happens to top out.

• Heavy-duty 15,000-lb lifting capacity for full-size trucks, vans, SUVs, and commercial vehicles
• Adjustable lifting-pad width from 42.6" to 68.7" covers most chassis frame and pinch-weld spreads
• Two height-adapter sets included — 5" and 6.75" — for chassis clearance tuning
• Fits four-post lift runways with an inside width between 48.7" and 55" — pairs with Triumph NTR-24 and NTR-32 hosts
• Lift range from 15.3" lowered to 28.3" max for suspension, wheel, and brake service

The RJ-15 rolls between four-post lift runways with an inside width between 48.7" and 55". Triumph four-post lifts in that runway range include the NTR-24 and NTR-32, both available from MGS as standalone lifts or as combos with two RJ-15 rolling jacks already included. Measure the inside-of-runway dimension on any other four-post host before ordering — outside the 48.7"–55" range, the jack will not seat correctly between the rails.

Lifting pads adjust from 42.6" to 68.7" between centers, covering the frame-rail and pinch-weld spread on most full-size trucks, vans, and SUVs.

• Triumph RJ-15 rolling bridge jack assembly
• One set of 5" height adapters
• One set of 6.75" height adapters

Triumph covers the RJ-15 with a 1-year parts warranty, no labor. If a covered part fails, MGS troubleshoots with you over the phone, ships the replacement free, and covers freight as ground service. Labor to install the replacement is the owner's responsibility.

Hydraulic cylinders carry a 30-day full warranty; after 30 days, Triumph provides a seal kit for in-service repair. Rubber lifting pads are wear items and are not covered.

For warranty support, contact sales@mygaragesupplies.com or call 307-381-1810.

Will the RJ-15 fit my four-post lift?

It will if the inside-of-runway dimension on your four-post is between 48.7" and 55". Triumph NTR-24 and NTR-32 four-post lifts both fall in that range. For any other four-post host, measure the inside runway width before ordering.

One rolling bridge jack or two?

One unit lifts one axle (front or rear) so the technician can pull two wheels at a time. Two units let the front and rear come up independently — useful for full underside service, alignment-adjacent work, or wheel rotation in one cycle. Triumph sells the NTR-24 and NTR-32 four-post lifts as combos with two RJ-15 units already included for buyers who know they want both up front.

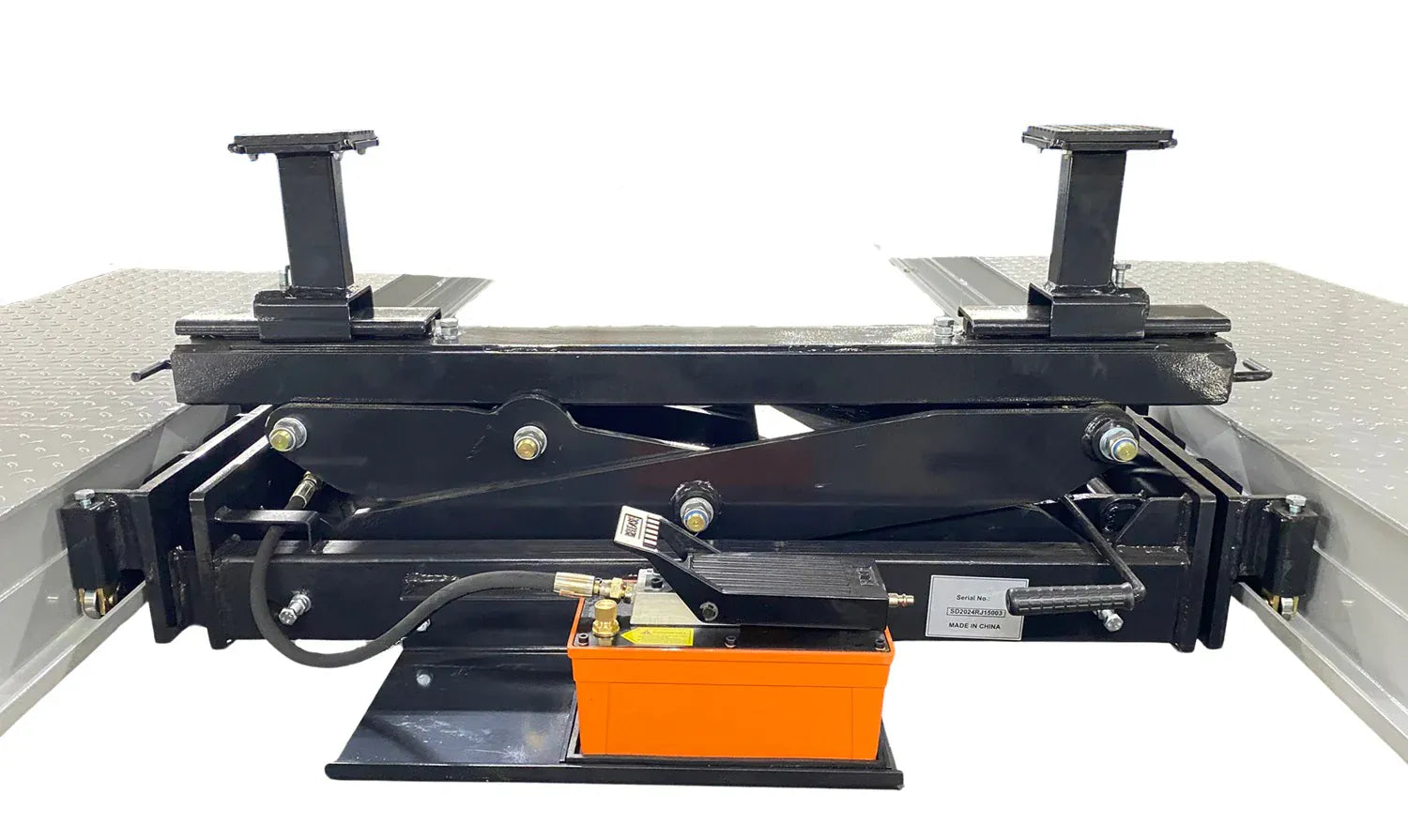

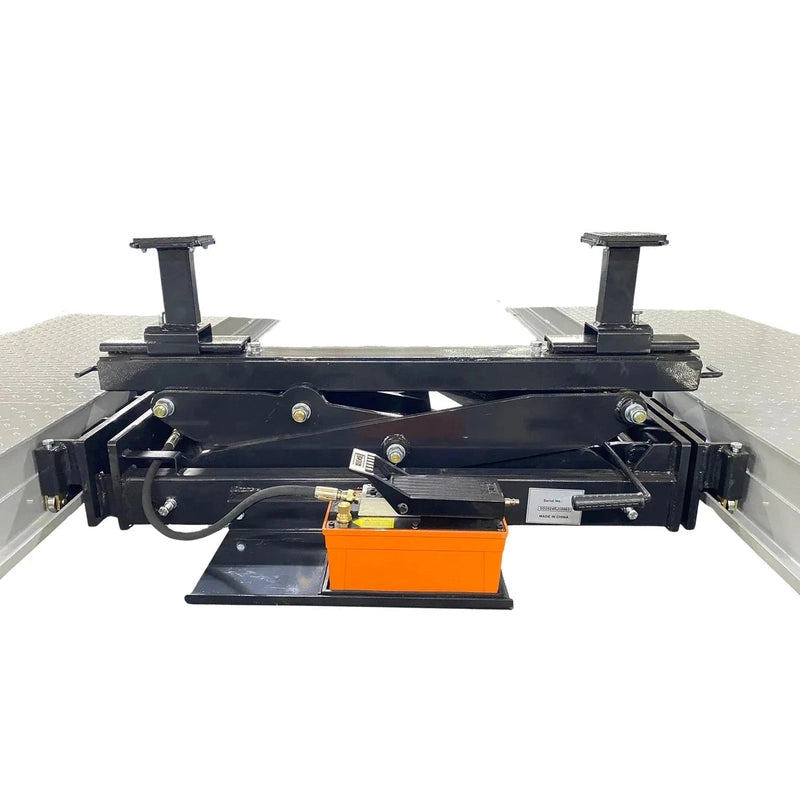

What do the 5" and 6.75" height adapters do?

They stack on the lifting pads to add reach when a chassis sits high or the lifting points require extra clearance. The 5" set fits most cars and light trucks; the 6.75" set is for taller frame heights on heavy-duty trucks and commercial vehicles.

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
