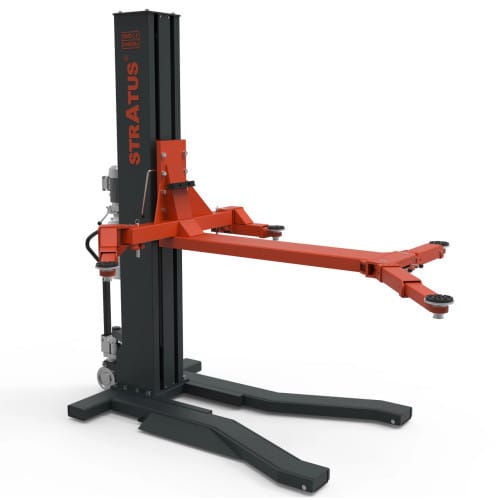

Stratus SAE-S66M 6,600 Lbs Mobile Single Post Lift, Manual Safety Lock Release

The Stratus SAE-S66M is a 6,600 lb single-post mobile car lift built to roll into position and lift a vehicle from a single column, leaving the area around it open for body, brake, tire, and general service work. It runs on a 3 HP single-phase power unit that you can wire for either 110V (30A breaker) or 220V (20A breaker) service, so it drops into a home garage or a working bay without a dedicated three-phase circuit.

Because the column rides on its own wheeled base, you reposition the S66M with the built-in pull handle instead of giving up a permanent footprint to it. A manual safety lock release holds the carriage at height on a mechanical lock, and an anti-surge hydraulic valve keeps the descent controlled. The lift is CE certified and proof-tested by the manufacturer to 115% of rated capacity dynamically and 150% statically.

• Manual safety lock release — mechanical lock holds the carriage at the working height
• Anti-surge hydraulic valve for a controlled, steady descent
• Portable, mobile design — integrated pull handle and base wheels move it where the work is

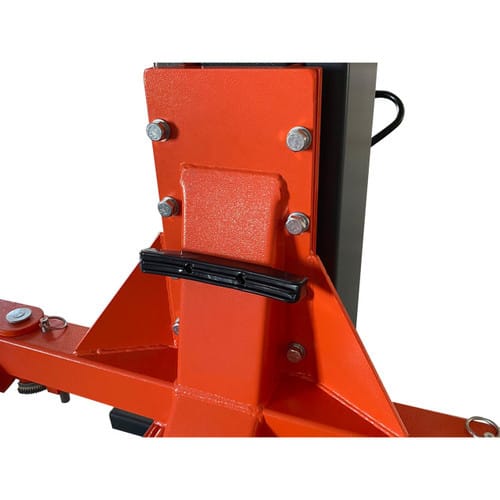

• Door-protection pads at the base to guard the vehicle while arms are positioned
• Optional 110V (30A breaker) or 220V (20A breaker) power unit, 3 HP single-phase
• Powder-coat finish in Granite Gray (RAL 7026) and Reinorange (RAL 2004)
• CE certified and factory proof-tested above rated capacity

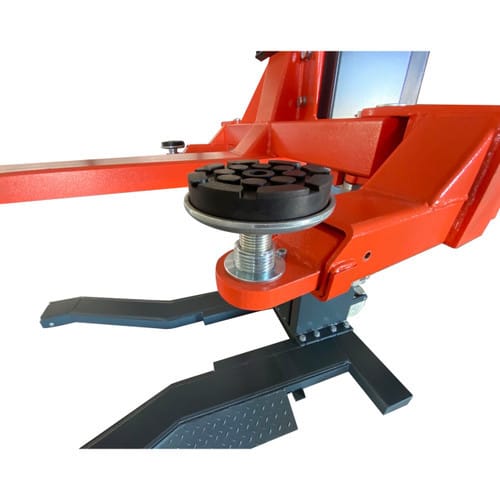

• 4 screw-up rubber pads
• 4 truck adapters (2 3/4")

Optional cradle pads (55 mm peg) and a tripod jack stand are available separately.

Stratus backs the SAE-S66M with a limited warranty to the original purchaser, by component group:

How do I move the lift around the shop?

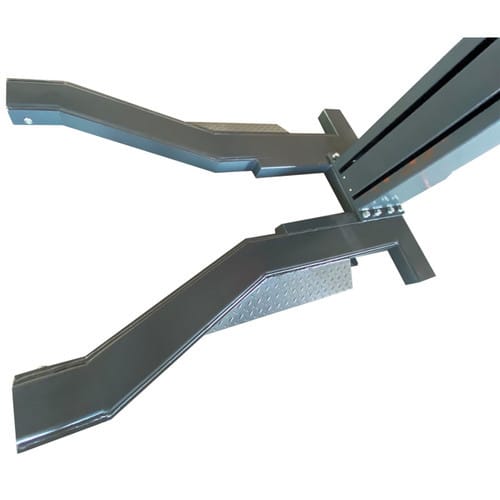

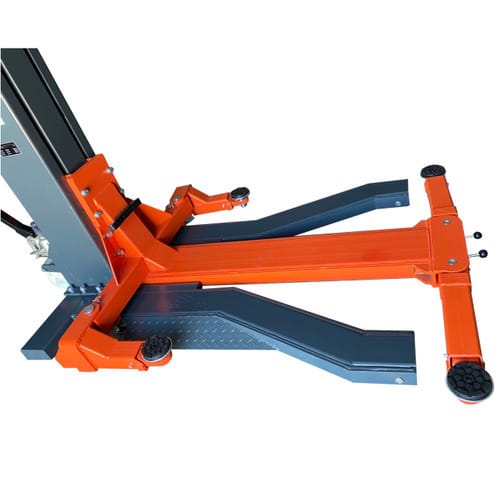

The column sits on a wheeled base. Use the integrated pull handle to roll it where you need it, then set it for the lift.

What power does it need?

A 3 HP single-phase power unit. You can wire it for 110V on a recommended 30A breaker, or 220V on a recommended 20A breaker.

How high does it lift?

From a minimum pad height of 3 9/16" (90 mm) up to 74 13/16" (1900 mm). Overall column height is 102 1/2" (2603 mm), so check your ceiling clearance.

What kind of floor does it need?

Use it on a solid, level concrete floor. The manufacturer warranty specifically excludes damage from use on an inadequate concrete floor, so confirm your slab is in good condition before operating.

The SAE-S66M ships by freight, crated at approximately 110" L × 57" W × 37" H. Delivery is free to a commercial address, a local installer, or a freight terminal; residential delivery adds $150, and a $425 surcharge applies to Oregon, Washington, Idaho, Montana, North Dakota, South Dakota, and Maine. The receiver is responsible for unloading, and freight carriers typically allow 30 minutes on site before wait charges apply, so have a forklift or enough hands ready. Contact sales@mygaragesupplies.com or call 307-381-1810 to confirm delivery options for your location.
