Stratus SAE-F12X 12,000 Lbs Extra Wide 2 Post Floor Plate Lift

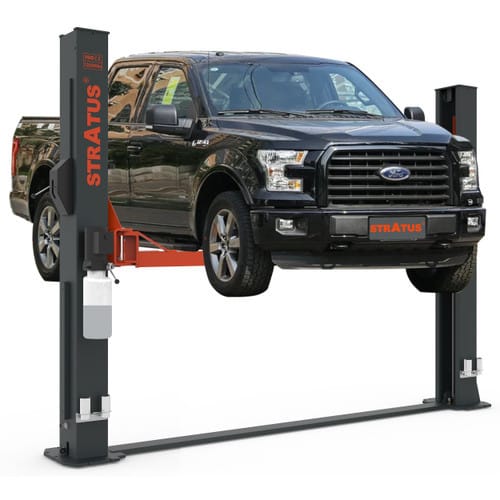

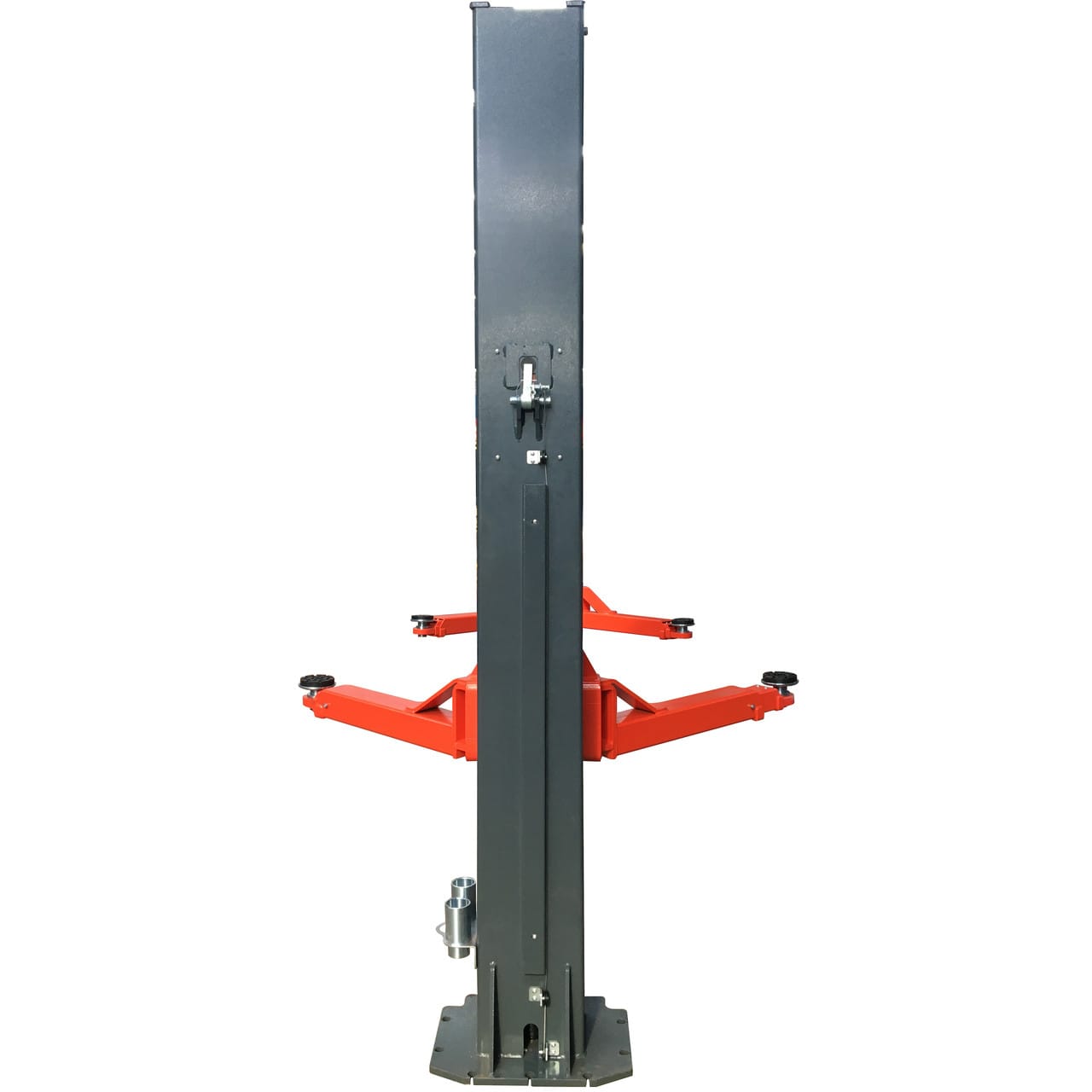

The Stratus SAE-F12X is a 12,000-lb extra-wide two-post floor plate lift built for shops that service full-size trucks, vans, and SUVs alongside everyday cars. Its open-top columns and floor-mounted base plate leave the entire underside of the vehicle clear, while extra-wide column spacing — 116 3/16" of drive-thru clearance and 129 15/16" between the columns — gives wide-body pickups and dual-rear-wheel trucks room to load square.

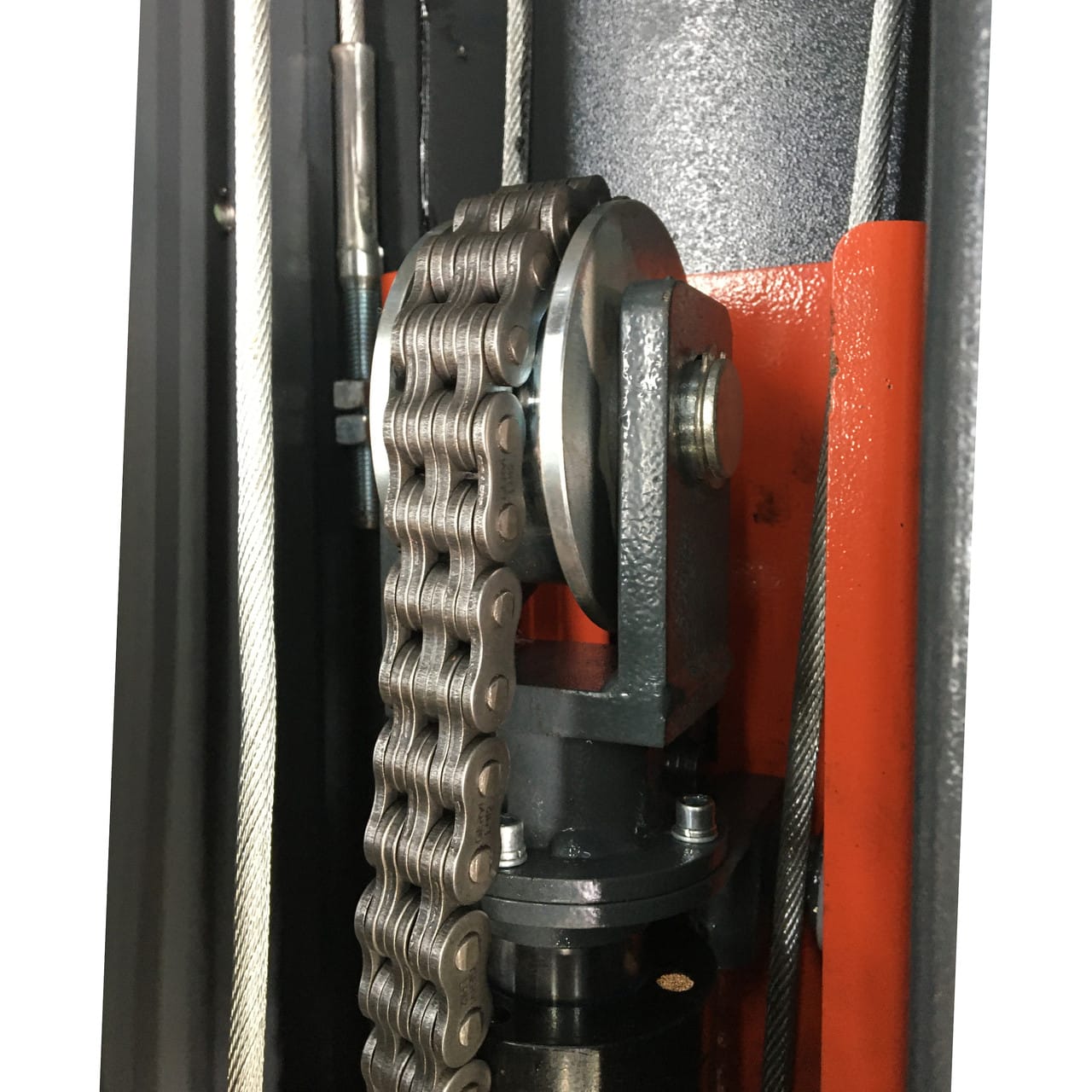

Two direct-drive hydraulic cylinders, synchronized by dual multi-strand equalizer cables, raise the vehicle to a 74 13/16" lifting height (78 13/16" with the screw-up adapters) in about 60 seconds. A single-point manual release lets one technician disengage both column safety locks from one lever, and triple-telescoping symmetric arms reach from 35 1/16" to 74 13/16" to spot the pads on a short hatchback or a long-wheelbase pickup.

Every F12X is proof-tested to 115% of rated capacity dynamically and 150% statically, runs on automatic spring-loaded arm restraints and a top limiter switch, and is backed by a 5-year structural warranty.

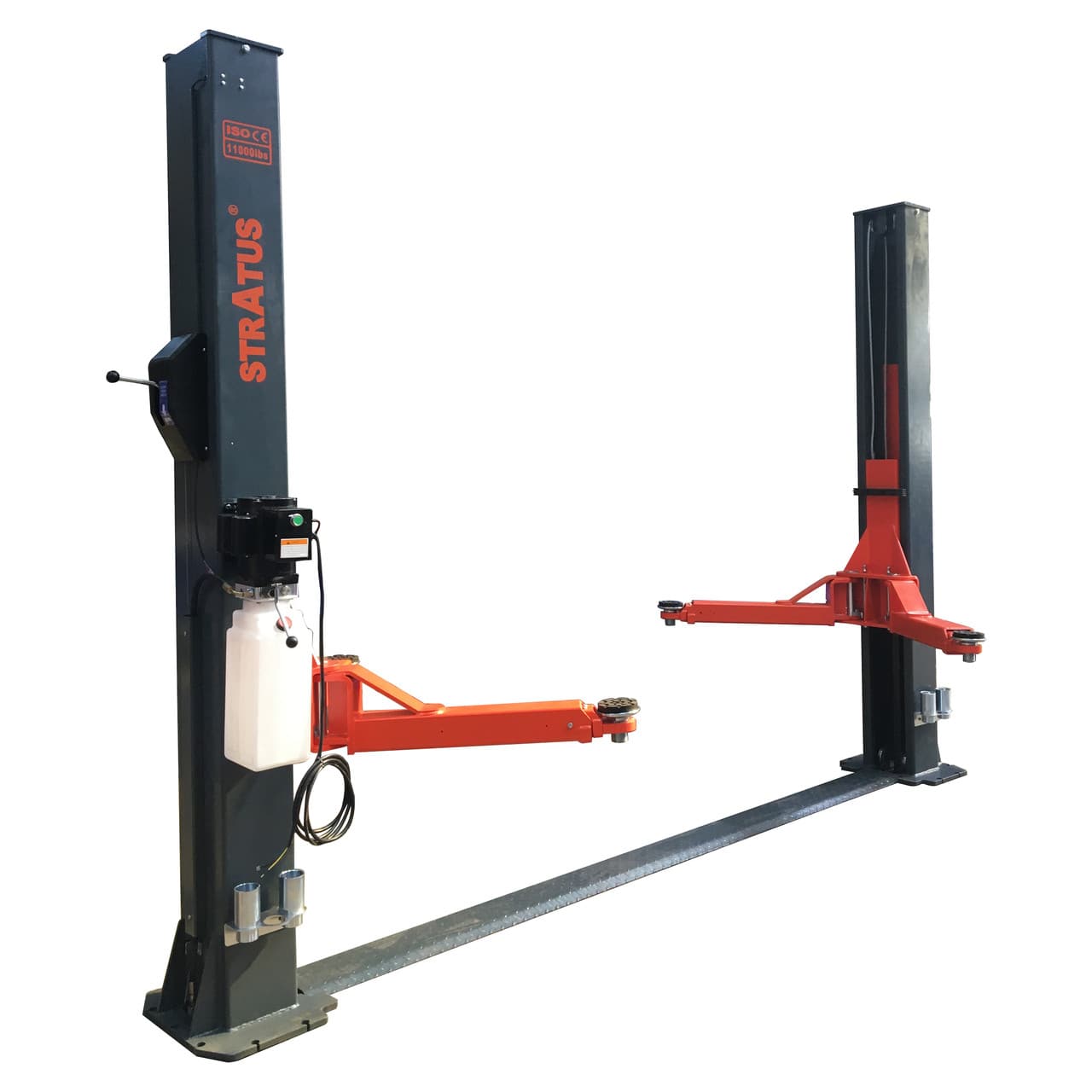

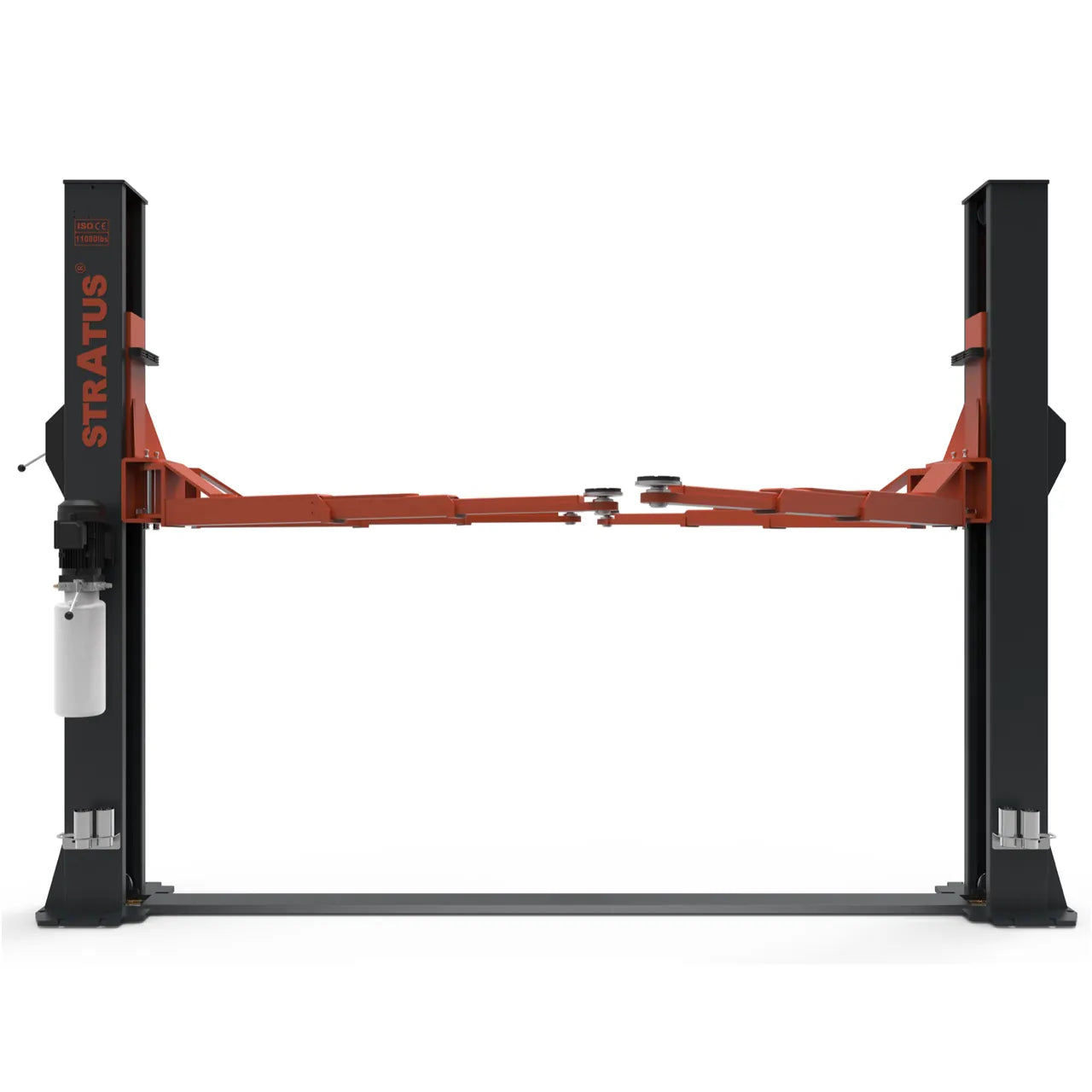

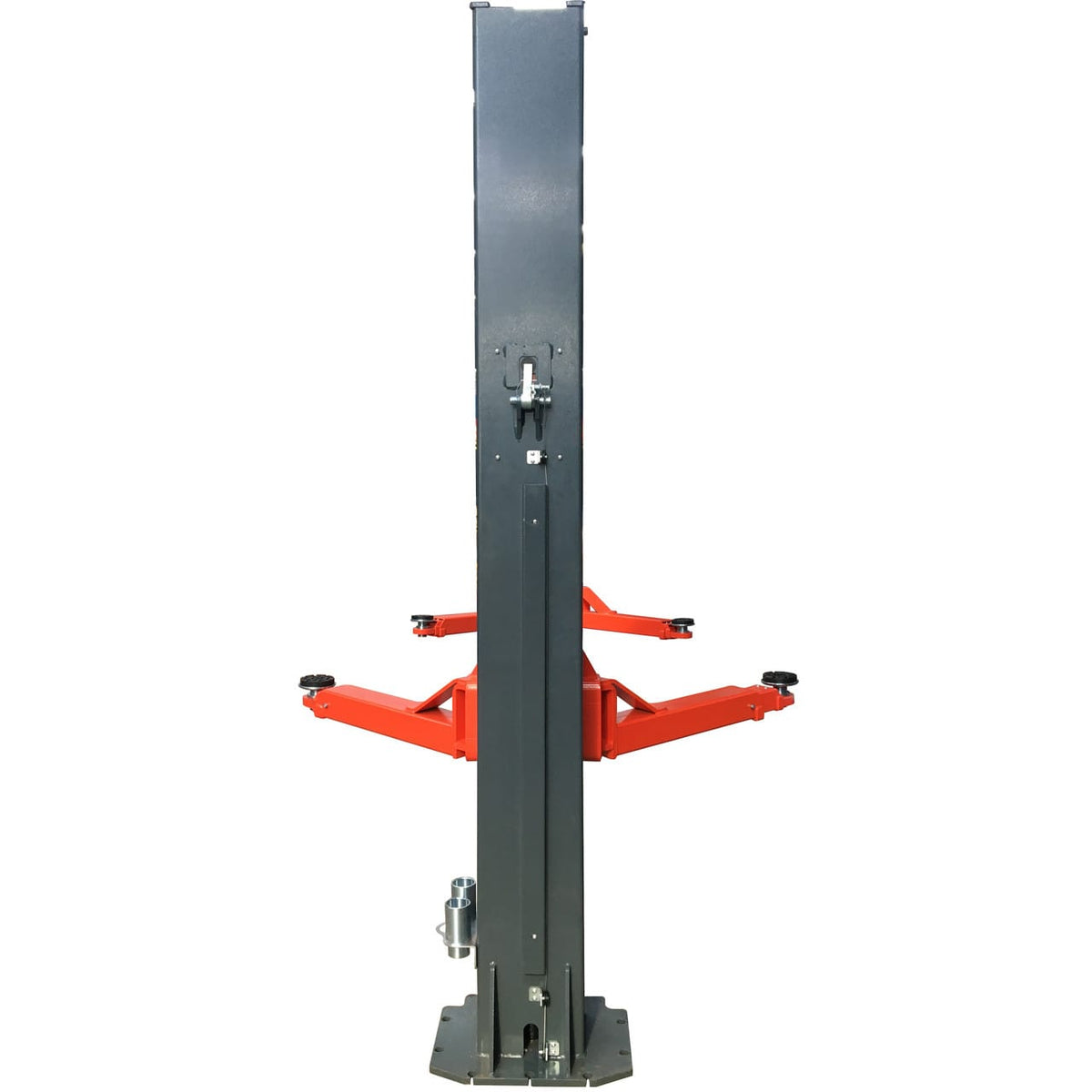

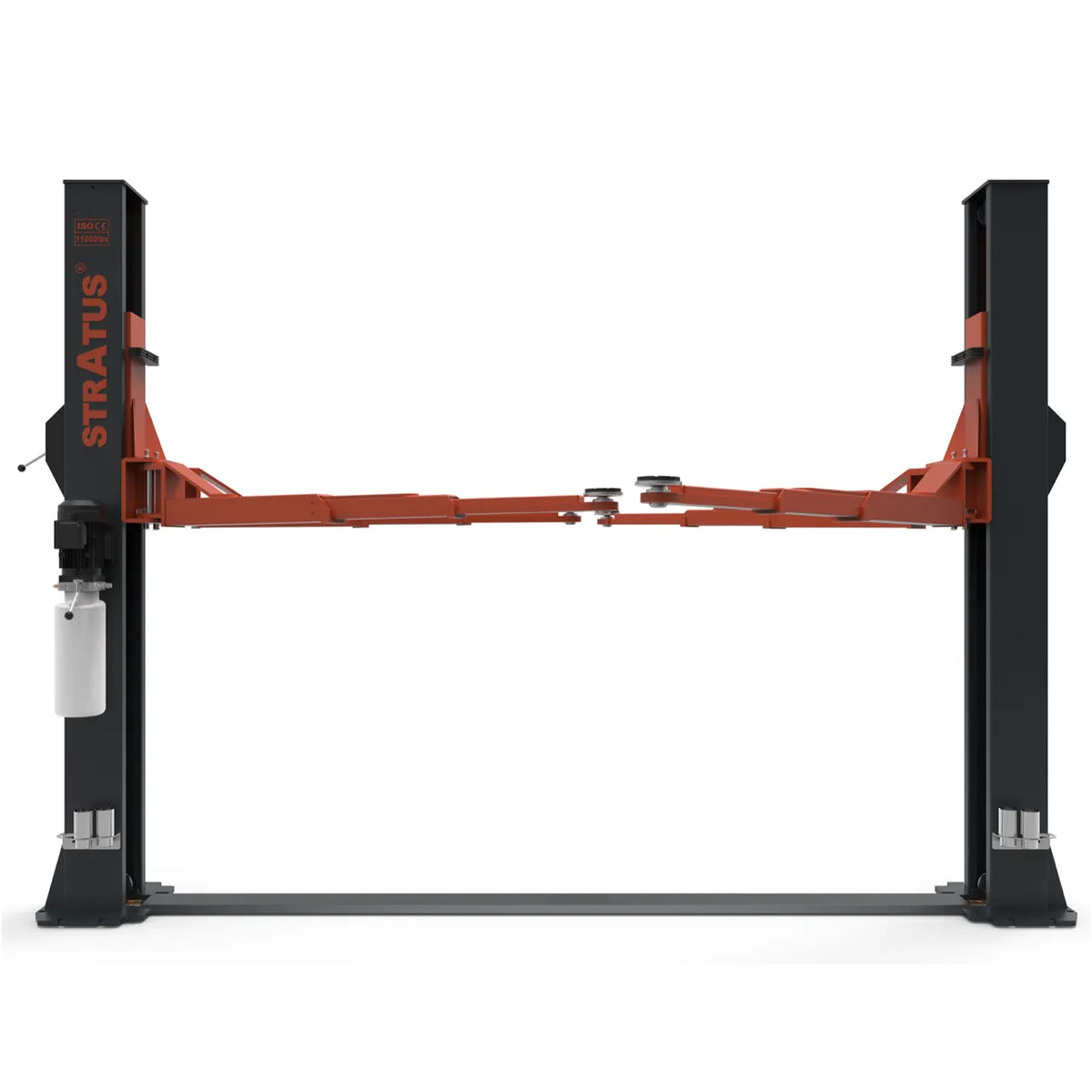

• Floor plate (base plate) design with open top — the cross member sits on the floor instead of overhead, so there is full, unobstructed access to the vehicle’s underside.

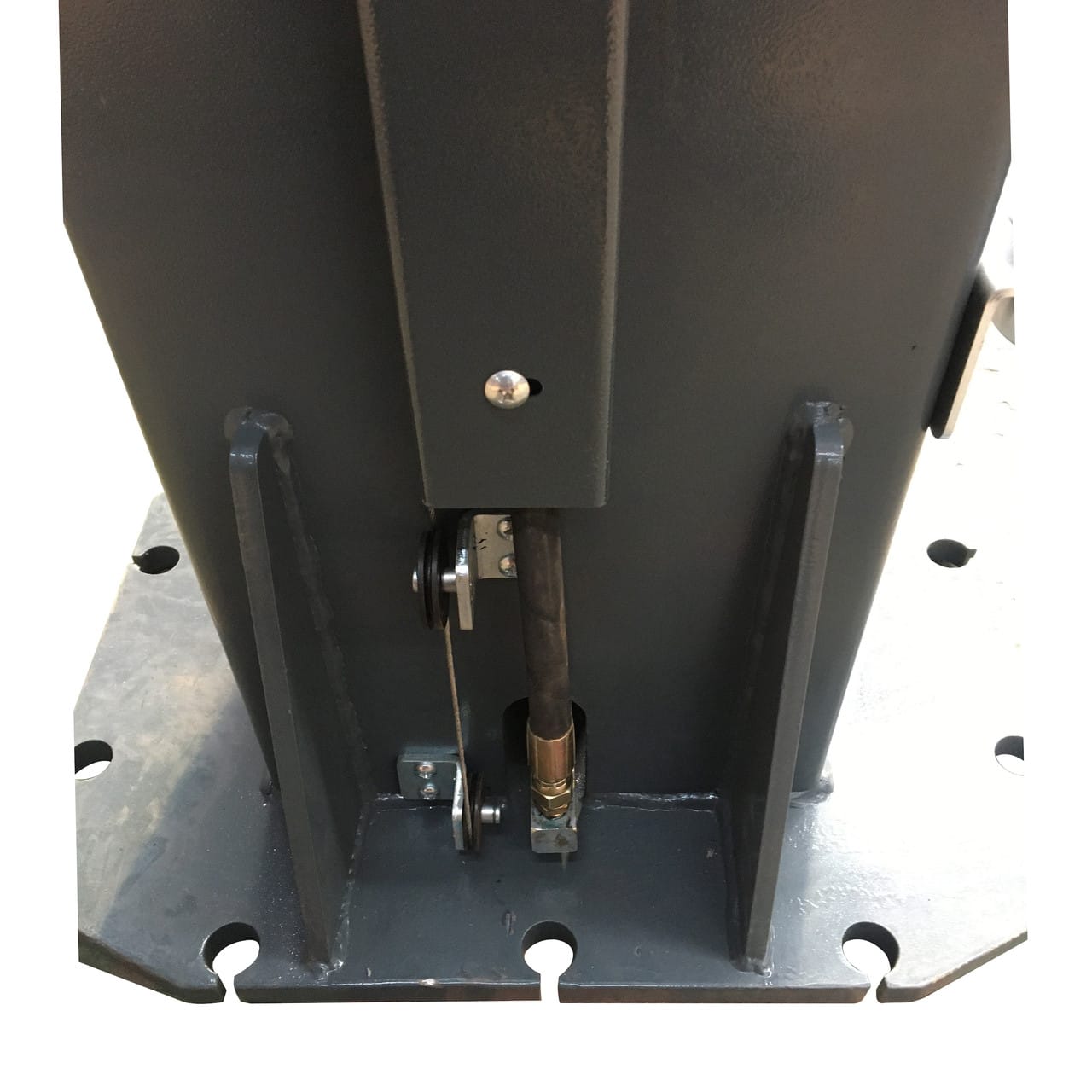

• Single-point manual release — one lever on the main column releases the safety locks in both columns at the same time.

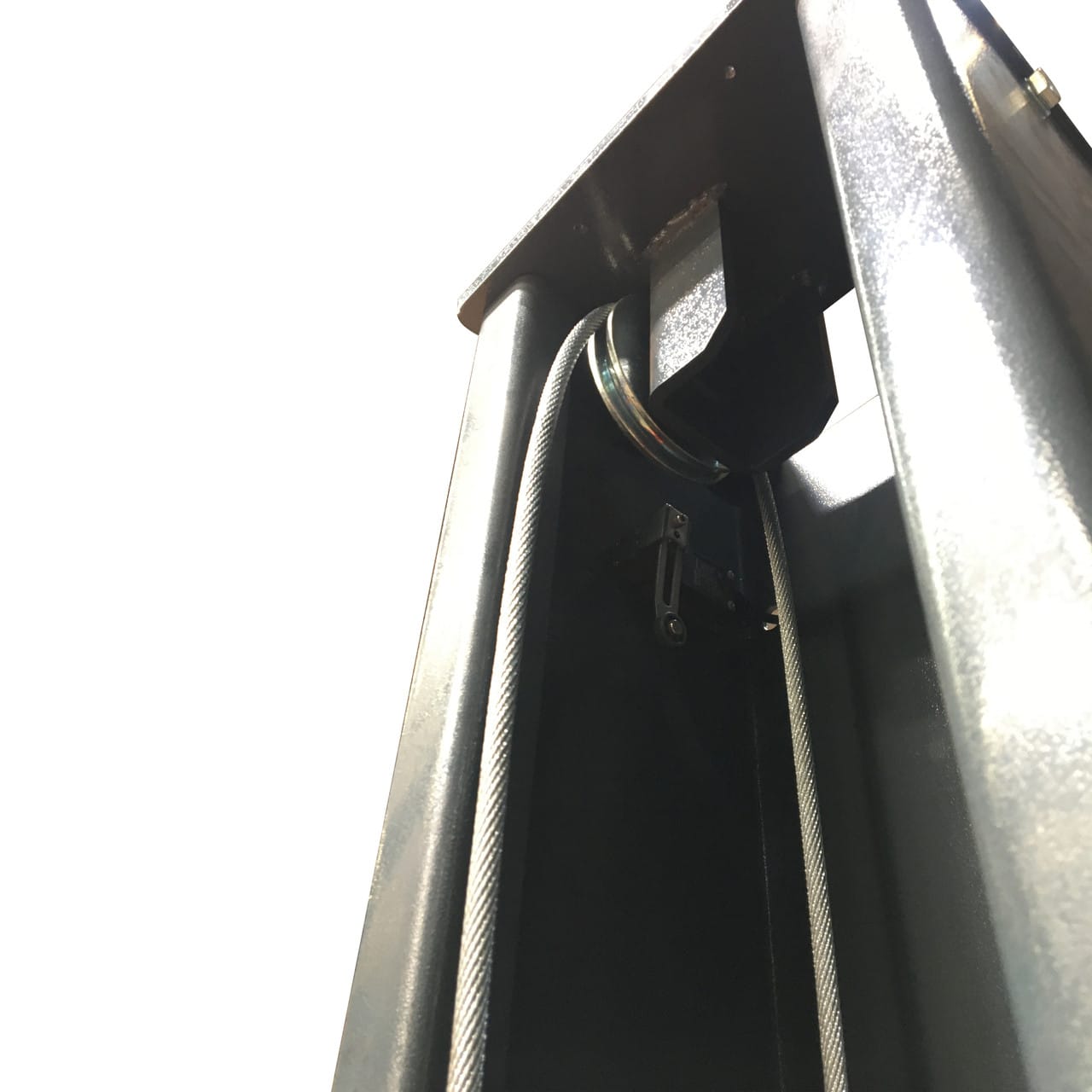

• Dual direct-drive hydraulic cylinders synchronized by two multi-strand, non-rotary, non-stretch equalizer cables (9 mm) for level, balanced lifting.

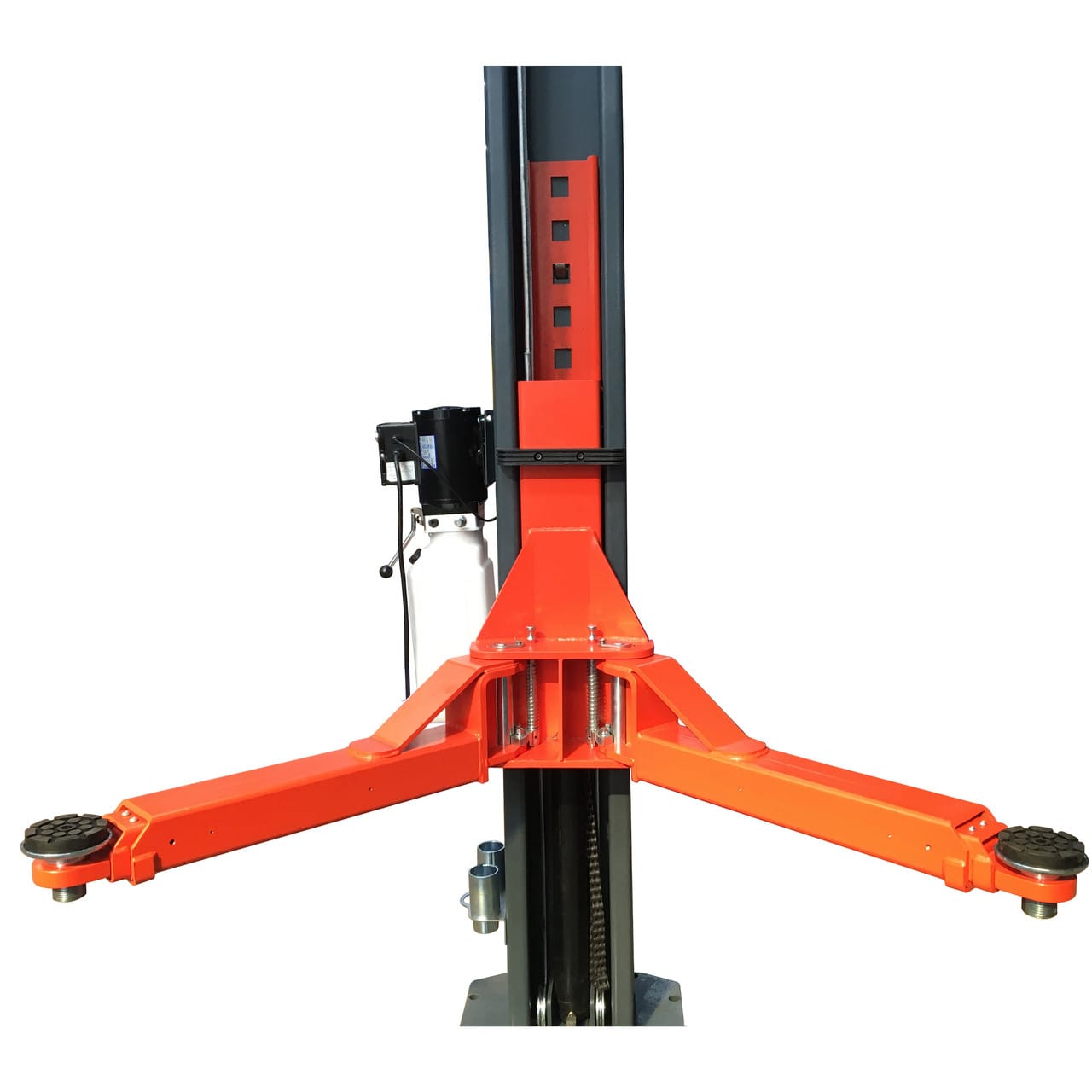

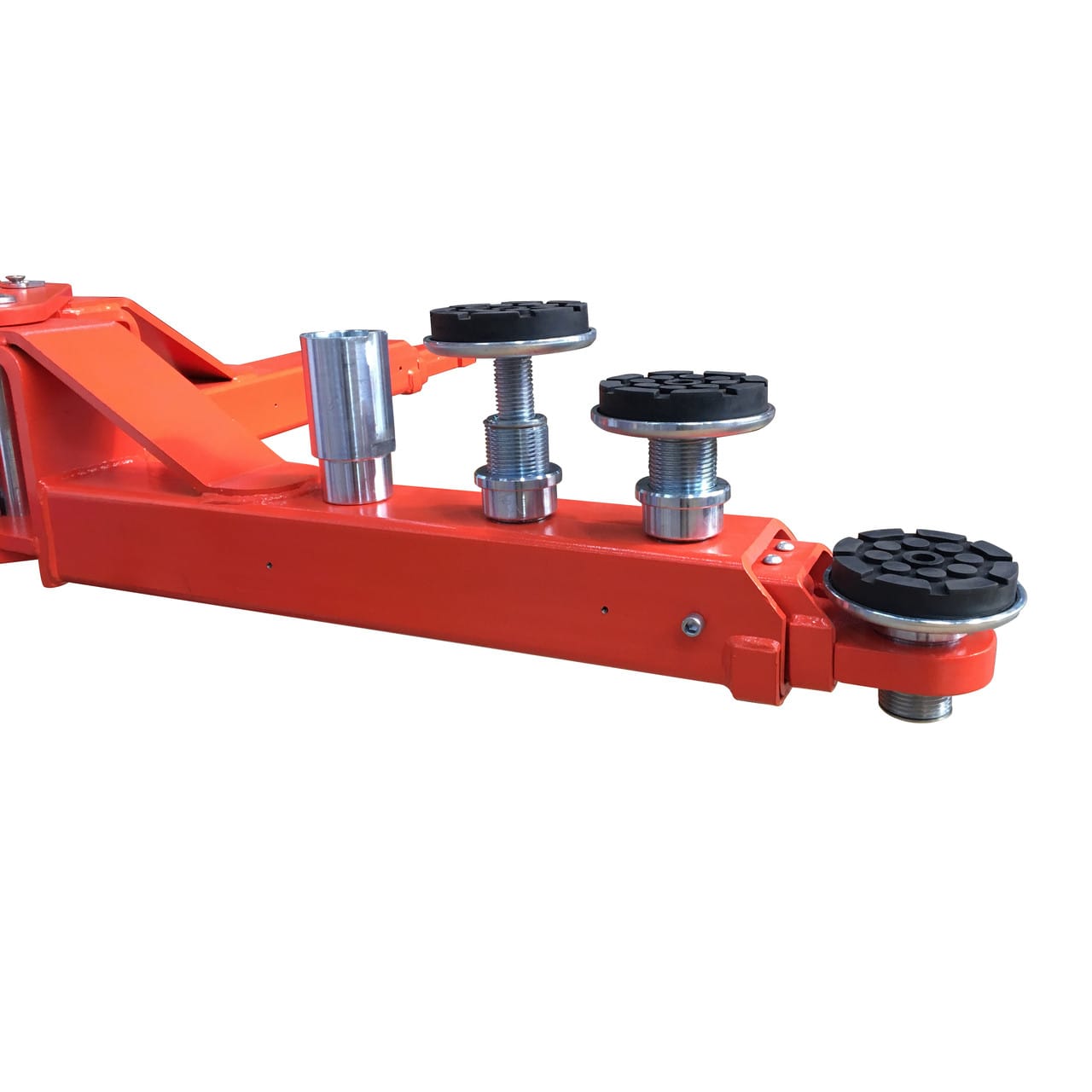

• Triple-telescoping symmetric swing arms with reach from 35 1/16" to 74 13/16" and screw-up rubber contact pads.

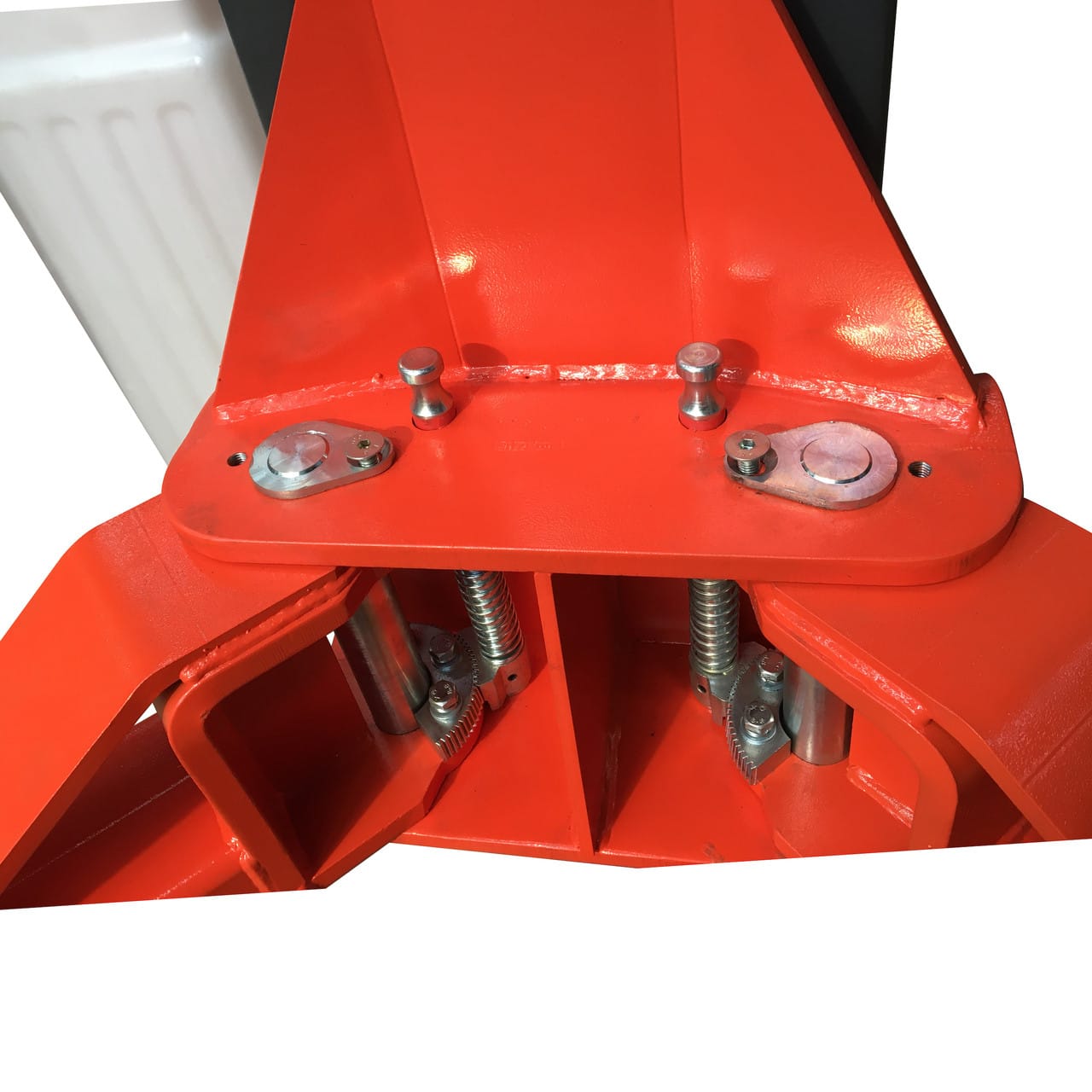

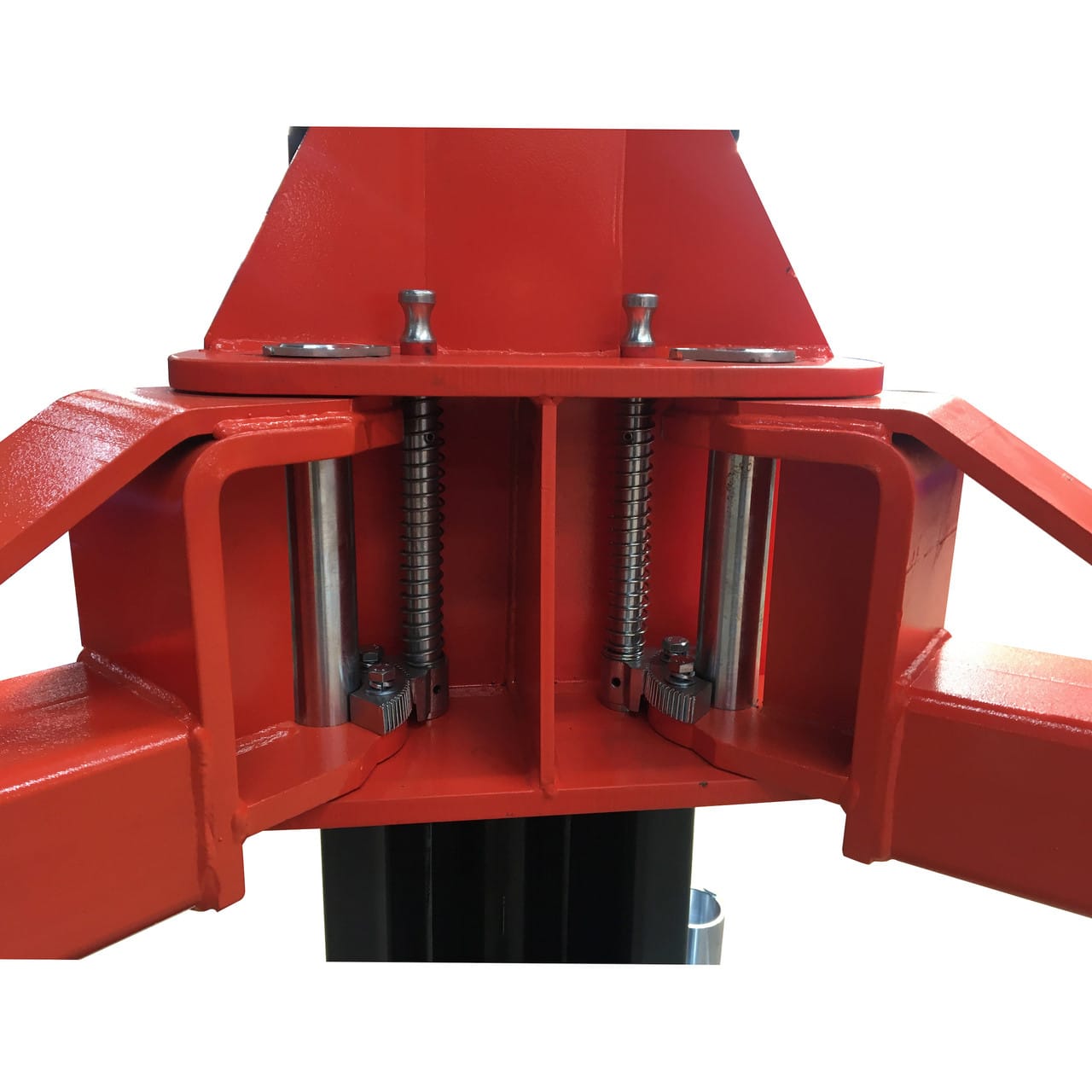

• Automatic spring-loaded arm restraints that lock the arms against rotation once the vehicle is loaded.

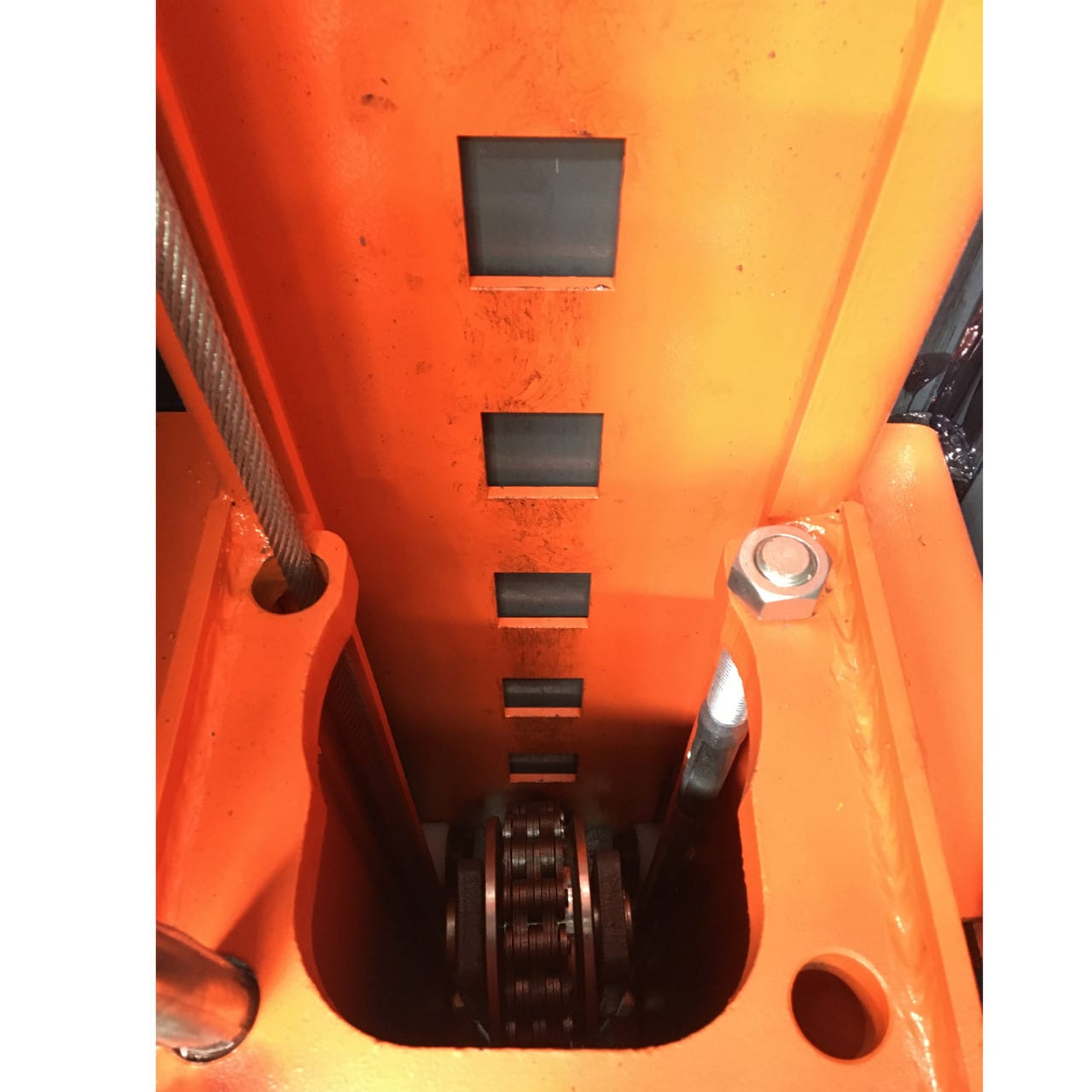

• Multi-position mechanical safety locks that engage automatically as the lift rises.
• Top limiter switch stops the motor automatically at full rise.
• Nylon slide blocks for smooth, low-maintenance carriage travel.
• Heavy-gauge steel: 6 mm columns and carriages, 8 mm arms.
• Proof-tested by dynamic test at 115% and static test at 150% of rated capacity.
• Durable powder-coat finish in Granite Gray (RAL 7026) with Rein Orange (RAL 2004) arms.
• CE marked.

• 4 screw-up rubber pads — 60 mm (2 5/16") peg

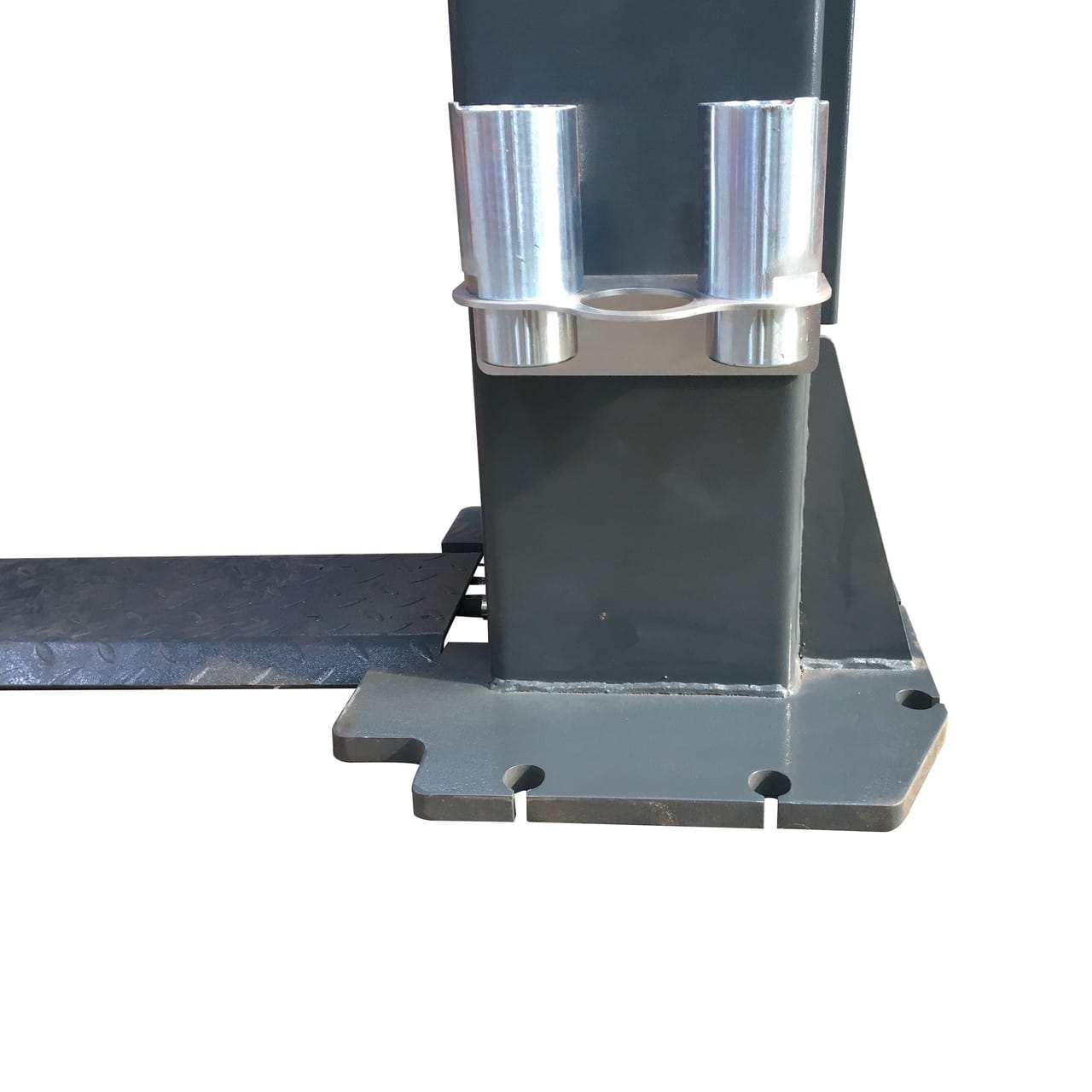

• 4 truck adapters — 4", 60 mm (2 5/16") peg
• 14 concrete anchors (M20 × 160 mm) and assembly hardware
• Owner’s manual

Optional accessories, sold separately: cradle pads (60 mm peg) and a tripod jack stand.

Stratus backs the SAE-F12X with a 5-year warranty on the lifting structure, 3 years on hydraulic components, and 2 years on electrical components.

What concrete does the F12X need?

The installation manual specifies a level slab of at least 200 mm (about 8 inches) of 3,500 PSI concrete, fully cured and free of cracks or holes, before the lift is installed.

What are the anchor and torque specs?

The lift includes fourteen M20 × 160 mm concrete anchors (about 3/4" by 6"), torqued to a minimum of 90 ft-lb.

What electrical service does it require?

The motor is 220V single-phase on a 30 A breaker and must be wired by a licensed electrician (two hot leads plus ground). It ships without a power plug.

Can I adjust the lifting speed?

Yes. Lift speed is set at the power unit’s hydraulic oil-flow valve; follow the adjustment direction given in the manual.

Will a wide truck fit between the columns?

The F12X is the extra-wide F-series model: 116 3/16" of drive-thru clearance and 129 15/16" inside the columns give wide-body and dual-rear-wheel trucks room to load.

Is the F12X ALI certified?

The F12X is CE marked. Stratus does not publish ANSI/ALI ALCTV (ALI) certification for this model; if ALI certification is required in your jurisdiction, confirm the current status with the manufacturer before purchase.

• Owner’s Manual (Safety, Installation, Operation, Maintenance)

The F12X ships by freight to a commercial address, installer, or freight terminal. Residential delivery, remote-area destinations, and liftgate service can add freight charges, and the receiver is responsible for unloading the lift from the truck. Call MGS at 307-381-1810 or email sales@mygaragesupplies.com to confirm freight to your address before ordering.
