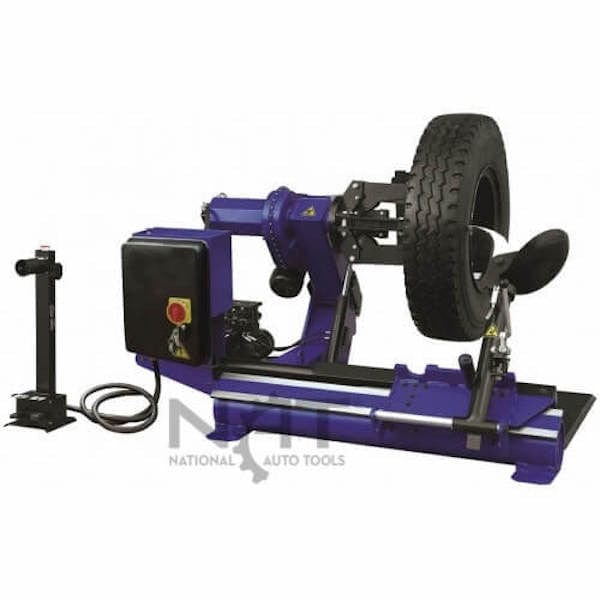

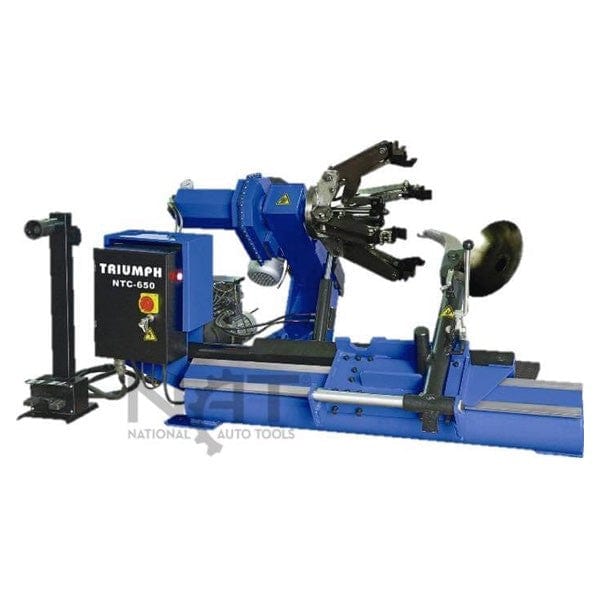

Triumph NTC-650 Heavy-Duty Truck Tire Changer, 63" Max Tire Diameter, Robotic Arm, 220V

The Triumph NTC-650 is a heavy-duty tire changer built for the rubber that breaks ordinary machines — box trucks, over-the-road tractors, buses, and agricultural equipment. A powered robotic mount and demount arm carries the load through every bead, so a single operator can service oversized commercial tires without wrestling them by hand. With a 14–26 inch clamping range, a 63-inch maximum tire diameter, and a maximum wheel width of 30.5 inches, the NTC-650 takes on the large-diameter rims and stiff sidewalls that passenger-tire machines cannot touch.

The NTC-650 runs on 220V power and inflates up to 120 PSI, with a wireless remote that lets the operator drive the machine from the best vantage point on the wheel. A bead press clamp and clamp covers come in the box to protect finished rims through mount and demount. This is a no-bead-blast machine — inflation runs through a standard tire inflation hose rather than an air-blast bead-seating system.

Every Triumph tire changer is backed by a 1-year parts warranty, and the NTC-650 ships crated via LTL freight with lift gate service so the carrier can lower it to the ground at your location.

• Powered robotic arm — the mount and demount arm does the heavy work, so one operator can service oversized commercial tires.
• 14–26 inch clamping range — grips the large-diameter commercial, truck, and implement rims that passenger machines cannot hold.
• 63-inch maximum tire diameter, 30.5-inch maximum wheel width — sized for truck, bus, and tractor tires.
• Wireless remote operation — control the machine from wherever you have the best view of the wheel.
• Bead press clamp and clamp covers included — protect finished rims during mount and demount.
• 120 PSI inflation capacity — seats heavy commercial tire beads through a standard inflation hose.

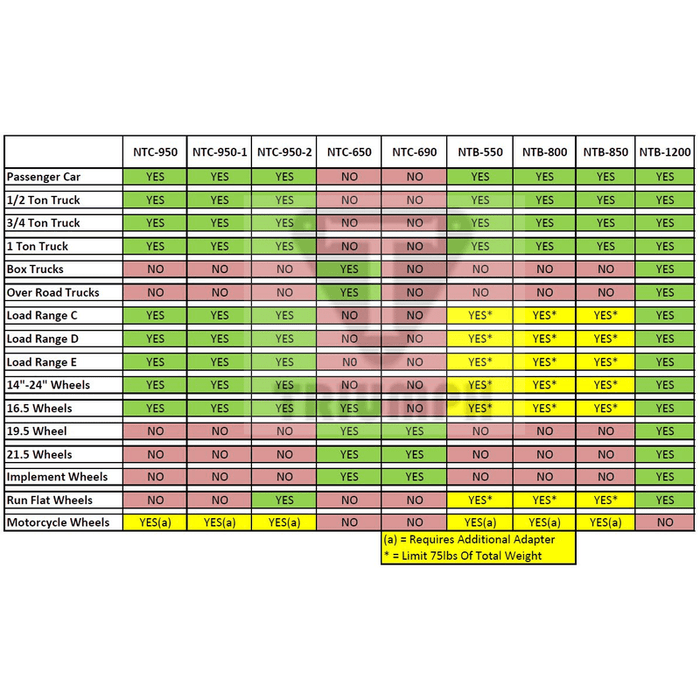

The NTC-650 is built for large commercial and industrial wheels — not passenger-car or light-truck tires. Per Triumph’s tire-equipment fitment chart, the NTC-650 handles box trucks, over-the-road trucks, 19.5-inch and 21.5-inch wheels, and implement (agricultural) wheels. Passenger cars and half-ton through one-ton light trucks fall outside its range.

• Crow bar
• Wireless remote
• Clamp covers
• Bead press clamp
• Instructional video

The Triumph NTC-650 carries a 1-year parts warranty (parts only, no labor). If a covered part fails, call MGS — we troubleshoot over the phone, then ship the replacement part free of charge by ground service. Labor to install the replacement part is not covered.

Not covered on tire changers: all plastic protective pads and tooling on clamps, heads, bead breakers, and assist arms; the single tire inflation hose; and the lube brush and bucket.

Does the NTC-650 change passenger-car or light-truck tires?

No. The NTC-650 is built for large commercial and industrial wheels — box trucks, over-the-road trucks, buses, and implement (agricultural) tires. Passenger cars and half-ton through one-ton light trucks are outside its range.

What is the largest tire the NTC-650 can handle?

Up to a 63-inch overall tire diameter, on rims from 14 to 26 inches, with a maximum wheel width of 30.5 inches.

What power supply does the NTC-650 need?

The machine runs on 220V power. Confirm your shop’s available service before ordering.

How does the NTC-650 ship, and can I get it off the truck?

It ships crated on an LTL freight carrier with lift gate service — the driver lowers the machine to the ground at the rear of the truck. The driver does not move it inside your shop or assemble it, and you schedule the delivery appointment directly with the freight carrier.

The NTC-650 ships with an instructional video covering setup and operation. For additional technical documentation, contact sales@mygaragesupplies.com or call 307-381-1810.
