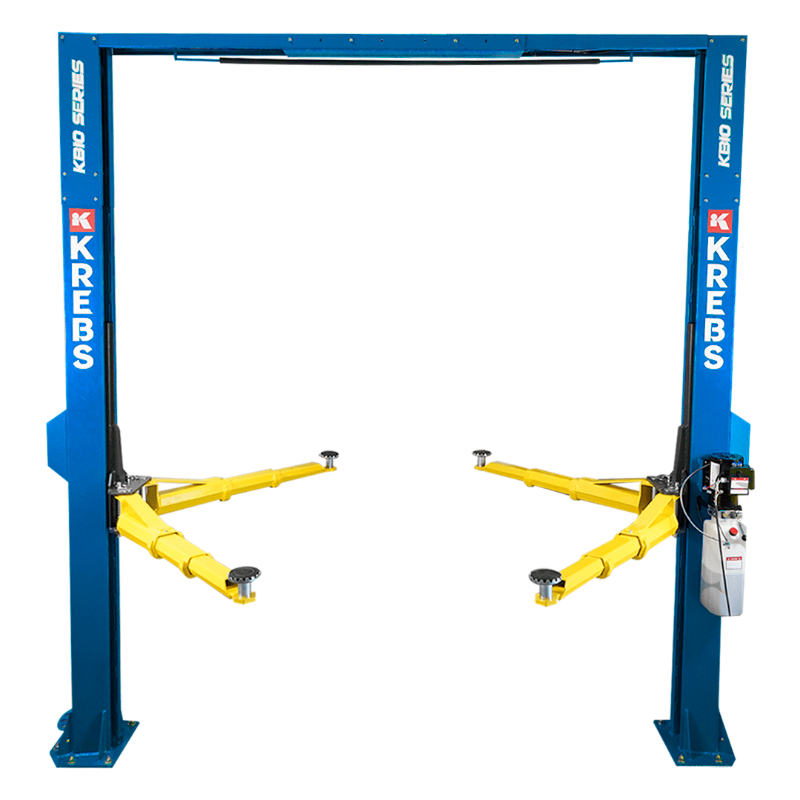

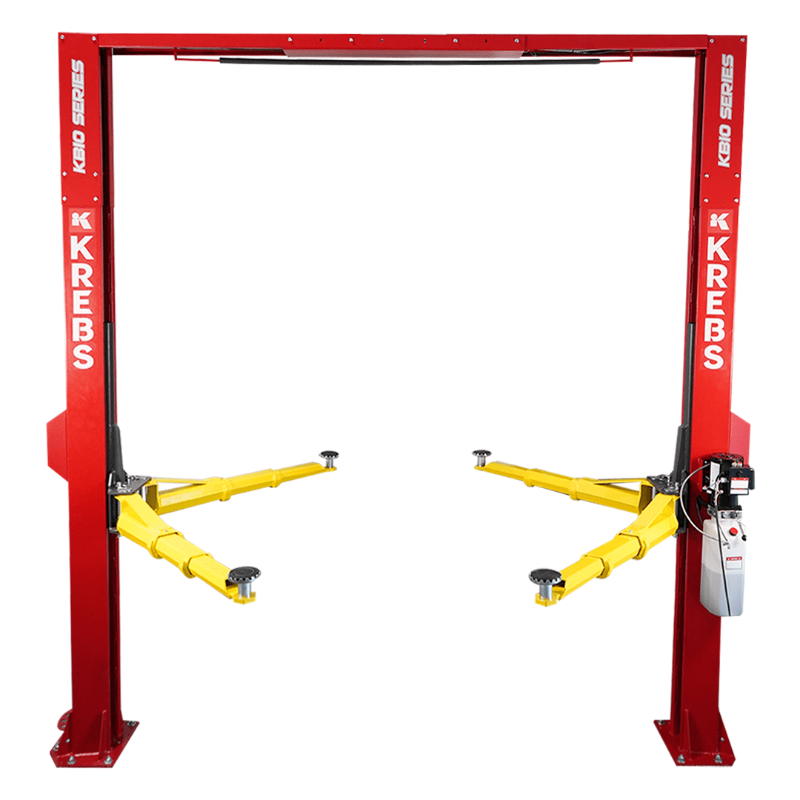

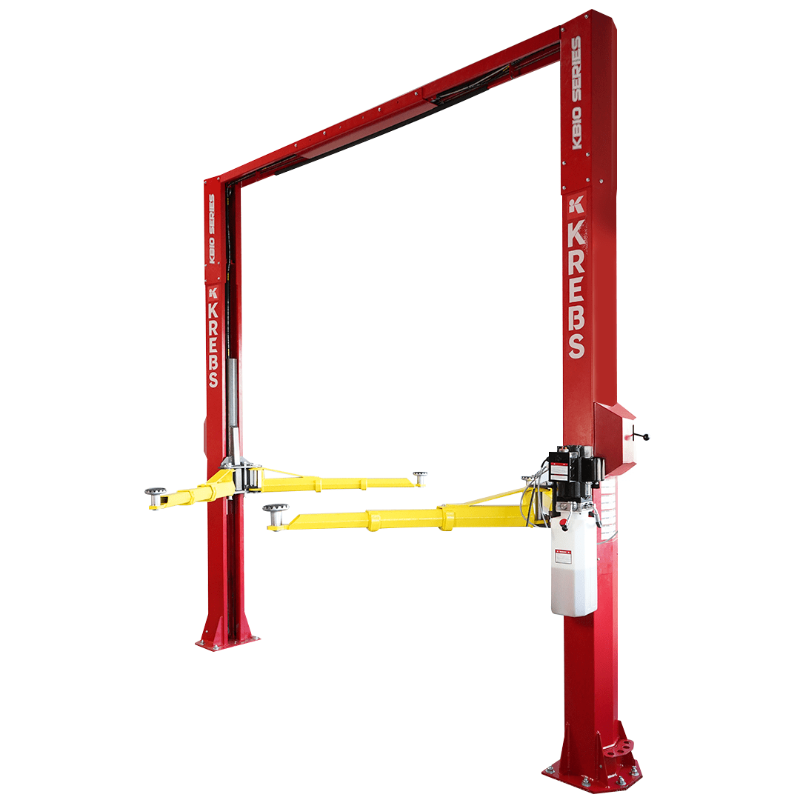

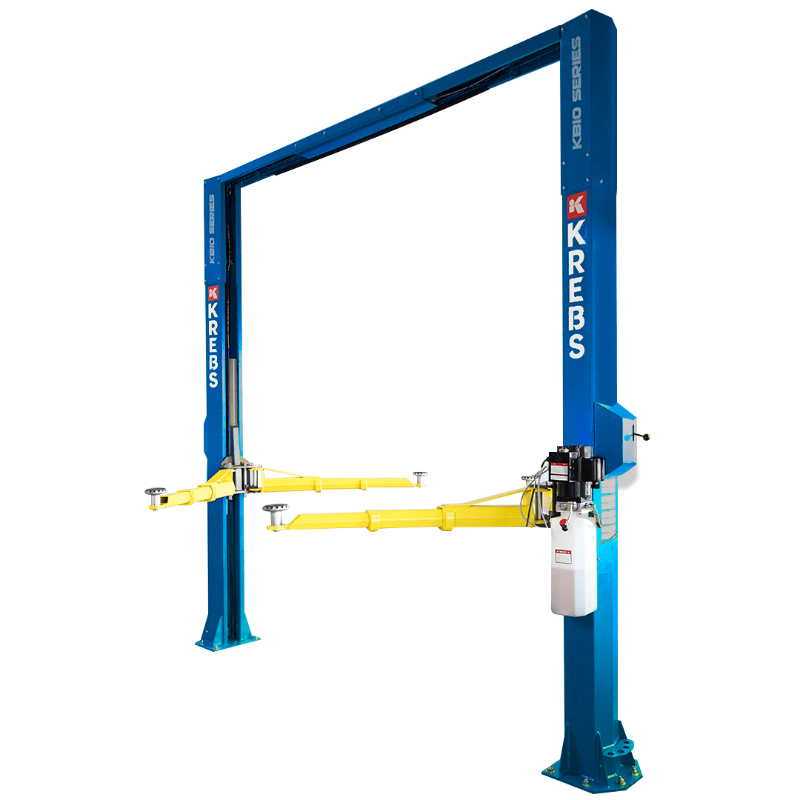

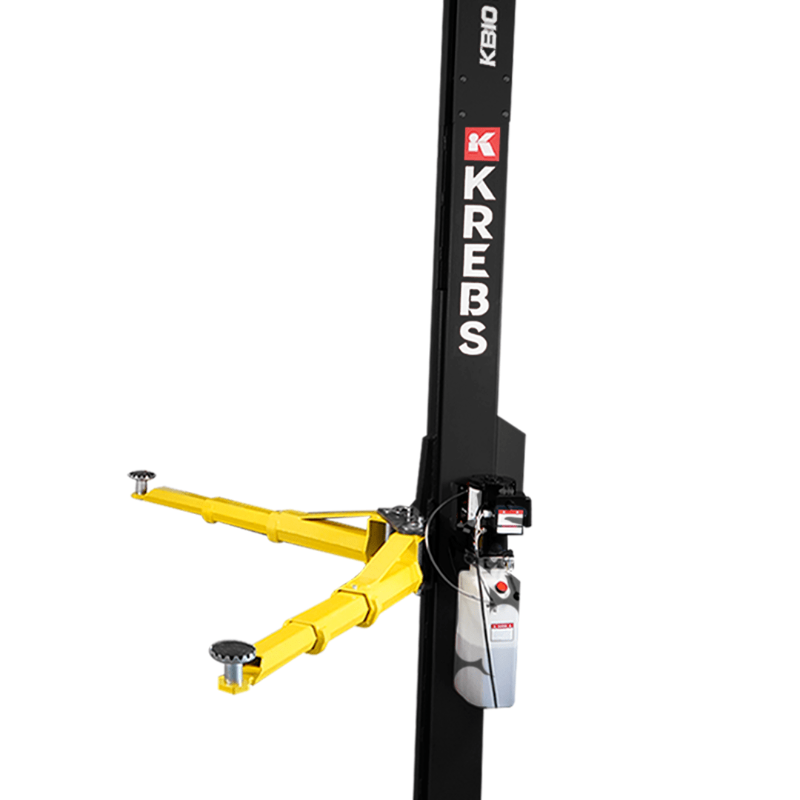

KREBS KB10/H-T 10,000lb 2-Post Automotive

When precision matters and vehicle heights vary, the KREBS KB10/H-T delivers control you can feel. This 10,000 lb ALI Certified overhead two-post automotive lift is finished in a sleek Black/Red/Blue and equipped with a threaded spin-up adapter for added lifting flexibility—making it a strong choice for shops that see everything from low cars to taller daily drivers.

Built around Krebs’ proven structural column concept, the KB10/H-T blends strength, safety, and workflow efficiency. Signature hexagonal three-stage sliding arms, a single-point lock release, adjustable width, and included 3-1/2" and 5" extension adapters ensure confident vehicle positioning without slowing the job down. It’s a modern lift engineered for real-world service bays.

• ALI Certified Safety: Designed to meet recognized industry standards for professional lifting.
• True 10,000 lb Capacity: Built to handle cars, light trucks, and many SUVs.
• Threaded Spin-Up Adapter: Fine-tune pad height quickly for uneven or taller vehicles.

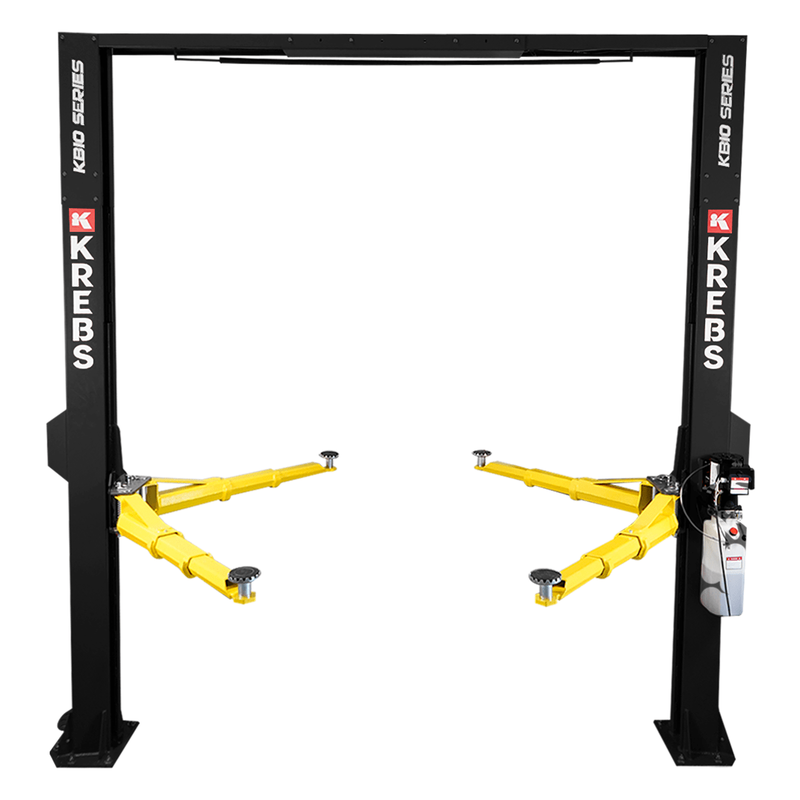

• Overhead Two-Post Design: Keeps hoses and cables off the floor for a cleaner bay.
• 15-Bend Structural Columns: Engineered for rigidity and long-term durability.

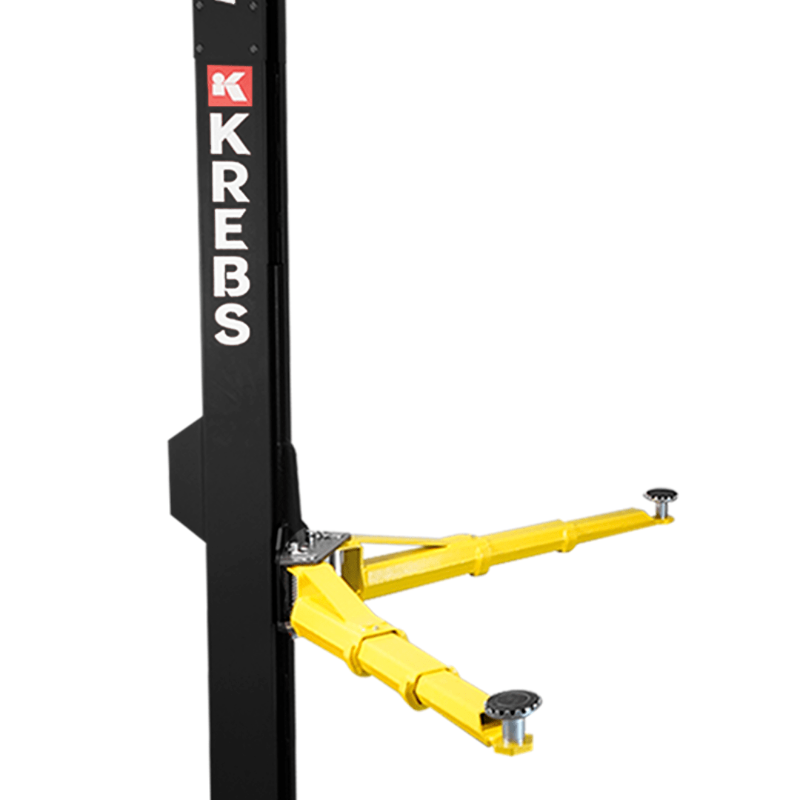

• Hexagonal Sliding Arms: Krebs’ signature design improves stability and positioning control.
• Arm Versatility: Two-stage rear arms and three-stage front arms adapt to varied wheelbases.
• Safety Locks Every 3": Precise height increments with a single-motion release.
• Quick-Coupling Support Shoes: Faster setup means higher productivity.
• Professional Black Finish: Clean, understated look that fits any shop environment.

Krebs designs its columns with daily usability in mind. Strategic folding of thinner sheet steel creates columns that are lighter to handle during installation yet rigid enough for continuous shop use. It’s strength without excess—engineered where it counts.

Built from ASTM A36 Certified Carbon Steel, the KB10/H-T offers excellent impact resistance and structural consistency, ensuring dependable performance and safety over the long haul.

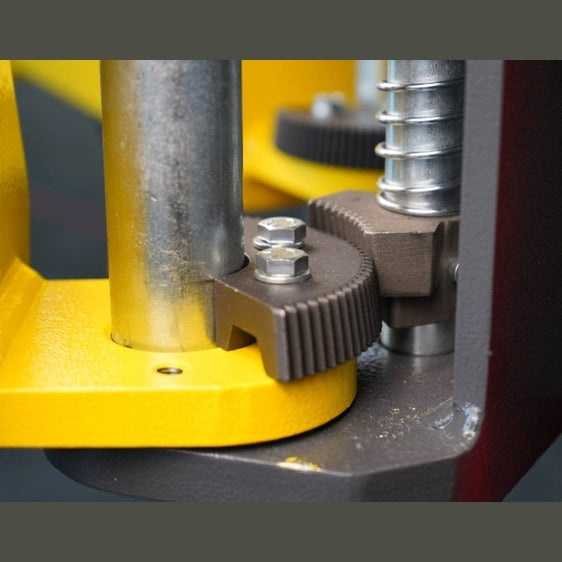

The KB10/H-T is designed to feel deliberate and secure at every stage of the lift cycle. Safety locks every 3 inches allow precise working-height selection, while the single-point lock release keeps operation smooth and predictable. Arm positioning locks add another layer of stability during service.

• Locking Increments: Every 3" for exact height control
• Release System: Single-point, single-motion operation
• Vehicle Stability: Arm positioning locks help secure lift points

From compact cars to taller vehicles, the KB10/H-T adapts easily. The combination of two-stage rear arms, three-stage front arms, and the threaded spin-up adapter gives you more control over pad placement—helpful when dealing with uneven lift points or varying ride heights.

• Sliding Arm Reach (Max): 4' – 3 7/8"
• Sliding Arm Reach (Min): 2' – 2 3/8"
• Front Swing Arm to Rear Sliding Arm Reach: 5' – 2 3/4" to 10' – 0"

Balanced speed keeps the workflow moving. The KB10/H-T raises vehicles in approximately 50 seconds and lowers them in about 27 seconds, delivering smooth, controlled motion that feels right in a professional setting.

• Rise Time: 50 sec
• Descent Time: 27 sec

Rated Load Capacity: 10,000 lbs

Heights

• Max. Working Height (A): 6' – 5 5/16"
• Max. Rising Height with Pad (B): 6' – 1/4"
• Max. Carriage Height (C): 5' – 7 7/8"
• Pad Height (D): 6 1/16"
• Lifting Height with Lift Pad (Lowered) (E): 11 1/16"
• Total Height (J): 12' 5/16"
• Clearance (K): 11' – 8 1/8"

Width / Bay Fit (STD vs Wide)

• Outside Columns (F): STD: 10' – 3 5/8"  |  Wide: 11' – 3 3/8"
• Inside Columns (G): STD: 8' – 10 1/8"  |  Wide: 9' – 9 7/8"
• Total Width (H): STD: 10' – 11 1/2"  |  Wide: 11' – 11 5/16"
• Driveway Clearance (N): STD: 8' – 1 7/8"  |  Wide: 9' – 3/4"

Base & Weight

• Base Plate (I): 1' – 5 5/16"
• Weight: 1,384.5 lbs

Overall Dimensions (W x D x H)

• STD: 10' – 11 1/2" x 1' – 5 5/16" x 12'
• Wide: 11' – 11 5/16" x 1' – 5 5/16" x 12'

• KREBS KB10/H-T Overhead Two-Post Lift
• Threaded spin-up adapter
• 3-1/2" extension adapters
• 5" extension adapters
• Quick-coupling support shoe attachments
• Single-point lock release system
• Integrated safety lock system (every 3")

The KREBS KB10/H-T adds another layer of adaptability to an already proven platform. With ALI Certified safety, engineered strength, and the convenience of a threaded spin-up adapter, it’s a smart solution for shops that want precise lifting control without slowing down. Finished in Black/Red/Blue, it’s as refined as it is reliable.
