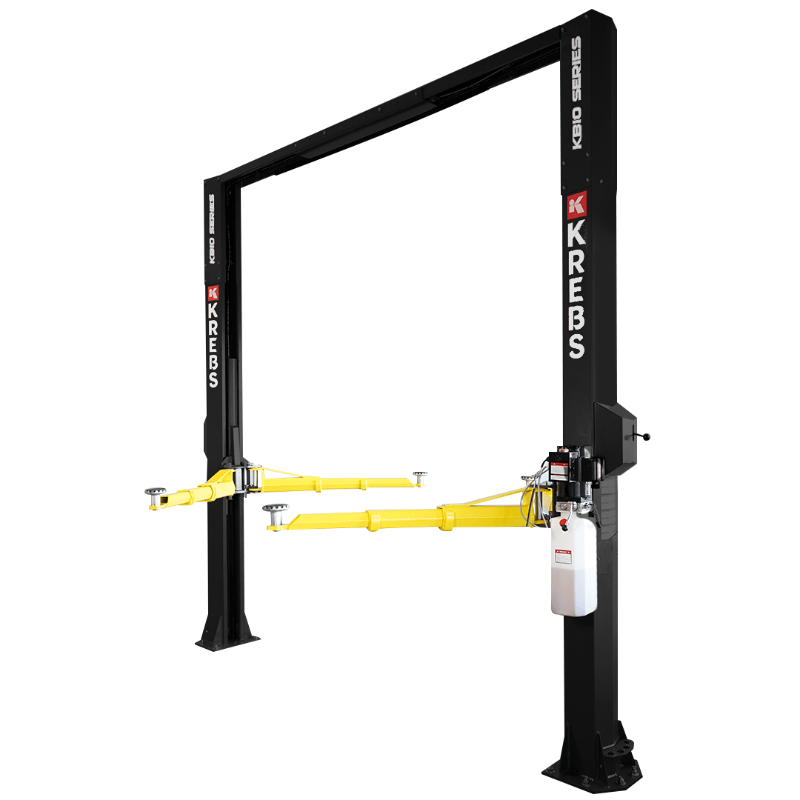

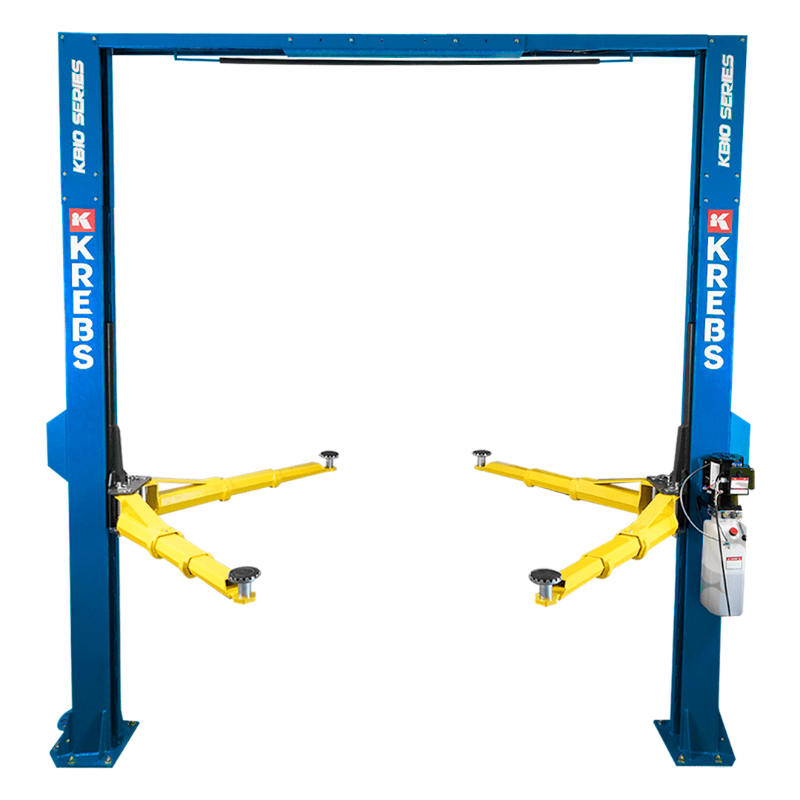

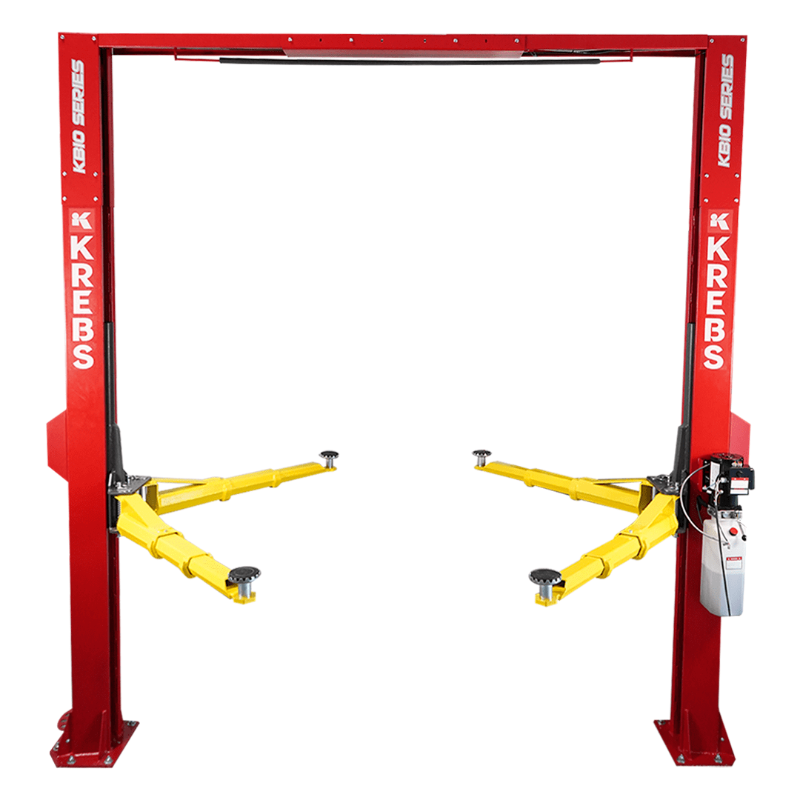

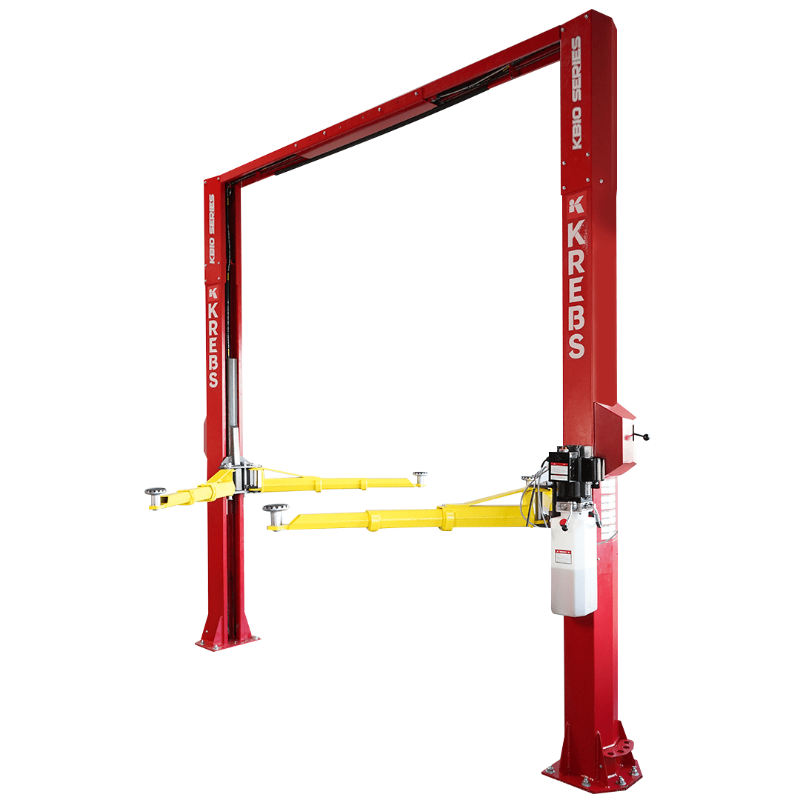

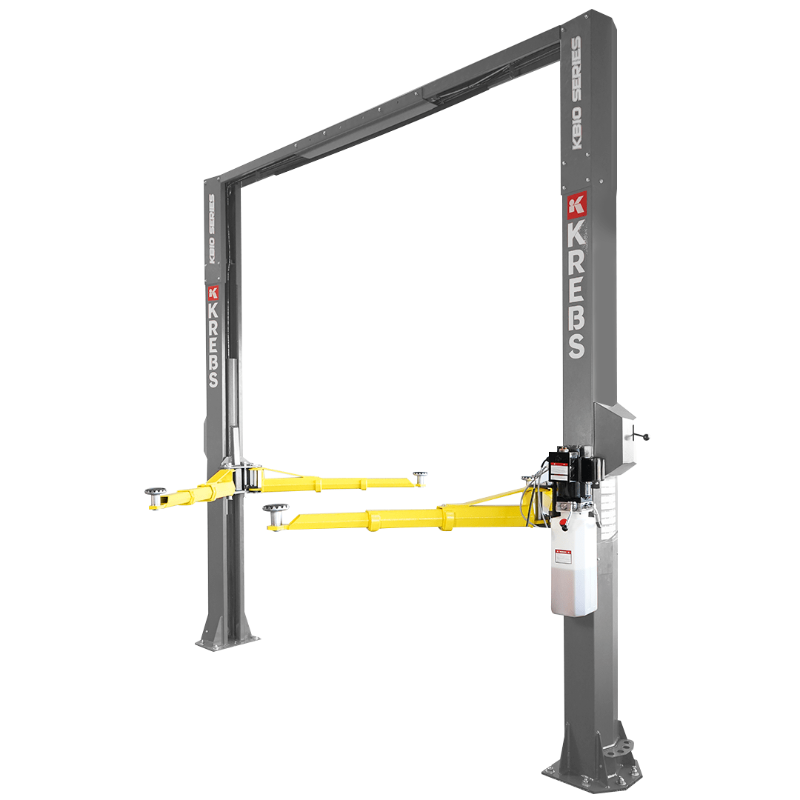

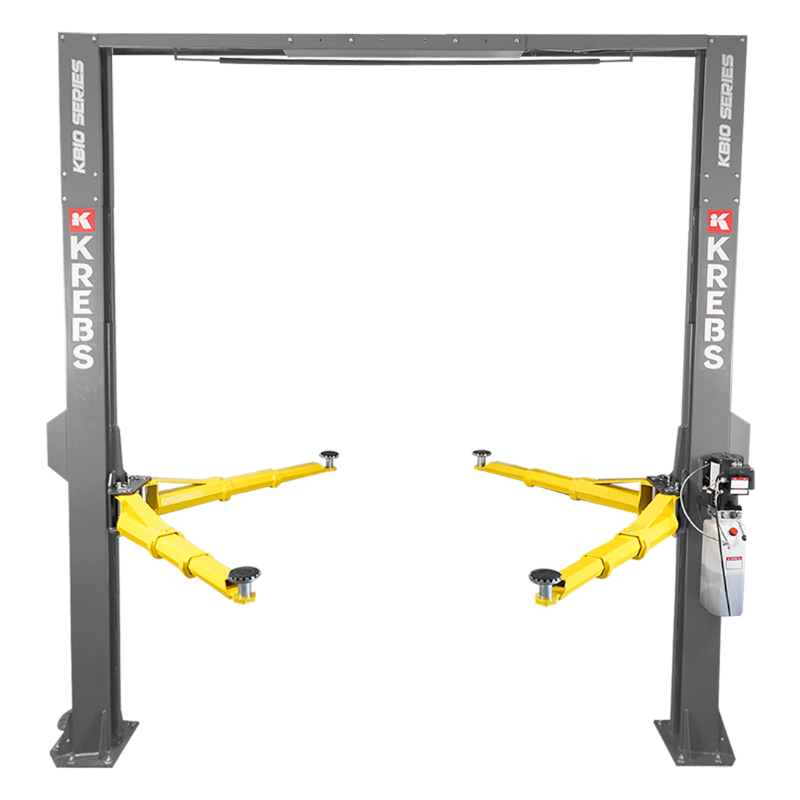

KREBS KB10/H 10,000lb 2-Post Automotive Lift

Built for busy shops and serious home garages, the KREBS KB10/H is a modern 10,000 lb ALI Certified overhead two-post lift designed to deliver confident lifting, day-in/day-out durability, and a clean professional look in Light Gray/Red/Blue/Black. From its engineered column profile to its signature hexagonal sliding arms, the KB10/H is all about stable vehicle positioning, fast workflow, and safety you can trust every time the pads leave the floor.

Expect smart details throughout: single-point lock release, adjustable width to fit your bay, and safety locks every 3 inches so you’re never hunting for the “right” height. Add the included 3-1/2" and 5" extension adapters, and you’re ready for a wide range of vehicles and lift points—without improvising.

• ALI Certified for Safety: Designed and built to meet industry-recognized lift safety standards for peace of mind in daily operation.
• True 10,000 lb Capacity: Confidently lift cars, light trucks, and many SUVs with stable, shop-ready performance.

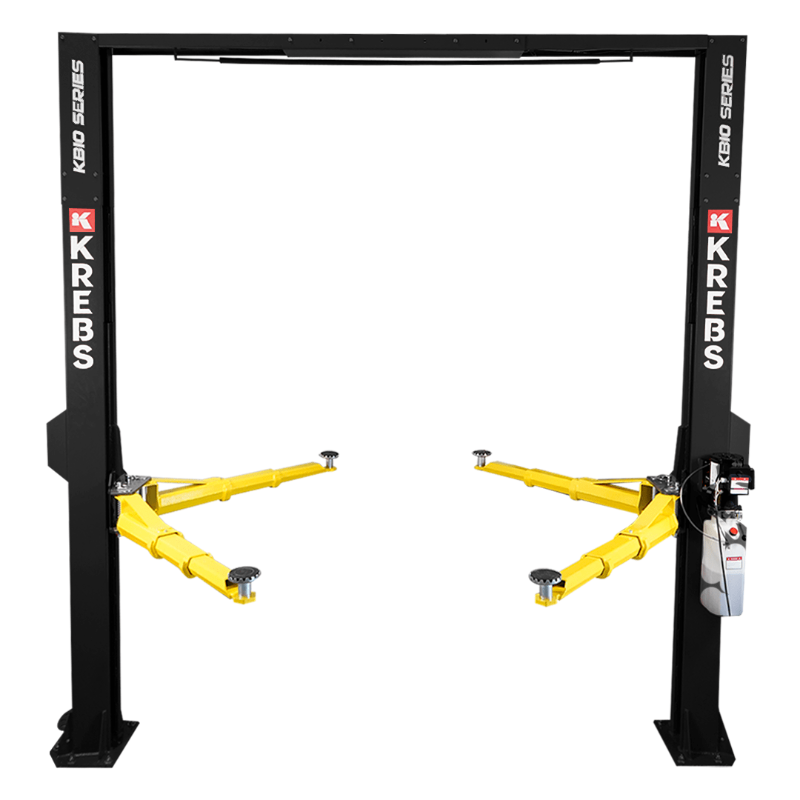

• Overhead Two-Post Design: Keeps the floor area cleaner and improves bay usability while maintaining strong structural support.

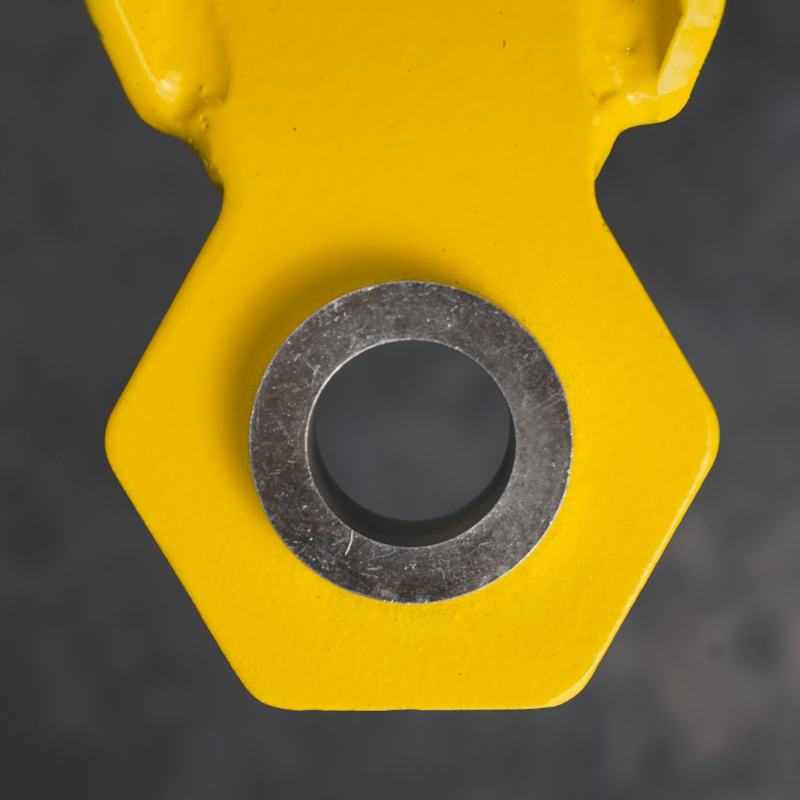

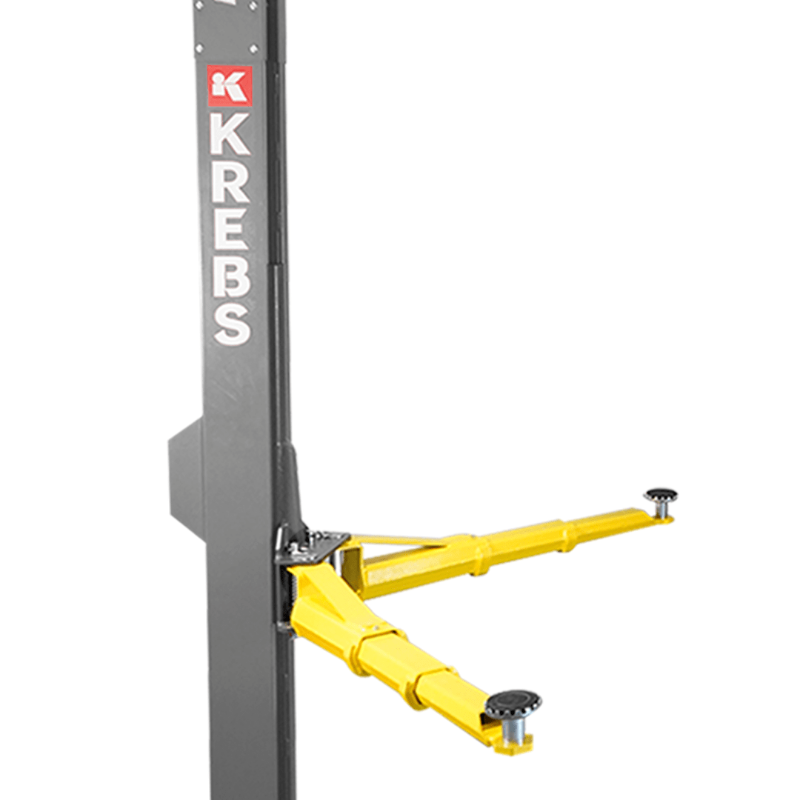

• Signature Hexagonal Sliding Arms: Krebs three-stage arm design helps reduce flex and improves positioning stability.
• Arm Versatility Where It Matters: Rear arms in two stages and front arms in three stages for a wider range of vehicle pickup positions.
• Safety Locks Every 3": Fine height increments plus a single-motion release for efficient, repeatable operation.

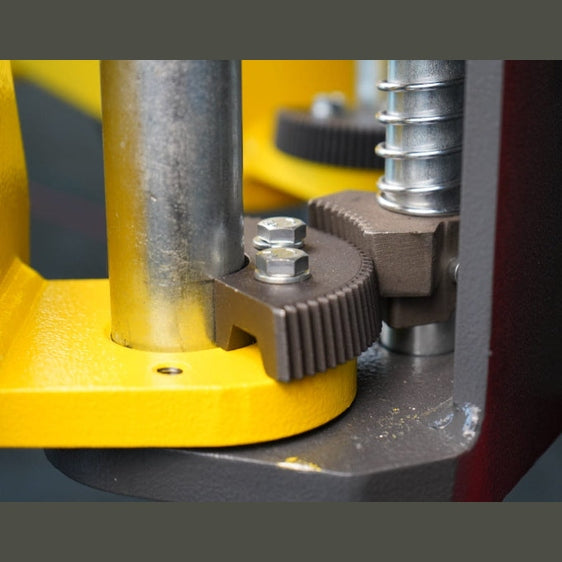

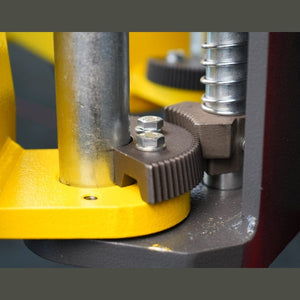

• Arm Positioning Locks: Helps keep the vehicle steady during service—ideal for suspension, brake, and undercar work.

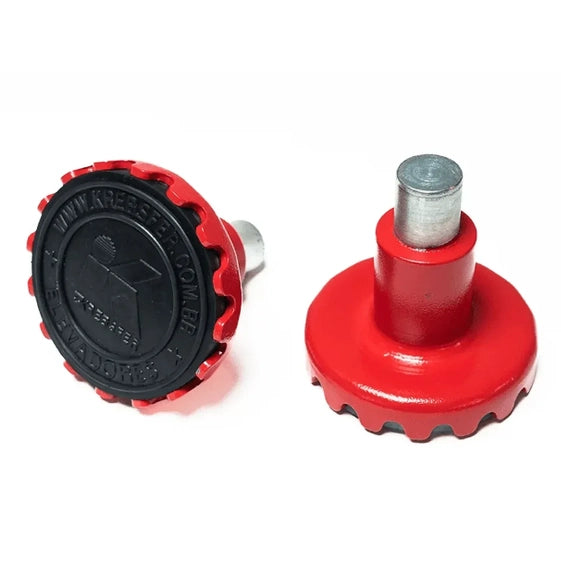

• Quick-Coupling Support Shoes: Faster pad/shoe setup means smoother throughput and less time spent adjusting.
• ASTM A36 Certified Carbon Steel: Durable, impact-resistant structural steel chosen for long-term reliability.
• Included Height Adapters: Comes with 3-1/2" and 5" extension adapters for added flexibility.

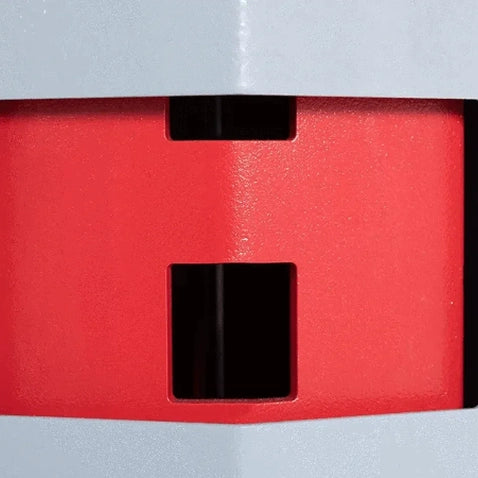

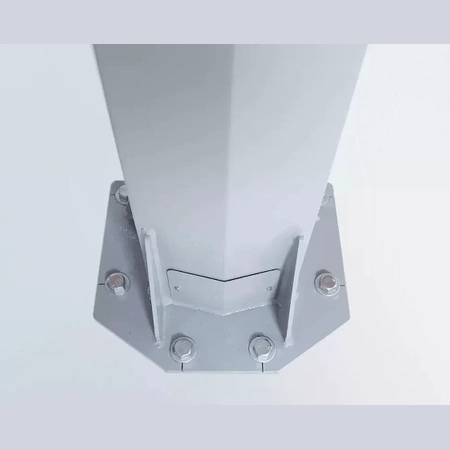

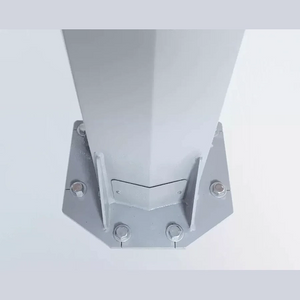

The KB10/H columns are engineered for real-world usability—strong where it counts, without unnecessary bulk. Krebs uses folding and shaping techniques that allow thinner sheet steel to deliver excellent rigidity, resulting in columns that are easier to handle during installation while still built to withstand daily lifting cycles.

Add the confidence of ASTM A36 Certified Carbon Steel, and you get a lift structure designed to resist impacts, maintain alignment, and keep performance consistent over time—exactly what you want when vehicles are in the air and technicians are underneath.

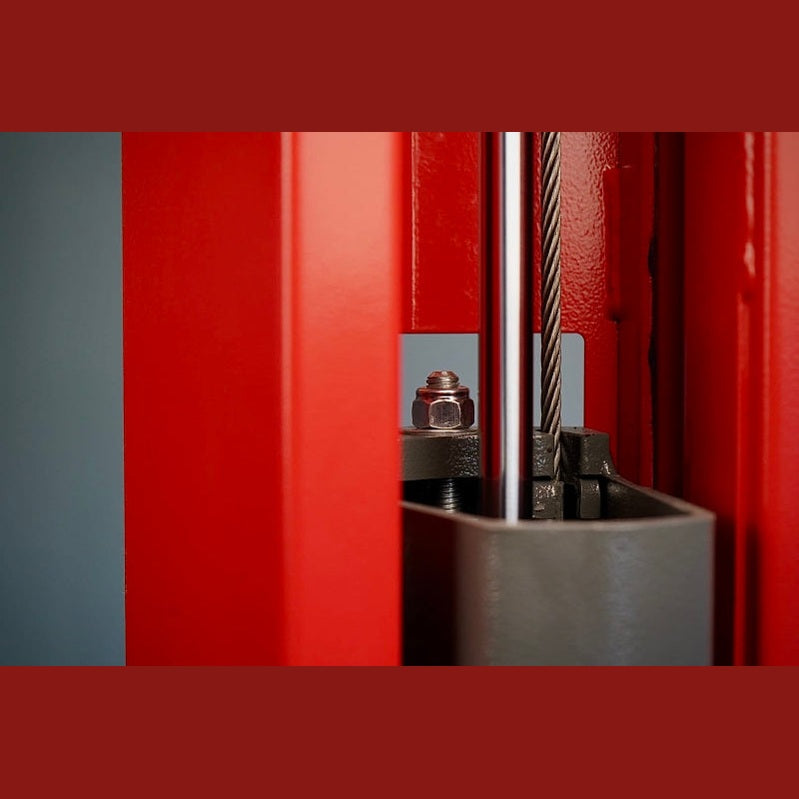

Safety isn’t an add-on here—it’s designed in. The KB10/H features safety locks every 3 inches to help you set your working height precisely, plus a single-point lock release that keeps operation straightforward. Arm positioning locks help prevent unwanted movement at the pads, keeping your vehicle stable while you work.

• Locking: Every 3" for precise height control
• Release: Single-motion / single-point release design
• Vehicle Stability: Arm positioning locks support secure pickup points

Vehicle pickup flexibility can make or break your workflow. The KB10/H is built around versatile arm geometry: two-stage rear arms and three-stage front arms for broader reach options and safer pad placement. The signature Krebs sliding arms are designed to help improve stability across a wide range of wheelbases and chassis layouts.

• Sliding Arm Reach (Max): 4' – 3 7/8"
• Sliding Arm Reach (Min): 2' – 2 3/8"
• Front Swing Arm to Rear Sliding Arm Reach: 5' – 2 3/4" to 10' – 0"

Fast lift cycles keep your bay moving. The KB10/H raises vehicles in about 50 seconds and lowers in about 27 seconds, balancing speed with controlled operation.

• Rise Time: 50 sec
• Descent Time: 27 sec

Rated Load Capacity: 10,000 lbs

Heights

• Max. Working Height (A): 6' – 5 5/16"
• Max. Rising Height with Pad (B): 6' – 1/4"
• Max. Carriage Height (C): 5' – 7 7/8"
• Pad Height (D): 6 1/16"
• Lifting Height with Lift Pad (Lowered) (E): 11 1/16"
• Total Height (J): 12' 5/16"
• Clearance (K): 11' – 8 1/8"

Width / Bay Fit (STD vs Wide)

• Outside Columns (F): STD: 10' – 3 5/8"  |  Wide: 11' – 3 3/8"
• Inside Columns (G): STD: 8' – 10 1/8"  |  Wide: 9' – 9 7/8"
• Total Width (H): STD: 10' – 11 1/2"  |  Wide: 11' – 11 5/16"
• Driveway Clearance (N): STD: 8' – 1 7/8"  |  Wide: 9' – 3/4"

Base & Weight

• Base Plate (I): 1' – 5 5/16"
• Weight: 1,384.5 lbs

Overall Dimensions (W x D x H)

• STD: 10' – 11 1/2" x 1' – 5 5/16" x 12'
• Wide: 11' – 11 5/16" x 1' – 5 5/16" x 12'

• KREBS KB10/H Overhead Two-Post Lift (Light Gray)
• 3-1/2" extension adapters
• 5" extension adapters
• Quick-coupling support shoe attachments
• Single-point lock release system
• Integrated safety lock system (every 3")

Because it’s the kind of lift that makes your day easier. It’s stable when you need precision, fast when you need throughput, and thoughtfully engineered from the steel up. If your facility wants a two-post lift that looks modern, works hard, and keeps safety front and center, the KREBS KB10/H fits the bay—and the way you work.
