Katool Tire Changer KT810 & Wheel Balancer KT-B760 Combo

SKU KT-T810+B760
You save: 19% ($519.00) You save: 19%
Original price $2,799.00
Original price $2,799.00 - Original price $2,799.00
Original price $2,799.00
Current price $2,280.00
$2,280.00 - $2,280.00
Current price $2,280.00

Description

-

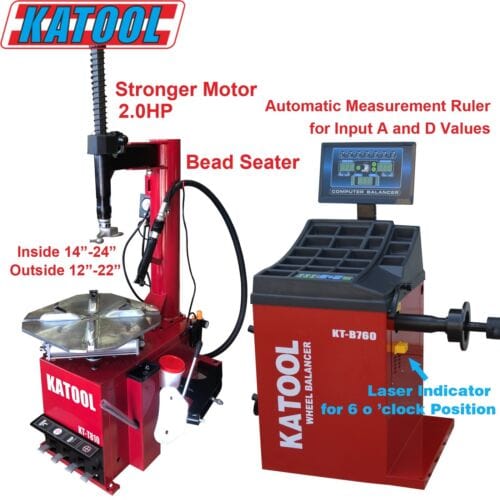

Maximize tire service efficiency with the Katool Tire Changer KT810 & Wheel Balancer KT-B760 Combo. The KT-T810 Wheel Clamp Tire Changer features an alloy steel jaw with carburization treatment, a stainless mounting head, and a pull-type pedal control system for convenience. Its top-level motor with a 120V/1ph/2.0HP power supports North America's strong power requirements. With a closed body design, it ensures protection for internal parts. The KT-B760 Wheel Balancer offers automatic measurement, 3mm-thick steel body, and various balance modes. Equipped with a fault diagnosis system, it provides a precise and reliable tire balancing solution. Optional features include a wheel guard and a longer shaft for wider wheels.

Features

-

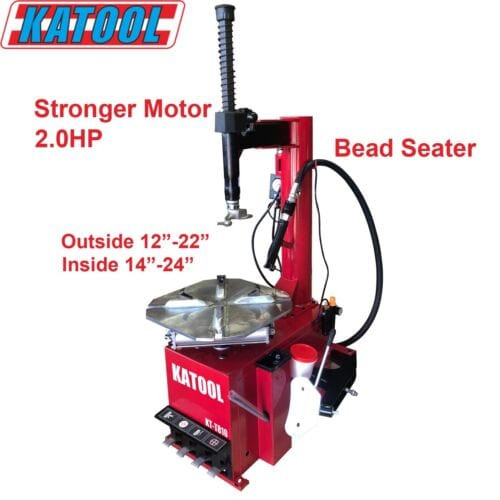

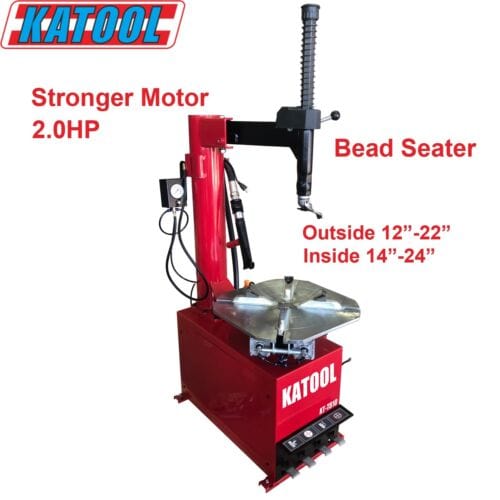

KT-T810 Wheel Clamp Tire Changer Machine

  • Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
  • The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim
  • Inflation gauge with pedal control
  • With high quality spade cover, effective prevent damage rim
  • Pull type pedal control system, convenience for changing and maintenance
  • Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
  • With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
  • For North America region used 120V/1ph/2.0HP motor, more strong power and high efficiency working
  • Closed body for protect inside parts well

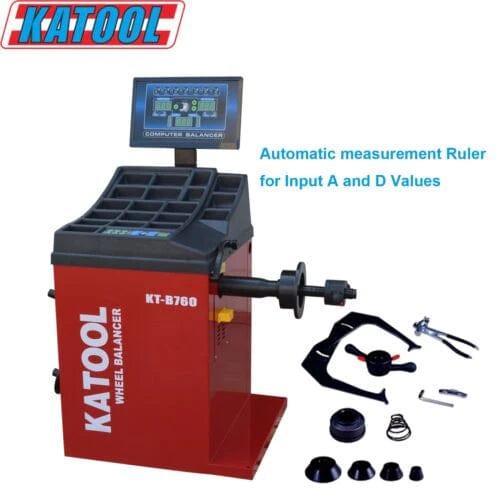

      KT-B760 Wheel Balancer

      • Automatic measurement ruler for auto input A and D values
      • The body uses 3mm-thick steel with high strength, solid welding and low vibration
      • All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
      • Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
      • The 36mm shaft thread is made by quenching treatment to offer high strength
      • The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
      • Various balance mode for different types of rims to provide more precision
      • Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
      • Unit selection (Ounce/Gram, MM/Inch)
      • High quality integration power board, working stable and reliable
      • Optional wheel guard
      • Longer shaft, also compatible with wider wheels

                                                                            Specifications

                                                                            -

                                                                            KT-T810 Wheel Clamp Tire Changer Machine

                                                                            Max Wheel Diameter :
                                                                            41"/1040mm
                                                                            Max Wheel Width :
                                                                            15"/380mm
                                                                            Outside Clamp:
                                                                            12"-22"
                                                                            Inside Clamp :
                                                                            14"-24"
                                                                            Power Supply:
                                                                            120V 1PH
                                                                            Motor Power:
                                                                            2.0HP/1.5KW
                                                                            Rotation Speed :
                                                                            6.8r/min
                                                                            Air Pressure :
                                                                            0.8-1.0Mpa(116-145psi)
                                                                            Net weight :
                                                                            186KG


                                                                            KT-B760 Wheel Balancer

                                                                            Rim Diameter:
                                                                            <30"
                                                                            Wheel Width:
                                                                            3"-12"
                                                                            Wheel Diameter:
                                                                            <880mm
                                                                            Balancing Speed:
                                                                            180rpm
                                                                            Power Supply:
                                                                            120V 1PH
                                                                            Motor Power:
                                                                            0.25KW
                                                                            Rim Center Hole Dia.:
                                                                            <135mm
                                                                            Wheel Weight:
                                                                            <65KG
                                                                            Balancing Accuracy:
                                                                            1g
                                                                            Measuring Time:
                                                                            7S

                                                                            Warranty

                                                                            -

                                                                            Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

                                                                            A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

                                                                            Warranty Includes:
                                                                            - Cylinders, power units, motors, displays, electronics, etc.
                                                                            - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

                                                                            Warranty Conditions:
                                                                            - Claims must fall within the warranty period.
                                                                            - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
                                                                            - Replacement parts will be provided at no cost, including free shipping.

                                                                            Note:
                                                                            - All warranty claims are subject to approval by the warranty/service department.
                                                                            - Photos and/or videos of defects may be requested.
                                                                            - Do not disassemble any equipment before the issue is determined.
                                                                            - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
                                                                            - Labor is not included in the warranty.
