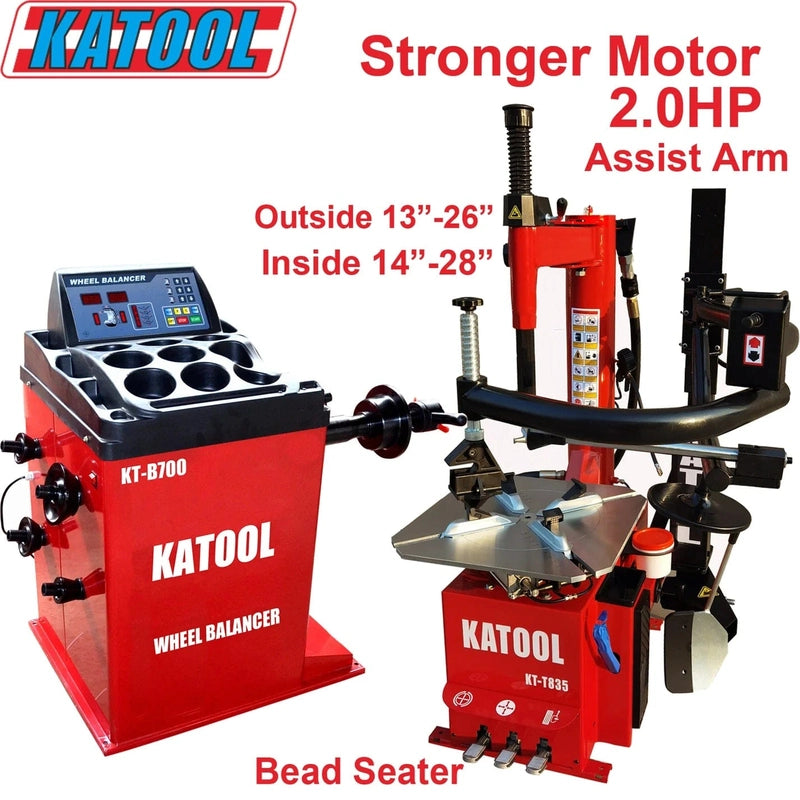

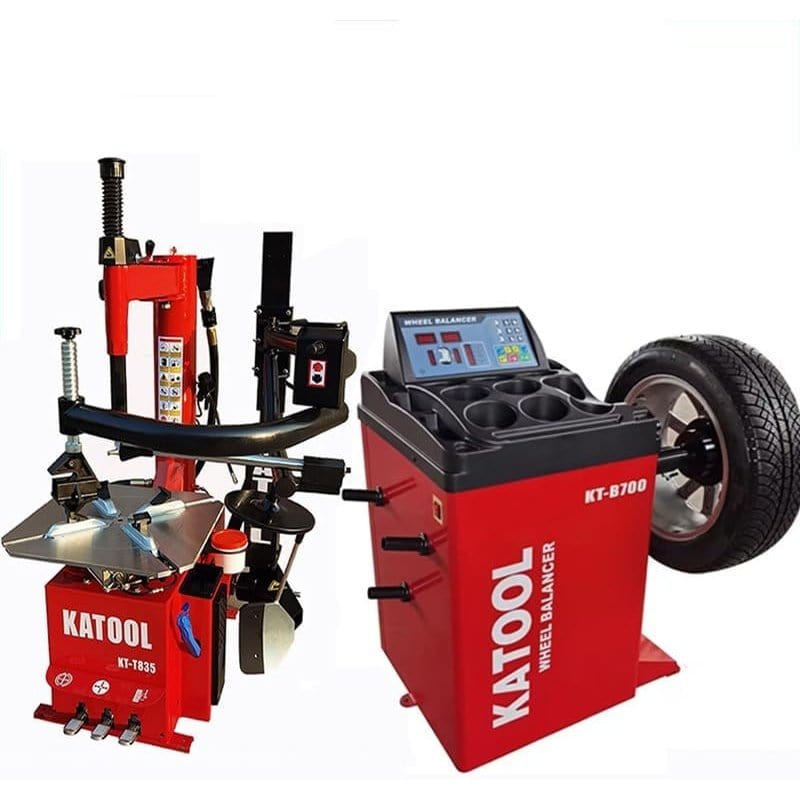

Elevate your tire service with the Katool Tire Changer KT-T835 & Wheel Balancer KT-B700 Combo. The KT-T835 Wheel Clamp Tire Changer features an alloy steel jaw treated for enhanced toughness, along with a stainless mounting head, inflation gauge with pedal control, and double side assist arm for efficient and convenient tire handling. The top-level motor with pure copper winding ensures fast heat dissipation and a longer service life. Paired with the KT-B700 Wheel Balancer, boasting a 3mm-thick steel body and advanced features like an all-in-one pressure sensor, 36mm shaft thread, and various balance modes, this combo delivers precision and reliability. With a closed body design, optional wheel guard, and compatibility with wider wheels, it provides a comprehensive solution for tire maintenance.
Features

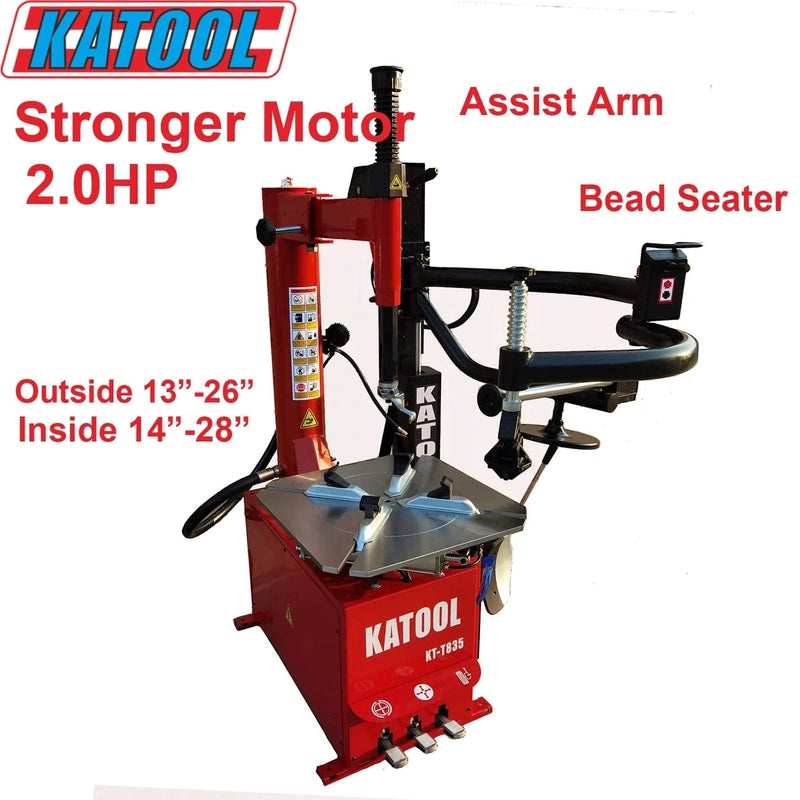

KT-T835 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
-
Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working
-
Bead blast seater head with post tank
-
φ186mm stainless bead breaker cylinder
- Closed body for protect inside parts

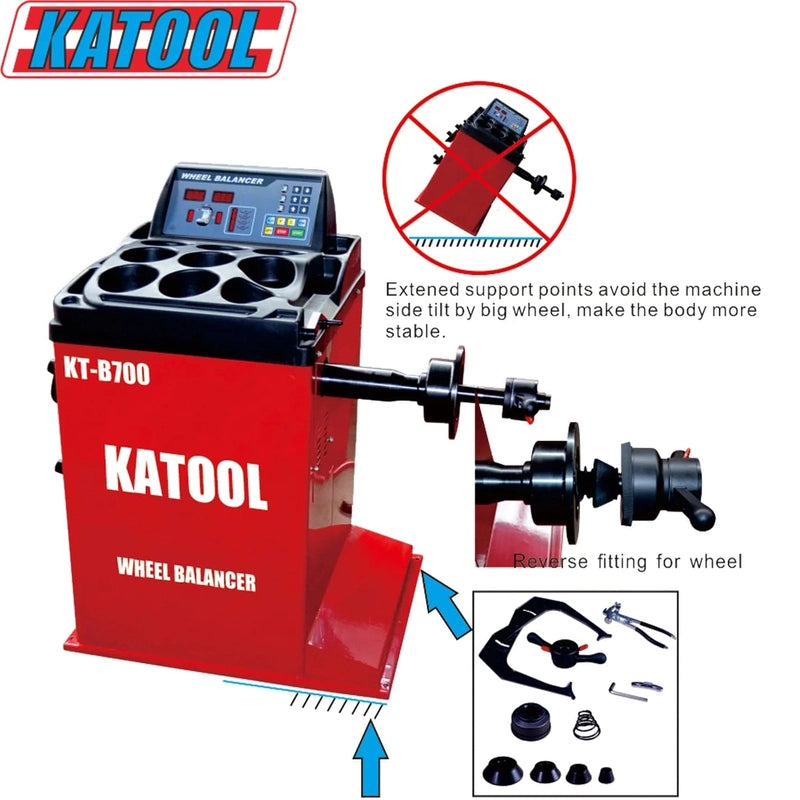

KT-B700 Wheel Balancer

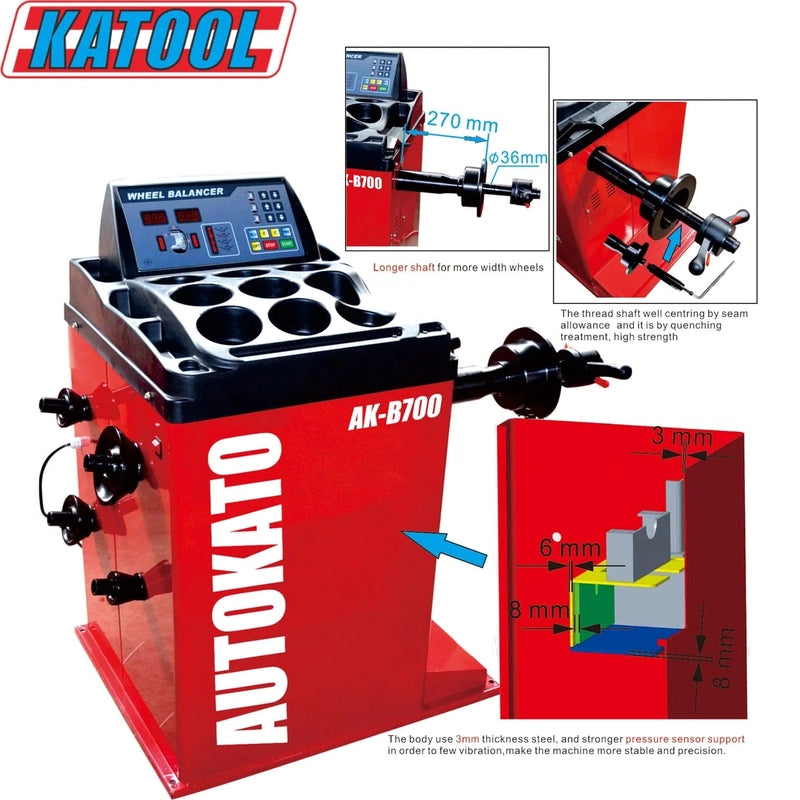

- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

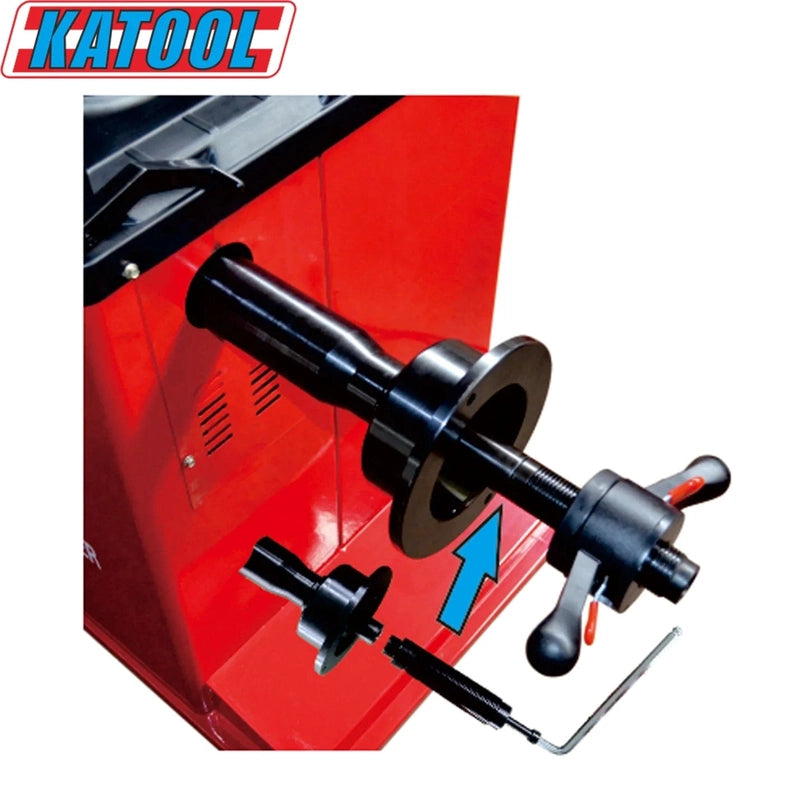

- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Longer shaft also compatible with wider wheels
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/350mm
|
|

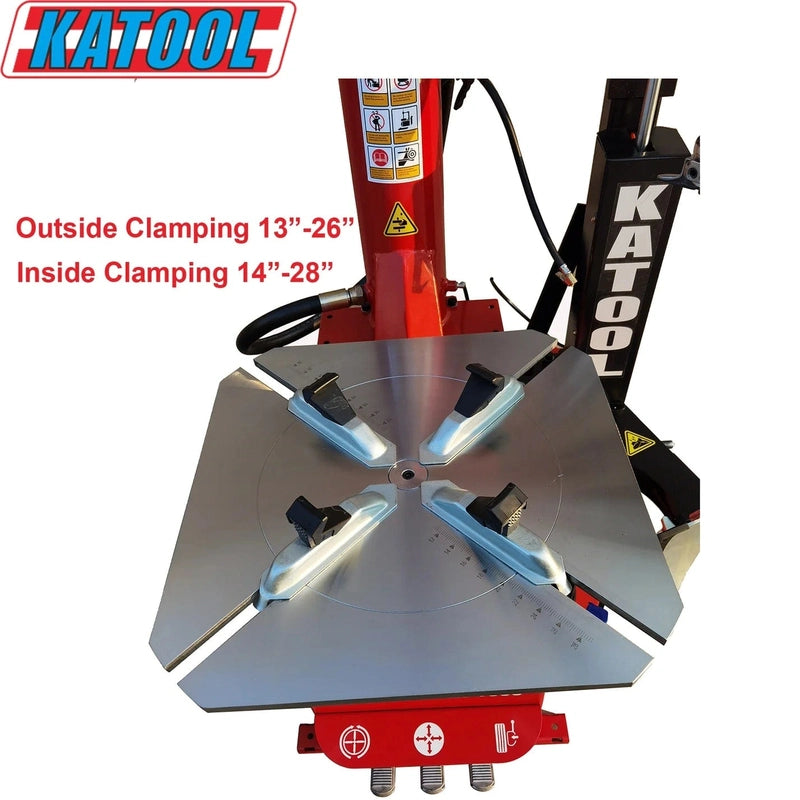

Outside Clamp:
|
13"-26"
|
|
Inside Clamp :
|
14"-28"
|
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
582lbs
|
KT-B700 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
±1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
