Description

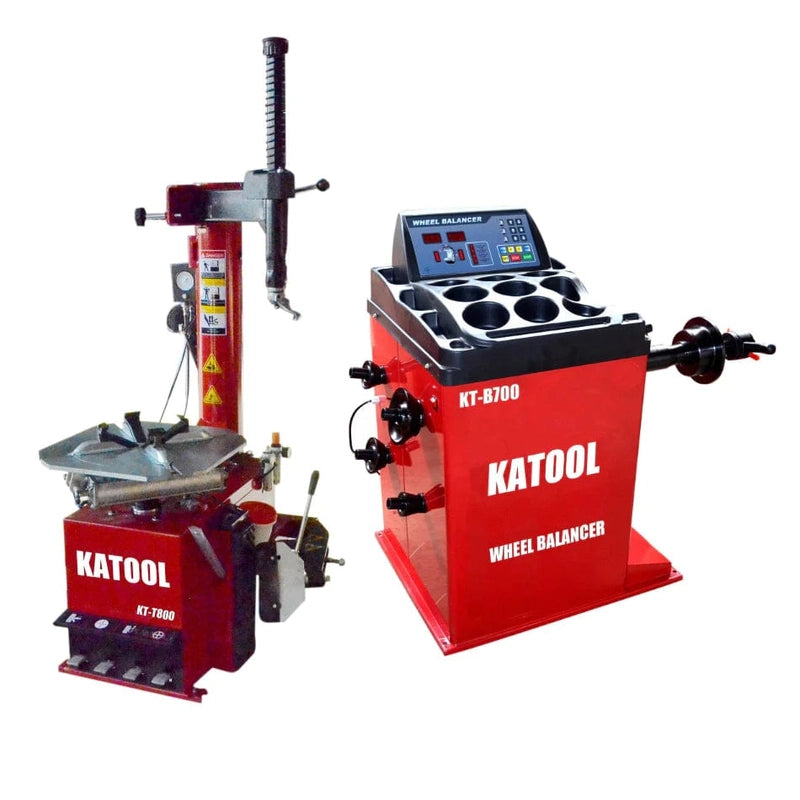

-The Katool Tire Changer KT-T800 & Wheel Balancer KT-B700 Combo is a powerhouse duo for efficient and precise tire maintenance. The KT-T800 Wheel Clamp Tire Changer boasts an alloy steel jaw with advanced carburization treatment, ensuring durability and rim protection. Its stainless steel mounting head, inflation gauge with pedal control, and pull-type pedal system make tire changing a breeze. The top-level motor with pure copper winding ensures superior power and extended service life, supported by a high-quality lubricator for optimal pneumatic system performance. Meanwhile, the KT-B700 Wheel Balancer features a robust 3mm-thick steel body, advanced pressure sensor design, and a 36mm quenched shaft thread for strength. With various balance modes, fault diagnosis, and self-calibration, it provides precision in balancing different rim types. The combo is your go-to solution for tire maintenance, offering reliability, efficiency, and ease of operation.
Features

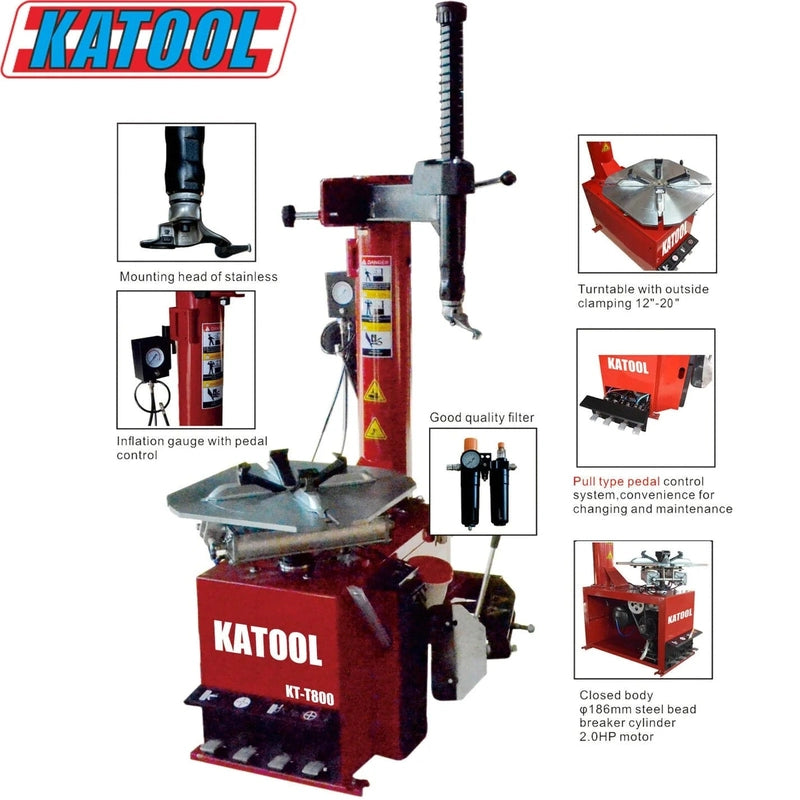

-KT-T800 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

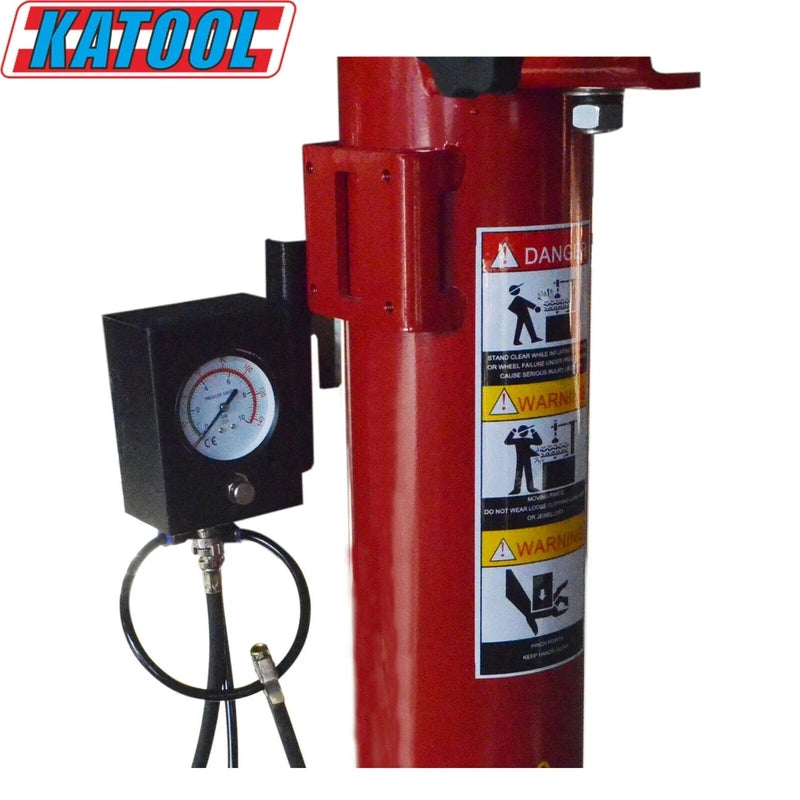

- Inflation gauge with pedal control
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance

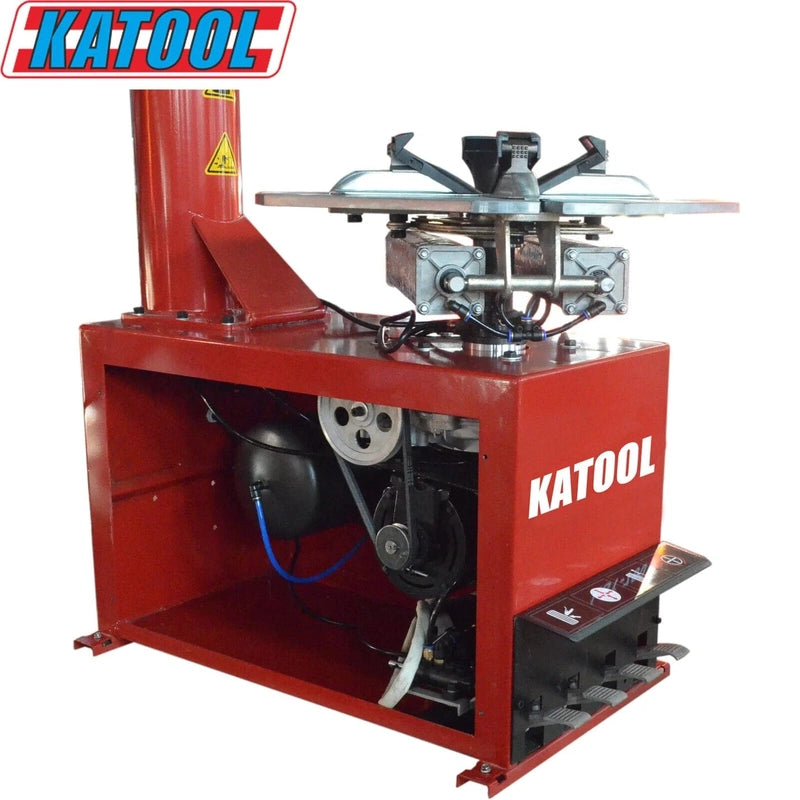

- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Closed body for the protection of the parts inside

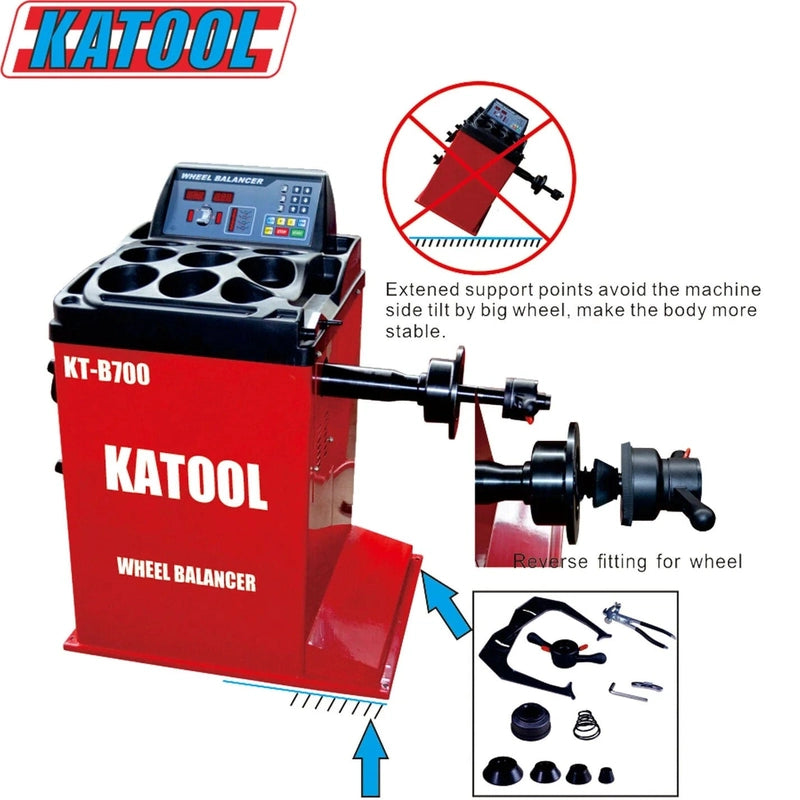

KT-B700 Wheel Balancer

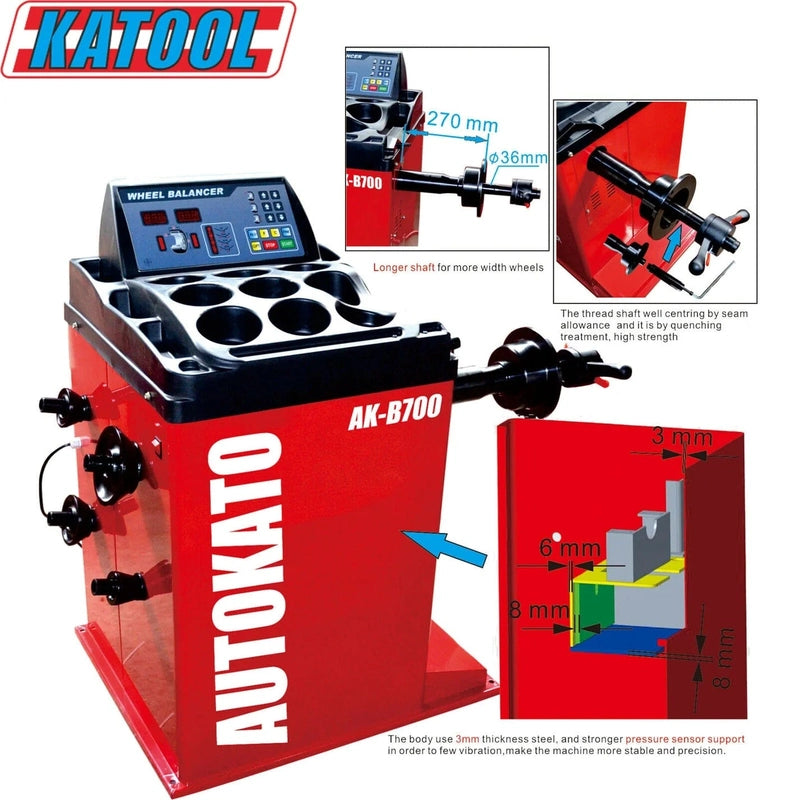

- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

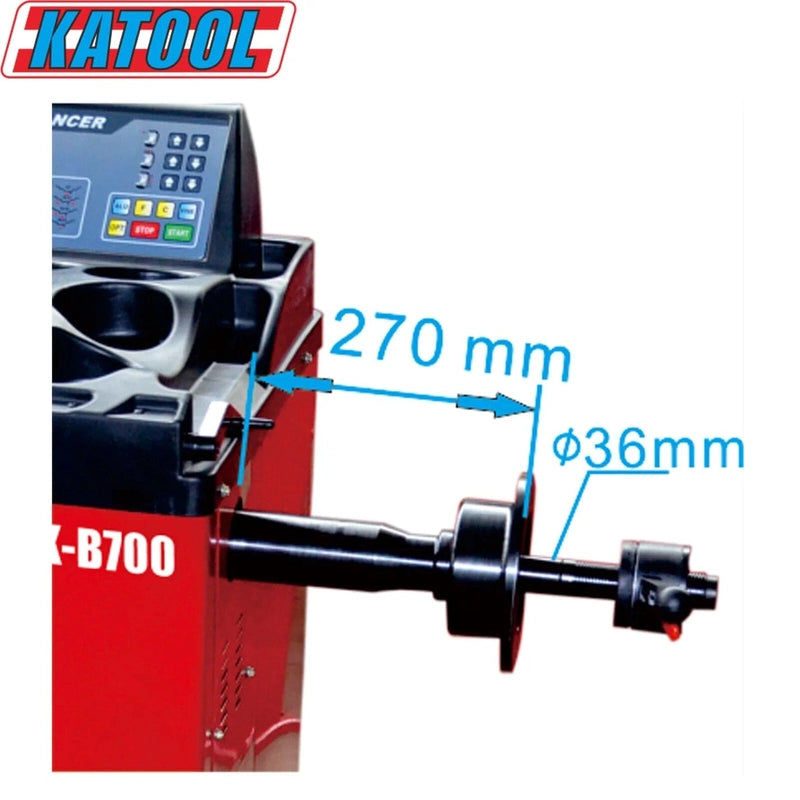

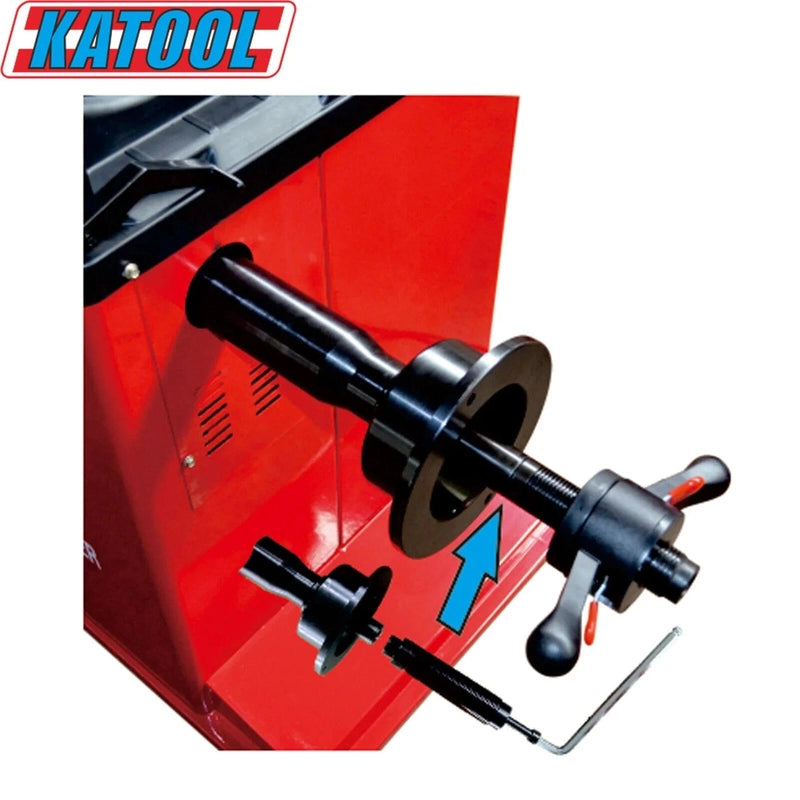

- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Optional wheel guard
- Longer shaft also compatible with wider wheels
Specifications
-KT-T800 Wheel Clamp Tire Changer Machine
Max Wheel Diameter: | 41"/1040mm |
Max Wheel Width: | 15"/380mm |
Outside Clamp: | 12"-20" |
Inside Clamp: | 14"-24" |
Power Supply: | 110V 1PH |
Motor Power: | 2.0HP/1.5KW |
Rotation Speed: | 6.8r/min |
Air Pressure: | 0.8-1.0Mpa(116-145psi) |
Net weight: | 186KG/410lbs |
KT-B700 Wheel Balancer
Rim Diameter: | <30" |
Wheel Width: | 3"-12" |
Wheel Diameter: | <880mm/34.64" |
Balancing Speed: | 180rpm |
Power Supply: | 120V 1PH |
Motor Power: | 0.25KW |
Rim Center Hole Dia.: | <135mm/5.31" |
Wheel Weight: | <65KG/143lbs |
Balancing Accuracy: | 1g |
Measuring Time: | 7S |
Warranty
-Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
