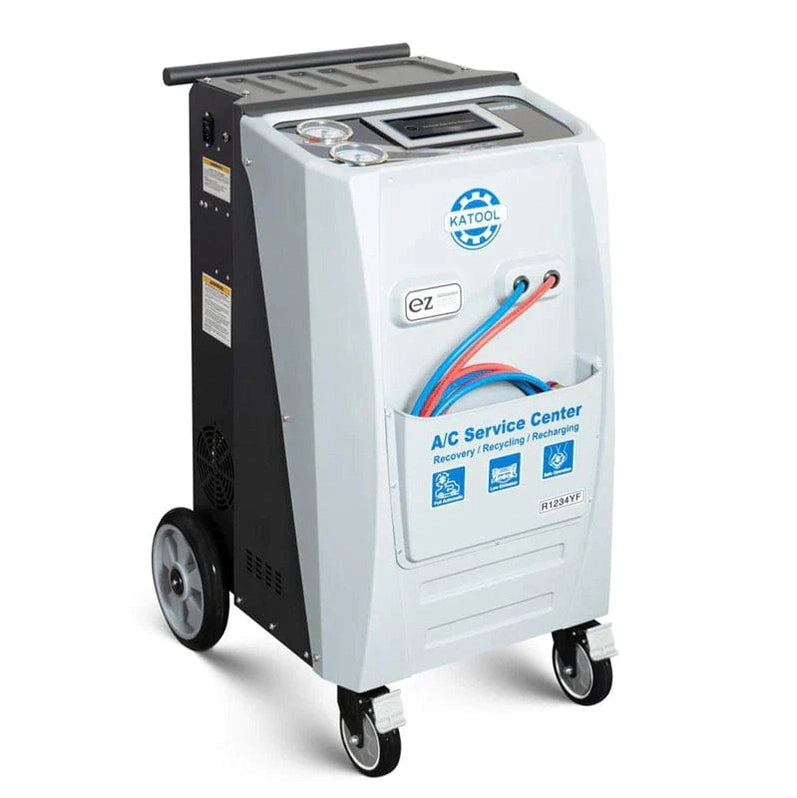

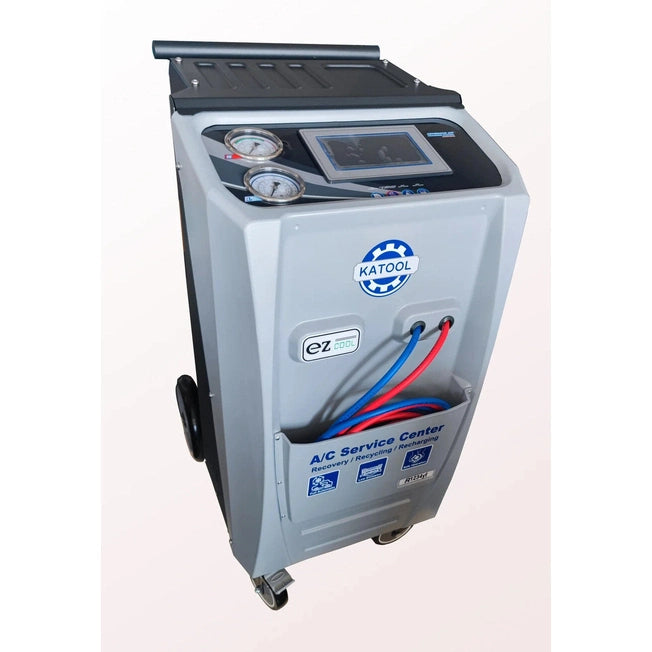

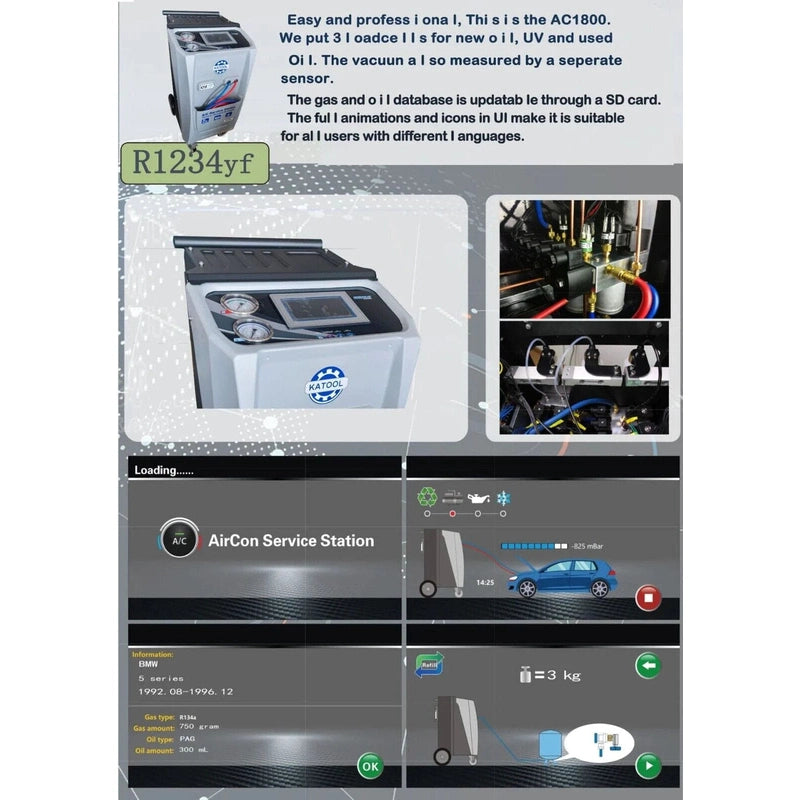

The Katool R-1234YF Fully Automatic Recovery, Recycle & Recharge DUAL AC2100 Machine is your ultimate solution for efficient refrigerant handling in automotive HVAC systems. This high-performance machine guarantees a minimum 95% recovery rate in under 30 minutes, minimizing downtime. With versatile compatibility across domestic, foreign, Electric, and Hybrid vehicles, it provides comprehensive support for various automotive models. Experience precise charge performance with ±0.5 oz (15 g) accuracy, supported by advanced loadcell technology. The user-friendly 7” touch HQ display ensures seamless navigation, complemented by features like a built-in printer, optional heating belt, SD database support, vacuum testing, and a robust fan and condenser system.
Features
-
Quick Refrigerant Handling: This high-performance machine guarantees minimal downtime, achieving a remarkable 95% recovery rate in under 30 minutes.
-
Versatile Compatibility: Service a broad range of vehicles, including electric and hybrid models, offering comprehensive support for various automotive HVAC systems.
-
Precision and Ease: Experience precise charging with an accuracy of ±0.5 oz (15 g), thanks to advanced loadcell technology for gas and oil measurements.
-

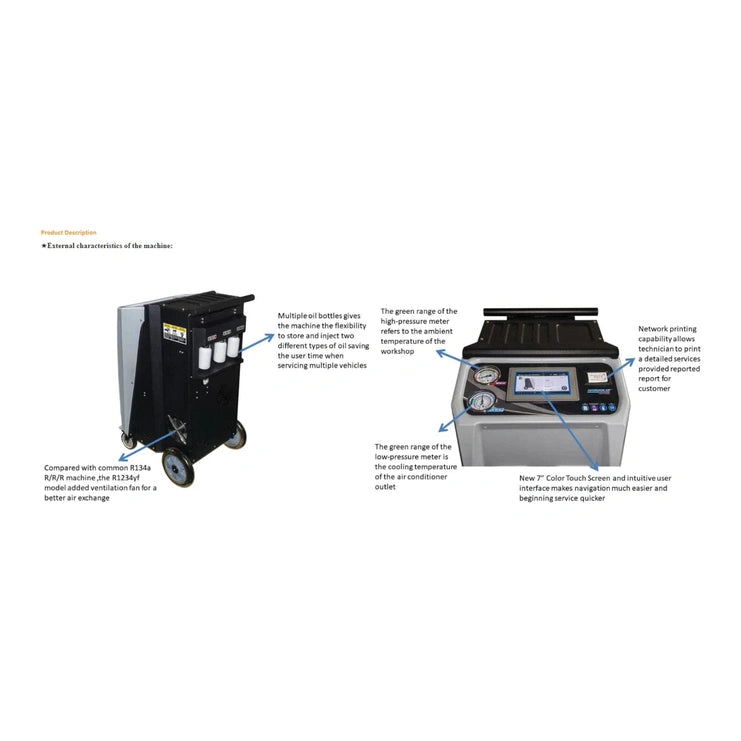

User-Friendly Touchscreen: Navigate operations effortlessly with a 7” touch HQ display, ensuring an intuitive and user-friendly process.
- Comprehensive Features: Enjoy additional functionalities such as a built-in printer, optional heating belt, SD database support, vacuum testing, and a robust fan and condenser system, ensuring a thorough and efficient service experience.
Specifications
|
Applicable Refrigerant Type
|
R1234YF
|
|
Voltage
|
110V AC, 60 Hz
|
|
Recovery Performance(70-75°F)
|
Min.95% in less than 30min
|
|
Charge Performance(70-75°F)
|
±0.5 oz (15 g)
|
|
Operate Temperature Range
|
41-122°F (5-50°C)
|
|
Max Pressure
|
18 bar
|
|
Filter-Drier Capacity
|
175 lbs (80kg),spin-on type
|
|
Gas Loadcell Accuracy
|
0.04oz/66lbs(1g/30kg)
|
|
Oil Loadcell Accuracy
|
0.04oz/66lbs(1g/30kg)
|
|
Vacuum Transducer Accuracy
|
1 mBar/1000mBar
|
|
Recovering Speed
|
39.7 lbs/h (18kg/h)
|
|
Charge Speed
|
2.2 lbs/min(1kg/min)
|
|

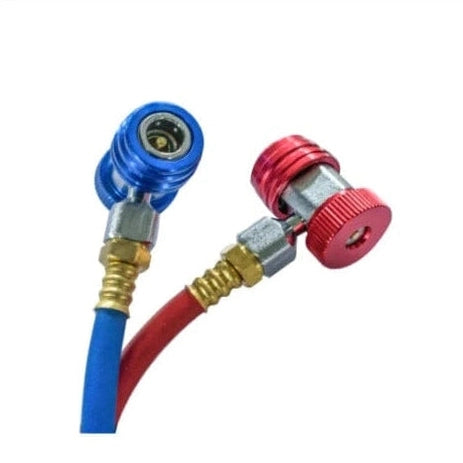

Hose Length
|
9.8’(3m)SAE J2788
|
|
Compressor
|
1/3hp(246W).themal protected,oiled,hermetically sealed
|
|
Vacuum Pump
|
3.6 CFM(120L/min),dual stage
|
|

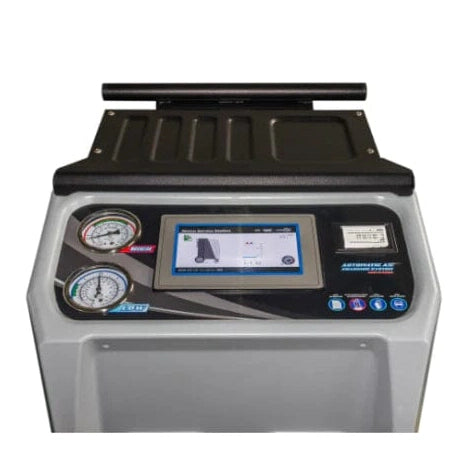

Display
|
7”touch HQ
|
|

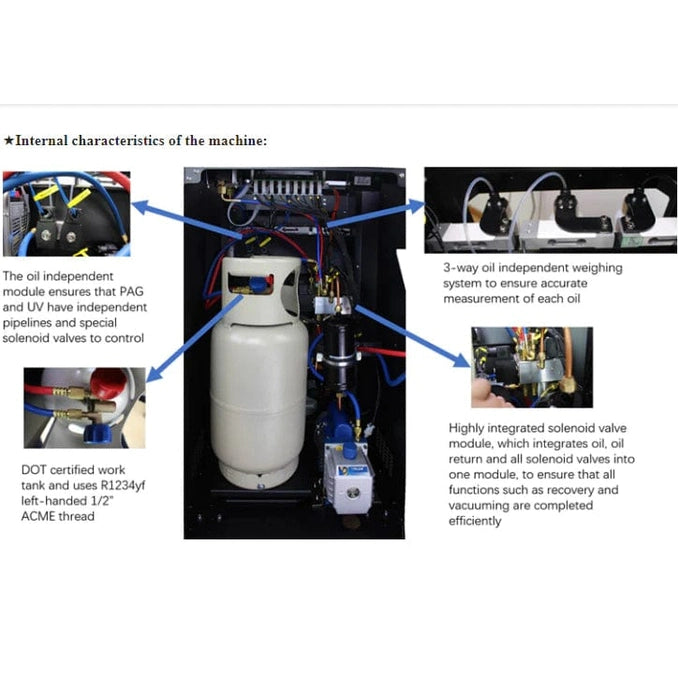

Tank
|
0.5 cubic feet(14.3L)
|
|

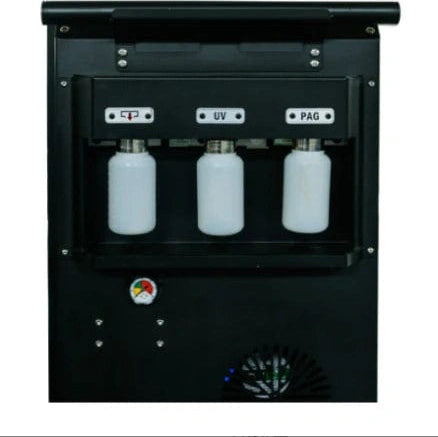

Oil Bottle
|
15 cubic inch(250mL)
|
Additional Information
|
Printer
|
YES
|
|
Heating Belt
|
optional
|
|
SD Database
|
YES
|
|
Vacuum Test
|
YES
|
|

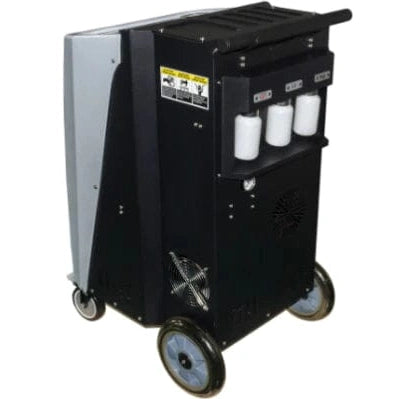

Fan&Condenser
|
YES
|
|
Packing Size
|
22”x 28”x41”(550x700x1050mm)
|
|
Gross Weight
|
240lb(110kg)
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
