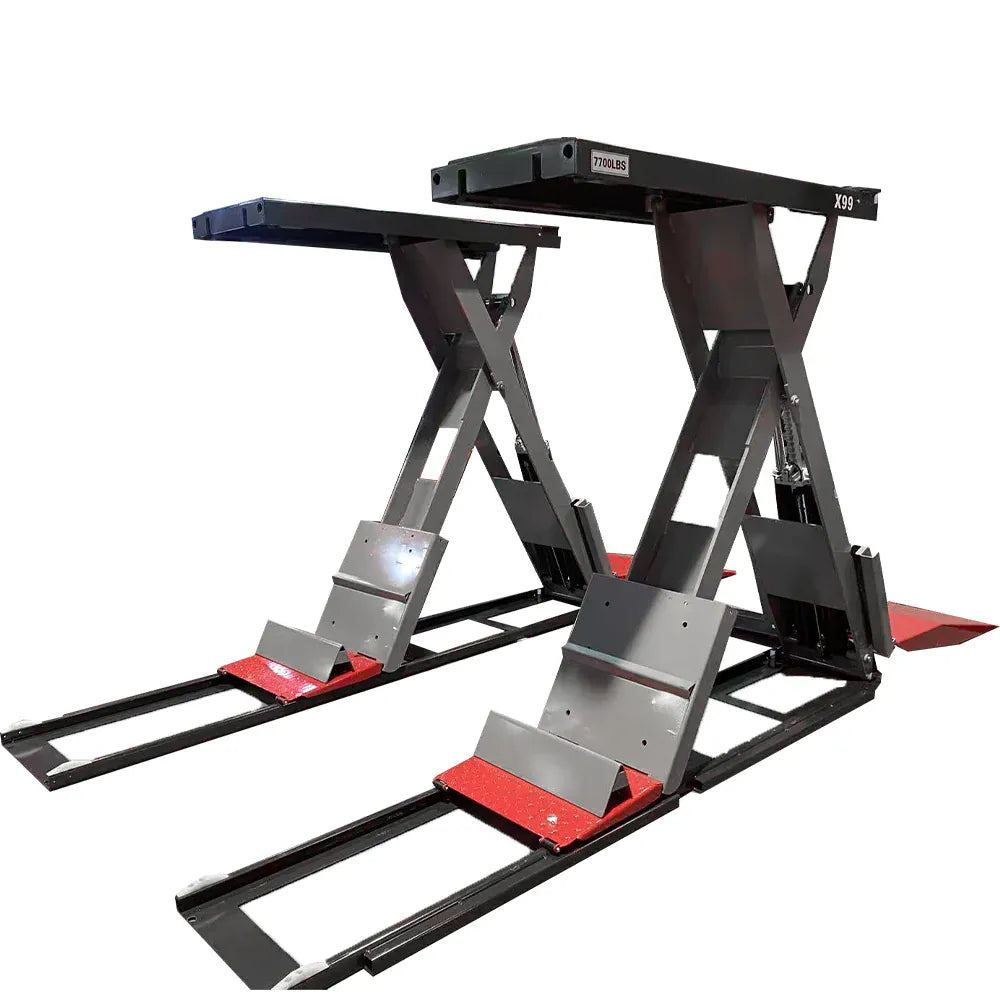

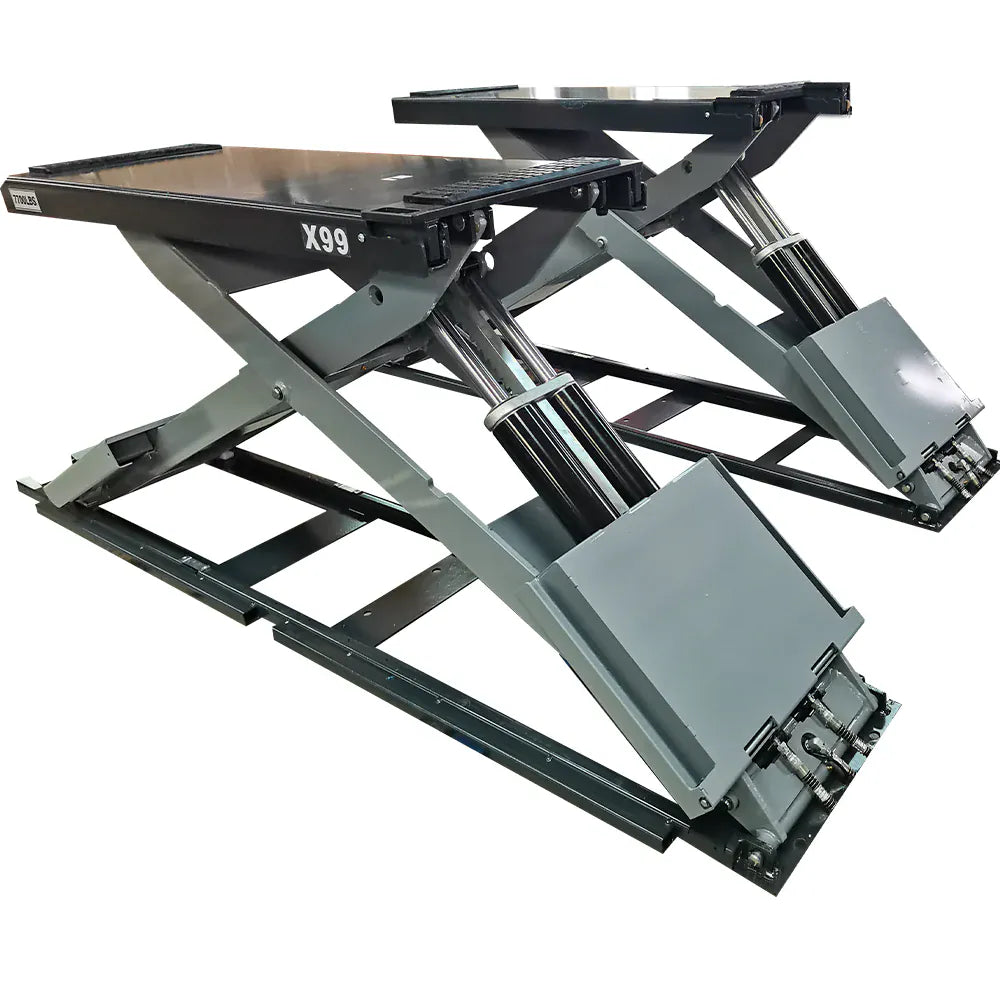

Katool KT-X99 Full-Rise Scissor Lift — 7,700 lb Capacity, 76" Lift Height

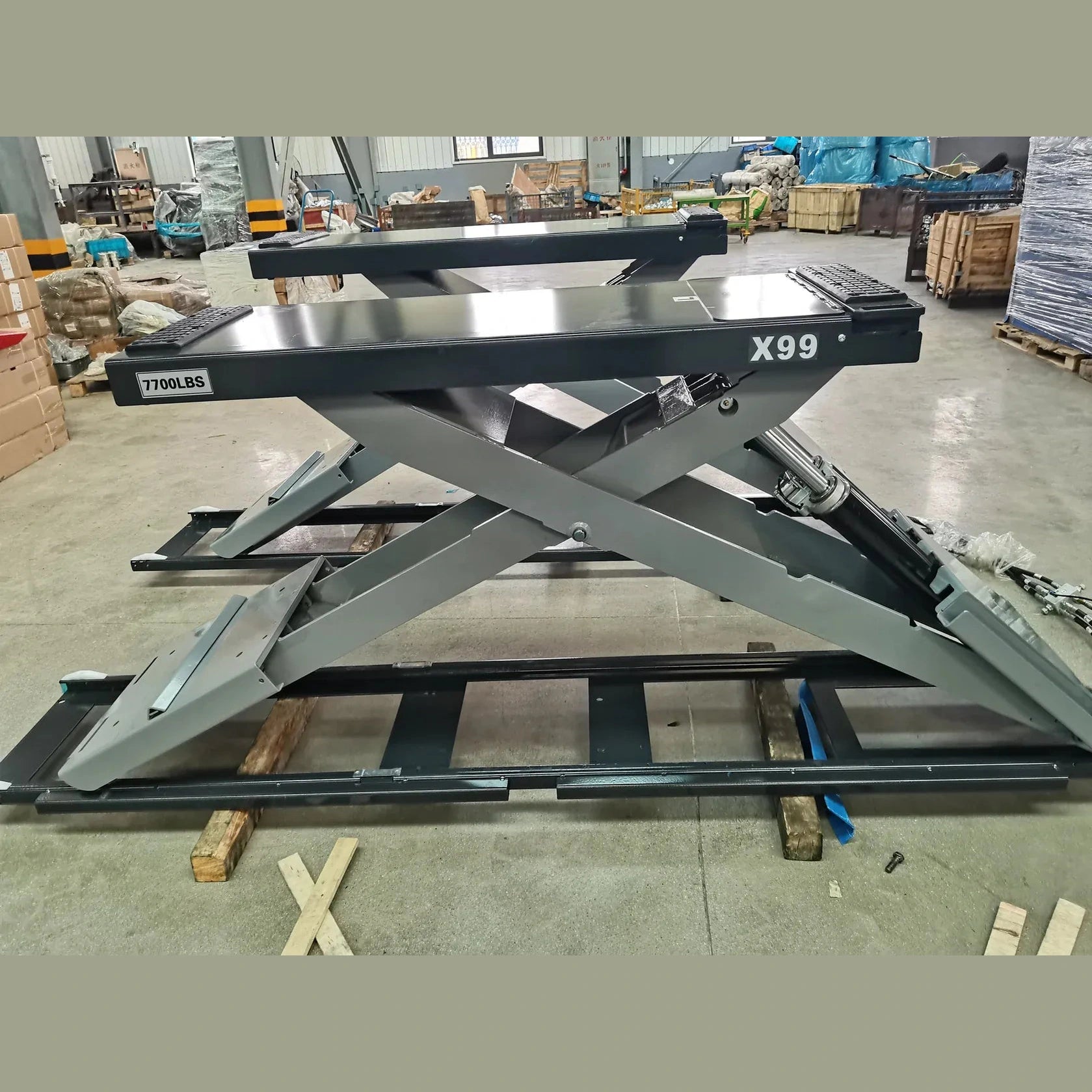

The Katool KT-X99 is a heavy-duty full-rise hydraulic scissor lift built for professional service shops, collision centers, tire bays, and serious enthusiasts who need full undercarriage access without the column footprint of a two-post lift. Rated at 7,700 lb capacity with a 76" maximum lift height, the X99 raises cars, SUVs, and light trucks high enough to stand and work beneath comfortably — the difference between a stooped-over mid-rise and a true full-rise.

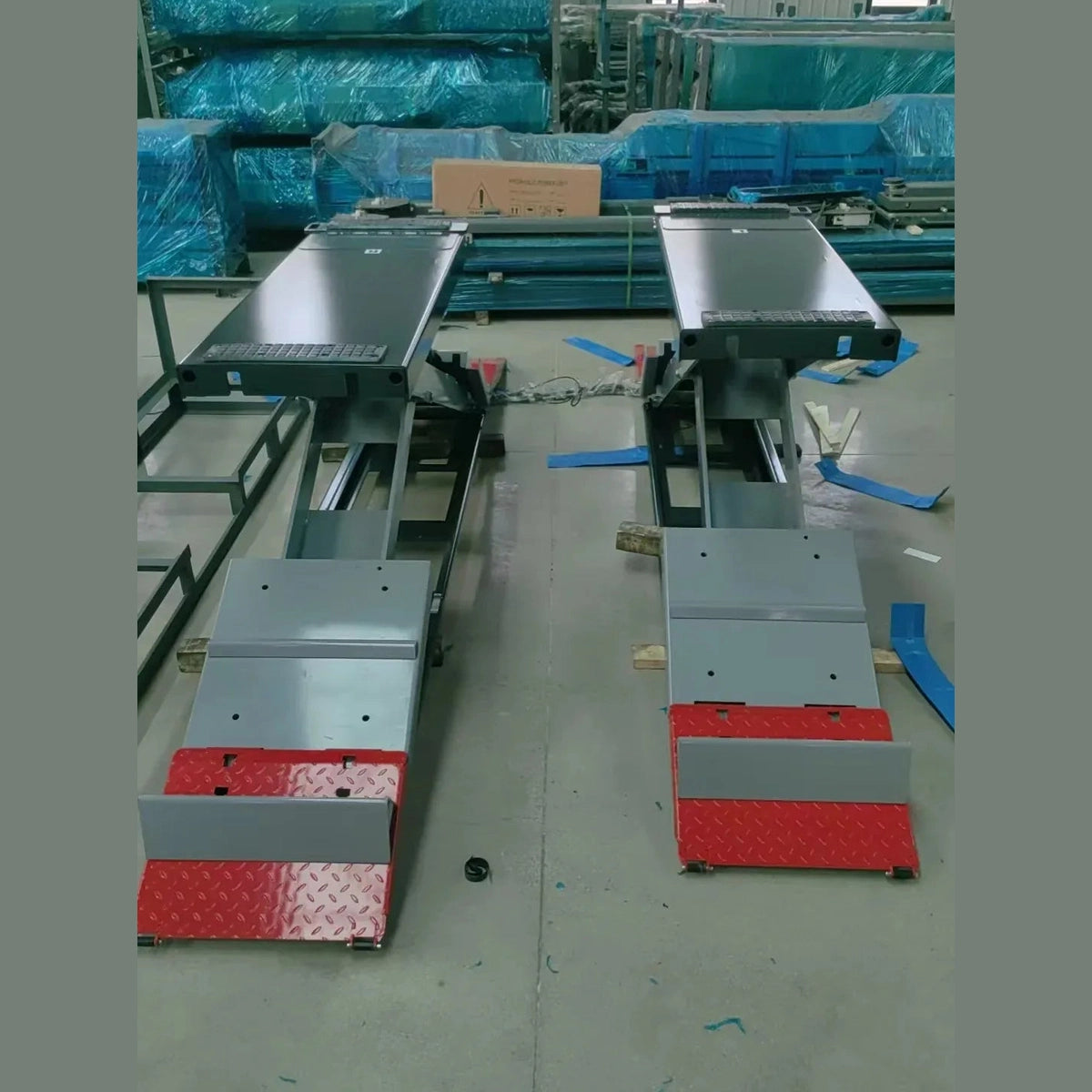

The drive-on platforms sit at 4.5" low-profile when fully retracted, so vehicles roll on without long external ramps fighting low aero. A 2.0 HP electric-hydraulic power unit drives the cylinders at 2,200 PSI for a 30–40 second raise/lower cycle. Multi-position mechanical safety locks hold the lift at any working height, and the welded high-strength steel frame is finished in rust-resistant powder coat (grey and red).

• 7,700 lb (4,082 kg) lifting capacity — covers passenger cars, SUVs, and most light trucks
• 76" maximum lift height — full-rise travel for upright work on exhaust, brakes, suspension, and drivetrain

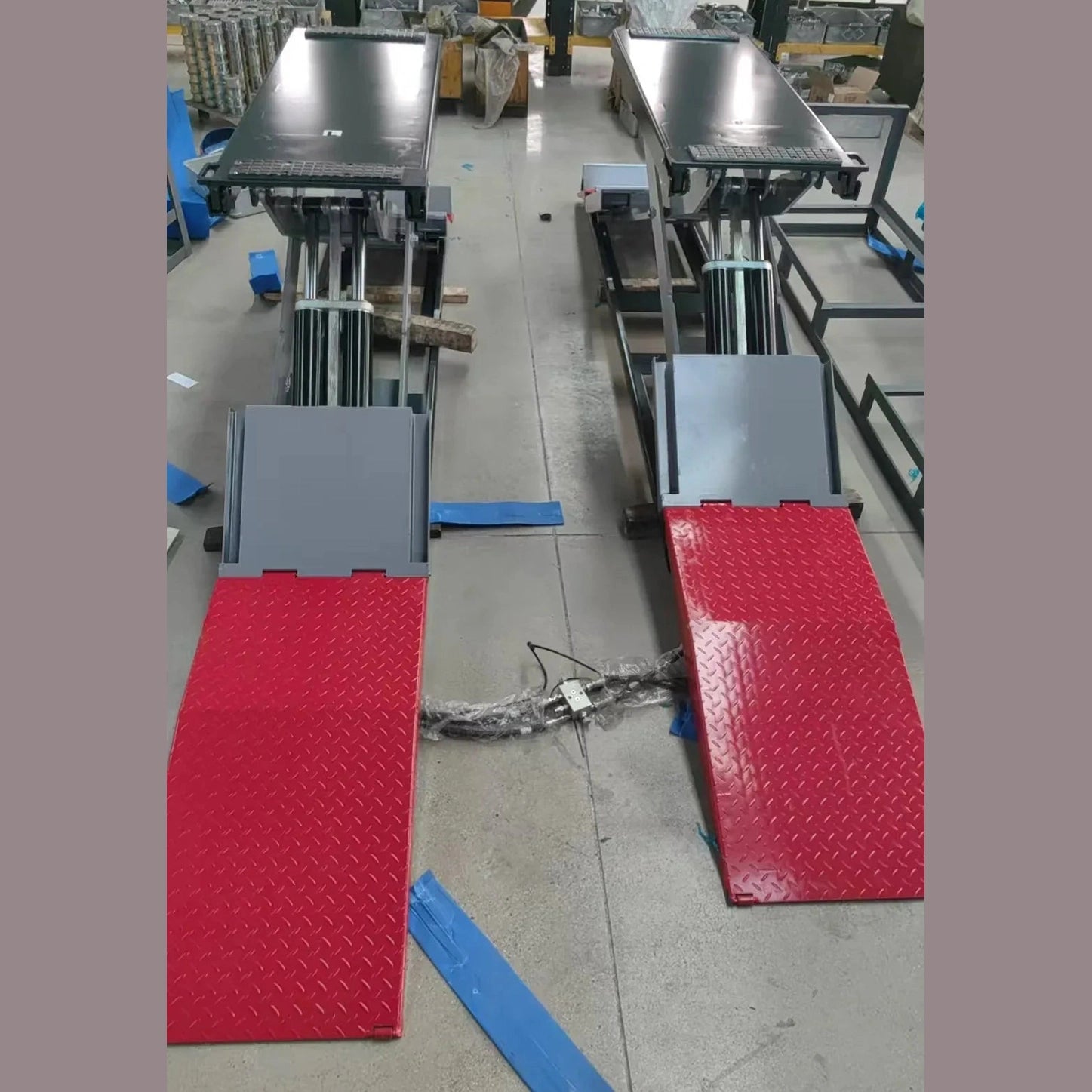

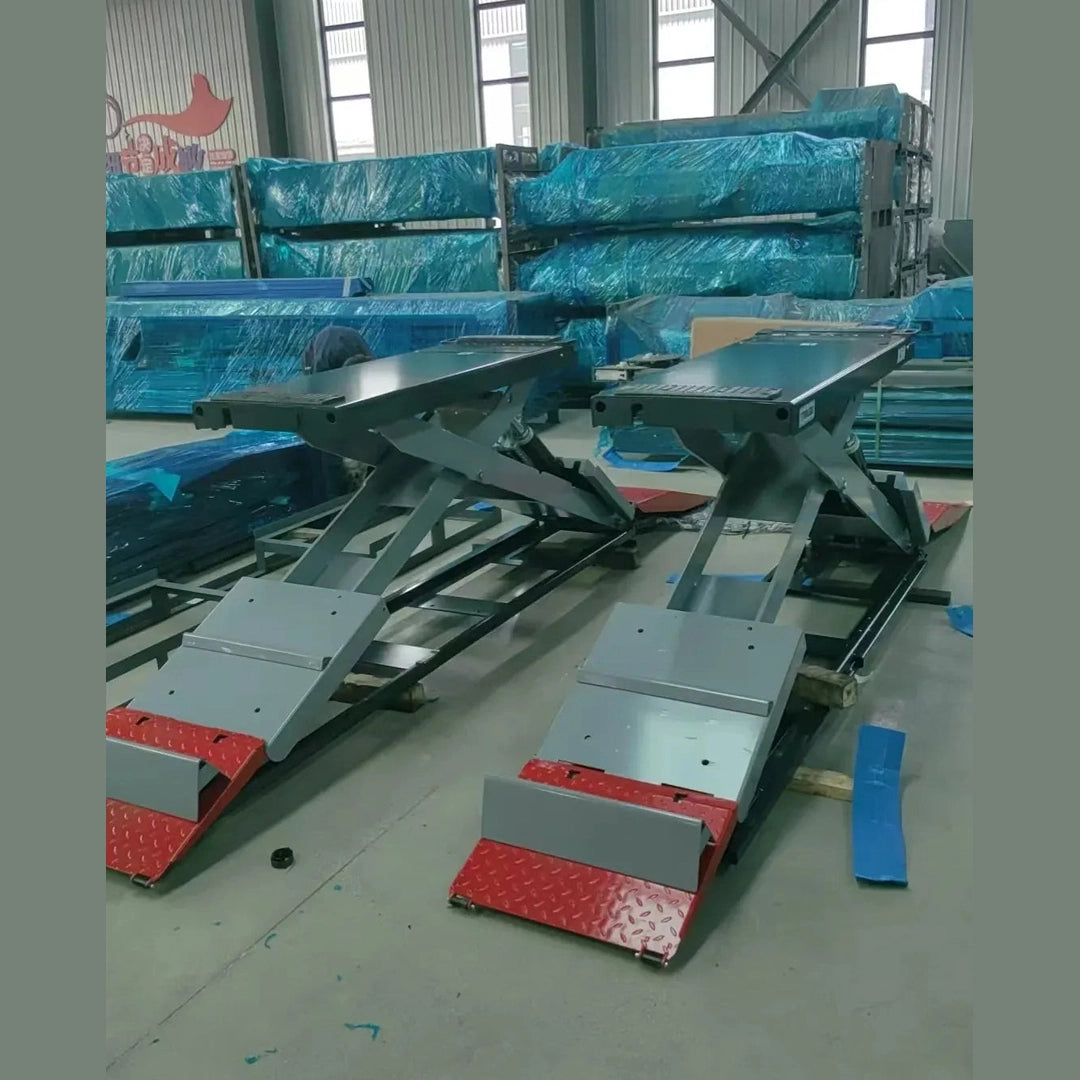

• 4.5" minimum drive-on height — low-profile decks accept low cars without external ramps

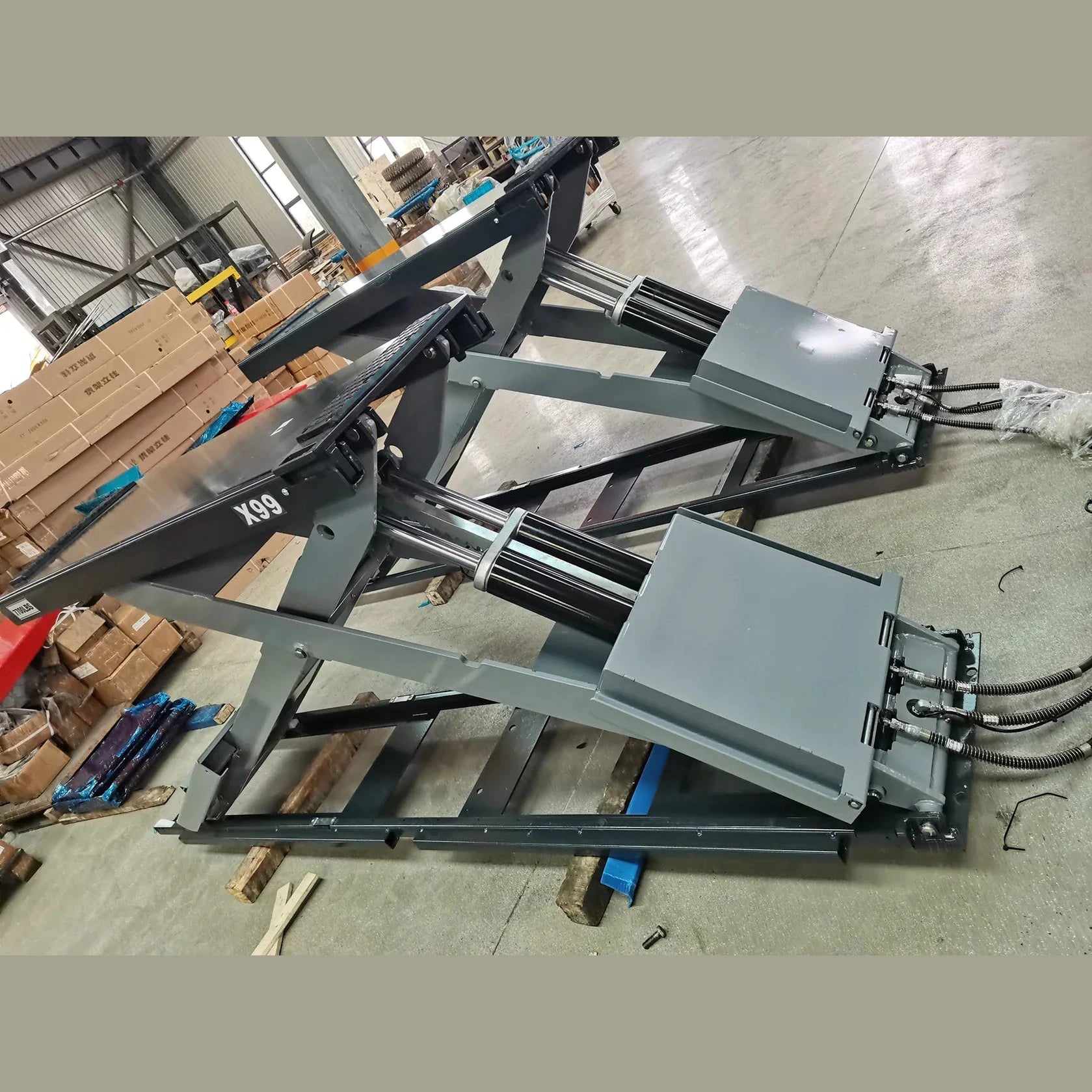

• Hydraulic power — 2.0 HP motor, 2,200 PSI working pressure, ~30–40 second cycle
• Multi-position mechanical safety locks — positive engagement at multiple working heights
• 110V / 220V electric supply (single-phase standard; three-phase optional)
• Welded high-strength steel construction with rust-resistant powder-coat finish
• Anti-slip platform texture for technician footing while loading
• CE Certified

The Katool KT-X99 ships via freight at approximately 1,250 lb in a single crate measuring 84" L × 56" W × 28" H.

Installation & Operations Manual (PDF)
