Description

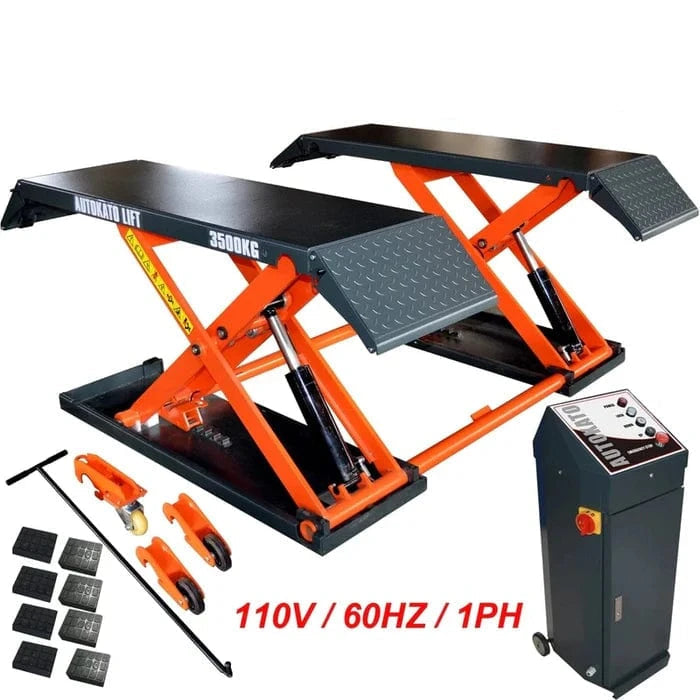

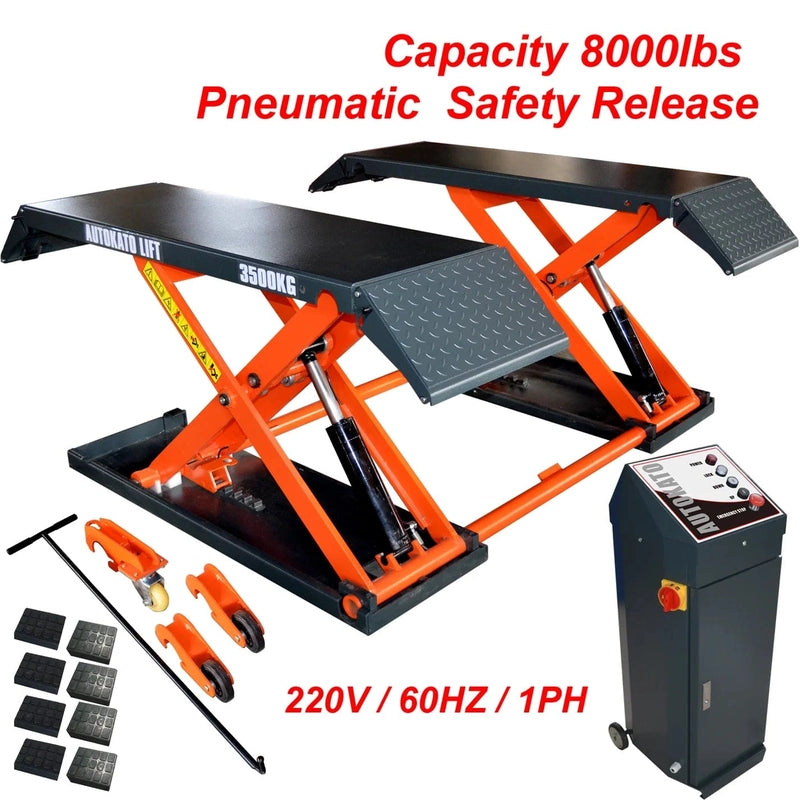

-The Katool KT-X80 Mid Rise Scissor Lift delivers professional-grade performance with an 8000lbs (3500KG) lifting capacity and is available in your choice of Pneumatic or Electric safety release configurations. CE Approved and Certified, it exceeds both dynamic and static loading standards for superior durability and safety.

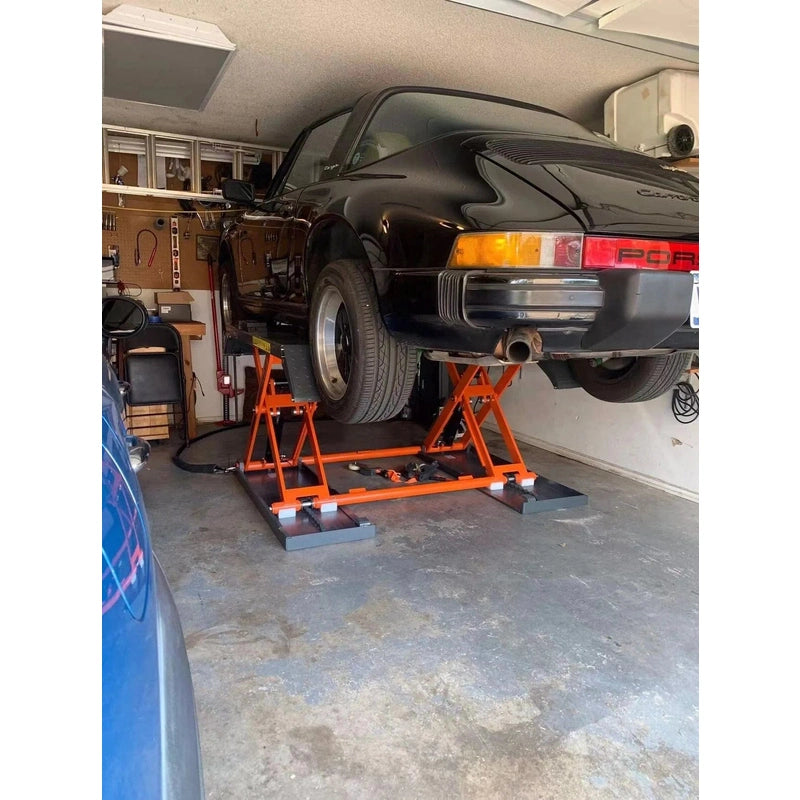

Whether used as a mobile or fixed-mount lift, the KT-X80 features an innovative starting-up system, a 24V safe control system, and a height limit switch for added protection. Composite rubber lifting blocks and self-lubricated bushings ensure smooth operation, while the drive-up ramps lock design extends platform length for larger vehicles. Its portable kit enables easy movement and flexibility around your garage or workshop.
Designed for long-term reliability, the KT-X80’s top-level hydraulic system is paired with an aluminum motor featuring a cooling fan to prevent overheating during extended use. Choose between Pneumatic (requires a compressed air source) or Electric (no air compressor required) models based on your setup and preference.
Features
-- 8000lbs (3500KG) lifting capacity
- CE Approved and Certified – tested to 115% dynamic and 150% static loading capacity

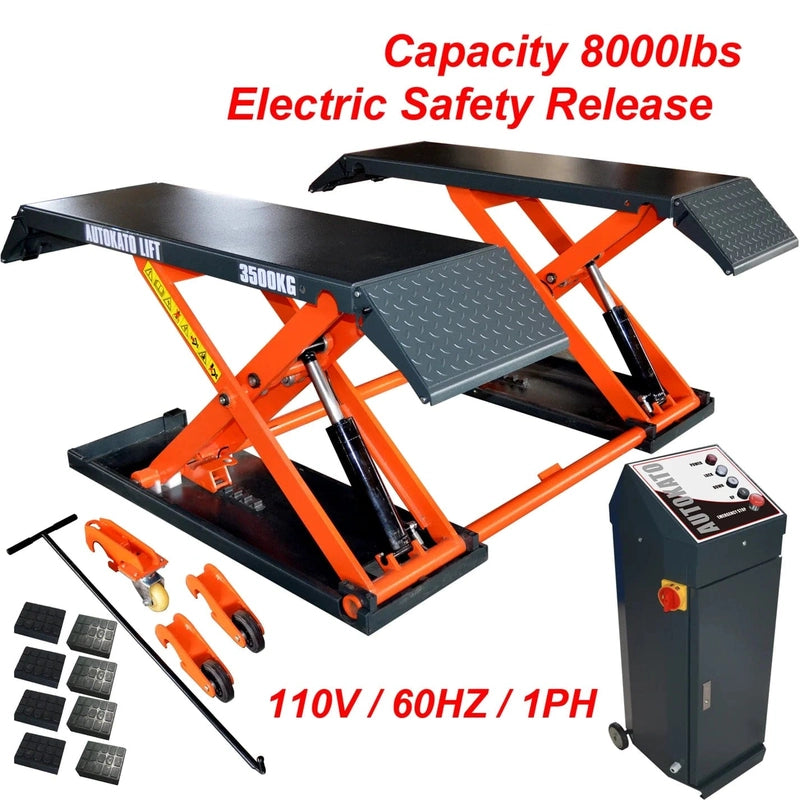

- Available in Pneumatic or Electric safety release versions
- Mobile or fixed-mount design for flexible installation

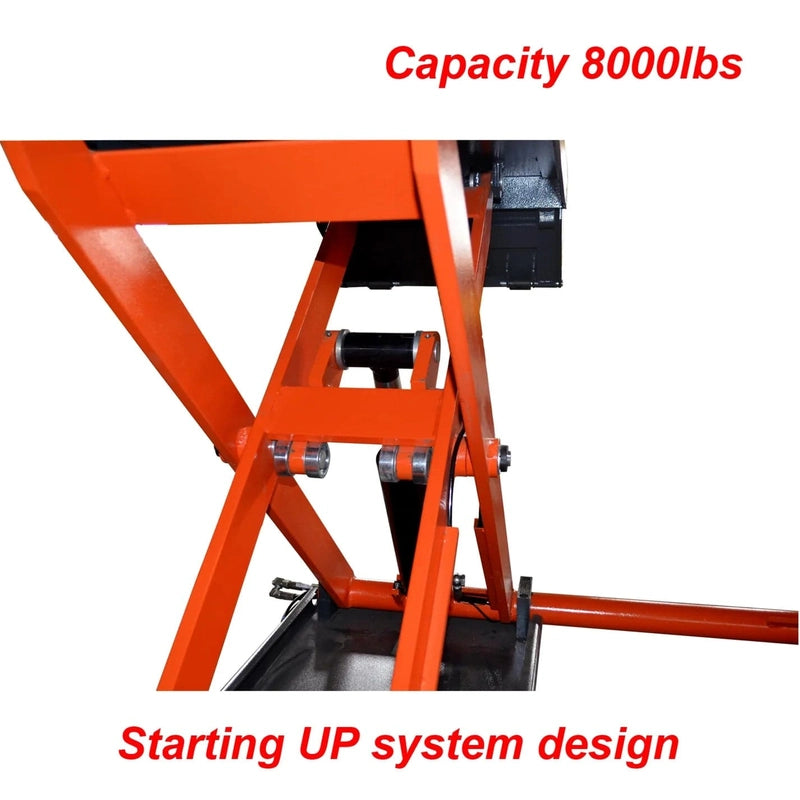

- Starting-up system design for reliable operation
- 24V safe control system and height limit switch
- Composite rubber lifting blocks included

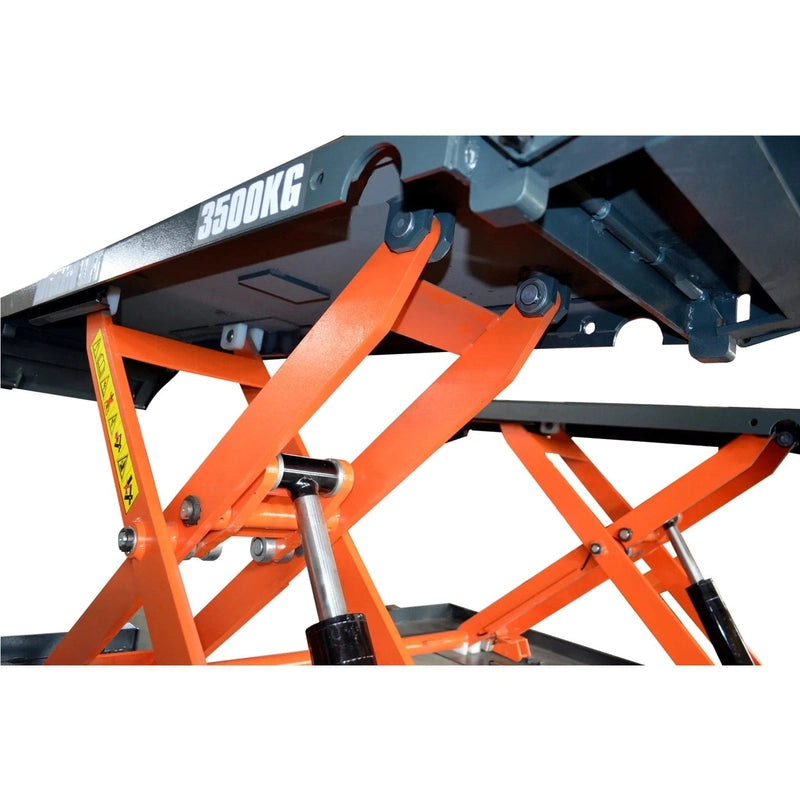

- Self-lubricated bushing and bearing for smooth performance

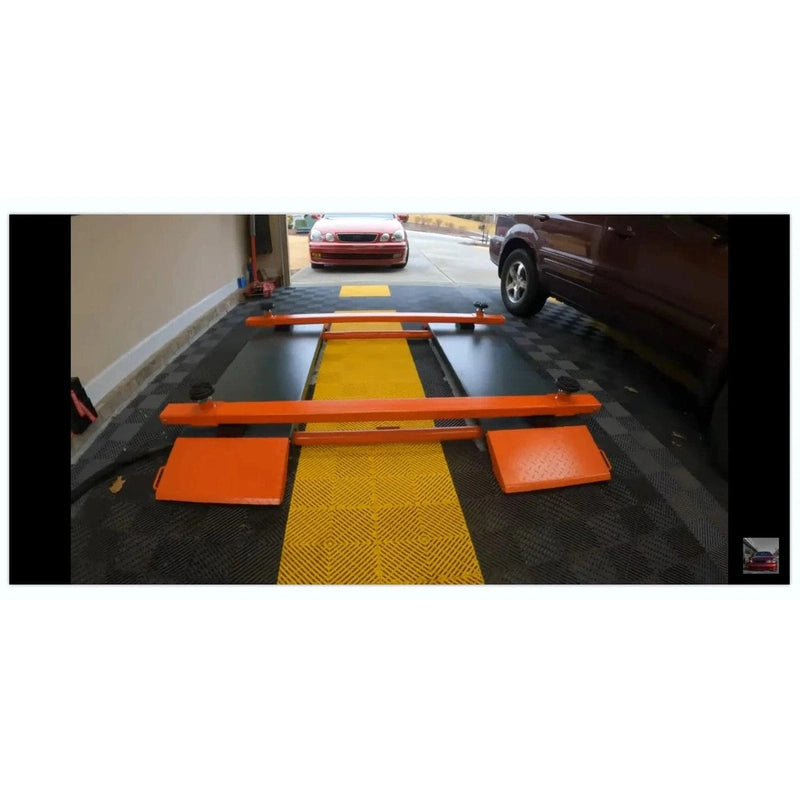

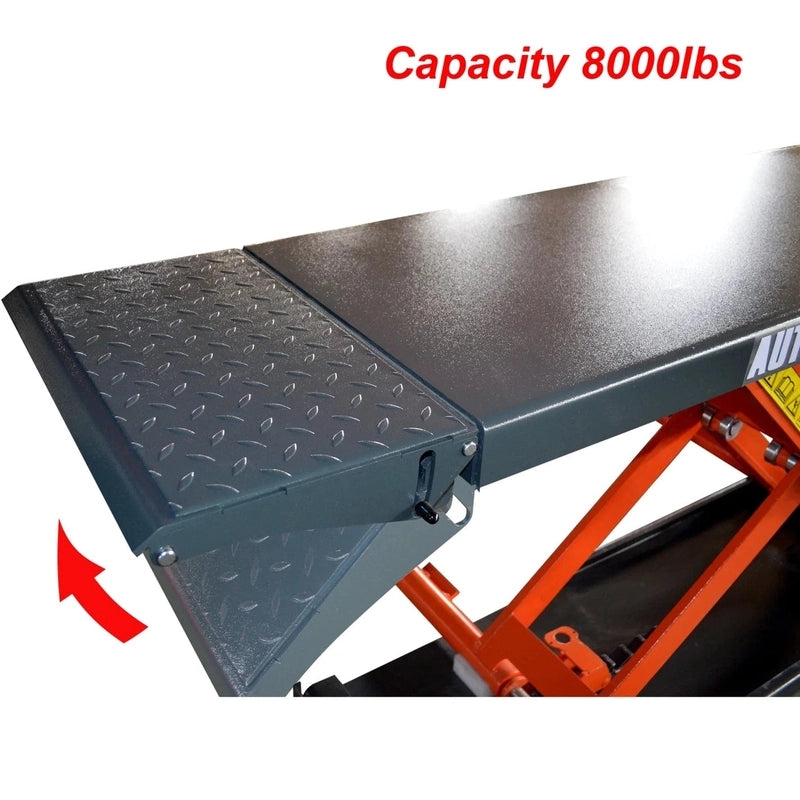

- Drive-up ramps lock design extends platform length for long vehicles
- Portable kit included for easy mobility
- Top-level hydraulic system and aluminum motor with cooling fan
- Operates on 110/220V, 60Hz, single phase
- Note: Pneumatic version requires a compressed air source. For users without one, the Electric model is recommended.

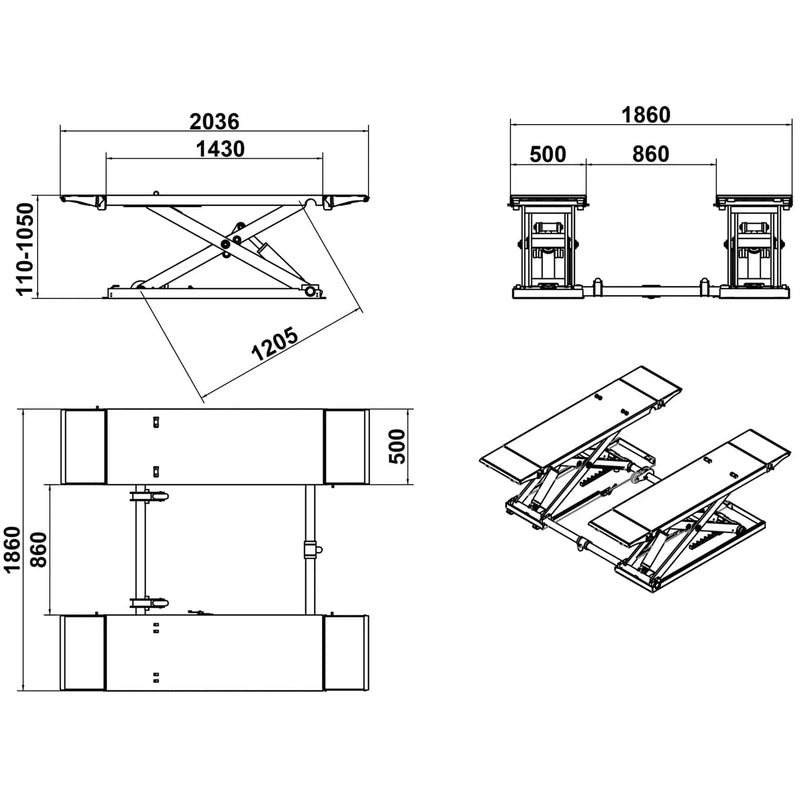

Specifications
-Lifting Capacity | 8000lbs (3500KG) |
Max. Lifting Height | 41.25" / 1050mm |
Min. Height | 4.25" / 110mm |
Platform Length | 56.25" / 1430mm |
Length Overall | 80" / 2036mm |
Platform Width | 19.5" / 500mm |
Width Overall | 73.25" / 1860mm |
Motor | 110/220VAC / 60Hz / 1PH |
Net Weight | 1213lbs / 550KG |
Warranty
-Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
