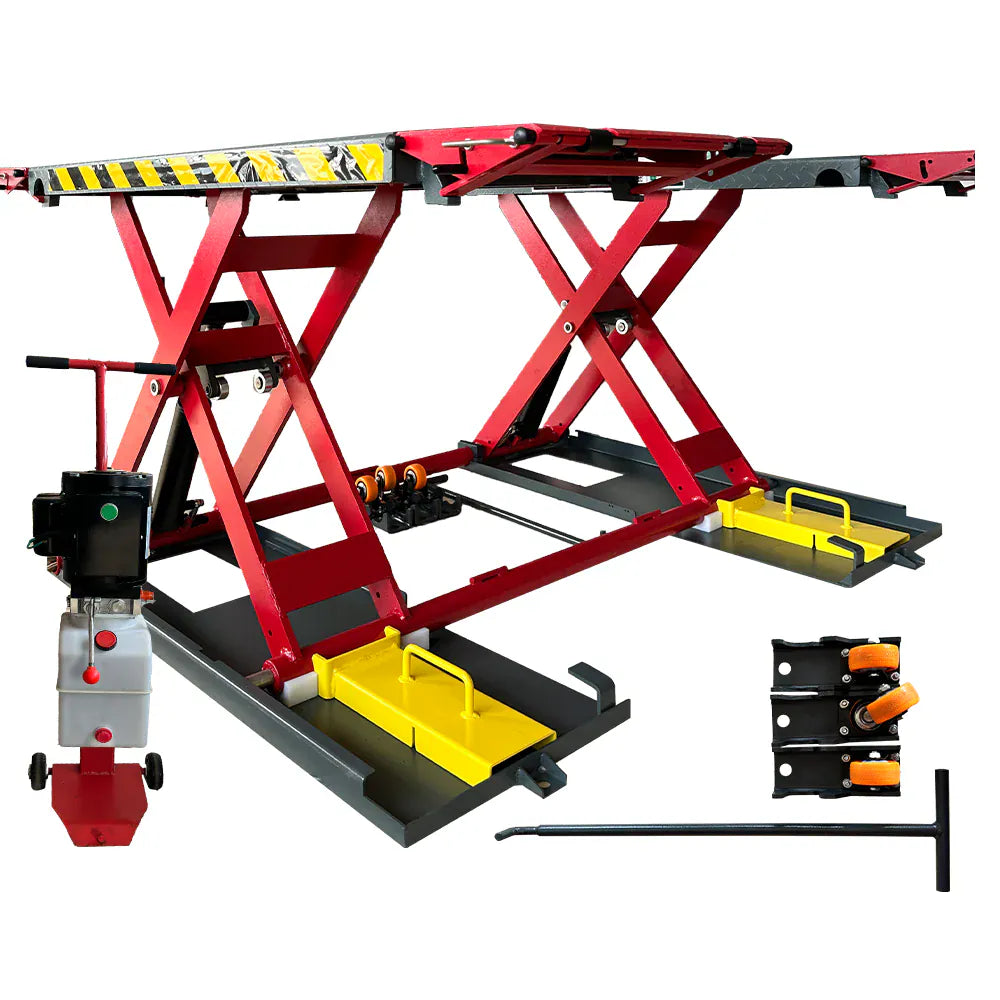

Katool KT-X77 diamond-plate platform with sliding extension panel

Katool KT-X77 7,700 lb Mid-Rise Scissor Lift

Name: Katool KT-X77 7,700 lb Mid-Rise Scissor Lift
Brand: Katool
SKU: KT-X77
Price: 1899.0 USD
Availability: InStock

SKU KT-X77

In Stock

$1,899.00 - $1,899.00

$1,899.00

$1,899.00 - $1,899.00

$1,899.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

The Katool KT-X77 is a mid-rise scissor lift built for daily under-car service work — brake jobs, tire rotations, oil changes, exhaust inspections, and routine maintenance. Rated at approximately 7,700 lb capacity with a ~39.4" maximum lift height and a low ~4.3" lowered profile, the X77 fits cars, SUVs, and light trucks while leaving enough working room to keep technicians off the floor.

Construction is heavy-gauge alloy steel scissor framing paired with a hydraulic cylinder and an electric power unit mounted on a rolling cart. The drive-on platform includes sliding extension panels for variable wheelbases, and a built-in mechanical locking system holds the lift at working height during service. Descent is controlled through the power unit's hydraulic safety release.

Features

Heavy-duty reinforced alloy steel scissor frame
Mid-rise lift height suited for routine maintenance and service work
Smooth hydraulic lifting for consistent operation across daily cycles
Wide drive-on platform with sliding extension panels for varied wheelbases
Low-profile ~4.3" lowered height for easy vehicle entry
Electric power unit on a mobile cart with rolling handle
Built-in mechanical safety lock with controlled hydraulic release
Compatible with cars, SUVs, and light trucks

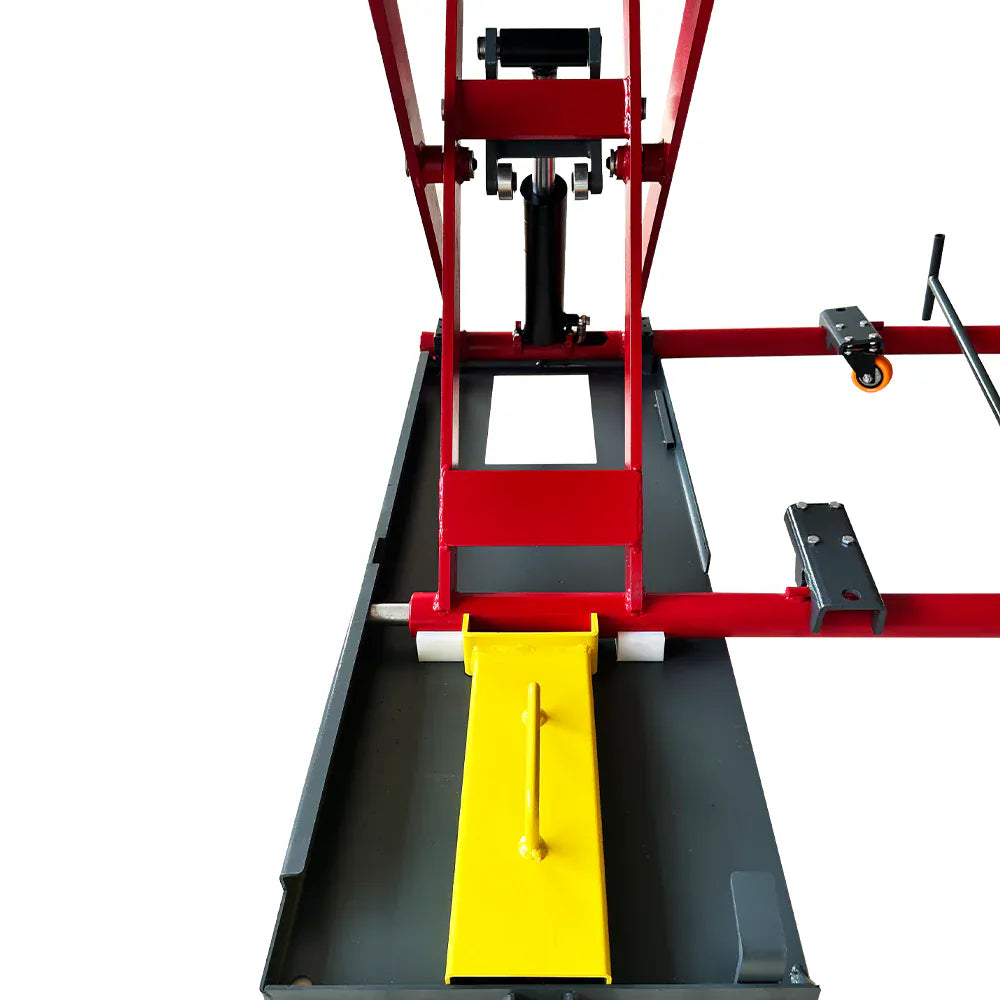

Katool KT-X77 hydraulic cylinder mounted in the scissor frame — Hydraulic cylinder integrated into the scissor frame.

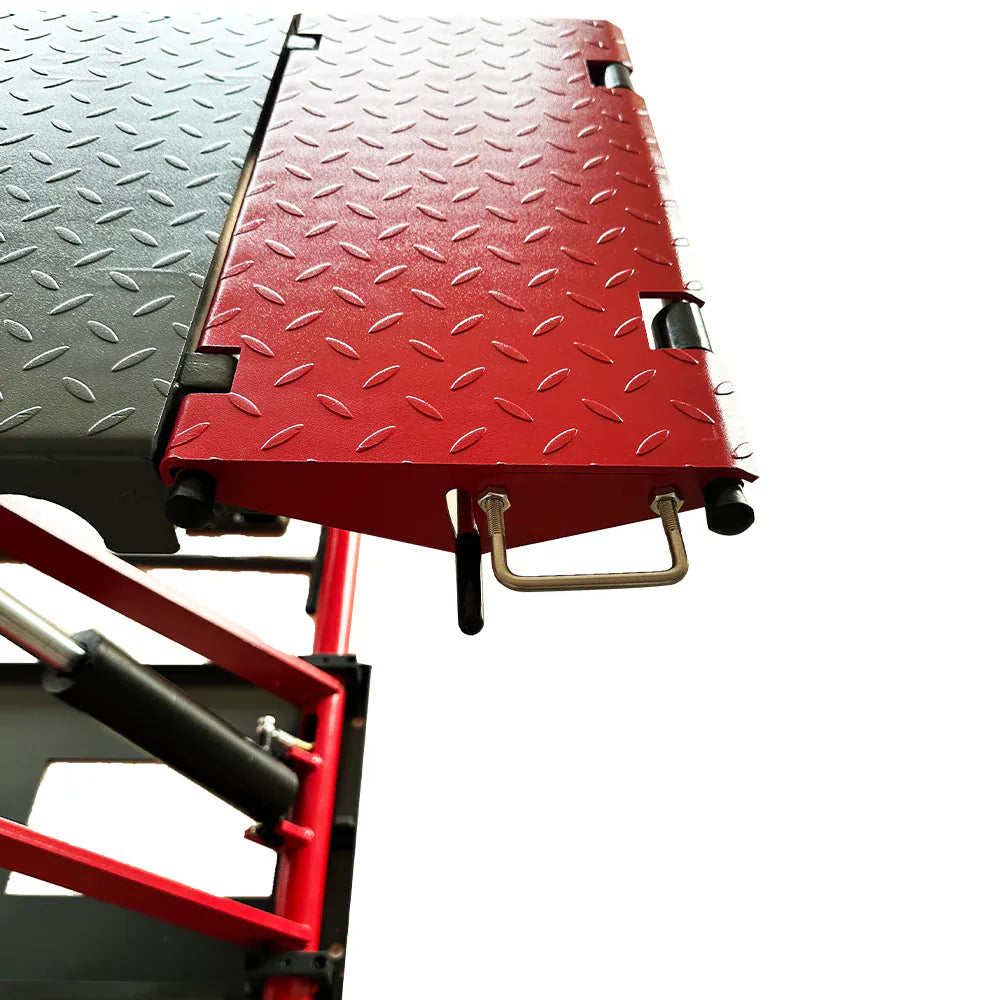

Katool KT-X77 sliding platform extension diagram showing range of motion — Sliding platform extensions adjust to the vehicle wheelbase.

Specifications

Katool KT-X77 Mid-Rise Scissor Lift Specifications
Model	KT-X77
Product Type	Mid-Rise Drive-On Scissor Lift
Lifting Capacity	~7,700 lbs
Maximum Lifting Height	~39.4" (1,000 mm)
Minimum Lowered Height	~4.3" (110 mm)
Platform Length	~78" (1,980 mm)
Overall Width	~63" (1,600 mm)
Material	Heavy-duty alloy steel
Power	Electric 110V (30A breaker); 220V variant available — call to specify
Operation	Electric lift with hydraulic safety release
Safety	Built-in mechanical locking system
Shipping Weight	~1,300 lbs
Vehicle Compatibility	Cars, SUVs, and light trucks

Katool KT-X77 dimensional drawing with side and top metric measurements — Side and top dimension drawing (millimeters).
